Circular Motion Kathy Buckland What is Circular Motion
Circular Motion Kathy Buckland
What is Circular Motion? • The circular path along which an object travels • The rotation around a fixed axis What is the word used to describe this path? ORBIT

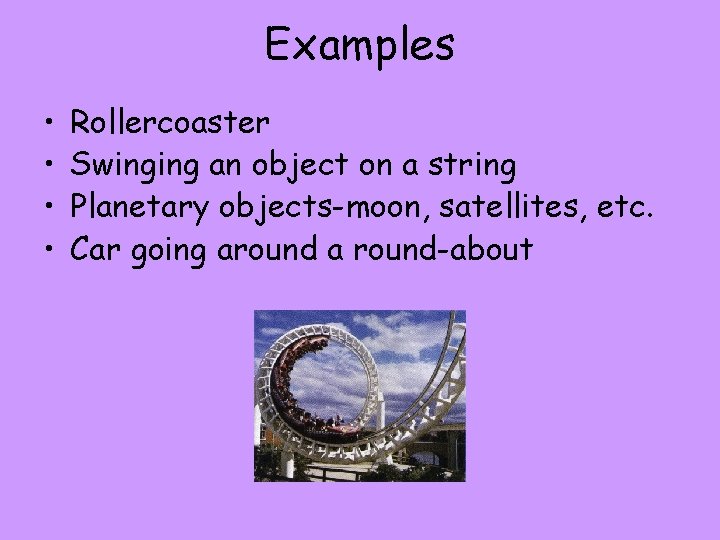

Examples • • Rollercoaster Swinging an object on a string Planetary objects-moon, satellites, etc. Car going around a round-about
Back to the mid 1600’s… Newton’s Second Law: “Mutationem motus proportionalem esse vi motrici impressae, et fieri secundum lineam rectam qua vis illa imprimitur” -Principia Mathematica (1687) Otherwise known as… F=force (N) m=mass (kg) a=acceleration (m/s 2)

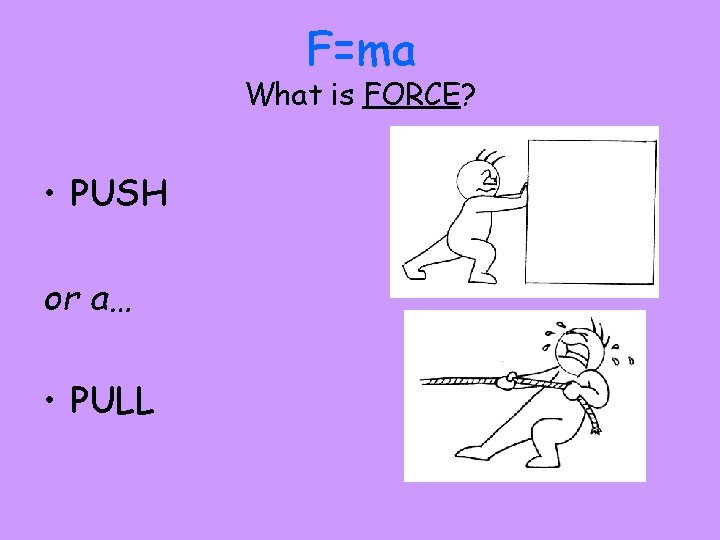

F=ma What is FORCE? • PUSH or a… • PULL

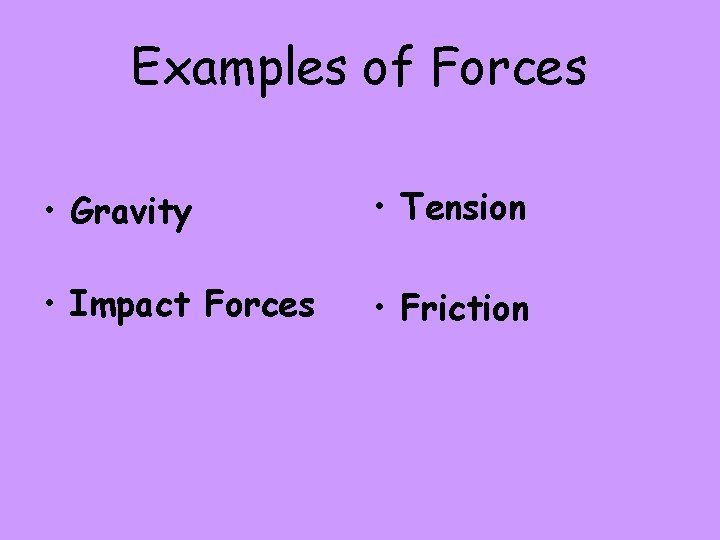

Examples of Forces • Gravity • Tension • Impact Forces • Friction
Circular Motion and Force How does the object stay in its path? This force is called… CENTRIPETAL FORCE centrum "center" and petere “go to” or “seek” To get where you want “to go”, you must…. PEDAL….
Not a new force !! Examples of forces: • Gravity • Impact Forces • Tension • Friction Examples of these “acting” as the CENTRIPETAL FORCE • Ball on a string • Rollercoaster • Planetary Motion • Car going in circles
What next? MASS • The amount of MATTER an object contains • Not weight -weight changes depending on gravitation field

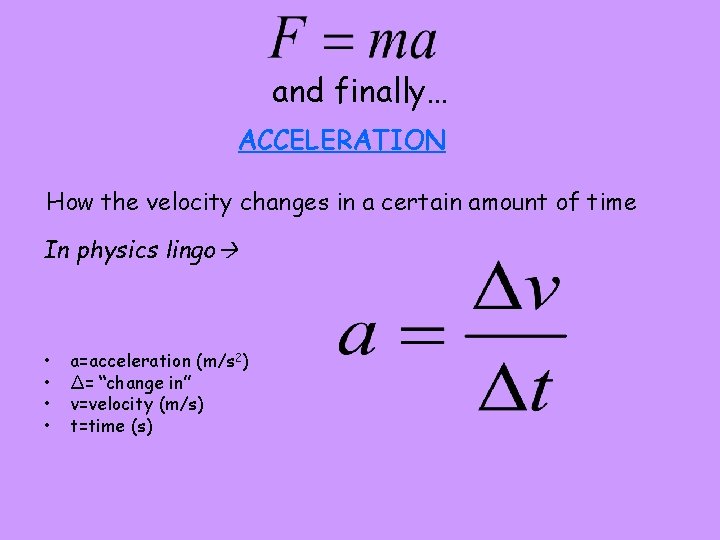

and finally… ACCELERATION How the velocity changes in a certain amount of time In physics lingo • • a=acceleration (m/s 2) Δ= “change in” v=velocity (m/s) t=time (s)
2007 Lamborghini Murcielago LP 640 acceleration: 0 -62 mph time of 3. 4 seconds (0 -100 km/h in 3. 4 seconds!)

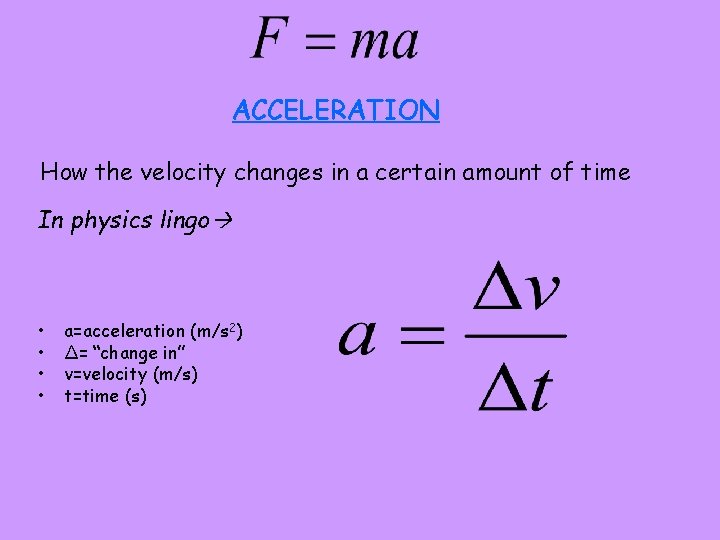

ACCELERATION How the velocity changes in a certain amount of time In physics lingo • • a=acceleration (m/s 2) Δ= “change in” v=velocity (m/s) t=time (s)

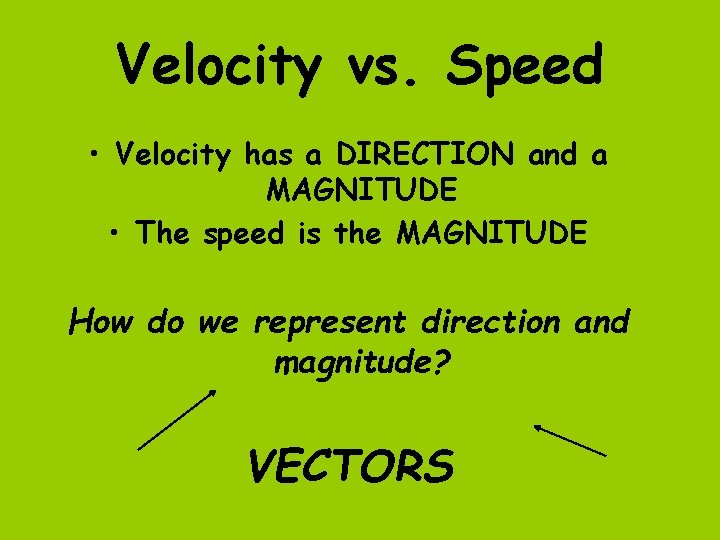

Velocity vs. Speed • Velocity has a DIRECTION and a MAGNITUDE • The speed is the MAGNITUDE How do we represent direction and magnitude? VECTORS

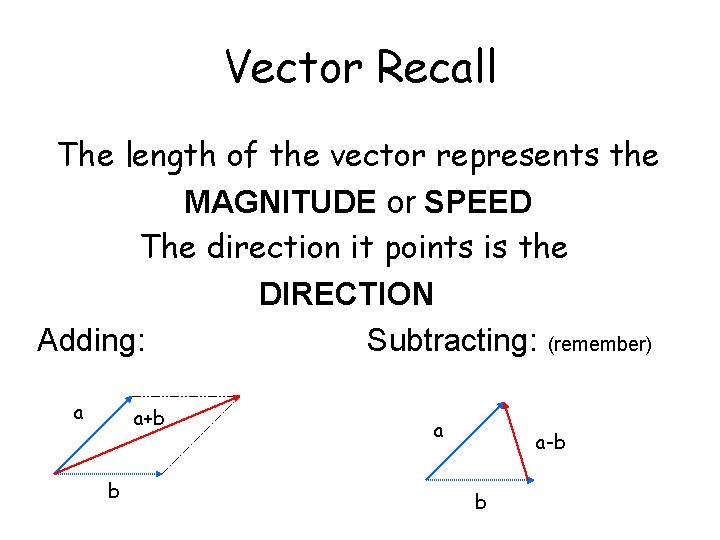

Vector Recall The length of the vector represents the MAGNITUDE or SPEED The direction it points is the DIRECTION Adding: Subtracting: (remember) a a+b b a a-b b

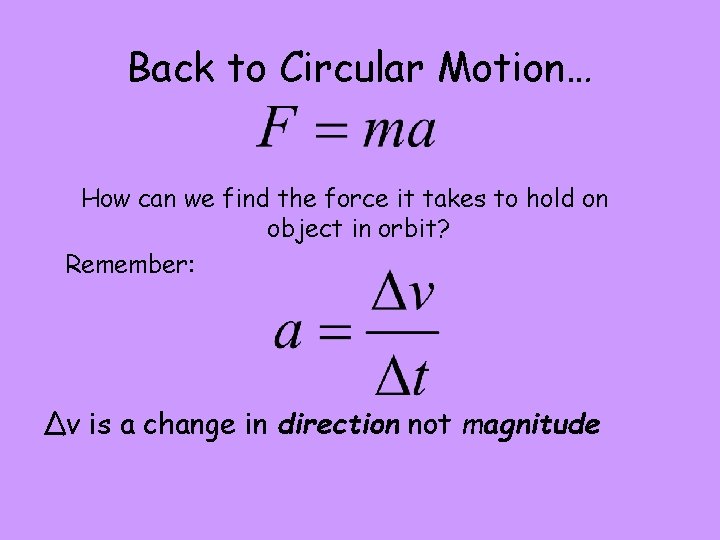

Back to Circular Motion… How can we find the force it takes to hold on object in orbit? Remember: Δv is a change in direction not magnitude

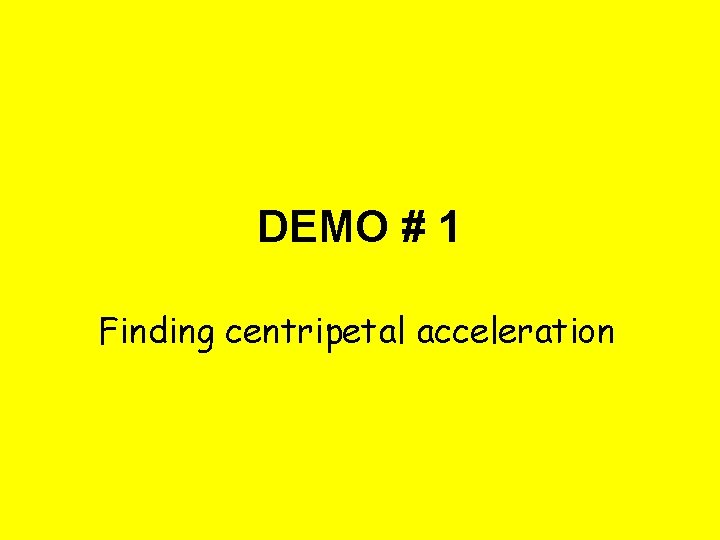

DEMO # 1 Finding centripetal acceleration
What will it be?
How do we get centripetal acceleration ? A little geometry and algebra… Find similar triangles t 2 t 1 Three more steps. . 1. Make a tiny triangle so. . • • have a right triangle use sinθ = opposite hypotenuse • sin θ = θ 2. Use similar triangles 3. Use some algebra S=v(t 2 -t 1)=vΔt
Centripetal acceleration is…
Finally put it all together… For circular motion…
DEMO # 2 Observing the relationship

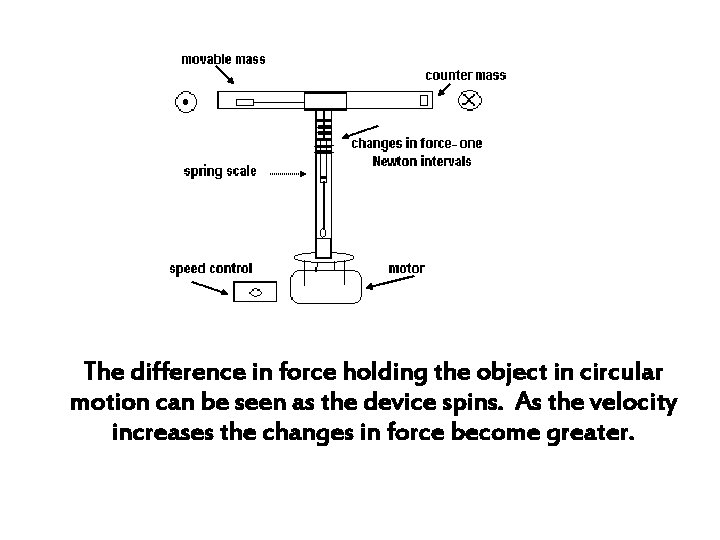

The difference in force holding the object in circular motion can be seen as the device spins. As the velocity increases the changes in force become greater.
Force comparisons… Compare to lifting up objects. Remember acceleration is gravity≈10 m/s 2 1 N≈ force required to hold up an orange 10 N≈ force required to hold this weight Force to lift an elephant? m ≈ 4500 kg so… F ≈ 45000 N !! like lifting 40000 oranges

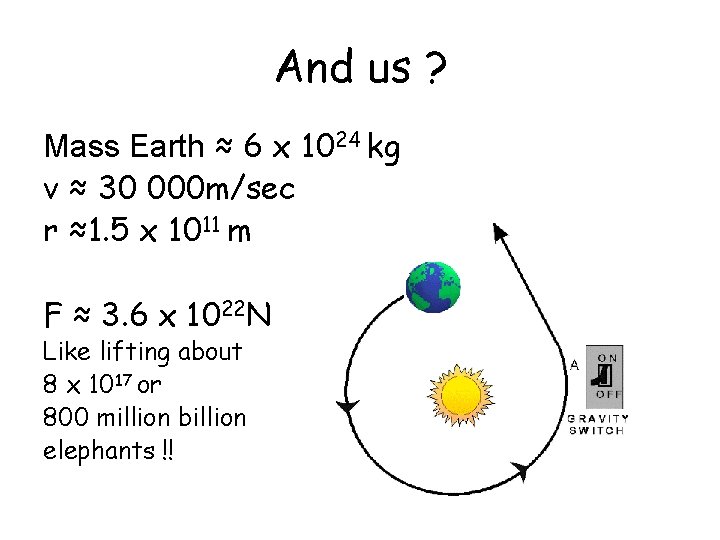

And us ? Mass Earth ≈ 6 x 1024 kg v ≈ 30 000 m/sec r ≈1. 5 x 1011 m F ≈ 3. 6 x 1022 N Like lifting about 8 x 1017 or 800 million billion elephants !!

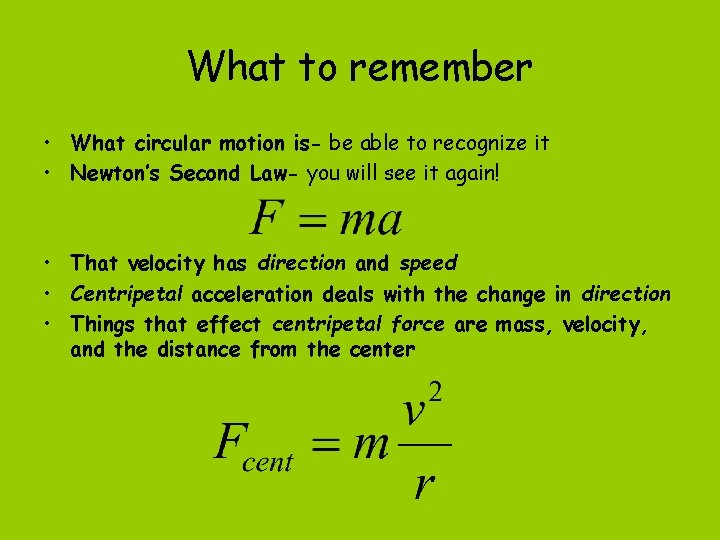

What to remember • What circular motion is- be able to recognize it • Newton’s Second Law- you will see it again! • That velocity has direction and speed • Centripetal acceleration deals with the change in direction • Things that effect centripetal force are mass, velocity, and the distance from the center

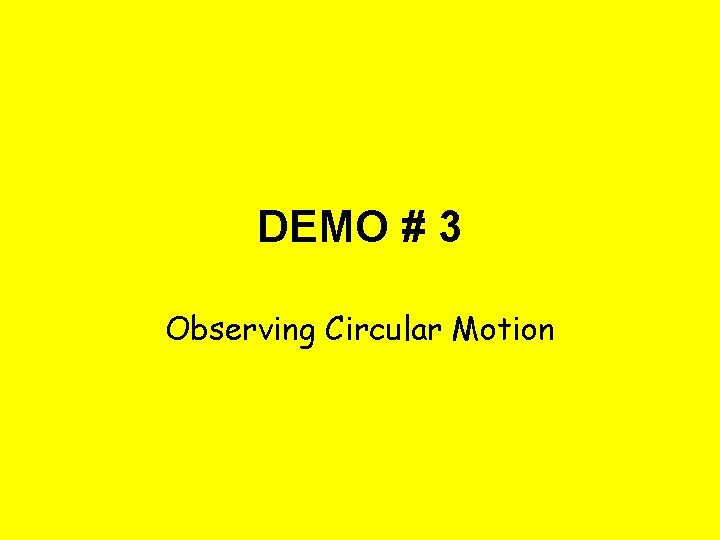

DEMO # 3 Observing Circular Motion
