Circular Motion Created by Craig Smiley Harrison HS

Circular Motion Created by Craig Smiley (Harrison HS, West Lafayette, IN) Supported by grant PHY-0851826 from the National Science Foundation and by Purdue University

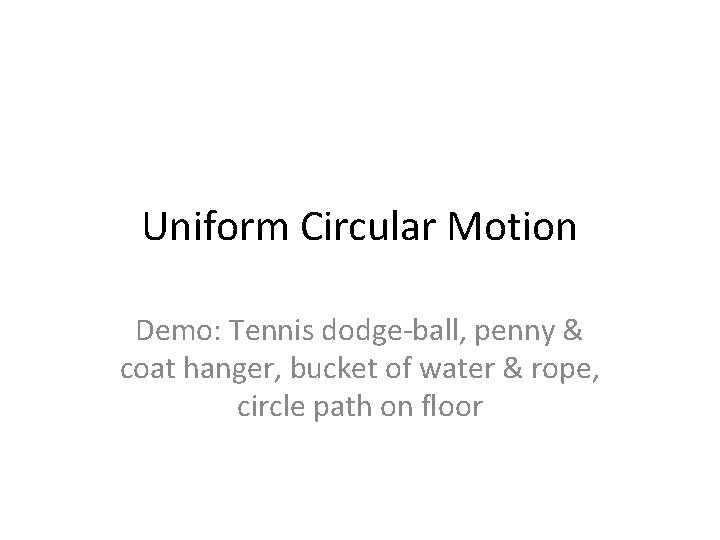

Uniform Circular Motion Demo: Tennis dodge-ball, penny & coat hanger, bucket of water & rope, circle path on floor

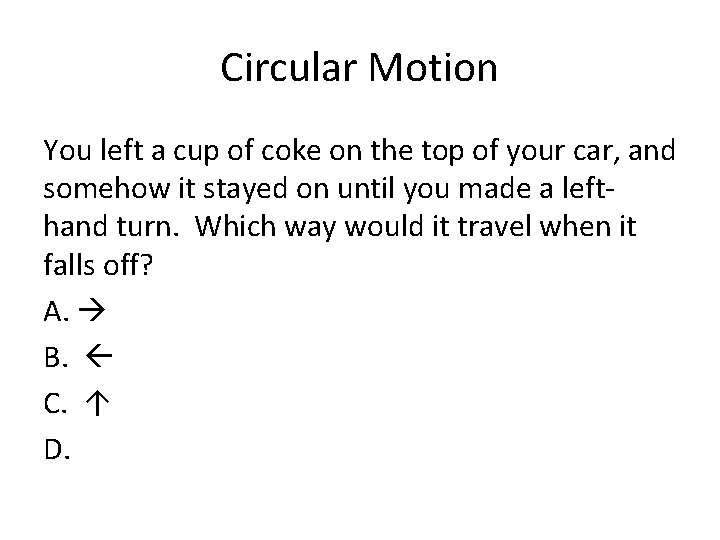

Circular Motion You left a cup of coke on the top of your car, and somehow it stayed on until you made a lefthand turn. Which way would it travel when it falls off? A. B. C. ↑ D.

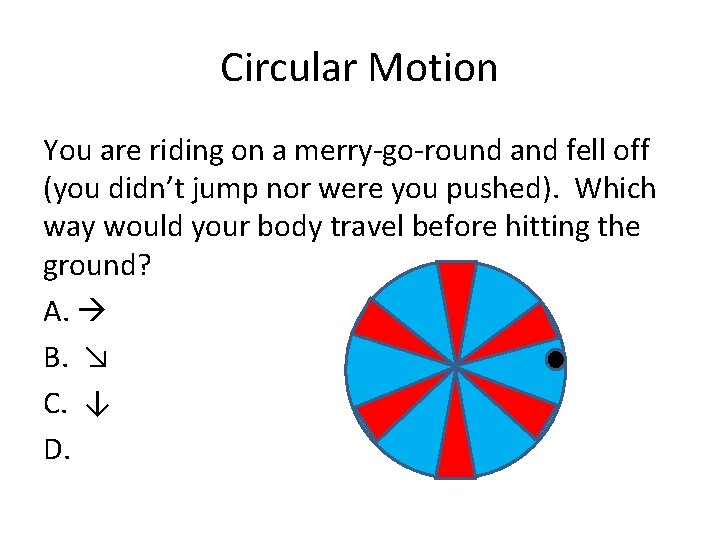

Circular Motion You are riding on a merry-go-round and fell off (you didn’t jump nor were you pushed). Which way would your body travel before hitting the ground? A. B. ↘ C. ↓ D.

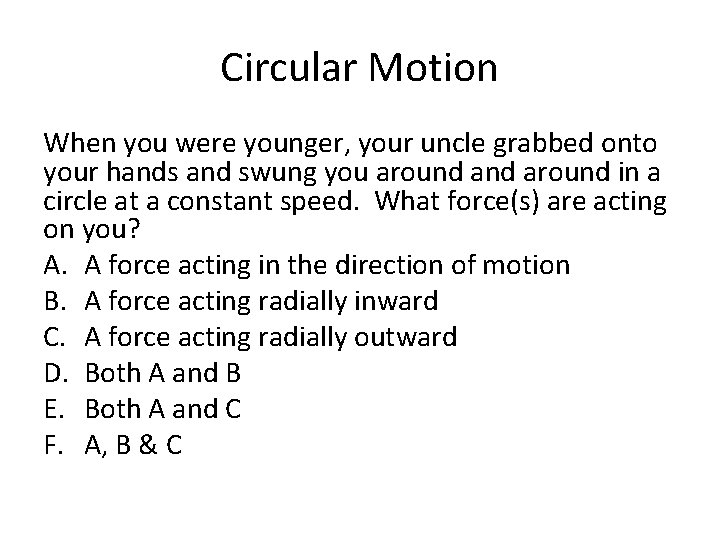

Circular Motion When you were younger, your uncle grabbed onto your hands and swung you around in a circle at a constant speed. What force(s) are acting on you? A. A force acting in the direction of motion B. A force acting radially inward C. A force acting radially outward D. Both A and B E. Both A and C F. A, B & C

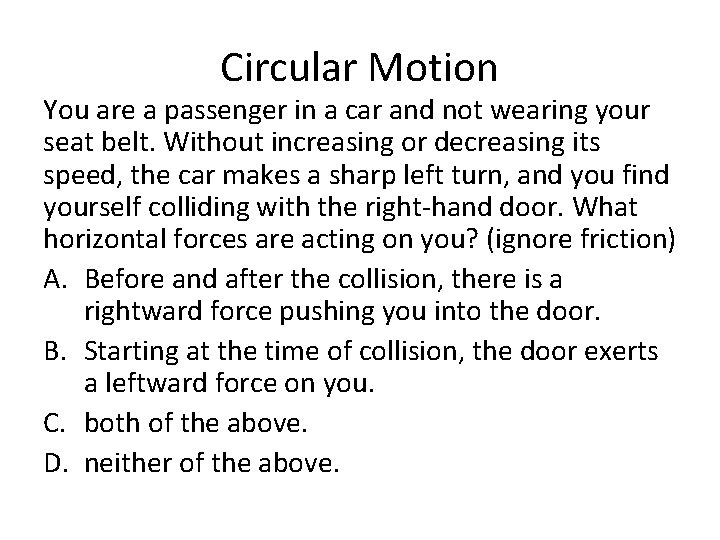

Circular Motion You are a passenger in a car and not wearing your seat belt. Without increasing or decreasing its speed, the car makes a sharp left turn, and you find yourself colliding with the right-hand door. What horizontal forces are acting on you? (ignore friction) A. Before and after the collision, there is a rightward force pushing you into the door. B. Starting at the time of collision, the door exerts a leftward force on you. C. both of the above. D. neither of the above.

Circular Motion You’re in your car on an non-banked circular entrance ramp going onto the interstate making a hard right-hand turn while going pretty fast. What kind of force is acting on your car playing the role of centripetal force? A. Gravity B. Normal C. Applied D. Friction E. It’s just centripetal force

Circular Motion What is the correct FBD of your car when it is turning on a frictionless banked curve while moving fairly quickly around the curve looking at the back of the car? A. B. C. D. E. None of these

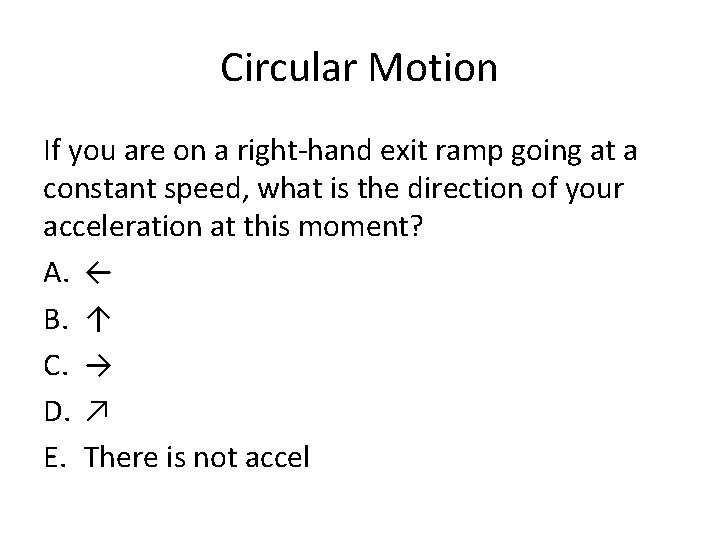

Circular Motion If you are on a right-hand exit ramp going at a constant speed, what is the direction of your acceleration at this moment? A. ← B. ↑ C. → D. ↗ E. There is not accel

Circular Motion When turning on a banked curve what is the direction of the centripetal force? Follow up: How should you orientate the axis?

Circular Motion What is the correct FBD of your car when it is turning on a banked curve while moving fairly quickly around the curve? A. B. C. D.

Circular Motion •

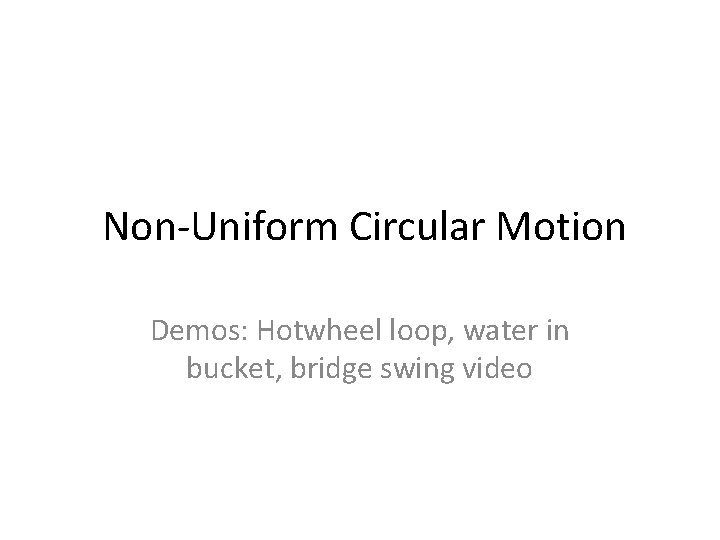

Non-Uniform Circular Motion Demos: Hotwheel loop, water in bucket, bridge swing video

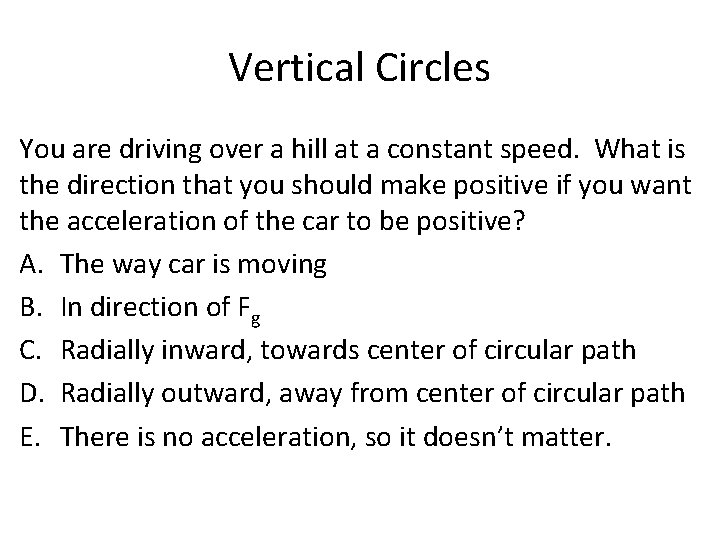

Vertical Circles You are driving over a hill at a constant speed. What is the direction that you should make positive if you want the acceleration of the car to be positive? A. The way car is moving B. In direction of Fg C. Radially inward, towards center of circular path D. Radially outward, away from center of circular path E. There is no acceleration, so it doesn’t matter.

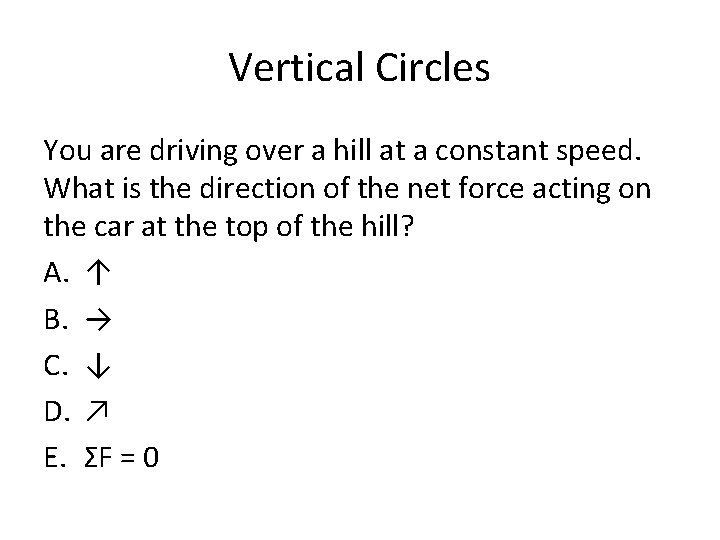

Vertical Circles You are driving over a hill at a constant speed. What is the direction of the net force acting on the car at the top of the hill? A. ↑ B. → C. ↓ D. ↗ E. ΣF = 0

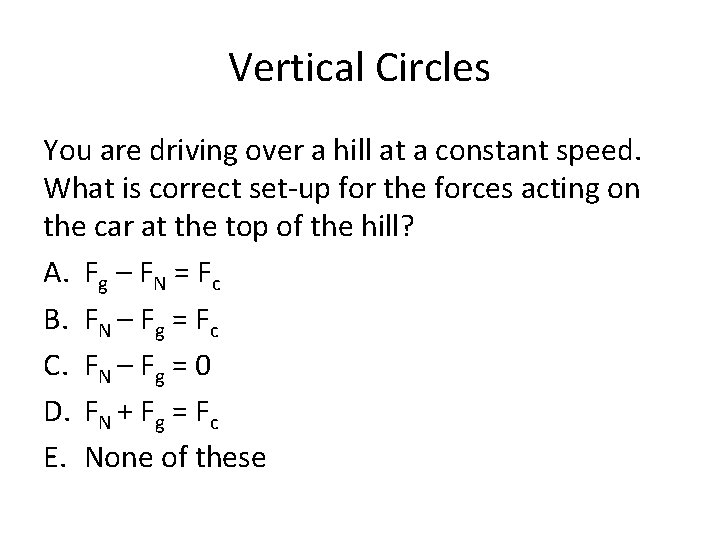

Vertical Circles You are driving over a hill at a constant speed. What is correct set-up for the forces acting on the car at the top of the hill? A. Fg – FN = Fc B. FN – Fg = Fc C. FN – Fg = 0 D. FN + Fg = Fc E. None of these

Vertical Circles As a hotwheel car goes quickly around a loop-aloop, what is the FBD of the car at the highest point? (assume frictionless) A. B. C. D. E. None of these

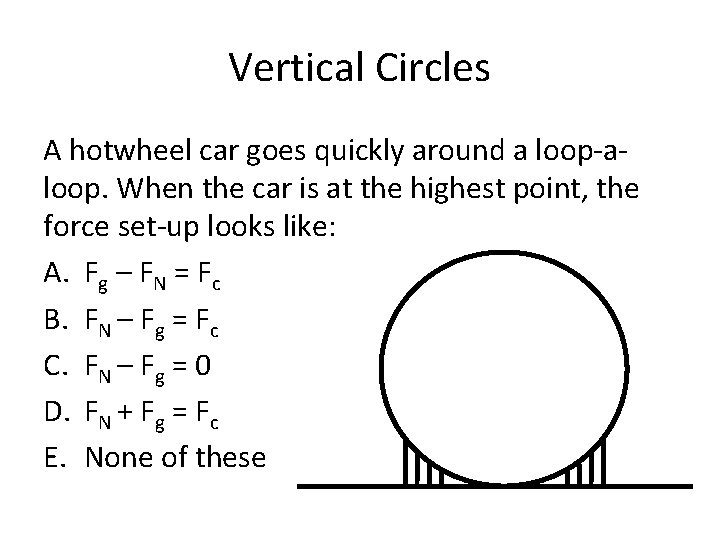

Vertical Circles A hotwheel car goes quickly around a loop-aloop. When the car is at the highest point, the force set-up looks like: A. Fg – FN = Fc B. FN – Fg = Fc C. FN – Fg = 0 D. FN + Fg = Fc E. None of these

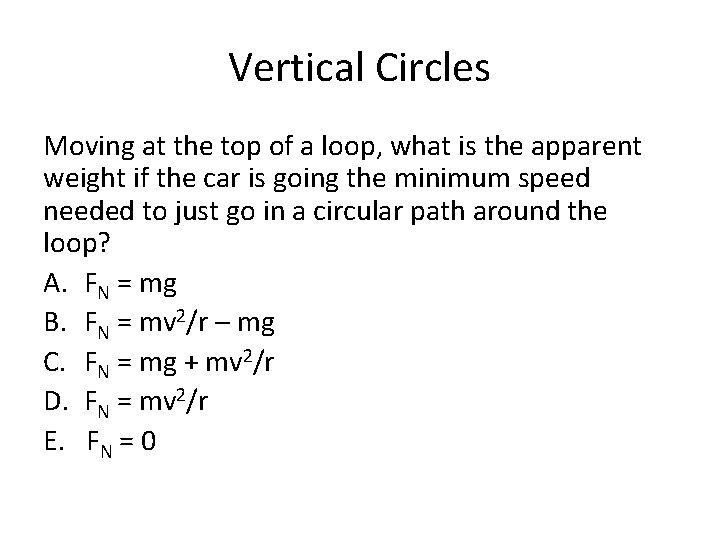

Vertical Circles Moving at the top of a loop, what is the apparent weight if the car is going the minimum speed needed to just go in a circular path around the loop? A. FN = mg B. FN = mv 2/r – mg C. FN = mg + mv 2/r D. FN = mv 2/r E. FN = 0

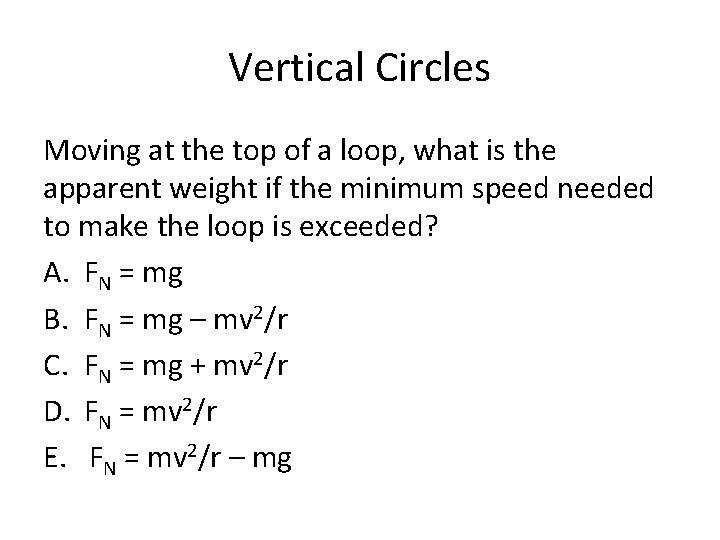

Vertical Circles Moving at the top of a loop, what is the apparent weight if the minimum speed needed to make the loop is exceeded? A. FN = mg B. FN = mg – mv 2/r C. FN = mg + mv 2/r D. FN = mv 2/r E. FN = mv 2/r – mg

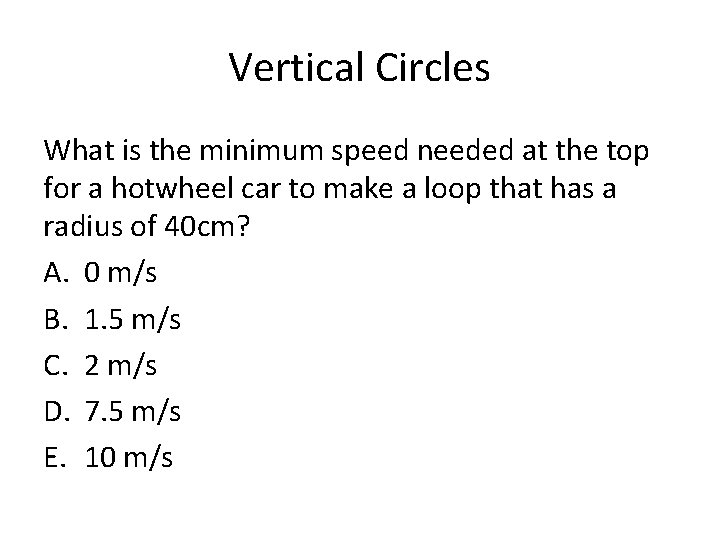

Vertical Circles What is the minimum speed needed at the top for a hotwheel car to make a loop that has a radius of 40 cm? A. 0 m/s B. 1. 5 m/s C. 2 m/s D. 7. 5 m/s E. 10 m/s

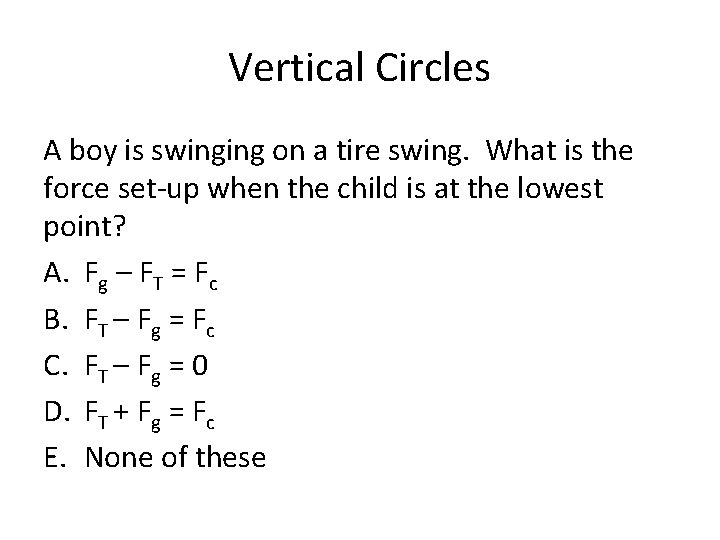

Vertical Circles A boy is swinging on a tire swing. What is the force set-up when the child is at the lowest point? A. Fg – FT = Fc B. FT – Fg = Fc C. FT – Fg = 0 D. FT + Fg = Fc E. None of these

Vertical Circles A boy is swinging on a tire swing. When he is at the lowest point, which force is the greatest? A. Fg B. Fc C. FT D. FT = Fg E. They are all the same

Vertical Circles Moving at the bottom of a loop, what is the Normal force equal to? A. FN = mg B. FN = mg – mv 2/r C. FN = mg + mv 2/r D. FN = mv 2/r E. None of these

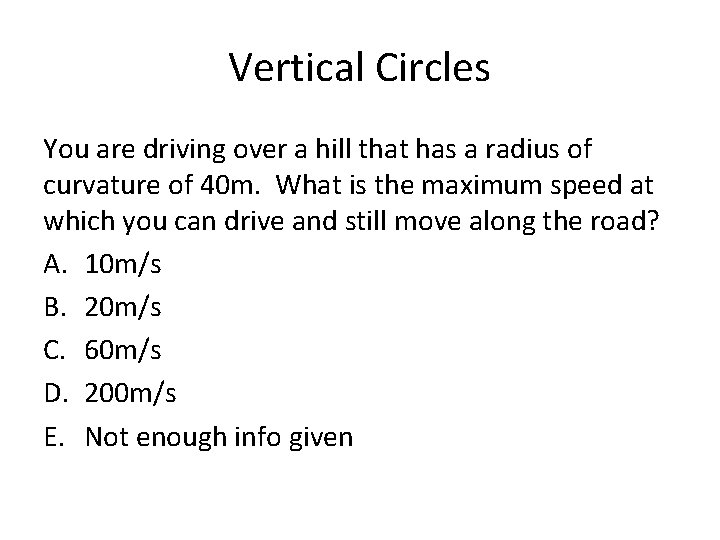

Vertical Circles You are driving over a hill that has a radius of curvature of 40 m. What is the maximum speed at which you can drive and still move along the road? A. 10 m/s B. 20 m/s C. 60 m/s D. 200 m/s E. Not enough info given

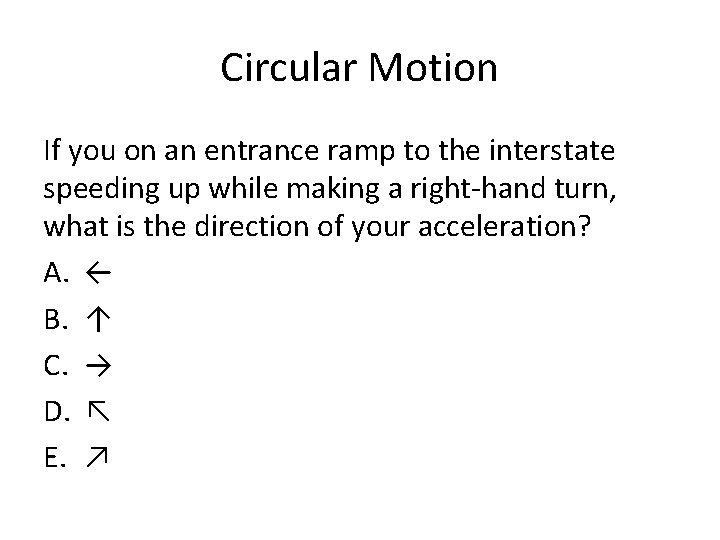

Circular Motion If you on an entrance ramp to the interstate speeding up while making a right-hand turn, what is the direction of your acceleration? A. ← B. ↑ C. → D. ↖ E. ↗

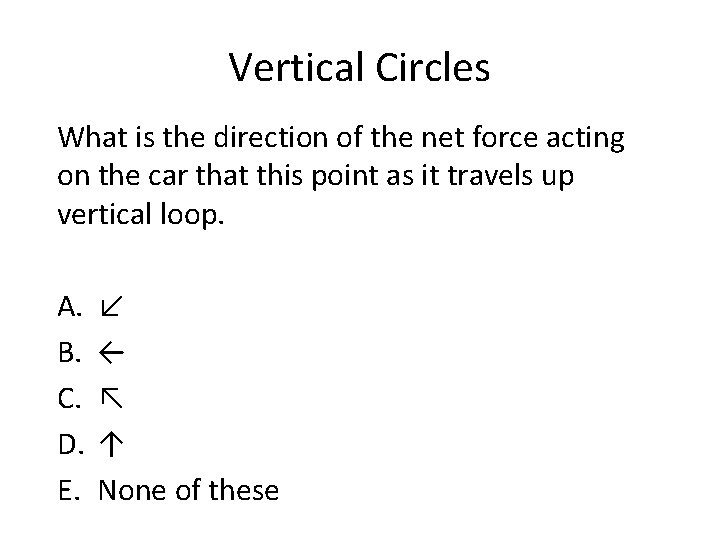

Vertical Circles What is the direction of the net force acting on the car that this point as it travels up vertical loop. A. B. C. D. E. ↙ ← ↖ ↑ None of these

At which location did the cart experience the greatest acceleration? E. All the same
