Circle Area Circumference Foundation GCSE Questions AQA These

Circle – Area & Circumference – Foundation – GCSE Questions – AQA These questions are the same format as previous GCSE exams. COPY means they use the exact same numbers as the original GCSE question. Otherwise, they are clone questions using different numbers. The worksheets are provided in 2 sizes.

Printing To print handouts from slides Select the slide from the left. Then click: File > Print > ‘Print Current Slide’ To print multiple slides Click on a section title to highlight all those slides, or press ‘Ctrl’ at the same time as selecting slides to highlight more than one. Then click: File > Print > ‘Print Selection’ To print double-sided handouts Highlight both slides before using ‘Print Selection’. Choose ‘Print on Both Sides’ and ‘Flip on Short Edge’.

AQA Foundation: November 2017 Paper 2, Q 16 1 A wheel is made of a circular rim and 8 spokes as shown. Not drawn accurately AQA Foundation: November 2017 Paper 2, Q 16 1 The length of each spoke is 23 cm Work out the total length of the rim and spokes. Answer [3 marks] cm Answer AQA Foundation: November 2017 Paper 2, Q 16 1 A wheel is made of a circular rim and 8 spokes as shown. Not drawn accurately [3 marks] cm AQA Foundation: November 2017 Paper 2, Q 16 1 A wheel is made of a circular rim and 8 spokes as shown. The length of each spoke is 23 cm Work out the total length of the rim and spokes. Answer [3 marks] cm Not drawn accurately Answer Not drawn accurately [3 marks] cm

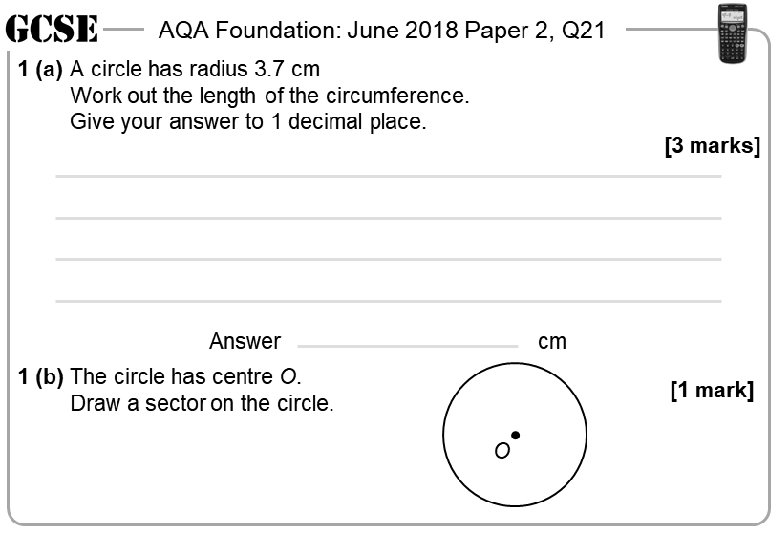

AQA Foundation: June 2018 Paper 2, Q 21 1 (a) A circle has radius 3. 7 cm Work out the length of the circumference. Give your answer to 1 decimal place. AQA Foundation: June 2018 Paper 2, Q 21 [3 marks] Answer cm 1 (b) The circle has centre O. Draw a sector on the circle. 1 (a) A circle has radius 3. 7 cm Work out the length of the circumference. Give your answer to 1 decimal place. Answer [1 mark] 1 (a) A circle has radius 3. 7 cm Work out the length of the circumference. Give your answer to 1 decimal place. AQA Foundation: June 2018 Paper 2, Q 21 [3 marks] cm 1 (a) A circle has radius 3. 7 cm Work out the length of the circumference. Give your answer to 1 decimal place. [3 marks] Answer [1 mark] O AQA Foundation: June 2018 Paper 2, Q 21 1 (b) The circle has centre O. Draw a sector on the circle. cm 1 (b) The circle has centre O. Draw a sector on the circle. O Answer [3 marks] cm 1 (b) The circle has centre O. Draw a sector on the circle. [1 mark] O

AQA Foundation: June 2017 Paper 3, Q 13 1 A circle is drawn on a centimetre grid. 1 (a) Draw a tangent to the circle [1 mark] 1 (b) Toby works out that the area of the circle is more than 16 cm 2 Why must this be wrong? Answer

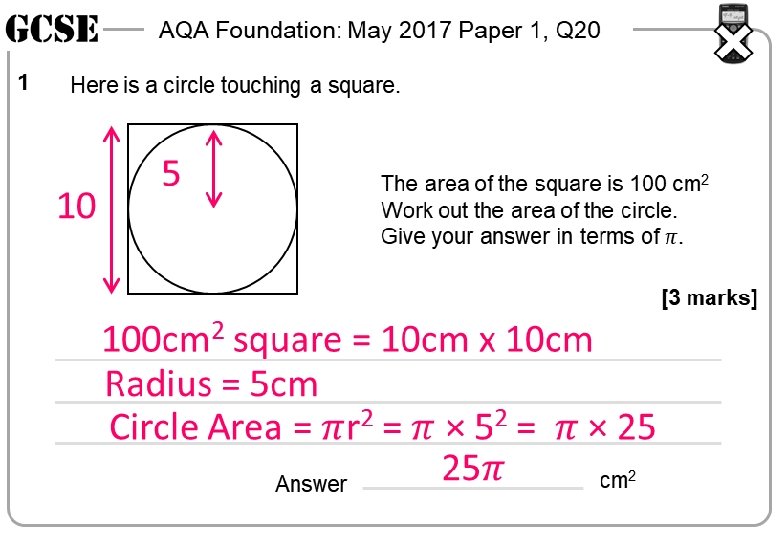

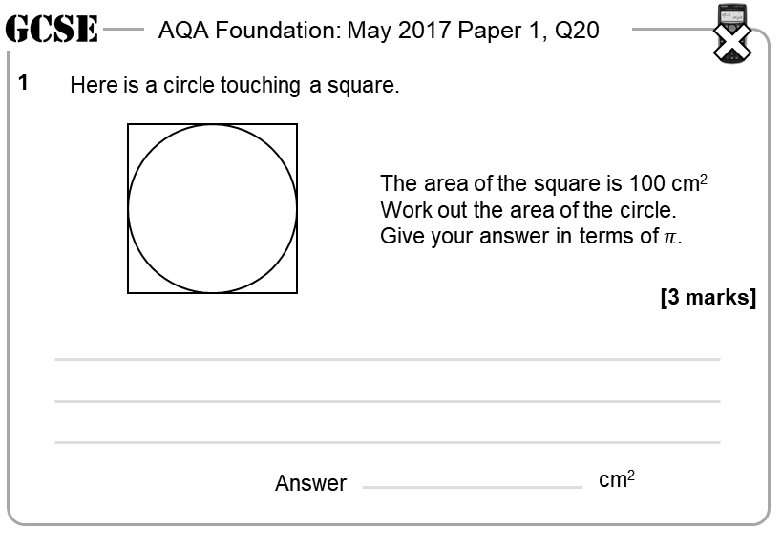

AQA Foundation: May 2017 Paper 1, Q 20 1 Here is a circle touching a square. [3 marks] Answer [3 marks] cm 2 Answer AQA Foundation: May 2017 Paper 1, Q 20 1 cm 2 AQA Foundation: May 2017 Paper 1, Q 20 1 Here is a circle touching a square. [3 marks] Answer cm 2

Questions? Comments? Suggestions? …or have you found a mistake!? Any feedback would be appreciated . Please feel free to email: tom@goteachmaths. co. uk
