Chronic obstructive pulmonary diseases ﺑﻴﺪﺍﺀ ﺣﻤﻴﺪ ﻋﺒﺪﺍﻟﻠﻪ. ﺩ. ﻡ. ﺍ

Chronic obstructive pulmonary diseases 1 - Emphysema 2 - Chronic bronchitis 3 - Asthma 4 - Bronchiactasis

Normal respiratory acinus Resp. bronchiole Alveolar duct Alveolar sac

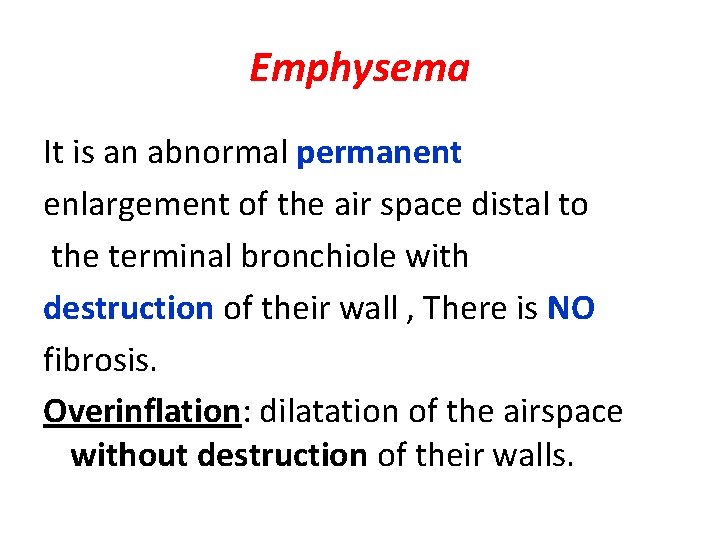

Emphysema It is an abnormal permanent enlargement of the air space distal to the terminal bronchiole with destruction of their wall , There is NO fibrosis. Overinflation: dilatation of the airspace without destruction of their walls.

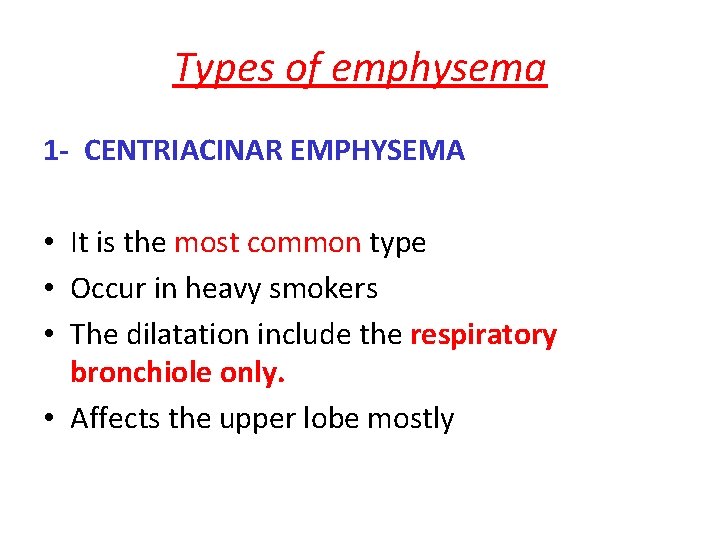

Types of emphysema 1 - CENTRIACINAR EMPHYSEMA • It is the most common type • Occur in heavy smokers • The dilatation include the respiratory bronchiole only. • Affects the upper lobe mostly

Grossly: centriacinar

2 - PANACINAR EMPHYSEMA • The Whole Acinus is uniformly dilated. • Affects the lower zones mostly. • Associated with anti elastase deficiency e. g α-1 atni-trypsin deficiency.

Grossly: Panacinar

3 - PARASEPTAL EMPHYSEMA • Only the distal part of the acinus is involved i. e the alveolar SAC. • The common site is adjacent to the pleura, near a fibrotic, scaring, atelactic area. • It causes the formation of multiple cysts (0. 5 cm- 2 cm) that may rupture and spontaneous pneumothorax in young adult.

4 - IRREGULAR EMPHYSEMA • The Acini are irregularly involved. • Associated with scaring following a healed inflammatory process.

4. Bullous emphysema: includes any form of emphysema that produce a large subpleural bullae > 1 cm in diameter. 5. Interstitial emphysema: (occur when there is cough +bronchial obstruction) air will escape into the connective tissue stroma of the lung, mediastinum & subcutaneous tissue.

Bullous emphysema

Gross: Emphysematous lung

Microscopically

Pathogenesis • • The key role in the whole process is: PROTEASE --- ANTIPROTEASE imbalance. Proteases: are enzymes which digest the tissue. Anti-proteases: are the counteracting enzymes that stop the action of digestion. Normal persons have a balance between the two enzymes. The main cellular elastase (protease) is secreted from the NEUTROPHILS, it is capable to digest human lung if not inhibited by the anti-elastase enzyme e. g. (α-1 anti-trypsin). The free radicals released from the neutrophils can inhibit the release of this α-1 atni-trypsin. Other sites that release proteases: Macrophages. Bacteria. Mast cell. Pancreas.

• • • So the Development of emphysema occurs: When there is elastase activity as in smoking. When there is anti-elastase activity as in : -Hereditary α-1 anti- trypsin deficiency. -Acquired as in smokers due to the effect of nicotine, O 2 free radicals that inhibit the release of anti-elastase. The effect of smoking in the development of emphysema 1 -It the no. of neutrophils, macrophages, in the alveoli. 2 -Nicotine is a chemotactic substance for neutrophils. 3 -It stimulates the elastase activity. 4 -The oxidants in the smoke and the free radicals from the accompanying neutrophils inhibit the secretion of anti-elastase.

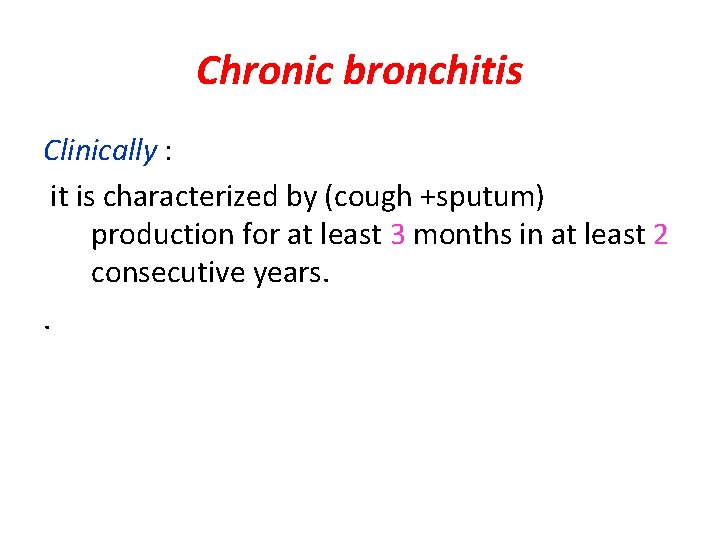

Chronic bronchitis Clinically : it is characterized by (cough +sputum) production for at least 3 months in at least 2 consecutive years. .

Microscopically: 1. Enlarged mucous secreting glands in the trachea &bronchus, this is best estimated by the increase in the Reid Index. 2. Marked narrowing of the bronchioles due to goblet cell metaplasia, mucous plug, inflammation & fibrosis. 3. The bronchial epithelium may show squamous metaplasia and dysplasia.

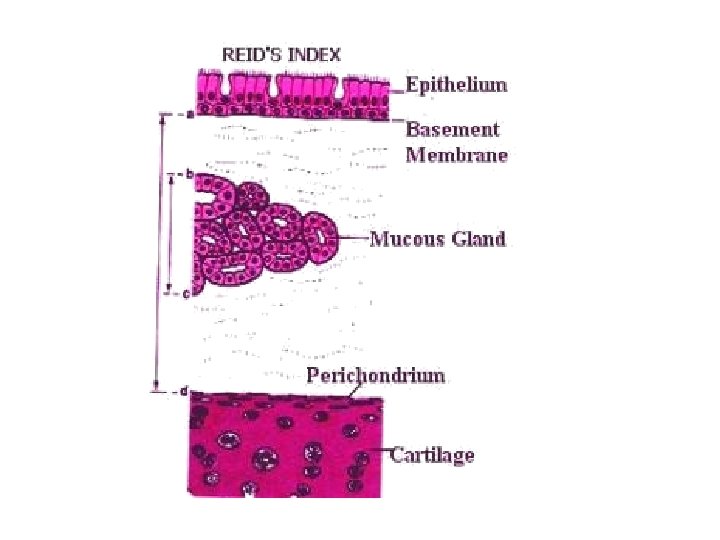

Reid Index It is the ratio of the thickness of the mucous gland layer / thickness of the wall between the epithelium and the cartilage. Normally it is 0. 4 , it increases in chronic bronchitis.

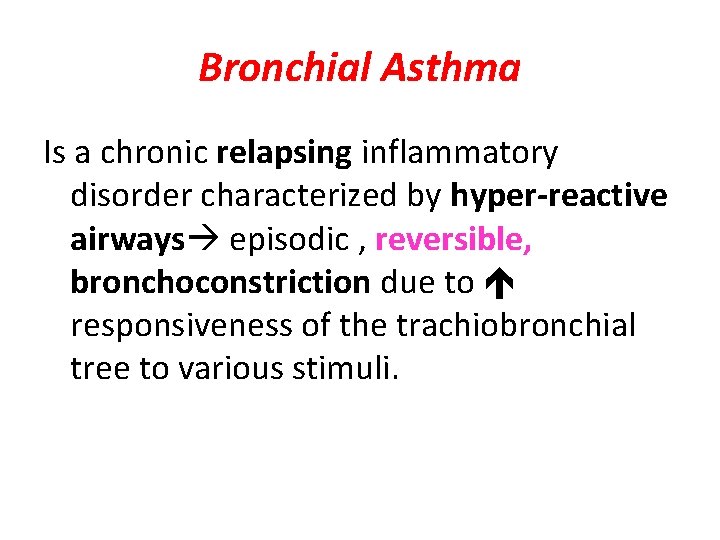

Bronchial Asthma Is a chronic relapsing inflammatory disorder characterized by hyper-reactive airways episodic , reversible, bronchoconstriction due to responsiveness of the trachiobronchial tree to various stimuli.

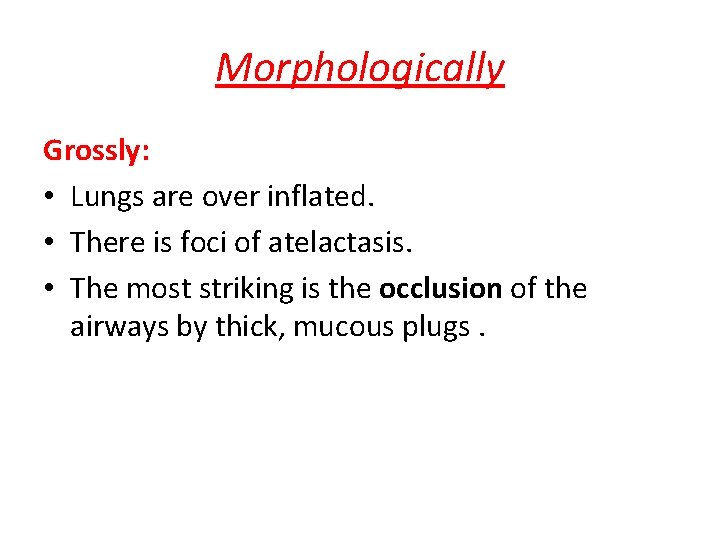

Morphologically Grossly: • Lungs are over inflated. • There is foci of atelactasis. • The most striking is the occlusion of the airways by thick, mucous plugs.

Microscopically: • The plugs composed of sheded epithelium forming the so called Curschmann spirals. • Charcot leyden crystals which are collections of the eosinophils membrane protein. • Thickening of the basement membrane of the bronchial epithelium. • Edema &inflammatory cells in the Br. Wall. • Increase in the no. of submucosal glands. • Hypertrophy of the bronchial wall muscle as a reflection of prolonged bronchoconstriction.

Bronchiectasis Is a chronic necrotizing infection of the bronchi &bronchioles leading to or associated with abnormal permanent dilatation of these airways.

Clinically Cough+ fever (when a powerful microorganism present) + copious foul smell purulent sputum.

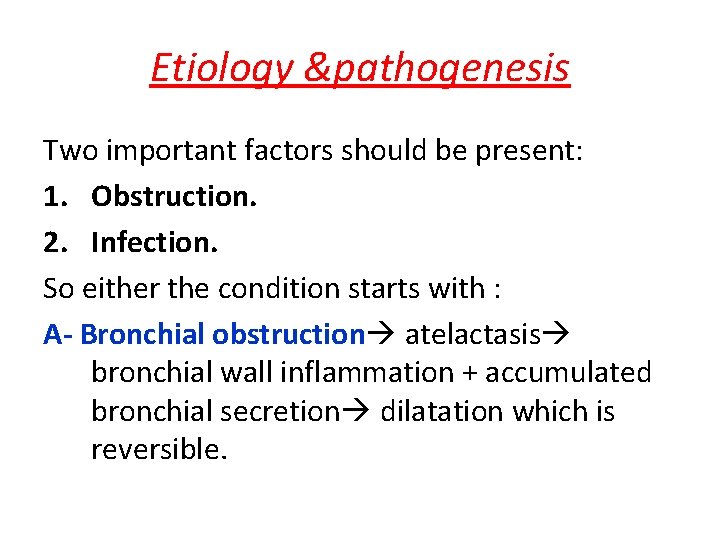

Etiology &pathogenesis Two important factors should be present: 1. Obstruction. 2. Infection. So either the condition starts with : A- Bronchial obstruction atelactasis bronchial wall inflammation + accumulated bronchial secretion dilatation which is reversible.

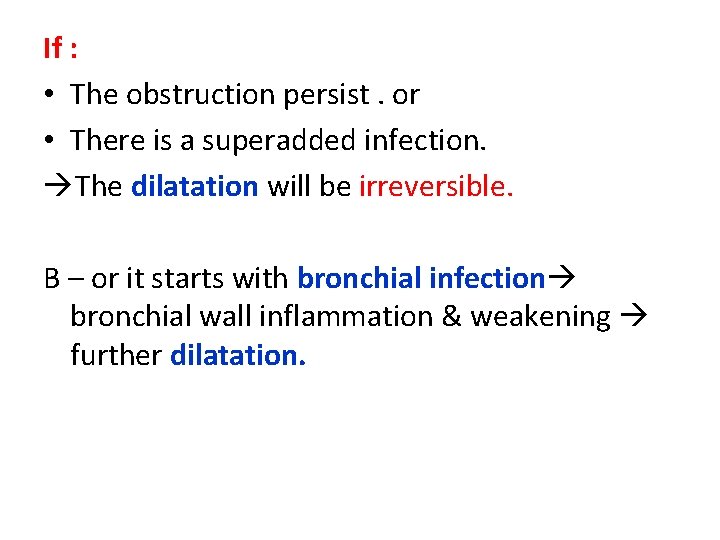

If : • The obstruction persist. or • There is a superadded infection. The dilatation will be irreversible. B – or it starts with bronchial infection bronchial wall inflammation & weakening further dilatation.

Grossly: • Affects the lower lobes bilaterally. • The affected airways are dilated & may take the shape of tube (cylindroid bronchiectasis). Others may show fusiform or sharp saccular distention • The dilatation produce cystic pattern on cut surface.

Bronchiectasis : gross

Gross

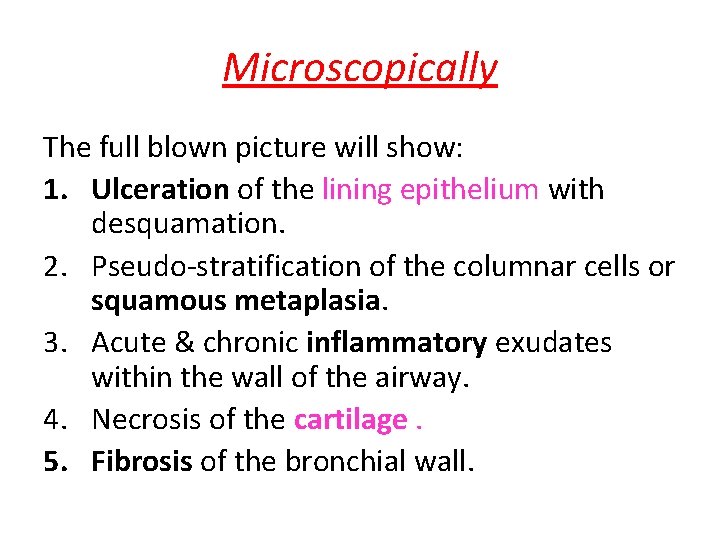

Microscopically The full blown picture will show: 1. Ulceration of the lining epithelium with desquamation. 2. Pseudo-stratification of the columnar cells or squamous metaplasia. 3. Acute & chronic inflammatory exudates within the wall of the airway. 4. Necrosis of the cartilage. 5. Fibrosis of the bronchial wall.
