Basic ILC RF Distribution Scheme (Baseline) BCD: linear 3 cryomodules per klystron 26 cavities (9 -8 -9) (Alternate) ACD: semi-branched w/ VTO’s & no circulators? • Fewer types of splitters (3 vs. 9) • Power division adjustable by pairs • Elimination of circulators possible

Baseline RF Distribution System Fixed Hybrid Tap-offs w/ various couplings Circulators 3 -stub tuners Alternative RF Distribution System Variable Tap-Offs (VTOs) 3 d. B Hybrids phase shifters

SLAC Variable Tap-Off (VTO) Mode Rotator (Center): Polarization Selecting 3 -Port Junction (Ends): oblong cross-section circular Full 4 -Port Assembly: Mechanical Design: Coupling is a function of center rotation angle: C = sin 2(2 a) machined aluminum; dip-brazed rotatable flanges length = 64. 924”

VTO Cold Test Results angle (degrees) ~0 angle 1 angle 2 ~45 coupling (d. B / %) -51. 4 / 0. 0007 -5. 67 / 27. 10 -2. 417 / 57. 32 -0. 004 / 99. 9 coupled phase (degrees) (57. 496) -81. 581 -81. 655 -81. 508 through phase (degrees) -22. 165 -22. 208 -21. 547 (32. 256) reflection (d. B / %) -40. 34 / 0. 012 -48. 39 / 0. 001 -48. 16 / 0. 002 -36. 84 / 0. 02 loss (d. B / %) -0. 033 / 0. 77 -0. 026 / 0. 61 -0. 028 / 0. 65 -0. 025 / 0. 57 Average attenuation: -0. 028 d. B / 0. 65% Coupled phase variation: 0. 15° Through phase variation: 0. 66°

L-Band “Magic-H” 3 -d. B Hybrid 20. 137” HFSS Design Mechanical Design • Ports oriented for branching distribution (eliminate 2 bends) • Design for high accuracy/isolation at 1. 3 GHz. This is crucial for elimination of circulators. Don’t need broad bandwidth • Fabricated by aluminum dip-brazing milled halves. Cold Test Results: Loss: 0. 31% Match & Isolation: ~-43 d. B Coupling: -3. 031 d. B (49. 76%) Coupling Error: -0. 0207 d. B or Frequency Error: 4. 4 MHz

SLAC is building VTOs and hybrids, using aluminum dipbrazing, and acquiring parts to assemble RF distribution systems for FNAL’s NML cryomodules. A VTO and hybrid have operated stably at 3 MW, 1. 2 ms, 5 Hz at atmospheric pressure.

Other Components S. P. A. Ferrite, Ltd. (St. Petersburg) 1 MW load Circulator (also AFT) semi-flex waveguide = 6” E-plane bend bidirectional coupler DESY phase shifter H-plane bend

Baseline TTF-3 Coupler Design complicated by need for: • • motorizable knob tunablity (QL) HV hold-off dual vacuum windows bellows for thermal expansion movable antenna (QL adjustment) Input Power

Baseline and Alternative Coupler Designs Cold Window Bias-able Variable Qext Cold Coax Dia. # Fabricated TTF-3 Cylindrical yes 40 mm 62 KEK 2 Capacitive Disk no no 40 mm 3 KEK 1 Tristan Disk no no 60 mm 4 LAL TW 60 Disk possible 62 mm 2 LAL TTF 5 Cylindrical possible 62 mm 2

Alternative ILC RF Distribution Layout with circulators: loads RF VTO flex guide load hybrid beam directional couplers circulators VTO’s allow pair-wise adjustment of power distribution and thus more efficient use of power. without circulators: RF H-plane bends beam Hybrid feeding of equal-Q cavity pairs directs reflected power into hybrid loads.

Gradient Optimization with VTOs and Circulators Consider uniform distribution of gradient limits (Glim)i from 22 to 34 MV/m in a 26 cavity RF unit - adjust cavity Q’s and/not cavity power (P) to maximize overall gradient while keeping gradient uniform (< 1 e-3 rms) during bunch train Optimized 1 G / Glim ; results for 100 seeds Case Individual P’s and Q’s (Indiv. P control and Circ) P’s in pairs, individual Q’s (VTO and Circ) 1 P, individual Q’s (Circ but no VTO) P’s in pairs, Q’s in pairs (VTO but no Circ) 1 P, Q’s in pairs (no VTO, no Circ) Gi set to lowest Glim (no VTO, no Circ) Not Sorted [%] 0. 0 2. 5 0. 4 2. 7 0. 4 Sorted [%] 0. 0 0. 8 0. 2 2. 7 0. 4 7. 2 1. 4 0. 8 0. 2 8. 8 1. 3 3. 3 0. 5 19. 8 2. 0 also more efficient power usage

Cavity Spacing and Phasing load from beam hybrid transit RF For cavity phasing: -p/2 0 P beam n=6 : P=1. 3260 m = 52. 205” Reflections from identical cavities combine into hybrid load port. Type 3+ cryomodule has 1. 3836 m (= 6 l 0) spacing to allow energy recovery in X-FEL. Type 4+ cryomodule will have 1. 326 m (= 5. 75 l 0) spacing to allow elimination of (most) ILC circulators. This won’t work in Project X with ILC cryomodules due to low b (wrong spacing) and varying cavity parameters (mismatched reflections). Even in the ILC-like last section of the high-energy linac, with an average b of 0. 99, the cavity spacing is off by ~21° (reflections by 42°). Circulators required in Project X linac.

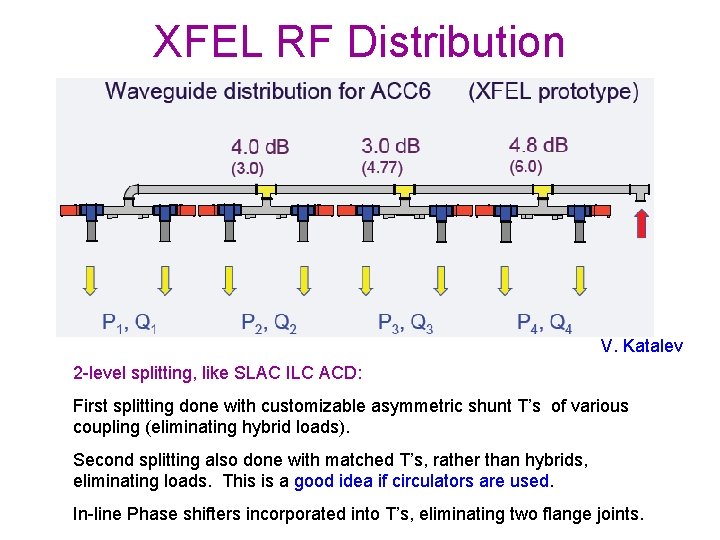

XFEL RF Distribution V. Katalev 2 -level splitting, like SLAC ILC ACD: First splitting done with customizable asymmetric shunt T’s of various coupling (eliminating hybrid loads). Second splitting also done with matched T’s, rather than hybrids, eliminating loads. This is a good idea if circulators are used. In-line Phase shifters incorporated into T’s, eliminating two flange joints.

Individual Cavity Control VTO’s can be used to optimize division of RF power between pairs. For changing b (thus transit factor and shunt impedance) and cavity-to-cavity phasing, greater control over individual cavity feeding may be needed. Assuming QL control by adjustable couplers, there are two hardware configurations by which local phase and amplitude control can be achieved B) A) A) Requires an E-H Tuner or Magic-T w/ two reflective phase shifters as well as an additional circulator w/ load B) Requires two additional hybrids w/ loads and two in-line phase shifters reflected power rejected power

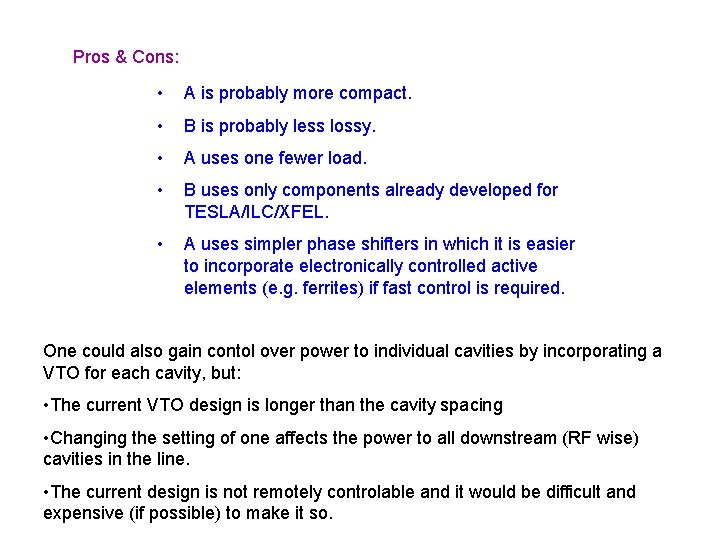

Pros & Cons: • A is probably more compact. • B is probably less lossy. • A uses one fewer load. • B uses only components already developed for TESLA/ILC/XFEL. • A uses simpler phase shifters in which it is easier to incorporate electronically controlled active elements (e. g. ferrites) if fast control is required. One could also gain contol over power to individual cavities by incorporating a VTO for each cavity, but: • The current VTO design is longer than the cavity spacing • Changing the setting of one affects the power to all downstream (RF wise) cavities in the line. • The current design is not remotely controlable and it would be difficult and expensive (if possible) to make it so.

The Project X L-Band Linac* Average Effective Cavity Gradient (MV/m) ILC-2 ILC-1 10. 03 20. 65 27. 71 26. 41 ILC 603 Me. V – 8 Ge. V b =. 7933 –. 9945 ILC-8 p/9 *favored design

ILC 8 p/9 Cavities The reference linac design incorporated low-b “squeezed ILC” cavities in the standard p-mode with adjusted cell length. To avoid a new cavity development and modifications to the cryomodule, the “favored” design instead uses standard ILC cavities deformed just enough to bring the 8 p/9 mode up to 1. 3 GHz and operated in this highly non-standard mode. Stretch to increase frequency by 0. 8 MHz -8 p/9 w +2 p 10 p/9 8 p/9 w 0 vp=c p vp=9/10 c p bp

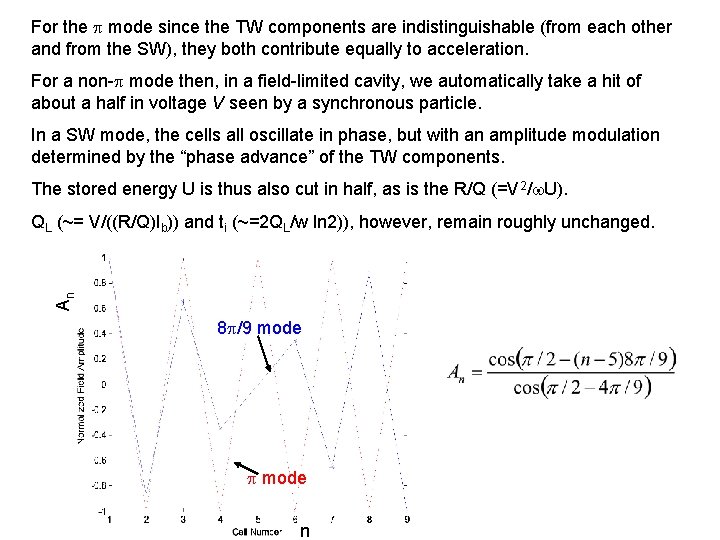

For the p mode since the TW components are indistinguishable (from each other and from the SW), they both contribute equally to acceleration. For a non-p mode then, in a field-limited cavity, we automatically take a hit of about a half in voltage V seen by a synchronous particle. In a SW mode, the cells all oscillate in phase, but with an amplitude modulation determined by the “phase advance” of the TW components. The stored energy U is thus also cut in half, as is the R/Q (=V 2/w. U). An QL (~= V/((R/Q)Ib)) and ti (~=2 QL/w ln 2)), however, remain roughly unchanged. 8 p/9 mode p mode n

One takes a further hit at low b due to the transit time factor for the individual cells. P. Ostroumov, et al. Fig. 2. 1 Project X document 8 p/9 mode in 9 -cell ILC cavity peak cavity field equivalent p-mode gradient of ~23. 25 MV/m (~26. 8 MV/m @ 30° off crest) 5. 9– 11. 9 MV/m 57% spread in V for first RF station

Energy and Gradient Profiles Along Linac Section: peak cavity field equivalent p-mode gradient of ~23. 25 MV/m (~26. 8 MV/m @ 30° off crest) 5. 9– 11. 9 MV/m 57% spread in V for first RF station Parameters for Flat Acceleration Along Bunch Train: for constant, cavity field limited stored energy. Exact Solution for flat acceleration and zero reflection during beam. But 21 cavities with a large spread in V share a common klystron and thus a common ti.

PROBLEM: If we relax the efficiency condition and allow steady state reflected power during the beam, can we achieve constant gradient along the bunch train in each cavity with varying V but uniform stored energy and a common injection time? Assume we can adjust both QL (~= Qe) and P for each cavity. Solve optimal case (see above) for highest gradient cavity to set ti. Determine and fix stored energy in cavities, U 0. The RF power required to achieve this stored energy at time ti is now determined as a function of QL.

Now, for the cavity field /gradient to equilibrate at injection time, the power flowing into the cavity at ti must equal the power taken out by the beam (neglecting wall losses). condition for flat acceleration. The steady-state reflected power during the beam is given for each cavity by:

Conclusions L-Band high-power RF distribution development for TESLA/XFEL/ILC can be applied to Project X. The configuration and components used will depend on • the degree of control required in setting the power, phase, and coupling at each individual cavity • which, if any, of these parameters need to be changeable remotely • whether and what fast (not mechanical) control is needed These requirements will be set by considerations of beam dynamics, LLRF, operations, etc. The changing b causes changing shunt impedances and creates a different problem than in ILC, where the anticipated spread in cavity limits is the chief concern, but it would appear to be solvable.
