Christopher Chapman MCT Content PM Microsoft Learning PDG

Christopher Chapman | MCT Content PM, Microsoft Learning, PDG Planning , Microsoft

Meet Christopher Chapman • Background – IT manager and implementer focused on deploying, maintaining and optimizing networks of all sizes (from SMB to Enterprise) – IT Consulting projects include Custom Share. Point for Microsoft IT, Netware/Notes migration to AD/Exchange, Transition to centralized management (250 clients) – Instructor and Director of Instruction • Contact – christopherjs@microsoft. com – @Christopher. MSL

Course Topics Understanding Active Directory 01 | Introduction to Active Directory 02 | Active Directory Domain Services (DS) 03 | Active Directory Certificate Services (CS) 04 | Active Directory Federation Services (FS) 05 | Active Directory Rights Management Services (RMS) 06 | Active Directory Lightweight Directory Services (LDS)

Setting Expectations • Target Audience – IT Help Desk staff interested in moving into Network/Systems Administration – Anyone interested in learning more about Active Directory • Suggested Prerequisites/Supporting Material – Microsoft Technology Associate: • • Exam 98 -349: Windows Operating System Fundamentals Exam 98 -365: Windows Server Administration Fundamentals Exam 98 -366: Networking Fundamentals Exam 98 -367: Security Fundamentals

Microsoft Virtual Academy Introduction to Active Directory

Module Overview • Active Directory isn’t what it used to be! • What is Active Directory? • Active Directory Roles

What is Active Directory Domain Services • What is Active Directory? – A collection of services (Server Roles and Features) used to manage identity and access for and to resources on a network • Federation Services • • • Network Access for External Resources Internal Accounts Authorization Authentication Certificate Services • Identity • Non. Repudiation Active Directory Rights Management Services • Content Security and Control • • • Identity Access Centralized Management Lightweight Directory Services • Application Templates

Active Directory Roles • AD Domain Services (AD DS) – Users, Computers, Policies • AD Certificate Services (AD CS) – Service, Client, Server and User identification • AD Federation Services (AD FS) – Resource access across traditional boundaries • AD Rights Management Services (AD RMS) – Maintain security of data • AD Lightweight Directory Services (AD LDS)

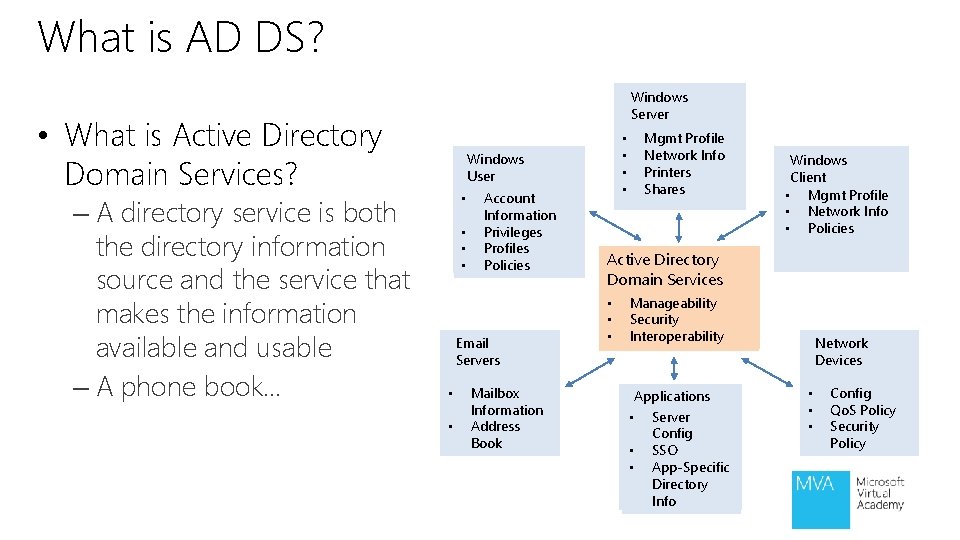

What is AD DS? Windows Server • What is Active Directory Domain Services? – A directory service is both the directory information source and the service that makes the information available and usable – A phone book… • • Windows User • • Account Information Privileges Profiles Policies Email Servers • • Mailbox Information Address Book Mgmt Profile Network Info Printers Shares Windows Client • Mgmt Profile • Network Info • Policies Active Directory Domain Services • • • Manageability Security Interoperability Applications • Server Config • SSO • App-Specific Directory Info Network Devices • • • Config Qo. S Policy Security Policy

What does AD DS do? • Scalable, secure, and manageable infrastructure for user and resource management – stores and manages information about network resources – provides support for directory-enabled applications such as Microsoft® Exchange Server – allows for centralized management

What is AD CS? • AD CS is the Microsoft implementation of Public Key Infrastructure (PKI) • PKI is a set of hardware, software, people, policies, and procedures needed to create, manage, distribute, use, store, and revoke digital certificates Certificate Signing Request 2 Enrollment 3 Certificate Repository Certification Revocation Repository x. 509 Certificate Chain Certificate Retrieval CRL Retrieval 4 Certificate Revocation List 5 Revocation Request 1 End-Entities (users or computers)

What does AD CS do? • AD CS provides customizable services for issuing and managing digital certificates – Certification Authorities – CA Web Enrollment – Online Responders – Network Device Enrollment Service (NDES) – Certificate Enrollment Web Service – Certificate Enrollment Policy Web Service

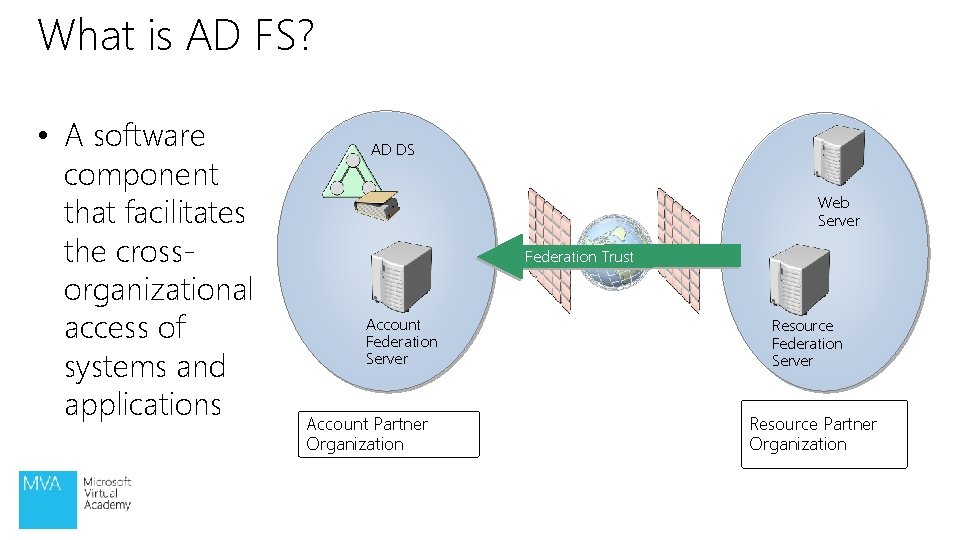

What is AD FS? • A software component that facilitates the crossorganizational access of systems and applications AD DS Web Server Federation Trust Account Federation Server Account Partner Organization Resource Federation Server Resource Partner Organization

What does AD FS do? • The AD FS server role provides simplified, secured identity federation and Web single sign-on (SSO) capabilities. – enables the creation of trust relationships between two organizations – provides access to applications between organizations – provides Single Sign-on (SSO) between two different directories for Web-based applications

What is AD RMS? • Active Directory Rights Management Services (AD RMS) is an information protection technology that works with applications to safeguard digital information Information Author RMS Server Recipient

What does AD RMS do? • Allows individuals and administrators to specify access permissions to documents, workbooks, and presentations – prevent sensitive information from being printed, forwarded, or copied by unauthorized people – access and usage restrictions are enforced no matter where the information is located

What is AD LDS? • AD LDS is a hierarchical file -based directory store • AD LDS is both the directory information source and the service that makes the information available and usable Network Devices Windows User • • Account Information Privileges Profiles Policies • • • Config Qo. S Policy Security Policy Active Directory LDS • • • Email Servers • • Mailbox Information Address Book Manageability Security Interoperability Applications • Server Config • SSO • App-Specific Directory Info

What does AD LDS do? • Lightweight Directory Access Protocol (LDAP) – Directory service that provides flexible support for directory-enabled applications, without the dependencies and domain-related restrictions of AD DS – provide directory services for directory-enabled applications without incurring the overhead of domains and forests – no requirement for a single schema throughout a forest

Thanks for Watching!
