Christophe Martin TEMPEEP Beam Interlock System SPS CIBU
Christophe Martin TE-MPE-EP Beam Interlock System SPS CIBU Connection Review 22/08/2014 Christophe Martin TE/MPE 1
- CIBU distribution in SPS - “Conform connection” definition - Commissioning Tool - “non-conform connection” in SPS - Open issues 22/08/2014 Christophe Martin TE-MPE-EP Outline: 2
- CIBU distribution in SPS - “Conform connection” definition - Commissioning Tool - “non-conform connection” in SPS - Open issues 22/08/2014 Christophe Martin TE-MPE-EP Outline: 3
Christophe Martin TE-MPE-EP For the SPS, 43 CIBU in total Ø 35 CIBU in operation before LS 1 22/08/2014 Ø 8 new CIBU installed during LS 1 4
- CIBU distribution in SPS - “Conform connection” definition - Commissioning Tool - “non-conform connection” in SPS - Open issues 22/08/2014 Christophe Martin TE-MPE-EP Outline: 5
22/08/2014 Christophe Martin TE-MPE-EP CIBU User manual Ø EDMS 636589 The reference document used to qualify a CIBU connection is the CIBU user manual 1 V 51 6

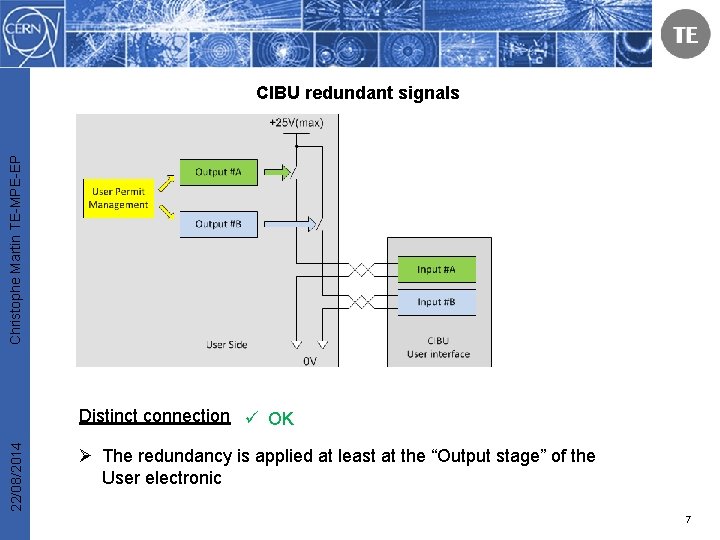

Christophe Martin TE-MPE-EP CIBU redundant signals 22/08/2014 Distinct connection ü OK Ø The redundancy is applied at least at the “Output stage” of the User electronic 7
Christophe Martin TE-MPE-EP CIBU redundant signals NON-CONFORM ! 22/08/2014 Serial connection 8
Christophe Martin TE-MPE-EP CIBU redundant signals NON-CONFORM ! 22/08/2014 Parallel connection 9

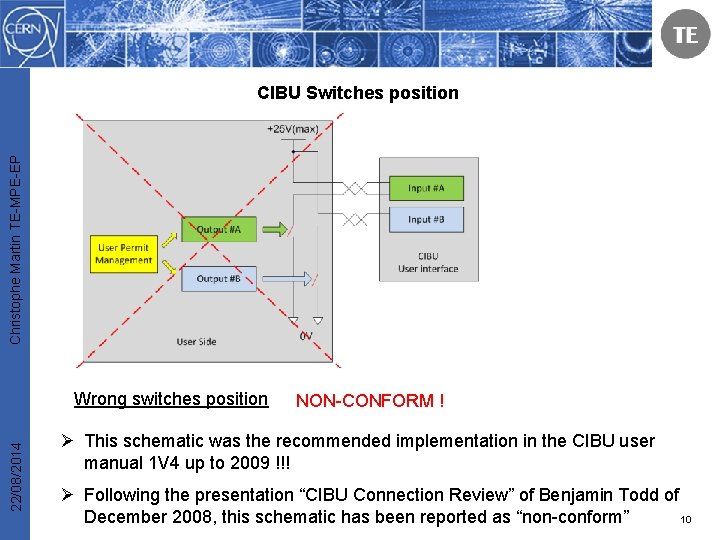

Christophe Martin TE-MPE-EP CIBU Switches position 22/08/2014 Wrong switches position NON-CONFORM ! Ø This schematic was the recommended implementation in the CIBU user manual 1 V 4 up to 2009 !!! Ø Following the presentation “CIBU Connection Review” of Benjamin Todd of December 2008, this schematic has been reported as “non-conform” 10
Christophe Martin TE-MPE-EP User output impedance 22/08/2014 Serial resistor NON-CONFORM ! Ø In the CIBU user manual 1 V 4 up to 2009 a misinterpretation can lead the users to provide a current into the CIBU. The current loop is inside the CIBU, the user has to provide a voltage ! 11
22/08/2014 Christophe Martin TE-MPE-EP CONNECTION DETAILS BETWEEN THE USER SYSTEMS AND THE CIBU Ø If wire “ 1” and “ 2” are not connected, the cabling is not conform (No return path for the CIBU voltage suppressor in case of over voltage) 12
Christophe Martin TE-MPE-EP EMC COMPLIANCE INTERCONNECTION 22/08/2014 Ø The shielding must be present on the connection cable (visual control) Reminder: The interconnection cable between the User electronics and the CIBU is under the responsibility of the user! 13

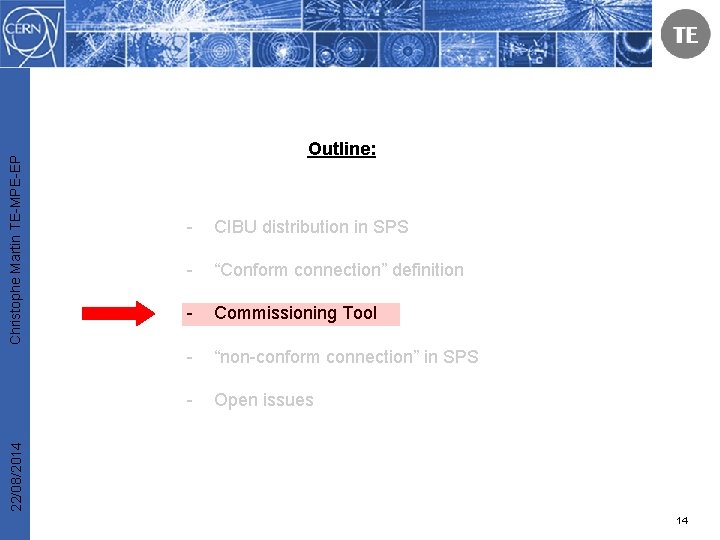

- CIBU distribution in SPS - “Conform connection” definition - Commissioning Tool - “non-conform connection” in SPS - Open issues 22/08/2014 Christophe Martin TE-MPE-EP Outline: 14
Christophe Martin TE-MPE-EP NEW CIBU COMMISSIONING TOOL Main features: Ø Checks the voltage applied on both user permit (A+, A- & B+, B-) BIS Handheld tester Ø Checks the User Output impedance (A & B) Ø Checks the current drawn by the CIBU (A & B) Ø Checks the redundancy of user permit A & B (serial connections are detected) 22/08/2014 Ø Checks the ground connection (pin 1 & 2) Ø Automatically generates an Excel report (Bluetooth connection with a windows PC) NI CVI remote application on Windows PC 15
22/08/2014 Christophe Martin TE-MPE-EP COMMISSIONING TEST SEQUENCE Ø EDMS 1400288 Ø In order to efficiently realise the commissioning test, the owner of the system can find in this document all details related to the test sequence. 16
- CIBU distribution in SPS - “Conform connection” definition - Commissioning Tool - “non-conform connection” in SPS - Open issues 22/08/2014 Christophe Martin TE-MPE-EP Outline: 17
Christophe Martin TE-MPE-EP SPS CIBU CONNECTION STATUS After User improvement 22/08/2014 As found in June 18

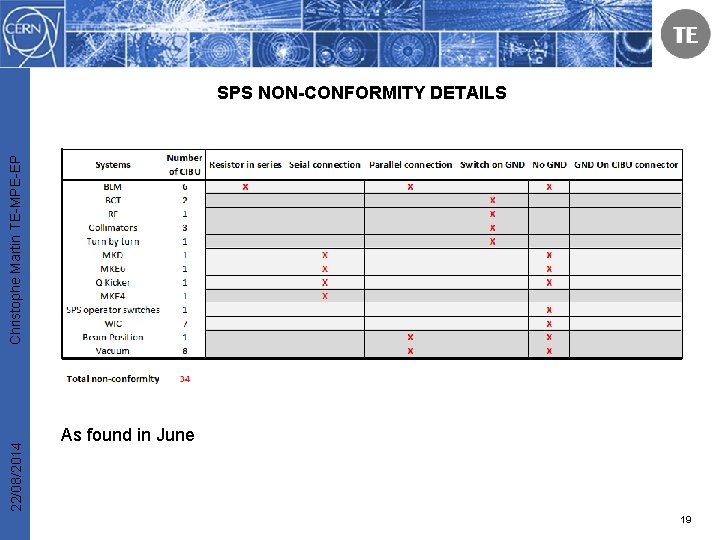

22/08/2014 Christophe Martin TE-MPE-EP SPS NON-CONFORMITY DETAILS As found in June 19

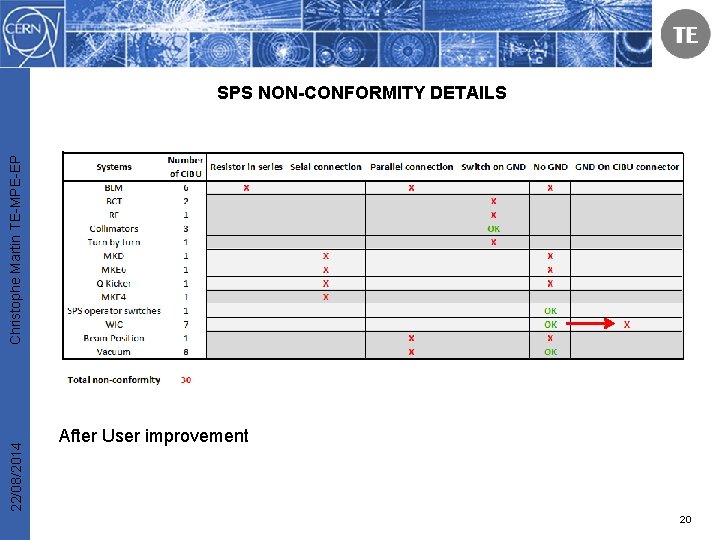

22/08/2014 Christophe Martin TE-MPE-EP SPS NON-CONFORMITY DETAILS After User improvement 20
22/08/2014 Christophe Martin TE-MPE-EP GND ON CIBU CONNECTOR 21
22/08/2014 Christophe Martin TE-MPE-EP NOT TESTED CIBU IN THE SPS Currently, the following systems have been not yet tested: Note: the test of the CIBU “ACCESS Chain 1” is foreseen on the 27/09 during the DSO tests 22
- CIBU distribution in SPS - “Conform connection” definition - Commissioning Tool - “non-conform connection” in SPS - Open issues 22/08/2014 Christophe Martin TE-MPE-EP Outline: 23
Christophe Martin TE-MPE-EP Ø Many connections in the SPS are reported as “non-conform”. What will we do with these connections ? ? ? Ø We needed more or less 2 months for testing 34 CIBU in the SPS - LHC => 152 CIBU - Extraction => 108 CIBU - Injection => 37 CIBU Total => 297 CIBU !!! 22/08/2014 We can assume that a lot of time will be required if we have to re-test all these CIBU 24
22/08/2014 Christophe Martin TE-MPE-EP Thanks for your attention 25
22/08/2014 Christophe Martin TE-MPE-EP Spare slides 26
22/08/2014 Christophe Martin TE-MPE-EP BLM DETAIL CONNECTION 27
Timescale 7 th August 2008 No Beam In the Machine Final Commissioning Vacuum System to Beam Interlock System 1. 2. 3. 4. Vacuum Valves moved IN around IR 3 Vacuum UJ 33 USER_PERMIT_A stayed TRUE Vacuum UJ 33 USER_PERMIT_B stayed TRUE BIC Test Mode showed ALL OK Commissioning Fail 28
As Tested July 08 29
August 08 - After Incident 46 Signals From other equipment 6 floating wires Surface IR 3 100 m PLC = 48 V Not Enclosed 2 m to Lift Motor 1 m to GSM Repeater WHEN CONNECTED CIBU ALWAYS TRUE (next slides) LHC Beam Interlock System 30 of 27
What was the mechanism? LHC Beam Interlock System 31 of 27
What was the mechanism? LHC Beam Interlock System 32 of 27
What was the mechanism? LHC Beam Interlock System 33 of 27
What was the mechanism? LHC Beam Interlock System 34 of 27
What was the mechanism? LHC Beam Interlock System 35 of 27

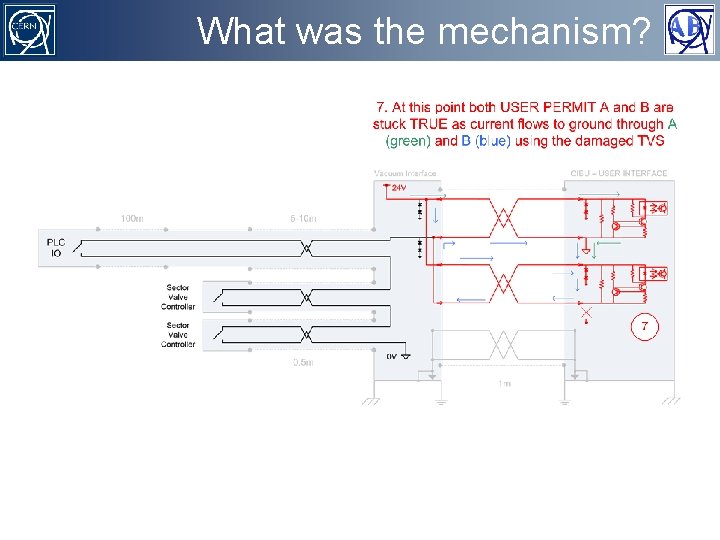

What was the mechanism? LHC Beam Interlock System 36 of 27
What was the mechanism? LHC Beam Interlock System 37 of 27
In Summary Several events = complete Blind Failure 1. 2. 3. 4. 5. Two Equipment systems sharing the same channel PLC Voltage against rules TVS Blocked Short-Circuit Inputs were not redundant Not re-commissioned by MI after a significant change In addition… a) Cable length against rules b) EMC would have been a show-stopper anyway! 38
