CHM 585 490 Chapter 5 1 Chapter 5

CHM 585 / 490 Chapter 5 1

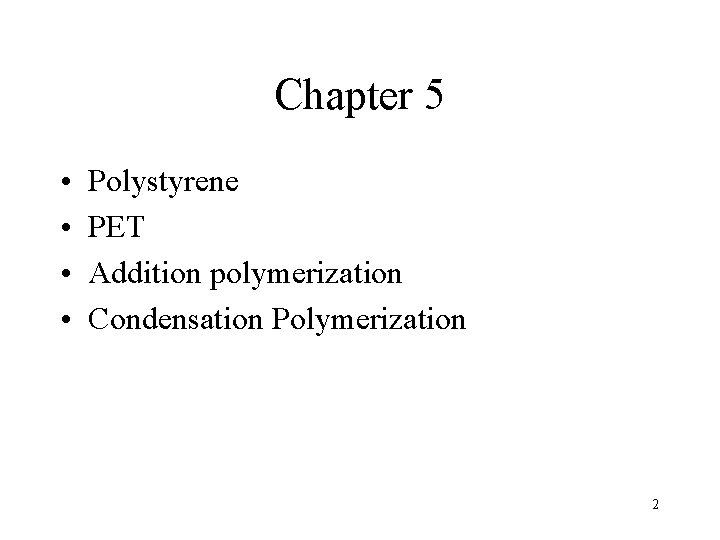

Chapter 5 • • Polystyrene PET Addition polymerization Condensation Polymerization 2

Polystyrene 3

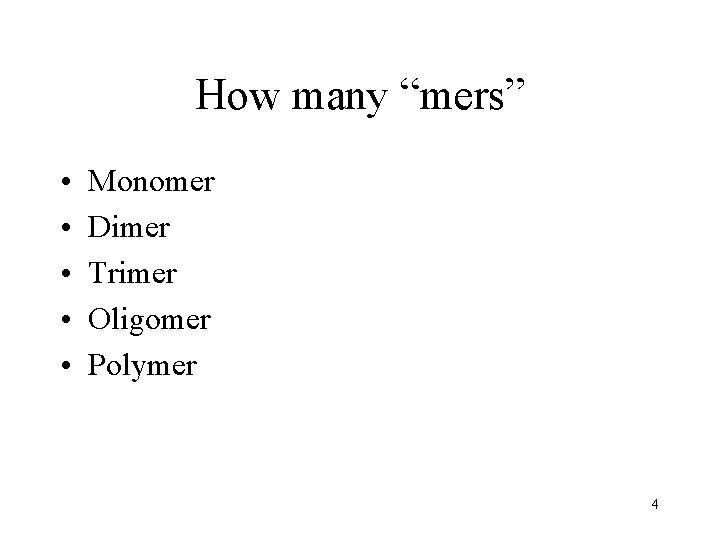

How many “mers” • • • Monomer Dimer Trimer Oligomer Polymer 4

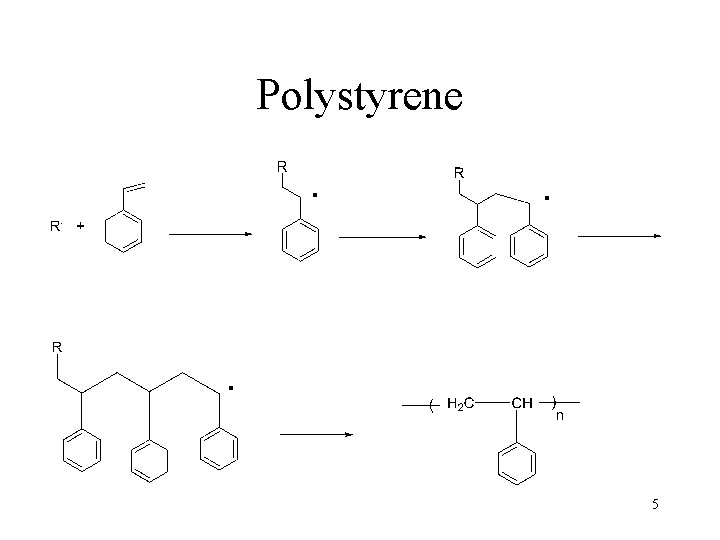

Polystyrene 5

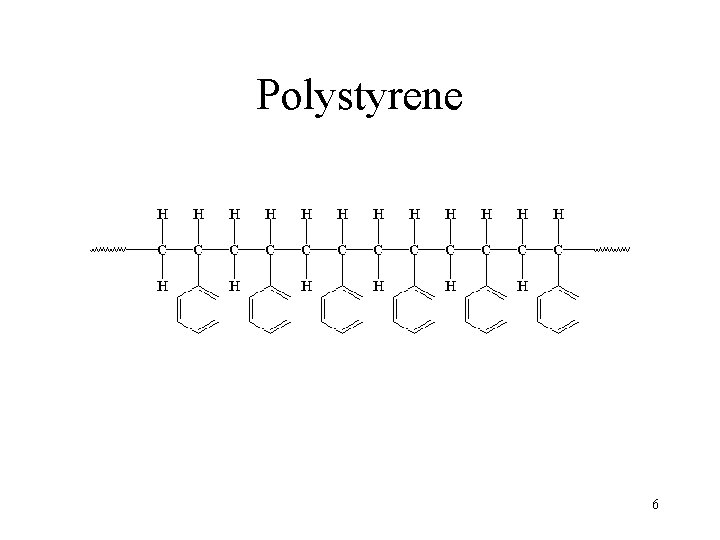

Polystyrene 6

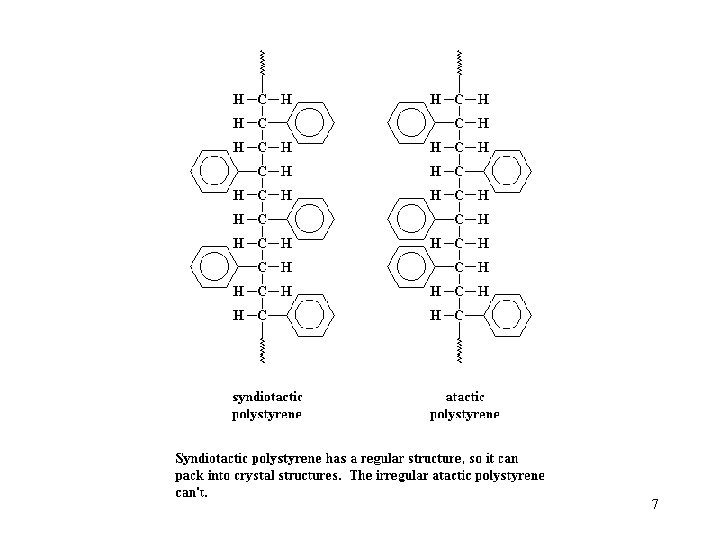

7

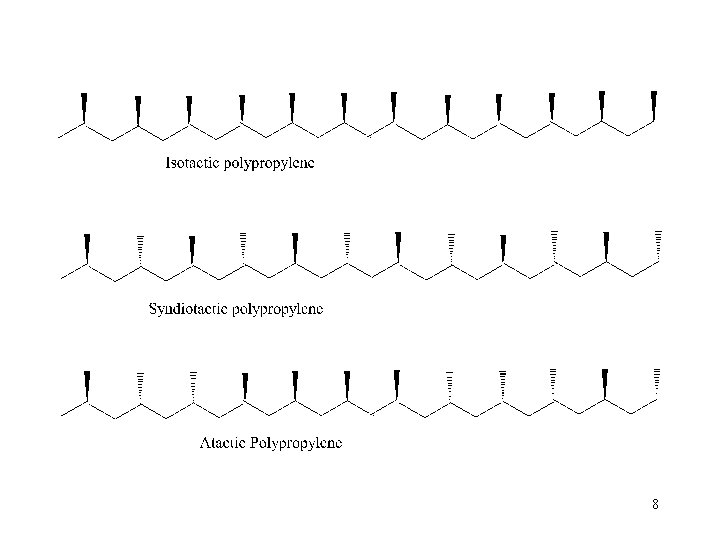

8

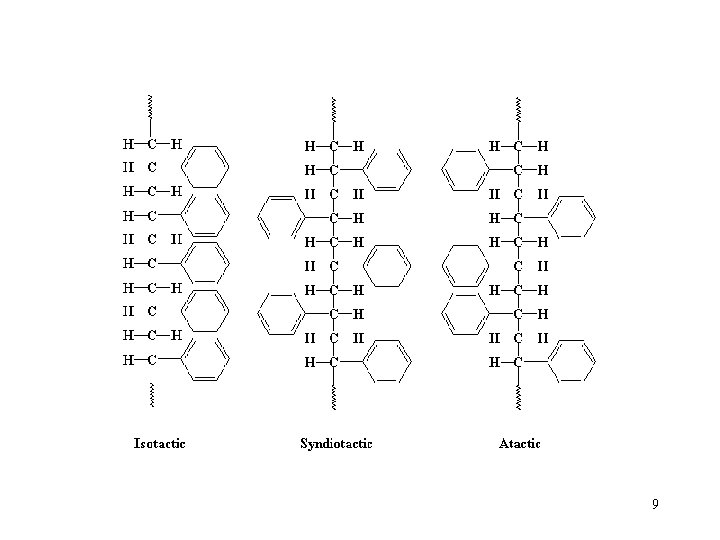

9

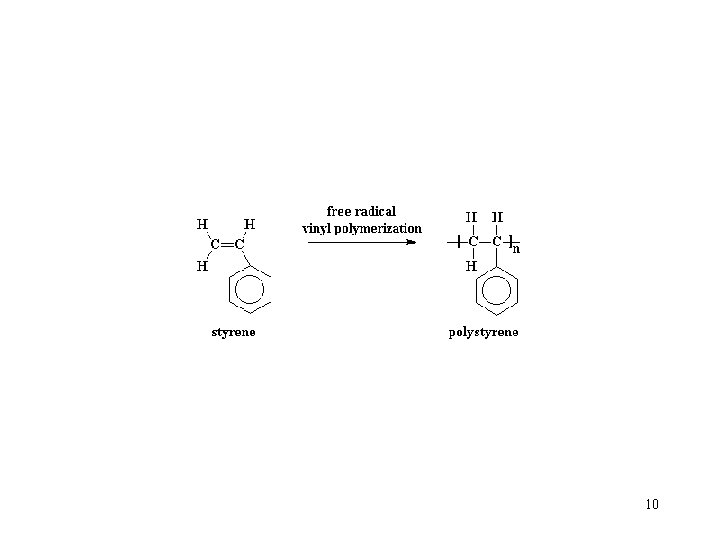

10

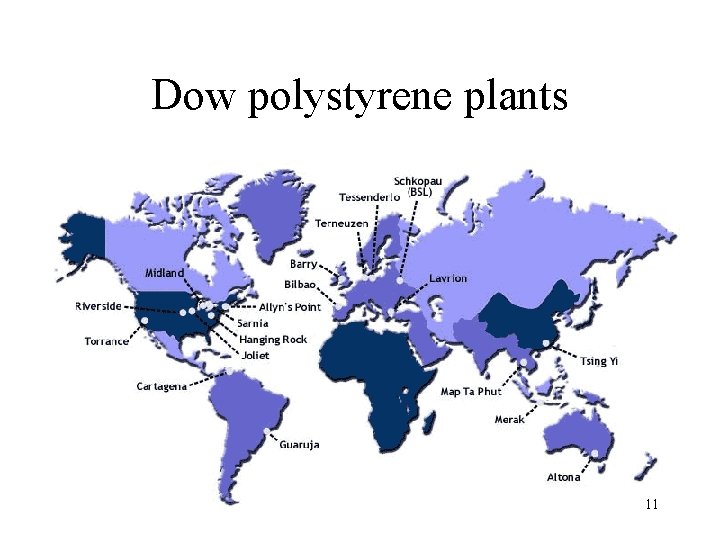

Dow polystyrene plants 11

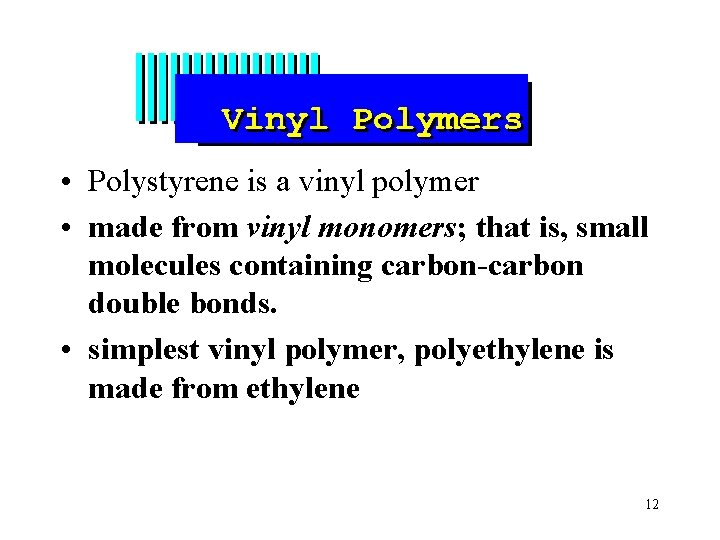

• Polystyrene is a vinyl polymer • made from vinyl monomers; that is, small molecules containing carbon-carbon double bonds. • simplest vinyl polymer, polyethylene is made from ethylene 12

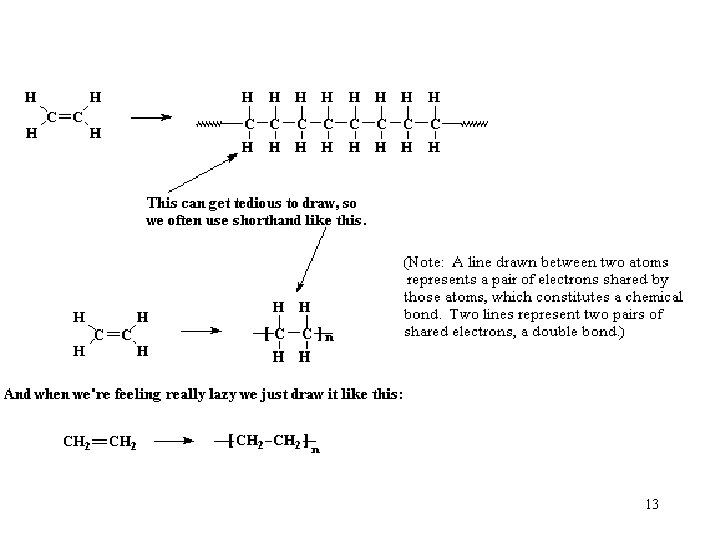

13

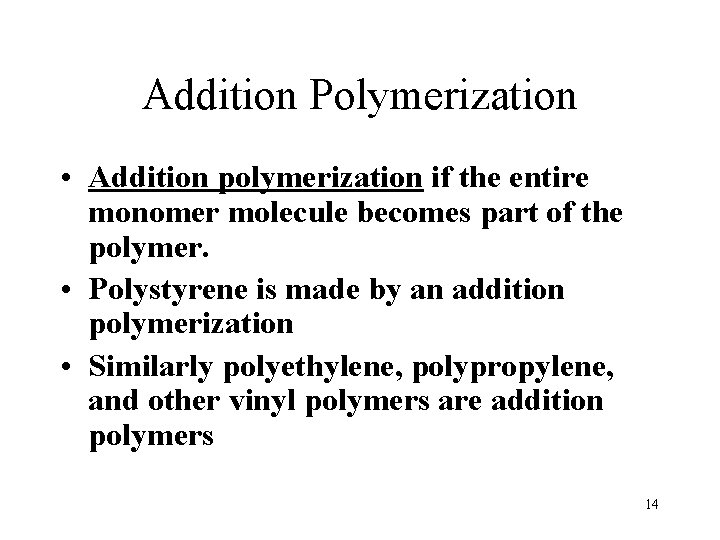

Addition Polymerization • Addition polymerization if the entire monomer molecule becomes part of the polymer. • Polystyrene is made by an addition polymerization • Similarly polyethylene, polypropylene, and other vinyl polymers are addition polymers 14

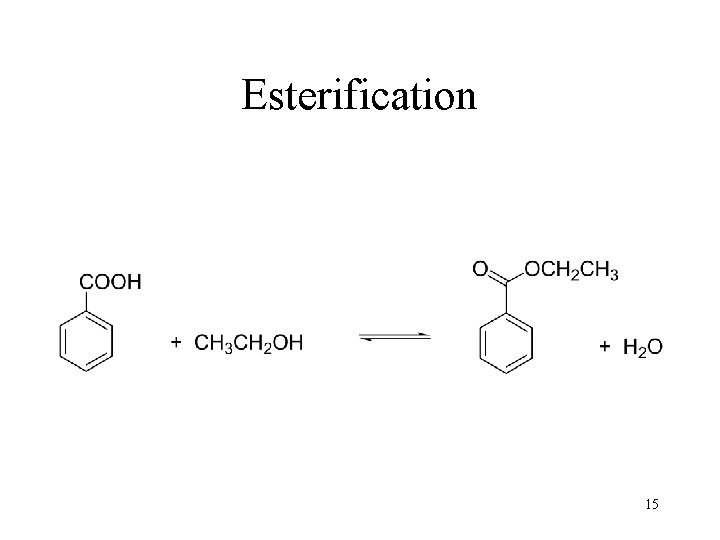

Esterification 15

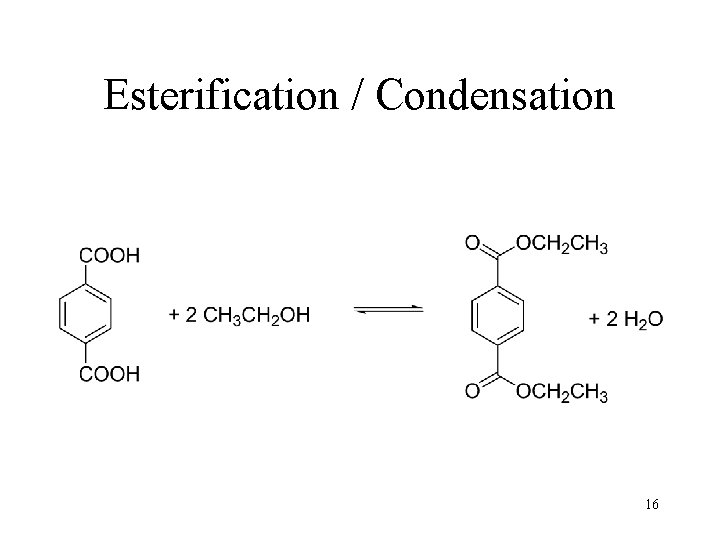

Esterification / Condensation 16

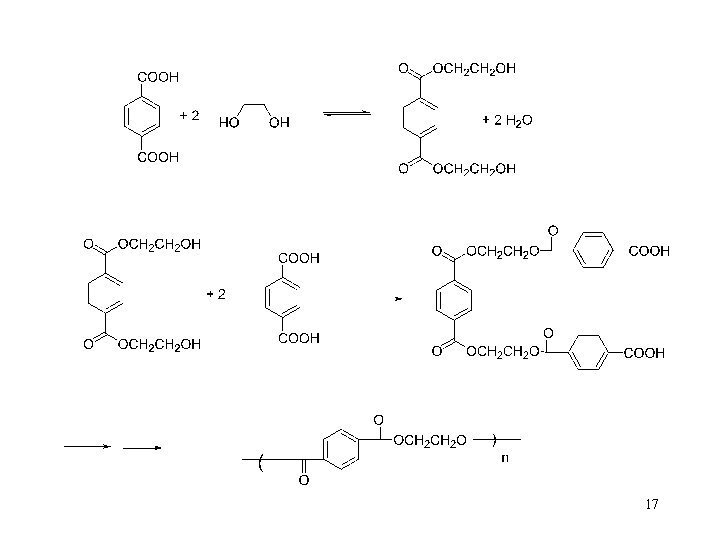

17

18

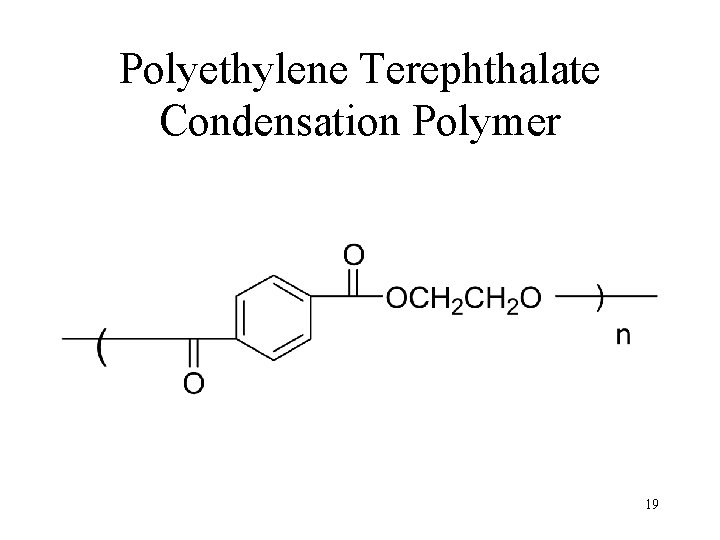

Polyethylene Terephthalate Condensation Polymer 19

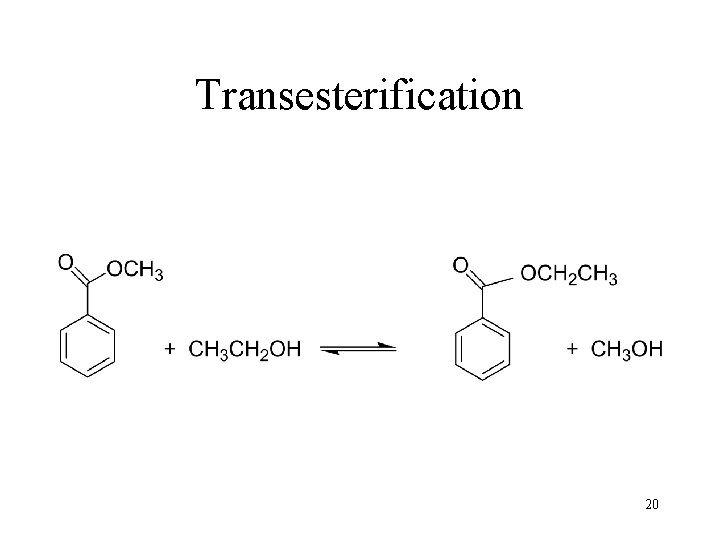

Transesterification 20

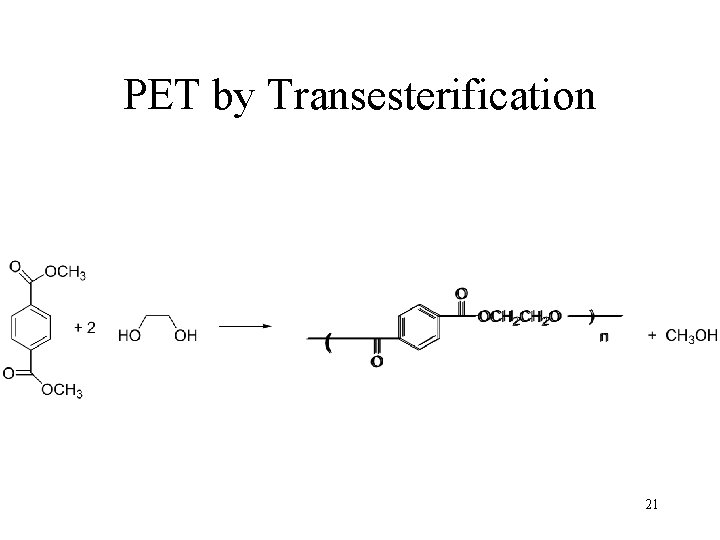

PET by Transesterification 21

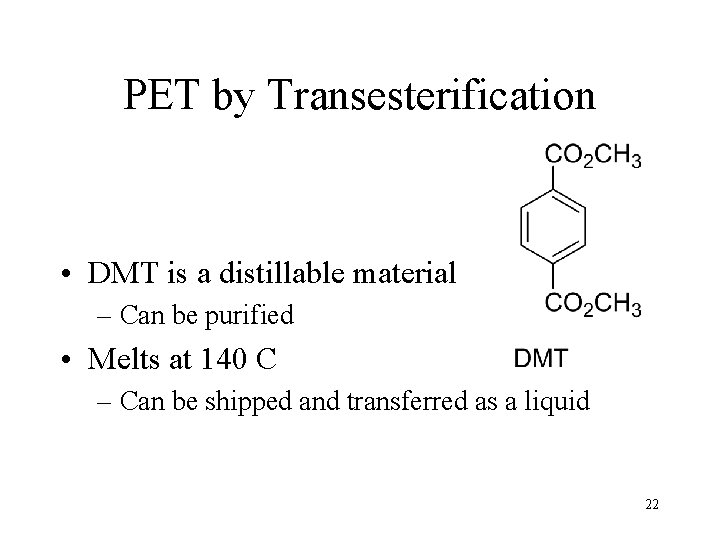

PET by Transesterification • DMT is a distillable material – Can be purified • Melts at 140 C – Can be shipped and transferred as a liquid 22

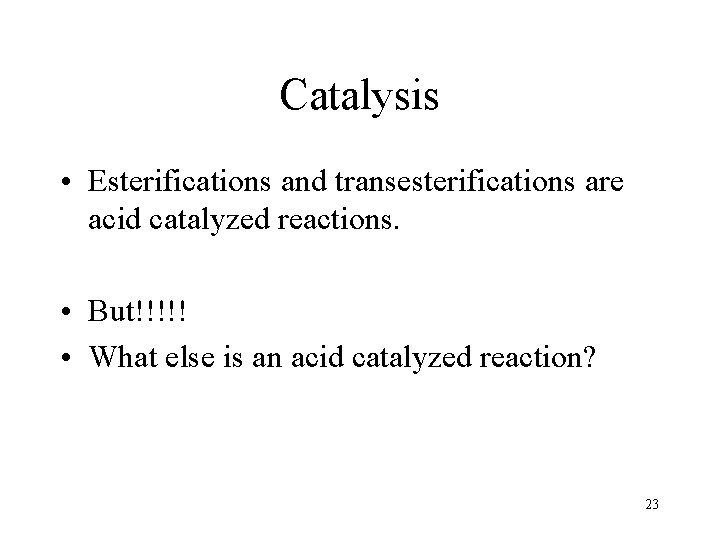

Catalysis • Esterifications and transesterifications are acid catalyzed reactions. • But!!!!! • What else is an acid catalyzed reaction? 23

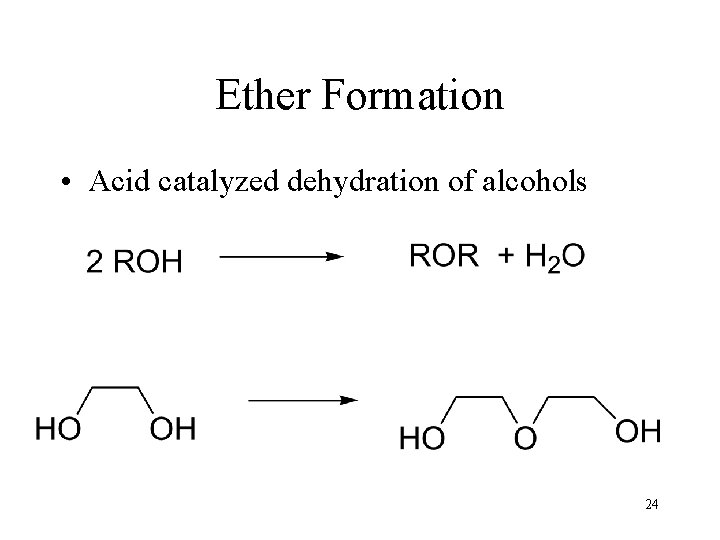

Ether Formation • Acid catalyzed dehydration of alcohols 24

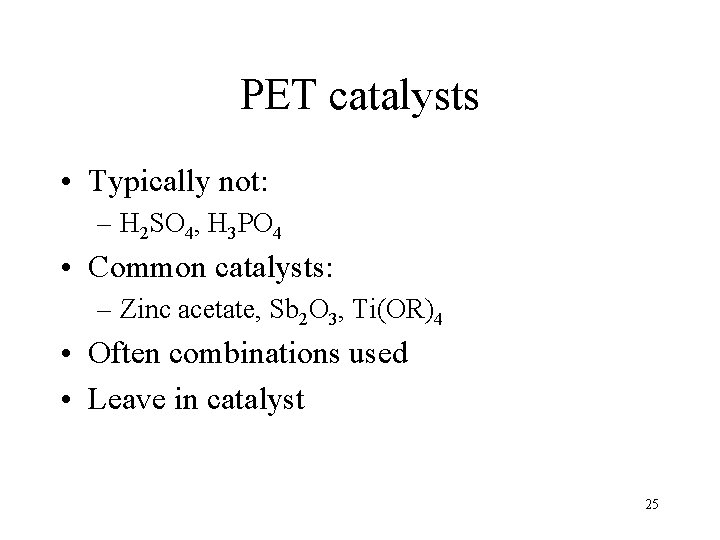

PET catalysts • Typically not: – H 2 SO 4, H 3 PO 4 • Common catalysts: – Zinc acetate, Sb 2 O 3, Ti(OR)4 • Often combinations used • Leave in catalyst 25
