Chlorine testing with HACH colorimeters Instrument care Wipe

Chlorine testing with HACH colorimeters Instrument care • Wipe cells dry with lint free tissue before inserting into instrument. • Empty the cells and rinse with de-ionised water. • Dry the packing foam if wet. • Thoroughly clean and dry unit if wet. • Always use the carrying case. To go to next page, click on Page-22

Chlorine testing with HACH colorimeters Instrument settings - HACH Pocket Colorimeter • Two ranges ü ü Low High (0. 00 – 2. 20 mg/L). (0. 0 – 4. 5 mg/L) Total Only. • Switching ranges ü ü Press Zero & Read simultaneously. After one second, release the Zero button – keep holding the Read button. To go to next page, click on Page-23

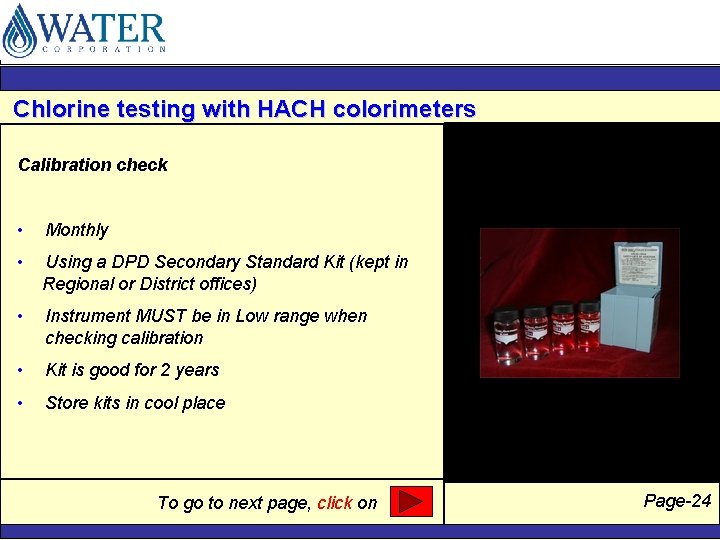

Chlorine testing with HACH colorimeters Calibration check • Monthly • Using a DPD Secondary Standard Kit (kept in Regional or District offices) • Instrument MUST be in Low range when checking calibration • Kit is good for 2 years • Store kits in cool place To go to next page, click on Page-24

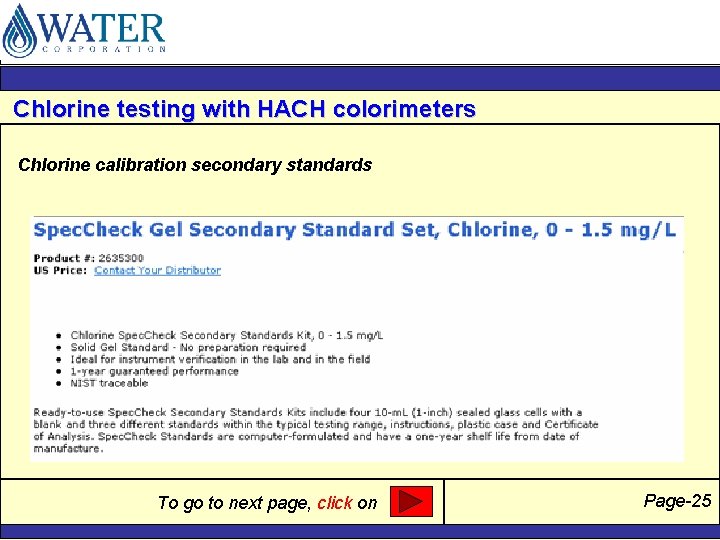

Chlorine testing with HACH colorimeters Chlorine calibration secondary standards To go to next page, click on Page-25

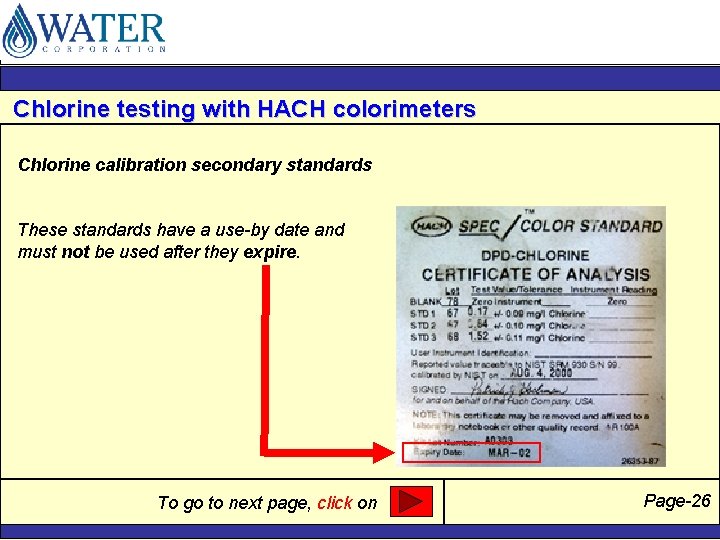

Chlorine testing with HACH colorimeters Chlorine calibration secondary standards These standards have a use-by date and must not be used after they expire. To go to next page, click on Page-26

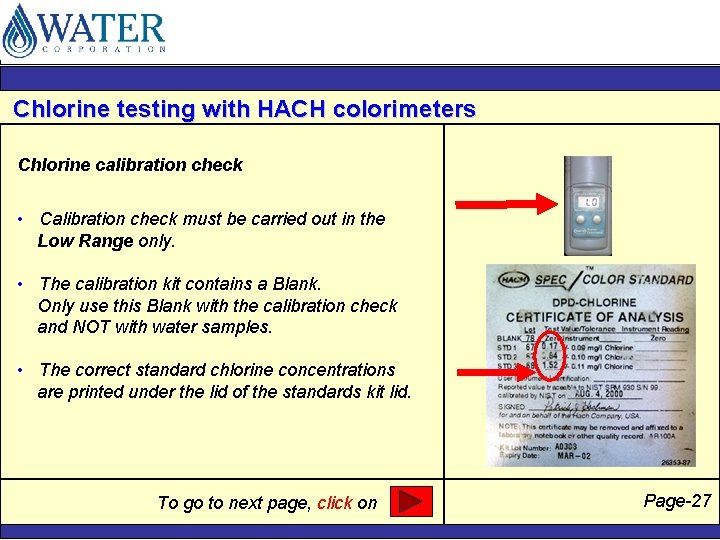

Chlorine testing with HACH colorimeters Chlorine calibration check • Calibration check must be carried out in the Low Range only. • The calibration kit contains a Blank. Only use this Blank with the calibration check and NOT with water samples. • The correct standard chlorine concentrations are printed under the lid of the standards kit lid. To go to next page, click on Page-27

Chlorine testing with HACH colorimeters You need to keep a record of the results for your chlorine colorimeter data sheet Below is an example of a calibration check data sheet Calibration of HACH Pocket Colorimeter – {enter ID Number of Instrument} To go to next page, click on Page-28

Chlorine testing with HACH colorimeters Accepted tolerance Chlorine values beyond the stated tolerance indicate the colorimeter is out of specification. As a guide, when chlorine values are more than : ü ± 0. 03 mg/L for Std 1 ü ± 0. 03 mg/L for Std 2 ü ± 0. 04 mg/L for Std 3 The unit must be sent to Water Technologies Section for checking – Contact Mr Kevin Xanthis To go to next page, click on Page-29

Chlorine testing with HACH colorimeters Error messages (for the blue unit) E 1 - Unstable Reading E 2 - Low Light Error E 3 - Low Battery Message E 7 - Improper Calibration Flashing 0. 00 – Under range Flashing 2. 20 – Over range in LO range Flashing 5. 0 – Over range in HI range To go to next page, click on Page-30

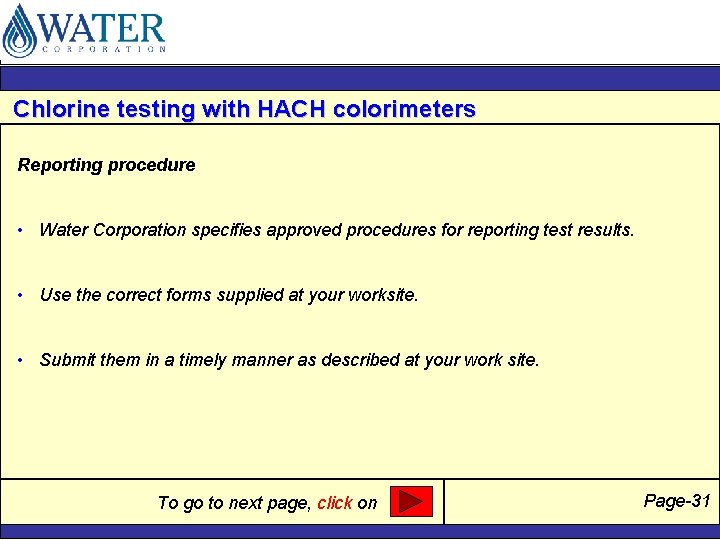

Chlorine testing with HACH colorimeters Reporting procedure • Water Corporation specifies approved procedures for reporting test results. • Use the correct forms supplied at your worksite. • Submit them in a timely manner as described at your work site. To go to next page, click on Page-31

Chlorine testing with HACH colorimeters Quiz- Question 1 of 6 Chlorine is added to water because it forms the main barrier in the disinfection process. a) True b) False Click here for answer. To go to next page, click on Page-32

Chlorine testing with HACH colorimeters Quiz 1 - Answer Chlorine is added to water because it forms the main barrier in the disinfection process. a) True To go to next page, click on Page-32

Chlorine testing with HACH colorimeters Quiz- Question 2 of 6 Calibration check can be carried out in both the Low range or High range settings. a) True b) False Click here for answer. To go to next page, click on Page-33

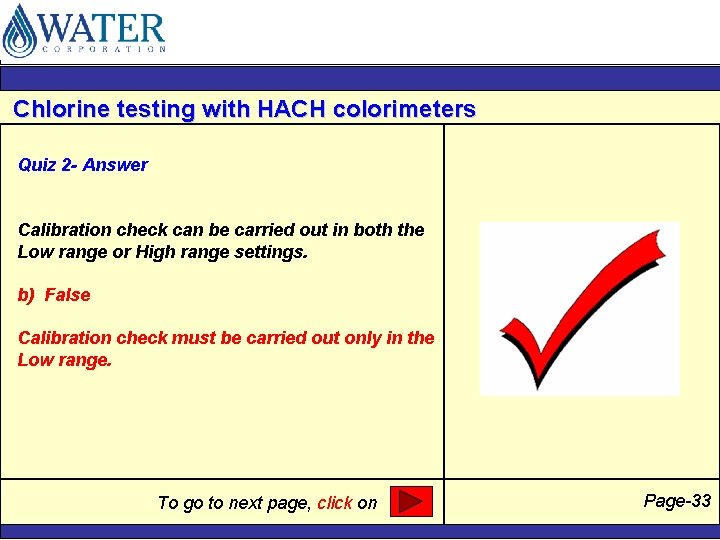

Chlorine testing with HACH colorimeters Quiz 2 - Answer Calibration check can be carried out in both the Low range or High range settings. b) False Calibration check must be carried out only in the Low range. To go to next page, click on Page-33

Chlorine testing with HACH colorimeters Quiz- Question 3 of 6 When using the original HACH Pocket Colorimeter (blue unit) what does an error message of E 2 mean? a) b) c) d) Low light error Unstable reading Low battery message Improper calibration Click here for answer. To go to next page, click on Page-34

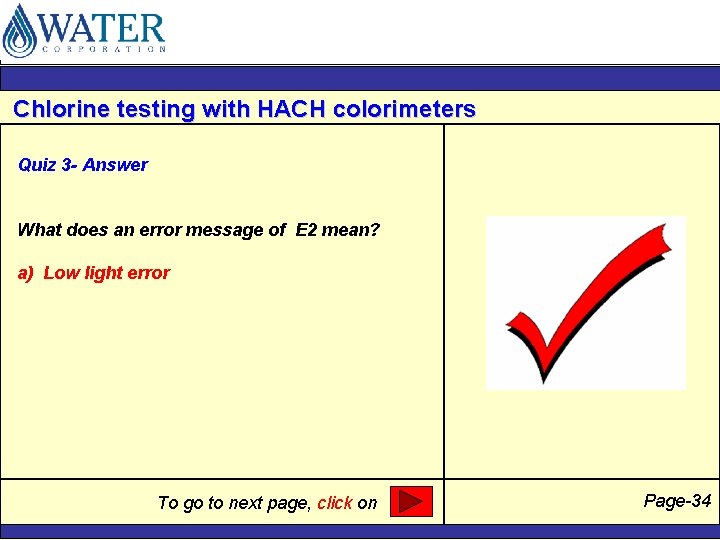

Chlorine testing with HACH colorimeters Quiz 3 - Answer What does an error message of E 2 mean? a) Low light error To go to next page, click on Page-34

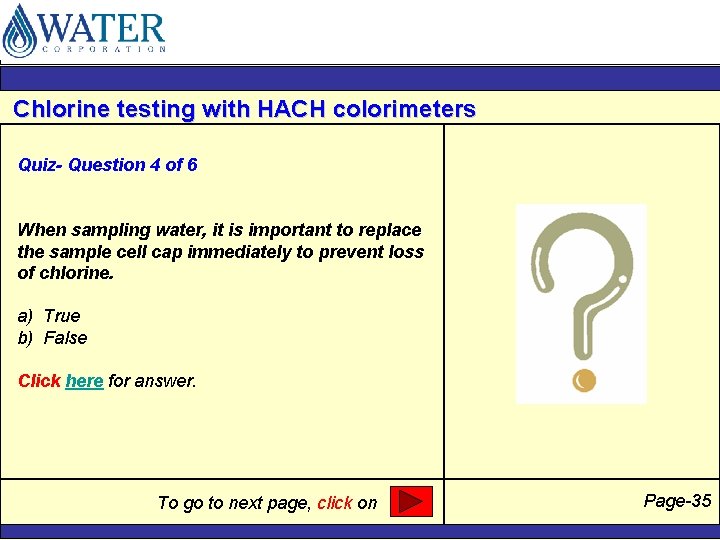

Chlorine testing with HACH colorimeters Quiz- Question 4 of 6 When sampling water, it is important to replace the sample cell cap immediately to prevent loss of chlorine. a) True b) False Click here for answer. To go to next page, click on Page-35

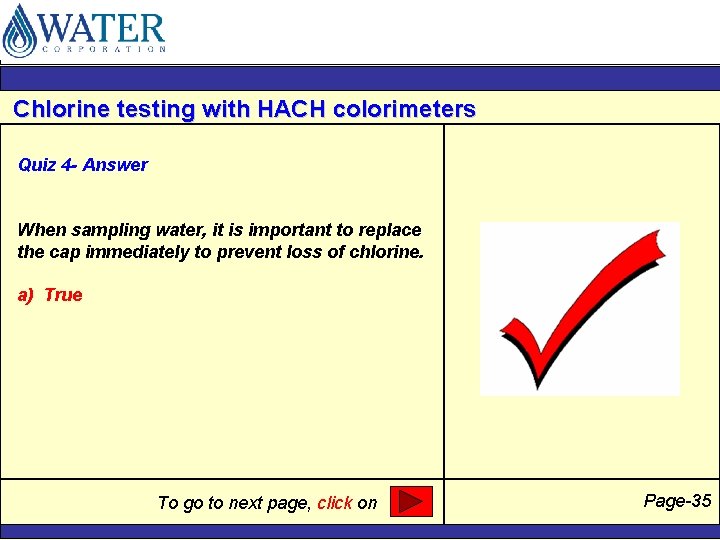

Chlorine testing with HACH colorimeters Quiz 4 - Answer When sampling water, it is important to replace the cap immediately to prevent loss of chlorine. a) True To go to next page, click on Page-35

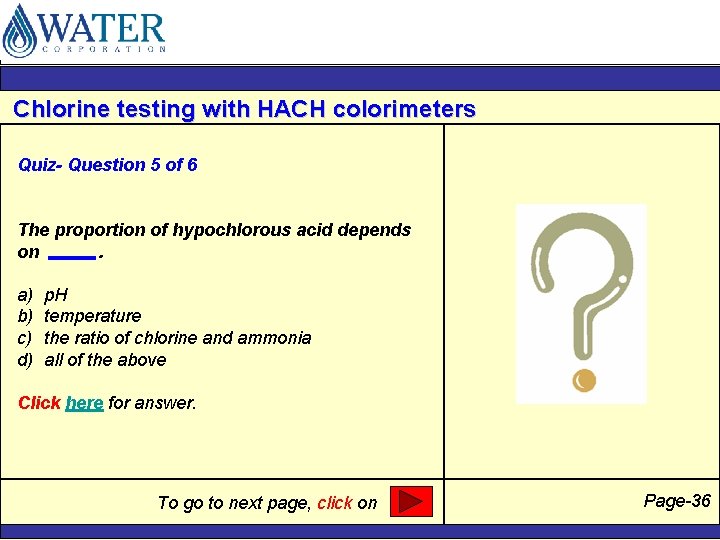

Chlorine testing with HACH colorimeters Quiz- Question 5 of 6 The proportion of hypochlorous acid depends on. a) b) c) d) p. H temperature the ratio of chlorine and ammonia all of the above Click here for answer. To go to next page, click on Page-36

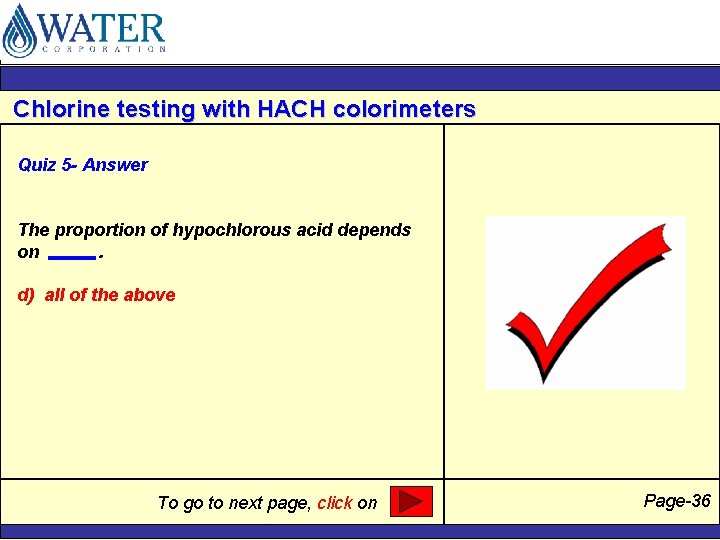

Chlorine testing with HACH colorimeters Quiz 5 - Answer The proportion of hypochlorous acid depends on. d) all of the above To go to next page, click on Page-36

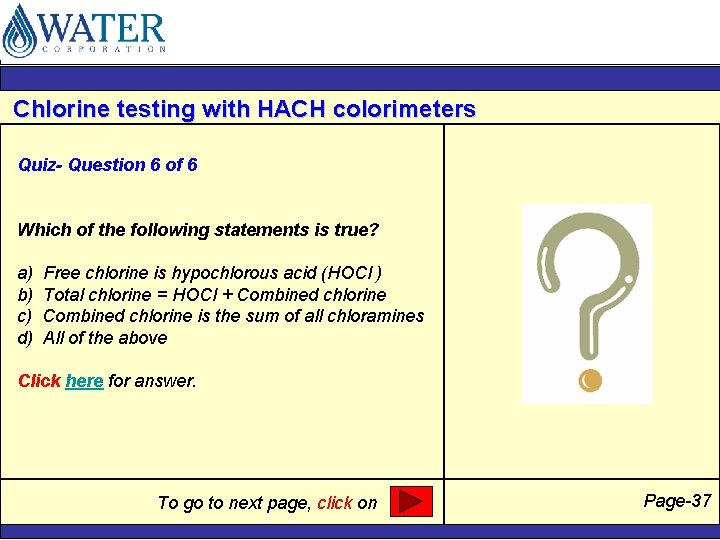

Chlorine testing with HACH colorimeters Quiz- Question 6 of 6 Which of the following statements is true? a) b) c) d) Free chlorine is hypochlorous acid (HOCl ) Total chlorine = HOCl + Combined chlorine is the sum of all chloramines All of the above Click here for answer. To go to next page, click on Page-37

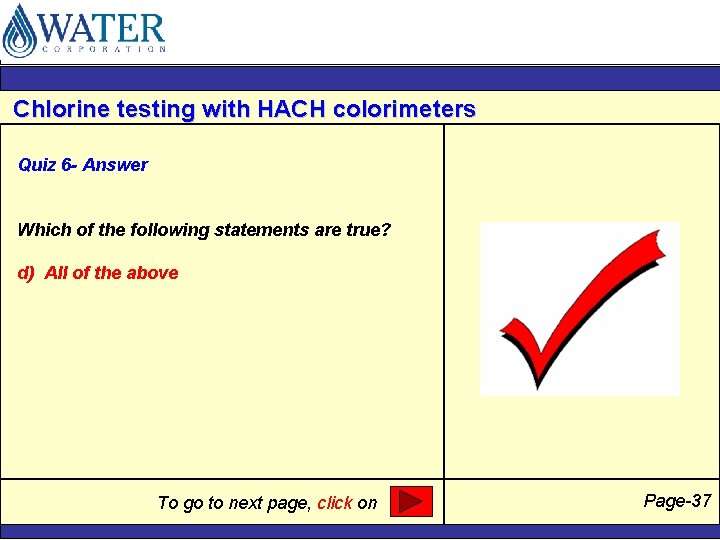

Chlorine testing with HACH colorimeters Quiz 6 - Answer Which of the following statements are true? d) All of the above To go to next page, click on Page-37

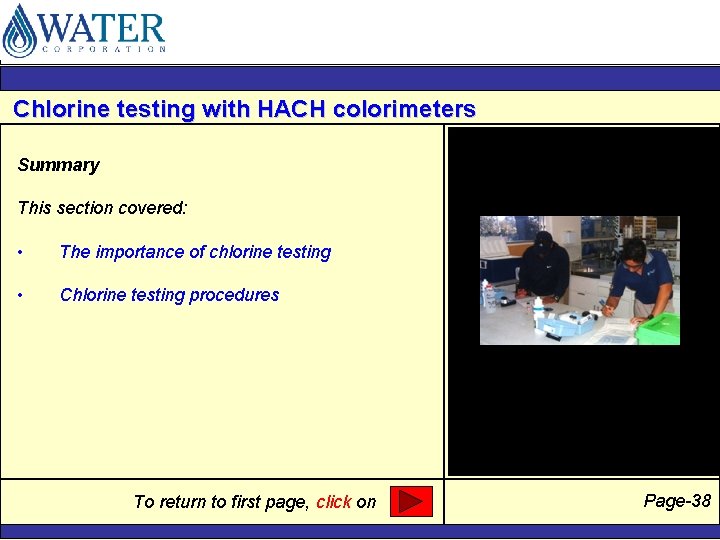

Chlorine testing with HACH colorimeters Summary This section covered: • The importance of chlorine testing • Chlorine testing procedures To To return to next first page, go to page, click on Page-38
