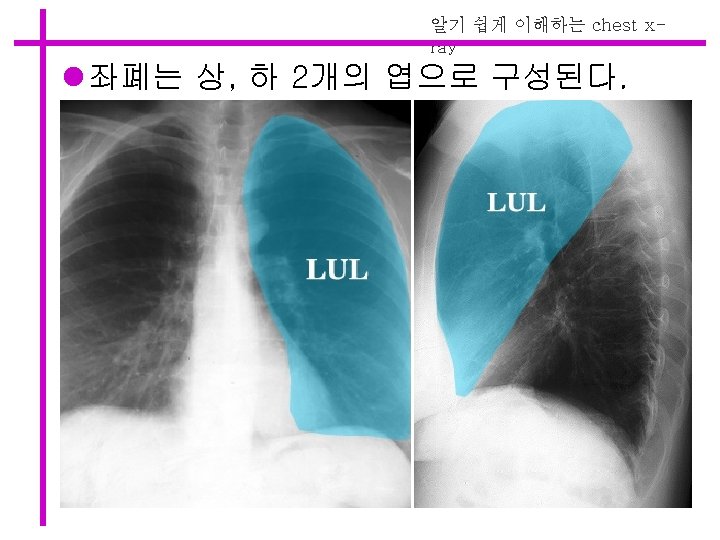

chest xray Cardiac border left lower lobe LLL
알기 쉽게 이해하는 chest xray Cardiac border 유지되 므로 -> left lower lobe LLL

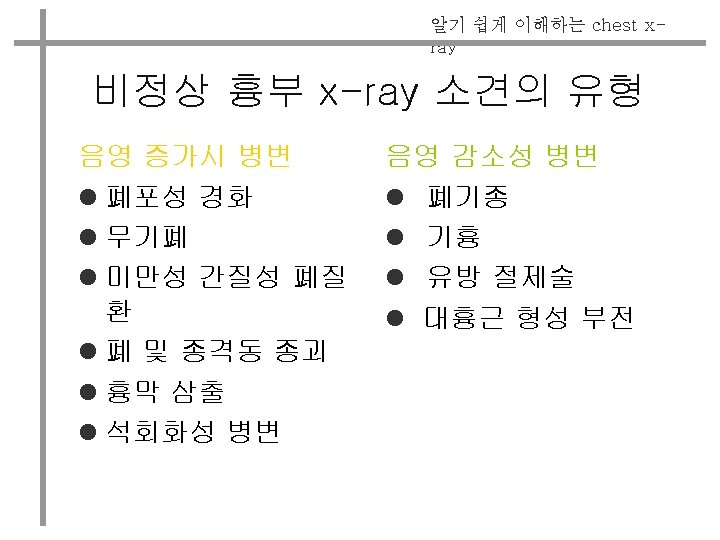

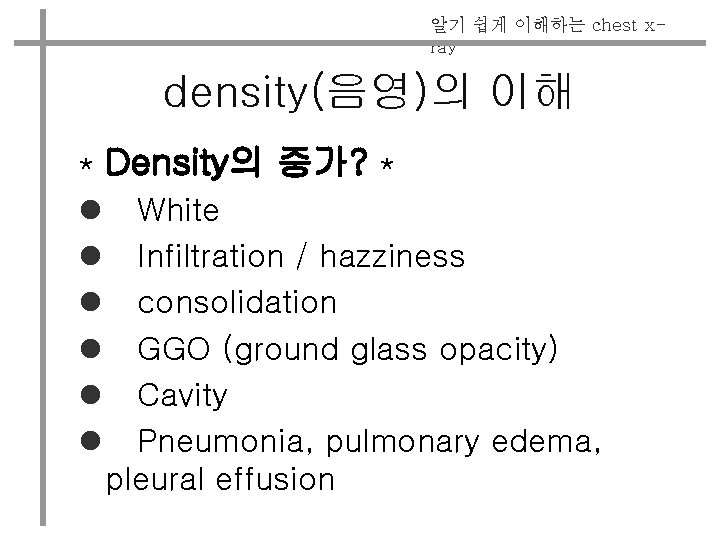

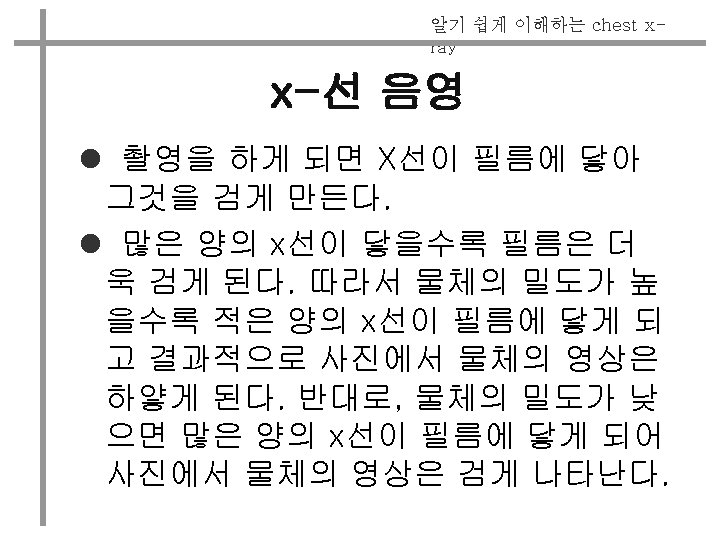

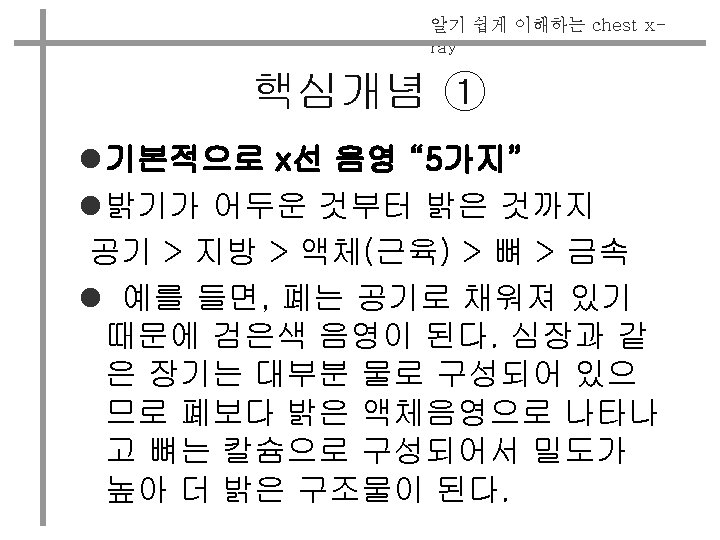

알기 쉽게 이해하는 chest xray density(음영)의 이해 * Density의 증가? * l White l Infiltration / hazziness l consolidation l GGO (ground glass opacity) l Cavity l Pneumonia, pulmonary edema, pleural effusion

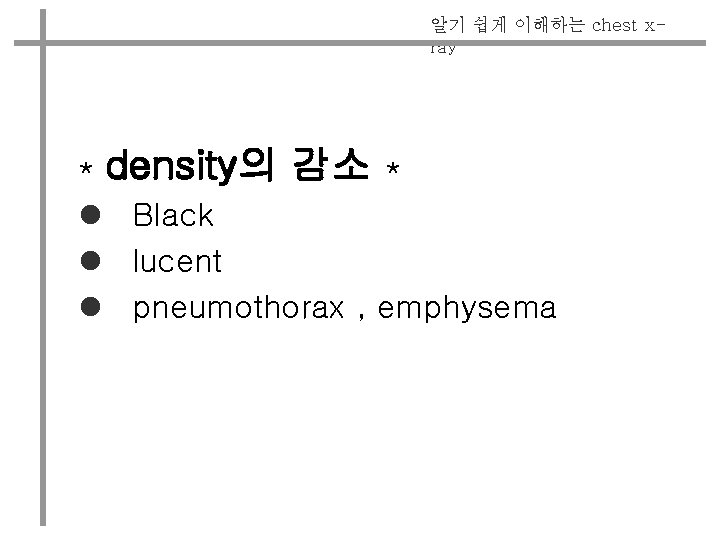

알기 쉽게 이해하는 chest xray * density의 감소 * l Black l lucent l pneumothorax , emphysema

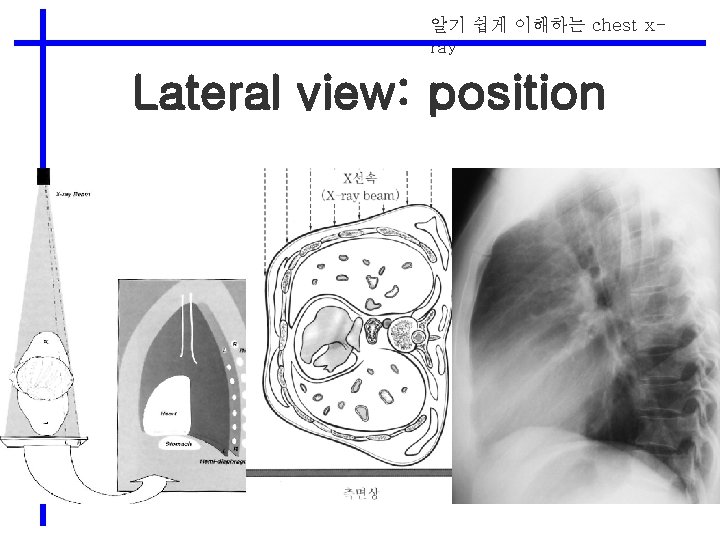

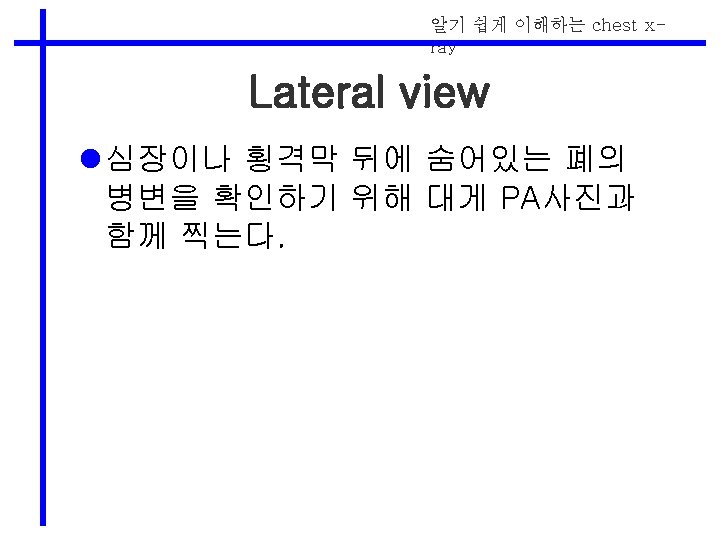

알기 쉽게 이해하는 chest xray Lateral view: position

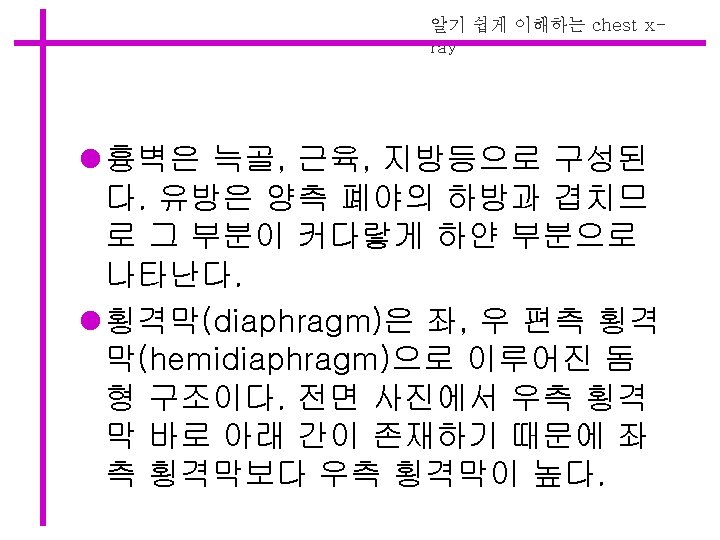

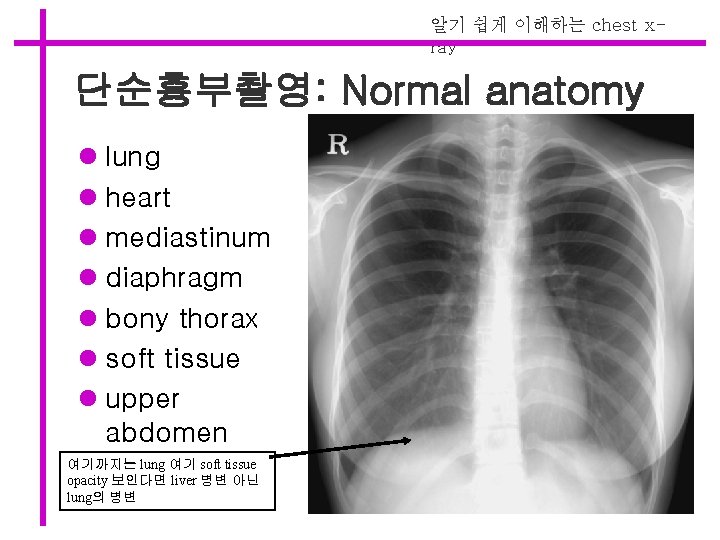

알기 쉽게 이해하는 chest xray 단순흉부촬영: Normal anatomy l lung l heart l mediastinum l diaphragm l bony thorax l soft tissue l upper abdomen 여기까지는 lung 여기 soft tissue opacity 보인다면 liver 병변 아닌 lung의 병변
RML과 RLL의 구별 -> Lateral view 알기 쉽게 이해하는 chest xray

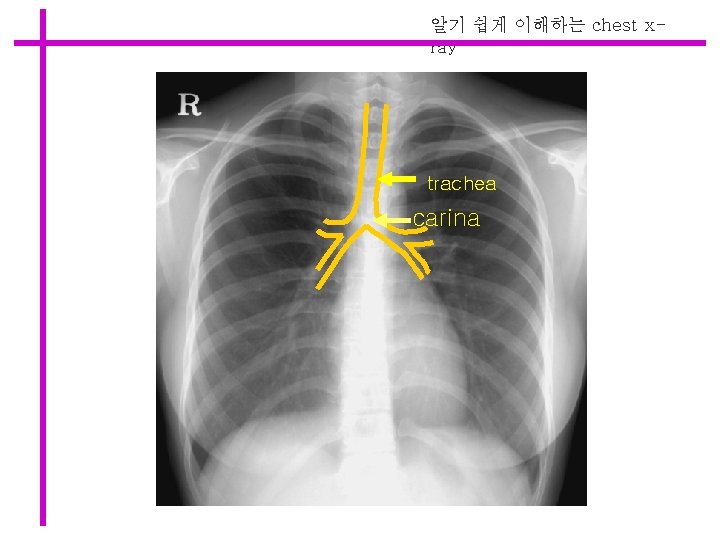

알기 쉽게 이해하는 chest xray trachea carina

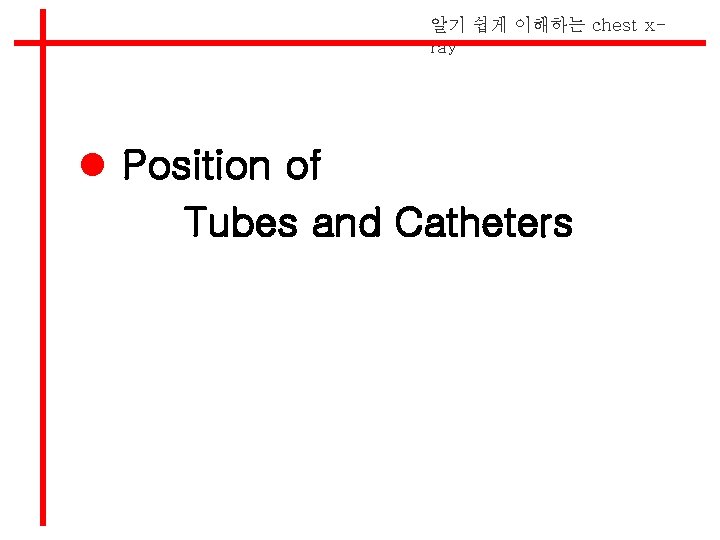

알기 쉽게 이해하는 chest xray l Position of Tubes and Catheters
알기 쉽게 이해하는 chest xray E-tube가 Rt main bronchus에 들어감 E-tube 재고정함

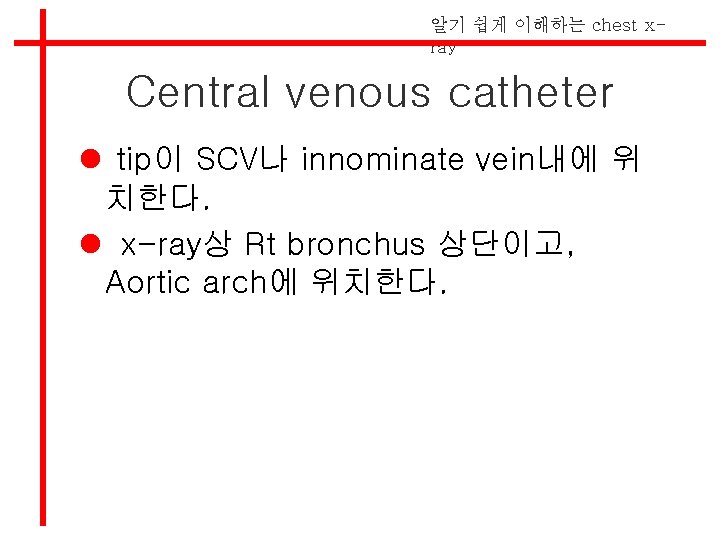

알기 쉽게 이해하는 chest xray Central venous catheter l tip이 SCV나 innominate vein내에 위 치한다. l x-ray상 Rt bronchus 상단이고, Aortic arch에 위치한다.
알기 쉽게 이해하는 chest xray Side hole
알기 쉽게 이해하는 chest xray C-tube Pneumothorax 펴짐

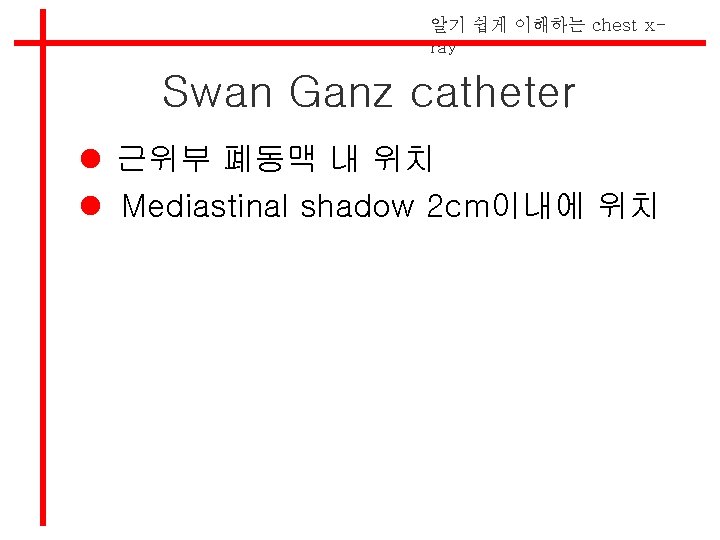

알기 쉽게 이해하는 chest xray Swan Ganz catheter l 근위부 폐동맥 내 위치 l Mediastinal shadow 2 cm이내에 위치

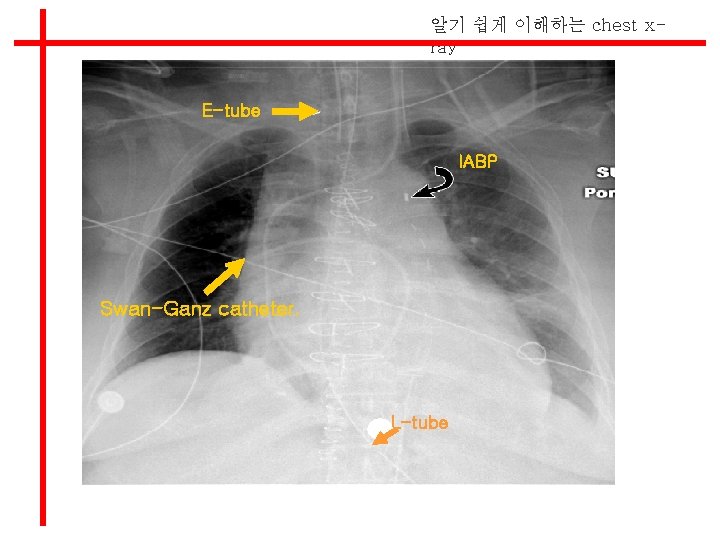

알기 쉽게 이해하는 chest xray E-tube IABP Swan-Ganz catheter. L-tube

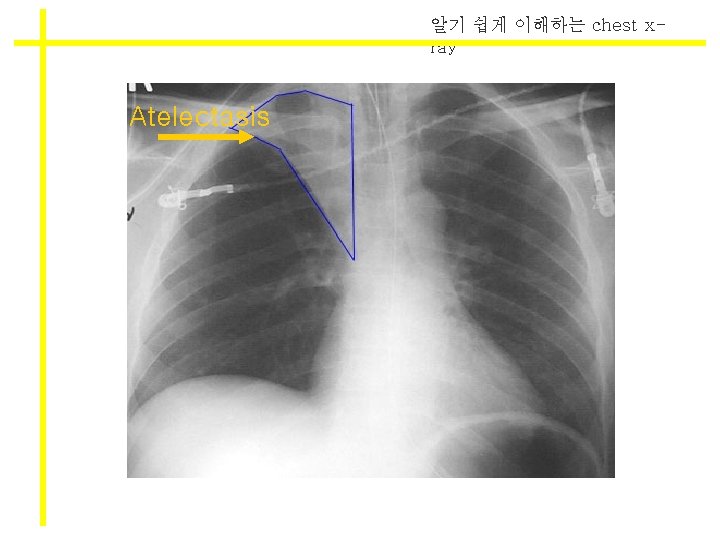

알기 쉽게 이해하는 chest xray Atelectasis

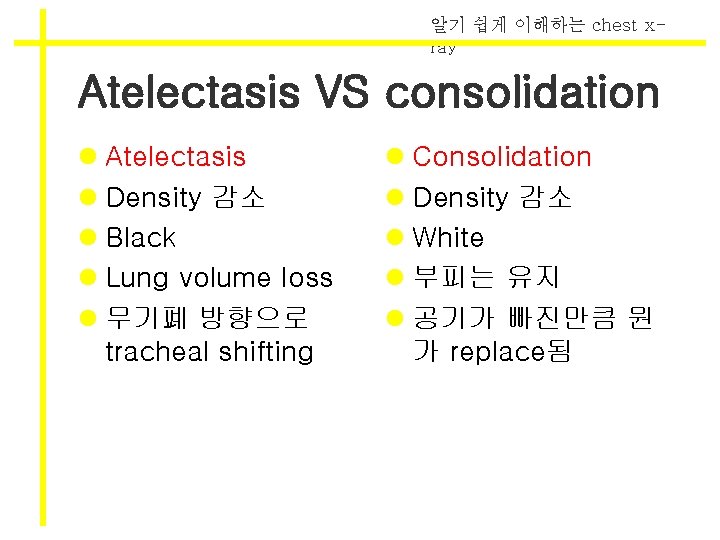

알기 쉽게 이해하는 chest xray Atelectasis VS consolidation l Atelectasis l Density 감소 l Black l Lung volume loss l 무기폐 방향으로 tracheal shifting l Consolidation l Density 감소 l White l 부피는 유지 l 공기가 빠진만큼 뭔 가 replace됨
알기 쉽게 이해하는 chest xray Cavity 형성, 경계 음영 증가, upper lobe에 존재 -> active pulmonary Tb
알기 쉽게 이해하는 chest xray C-tube Pneumothor ax 펴짐

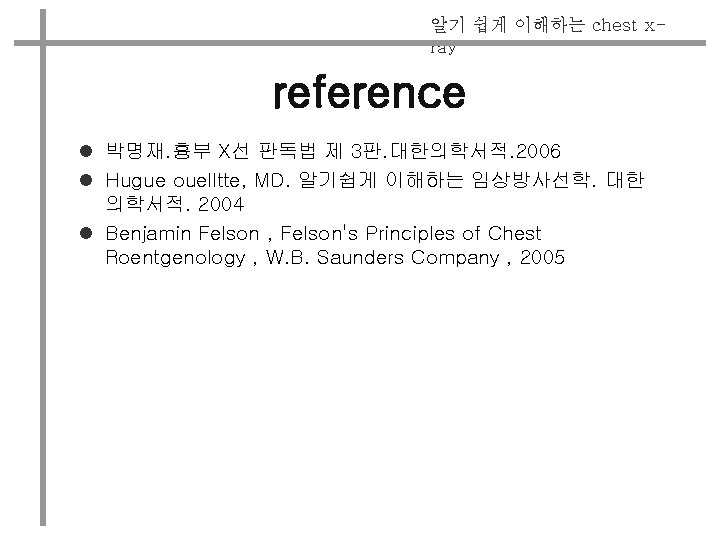

알기 쉽게 이해하는 chest xray reference l 박명재. 흉부 X선 판독법 제 3판. 대한의학서적. 2006 l Hugue ouelltte, MD. 알기쉽게 이해하는 임상방사선학. 대한 의학서적. 2004 l Benjamin Felson , Felson's Principles of Chest Roentgenology , W. B. Saunders Company , 2005
