Chemiluminescence, Bioluminescence, and the Luciferin-Luciferase ATP Detection Assay Ashley Long February 22, 2011 Bioanalytical Chemistry – Spring 2011

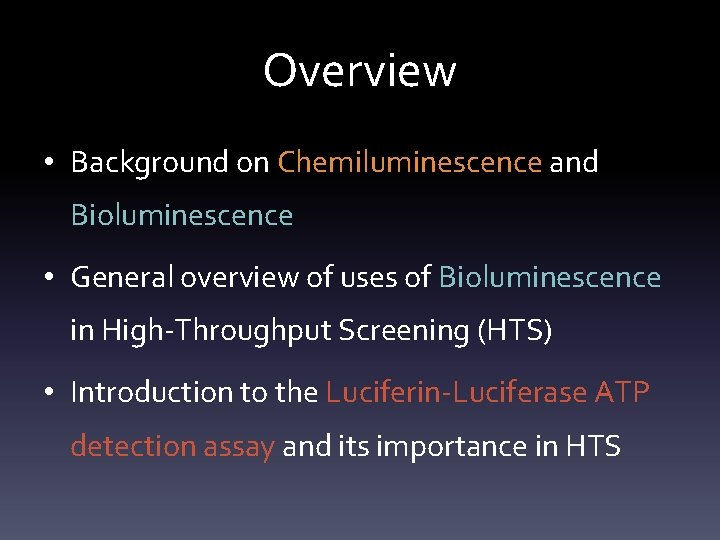

Overview • Background on Chemiluminescence and Bioluminescence • General overview of uses of Bioluminescence in High-Throughput Screening (HTS) • Introduction to the Luciferin-Luciferase ATP detection assay and its importance in HTS

The firefly Image from: http: //scienceline. org/2010/11/lighting-the-way/

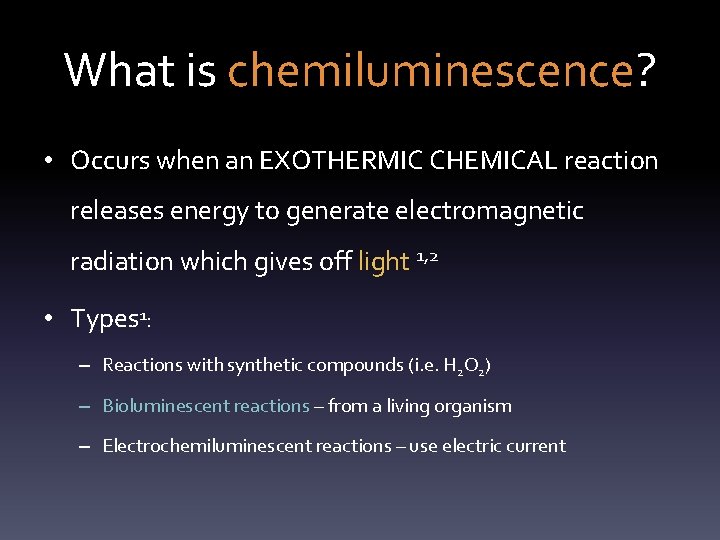

What is chemiluminescence? • Occurs when an EXOTHERMIC CHEMICAL reaction releases energy to generate electromagnetic radiation which gives off light 1, 2 • Types 1: – Reactions with synthetic compounds (i. e. H 2 O 2) – Bioluminescent reactions – from a living organism – Electrochemiluminescent reactions – use electric current

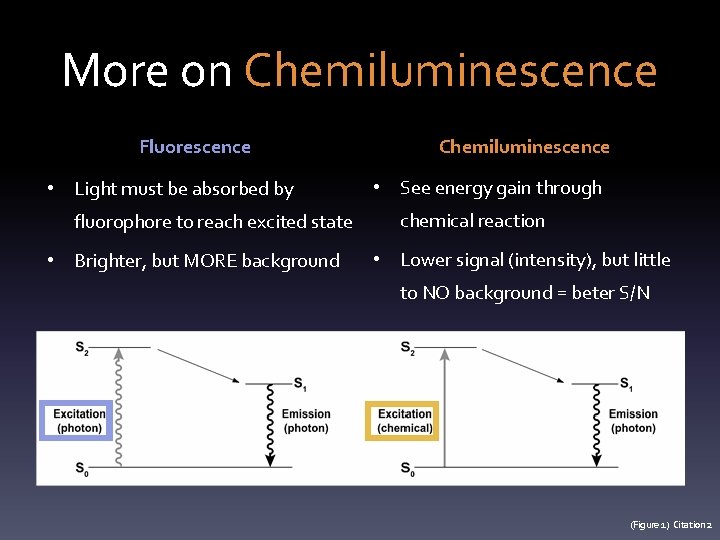

More on Chemiluminescence Fluorescence • Light must be absorbed by fluorophore to reach excited state • Brighter, but MORE background Chemiluminescence • See energy gain through chemical reaction • Lower signal (intensity), but little to NO background = beter S/N (Figure 1) Citation 2

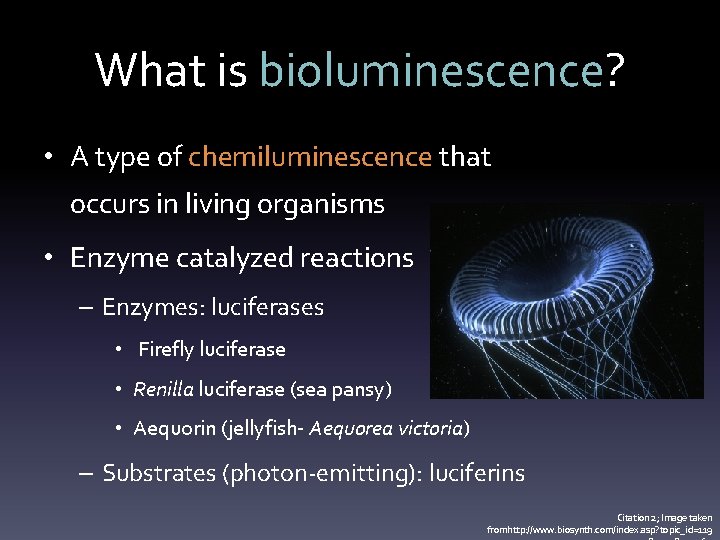

What is bioluminescence? • A type of chemiluminescence that occurs in living organisms • Enzyme catalyzed reactions – Enzymes: luciferases • Firefly luciferase • Renilla luciferase (sea pansy) • Aequorin (jellyfish- Aequorea victoria) – Substrates (photon-emitting): luciferins Citation 2; Image taken fromhttp: //www. biosynth. com/index. asp? topic_id=119

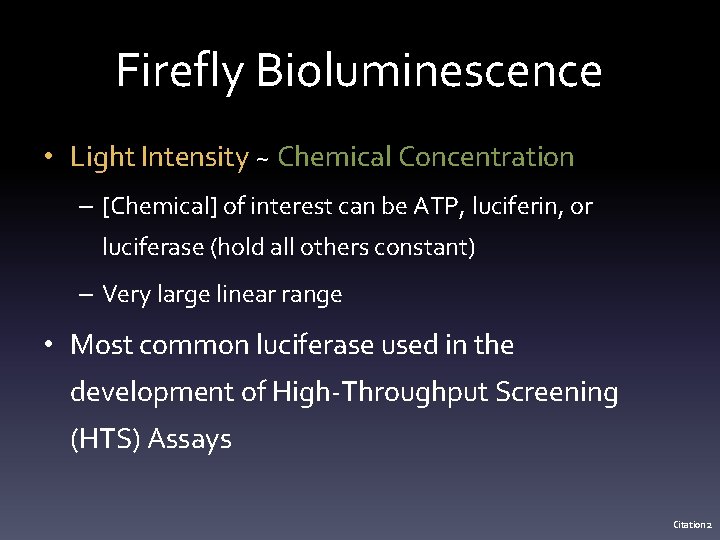

Firefly Bioluminescence • Light Intensity ~ Chemical Concentration – [Chemical] of interest can be ATP, luciferin, or luciferase (hold all others constant) – Very large linear range • Most common luciferase used in the development of High-Throughput Screening (HTS) Assays Citation 2

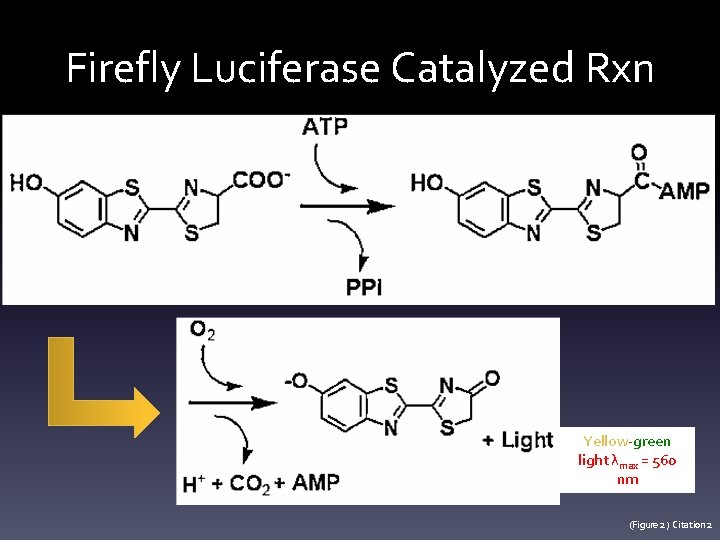

Firefly Luciferase Catalyzed Rxn Yellow-green light λmax = 560 nm (Figure 2) Citation 2

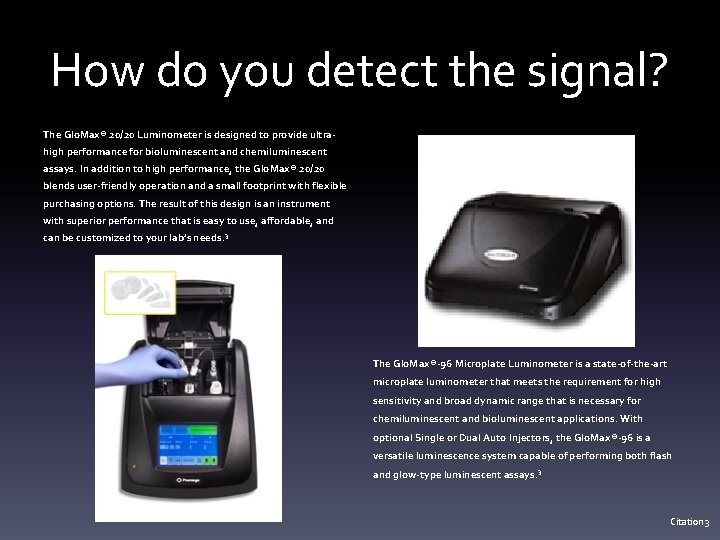

How do you detect the signal? The Glo. Max® 20/20 Luminometer is designed to provide ultrahigh performance for bioluminescent and chemiluminescent assays. In addition to high performance, the Glo. Max® 20/20 blends user-friendly operation and a small footprint with flexible purchasing options. The result of this design is an instrument with superior performance that is easy to use, affordable, and can be customized to your lab’s needs. 3 The Glo. Max®-96 Microplate Luminometer is a state-of-the-art microplate luminometer that meets the requirement for high sensitivity and broad dynamic range that is necessary for chemiluminescent and bioluminescent applications. With optional Single or Dual Auto Injectors, the Glo. Max®-96 is a versatile luminescence system capable of performing both flash and glow-type luminescent assays. 3 Citation 3

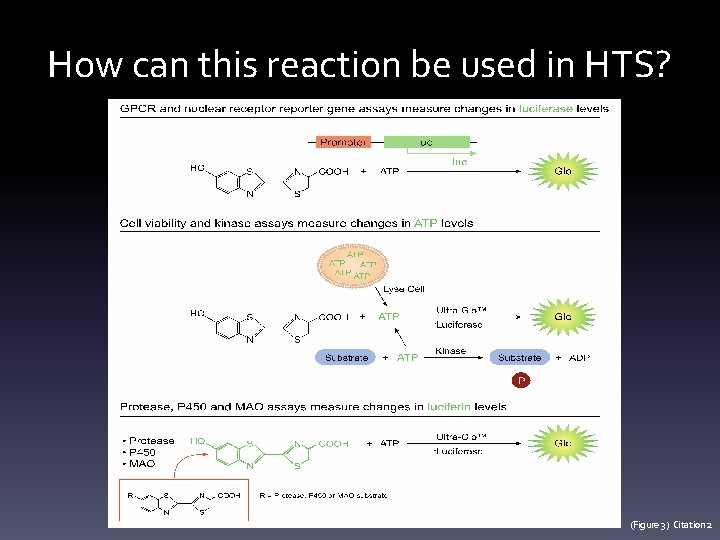

How can this reaction be used in HTS? (Figure 3) Citation 2

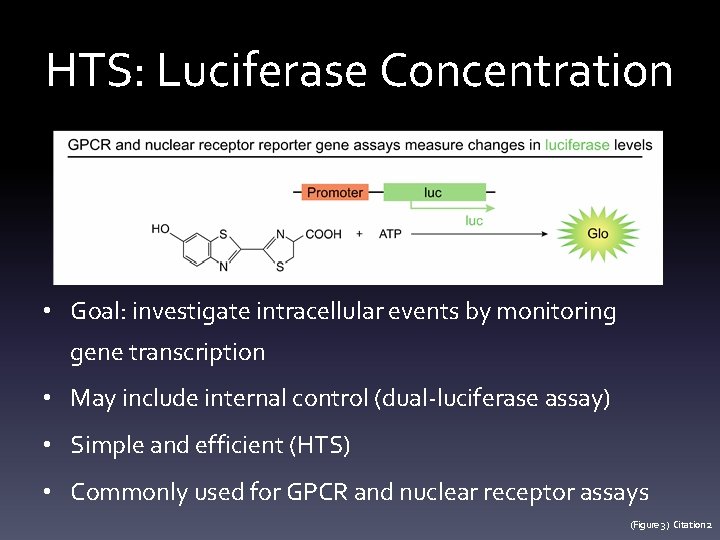

HTS: Luciferase Concentration • Goal: investigate intracellular events by monitoring gene transcription • May include internal control (dual-luciferase assay) • Simple and efficient (HTS) • Commonly used for GPCR and nuclear receptor assays (Figure 3) Citation 2

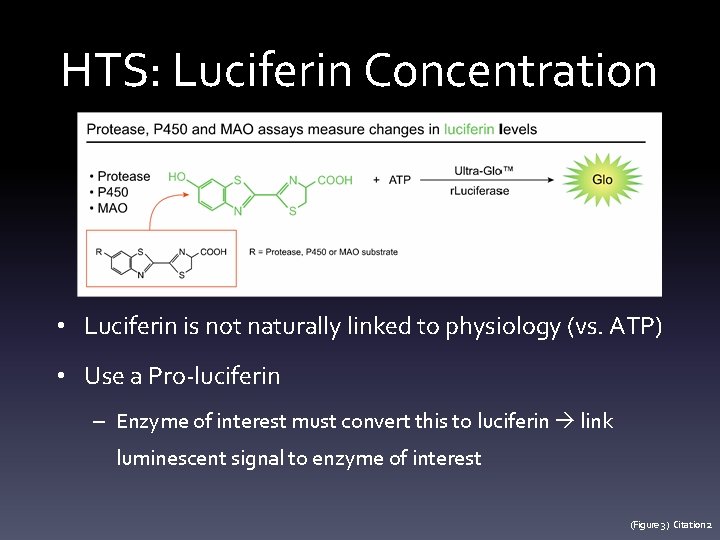

HTS: Luciferin Concentration • Luciferin is not naturally linked to physiology (vs. ATP) • Use a Pro-luciferin – Enzyme of interest must convert this to luciferin link luminescent signal to enzyme of interest (Figure 3) Citation 2

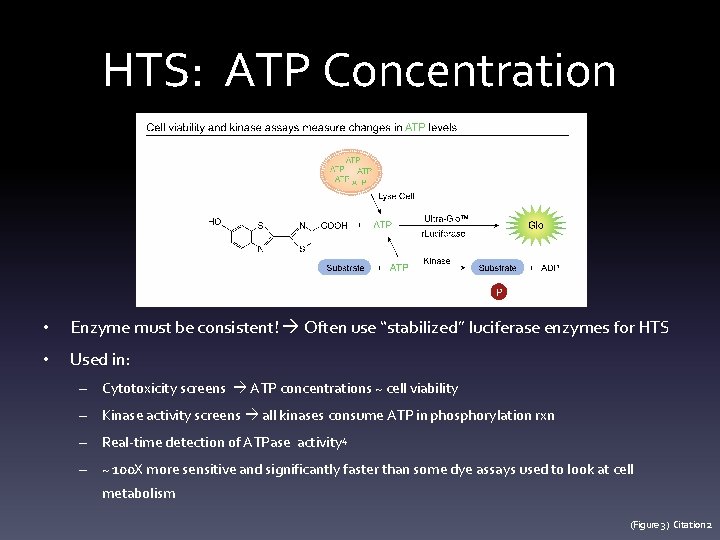

HTS: ATP Concentration • Enzyme must be consistent! Often use “stabilized” luciferase enzymes for HTS • Used in: – Cytotoxicity screens ATP concentrations ~ cell viability – Kinase activity screens all kinases consume ATP in phosphorylation rxn – Real-time detection of ATPase activity 4 – ~ 100 X more sensitive and significantly faster than some dye assays used to look at cell metabolism (Figure 3) Citation 2

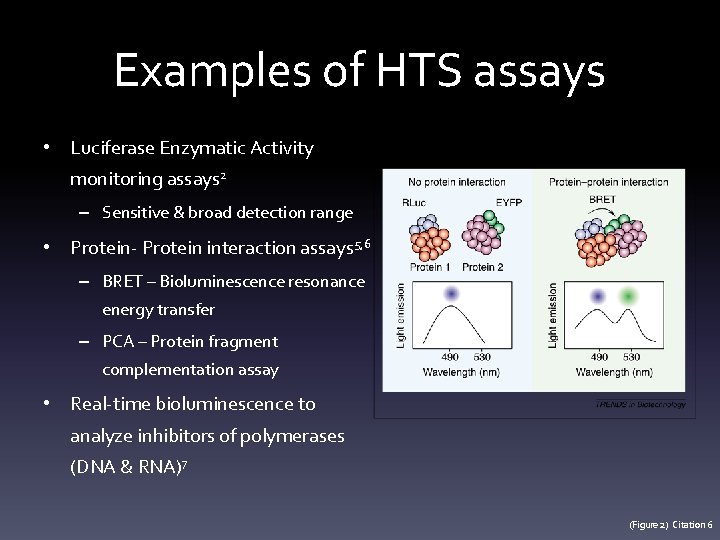

Examples of HTS assays • Luciferase Enzymatic Activity monitoring assays 2 – Sensitive & broad detection range • Protein- Protein interaction assays 5, 6 – BRET – Bioluminescence resonance energy transfer – PCA – Protein fragment complementation assay • Real-time bioluminescence to analyze inhibitors of polymerases (DNA & RNA)7 (Figure 2) Citation 6

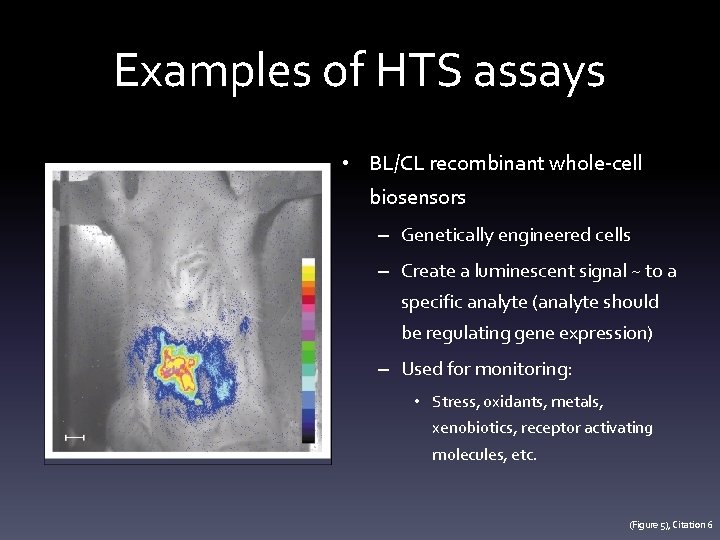

Examples of HTS assays • BL/CL recombinant whole-cell biosensors – Genetically engineered cells – Create a luminescent signal ~ to a specific analyte (analyte should be regulating gene expression) – Used for monitoring: • Stress, oxidants, metals, xenobiotics, receptor activating molecules, etc. (Figure 5), Citation 6

• ATP Assay Kit Demonstration ATP Determination Kit – Molecular Probes (Invitrogen ) – Bioluminescence assay – Quantitative determination of ATP concentrations – Components: • Recombinant firefly luciferase (enzyme) • D-luciferin (substrate) (Mg 2+) (luciferase) Luciferin + ATP + O 2 oxyluciferin + AMP + pyrophosphate + CO 2 + light Citation 8

ATP Assay – Standards

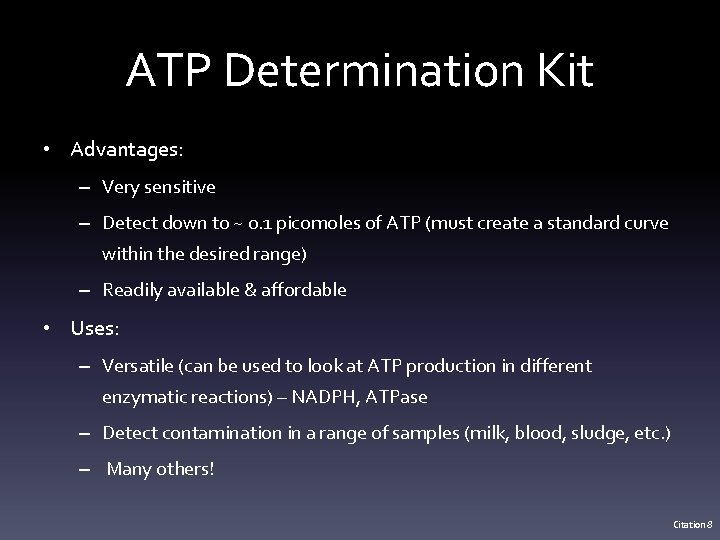

ATP Determination Kit • Advantages: – Very sensitive – Detect down to ~ 0. 1 picomoles of ATP (must create a standard curve within the desired range) – Readily available & affordable • Uses: – Versatile (can be used to look at ATP production in different enzymatic reactions) – NADPH, ATPase – Detect contamination in a range of samples (milk, blood, sludge, etc. ) – Many others! Citation 8

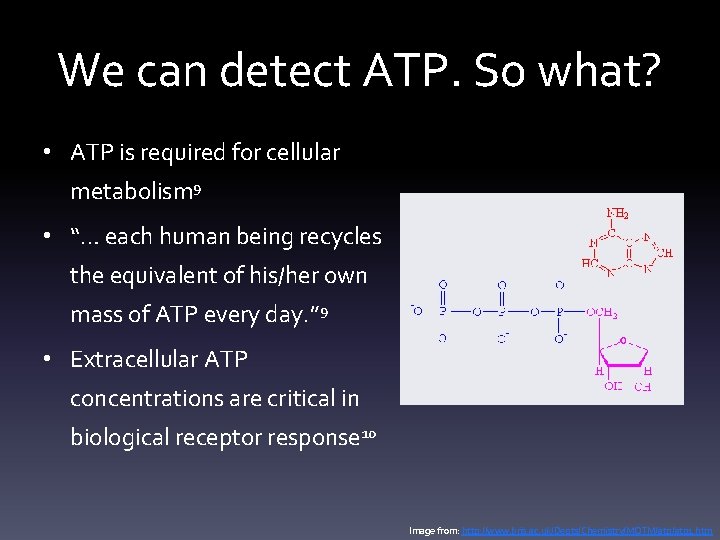

We can detect ATP. So what? • ATP is required for cellular metabolism 9 • “… each human being recycles the equivalent of his/her own mass of ATP every day. ” 9 • Extracellular ATP concentrations are critical in biological receptor response 10 Image from: http: //www. bris. ac. uk/Depts/Chemistry/MOTM/atp 1. htm

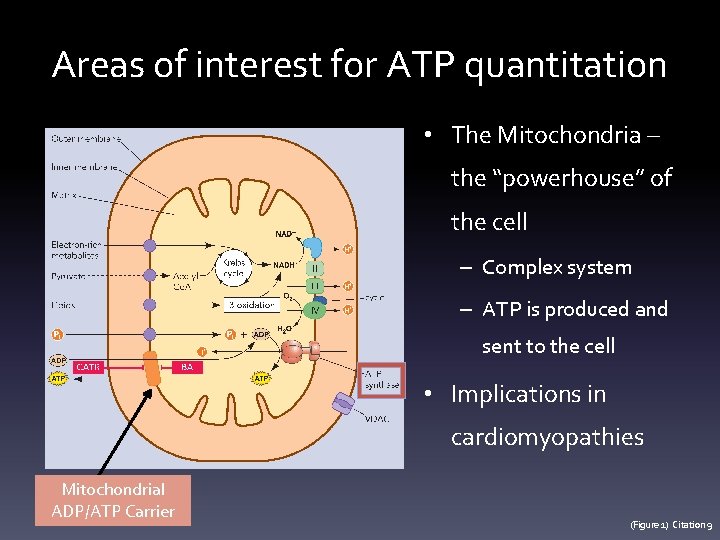

Areas of interest for ATP quantitation • The Mitochondria – the “powerhouse” of the cell – Complex system – ATP is produced and sent to the cell • Implications in cardiomyopathies Mitochondrial ADP/ATP Carrier (Figure 1) Citation 9

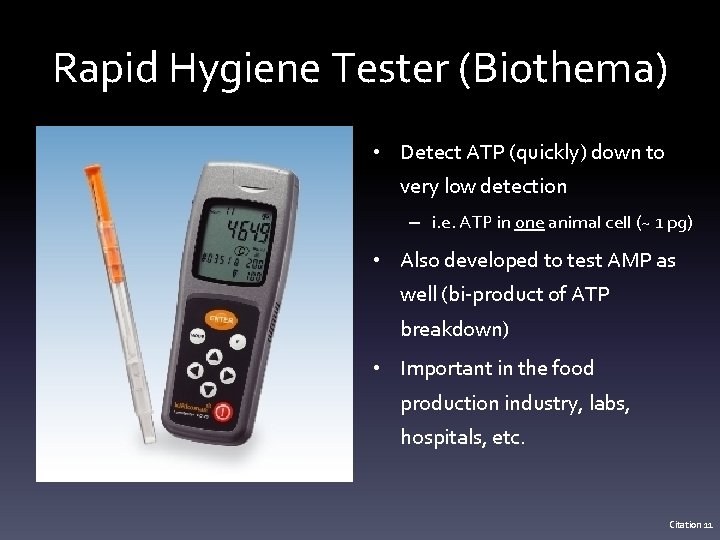

Rapid Hygiene Tester (Biothema) • Detect ATP (quickly) down to very low detection – i. e. ATP in one animal cell (~ 1 pg) • Also developed to test AMP as well (bi-product of ATP breakdown) • Important in the food production industry, labs, hospitals, etc. Citation 11

Conclusions • Chemiluminescence and Bioluminescence are common, extremely versatile, and useful analytical tools • HTS methods are becoming increasingly more dependent upon this “background-free” technique • The ATP Detection Assay could have huge implications in pharmacology as it evolves for different types of detection

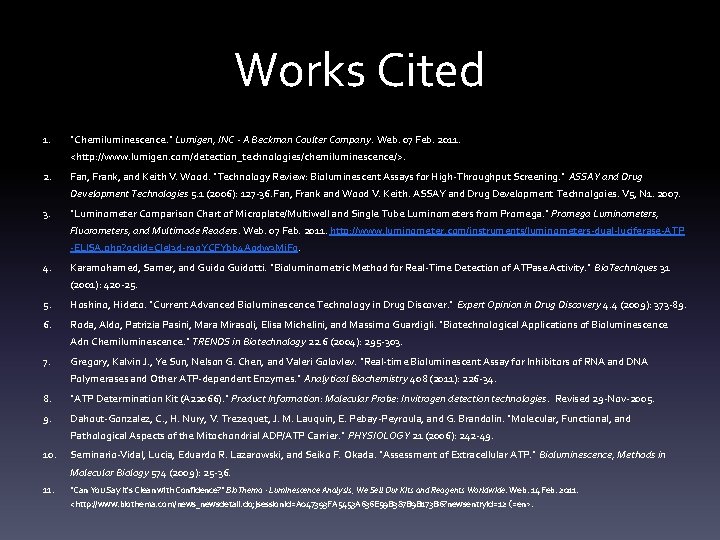

Works Cited 1. "Chemiluminescence. " Lumigen, INC - A Beckman Coulter Company. Web. 07 Feb. 2011. <http: //www. lumigen. com/detection_technologies/chemiluminescence/>. 2. Fan, Frank, and Keith V. Wood. "Technology Review: Bioluminescent Assays for High-Throughput Screening. " ASSAY and Drug Development Technologies 5. 1 (2006): 127 -36. Fan, Frank and Wood V. Keith. ASSAY and Drug Development Technolgoies. V 5, N 1. 2007. 3. "Luminometer Comparison Chart of Microplate/Multiwell and Single Tube Luminometers from Promega. " Promega Luminometers, Fluorometers, and Multimode Readers. Web. 07 Feb. 2011. http: //www. luminometer. com/instruments/luminometers-dual-luciferase-ATP -ELISA. php? gclid=CIel 3 d-r 9 q. YCFYbb 4 Aodw 3 Mj. Fg. 4. Karamohamed, Samer, and Guidotti. "Bioluminometric Method for Real-Time Detection of ATPase Activity. " Bio. Techniques 31 (2001): 420 -25. Hoshino, Hideto. "Current Advanced Bioluminescence Technology in Drug Discover. " Expert Opinion in Drug Discovery 4. 4 (2009): 373 -89. 6. Roda, Aldo, Patrizia Pasini, Mara Mirasoli, Elisa Michelini, and Massimo Guardigli. "Biotechnological Applications of Bioluminescence Adn Chemiluminescence. " TRENDS in Biotechnology 22. 6 (2004): 295 -303. 7. Gregory, Kalvin J. , Ye Sun, Nelson G. Chen, and Valeri Golovlev. "Real-time Bioluminescent Assay for Inhibitors of RNA and DNA Polymerases and Other ATP-dependent Enzymes. " Analytical Biochemistry 408 (2011): 226 -34. 8. "ATP Determination Kit (A 22066). " Product Information: Molecular Probe: Invitrogen detection technologies. Revised 29 -Nov-2005. 9. Dahout-Gonzalez, C. , H. Nury, V. Trezequet, J. M. Lauquin, E. Pebay-Peyroula, and G. Brandolin. "Molecular, Functional, and Pathological Aspects of the Mitochondrial ADP/ATP Carrier. " PHYSIOLOGY 21 (2006): 242 -49. 10. Seminario-Vidal, Lucia, Eduardo R. Lazarowski, and Seiko F. Okada. "Assessment of Extracellular ATP. " Bioluminescence, Methods in Molecular Biology 574 (2009): 25 -36. 11. "Can You Say It's Clean with Confidence? " Bio. Thema - Luminescence Analysis, We Sell Our Kits and Reagents Worldwide. Web. 14 Feb. 2011. <http: //www. biothema. com/news_newsdetail. do; jsessionid=A 047393 FA 5453 A 636 E 59 B 387 B 9 B 173 B 6? newsentryid=12 〈=en>.

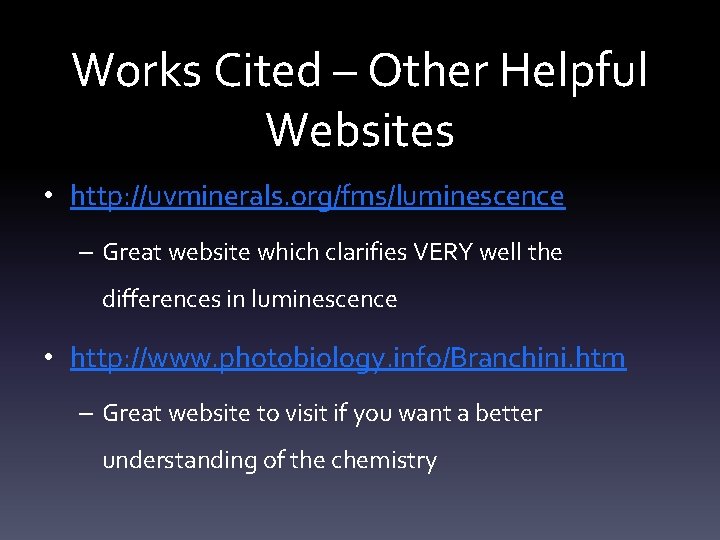

Works Cited – Other Helpful Websites • http: //uvminerals. org/fms/luminescence – Great website which clarifies VERY well the differences in luminescence • http: //www. photobiology. info/Branchini. htm – Great website to visit if you want a better understanding of the chemistry

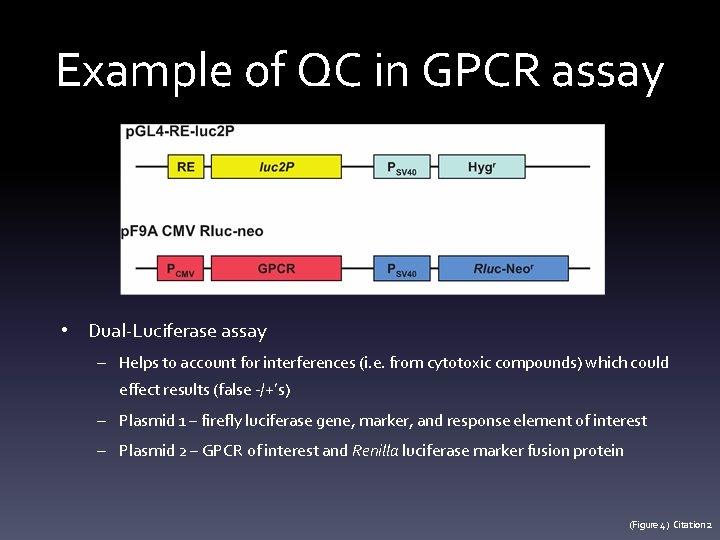

Example of QC in GPCR assay • Dual-Luciferase assay – Helps to account for interferences (i. e. from cytotoxic compounds) which could effect results (false -/+’s) – Plasmid 1 – firefly luciferase gene, marker, and response element of interest – Plasmid 2 – GPCR of interest and Renilla luciferase marker fusion protein (Figure 4) Citation 2

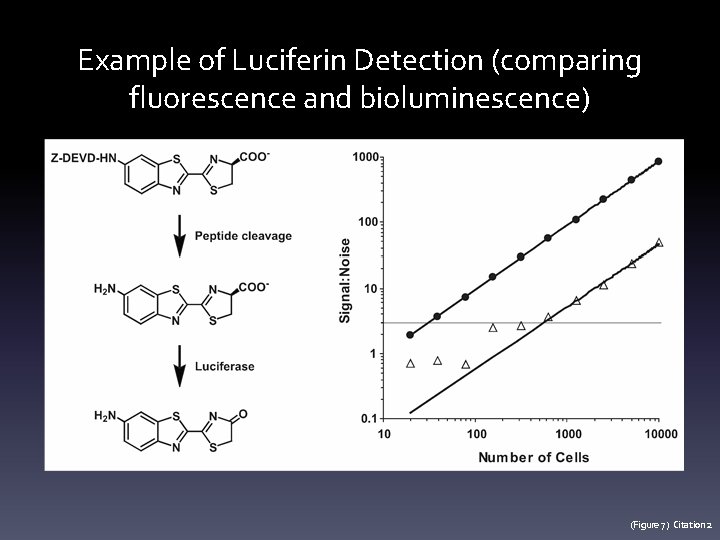

Example of Luciferin Detection (comparing fluorescence and bioluminescence) (Figure 7) Citation 2

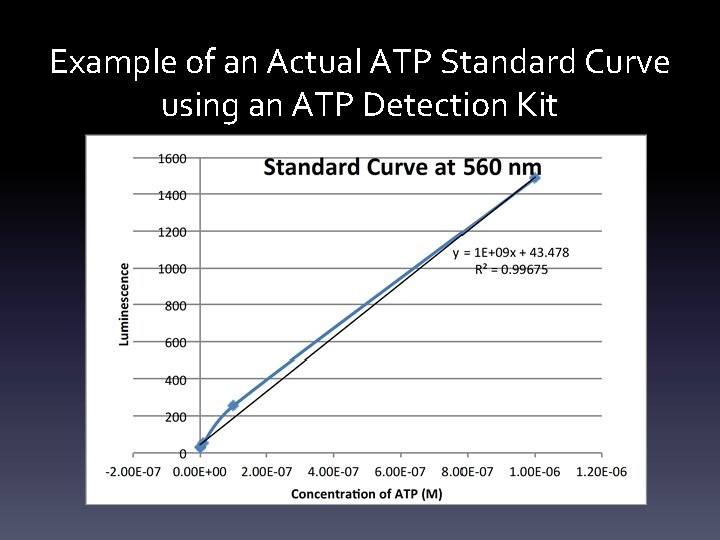

Example of an Actual ATP Standard Curve using an ATP Detection Kit
