CHEMICAL EOR FIELD EXPERIENCE Oil Chem Technologies Inc
- Slides: 65

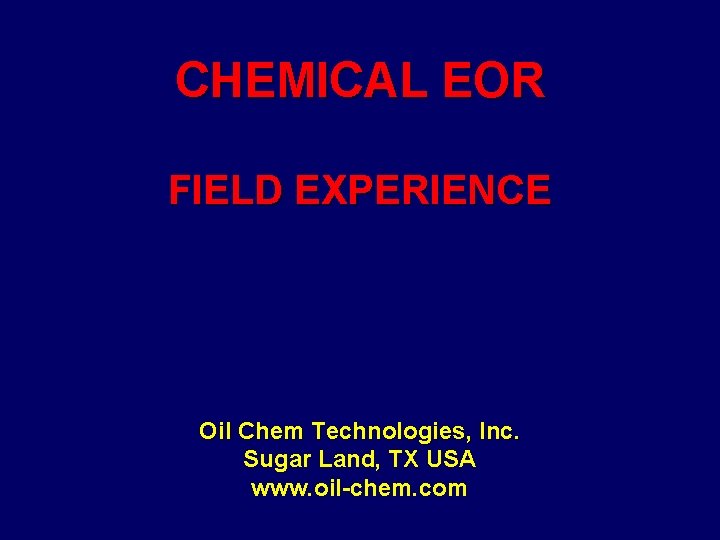

CHEMICAL EOR FIELD EXPERIENCE Oil Chem Technologies, Inc. Sugar Land, TX USA www. oil-chem. com

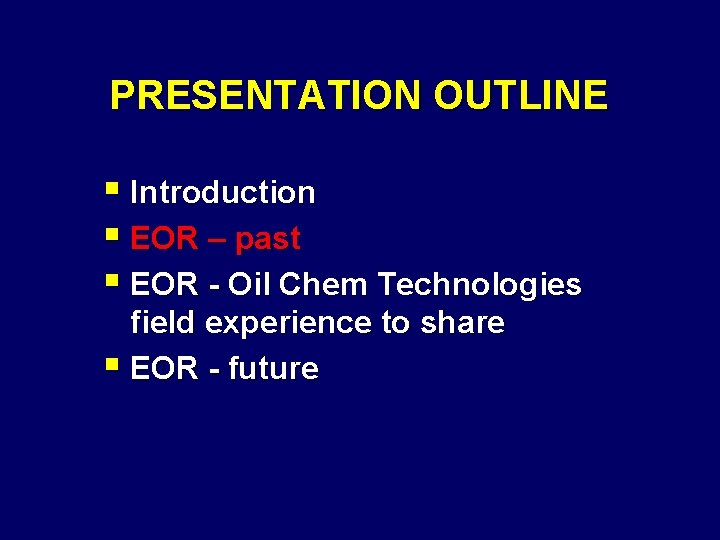

PRESENTATION OUTLINE § Introduction to Oil Chem § EOR – past § EOR - Oil Chem Technologies field experience to share § EOR - future
PRESENTATION OUTLINE § Introduction § EOR – past § EOR - Oil Chem Technologies field experience to share § EOR - future
WHY EOR?
Oil Recovery Overview BAVIER; BASIC CONCEPTS OF EOR PROCESSES(1991)
WHY CHEMICAL EOR?

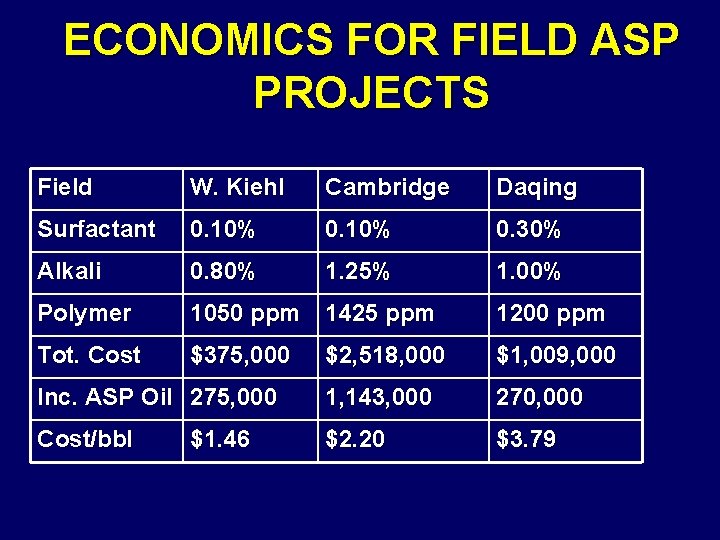

ECONOMICS FOR FIELD ASP PROJECTS Field W. Kiehl Cambridge Daqing Surfactant 0. 10% 0. 30% Alkali 0. 80% 1. 25% 1. 00% Polymer 1050 ppm 1425 ppm 1200 ppm Tot. Cost $375, 000 $2, 518, 000 $1, 009, 000 Inc. ASP Oil 275, 000 1, 143, 000 270, 000 Cost/bbl $2. 20 $3. 79 $1. 46
ROLE OF SURFACTANTS § Reduce interfacial tension § Wettability alteration § Polymer, CDG, BW, etc. can be used along with surfactants when mobility control is necessary
SURFACE OR INTERFACIAL TENSIONS SYSTEM m. N/m Water 72 Pure Hydrocarbons ~ 40 Crude Oil ~ 30 - 40 Crude Oil/Water ~ 3 - 30 Crude Oil/Water/Surfactant < 0. 01
RELATIONSHIP BETWEEN CAPILLARY NUMBER AND OIL RECOVERY Nc = µ / cosθ Nc = Capillary Number = Darcy Velocity µ = Viscosity s= Interfacial Tension Θ=wetting angle
PRESENTATION OUTLINE § Introduction § EOR – past § EOR - Oil Chem Technologies field experience to share § EOR - future
LOUDON FLOOD - EXXON 1983 § 2. 3% surfactant § 96% of the connate salinity § 0. 3% pore volume § 0. 1% Xanthan gum § 56 million pounds surfactant was injected in 9 months § 68% ROIP

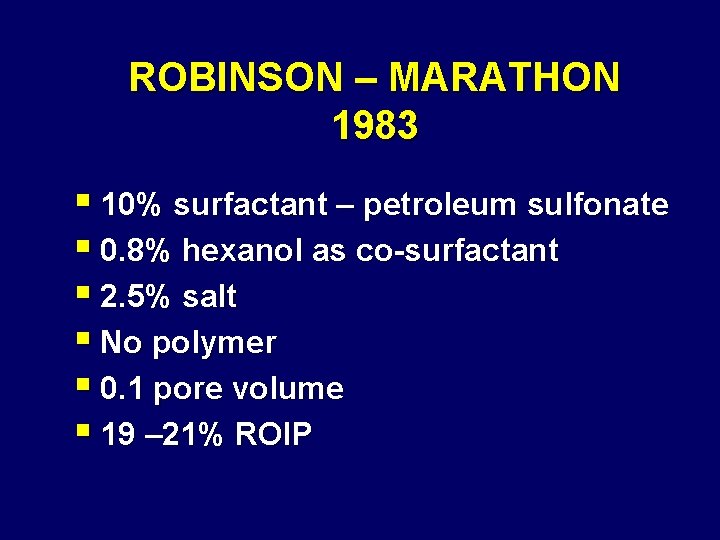

ROBINSON – MARATHON 1983 § 10% surfactant – petroleum sulfonate § 0. 8% hexanol as co-surfactant § 2. 5% salt § No polymer § 0. 1 pore volume § 19 – 21% ROIP
CHEMICAL EOR PAST PROBLEMS Technical success but limited “commercial” success Reasons?
EOR BY CHEMICAL FLOOD Limited commercial success for the past two decades - Reasons? § Sensitivity to oil price § Limitations of chemicals § High surfactant concentration § Salinity optimization required § Potential emulsion block
However, § Extensive lab evaluations and field pilot tests § § support the feasibility of chemical flooding New chemicals and processes open the door for new opportunities Recent field data using these new chemical and processes proves chemical flooding is an effective way to recover residual oil
PRESENTATION OUTLINE § Introduction § EOR – past § EOR - Oil Chem Technologies field experience to share § EOR - future

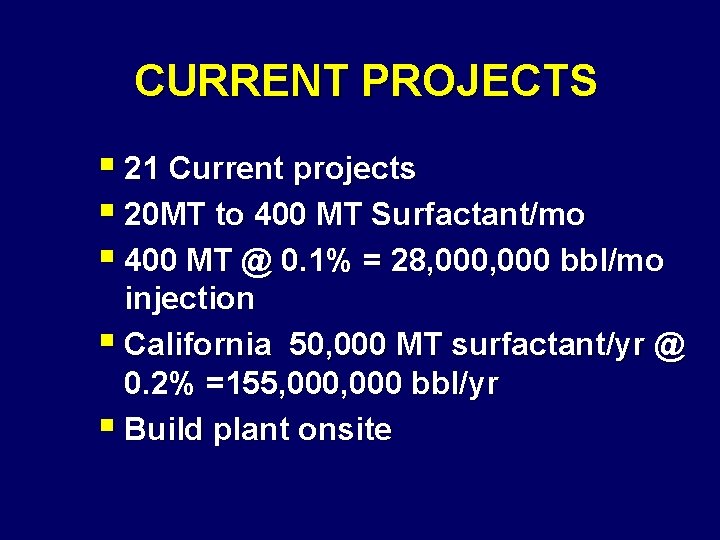

CURRENT PROJECTS § 21 Current projects § 20 MT to 400 MT Surfactant/mo § 400 MT @ 0. 1% = 28, 000 bbl/mo injection § California 50, 000 MT surfactant/yr @ 0. 2% =155, 000 bbl/yr § Build plant onsite
CHINA EOR PROJECTS • Heavy crude recovery • Low perm formation oil recovery • High temp. / high salinities • Effective, economical offshore EOR
CHINA EOR PROJECTS INJECTED, ON-GOING & APPROVED PROJECTS SS B 2080, SS B 5050, SS B 1688, ORS-46 L, ORS-97 HF, ORS-41 HF
1992 -94: LAB EVALUATION Over 100 Surfactants Were Tested Including: § ORS-41 § Petroleum Sulfonates § Carboxylates § Lignin Sulfonate/Petroleum Sulfonates § Microbiological
1995 - INITIAL FIELD EVALUATION § Daqing No. 4 Field - Oil Chem Technologies’ ORS-41 § Daqing No. 1 Field – another US company’s Petroleum Sulfonate
1996 -1998: ENLARGED FIELD EVALUATION ORS-41 was the ONLY surfactant chosen for enlarged field evaluation. More than 7000 MT of the ORS-41 was injected in several field blocks and this confirmed the viability of the ASP process SPE 36748, 57288, 71061, 71492

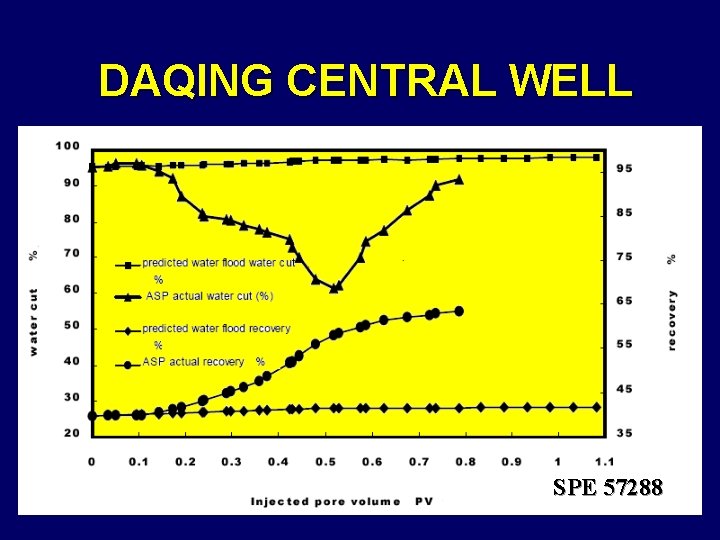

DAQING CENTRAL WELL SPE 57288

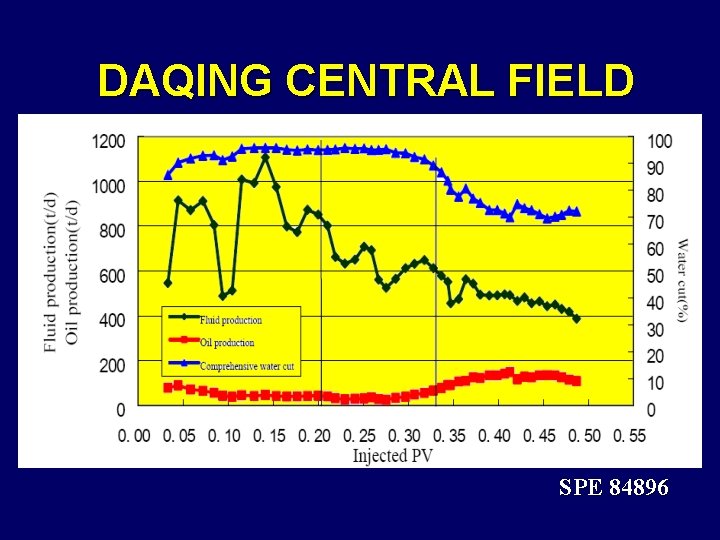

DAQING CENTRAL FIELD SPE 84896
HEAVY OIL RECOVERY BY CREATING WATER EXTERNAL PSEUDOEMULSION
HEAVY OIL PSEUDO-EMULSION Control 0. 1% SF-100 Surfactant
HEAVY OIL PSEUDO-EMULSION Control 0. 1% SF-100 Surfactant

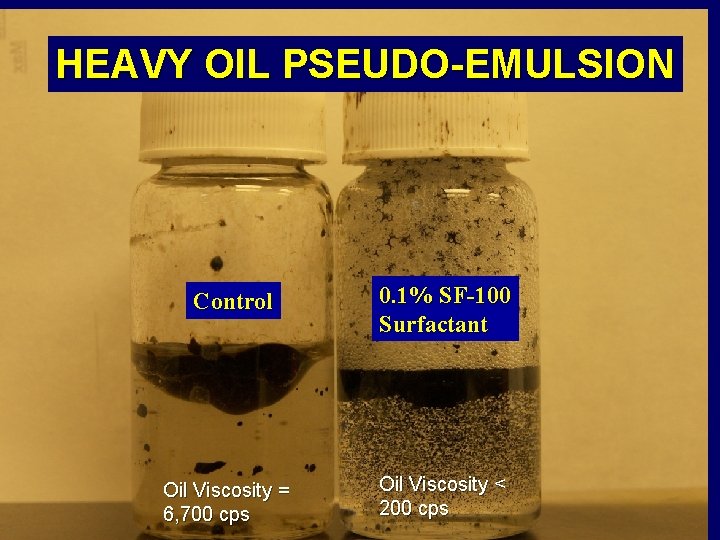

HEAVY OIL PSEUDO-EMULSION Control Oil Viscosity = 6, 700 cps 0. 1% SF-100 Surfactant Oil Viscosity < 200 cps
Oil Recovery, % LAB CORE FLOOD DATA Water flood Injection Volume, PV
LOW PERM INJECTIVITY ENHANCER § Permeability: 0. 1 – 10 md § High water injection pressure makes water flood unfeasible § FI series surfactants reduced injection pressure, increased injectivity § Effectively increased the injectivity in several fields in China and USA
CANADA EOR PROJECTS • • • HEAVY CRUDE TAR SAND LOWER RESERVOIR TEMPERATURES FRESH WATER SOURCES HIGH SALINITY RESERVOIRS FRACTURED CARBONATE FORMATIONS
CANADA EOR PROJECTS INJECTED, ON-GOING & APPROVED PROJECTS SS B 2080, SS B 5050, SS B 1688, ORS-46 L, ORS-97 HF, ORS-41 HF Some field results will be published upon completion of projects
NORTHERN CANADA SP PROJECT § Heavy oil field, API = 12 -13 § Under polymer flood § Added 0. 1% surfactant with polymer in November, 2006 § ~ 3 months later, the water cut reduced from 97% to 58%
UNITED STATES EOR PROJECTS • FRESH WATER SOURCES • HIGH SALINITY RESERVOIRS • FRACTURED CARBONATE FORMATIONS • LOW PERMEABILITY
UNITED STATES EOR PROJECTS INJECTED, ON-GOING & APPROVED PROJECTS ORS-41 HF (2), ORS-62, ORS-97, ORS-46 HF, ORS-162, SS-7593, SS B 1688(2)
SHO-VEL-TUM FIELD § On production > 40 yrs, extensive water flood, § § produced 4 bbl/day ASP started on 2/98, using Na 2 CO 3 and ORS 62 Total incremental oil > 10, 444 bbl (22 bbls/day) in 1. 3 years SPE 84904
OIL SATURATION AFTER ASP INJECTION SPE 84904
MELLOTT RANCH WYOMING ASP PROJECT § 0. 1% ORS-46 HF, 1% Na. OH, 1300 PPM polymer § Recovered 989, 000 bbl or 16. 4 % OOIP between 2003 and 2005 § Injection volume decreased 2, 800, 000 bbl due decreased water cut
MELLOTT RANCH ASP PROJECT - ORS-46 HF WATER FLOOD SINCE 1966 ASP
BIG SINKING, KENTUCKY Project Information § Crude oil : 100 Million bbl § Bottom Hole Temperature: 30 o. C § Depth: 1150 ft § Thickness: 25 feet (7. 32 meter) § Permeability: 45 m. D SPE 100004
BIG SINKING, KENTUCKY Chemical injected: 0. 8% Na. OH + 0. 1% ORS-162 HF Problems overcome: § IFT lowered from 23. 6 to 0. 001 m. N/m § Poor water injectivity § High water cuts § 220% increase in injectivity § Large field trial scheduled to begin in 12/2007 SPE 89384

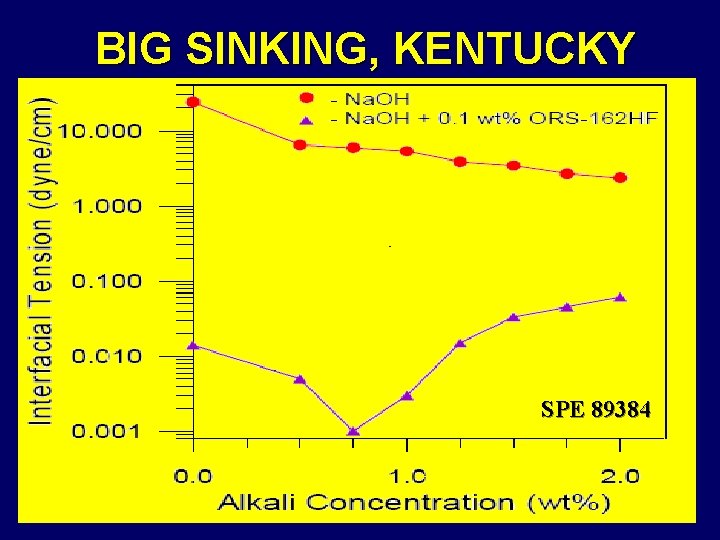

BIG SINKING, KENTUCKY SPE 89384

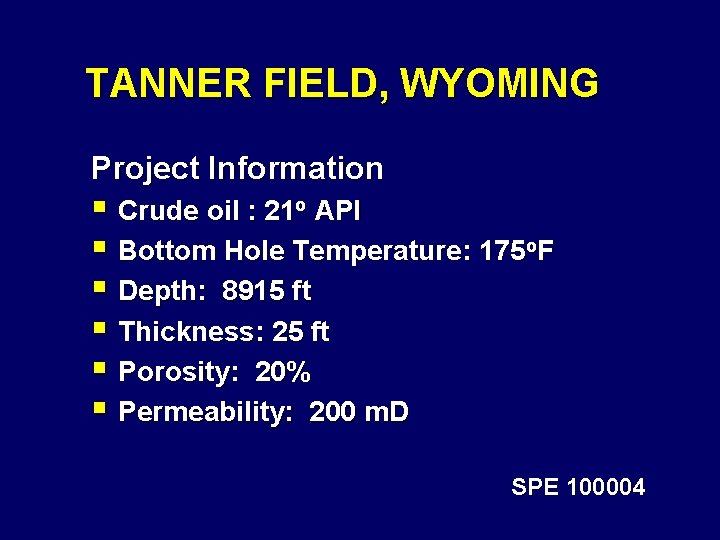

TANNER FIELD, WYOMING Project Information § Crude oil : 21 o API § Bottom Hole Temperature: 175 o. F § Depth: 8915 ft § Thickness: 25 ft § Porosity: 20% § Permeability: 200 m. D SPE 100004
TANNER, WYOMING SPE 100004
SOUTHEAST ASIA PROJECTS • HEAVY CRUDE • HIGH TEMPERATURES • ENVIRONMENT CONCERNS • FRESH WATER SOURCE
SOUTHEAST ASIA PROJECTS INJECTED, ON-GOING & APPROVED PROJECTS SS 6 -72 LV, SS 8020

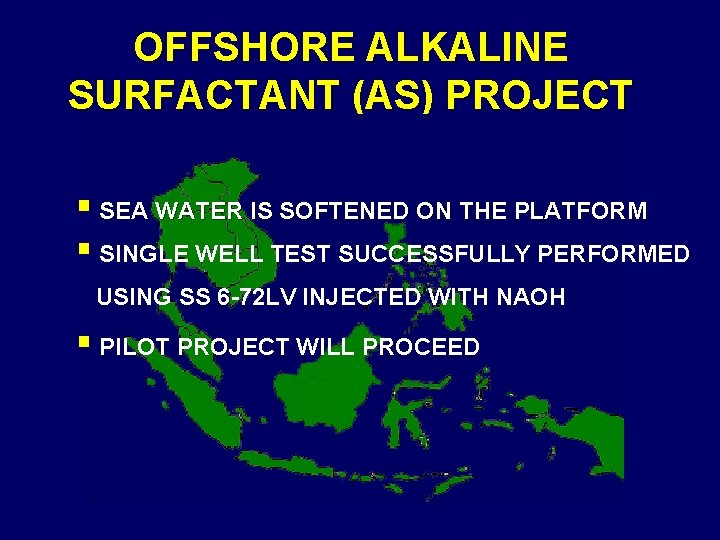

OFFSHORE ALKALINE SURFACTANT (AS) PROJECT § SEA WATER IS SOFTENED ON THE PLATFORM § SINGLE WELL TEST SUCCESSFULLY PERFORMED USING SS 6 -72 LV INJECTED WITH NAOH § PILOT PROJECT WILL PROCEED
SOUTH AMERICA PROJECTS • VARIOUS RESERVOIR CONDITIONS • MANY EOR CANDIDATE FIELDS – OFFSHORE & INLAND • ASPHALTENE REMOVAL / WELLBORE DAMAGE REMOVAL • IMPROVED GAS RECOVERY/REDUCED WATER CUT
SOUTH AMERICA PROJECTS INJECTED, ON-GOING & APPROVED PROJECTS ORS-57 HF, ORS-41 HF (2), SS-6046, SS GI-1416, SS B 1688
as
PRESENTATION OUTLINE § Introduction § EOR – past § EOR - Oil Chem Technologies field experience to share § EOR - future
EOR BY CHEMICAL FLOOD The future is bright – Reasons? § High oil prices § Energy demand § Diminishing reserves § Past experience § New technologies

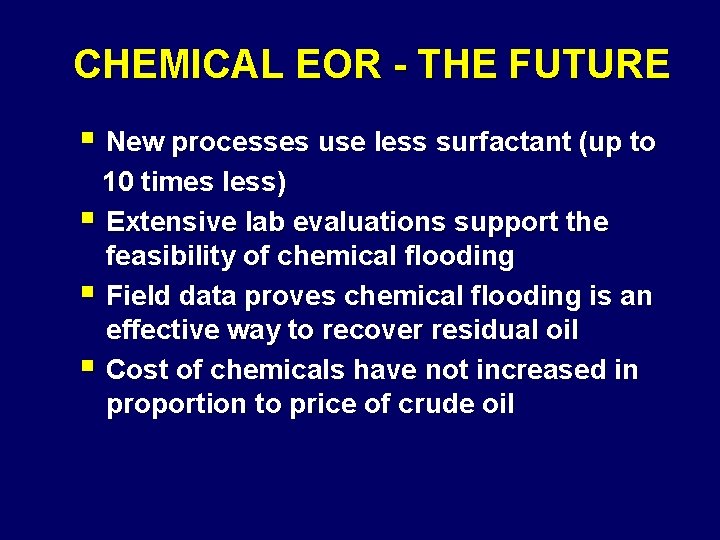

CHEMICAL EOR - THE FUTURE § New processes use less surfactant (up to 10 times less) § Extensive lab evaluations support the feasibility of chemical flooding § Field data proves chemical flooding is an effective way to recover residual oil § Cost of chemicals have not increased in proportion to price of crude oil
COST OF CHEMICALS 1980 2006 $3 -4/lb $1/lb $0. 40 -0. 60/lb $0. 60 -1. 2/lb Alkali 3 $0. 12/lb $0. 20 -. 040/lb Crude Oil $12/bbl $50 -70/bbl $8 -15 $0. 50 -$5 Polymer 1 Surfactant 2 Incr. Cost/bbl Some processes eliminate need for polymer 2 Surfactant concentration has been reduced by 10 3 Alkali has been reduced by 50% or in some cases is not needed at all 1
PROCESS CHOICES § Surfactant Polymer § Alkaline Surfactant Polymer § Smart Surfactant § Pseudo-emulsion § Chemical/Mechanical
SCALING UP
ENLARGED FIELD CHEMICAL FLOOD § Raw Material Supply • Source (local or import) • Availability (quantity, quality) • Alternative suppliers • Storage § Manufacturing Location • Foreign, domestic, on-site • Shipping, tax, etc. • Storage and distribution • Flexibility

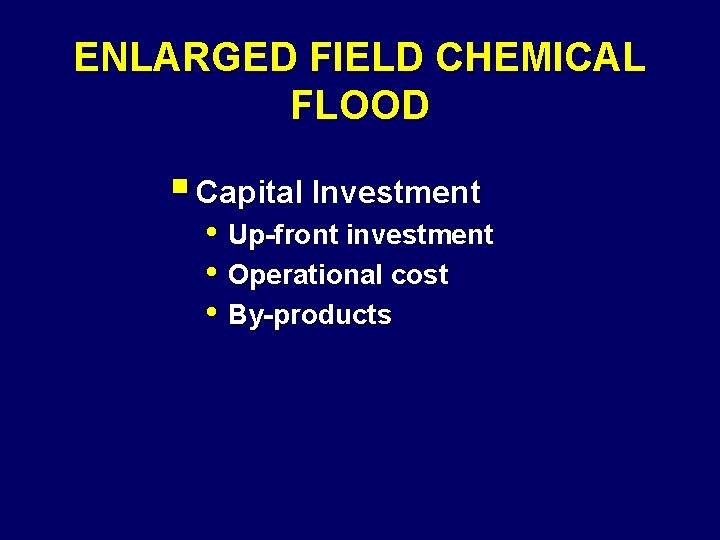

ENLARGED FIELD CHEMICAL FLOOD § Capital Investment • Up-front investment • Operational cost • By-products
CHEMICAL EOR OPPORTUNITIES § Conventional Oil Recover Factor <33% § Oil reserves & reservoir characteristics have already been confirmed § Improved processes and chemicals are available § Better scaling and modeling has been developed
CHEMICAL EOR OPPORTUNITIES § Two trillion bbl of oil remain in depleted or § § abandoned wells Chemical floods offer the only chance in many depleted & water flooded reservoirs Chemical EOR must be re-evaluated based on current technical & economic conditions Minimal or no remediation is necessary, minimizing environmental constraints Trained personnel are available locally

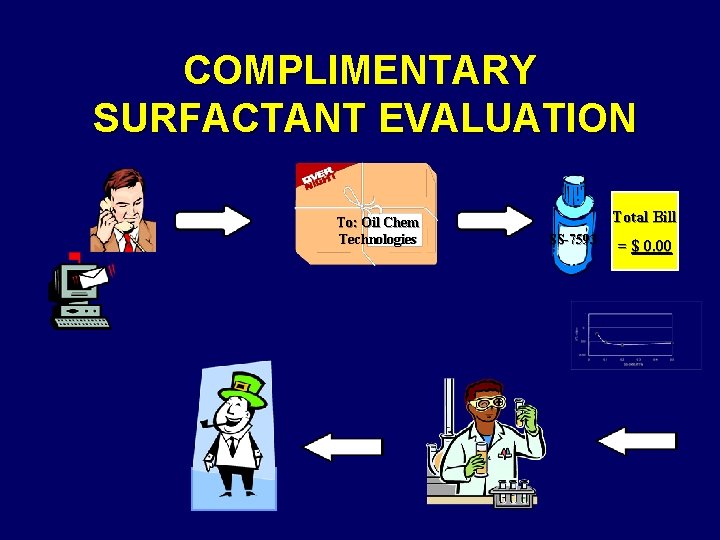

COMPLIMENTARY SURFACTANT EVALUATION To: Oil Chem Technologies Total Bill SS-7593 = $ 0. 00
SHARE OUR TECHNOLOGY & EXPERENCES TEAM WORK - KEY TO SUCCESS

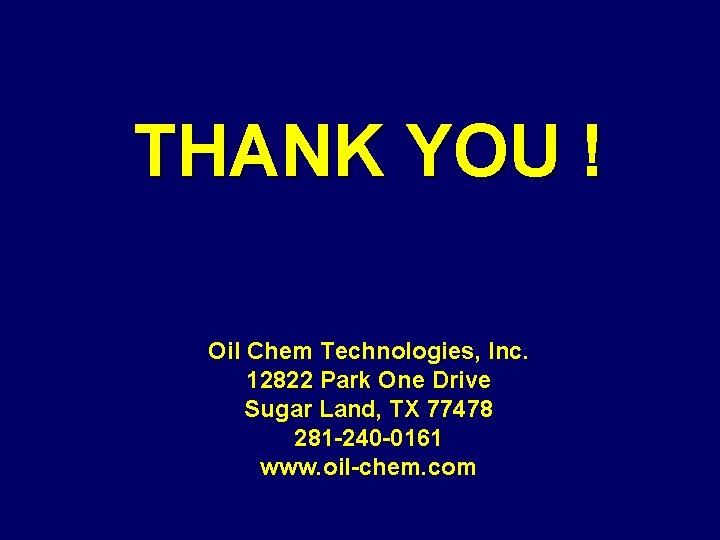

THANK YOU ! Oil Chem Technologies, Inc. 12822 Park One Drive Sugar Land, TX 77478 281 -240 -0161 www. oil-chem. com
