Chemical Characterization of Dissolved Carbon Nitrogen and Phosphorus

Chemical Characterization of Dissolved Carbon, Nitrogen, and Phosphorus in the Open Ocean (What is Dissolved Organic Matter? )

Dissolved Organic Matter Composition – The Problem Salt DOC

Cross or tangential flow filtration, Ultra- or nanofiltration Separation based on size 1 nm pore @ 1 k. D Selects for larger size (High Molecular Weight) fraction About 30 -35% TOC (now up to 60% using electrically assisted UF) Membrane effects what is collected

DOC sampling via ultrafiltration filter (1 nm) sample concentrate (> 1000 MW) pump filtrate (< 1000 MW)

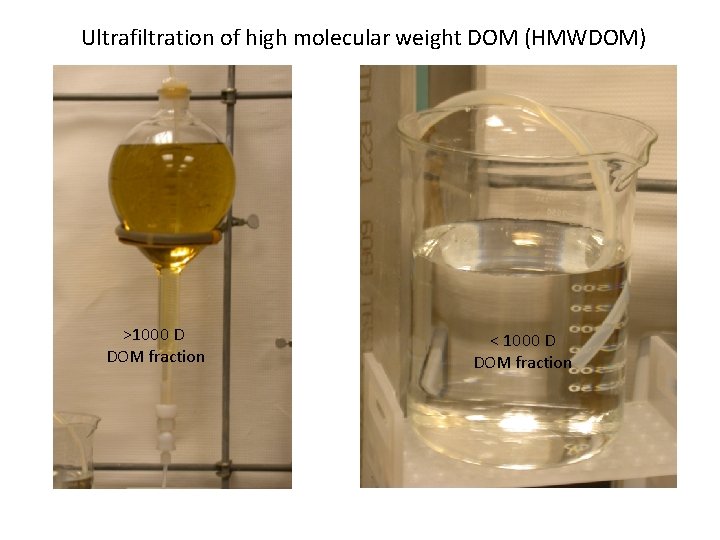

Ultrafiltration of high molecular weight DOM (HMWDOM) >1000 D DOM fraction < 1000 D DOM fraction

Ultrafiltration yields a largely salt free powder of about 20 -30% of the total DOC in seawater. Elemental analysis yields a C/N/P ratio of 15 -18/1 and a C/P ratio or 300 -1000/1 Not Redfield – much lower in N and P

Nuclear Magnetic Resonance Spectroscopy (NMR) Can be tuned to different Nuclei of interest (C, N, P…). Gives information on functional groups which, combined with a knowledge of biochemicals can be used to deduce composition and origin. Internally quantitative.

13 C Nuclear Magnetic Resonance Spectrum of high molecular weight dissolved organic matter (C/N = 15) Abundance Frequency 250 200 150 100 50 0

13 CNMR of plankton tows 13 CNMR of HMWDOM Sargasso Sea (surface) Chemical shift (ppm) Hedges et al GCA 2001

13 CNMR Sargasso Sea 3 m spectra of HMWDOM North Pacific Subtropical Gyre 3 m

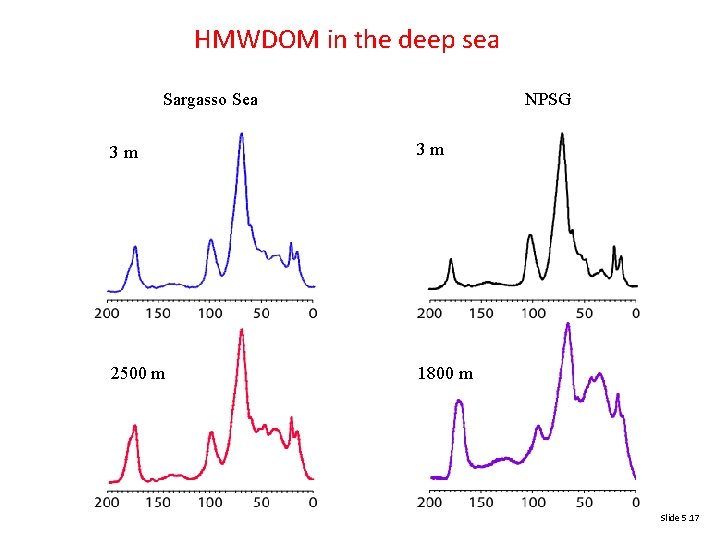

HMWDOM in the deep sea Sargasso Sea NPSG 3 m 3 m 2500 m 1800 m Slide 5. 17

13 C Nuclear Magnetic Resonance Spectrum of high molecular weight dissolved organic matter (C/N = 15) HCOH HCNH (55%) OCO (12%) COOH CONH (10%) 250 200 CHx (10%) 150 100 50 0 Slide 5. 11

Spectral modeling of major biochemicals in DOM Peptides Carbohydrates CRAM Surface Water Deep Water

A large fraction of semi-reactive DOM that accumulates in surface seawater is a complex carbohydrate of unknown origin

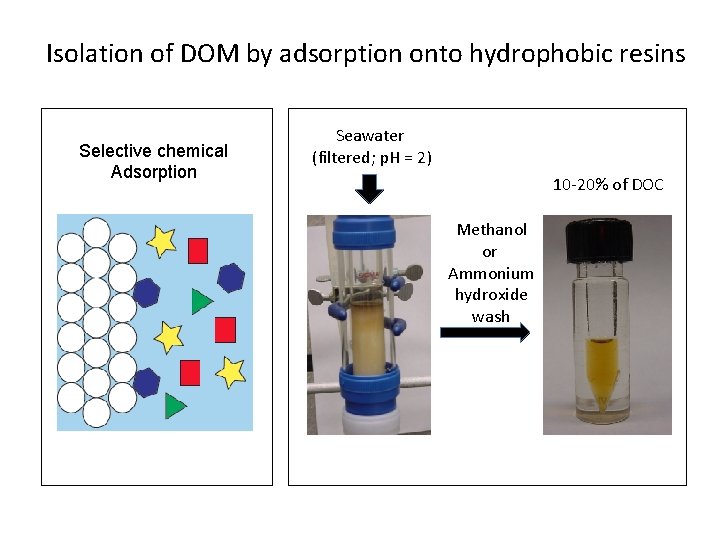

Isolation of DOM by adsorption onto hydrophobic resins Selective chemical Adsorption Seawater (filtered; p. H = 2) 10 -20% of DOC Methanol or Ammonium hydroxide wash

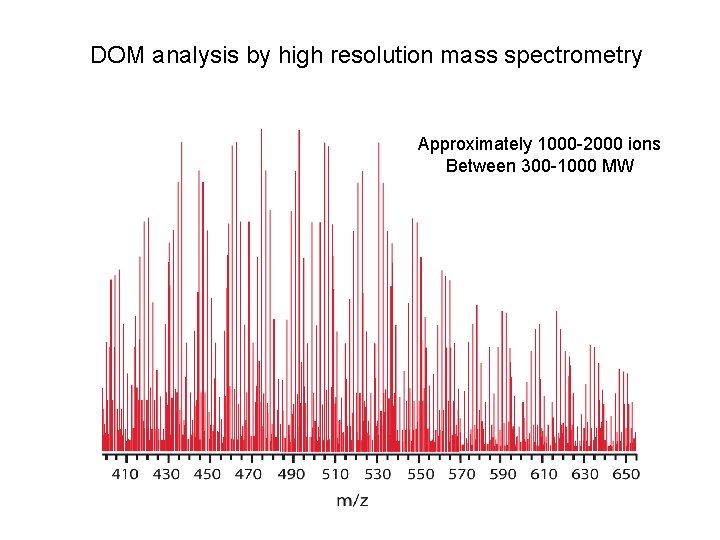

DOM analysis by high resolution mass spectrometry Approximately 1000 -2000 ions Between 300 -1000 MW

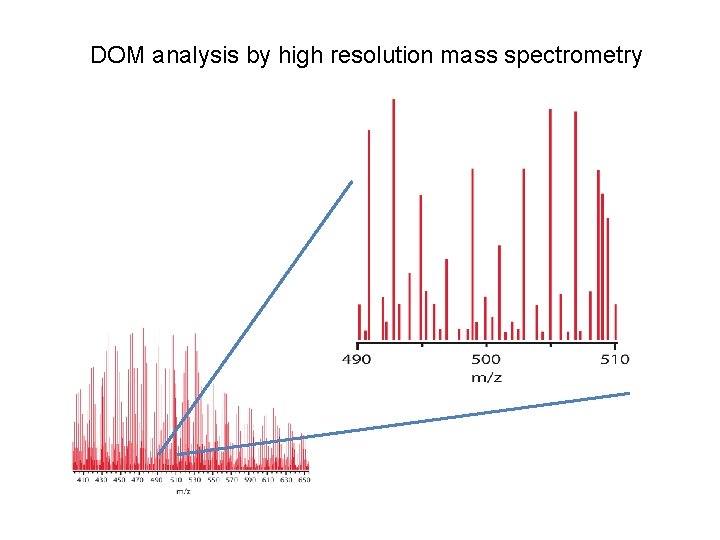

DOM analysis by high resolution mass spectrometry

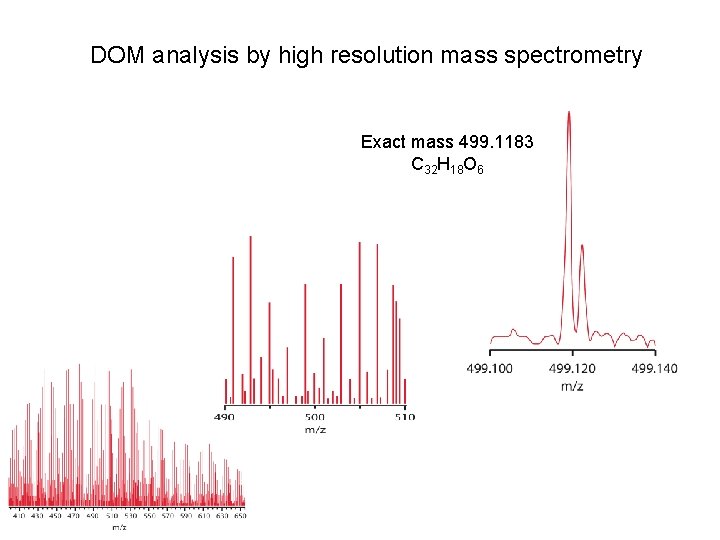

DOM analysis by high resolution mass spectrometry Exact mass 499. 1183 C 32 H 18 O 6

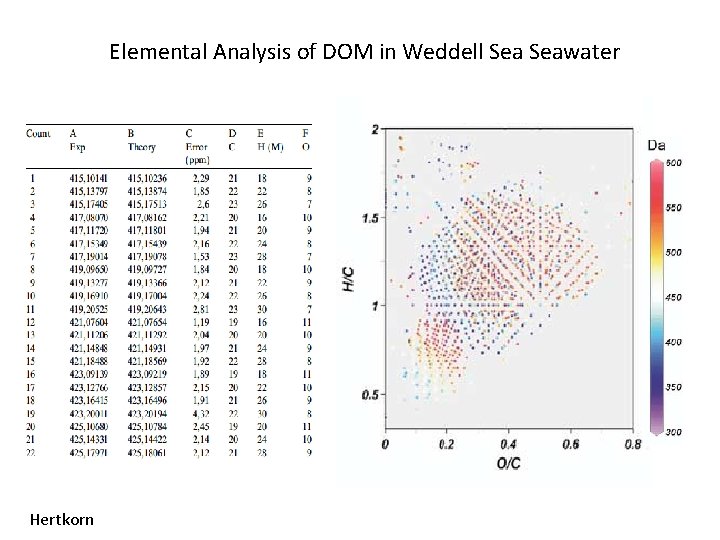

Elemental Analysis of DOM in Weddell Seawater Hertkorn

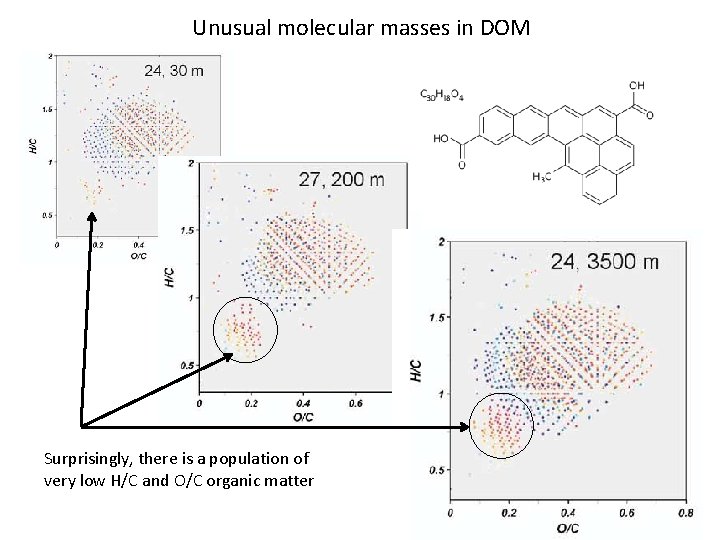

Unusual molecular masses in DOM Surprisingly, there is a population of very low H/C and O/C organic matter

Is a portion of DOM in the ocean of thermogenic (high temperature) origin? Biomass burning? Fossil fuel combustion Hydrothermal processes? Dittmar & Paeng Nature 2009

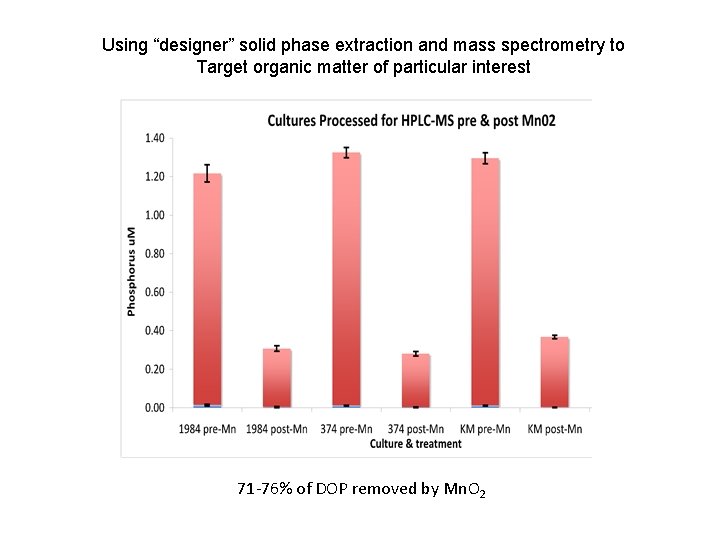

Using “designer” solid phase extraction and mass spectrometry to Target organic matter of particular interest 71 -76% of DOP removed by Mn. O 2

OH R – O-P=O OH m/z = 79 Phosphate OH R - P=O OH Phosphonate

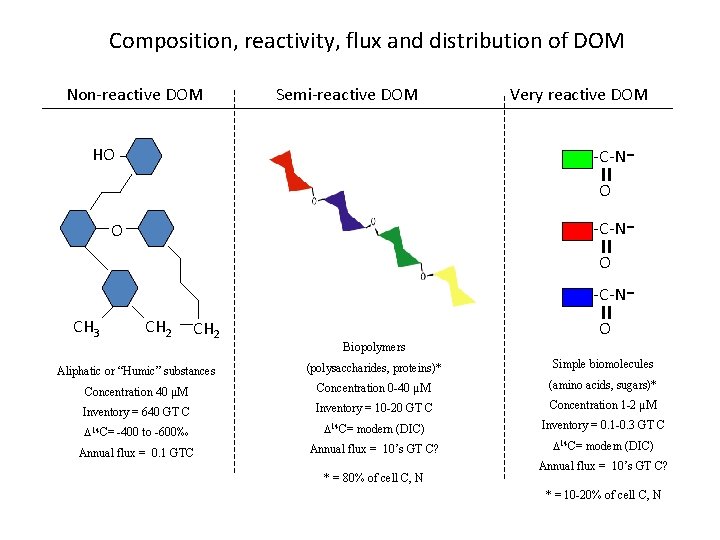

Composition, reactivity, flux and distribution of DOM Non-reactive DOM Semi-reactive DOM Very reactive DOM -C-N- HO O -C-N- O O -C-NCH 3 CH 2 O Biopolymers Aliphatic or “Humic” substances (polysaccharides, proteins)* Simple biomolecules Concentration 40 µM Concentration 0 -40 µM (amino acids, sugars)* Inventory = 640 GT C Inventory = 10 -20 GT C Concentration 1 -2 µM 14 C= -400 to -600‰ 14 C= modern (DIC) Inventory = 0. 1 -0. 3 GT C Annual flux = 0. 1 GTC Annual flux = 10’s GT C? 14 C= modern (DIC) * = 80% of cell C, N Annual flux = 10’s GT C? * = 10 -20% of cell C, N

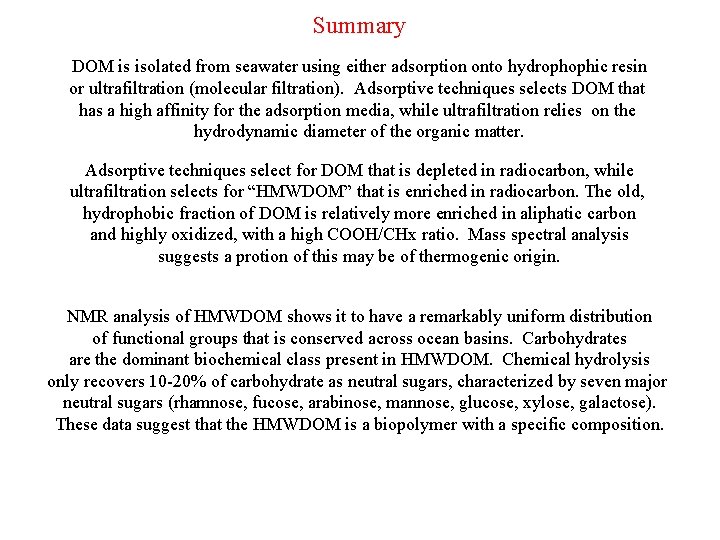

Summary DOM is isolated from seawater using either adsorption onto hydrophophic resin or ultrafiltration (molecular filtration). Adsorptive techniques selects DOM that has a high affinity for the adsorption media, while ultrafiltration relies on the hydrodynamic diameter of the organic matter. Adsorptive techniques select for DOM that is depleted in radiocarbon, while ultrafiltration selects for “HMWDOM” that is enriched in radiocarbon. The old, hydrophobic fraction of DOM is relatively more enriched in aliphatic carbon and highly oxidized, with a high COOH/CHx ratio. Mass spectral analysis suggests a protion of this may be of thermogenic origin. NMR analysis of HMWDOM shows it to have a remarkably uniform distribution of functional groups that is conserved across ocean basins. Carbohydrates are the dominant biochemical class present in HMWDOM. Chemical hydrolysis only recovers 10 -20% of carbohydrate as neutral sugars, characterized by seven major neutral sugars (rhamnose, fucose, arabinose, mannose, glucose, xylose, galactose). These data suggest that the HMWDOM is a biopolymer with a specific composition.
