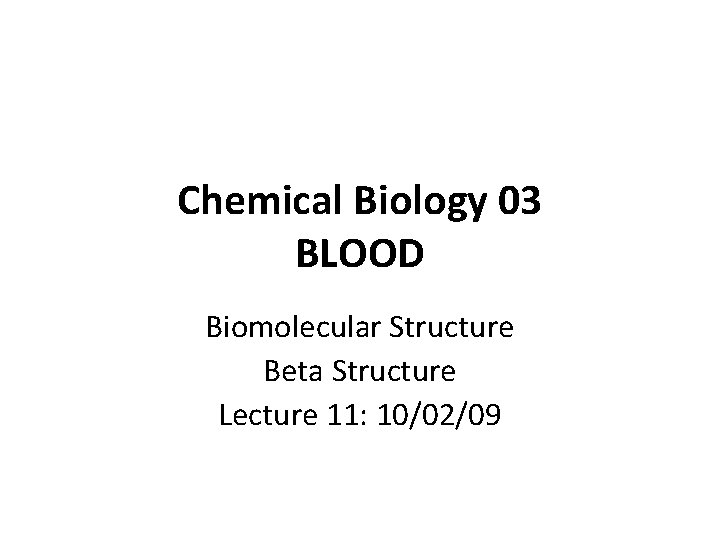

Chemical Biology 03 BLOOD Biomolecular Structure Beta Structure Lecture 11: 10/02/09

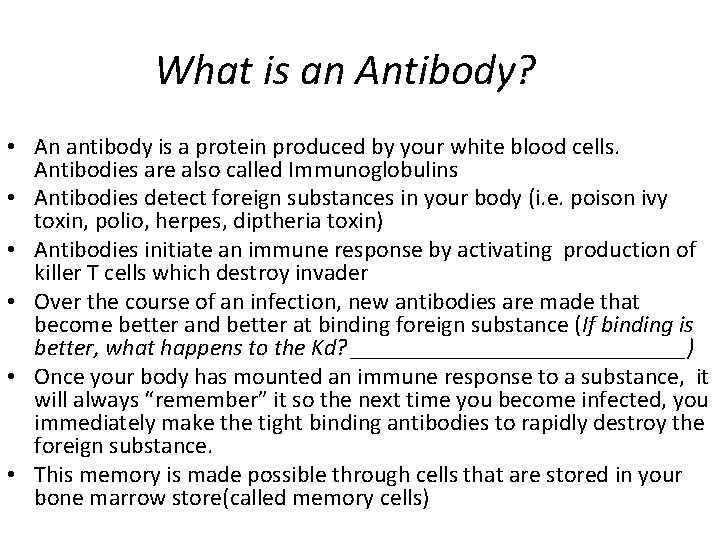

What is an Antibody? • An antibody is a protein produced by your white blood cells. Antibodies are also called Immunoglobulins • Antibodies detect foreign substances in your body (i. e. poison ivy toxin, polio, herpes, diptheria toxin) • Antibodies initiate an immune response by activating production of killer T cells which destroy invader • Over the course of an infection, new antibodies are made that become better and better at binding foreign substance (If binding is better, what happens to the Kd? ______________) • Once your body has mounted an immune response to a substance, it will always “remember” it so the next time you become infected, you immediately make the tight binding antibodies to rapidly destroy the foreign substance. • This memory is made possible through cells that are stored in your bone marrow store(called memory cells)

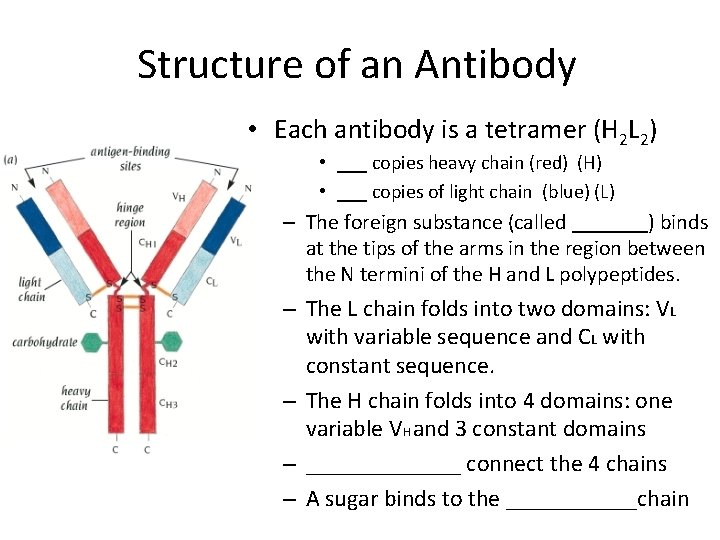

Structure of an Antibody • Each antibody is a tetramer (H 2 L 2) • ___ copies heavy chain (red) (H) • ___ copies of light chain (blue) (L) – The foreign substance (called _______) binds at the tips of the arms in the region between the N termini of the H and L polypeptides. – The L chain folds into two domains: VL with variable sequence and CL with constant sequence. – The H chain folds into 4 domains: one variable VH and 3 constant domains – _______ connect the 4 chains – A sugar binds to the ______chain

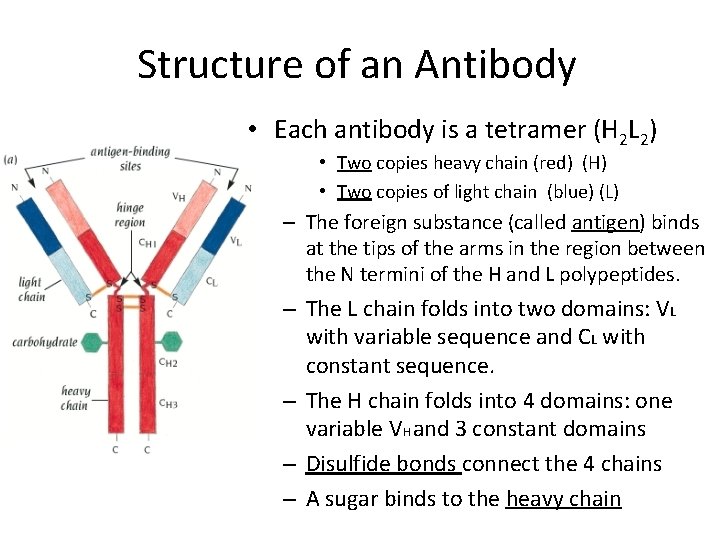

Structure of an Antibody • Each antibody is a tetramer (H 2 L 2) • Two copies heavy chain (red) (H) • Two copies of light chain (blue) (L) – The foreign substance (called antigen) binds at the tips of the arms in the region between the N termini of the H and L polypeptides. – The L chain folds into two domains: VL with variable sequence and CL with constant sequence. – The H chain folds into 4 domains: one variable VH and 3 constant domains – Disulfide bonds connect the 4 chains – A sugar binds to the heavy chain

Remember that Polypeptides Fold in Two Ways: • Alpha helices at left Beta strands below. One strand of beta structure is represented by a thick arrow with the head towards the C terminus

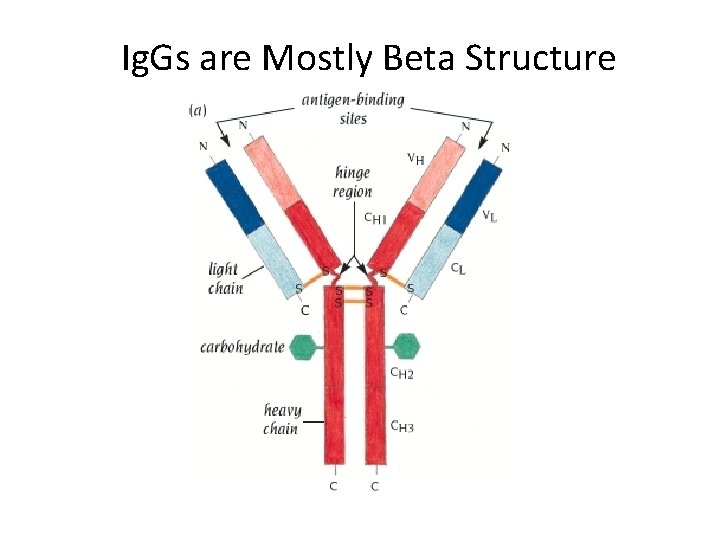

Ig. Gs are Mostly Beta Structure

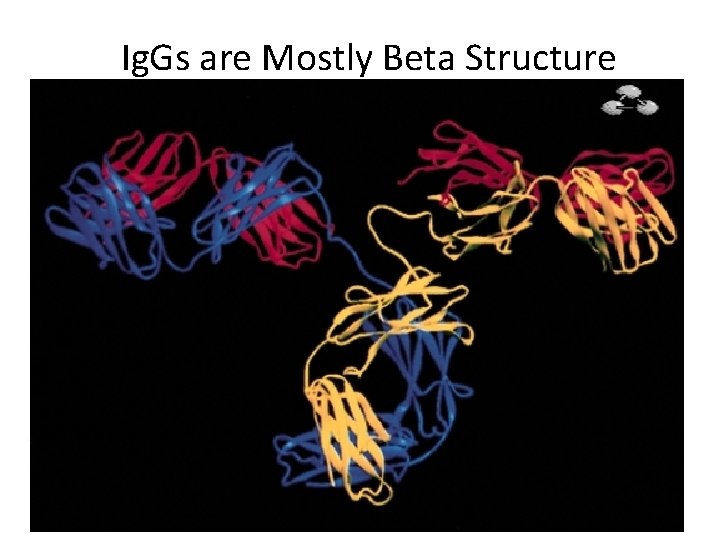

Ig. Gs are Mostly Beta Structure

Constant Variable • Both the constant and variable domains - β strands • Constant domain: Seven strands are labeled A-G (see disulfide) • Variable domain Nine Strands • Variable domain binds antigen through loops CDR 1 -CDR 3

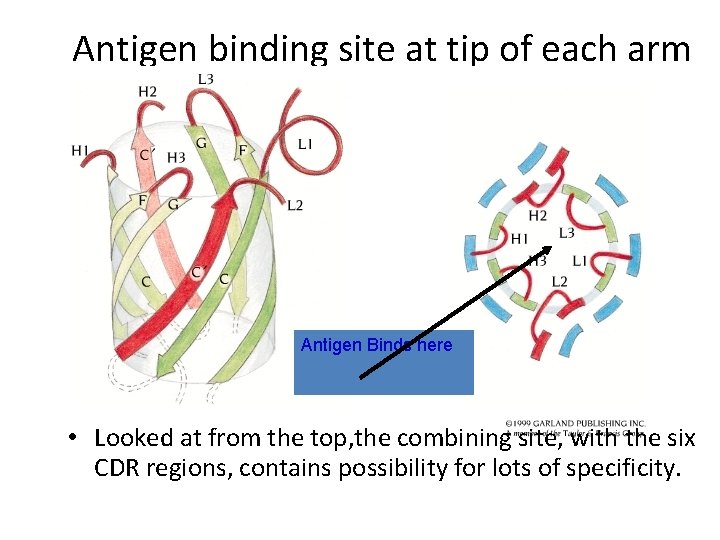

Antigen binding site at tip of each arm Antigen Binds here • Looked at from the top, the combining site, with the six CDR regions, contains possibility for lots of specificity.

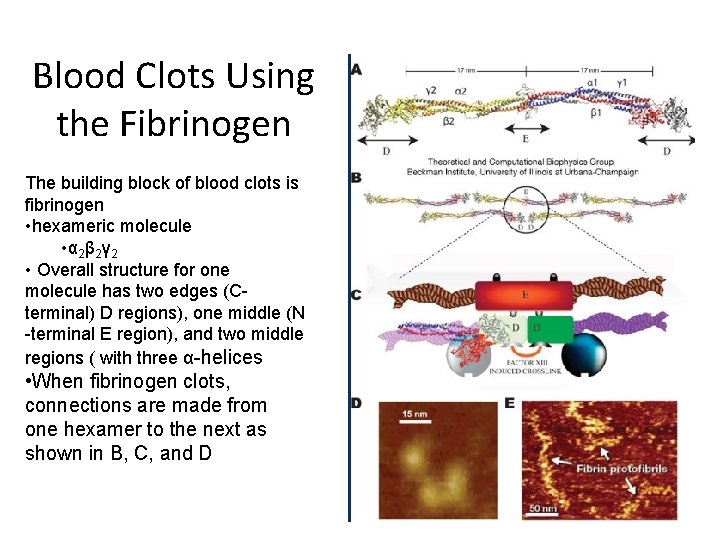

Blood Clots Using the Fibrinogen The building block of blood clots is fibrinogen • hexameric molecule • α 2β 2γ 2 • Overall structure for one molecule has two edges (Cterminal) D regions), one middle (N -terminal E region), and two middle regions ( with three α-helices • When fibrinogen clots, connections are made from one hexamer to the next as shown in B, C, and D Fibrinogen

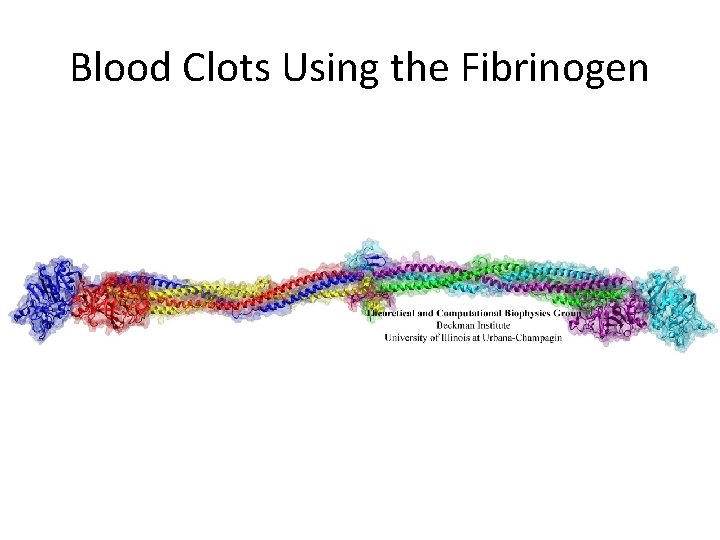

Blood Clots Using the Fibrinogen
