Chem 150 Unit 2 Hydrocarbons Functional Groups Organic

Chem 150 Unit 2 - Hydrocarbons & Functional Groups Organic chemistry is the chemistry of carbon. The name “organic” reflect the fact that organic molecules are derived from living organisms. In this unit will start by looking at four families of organic molecules that are grouped together as the hydrocarbons. We will also look at some functional groups that define some of the other families of organic molecules.

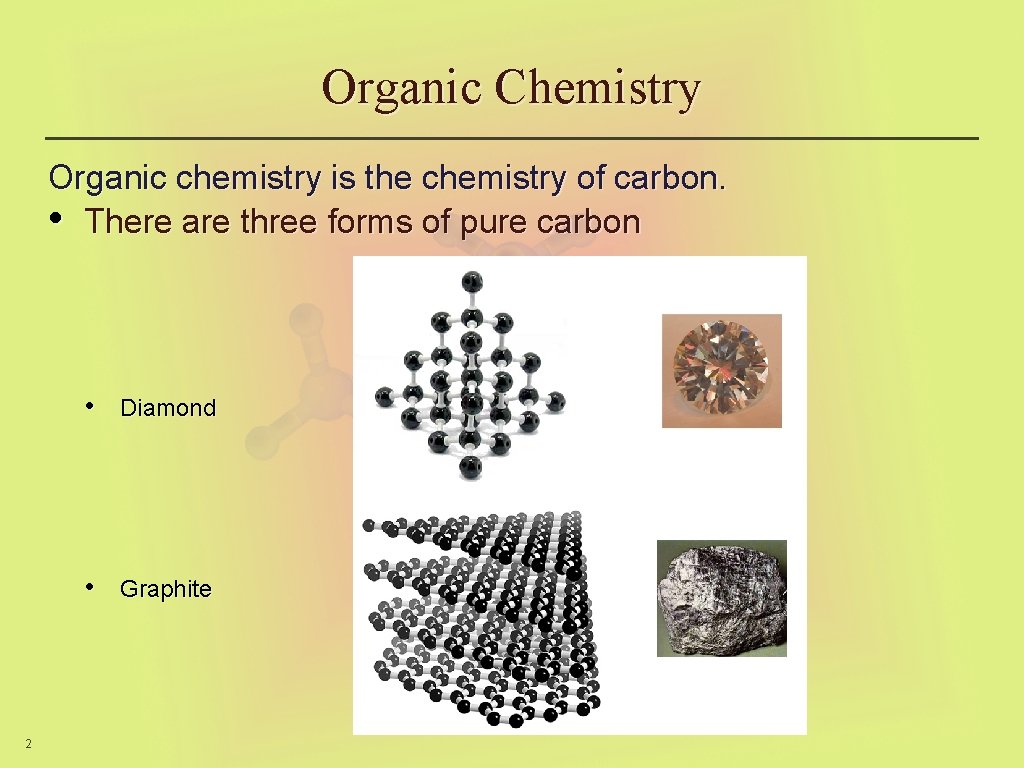

Organic Chemistry Organic chemistry is the chemistry of carbon. • There are three forms of pure carbon 2 • Diamond • Graphite

Organic Chemistry Organic chemistry is the chemistry of carbon. • There are three forms of pure carbon • 3 Buckminsterfullerene “Bucky Balls”

Hydrocarbons • Organic molecules contain carbon combined with other elements. • Organic molecules are grouped into families • 4 Members of a family share common structural, physical, and chemical characteristics. • There are four families that contain molecules made of only carbon and hydrogen. • Hydrocarbons • • Alkanes • • Alkynes Alkenes Aromatics

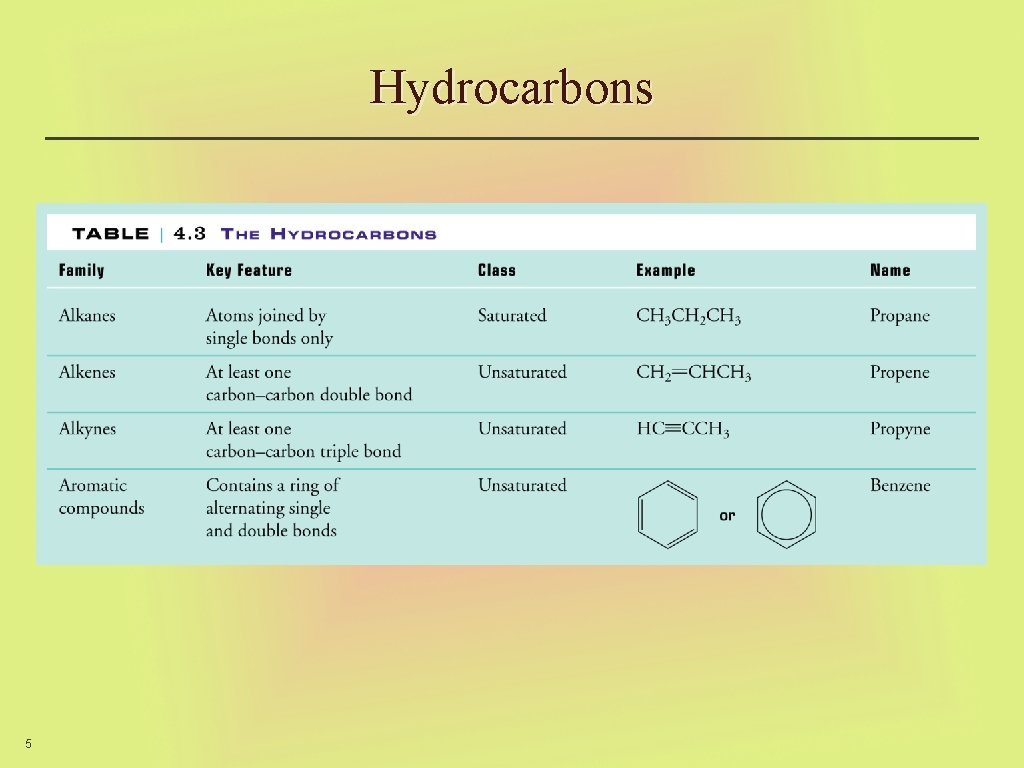

Hydrocarbons 5

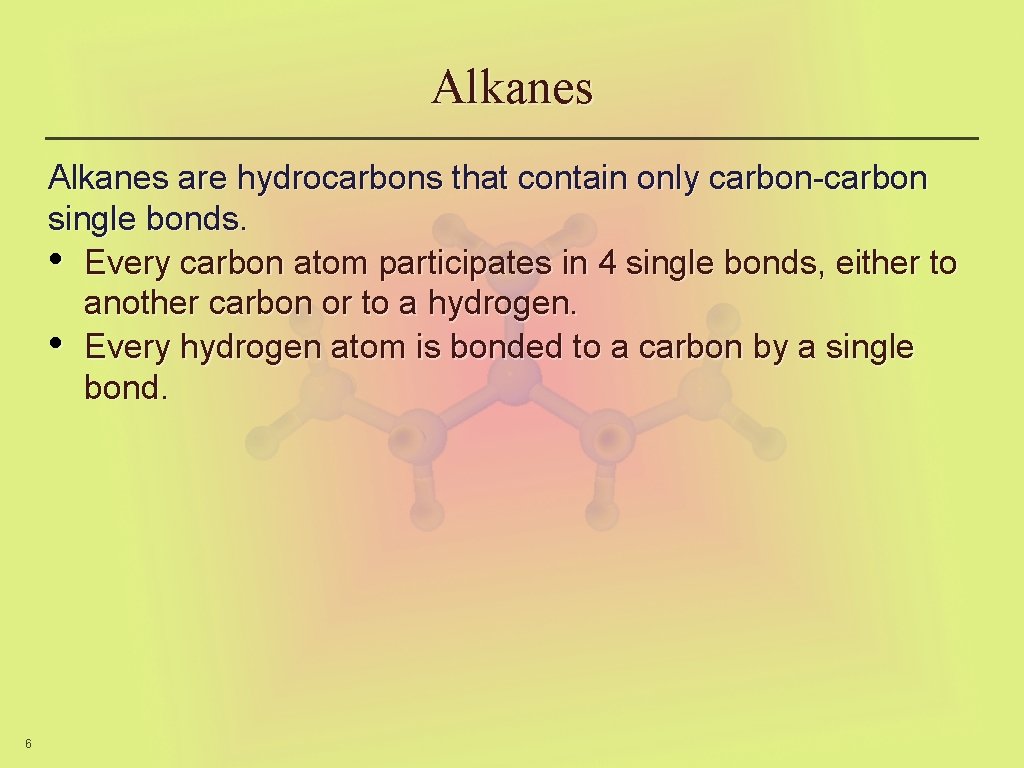

Alkanes are hydrocarbons that contain only carbon-carbon single bonds. • Every carbon atom participates in 4 single bonds, either to another carbon or to a hydrogen. • Every hydrogen atom is bonded to a carbon by a single bond. 6

Alkanes are hydrocarbons that contain only carbon-carbon single bonds. 7

Alkanes • Alkanes in which the carbons are connected in a straight chain are called normal alkanes. n-hexane • Alkanes that are branched are called branched chain alkanes. 2 -methyl-pentane 8

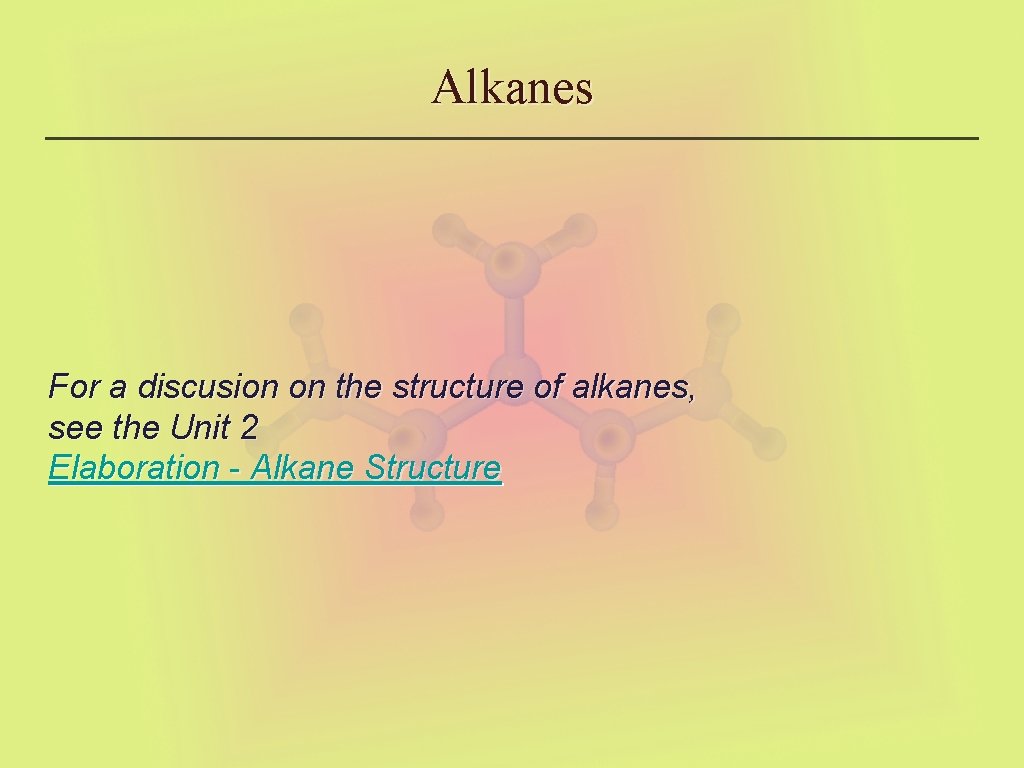

Alkanes For a discusion on the structure of alkanes, see the Unit 2 Elaboration - Alkane Structure

Alkanes 10 • Alkanes, along with the other hydrocarbons, are non-polar. • They interact with each other only through London dispersion forces. • This is why they have relatively low boiling and melting points.

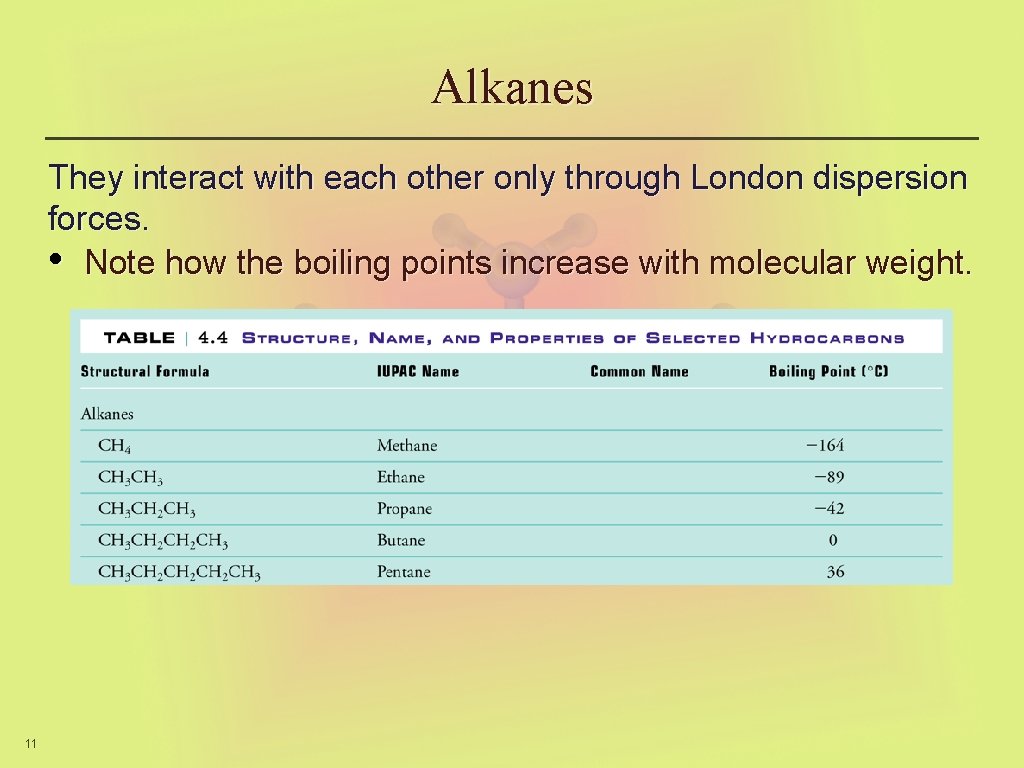

Alkanes They interact with each other only through London dispersion forces. • Note how the boiling points increase with molecular weight. 11

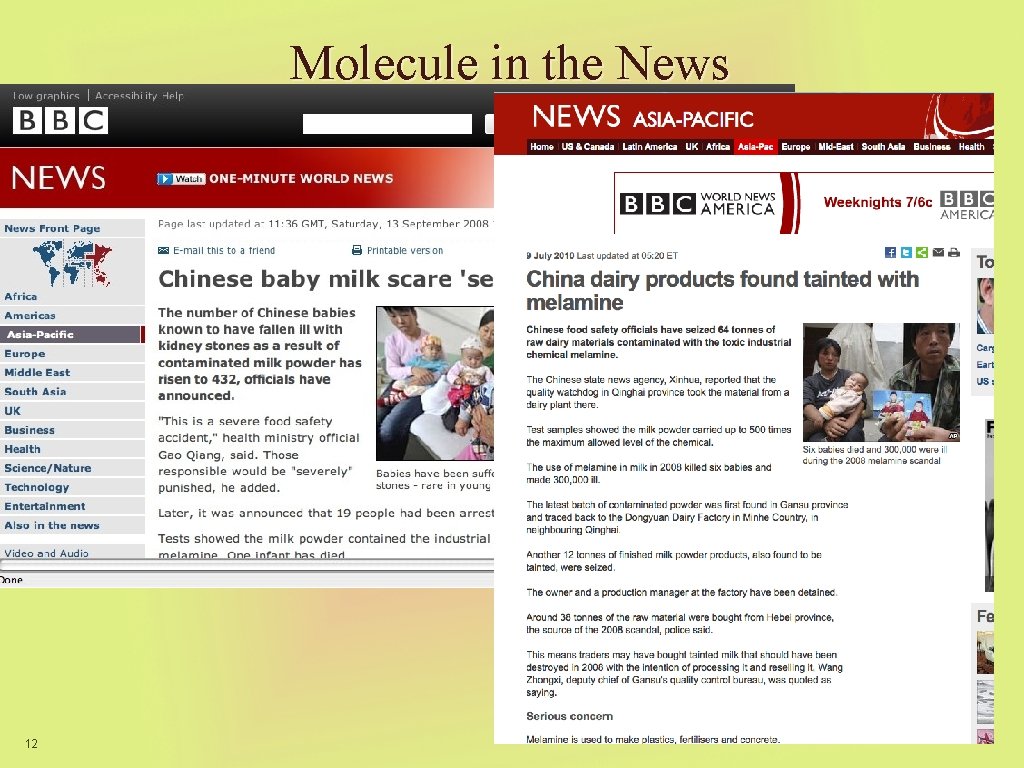

Molecule in the News 12

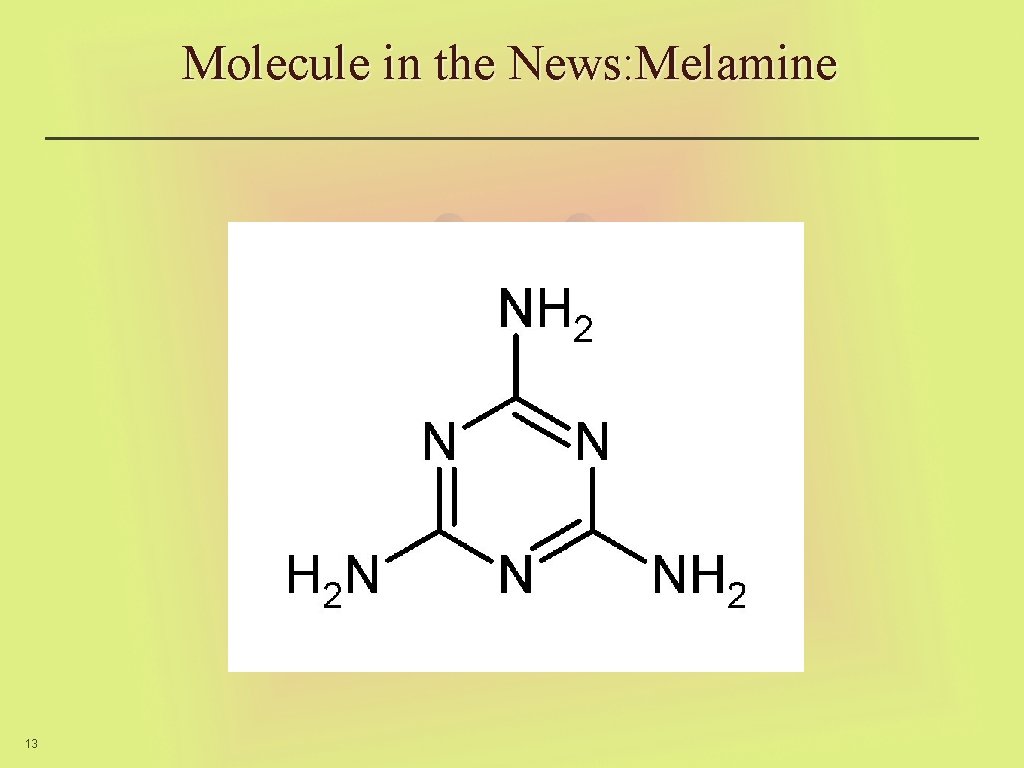

Molecule in the News: Melamine 13

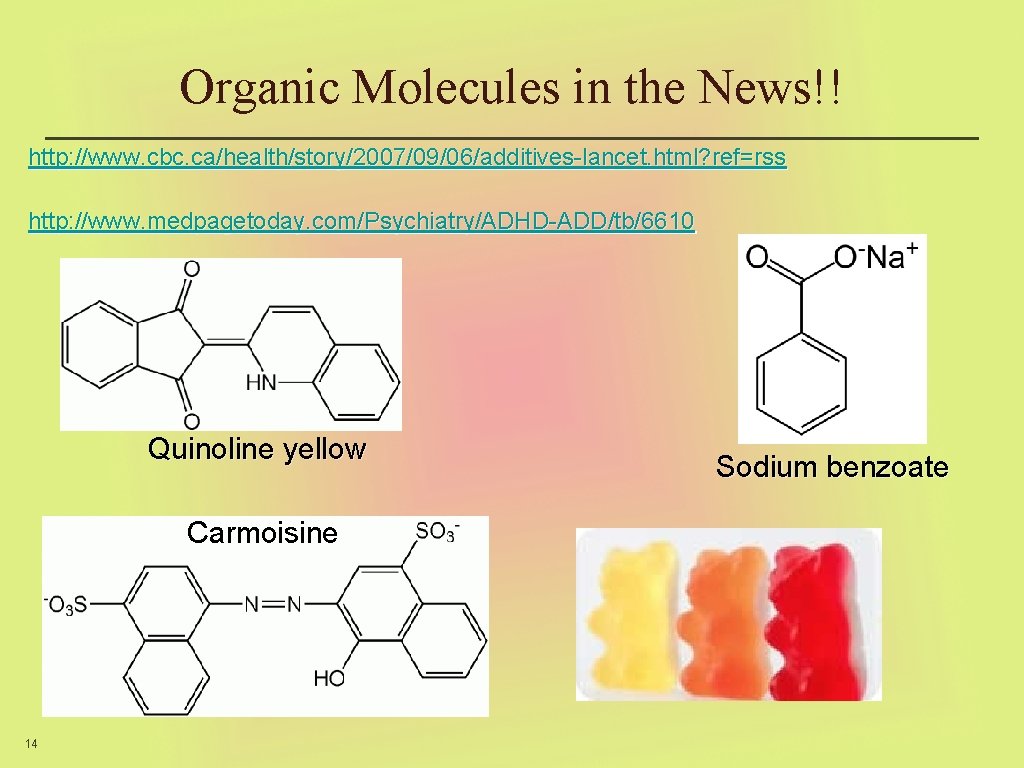

Organic Molecules in the News!! http: //www. cbc. ca/health/story/2007/09/06/additives-lancet. html? ref=rss http: //www. medpagetoday. com/Psychiatry/ADHD-ADD/tb/6610 Quinoline yellow Carmoisine 14 Sodium benzoate

Alkanes, cannot be named based on their molecular formulas • For example, all of the molecules shown below share the same molecular formula, C 6 H 14 (hexacarbon tetradecahydride? ) n-hexane 2 -methyl-pentane 15 3 -methyl-pentane 2, 2 -dimethylbutane 2, 3 -dimethylbutane

Alkanes Organic chemists use a systematic set of rules, called the IUPAC rules, to name organic molecules based on their structural formulas instead of their chemical formulas. n-hexane 2 -methyl-pentane 16 3 -methyl-pentane 2, 2 -dimethylbutane 2, 3 -dimethylbutane

Alkanes For a discussion on naming alkanes, see the Unit 2 Elaboration - Naming Alkanes

Constitutional Isomers When two or more molecules share the same molecular formula, but have different atomic connections, they are called constitutional isomers. n-hexane 2 -methyl-pentane 18 3 -methyl-pentane 2, 2 -dimethylbutane 2, 3 -dimethylbutane

Question (Clicker) Which of the following is a constitutional isomer of this molecule: 19 A) C) B) D)

Conformations Carbon-carbon single bonds are free to rotate 20 • This leads to different shapes for some molecules • These should not be confused with isomers.

Conformations All of the 3 -dimensional models shown below are for the nbutane. • They were generated by rotating the central carbon-carbon bond. • They all share the same structural formula. 21

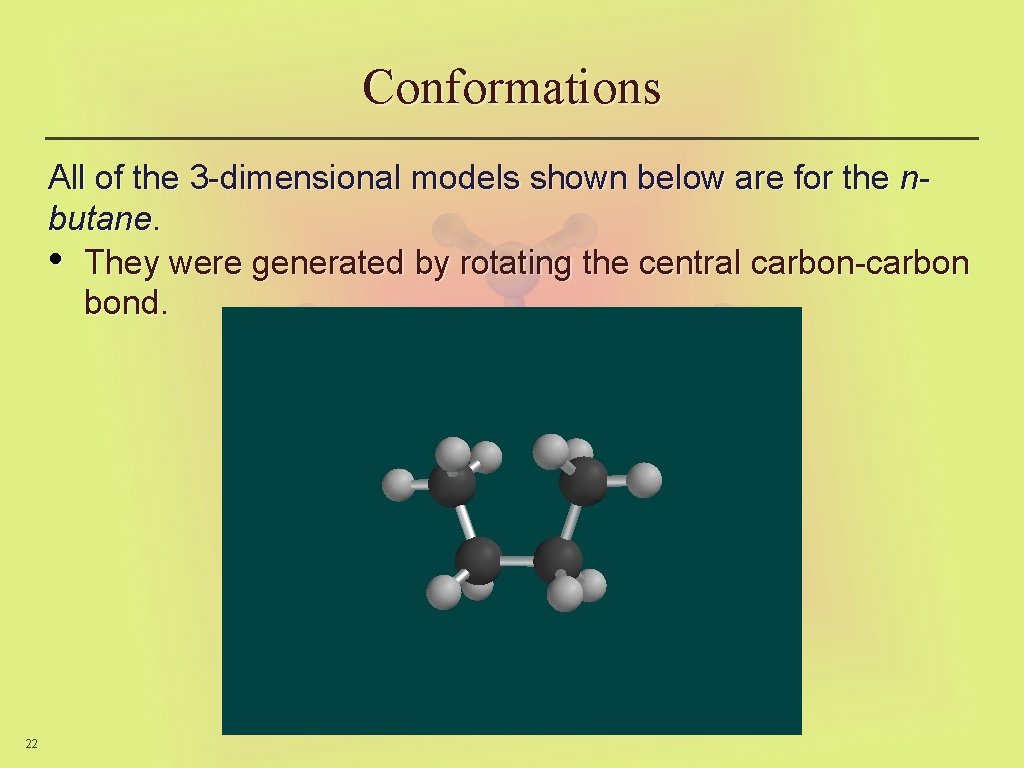

Conformations All of the 3 -dimensional models shown below are for the nbutane. • They were generated by rotating the central carbon-carbon bond. 22

Conformations Switching from one conformation to another does not require the breaking and making of covalent bonds. • Switching from one isomer to another does require the breaking and making of covalent bonds. n-butane 23 2 -methylpropane

Conformations For a discussion on conformations, see the Unit 2 Elaboration - Conformations

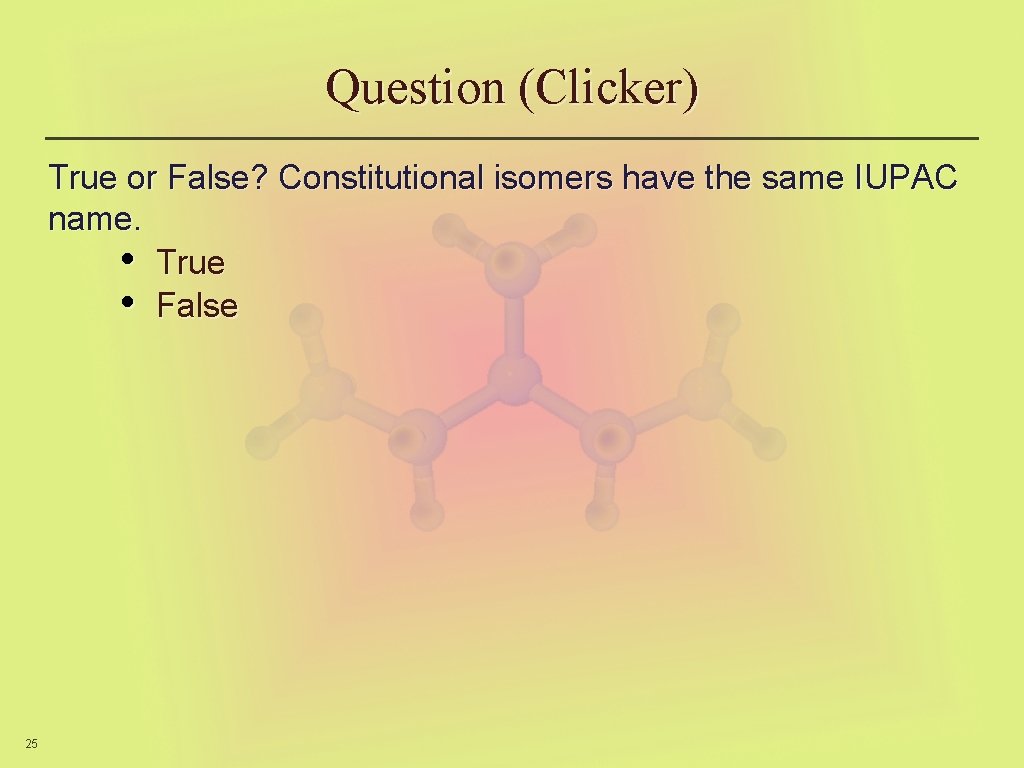

Question (Clicker) True or False? Constitutional isomers have the same IUPAC name. • True • False 25

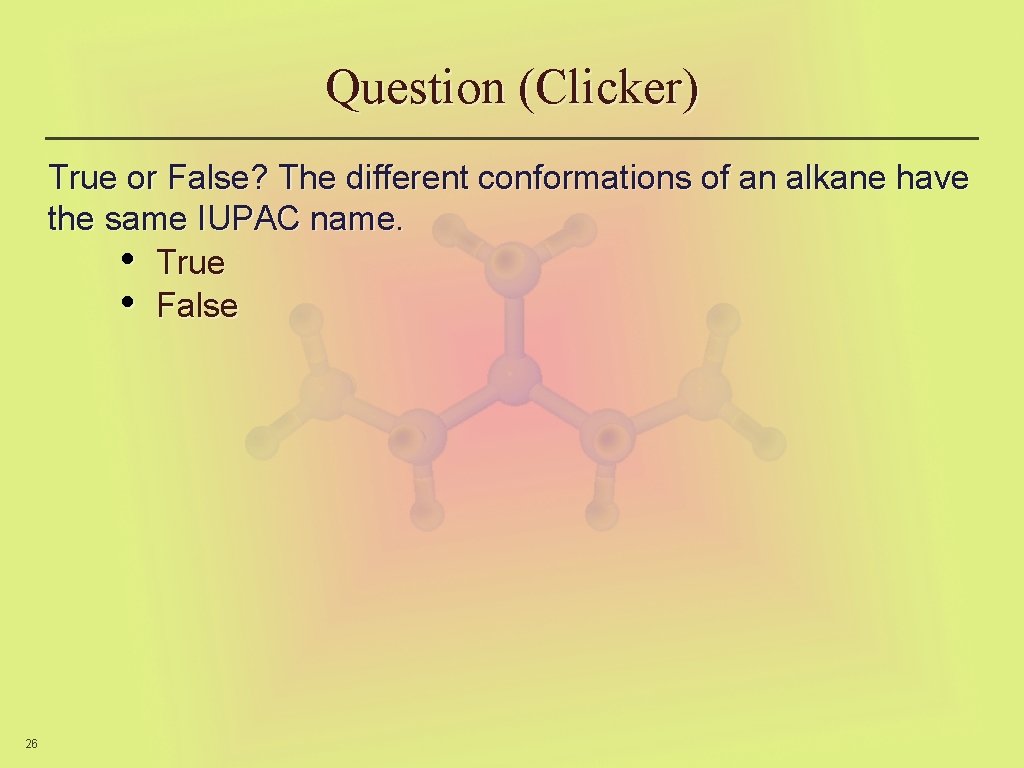

Question (Clicker) True or False? The different conformations of an alkane have the same IUPAC name. • True • False 26

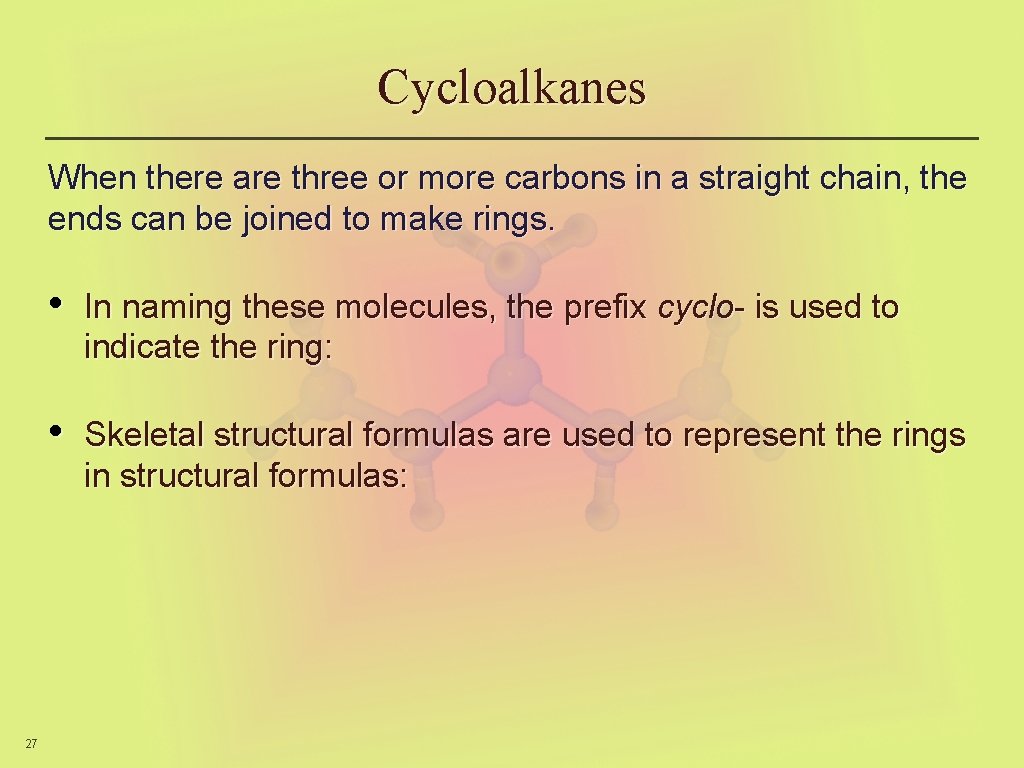

Cycloalkanes When there are three or more carbons in a straight chain, the ends can be joined to make rings. 27 • In naming these molecules, the prefix cyclo- is used to indicate the ring: • Skeletal structural formulas are used to represent the rings in structural formulas:

Cycloalkanes In naming these molecules, the prefix cyclo- is used to indicate the ring: As Parent Chain 28 As Substituent Group

Cycloalkanes The carbon-carbon single bonds for the carbons in a ring are no longer free to rotate. • • 29 This leads to a new type of isomer Since the two structures share the same name, they are not constitutional isomers.

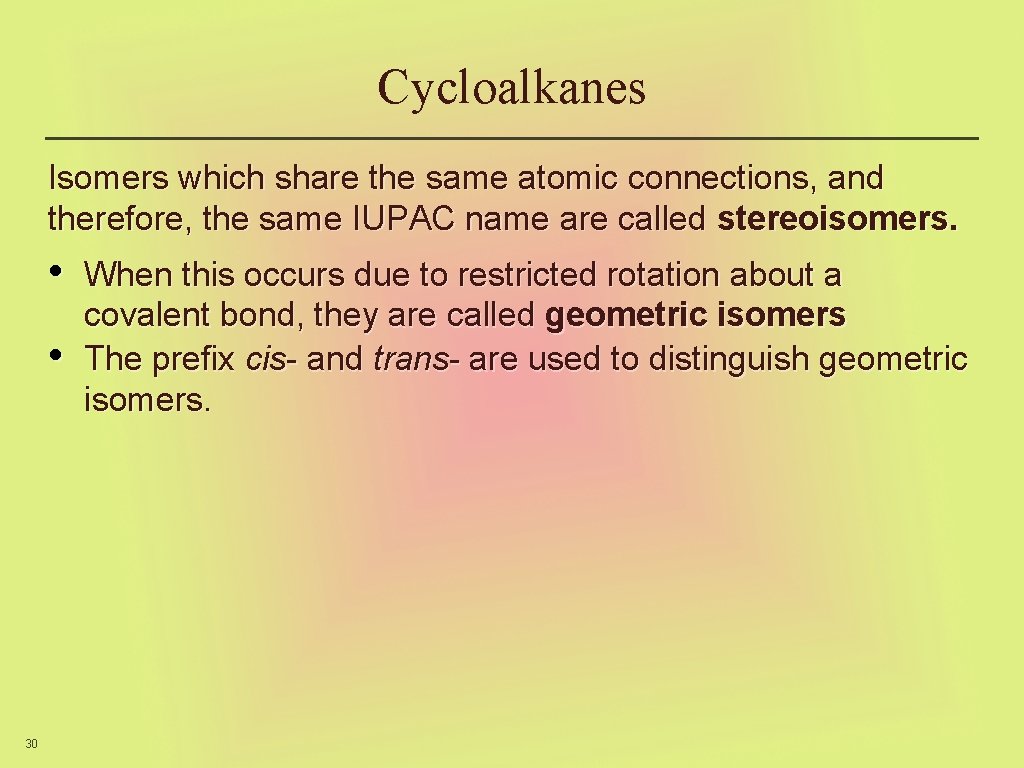

Cycloalkanes Isomers which share the same atomic connections, and therefore, the same IUPAC name are called stereoisomers. • • 30 When this occurs due to restricted rotation about a covalent bond, they are called geometric isomers The prefix cis- and trans- are used to distinguish geometric isomers.

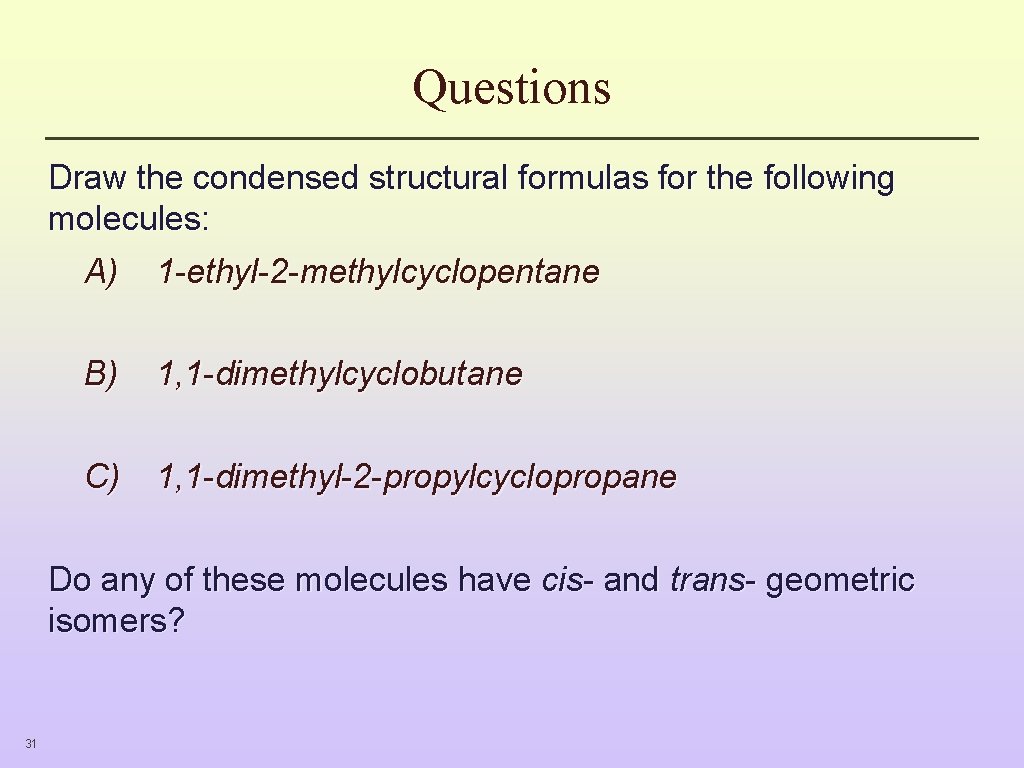

Questions Draw the condensed structural formulas for the following molecules: A) 1 -ethyl-2 -methylcyclopentane B) 1, 1 -dimethylcyclobutane C) 1, 1 -dimethyl-2 -propylcyclopropane Do any of these molecules have cis- and trans- geometric isomers? 31

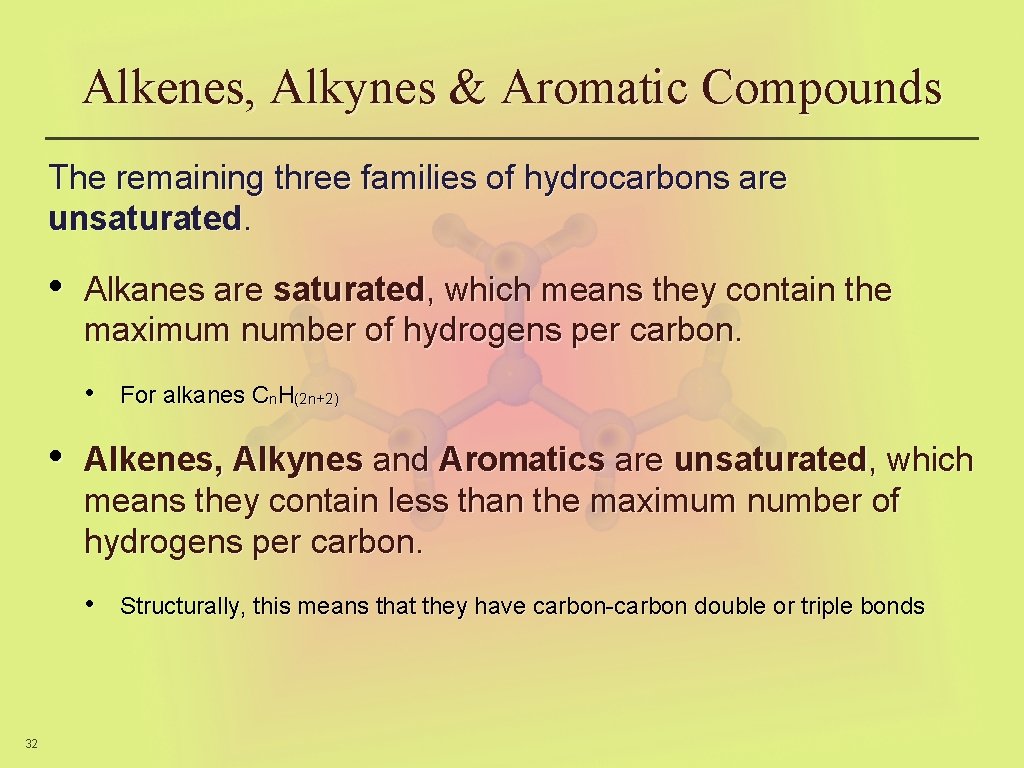

Alkenes, Alkynes & Aromatic Compounds The remaining three families of hydrocarbons are unsaturated. • Alkanes are saturated, which means they contain the maximum number of hydrogens per carbon. • • Alkenes, Alkynes and Aromatics are unsaturated, which means they contain less than the maximum number of hydrogens per carbon. • 32 For alkanes Cn. H(2 n+2) Structurally, this means that they have carbon-carbon double or triple bonds

Alkenes, Alkynes & Aromatic Compounds Alkenes are hydrocarbons that contain at least 1 carbon double bond. • Examples: 33

Alkenes, Alkynes & Aromatic Compounds Alkynes are hydrocarbons that contain at least 1 carbon triple bond. • Examples: 34

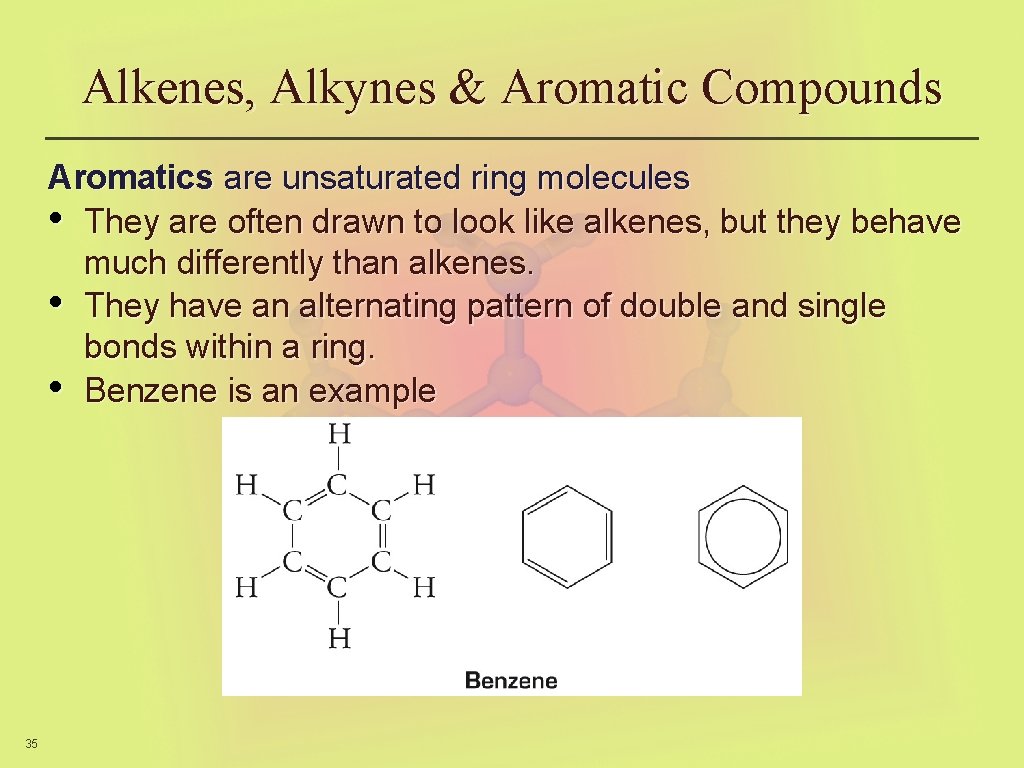

Alkenes, Alkynes & Aromatic Compounds Aromatics are unsaturated ring molecules • They are often drawn to look like alkenes, but they behave much differently than alkenes. • They have an alternating pattern of double and single bonds within a ring. • Benzene is an example 35

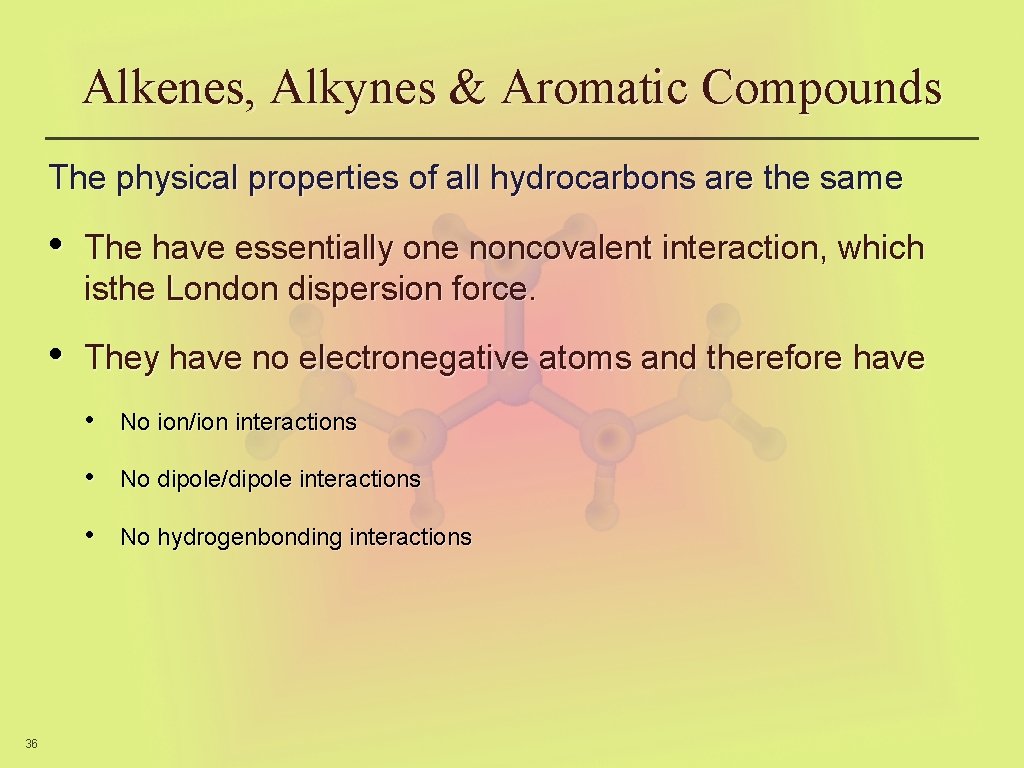

Alkenes, Alkynes & Aromatic Compounds The physical properties of all hydrocarbons are the same 36 • The have essentially one noncovalent interaction, which isthe London dispersion force. • They have no electronegative atoms and therefore have • No ion/ion interactions • No dipole/dipole interactions • No hydrogenbonding interactions

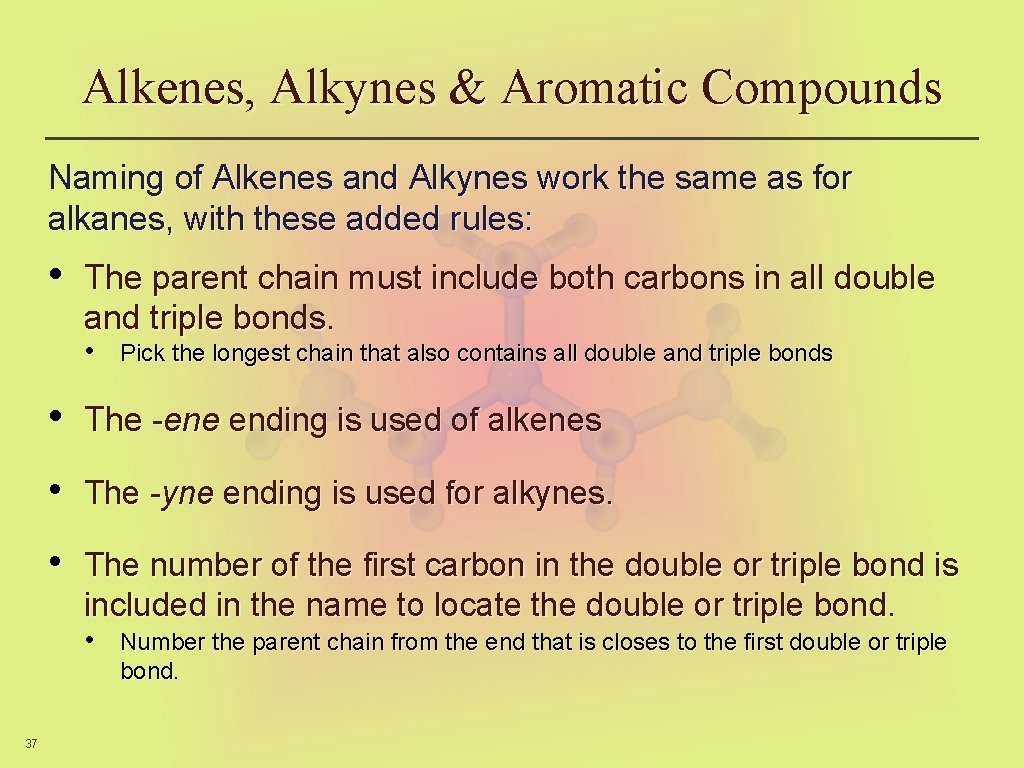

Alkenes, Alkynes & Aromatic Compounds Naming of Alkenes and Alkynes work the same as for alkanes, with these added rules: • The parent chain must include both carbons in all double and triple bonds. • • The -ene ending is used of alkenes • The -yne ending is used for alkynes. • The number of the first carbon in the double or triple bond is included in the name to locate the double or triple bond. • 37 Pick the longest chain that also contains all double and triple bonds Number the parent chain from the end that is closes to the first double or triple bond.

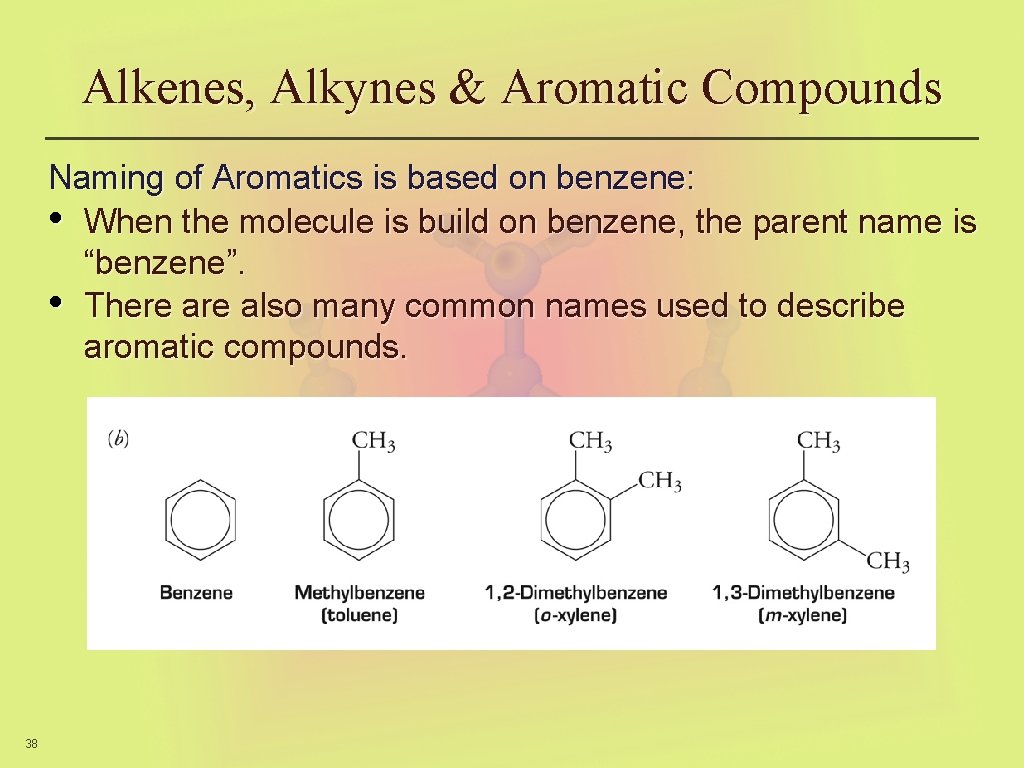

Alkenes, Alkynes & Aromatic Compounds Naming of Aromatics is based on benzene: • When the molecule is build on benzene, the parent name is “benzene”. • There also many common names used to describe aromatic compounds. 38

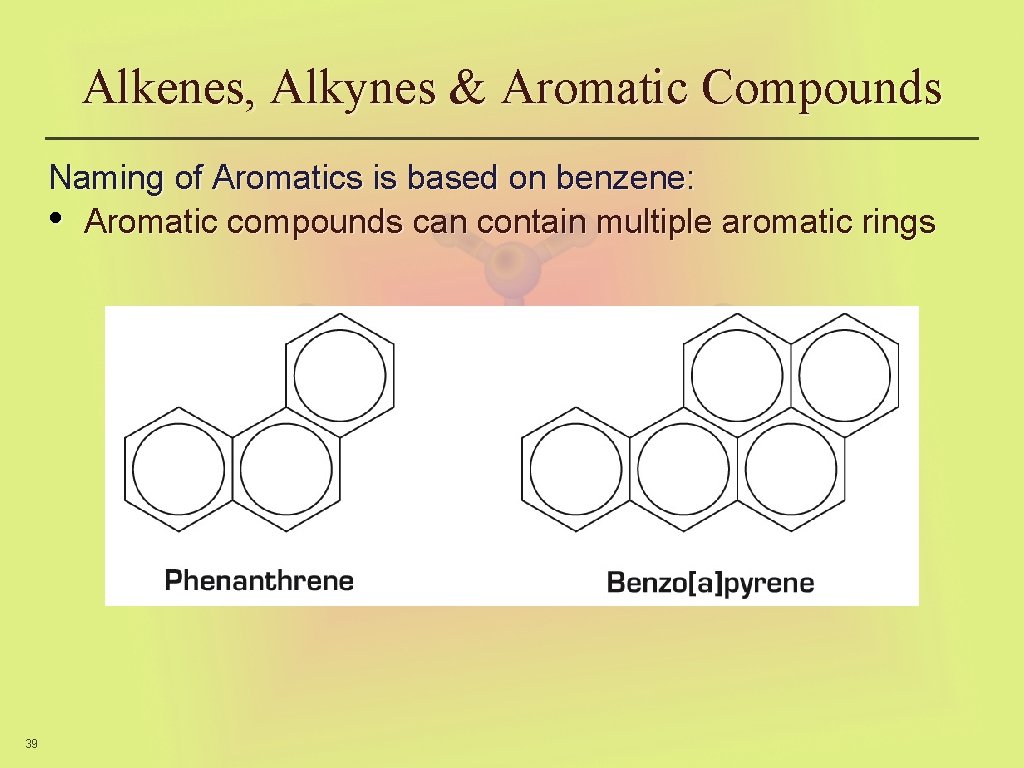

Alkenes, Alkynes & Aromatic Compounds Naming of Aromatics is based on benzene: • Aromatic compounds can contain multiple aromatic rings 39

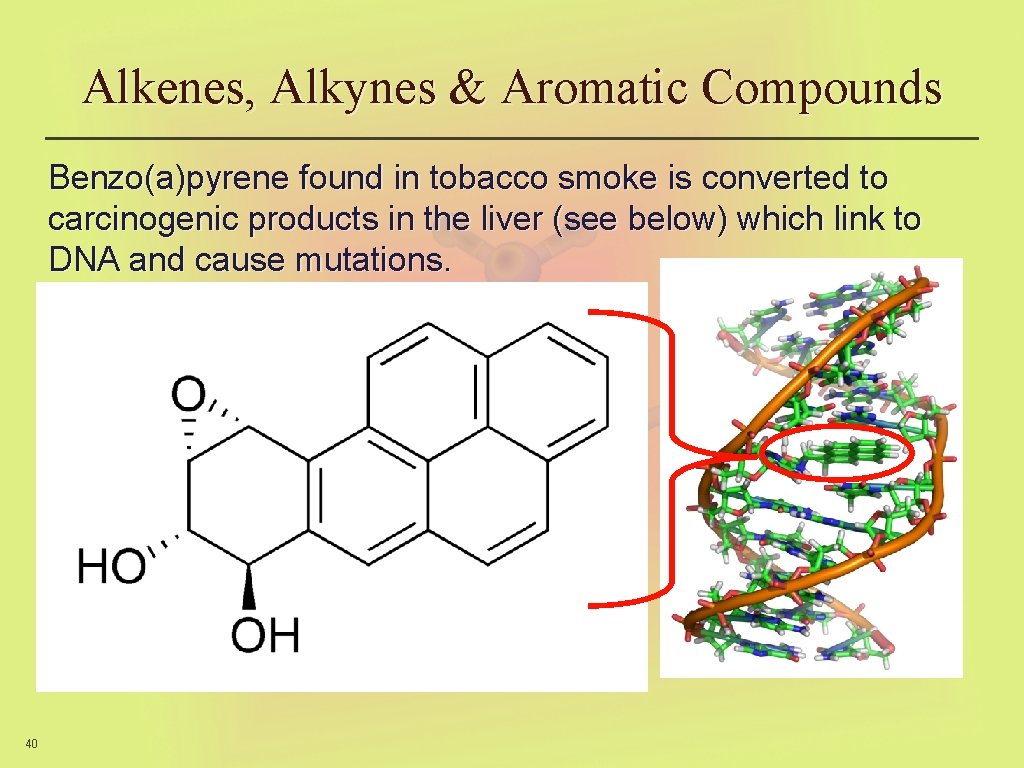

Alkenes, Alkynes & Aromatic Compounds Benzo(a)pyrene found in tobacco smoke is converted to carcinogenic products in the liver (see below) which link to DNA and cause mutations. 40

Practice Quiz 1 KEY http: //www. chem. uwec. edu/Chem 150_S 07/course/answers/C 150 -Quiz-1 -key. swf 41

Alkenes, Alkynes & Aromatic Compounds There are many aromatic molecules found in biology • Some aromatic compounds contain nitrogen and oxygen atoms • For example, the nucleotide base Adenine, which is used to make DNA and RNA 42

Alkenes, Alkynes & Aromatic Compounds Like cycloalkanes, some alkenes can have cis and trans isomers • • This is due to restricted rotation about the double-bond. Not all double bonds produce cis and trans isomers • Each carbon participating in the double bond must have two different substituents attached to them A ≠ B AND X ≠ Y 43

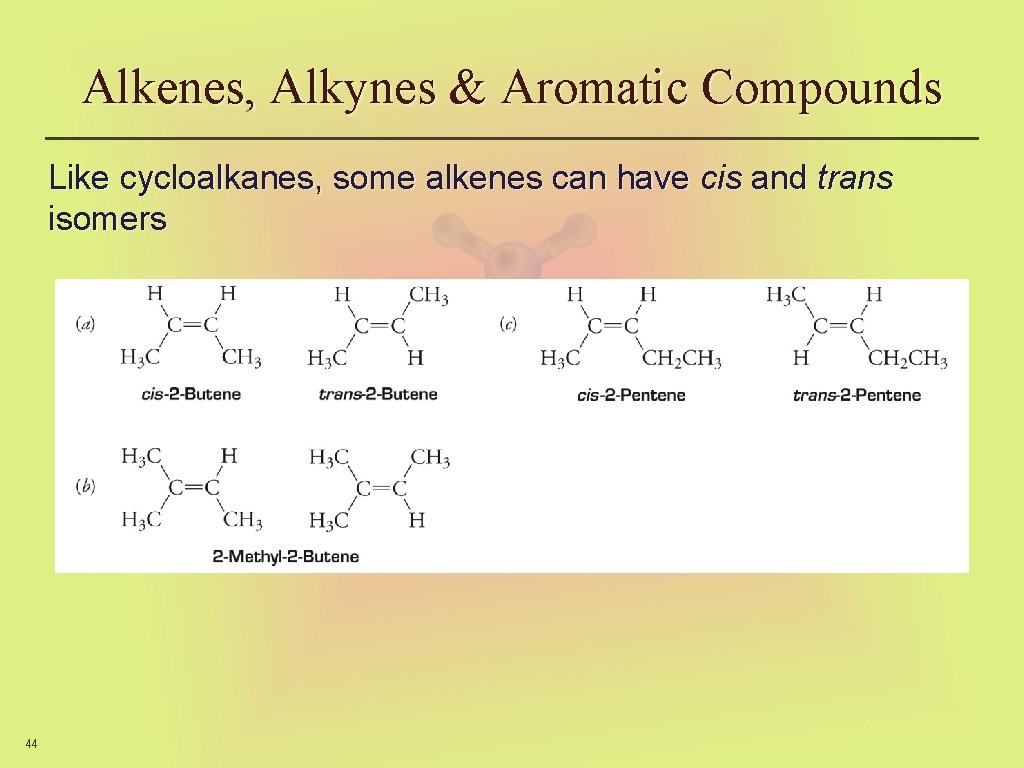

Alkenes, Alkynes & Aromatic Compounds Like cycloalkanes, some alkenes can have cis and trans isomers 44

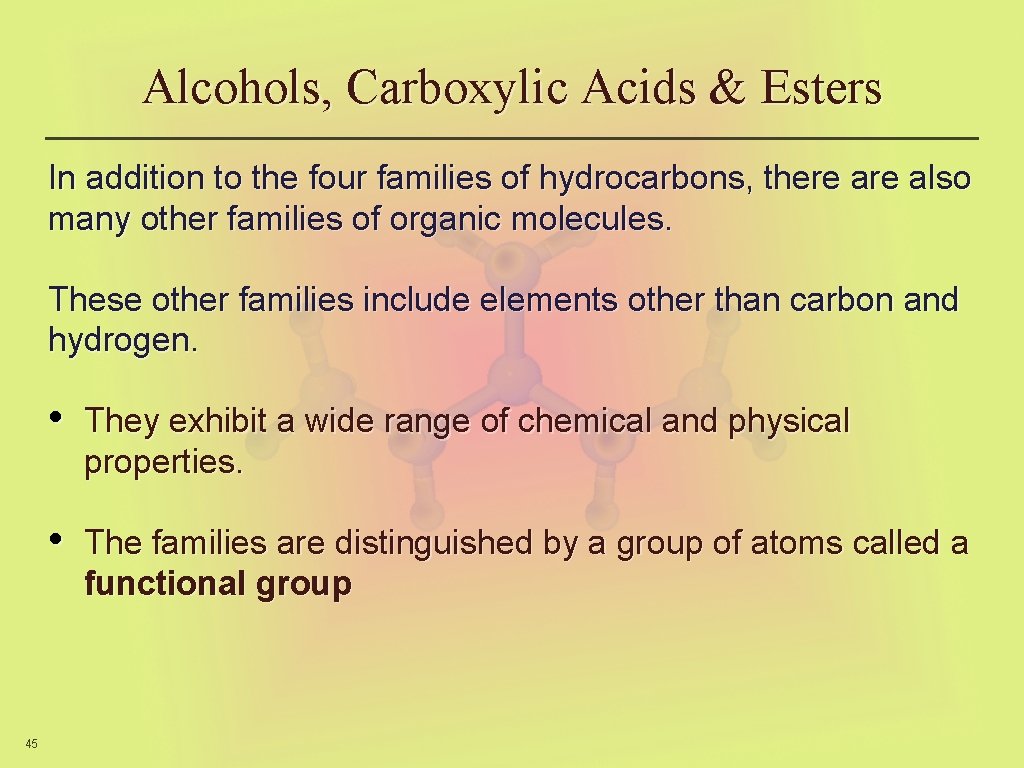

Alcohols, Carboxylic Acids & Esters In addition to the four families of hydrocarbons, there also many other families of organic molecules. These other families include elements other than carbon and hydrogen. 45 • They exhibit a wide range of chemical and physical properties. • The families are distinguished by a group of atoms called a functional group

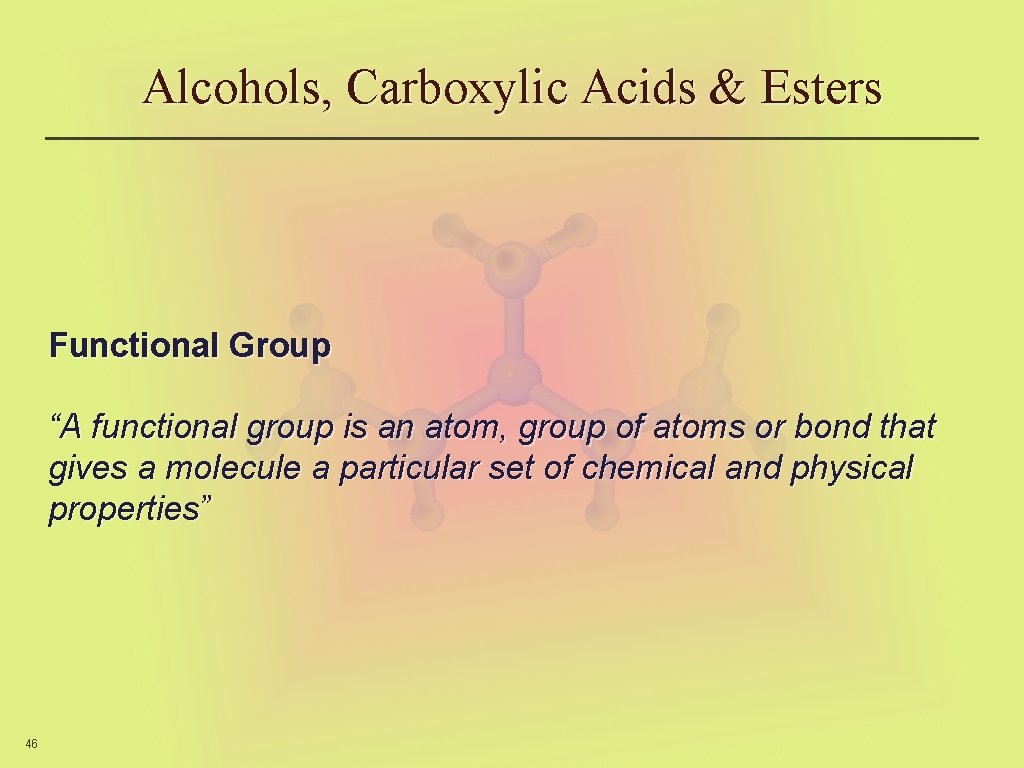

Alcohols, Carboxylic Acids & Esters Functional Group “A functional group is an atom, group of atoms or bond that gives a molecule a particular set of chemical and physical properties” 46

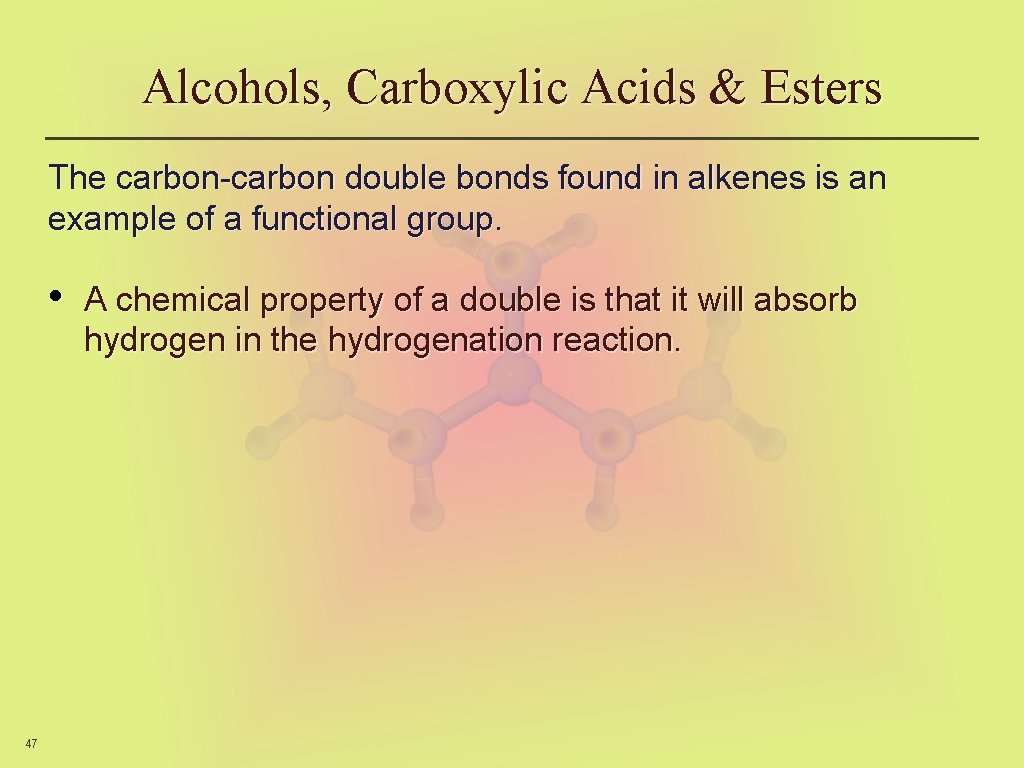

Alcohols, Carboxylic Acids & Esters The carbon-carbon double bonds found in alkenes is an example of a functional group. • 47 A chemical property of a double is that it will absorb hydrogen in the hydrogenation reaction.

Alcohols, Carboxylic Acids & Esters We look now at three families that are distinguished by a functional group that contains the element oxygen. Alcohols • Members of the alcohol family contain a hydroxyl group. • The hydroxyl group comprises an oxygen with one single bond to a hydrogen and another single bond to an alkanetype carbon hydroxyl group An alkane-type carbon atom ethanol 48

Alcohols, Carboxylic Acids & Esters We look now at three families that are distinguished by a functional group that contains the element oxygen. Carboxylic acids • Members of the carboxylic acid family contain a carboxylic acid group • The carboxylic acid group comprises a hydroxyl group connected to a carbonyl group: + carbonyl group 49 hydroxyl group carboxylic acid group

Alcohols, Carboxylic Acids & Esters Carboxylic acids • The present of the hydroxyl group next to the cabonyl group completely changes it properties. • The alcohol hydroxyl group and the carboxylic acid hydroxyl group are chemically quite different, which is why molecules that have the carboxylic acid group are placed in a separate family from the alcohols. • Later in the semester we will learn about some of these chemical differences. + carbonyl group 50 hydroxyl group carboxylic acid group

Alcohols, Carboxylic Acids & Esters Carboxylic acids • The carboxylic acid group can be attached to a hydrogen, an alkane-type carbon, or an aromatic-type carbon: methanoic acid (formic acid) 51 propanoic acid benzoic acid

Alcohols, Carboxylic Acids & Esters We look now at three families that are distinguished by a functional group that contains the element oxygen. Esters • Chemically, esters can be synthesized by reacting a carboxylic acid with and alcohol: carboxylic acid 52 alcohol ester water

Alcohols, Carboxylic Acids & Esters We look now at three families that are distinguished by a functional group that contains the element oxygen. Esters • Chemically, esters can be synthesize by reacting a carboxylic acid with and alcohol: Ethyl propanoate 53

Alcohols, Carboxylic Acids & Esters Carboxylic acids • The carboxylic acid group can be attached to a hydrogen, an alkane-type carbon, or an aromatic-type carbon: methanoic acid (formic acid) 54 propanoic acid benzoic acid

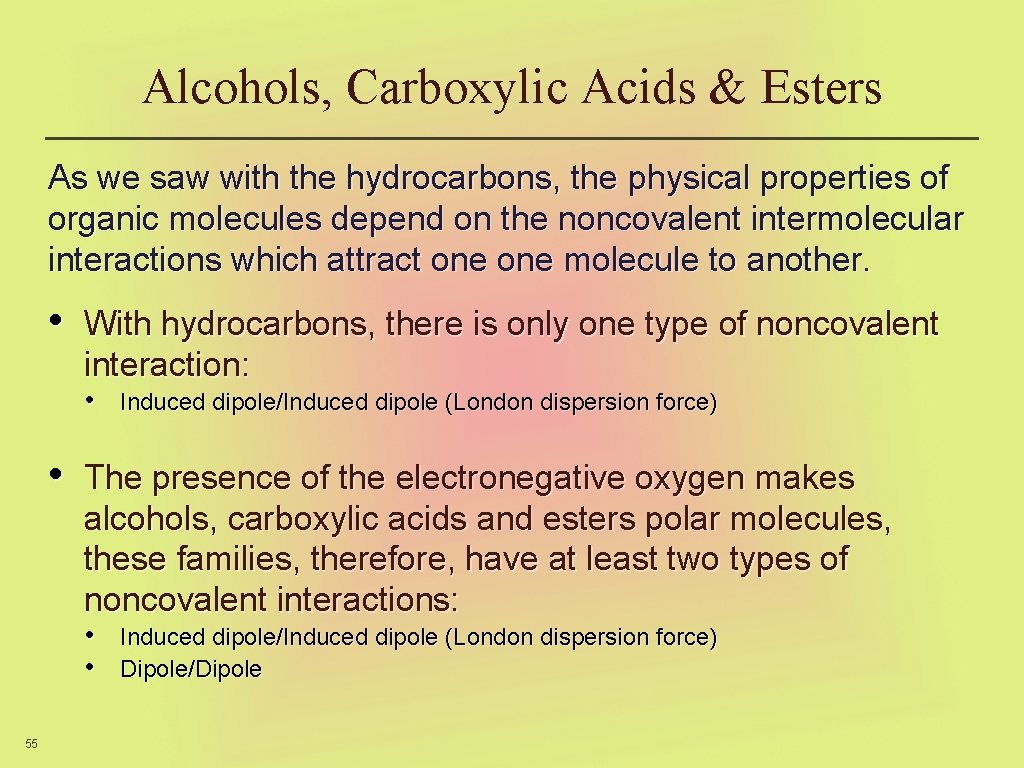

Alcohols, Carboxylic Acids & Esters As we saw with the hydrocarbons, the physical properties of organic molecules depend on the noncovalent intermolecular interactions which attract one molecule to another. • With hydrocarbons, there is only one type of noncovalent interaction: • • The presence of the electronegative oxygen makes alcohols, carboxylic acids and esters polar molecules, these families, therefore, have at least two types of noncovalent interactions: • • 55 Induced dipole/Induced dipole (London dispersion force) Dipole/Dipole

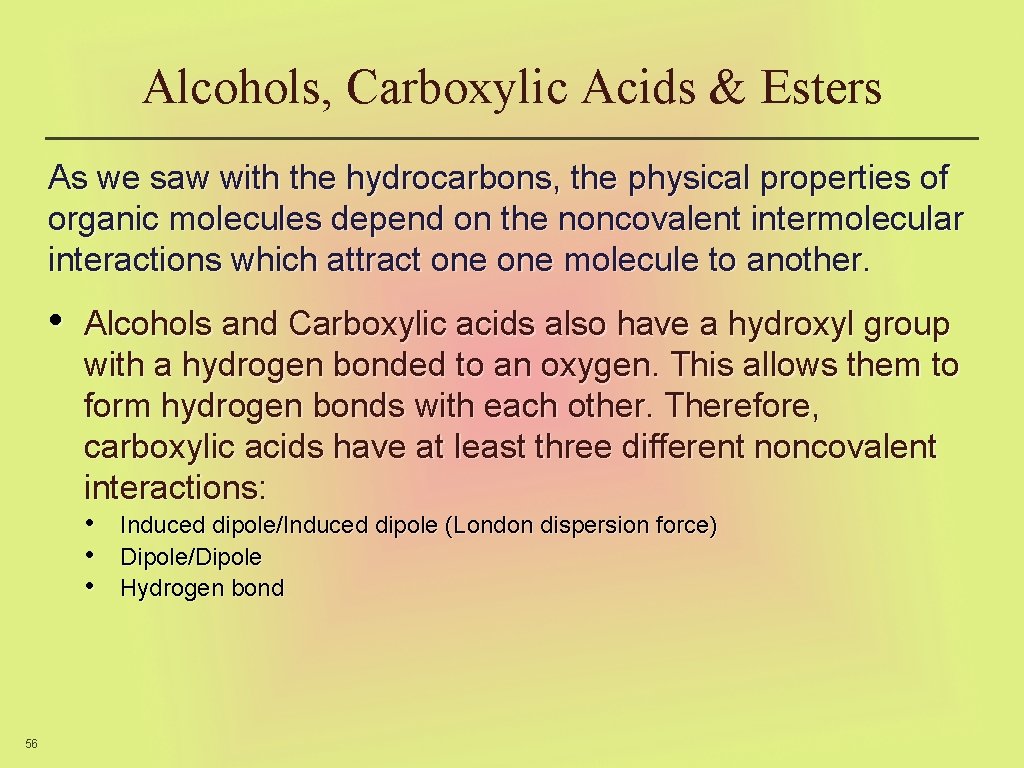

Alcohols, Carboxylic Acids & Esters As we saw with the hydrocarbons, the physical properties of organic molecules depend on the noncovalent intermolecular interactions which attract one molecule to another. • Alcohols and Carboxylic acids also have a hydroxyl group with a hydrogen bonded to an oxygen. This allows them to form hydrogen bonds with each other. Therefore, carboxylic acids have at least three different noncovalent interactions: • • • 56 Induced dipole/Induced dipole (London dispersion force) Dipole/Dipole Hydrogen bond

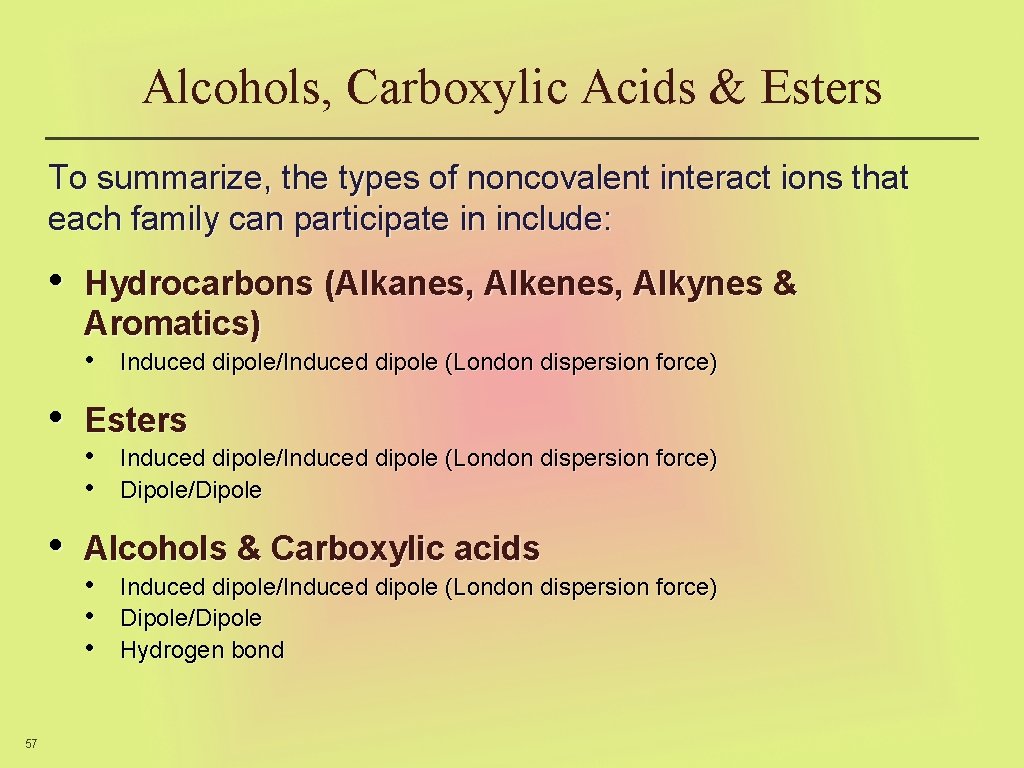

Alcohols, Carboxylic Acids & Esters To summarize, the types of noncovalent interact ions that each family can participate in include: • Hydrocarbons (Alkanes, Alkenes, Alkynes & Aromatics) • • • 57 Induced dipole/Induced dipole (London dispersion force) Esters • • Induced dipole/Induced dipole (London dispersion force) Dipole/Dipole Alcohols & Carboxylic acids • • • Induced dipole/Induced dipole (London dispersion force) Dipole/Dipole Hydrogen bond

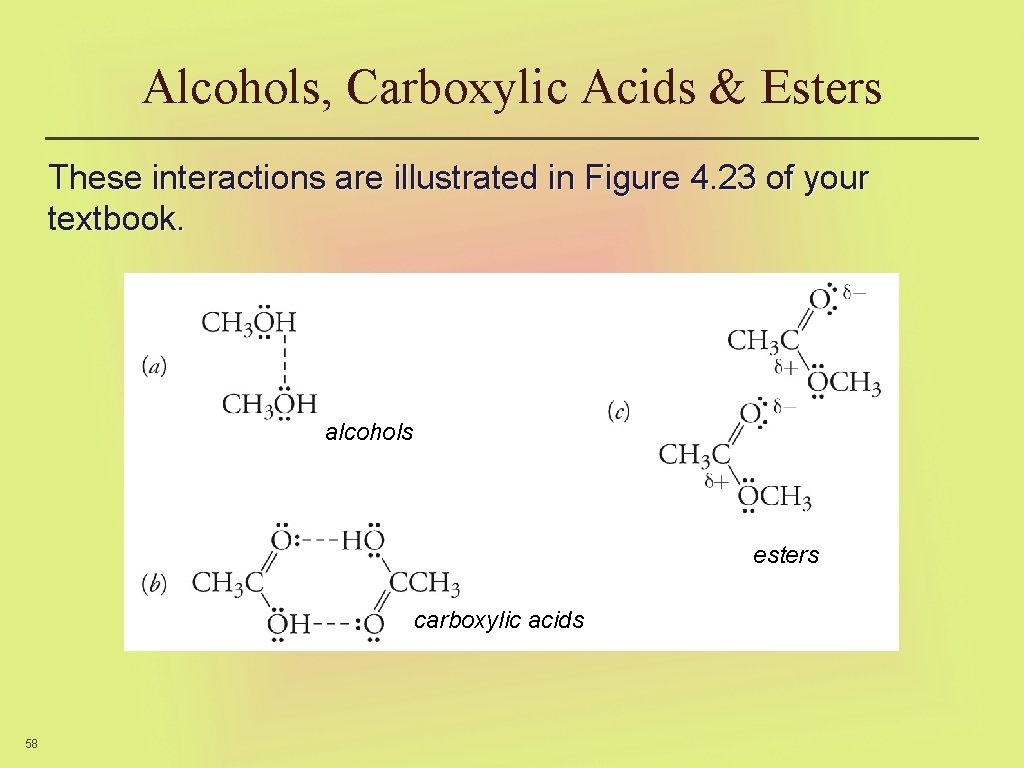

Alcohols, Carboxylic Acids & Esters These interactions are illustrated in Figure 4. 23 of your textbook. alcohols esters carboxylic acids 58

Alcohols, Carboxylic Acids & Esters Boiling points are a good measure of the strength of the noncovalent interactions between molecules. 59 • The stronger the interactions, the higher the boiling point will be. • Since all molecules have the London dispersion interaction, the boiling points of molecules is expected to increase with temperature. • The next slide shows a chart using the data found in Table 4. 7 of Raymond, in which the boiling points for alcohols, carboxylic acids and esters are plotted against molecular weight.

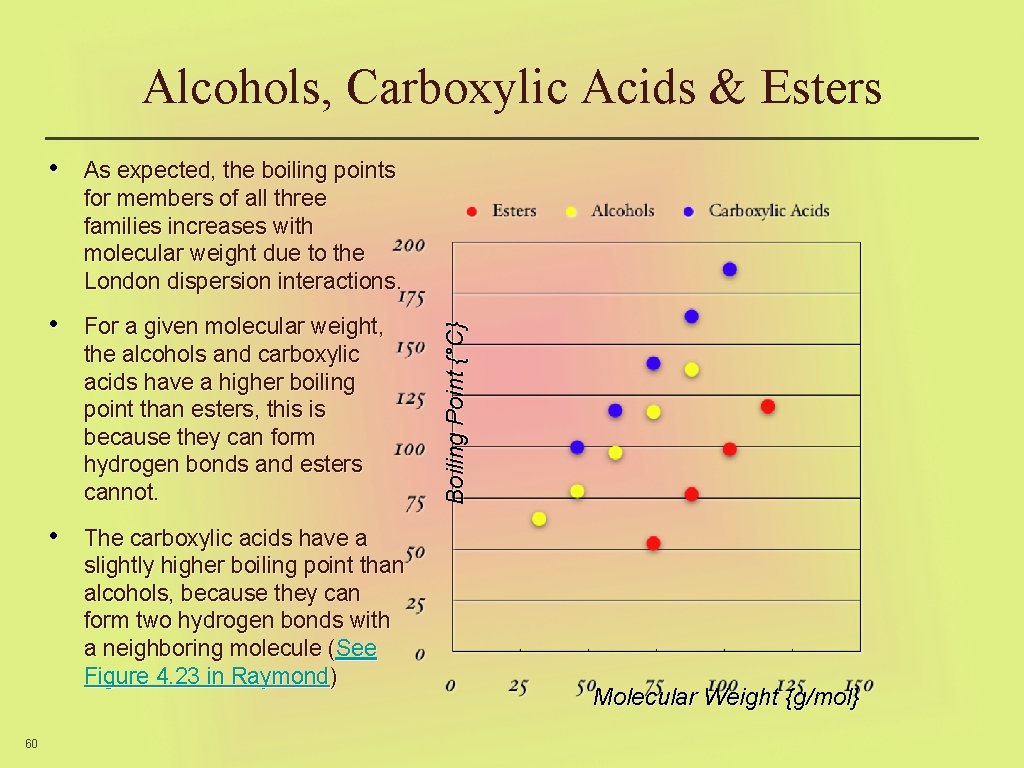

60 • As expected, the boiling points for members of all three families increases with molecular weight due to the London dispersion interactions. • For a given molecular weight, the alcohols and carboxylic acids have a higher boiling point than esters, this is because they can form hydrogen bonds and esters cannot. • The carboxylic acids have a slightly higher boiling point than alcohols, because they can form two hydrogen bonds with a neighboring molecule (See Figure 4. 23 in Raymond) Boiling Point {°C} Alcohols, Carboxylic Acids & Esters Molecular Weight {g/mol}

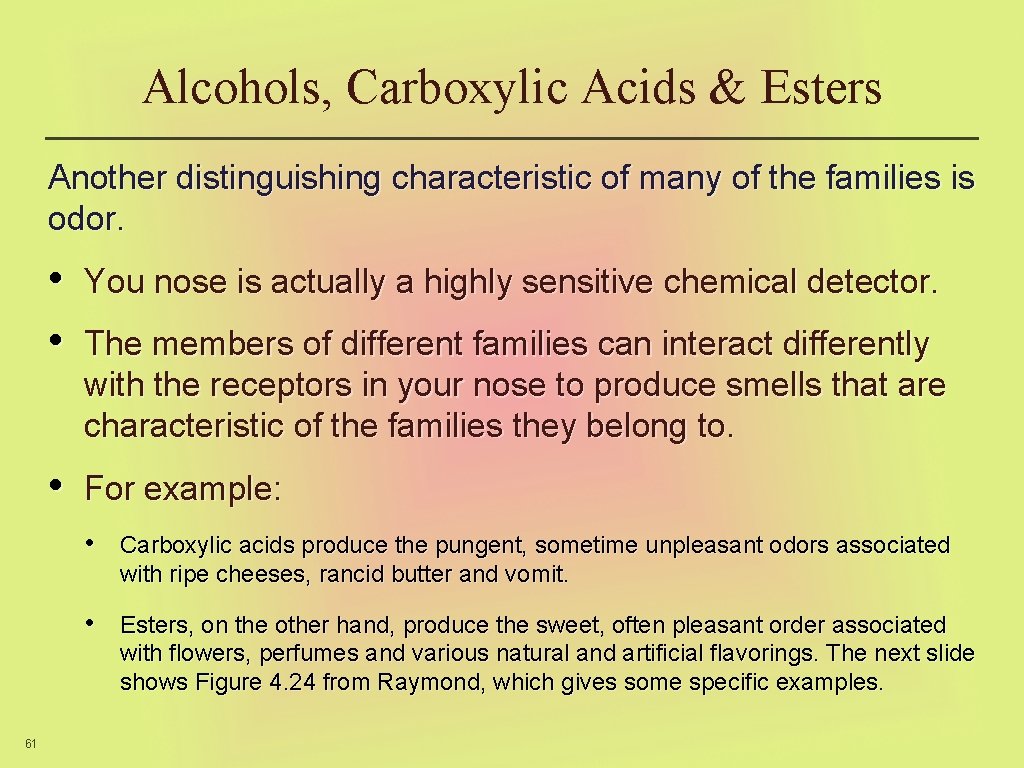

Alcohols, Carboxylic Acids & Esters Another distinguishing characteristic of many of the families is odor. 61 • • You nose is actually a highly sensitive chemical detector. • For example: The members of different families can interact differently with the receptors in your nose to produce smells that are characteristic of the families they belong to. • Carboxylic acids produce the pungent, sometime unpleasant odors associated with ripe cheeses, rancid butter and vomit. • Esters, on the other hand, produce the sweet, often pleasant order associated with flowers, perfumes and various natural and artificial flavorings. The next slide shows Figure 4. 24 from Raymond, which gives some specific examples.

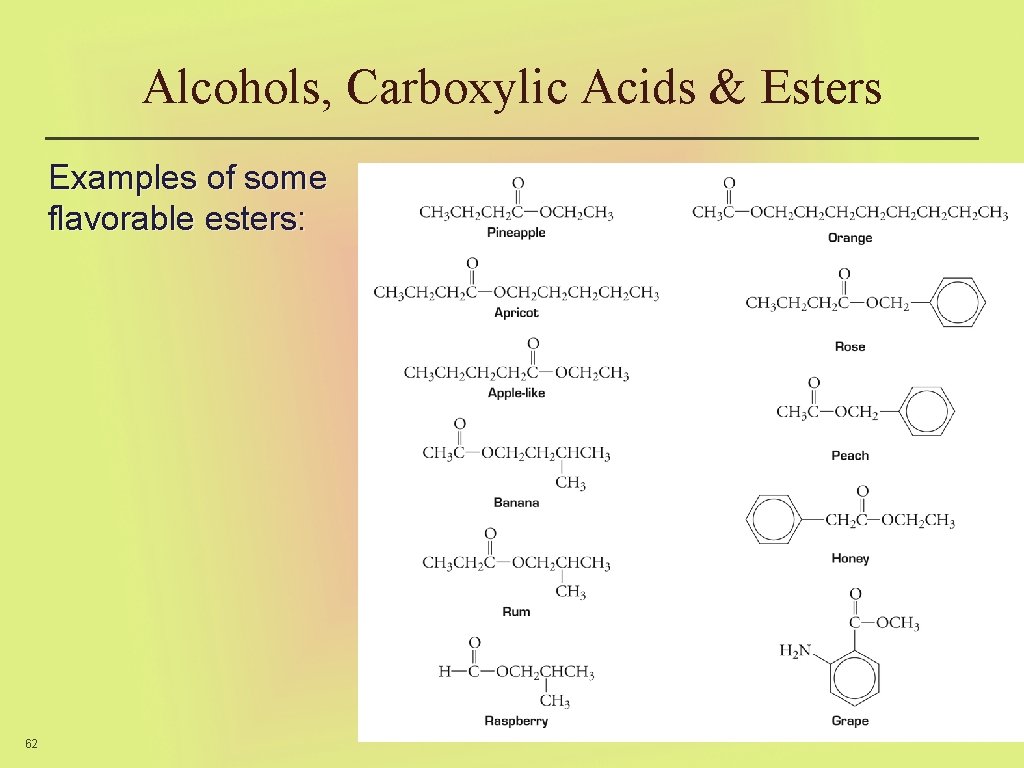

Alcohols, Carboxylic Acids & Esters Examples of some flavorable esters: 62

The End
