CHAPTER3 Method Study Method Study Method study is

CHAPTER-3 Method Study

Method Study: Method study is the systematic recording and critical examination of the present and proposed ways of doing work, as a means of developing and applying easier and more effective methods to reduce cost.

Method Study Procedure

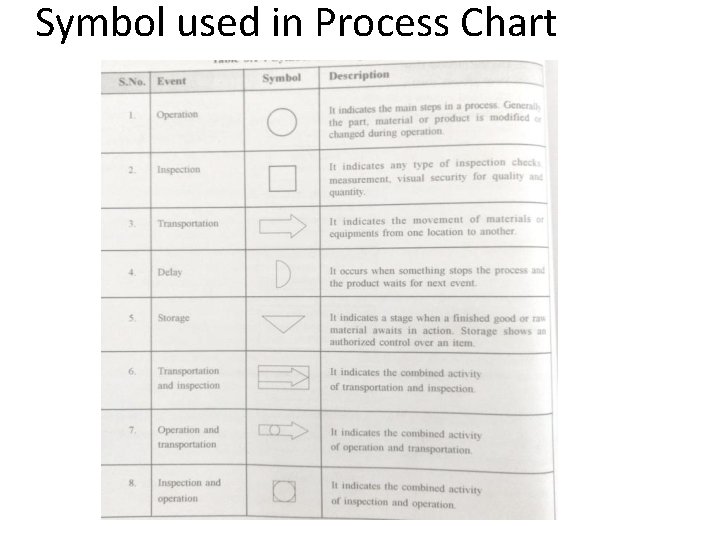

Symbol used in Process Chart

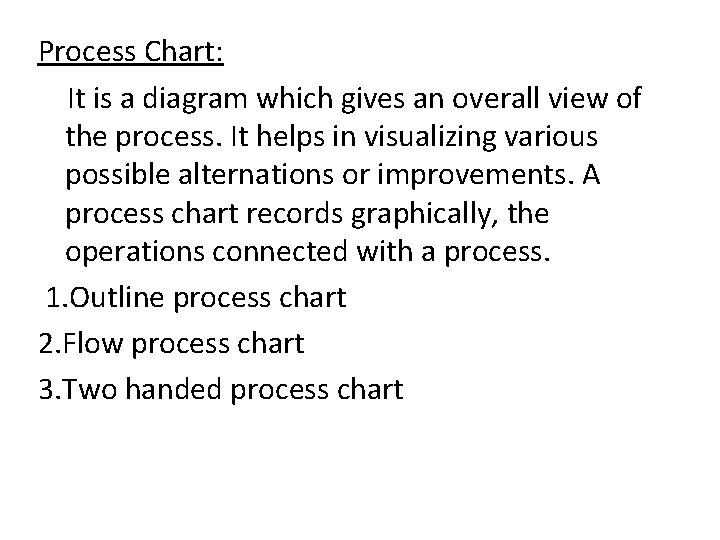

Process Chart: It is a diagram which gives an overall view of the process. It helps in visualizing various possible alternations or improvements. A process chart records graphically, the operations connected with a process. 1. Outline process chart 2. Flow process chart 3. Two handed process chart

Outline Process Chart

Flow Process chart

Two Handed Process Chart :

FLOW DIAGRAM:

String Diagram:

Chapter 4 MOTION ANALYSIS

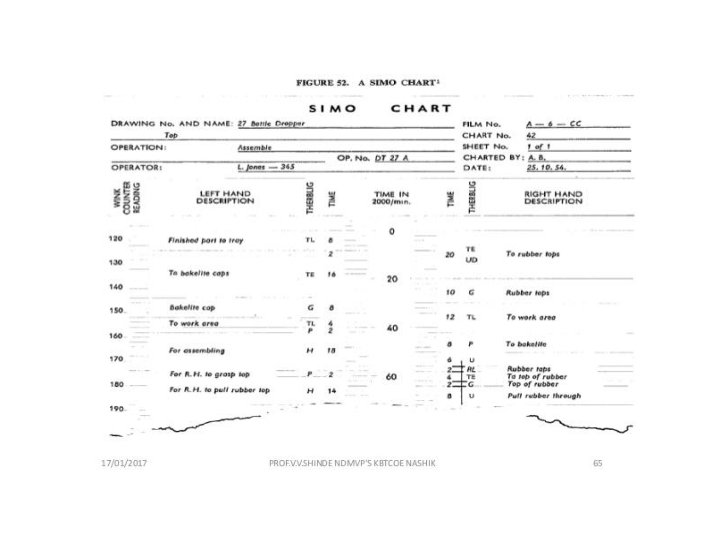

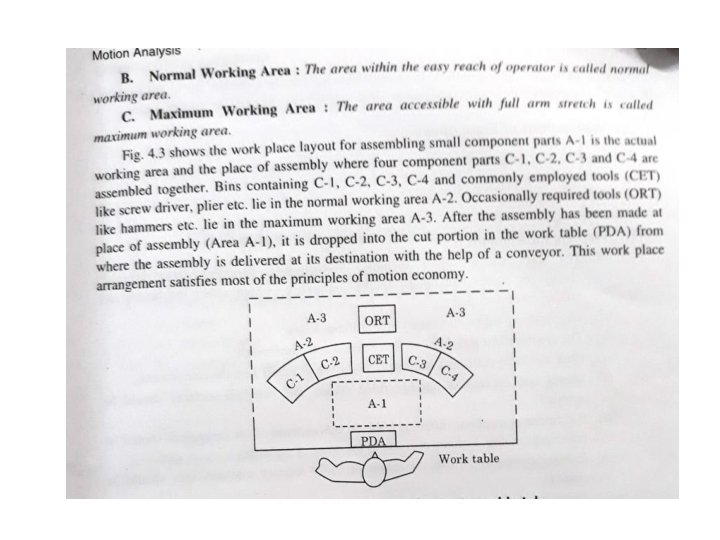

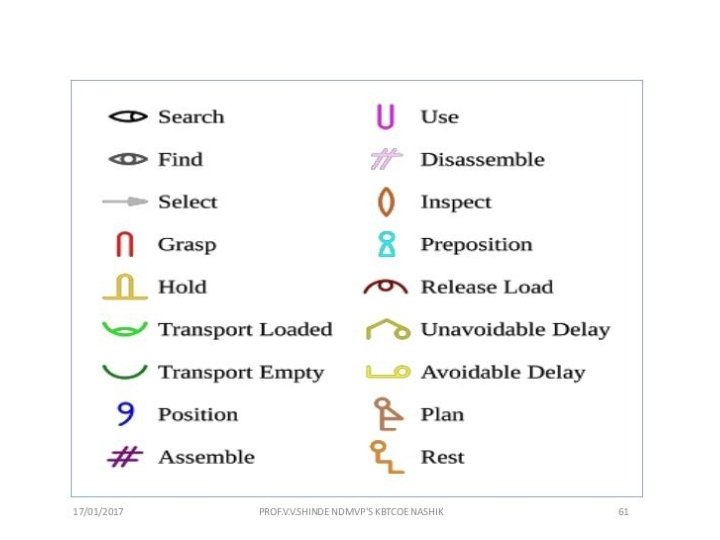

Motion Analysis: - Analysis of an operation, when carried out in terms of individual motions of a worker, is called motion analysis. Principal of Motion Analysis: (a) Use of human body (b) Arrangements of workplace (c) Design of tool and equipment

CHAPTER 5 WORK MEASUREMENT

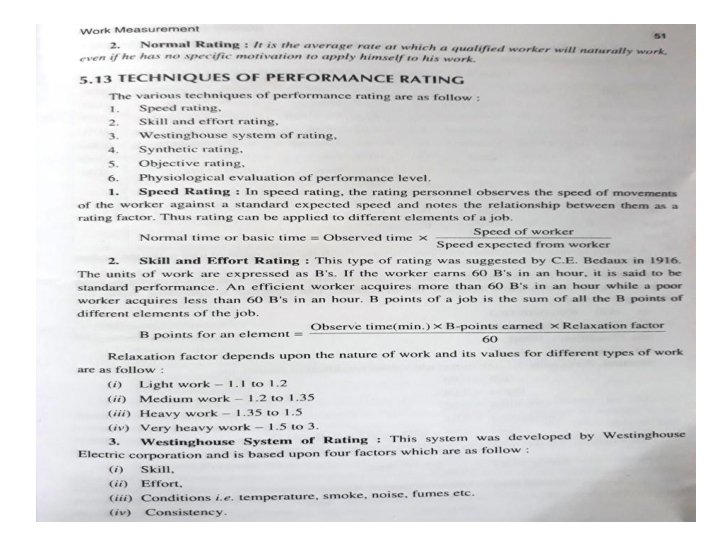

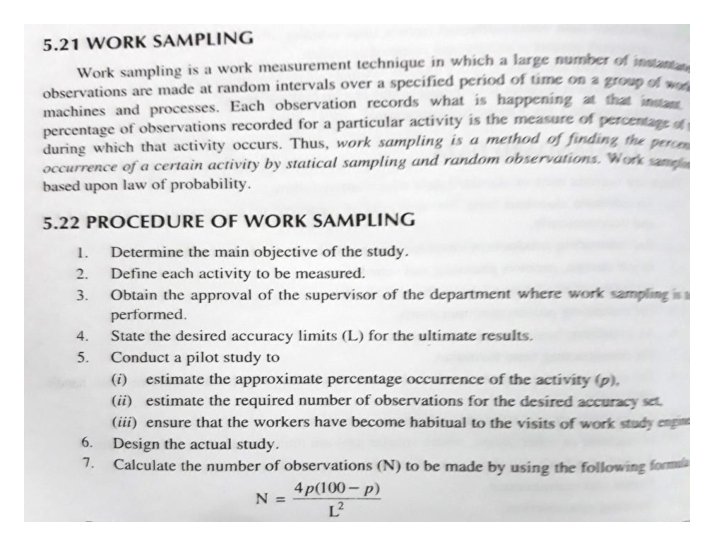

WORK MEASUREMENT: Work measurement is the application of techniques designed to establish the time for a qualified worker to carry out a specified job at a defined level of performance. Procedure: 1. Select 2. Record 3. Measure 4. Examine 5. Compile 6. Define

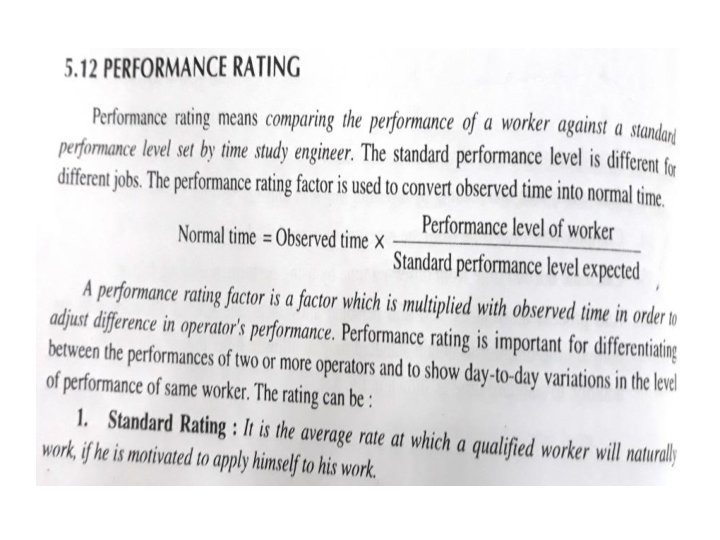

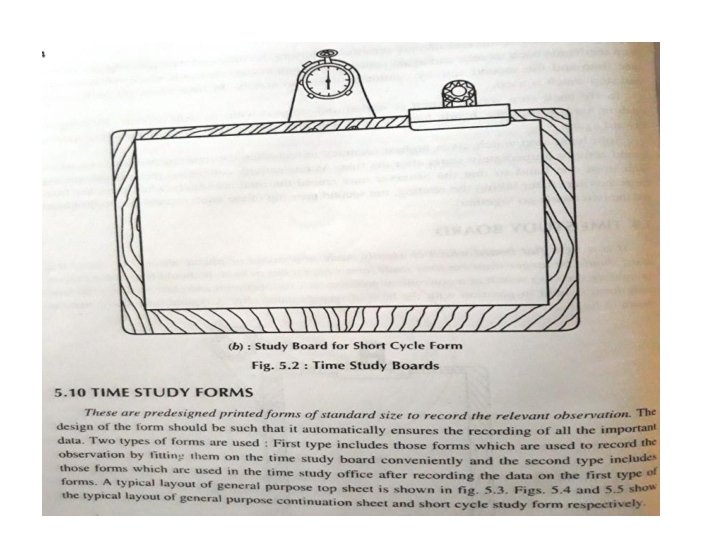

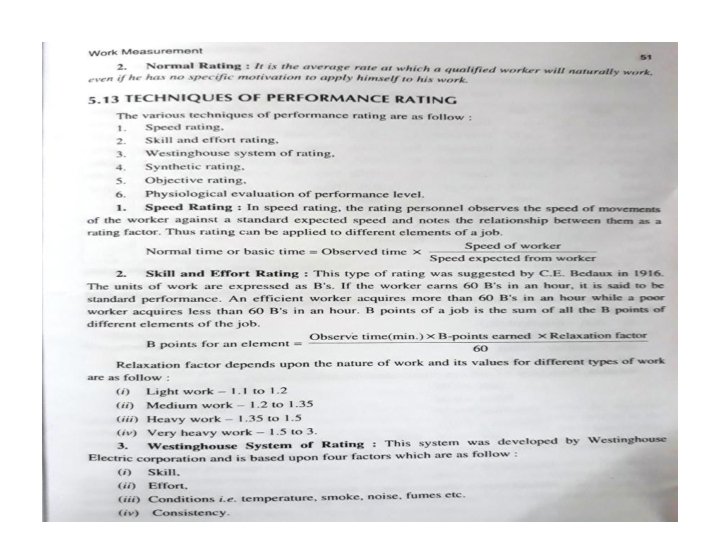

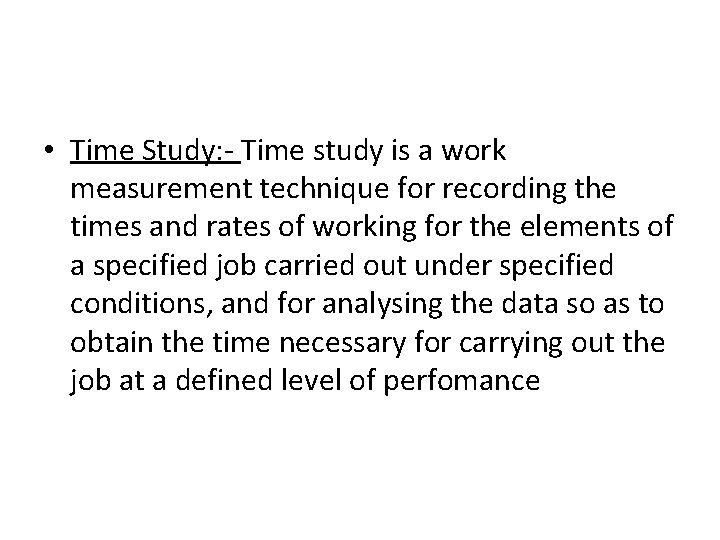

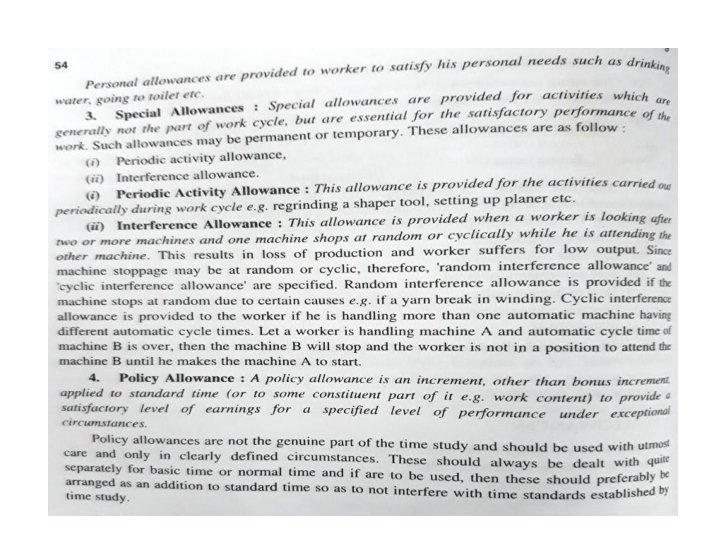

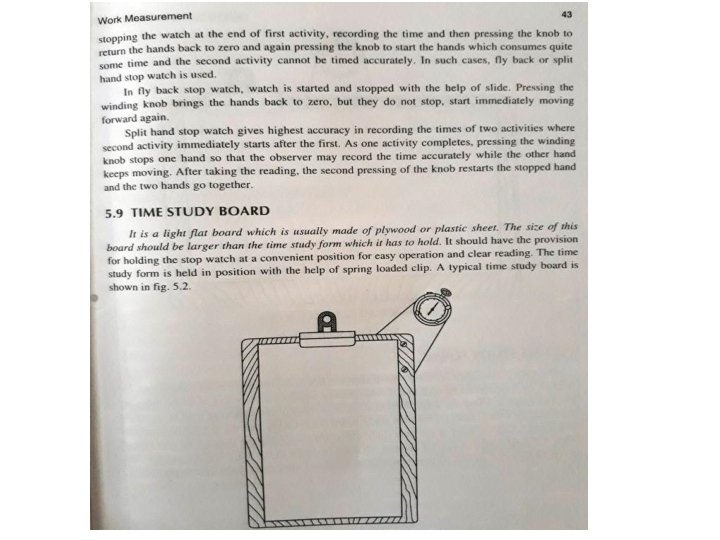

• Time Study: - Time study is a work measurement technique for recording the times and rates of working for the elements of a specified job carried out under specified conditions, and for analysing the data so as to obtain the time necessary for carrying out the job at a defined level of perfomance

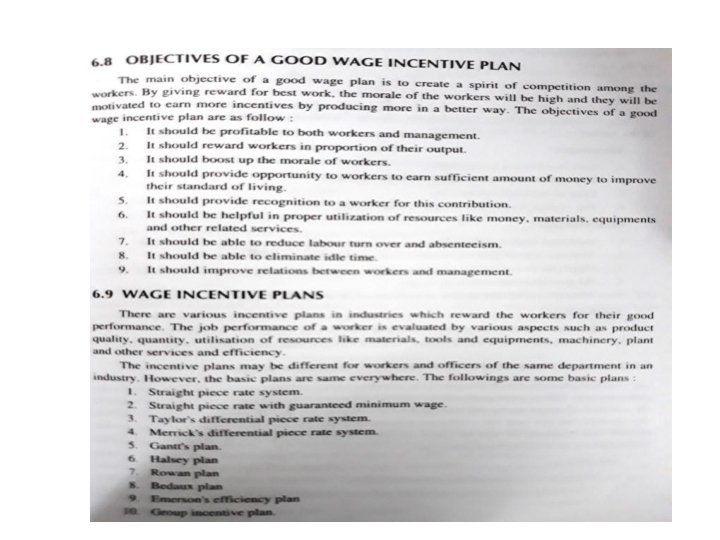

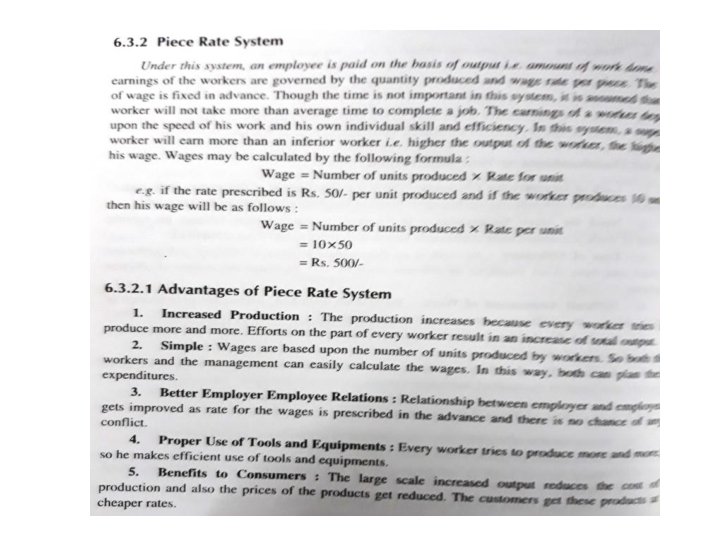

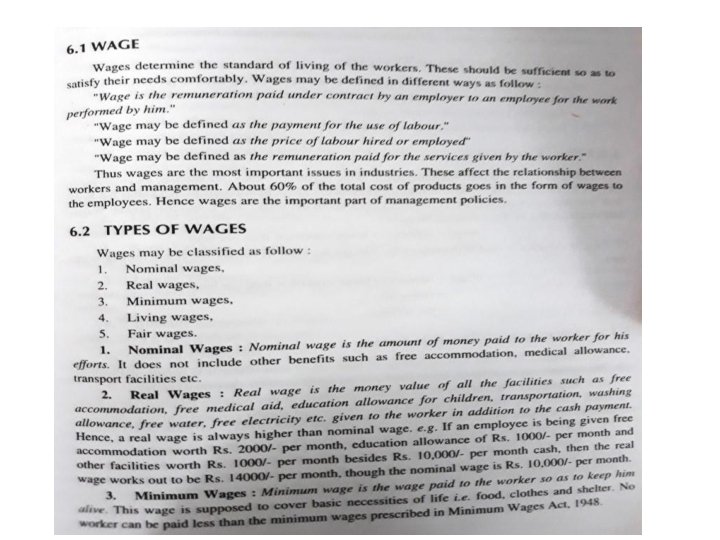

CHAPTER 6 WAGES AND INCENTIVE SCHEME

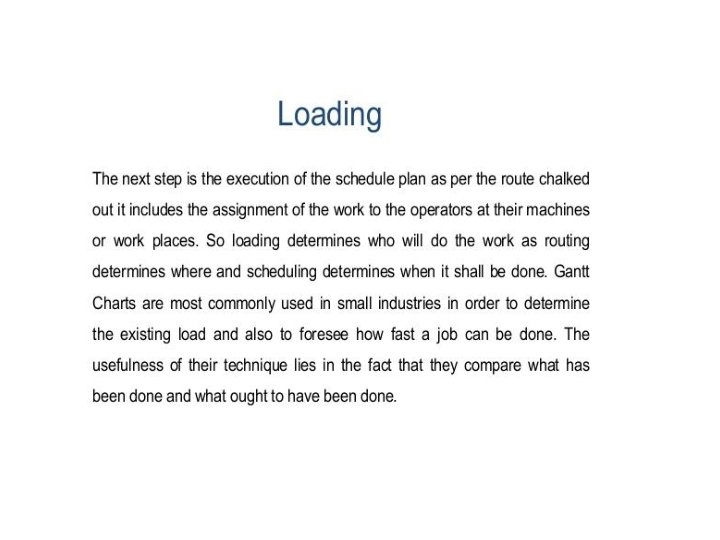

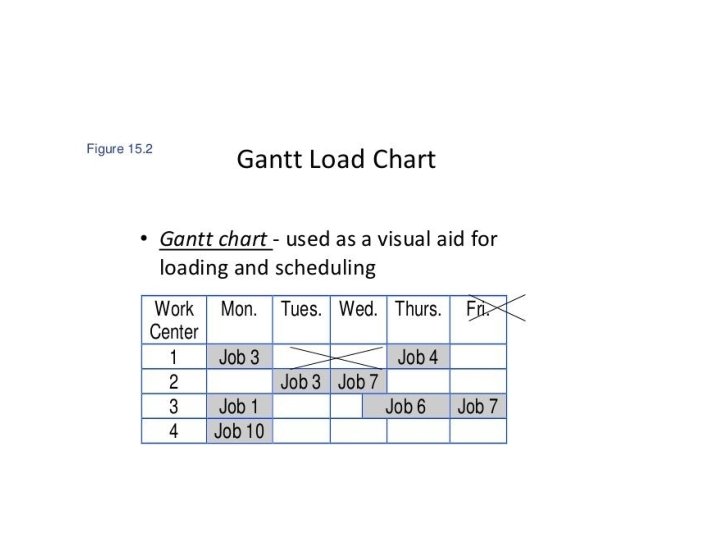

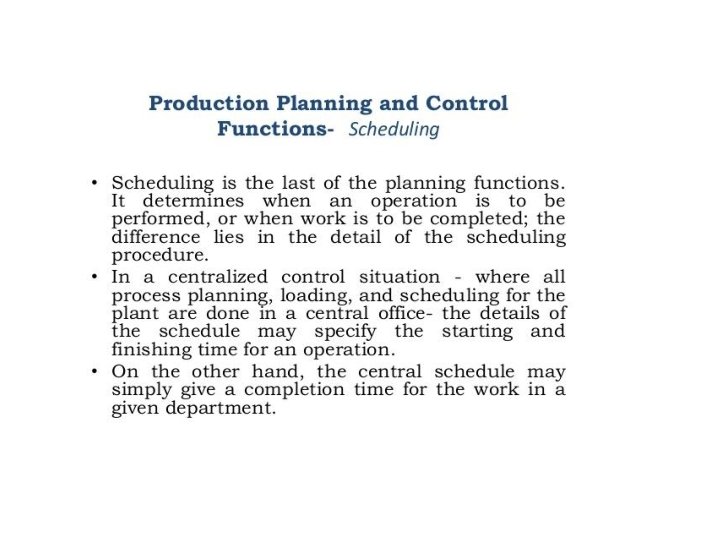

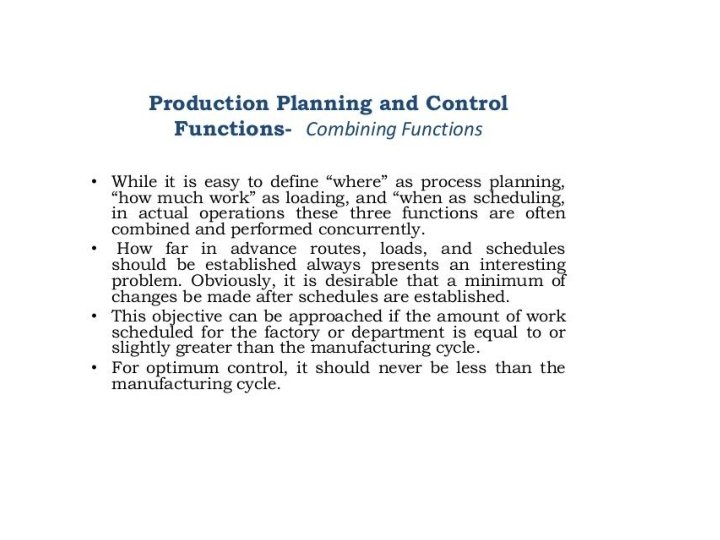

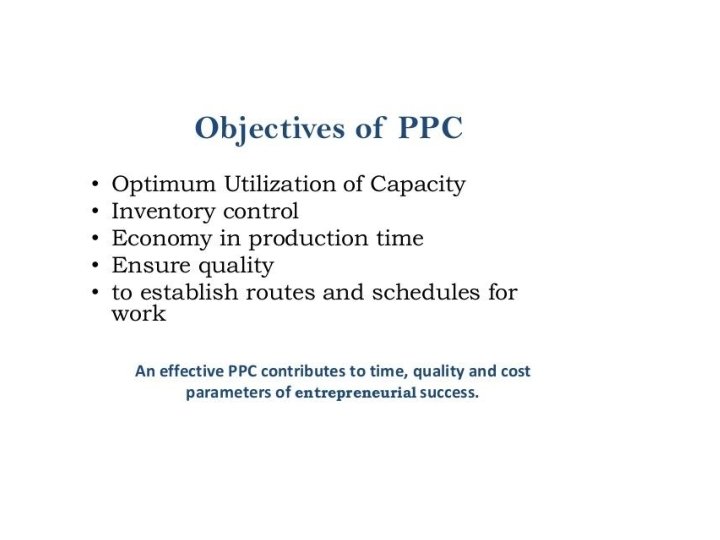

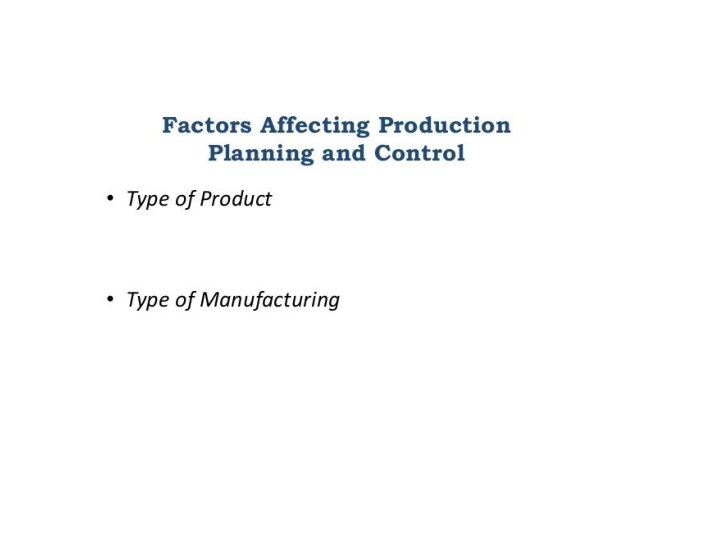

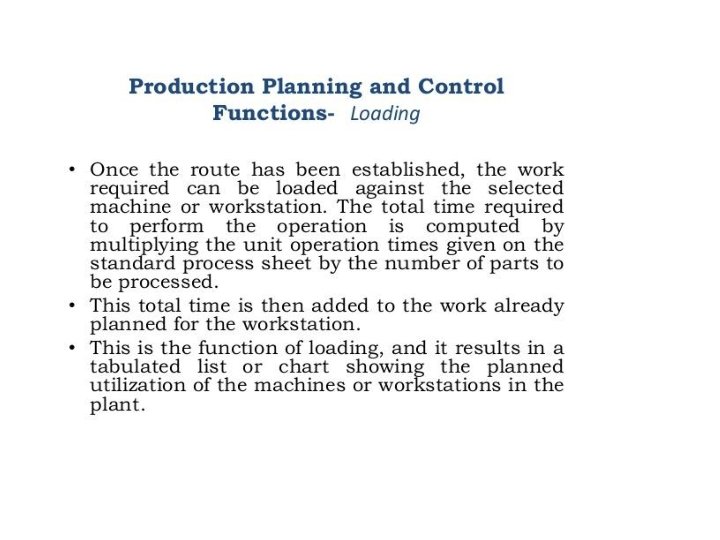

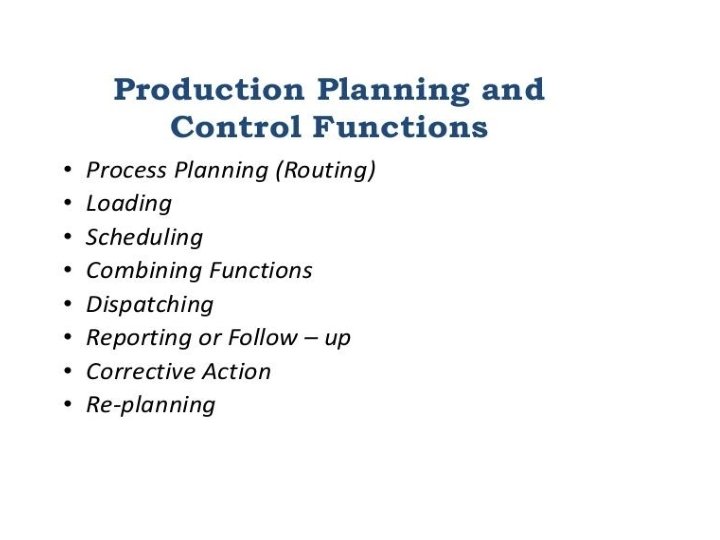

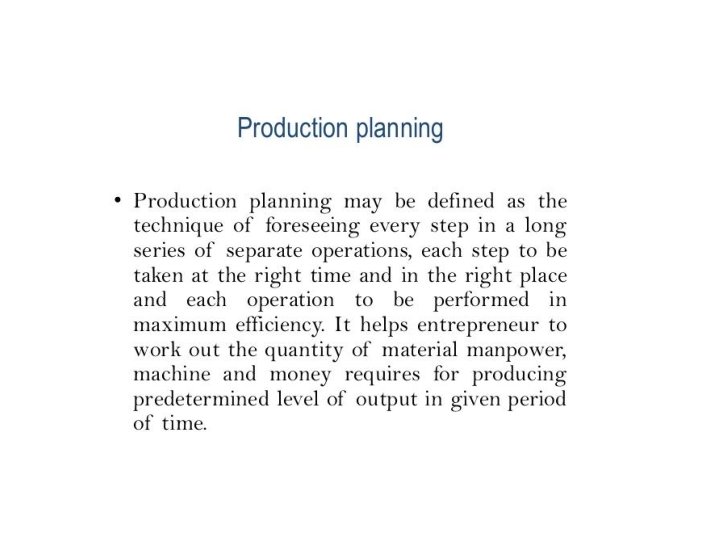

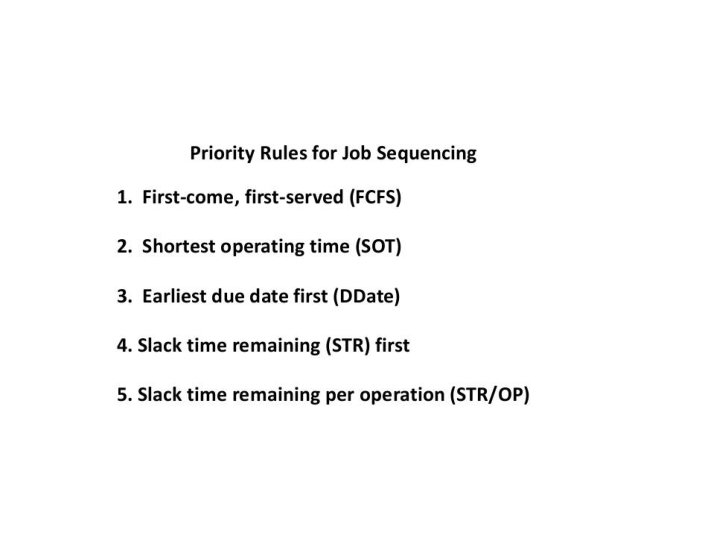

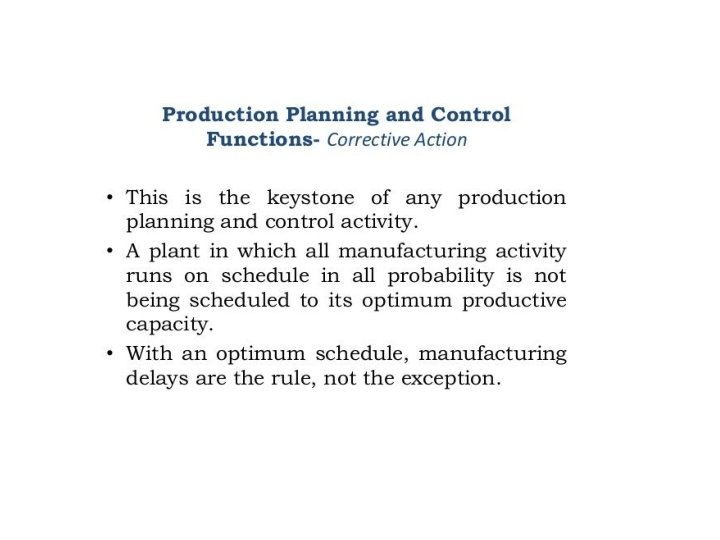

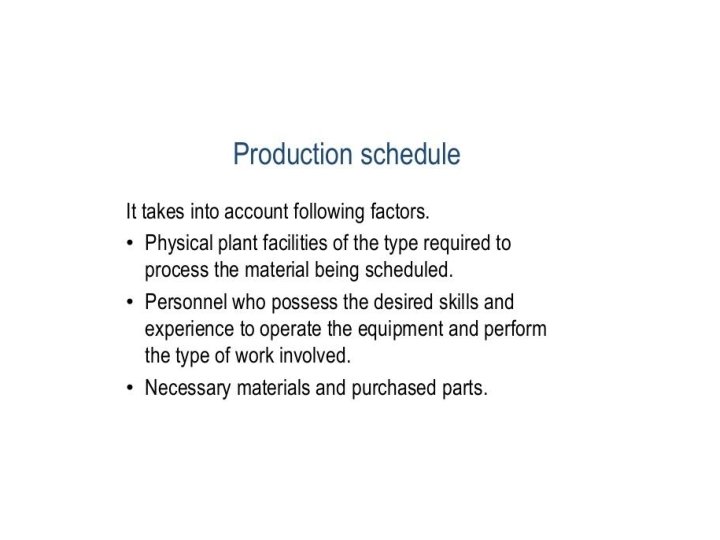

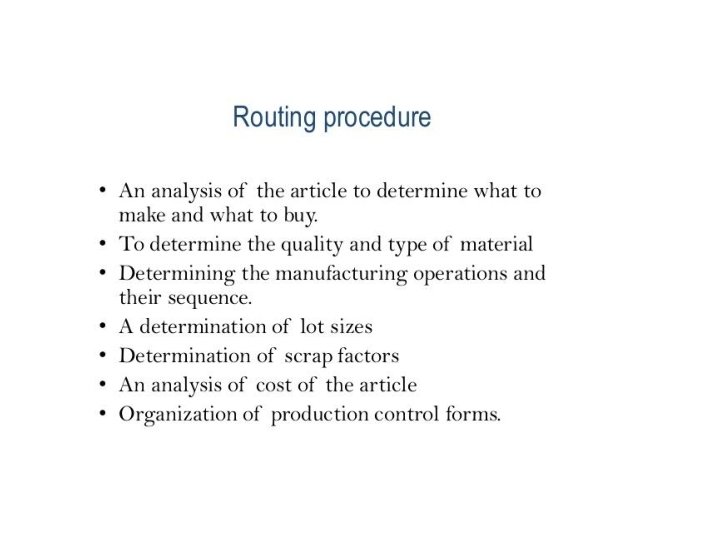

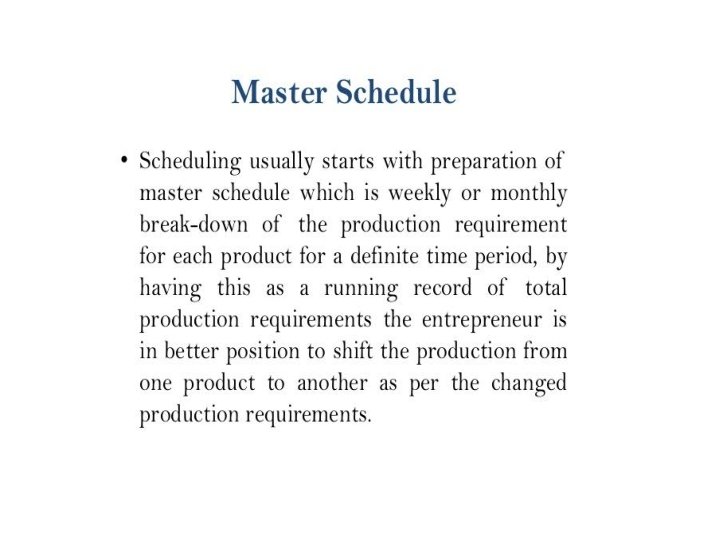

CHAPTER 7 • PRODUCTION PLANNING AND COTROL

CPM: -Critical path method technique is used to reduce the time required to perform routine plant work like plant overhouling, maintenance and construction work PERT: -Programme evalution and review technique is describes network technique which incudes planning and controlling of the project.

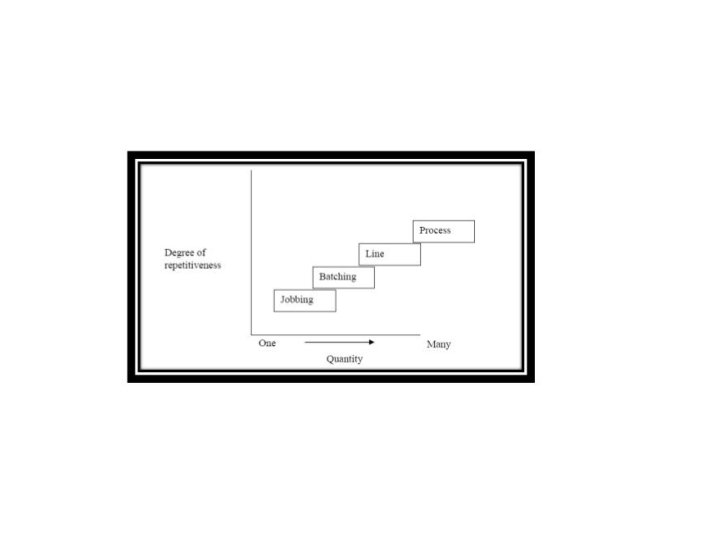

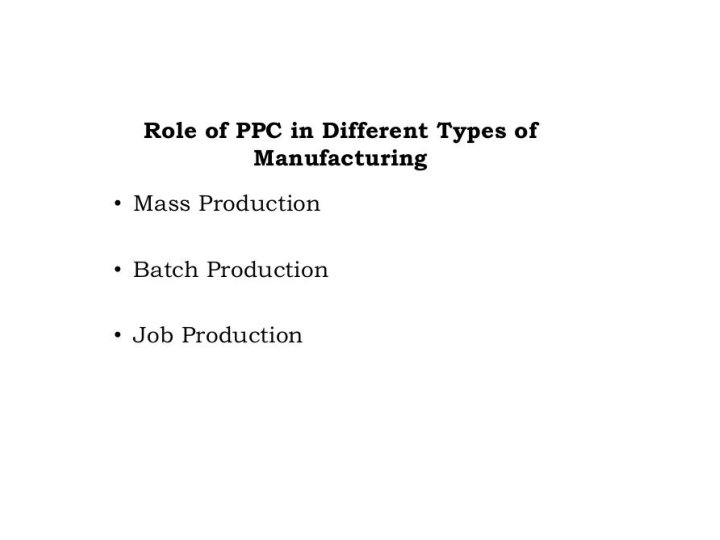

BATCH PRODUCTION: -In this types of producion, the work on any product is divided into few operations and each operation is competed for the whiole lot before proceeding to the next operation. CONTINEOUS PRODUCTION: -It involves a continuous ar almost continuous physical flow of martial.
