CHAPTER2 NETWORK THEOREMS CONTENT 1 Kirchhoffs laws voltage

CHAPTER-2 NETWORK THEOREMS

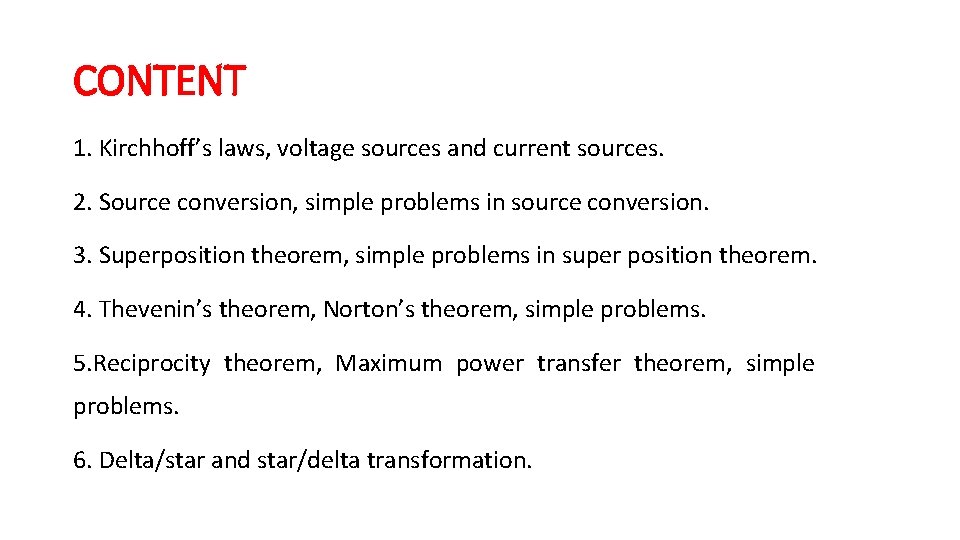

CONTENT 1. Kirchhoff’s laws, voltage sources and current sources. 2. Source conversion, simple problems in source conversion. 3. Superposition theorem, simple problems in super position theorem. 4. Thevenin’s theorem, Norton’s theorem, simple problems. 5. Reciprocity theorem, Maximum power transfer theorem, simple problems. 6. Delta/star and star/delta transformation.

Gustav Robert Kirchhoff

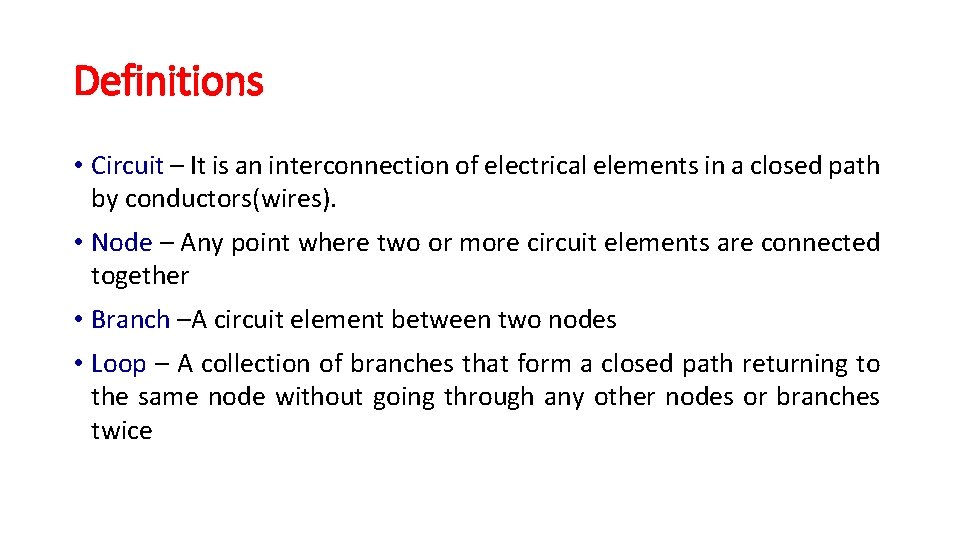

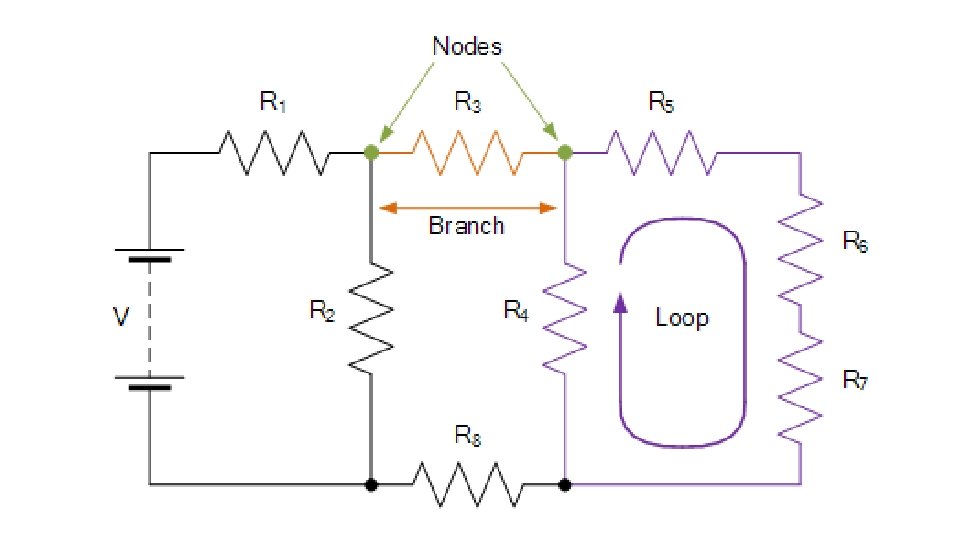

Definitions • Circuit – It is an interconnection of electrical elements in a closed path by conductors(wires). • Node – Any point where two or more circuit elements are connected together • Branch –A circuit element between two nodes • Loop – A collection of branches that form a closed path returning to the same node without going through any other nodes or branches twice

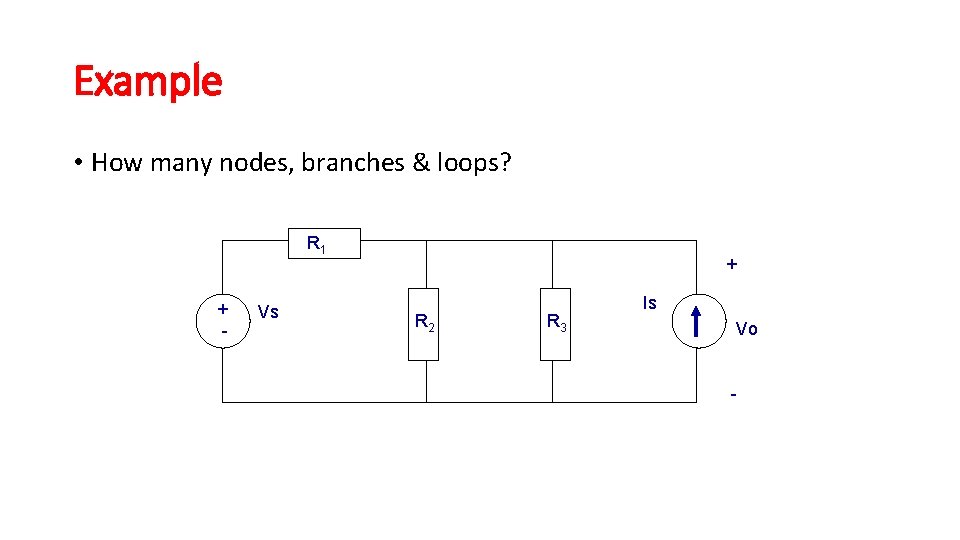

Example • How many nodes, branches & loops? R 1 + - Vs + R 2 R 3 Is Vo -

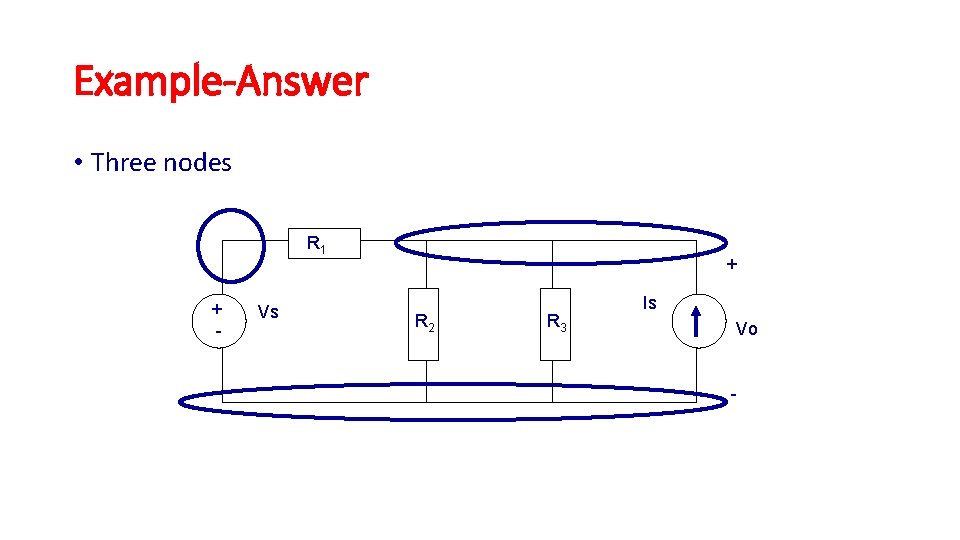

Example-Answer • Three nodes R 1 + - Vs + R 2 R 3 Is Vo -

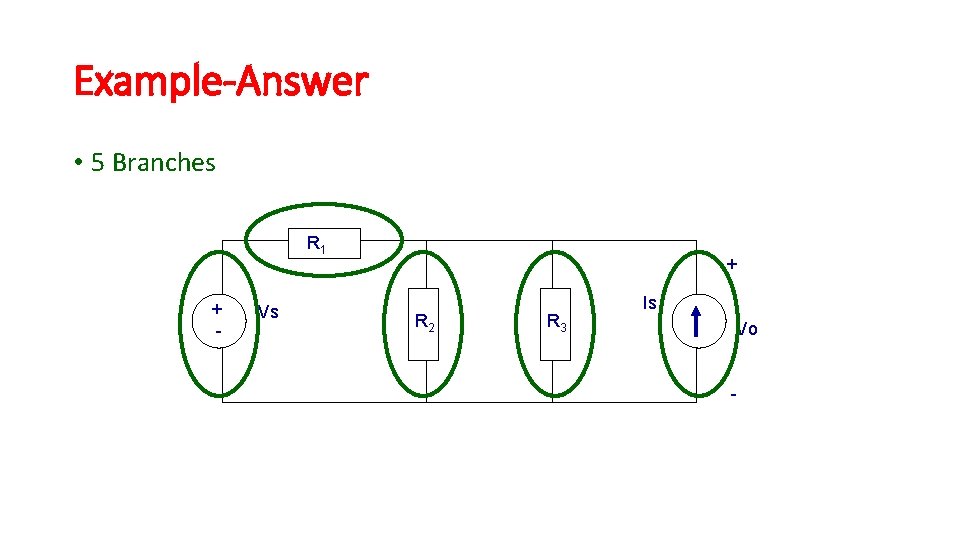

Example-Answer • 5 Branches R 1 + - Vs + R 2 R 3 Is Vo -

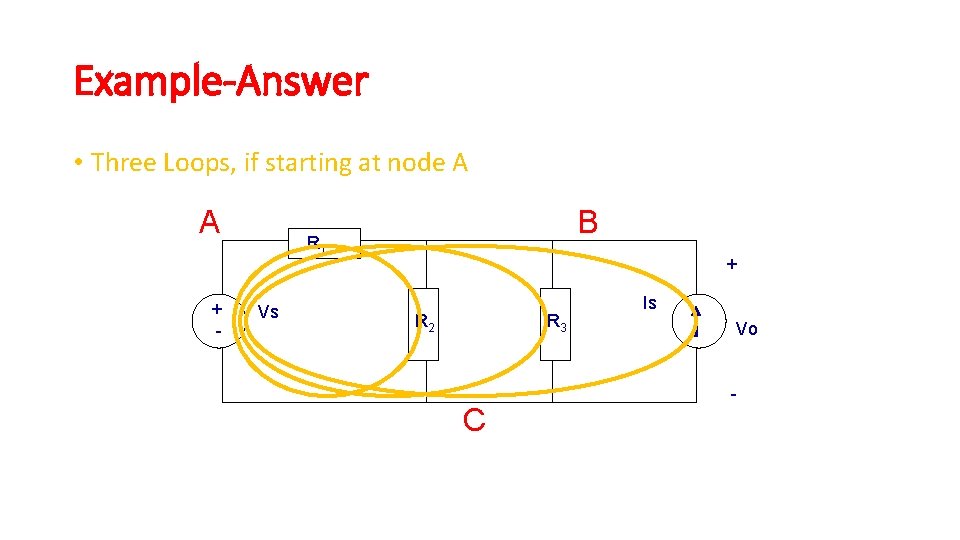

Example-Answer • Three Loops, if starting at node A A + - B R 1 Vs + R 2 R 3 C Is Vo -

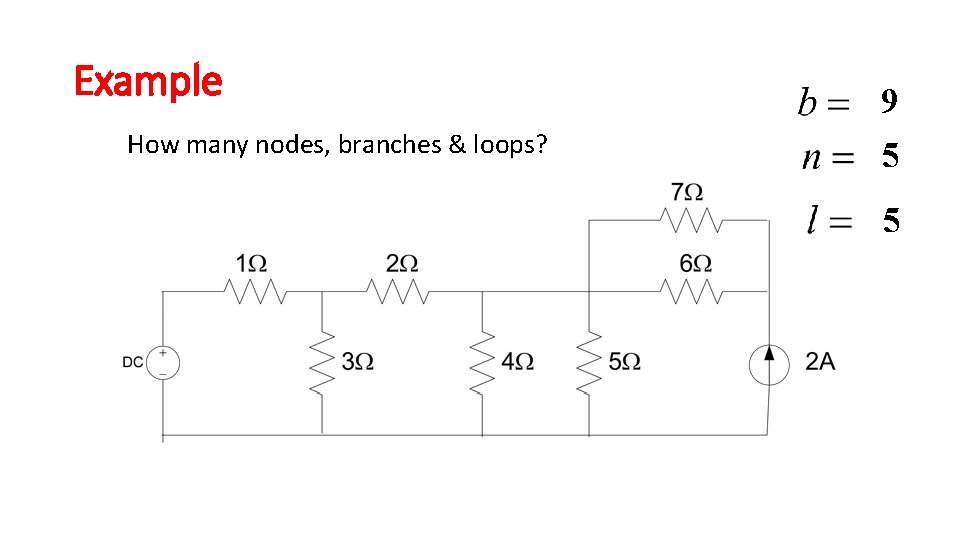

Example How many nodes, branches & loops? 9 5 5

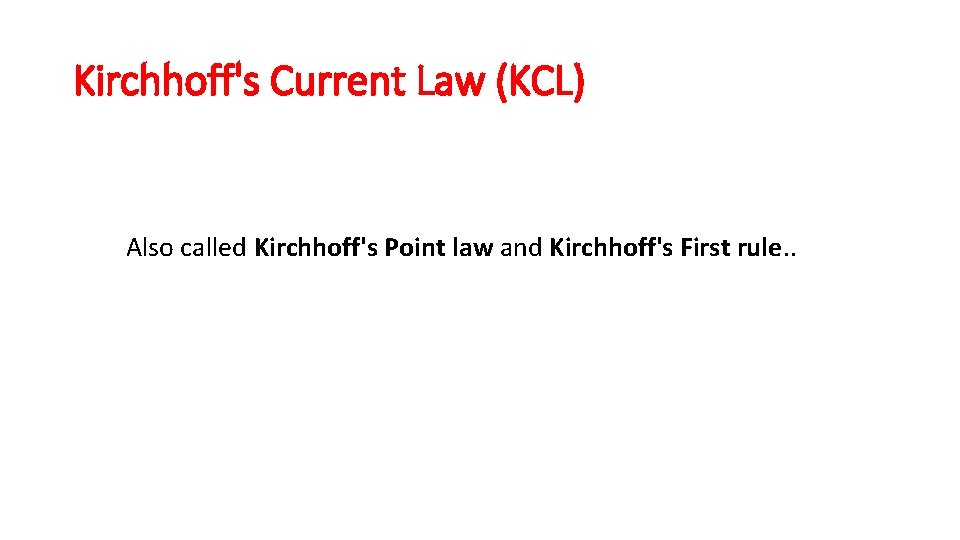

Kirchhoff's Current Law (KCL) Also called Kirchhoff's Point law and Kirchhoff's First rule. .

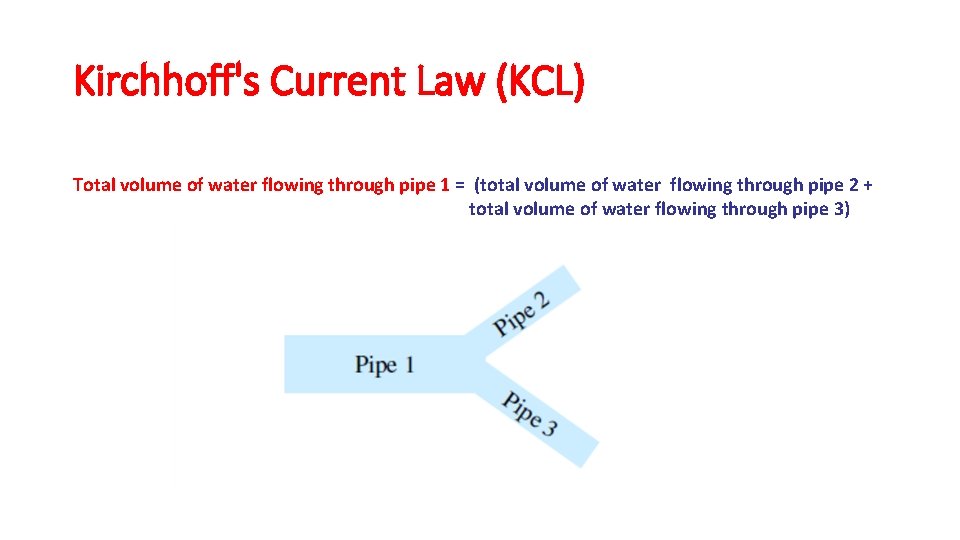

Kirchhoff's Current Law (KCL) Total volume of water flowing through pipe 1 = (total volume of water flowing through pipe 2 + total volume of water flowing through pipe 3)

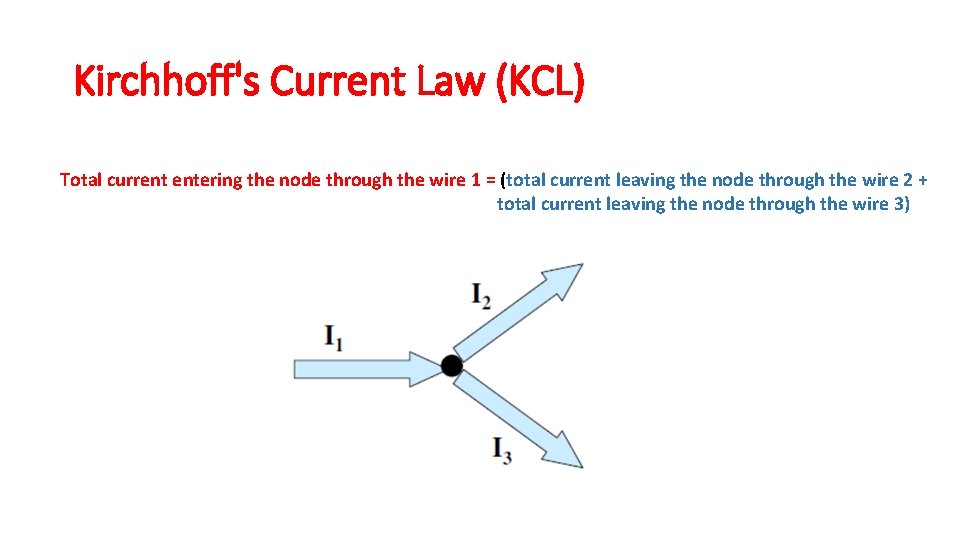

Kirchhoff's Current Law (KCL) Total current entering the node through the wire 1 = (total current leaving the node through the wire 2 + total current leaving the node through the wire 3)

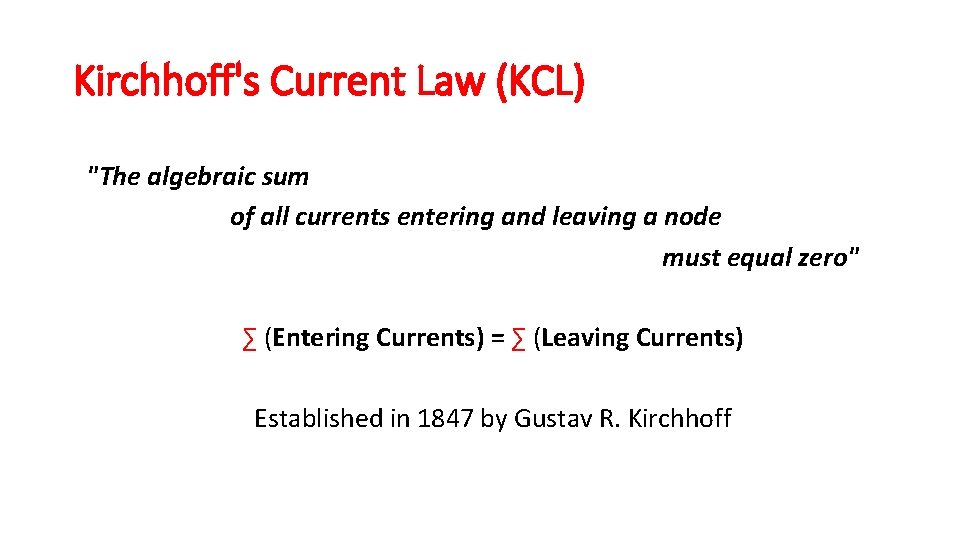

Kirchhoff's Current Law (KCL) "The algebraic sum of all currents entering and leaving a node must equal zero" ∑ (Entering Currents) = ∑ (Leaving Currents) Established in 1847 by Gustav R. Kirchhoff

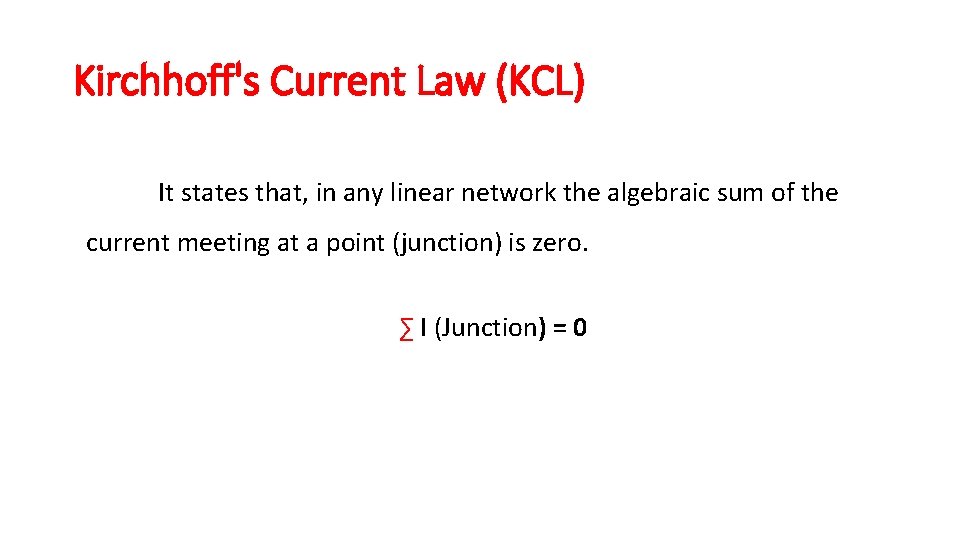

Kirchhoff's Current Law (KCL) It states that, in any linear network the algebraic sum of the current meeting at a point (junction) is zero. ∑ I (Junction) = 0

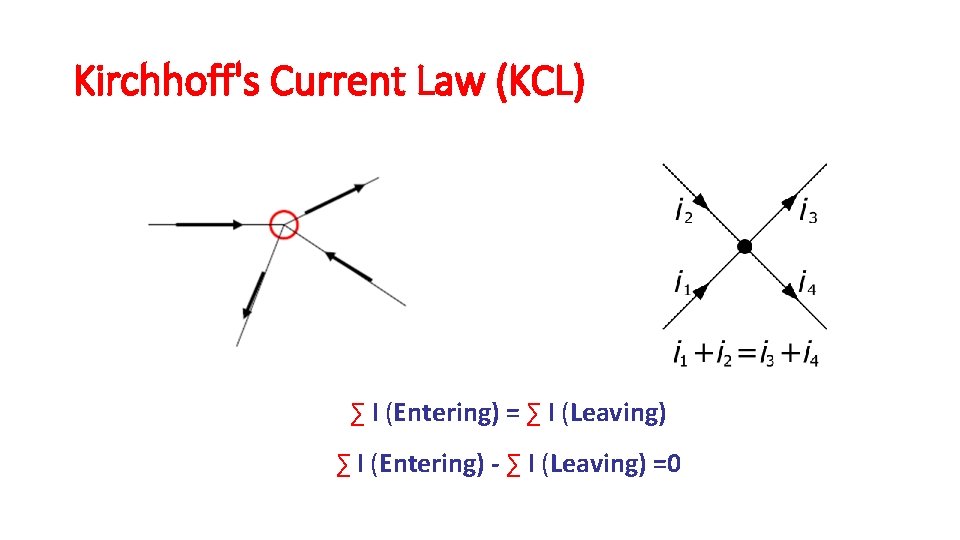

Kirchhoff's Current Law (KCL) ∑ I (Entering) = ∑ I (Leaving) ∑ I (Entering) - ∑ I (Leaving) =0

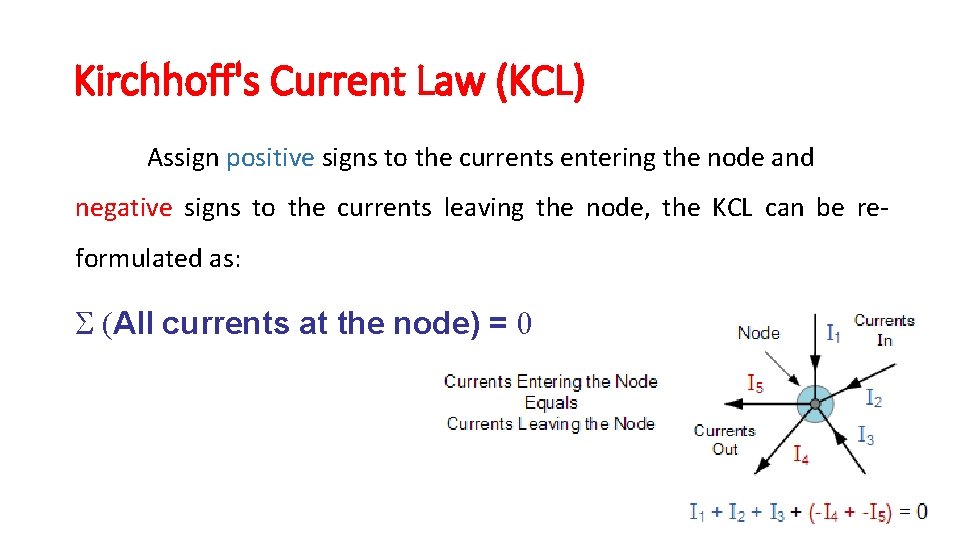

Kirchhoff's Current Law (KCL) Assign positive signs to the currents entering the node and negative signs to the currents leaving the node, the KCL can be reformulated as: S (All currents at the node) = 0

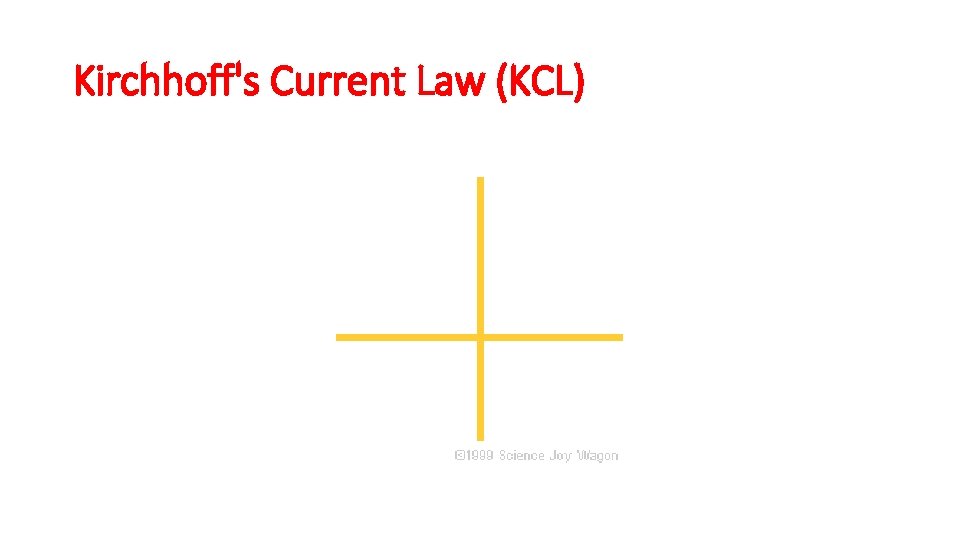

Kirchhoff's Current Law (KCL)

Kirchhoff's Current Law (KCL)

Kirchhoff's Current Law (KCL)

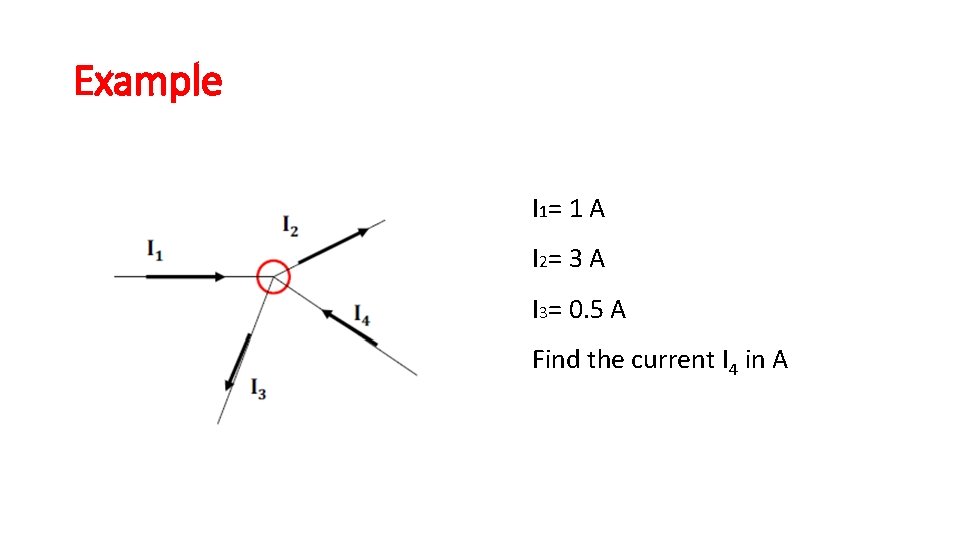

Example I 1= 1 A I 2= 3 A I 3= 0. 5 A Find the current I 4 in A

Kirchhoff's Voltage Law (KVL) Also called Kirchhoff's loop rule and Kirchhoff's second rule. .

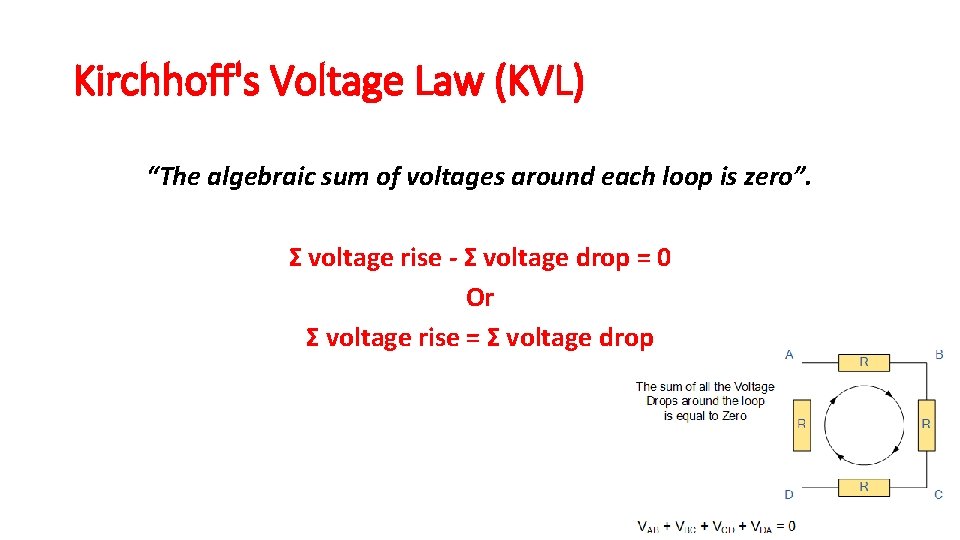

Kirchhoff's Voltage Law (KVL) “The algebraic sum of voltages around each loop is zero”. Σ voltage rise - Σ voltage drop = 0 Or Σ voltage rise = Σ voltage drop

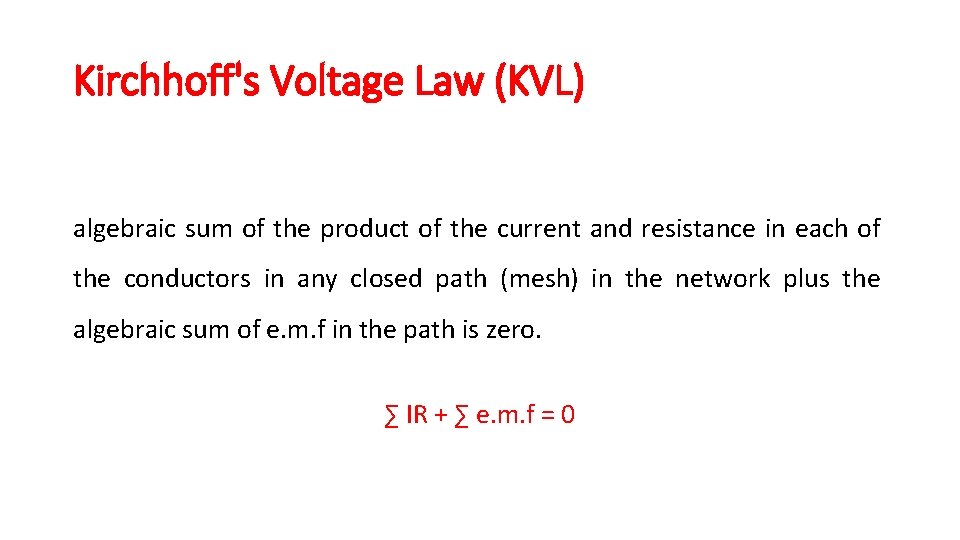

Kirchhoff's Voltage Law (KVL) algebraic sum of the product of the current and resistance in each of the conductors in any closed path (mesh) in the network plus the algebraic sum of e. m. f in the path is zero. ∑ IR + ∑ e. m. f = 0

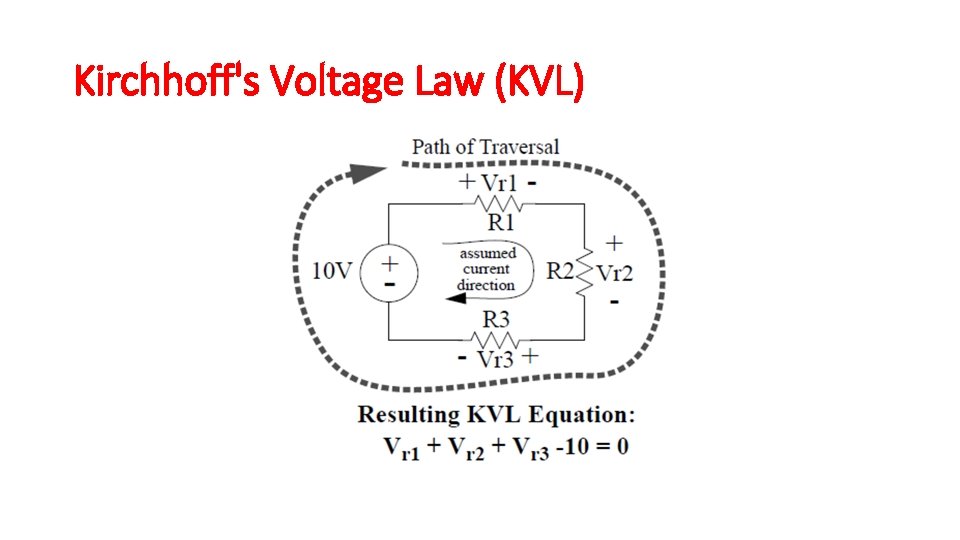

Kirchhoff's Voltage Law (KVL)

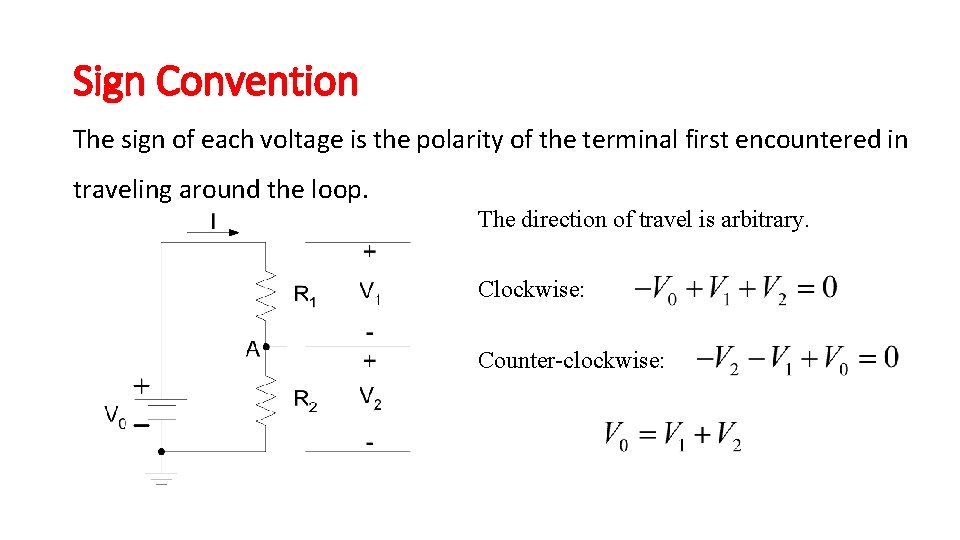

Sign Convention The sign of each voltage is the polarity of the terminal first encountered in traveling around the loop. The direction of travel is arbitrary. Clockwise: Counter-clockwise:

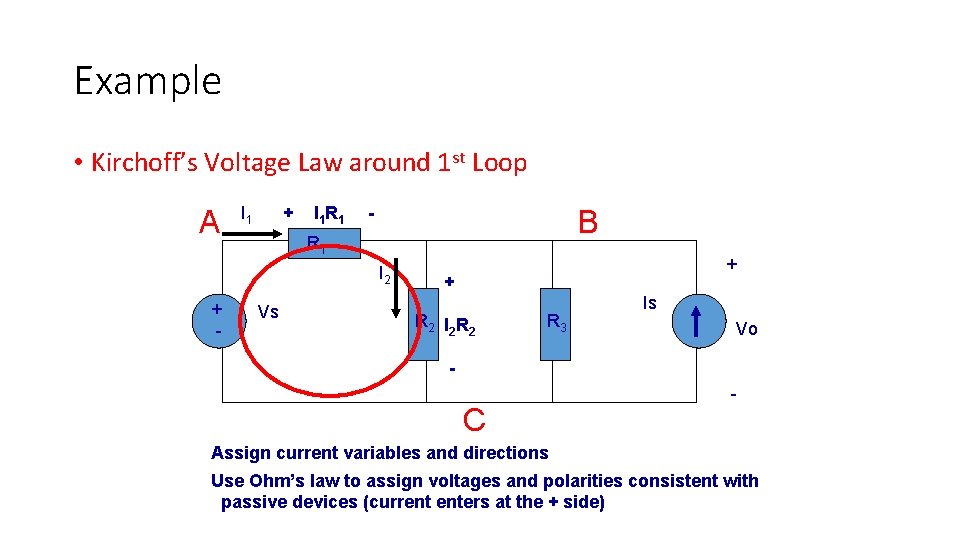

Example • Kirchoff’s Voltage Law around 1 st Loop A I 1 + I 1 R 1 - B R 1 I 2 + - Vs + + R 2 I 2 R 3 Is Vo - C - Assign current variables and directions Use Ohm’s law to assign voltages and polarities consistent with passive devices (current enters at the + side)

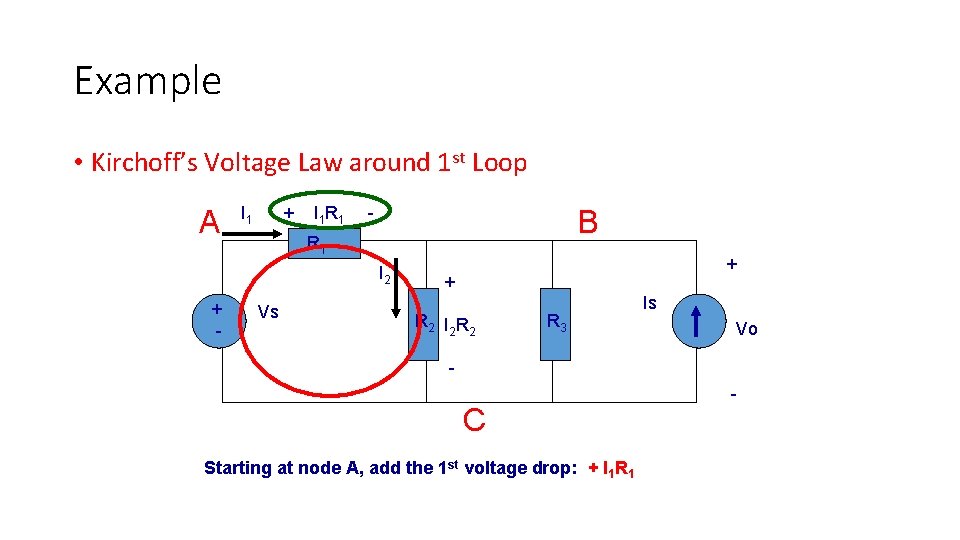

Example • Kirchoff’s Voltage Law around 1 st Loop A I 1 + I 1 R 1 - B R 1 I 2 + - Vs + + R 2 I 2 R 3 Is Vo - C Starting at node A, add the 1 st voltage drop: + I 1 R 1 -

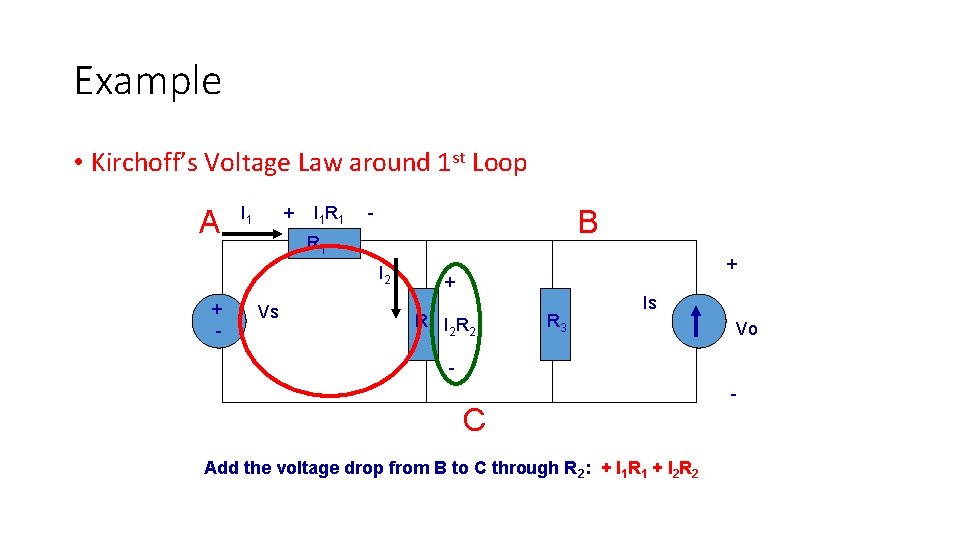

Example • Kirchoff’s Voltage Law around 1 st Loop A I 1 + I 1 R 1 - B R 1 I 2 + - Vs + + R 2 I 2 R 3 Is Vo - C Add the voltage drop from B to C through R 2: + I 1 R 1 + I 2 R 2 -

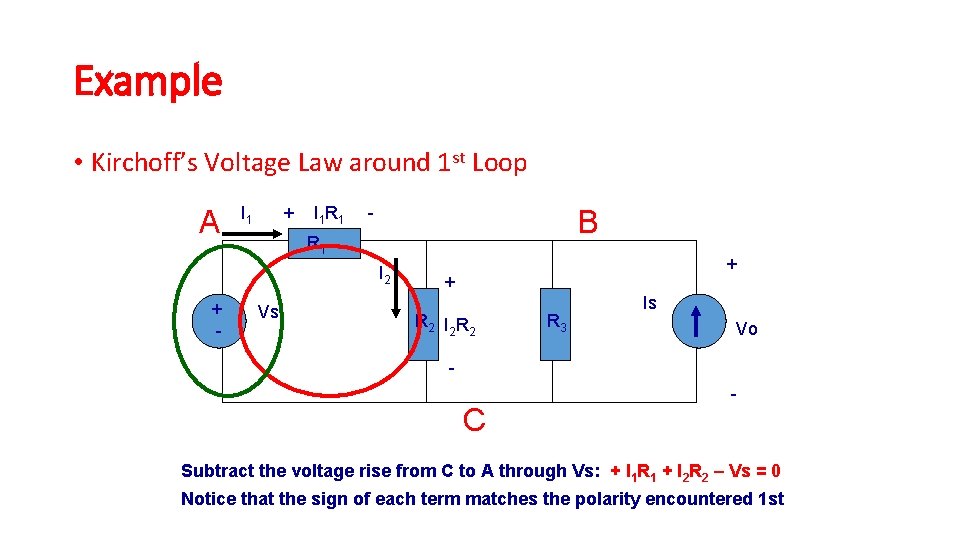

Example • Kirchoff’s Voltage Law around 1 st Loop A I 1 + I 1 R 1 - B R 1 I 2 + - Vs + + R 2 I 2 R 3 Is Vo - C - Subtract the voltage rise from C to A through Vs: + I 1 R 1 + I 2 R 2 – Vs = 0 Notice that the sign of each term matches the polarity encountered 1 st

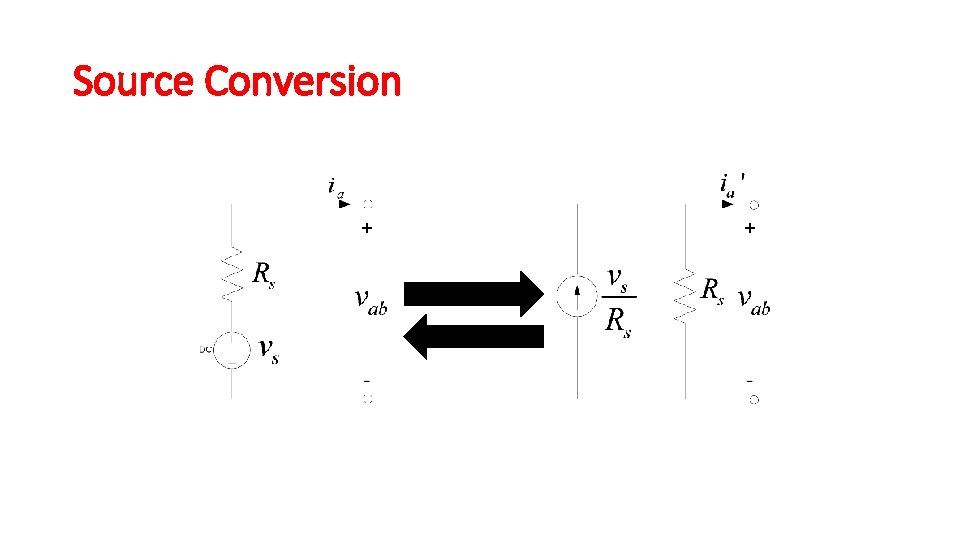

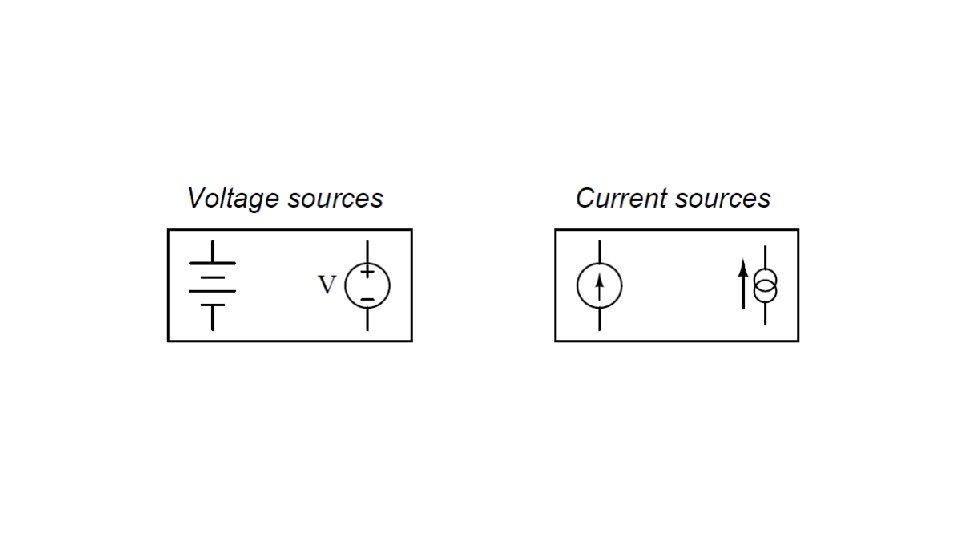

Source Conversion

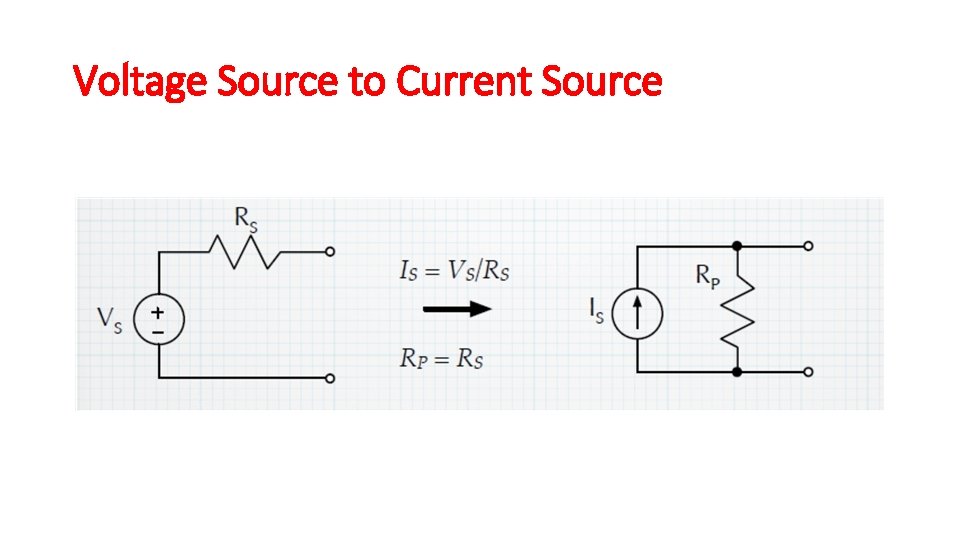

Voltage Source to Current Source

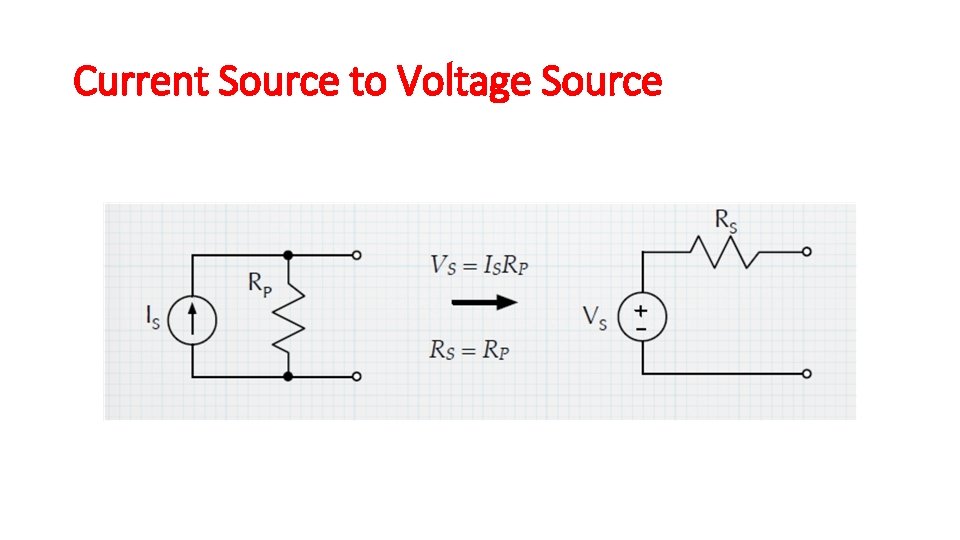

Current Source to Voltage Source

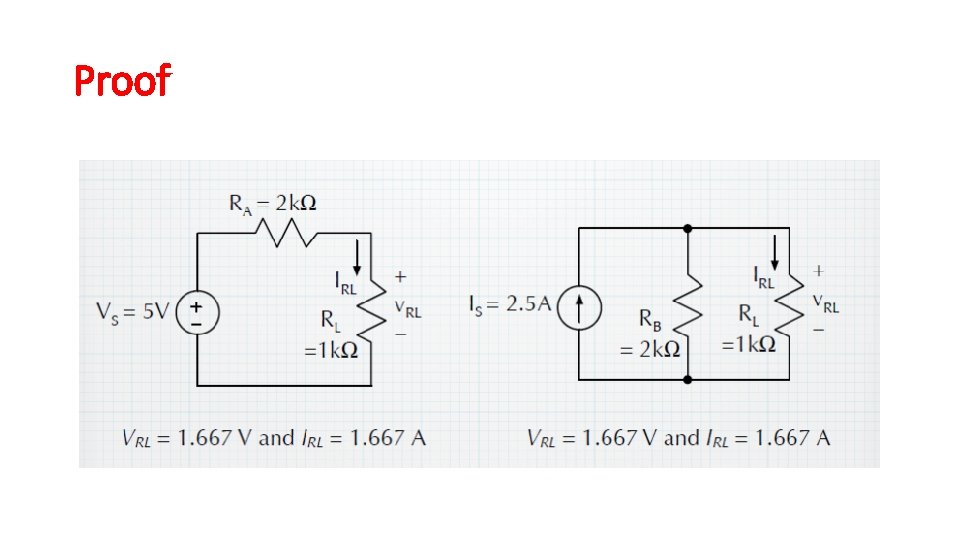

Proof

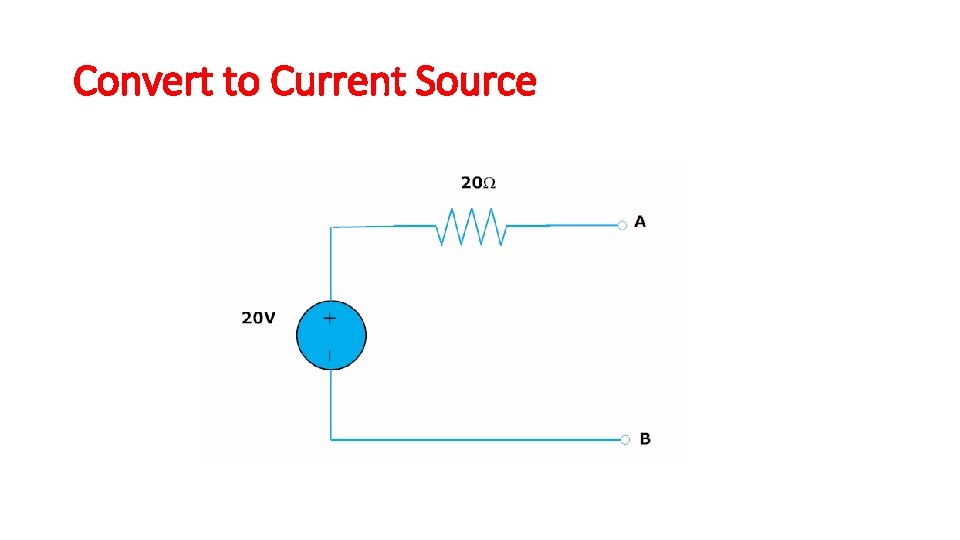

Convert to Current Source

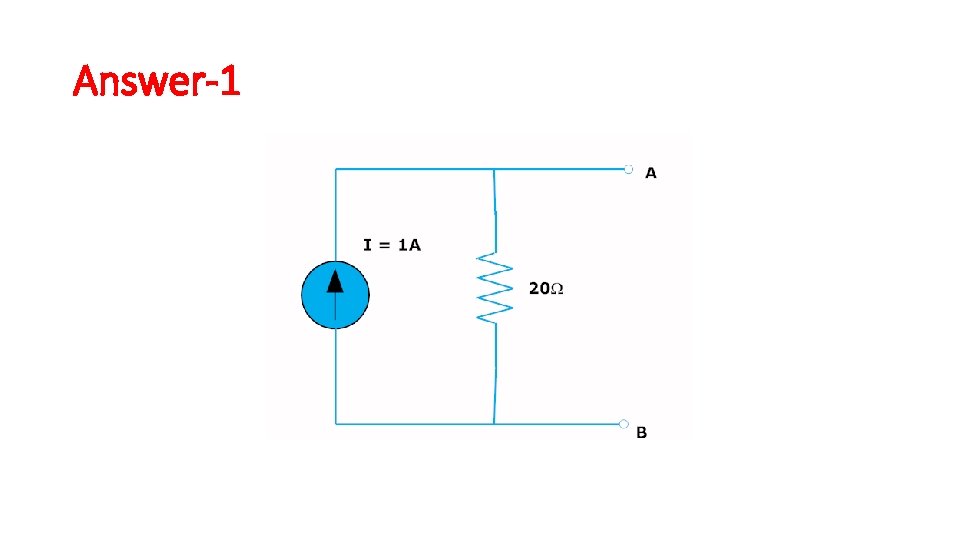

Answer-1

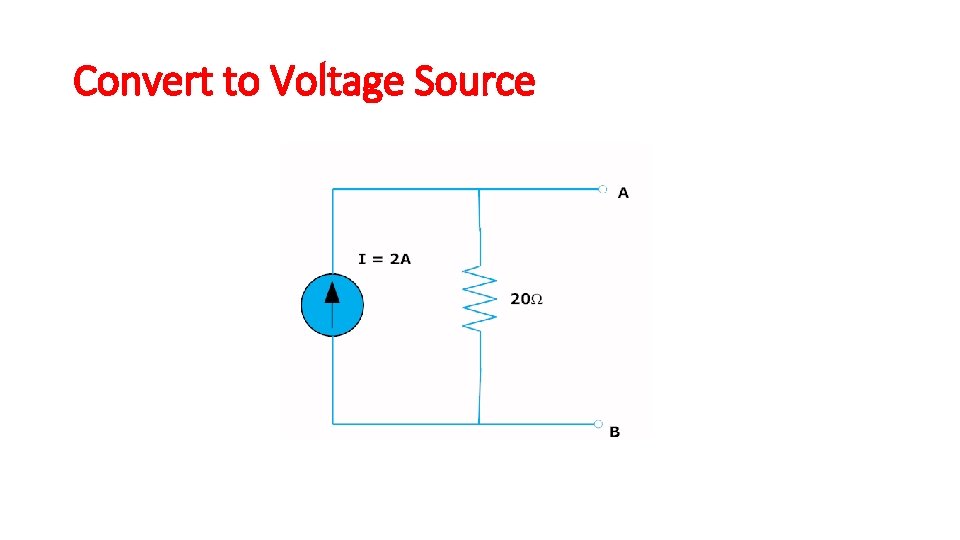

Convert to Voltage Source

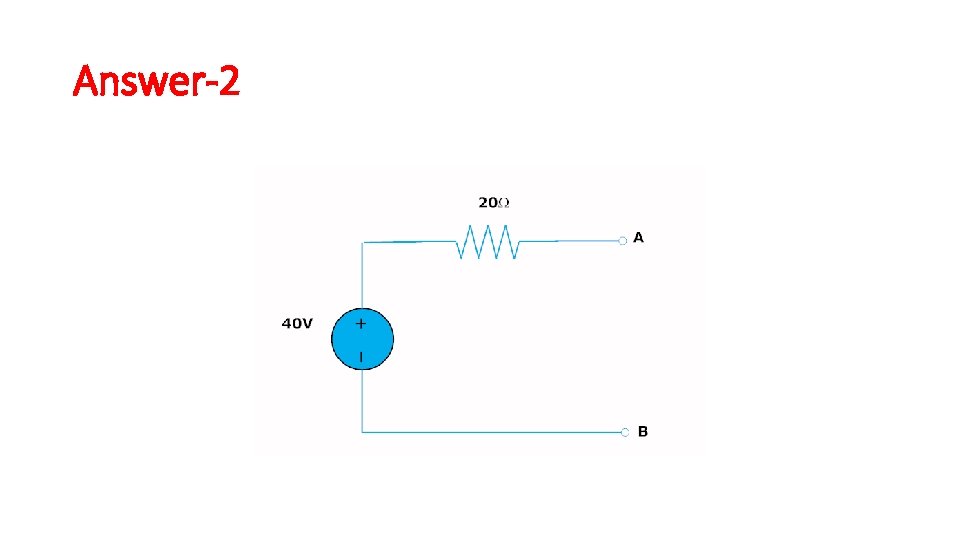

Answer-2

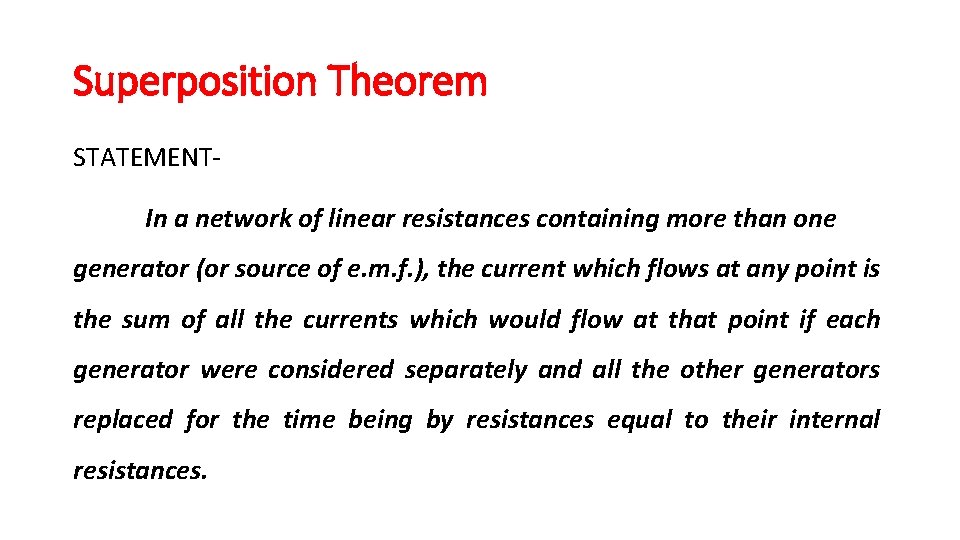

Superposition Theorem STATEMENTIn a network of linear resistances containing more than one generator (or source of e. m. f. ), the current which flows at any point is the sum of all the currents which would flow at that point if each generator were considered separately and all the other generators replaced for the time being by resistances equal to their internal resistances.

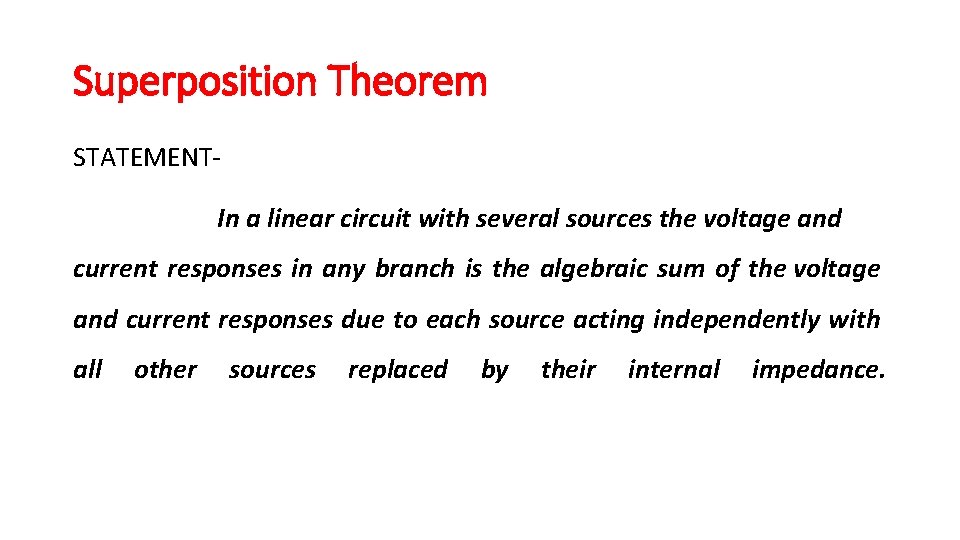

Superposition Theorem STATEMENTIn a linear circuit with several sources the voltage and current responses in any branch is the algebraic sum of the voltage and current responses due to each source acting independently with all other sources replaced by their internal impedance.

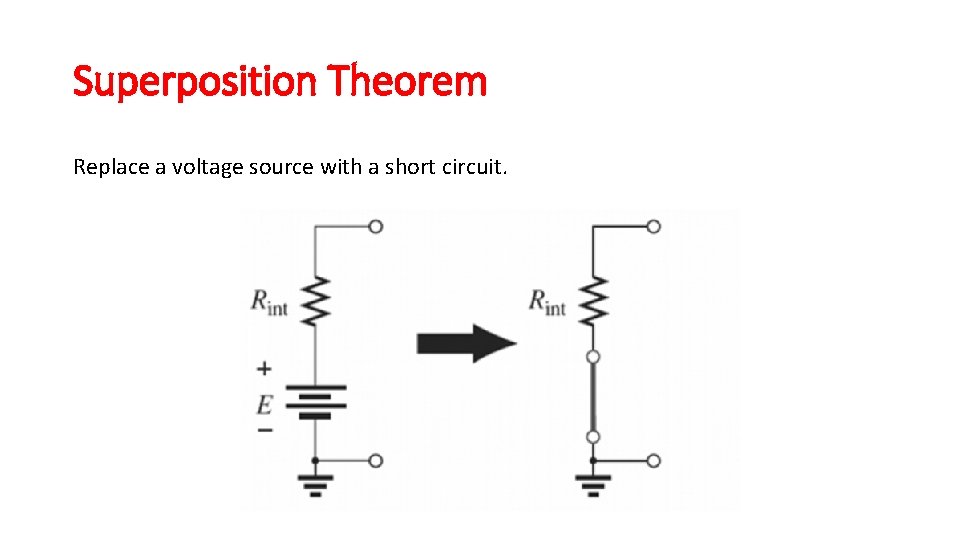

Superposition Theorem Replace a voltage source with a short circuit.

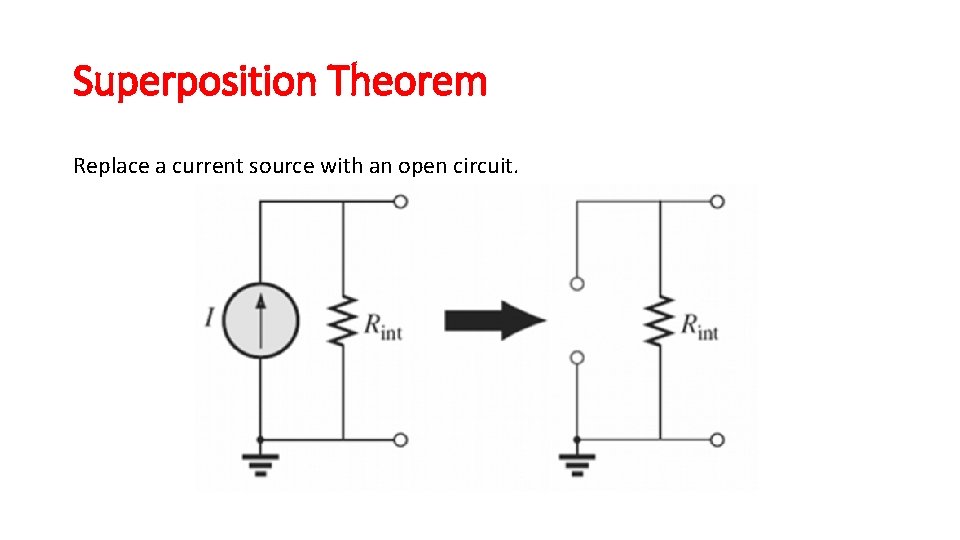

Superposition Theorem Replace a current source with an open circuit.

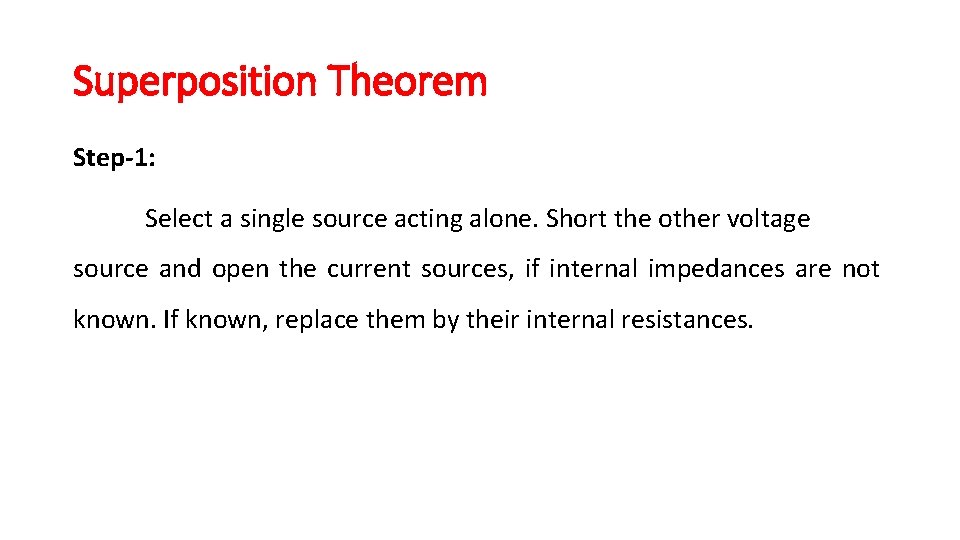

Superposition Theorem Step-1: Select a single source acting alone. Short the other voltage source and open the current sources, if internal impedances are not known. If known, replace them by their internal resistances.

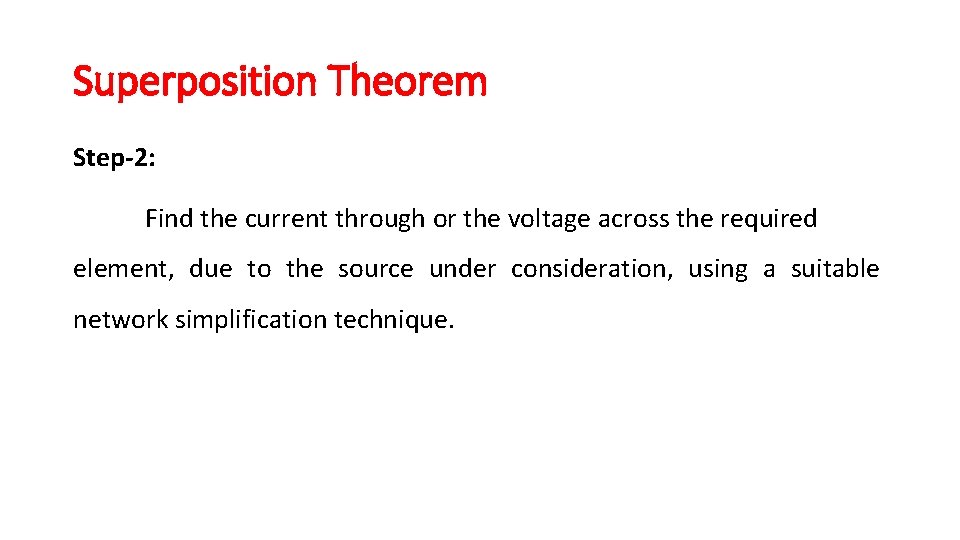

Superposition Theorem Step-2: Find the current through or the voltage across the required element, due to the source under consideration, using a suitable network simplification technique.

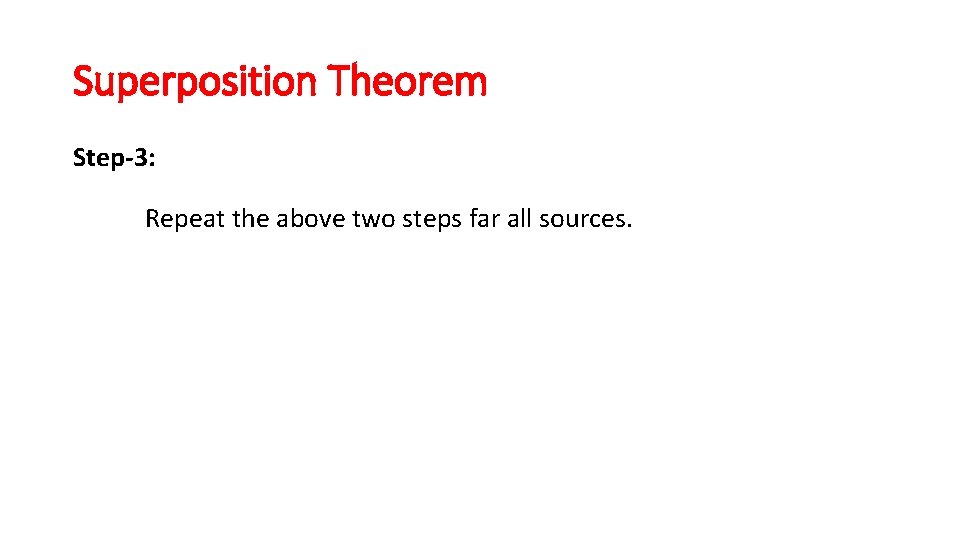

Superposition Theorem Step-3: Repeat the above two steps far all sources.

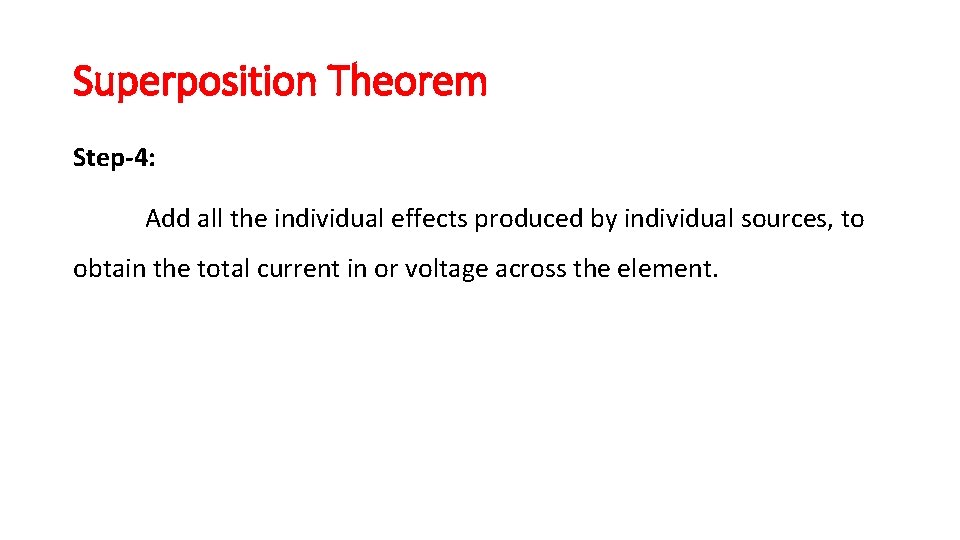

Superposition Theorem Step-4: Add all the individual effects produced by individual sources, to obtain the total current in or voltage across the element.

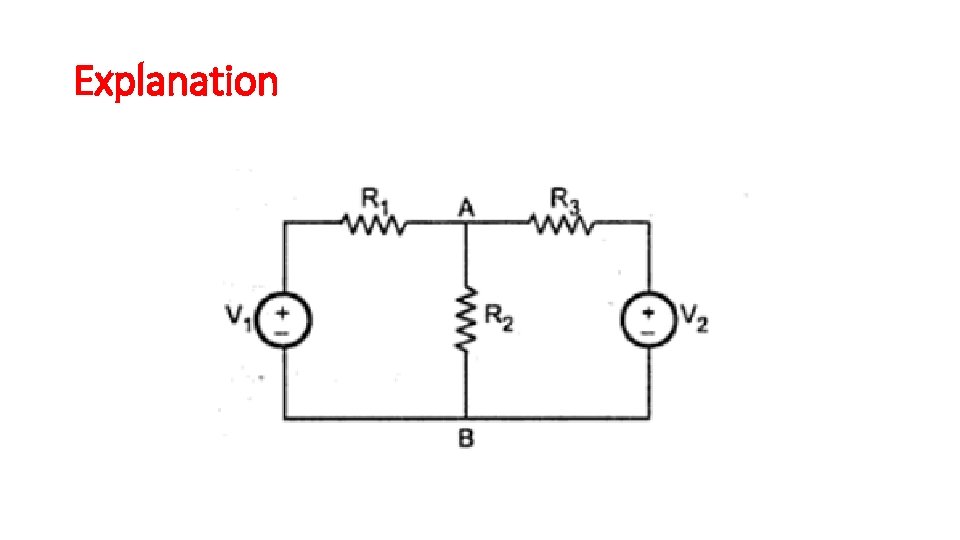

Explanation

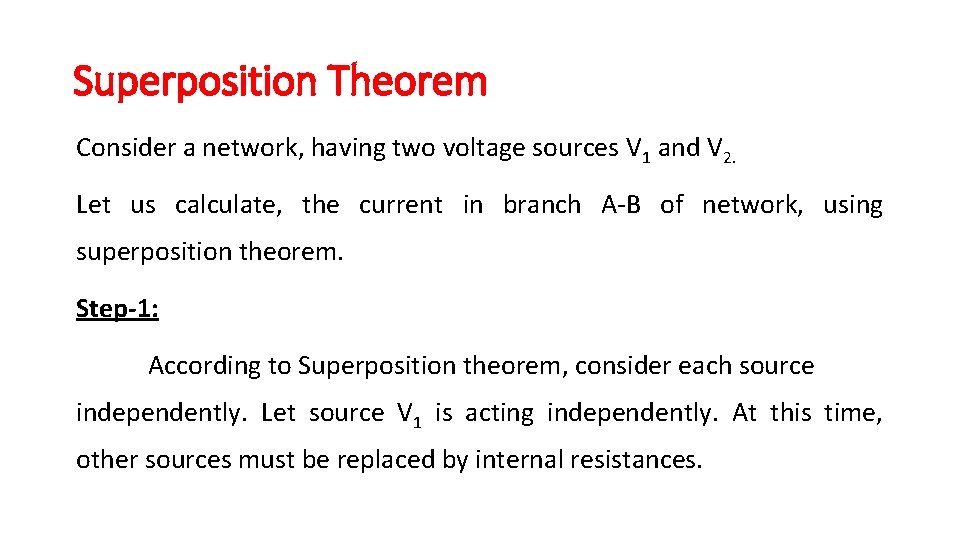

Superposition Theorem Consider a network, having two voltage sources V 1 and V 2. Let us calculate, the current in branch A-B of network, using superposition theorem. Step-1: According to Superposition theorem, consider each source independently. Let source V 1 is acting independently. At this time, other sources must be replaced by internal resistances.

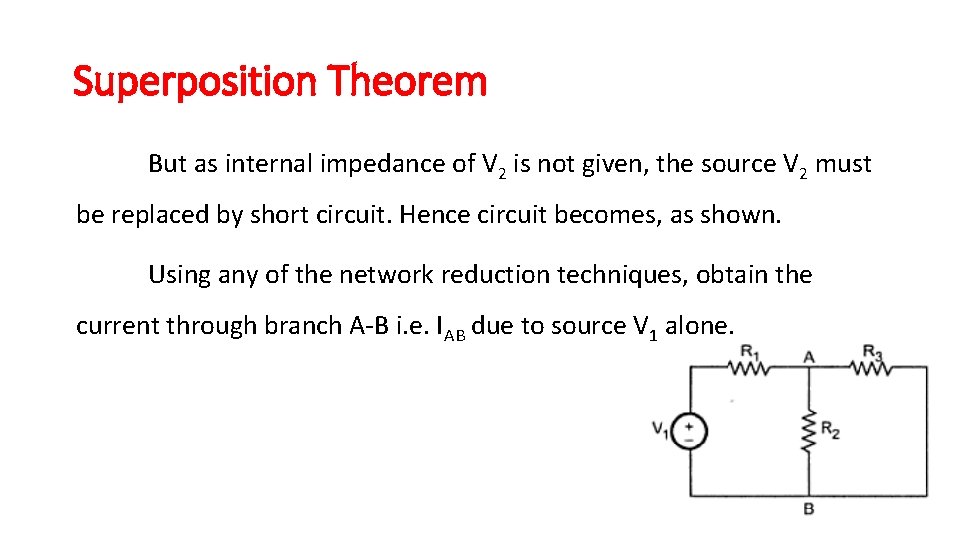

Superposition Theorem But as internal impedance of V 2 is not given, the source V 2 must be replaced by short circuit. Hence circuit becomes, as shown. Using any of the network reduction techniques, obtain the current through branch A-B i. e. IAB due to source V 1 alone.

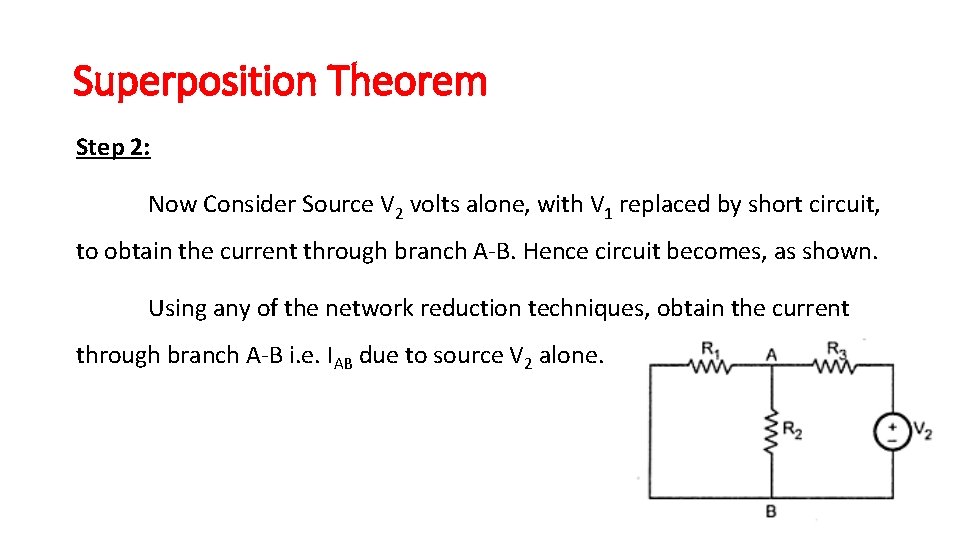

Superposition Theorem Step 2: Now Consider Source V 2 volts alone, with V 1 replaced by short circuit, to obtain the current through branch A-B. Hence circuit becomes, as shown. Using any of the network reduction techniques, obtain the current through branch A-B i. e. IAB due to source V 2 alone.

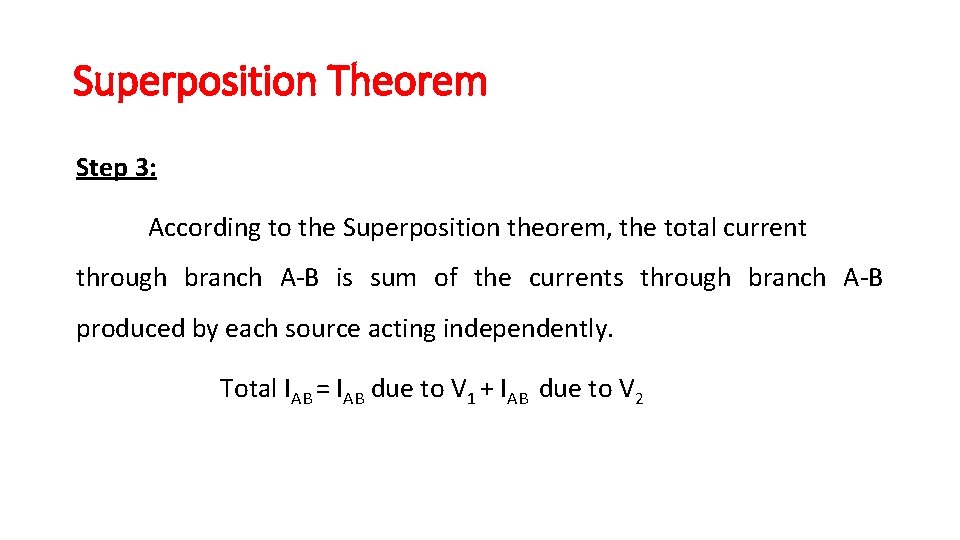

Superposition Theorem Step 3: According to the Superposition theorem, the total current through branch A-B is sum of the currents through branch A-B produced by each source acting independently. Total IAB = IAB due to V 1 + IAB due to V 2

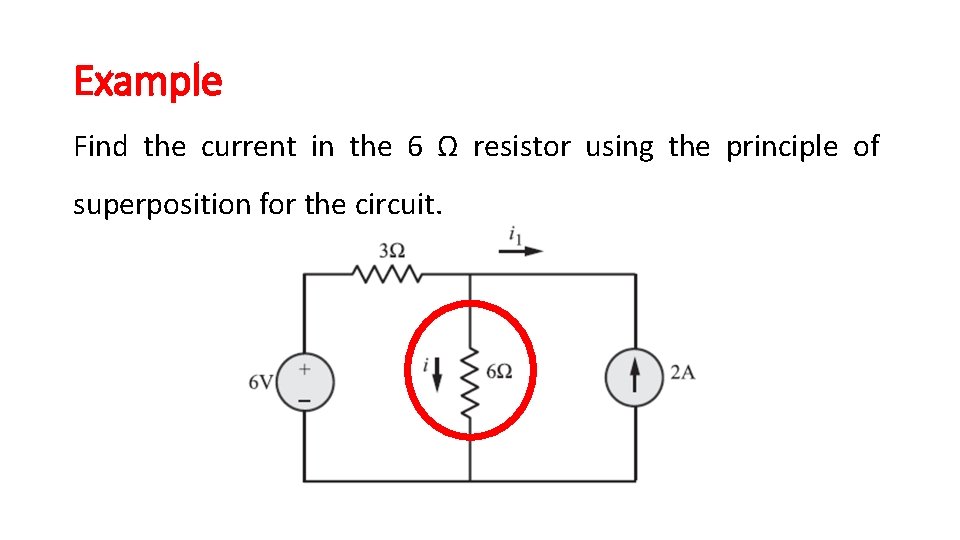

Example Find the current in the 6 Ω resistor using the principle of superposition for the circuit.

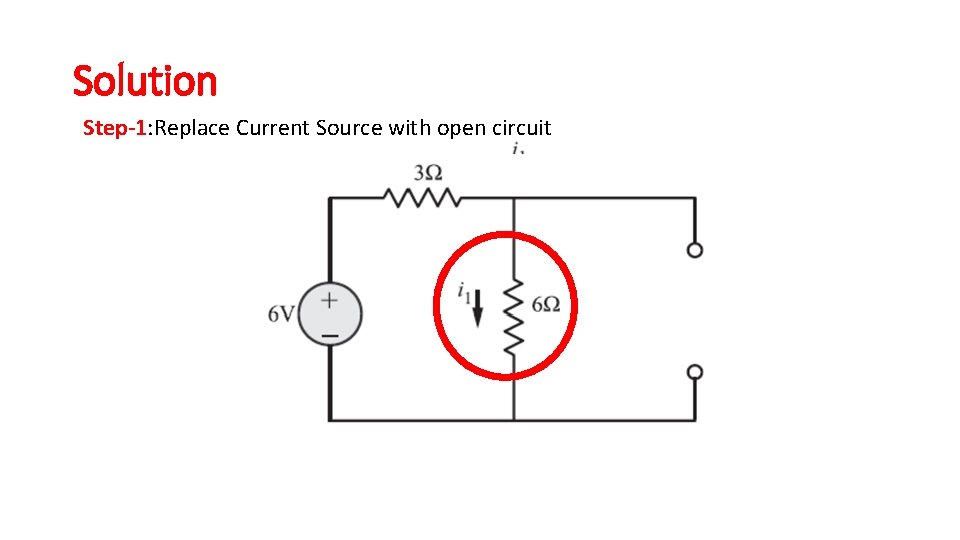

Solution Step-1: Replace Current Source with open circuit

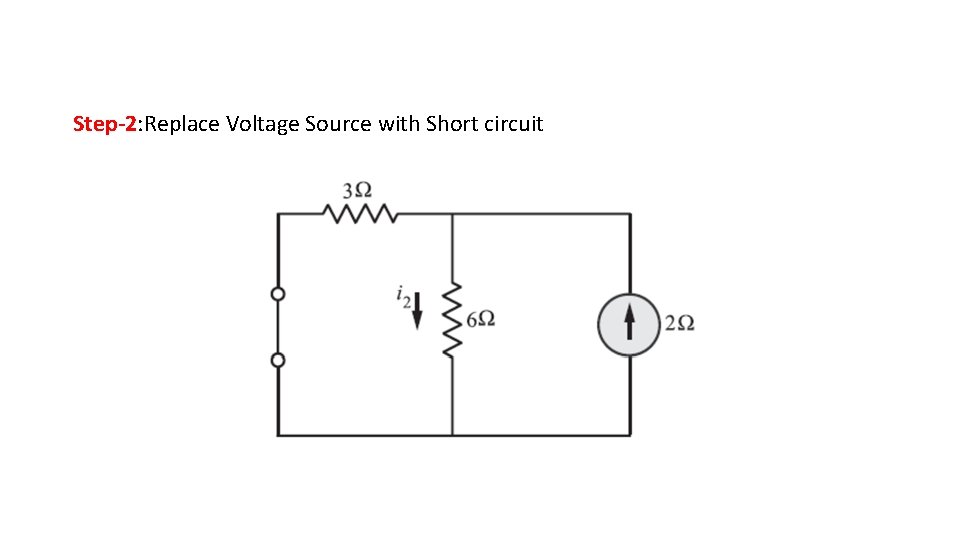

Step-2: Replace Voltage Source with Short circuit

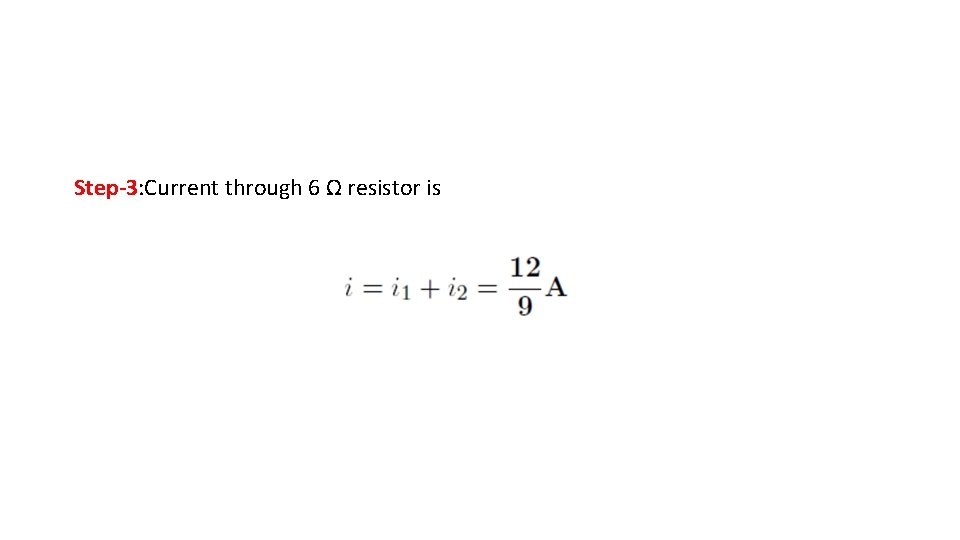

Step-3: Current through 6 Ω resistor is

Thevenin’s theorem

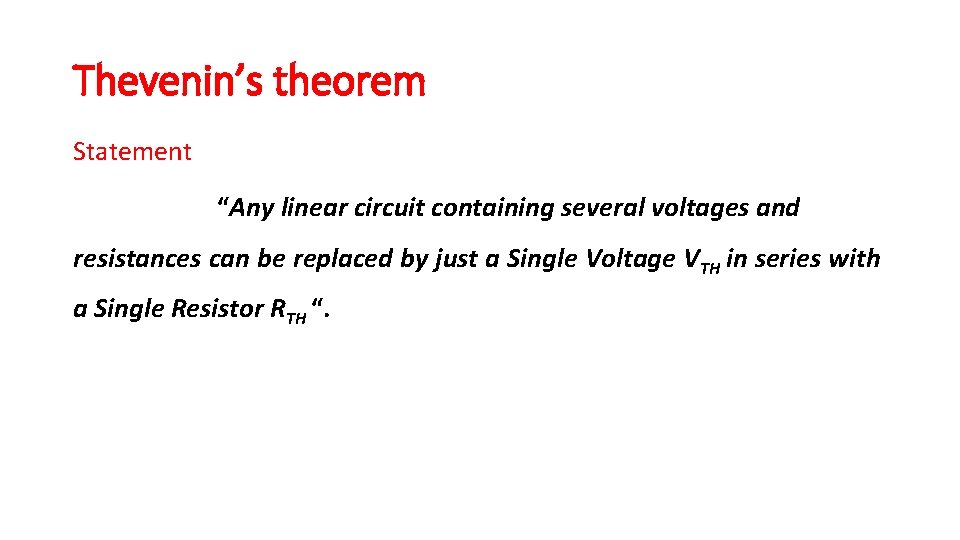

Thevenin’s theorem Statement “Any linear circuit containing several voltages and resistances can be replaced by just a Single Voltage VTH in series with a Single Resistor RTH “.

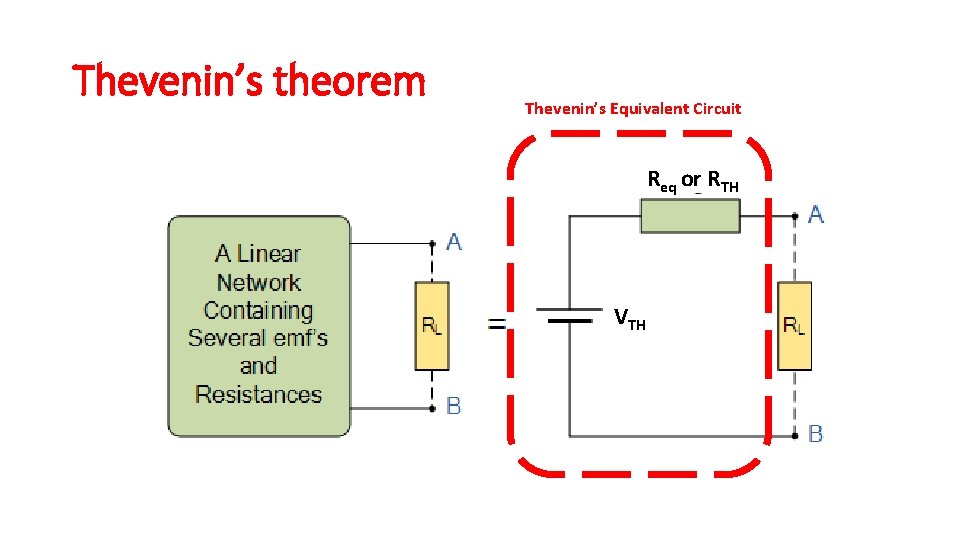

Thevenin’s theorem Thevenin’s Equivalent Circuit Req or RTH VTH

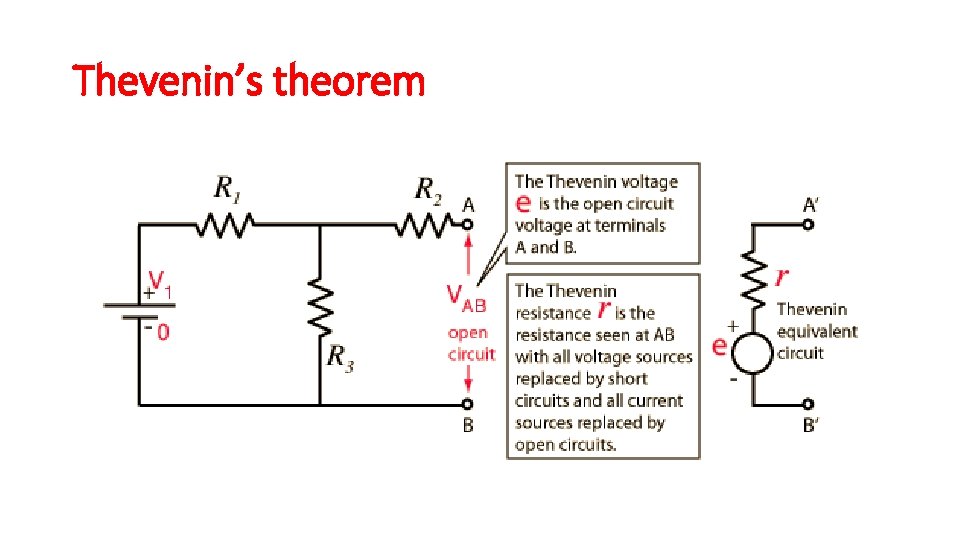

Thevenin’s theorem

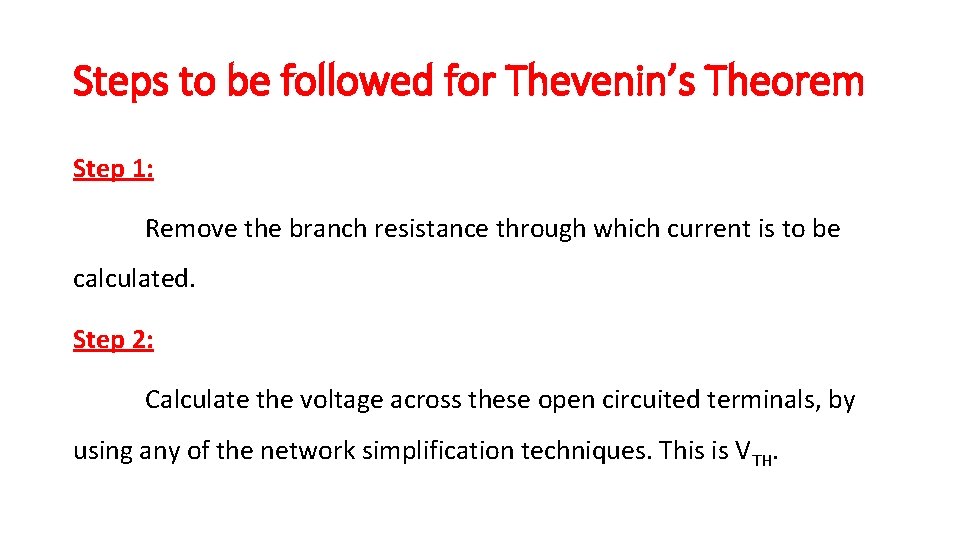

Steps to be followed for Thevenin’s Theorem Step 1: Remove the branch resistance through which current is to be calculated. Step 2: Calculate the voltage across these open circuited terminals, by using any of the network simplification techniques. This is VTH.

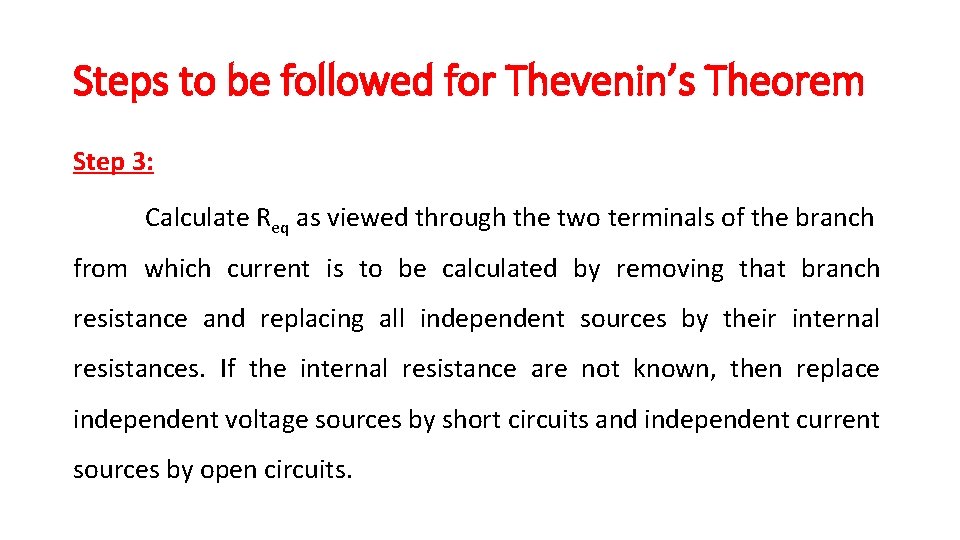

Steps to be followed for Thevenin’s Theorem Step 3: Calculate Req as viewed through the two terminals of the branch from which current is to be calculated by removing that branch resistance and replacing all independent sources by their internal resistances. If the internal resistance are not known, then replace independent voltage sources by short circuits and independent current sources by open circuits.

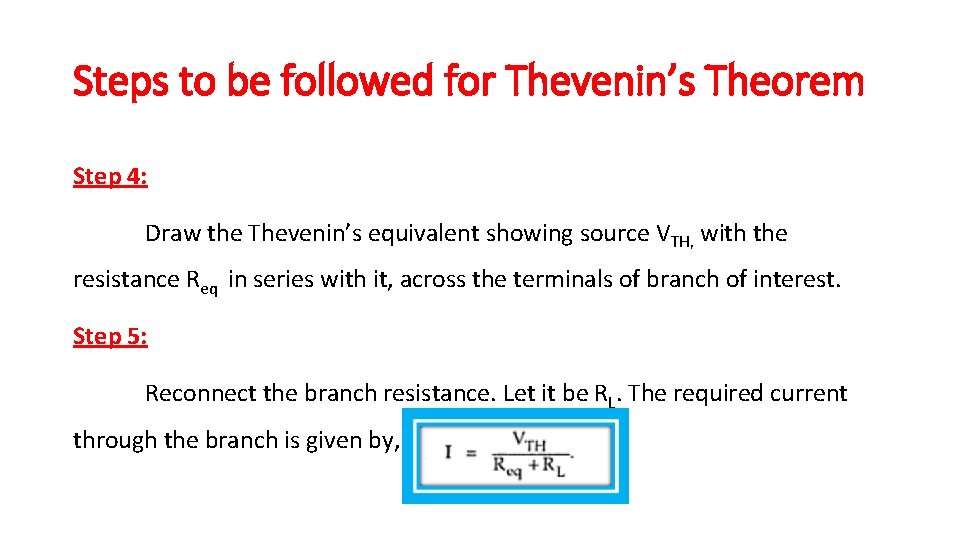

Steps to be followed for Thevenin’s Theorem Step 4: Draw the Thevenin’s equivalent showing source VTH, with the resistance Req in series with it, across the terminals of branch of interest. Step 5: Reconnect the branch resistance. Let it be RL. The required current through the branch is given by,

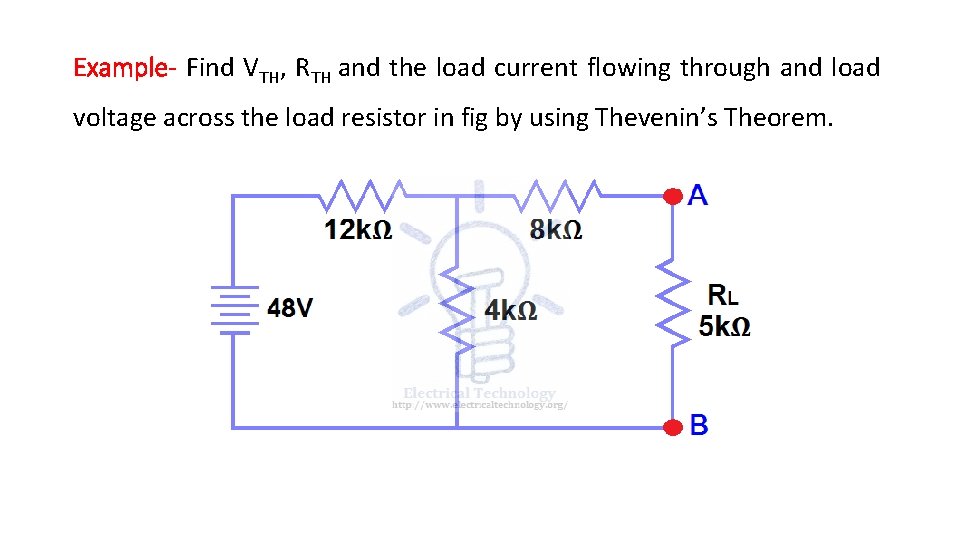

Example- Find VTH, RTH and the load current flowing through and load voltage across the load resistor in fig by using Thevenin’s Theorem.

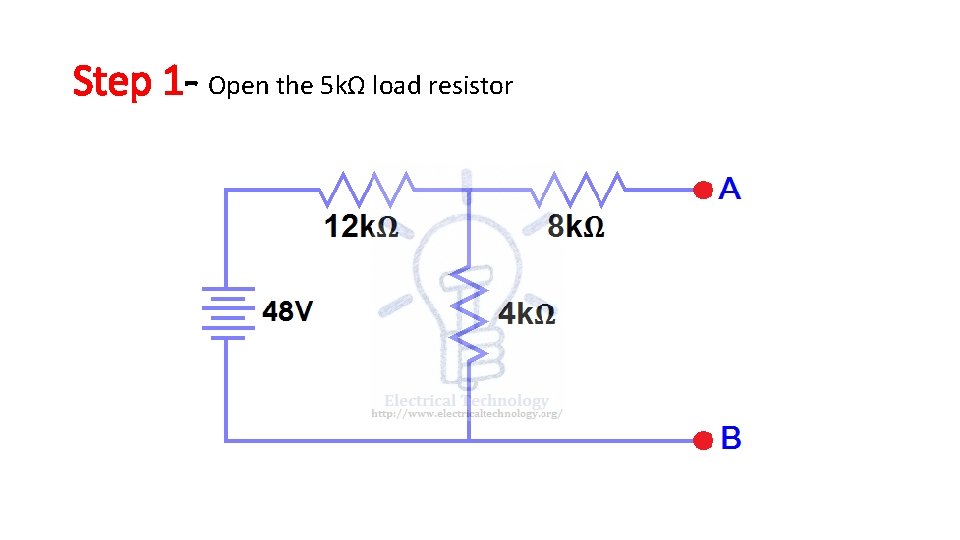

Step 1 - Open the 5 kΩ load resistor

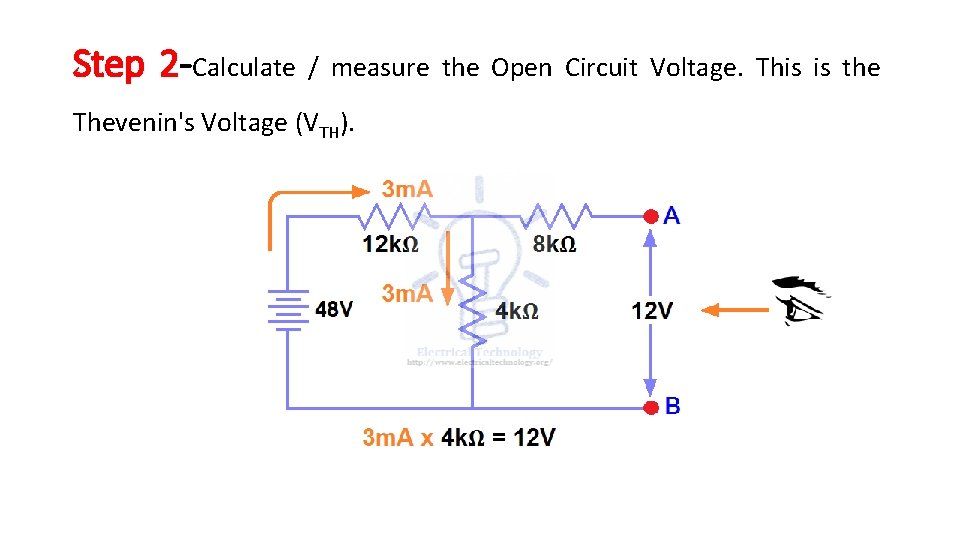

Step 2 -Calculate / measure the Open Circuit Voltage. This is the Thevenin's Voltage (VTH).

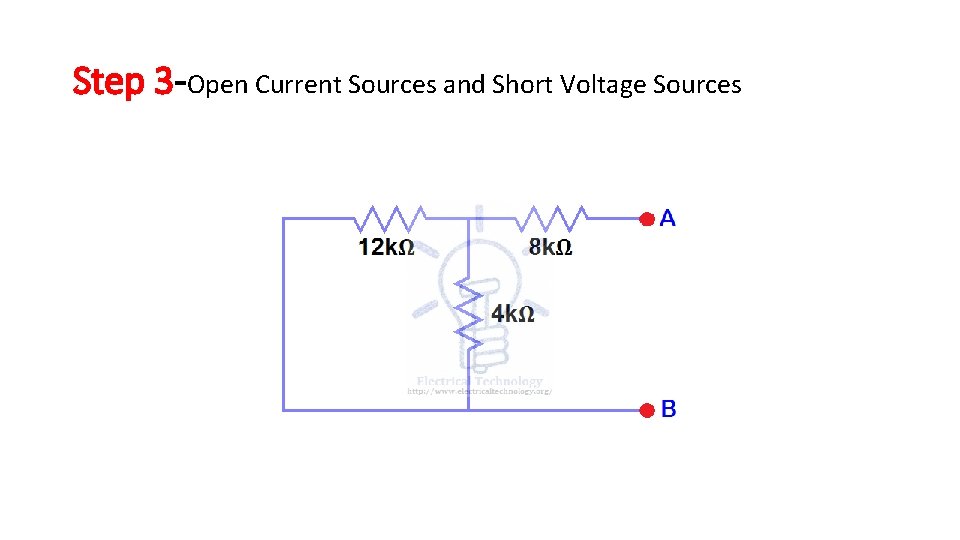

Step 3 -Open Current Sources and Short Voltage Sources

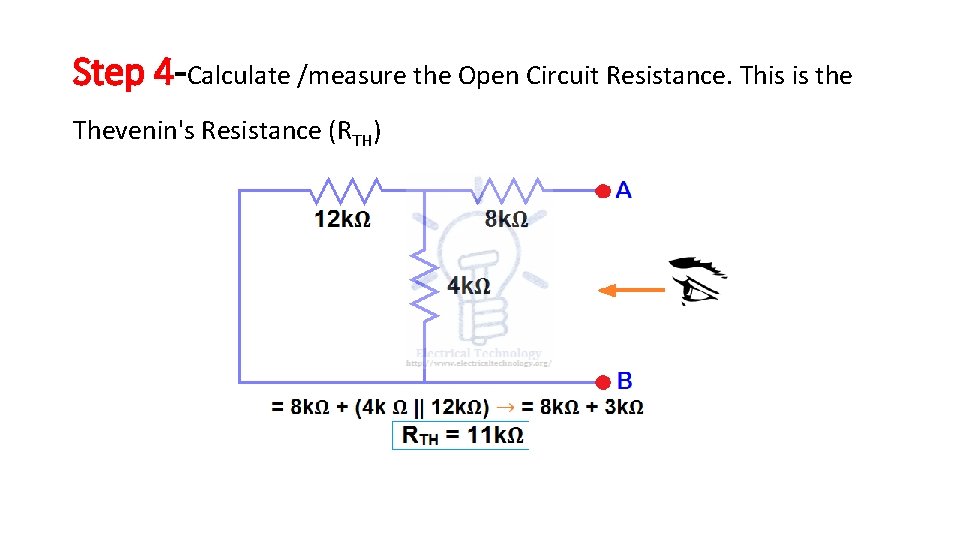

Step 4 -Calculate /measure the Open Circuit Resistance. This is the Thevenin's Resistance (RTH)

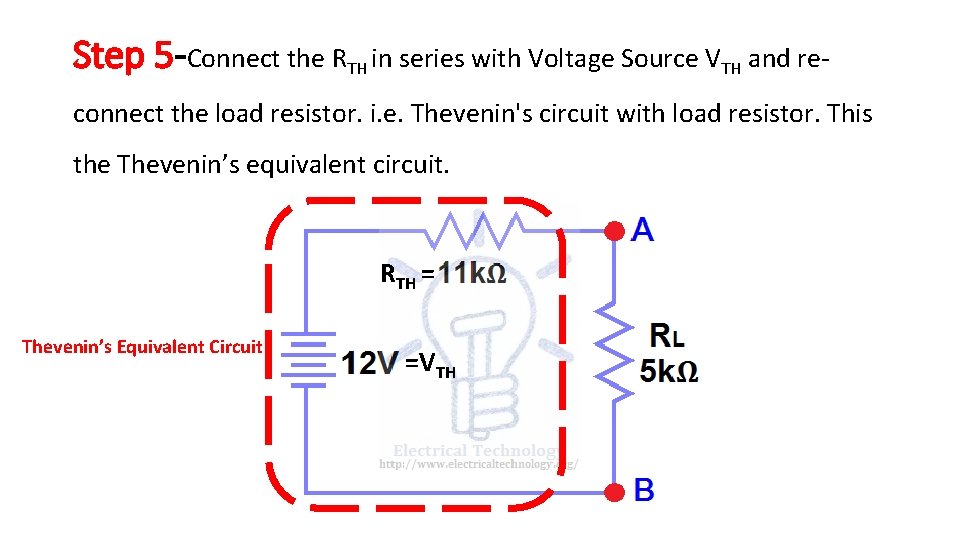

Step 5 -Connect the RTH in series with Voltage Source VTH and reconnect the load resistor. i. e. Thevenin's circuit with load resistor. This the Thevenin’s equivalent circuit. RTH = Thevenin’s Equivalent Circuit =VTH

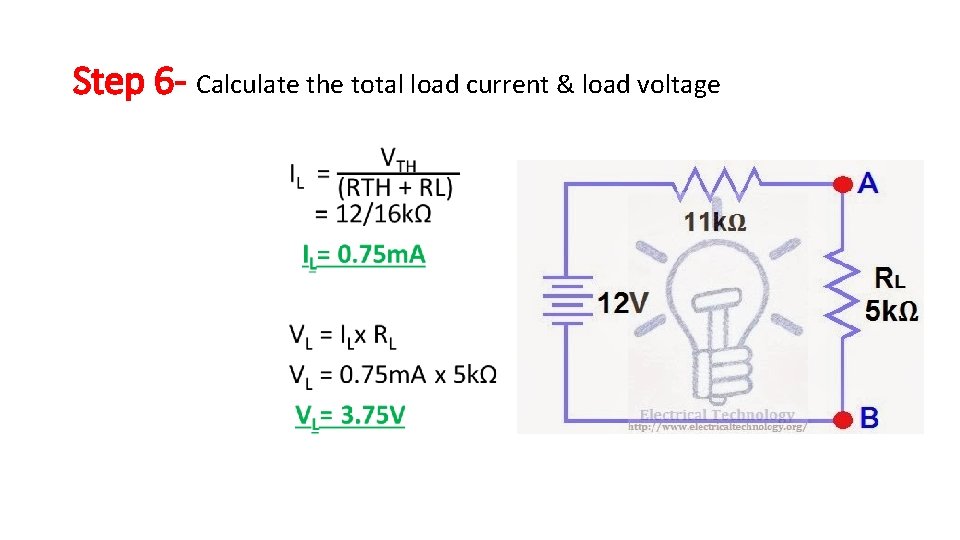

Step 6 - Calculate the total load current & load voltage •

Norton’s theorem

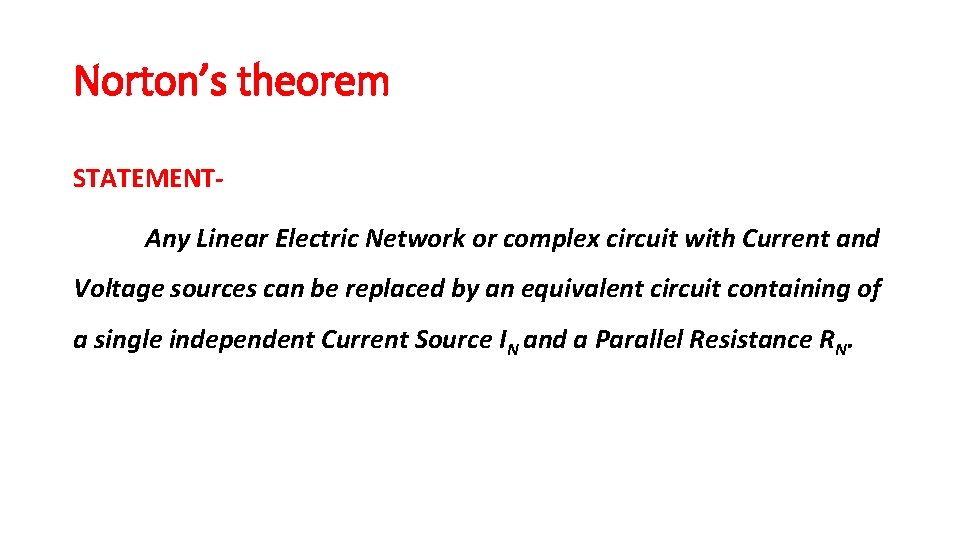

Norton’s theorem STATEMENTAny Linear Electric Network or complex circuit with Current and Voltage sources can be replaced by an equivalent circuit containing of a single independent Current Source IN and a Parallel Resistance RN.

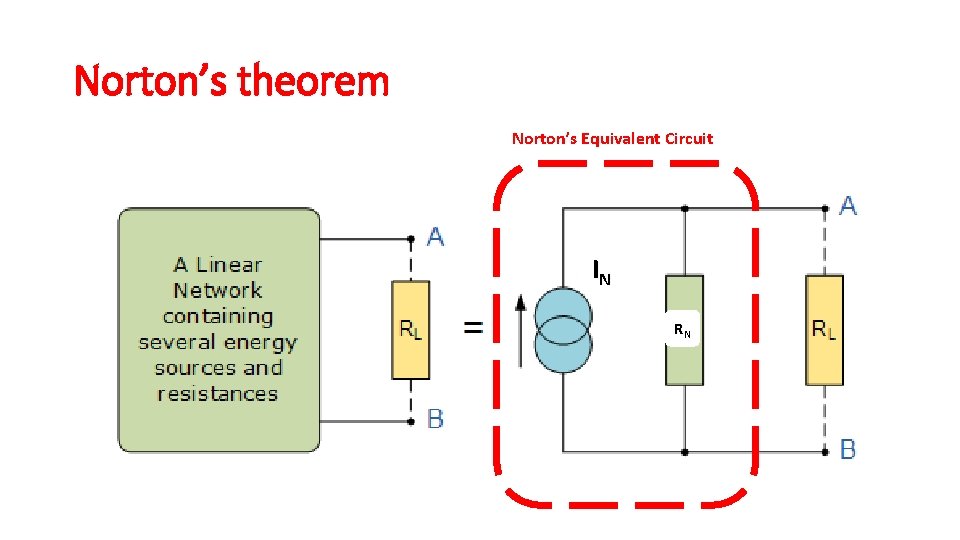

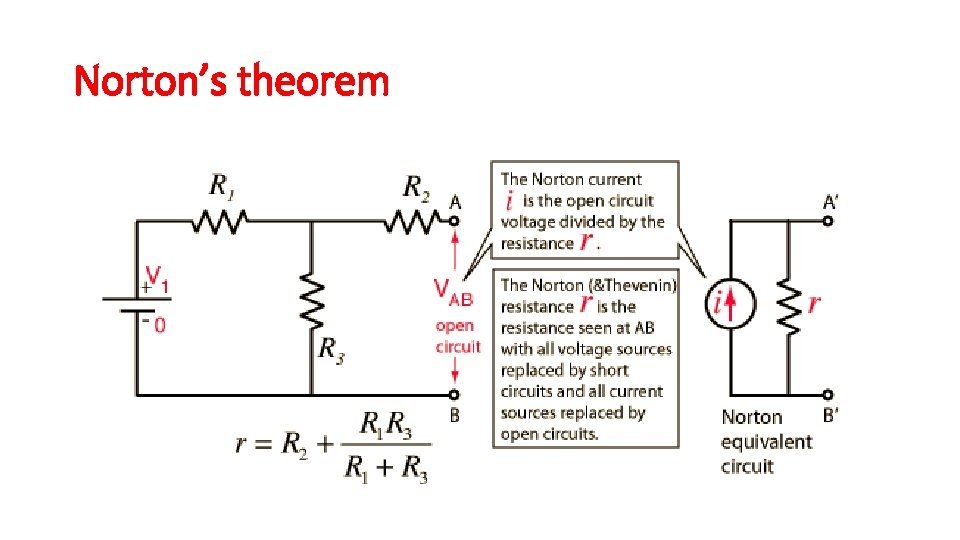

Norton’s theorem Norton’s Equivalent Circuit IN RN

Norton’s theorem

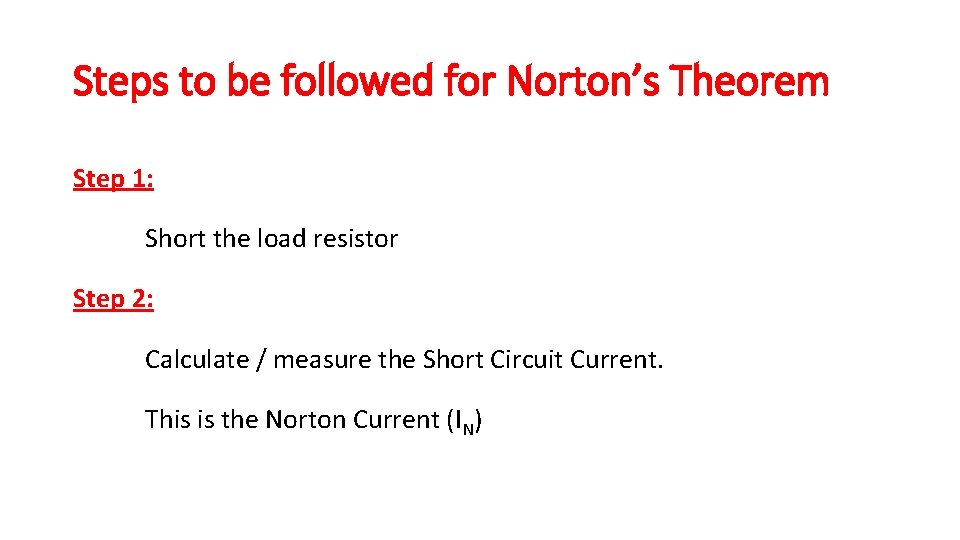

Steps to be followed for Norton’s Theorem Step 1: Short the load resistor Step 2: Calculate / measure the Short Circuit Current. This is the Norton Current (IN)

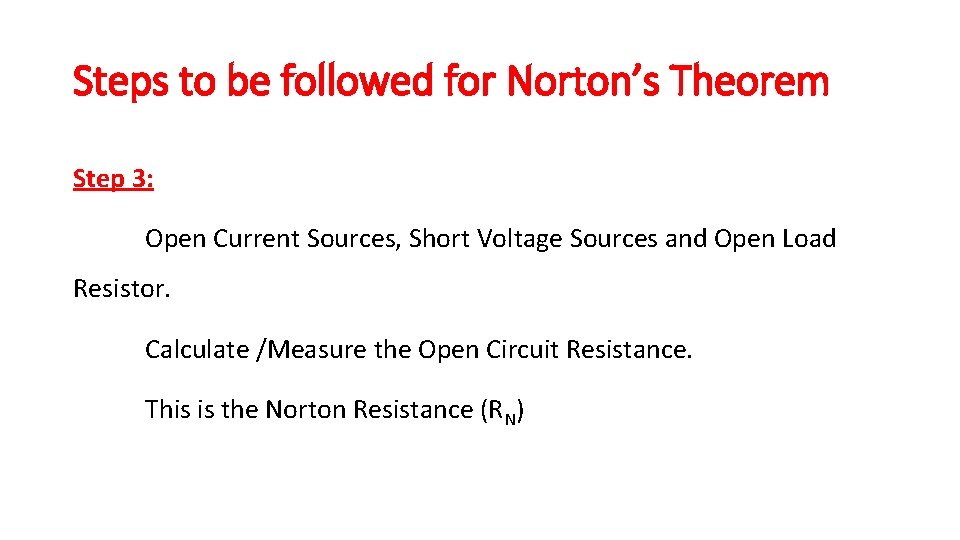

Steps to be followed for Norton’s Theorem Step 3: Open Current Sources, Short Voltage Sources and Open Load Resistor. Calculate /Measure the Open Circuit Resistance. This is the Norton Resistance (RN)

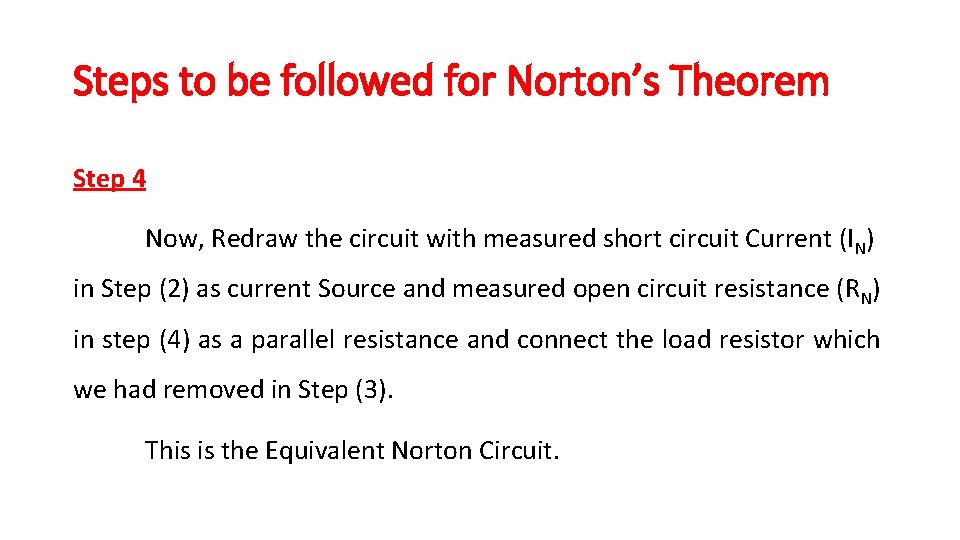

Steps to be followed for Norton’s Theorem Step 4 Now, Redraw the circuit with measured short circuit Current (IN) in Step (2) as current Source and measured open circuit resistance (RN) in step (4) as a parallel resistance and connect the load resistor which we had removed in Step (3). This is the Equivalent Norton Circuit.

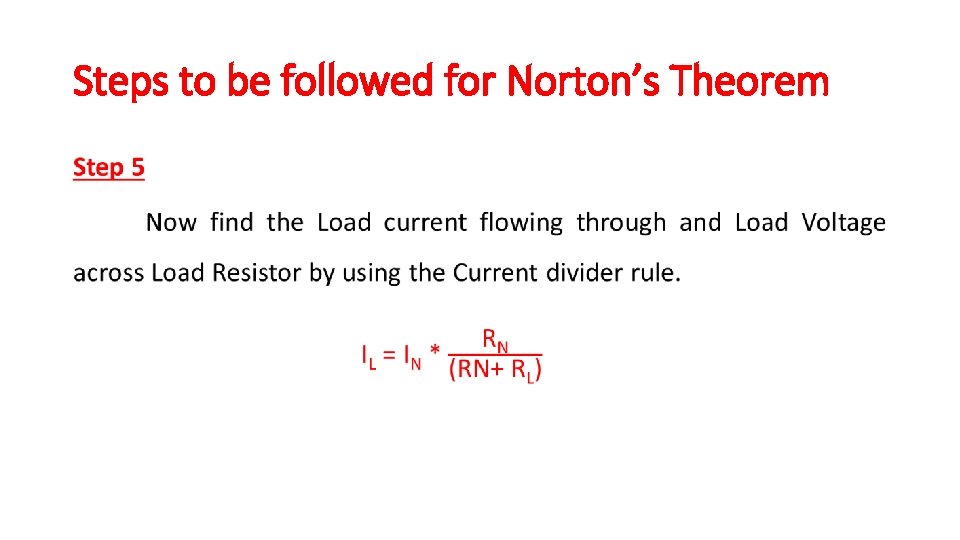

Steps to be followed for Norton’s Theorem •

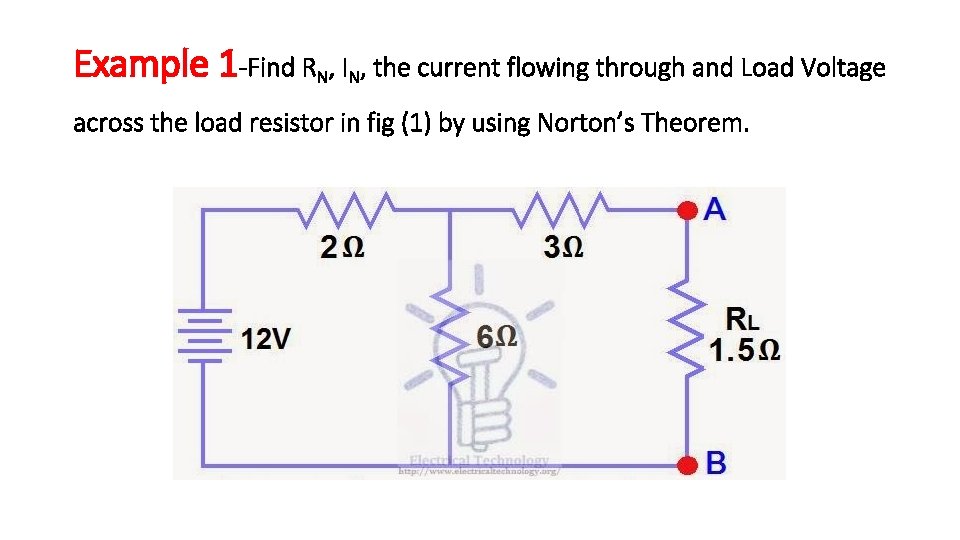

Example 1 -Find RN, IN, the current flowing through and Load Voltage across the load resistor in fig (1) by using Norton’s Theorem.

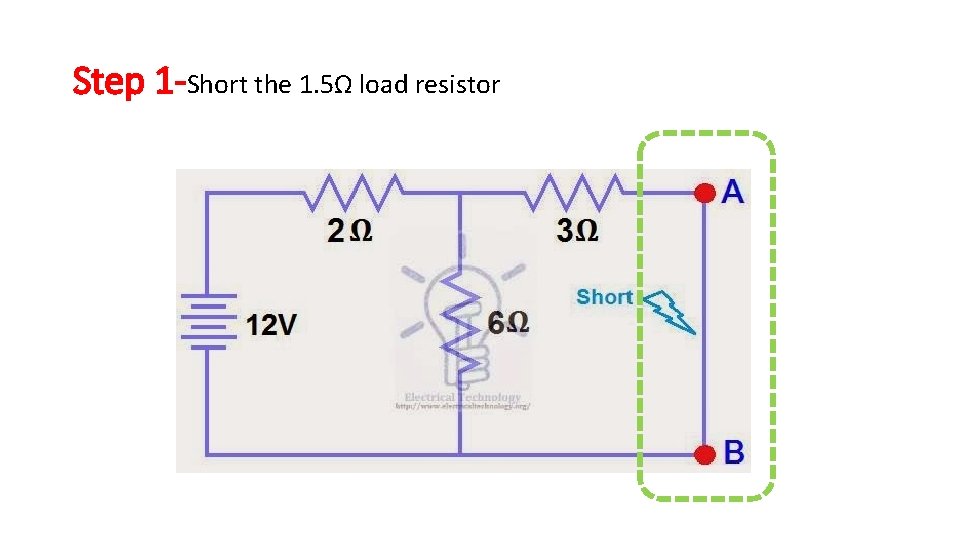

Step 1 -Short the 1. 5Ω load resistor

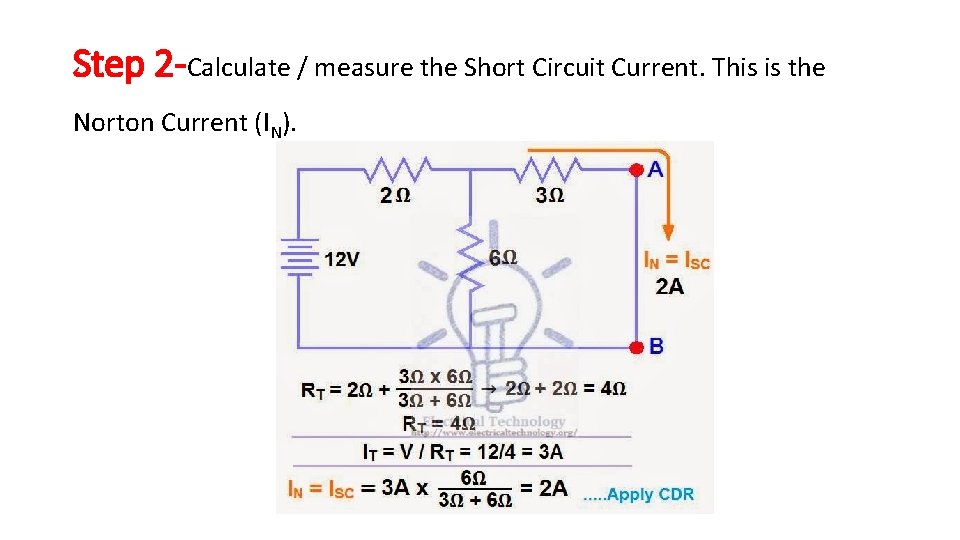

Step 2 -Calculate / measure the Short Circuit Current. This is the Norton Current (IN).

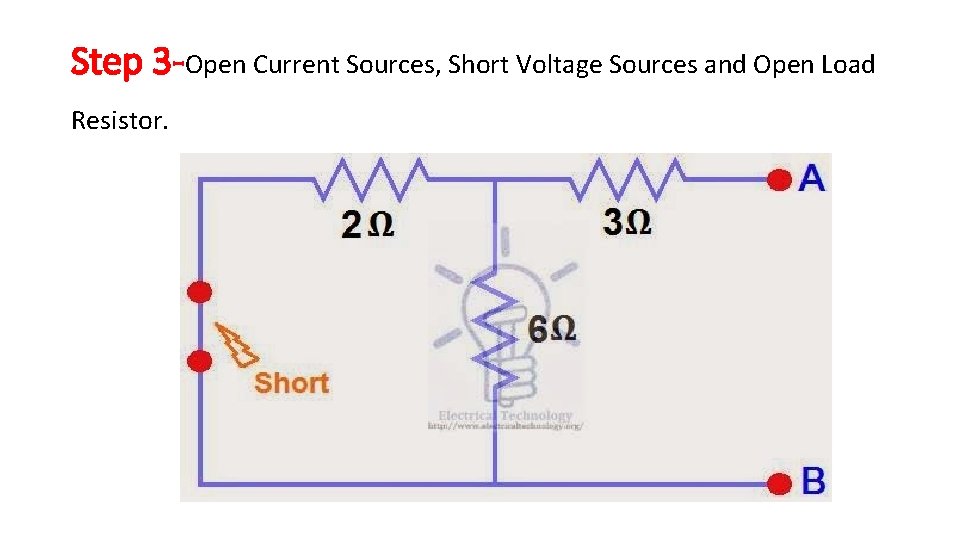

Step 3 -Open Current Sources, Short Voltage Sources and Open Load Resistor.

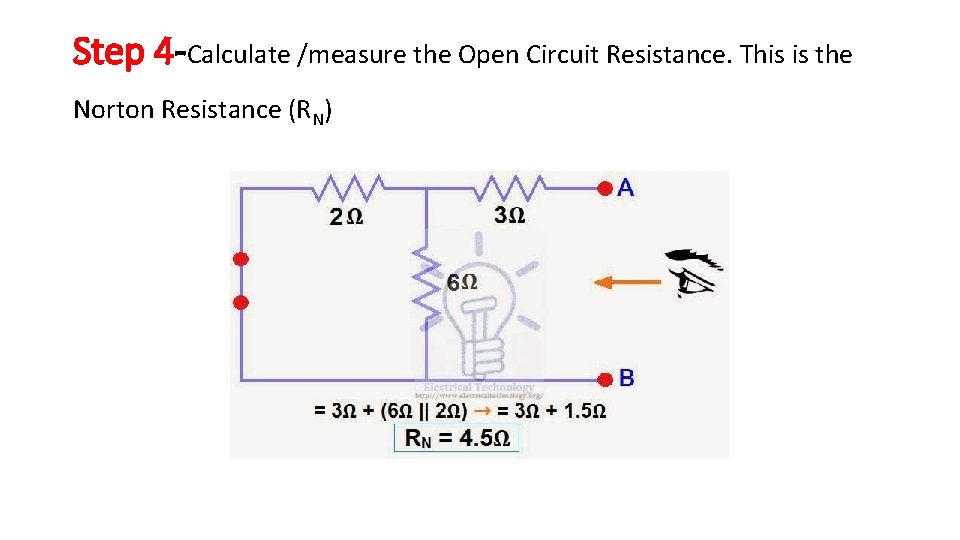

Step 4 -Calculate /measure the Open Circuit Resistance. This is the Norton Resistance (RN)

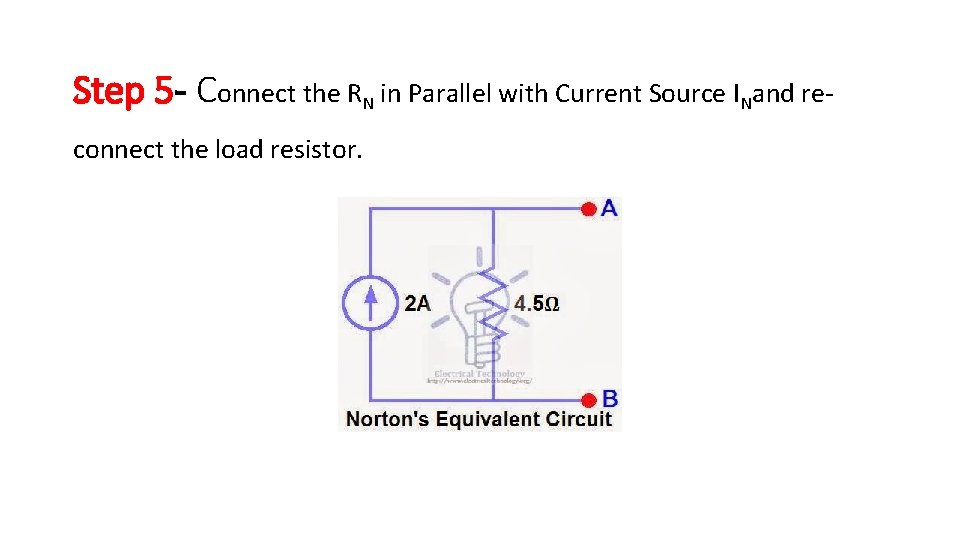

Step 5 - Connect the RN in Parallel with Current Source INand reconnect the load resistor.

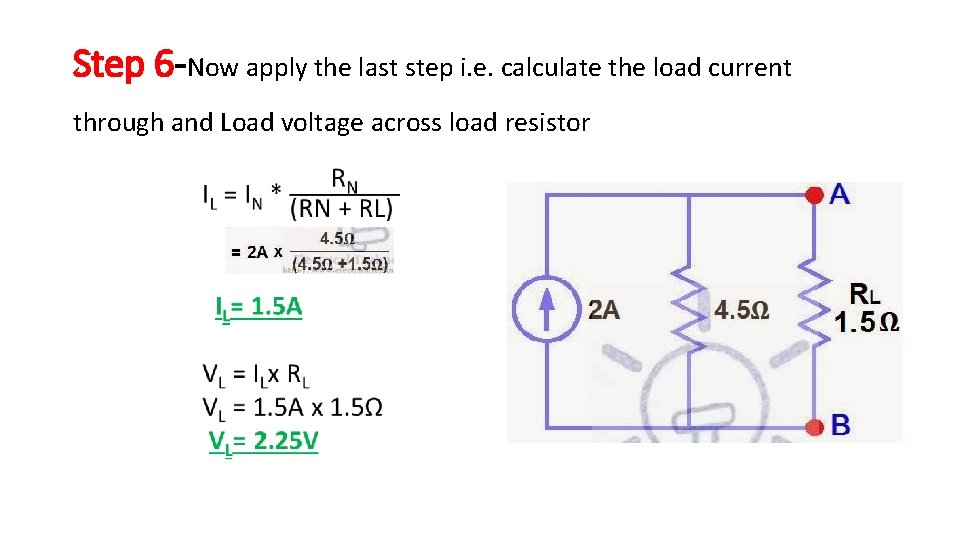

Step 6 -Now apply the last step i. e. calculate the load current through and Load voltage across load resistor

Maximum Power Transfer Theorem

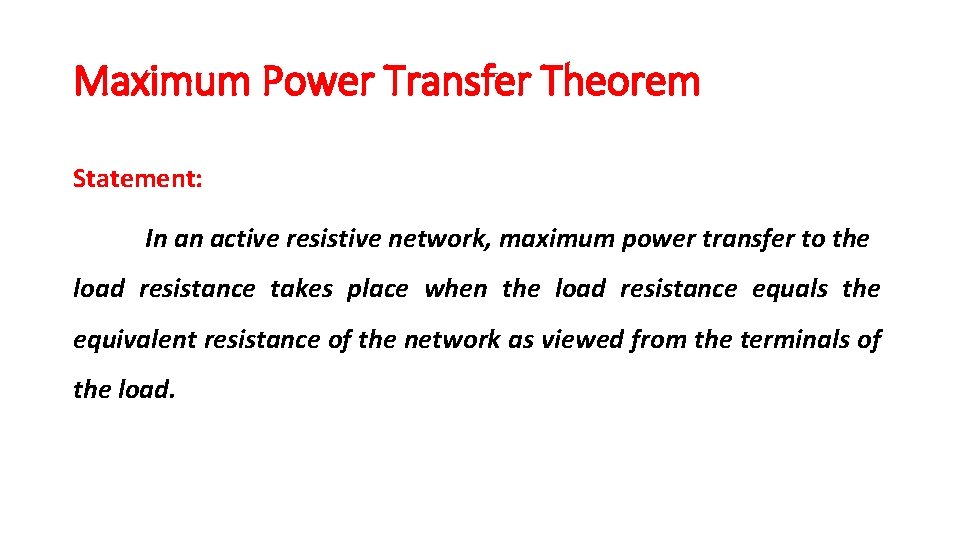

Maximum Power Transfer Theorem Statement: In an active resistive network, maximum power transfer to the load resistance takes place when the load resistance equals the equivalent resistance of the network as viewed from the terminals of the load.

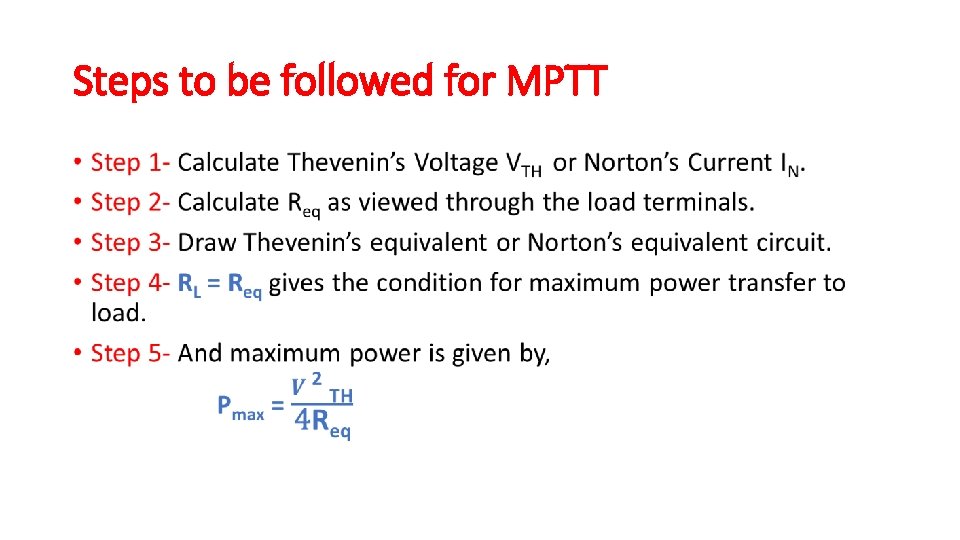

Steps to be followed for MPTT •

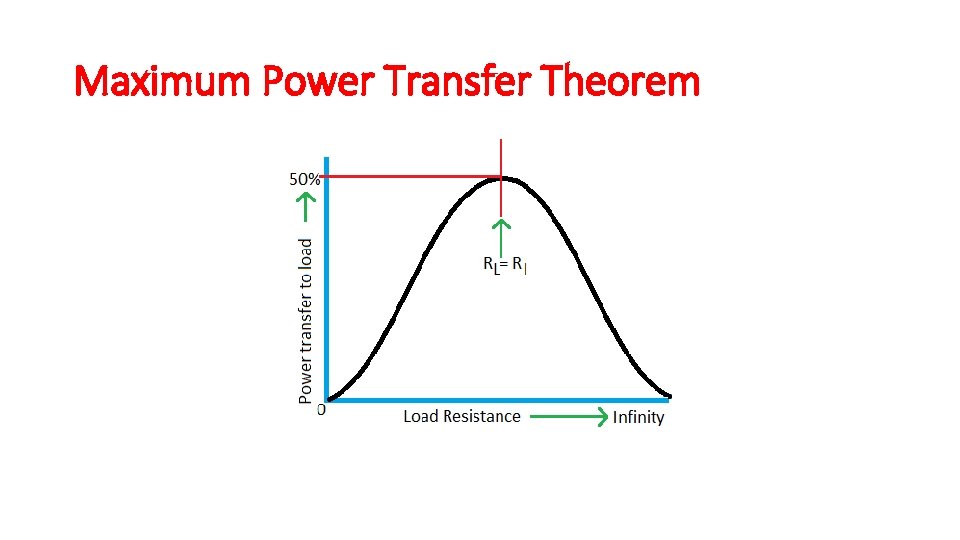

Maximum Power Transfer Theorem

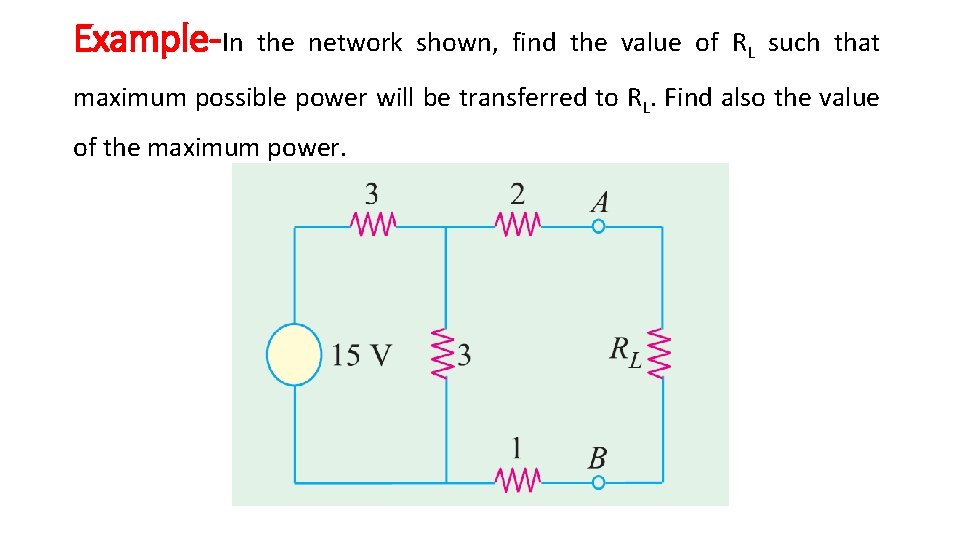

Example-In the network shown, find the value of RL such that maximum possible power will be transferred to RL. Find also the value of the maximum power.

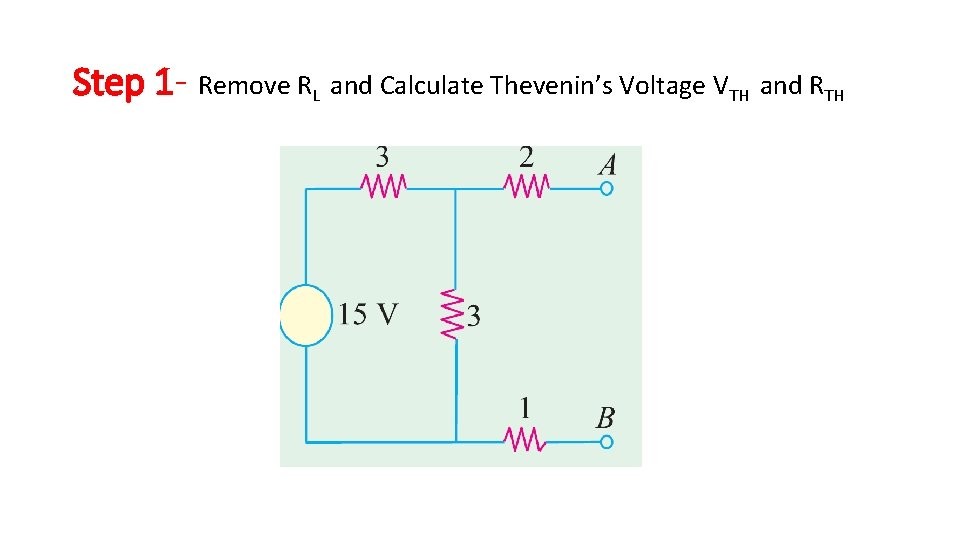

Step 1 - Remove RL and Calculate Thevenin’s Voltage VTH and RTH

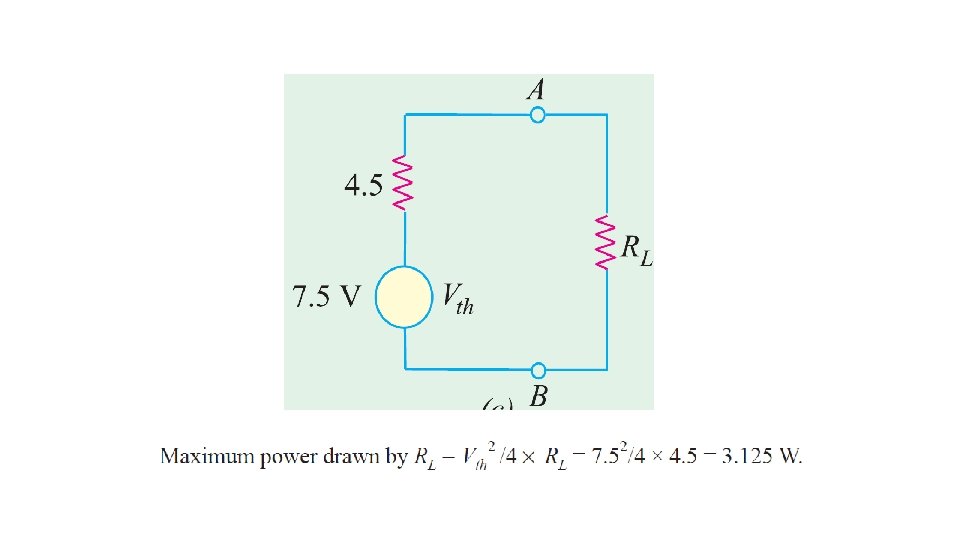

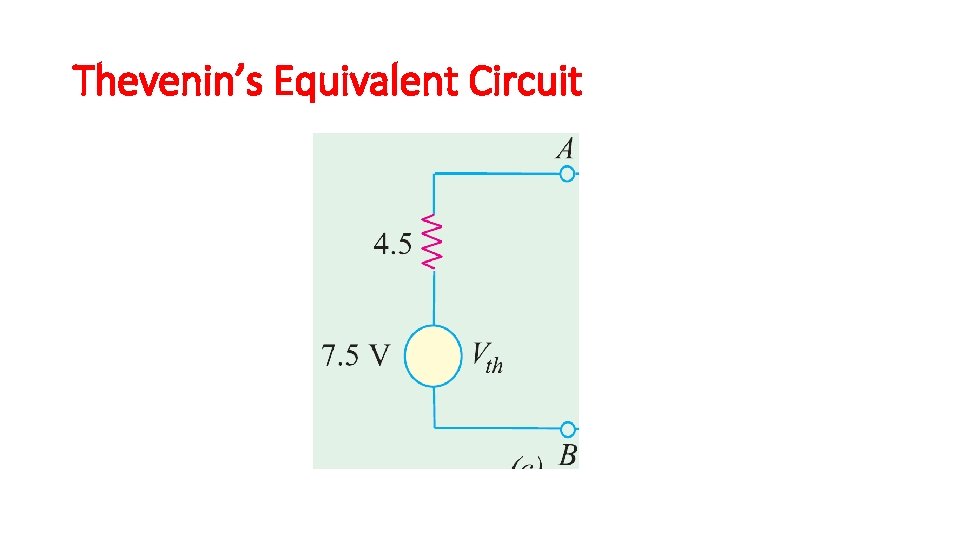

Thevenin’s Equivalent Circuit

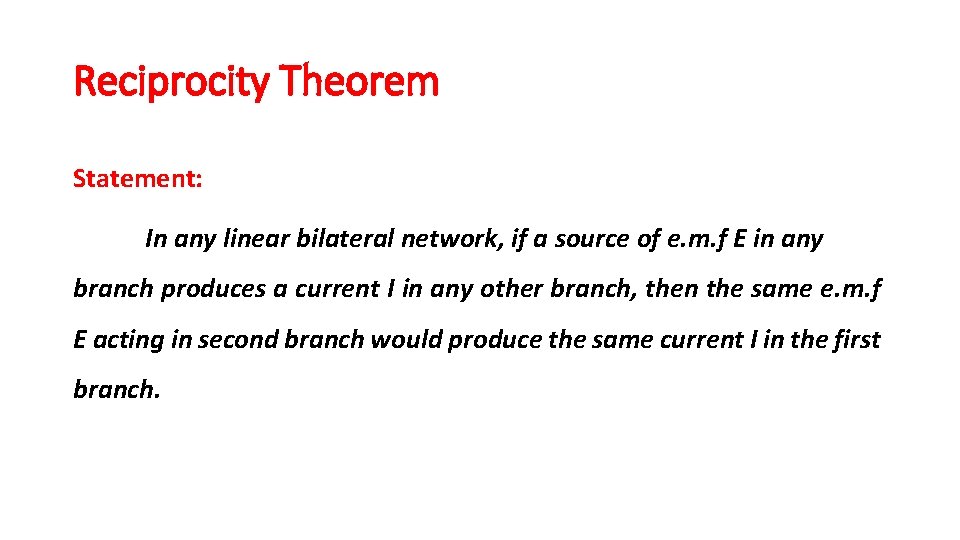

Reciprocity Theorem Statement: In any linear bilateral network, if a source of e. m. f E in any branch produces a current I in any other branch, then the same e. m. f E acting in second branch would produce the same current I in the first branch.

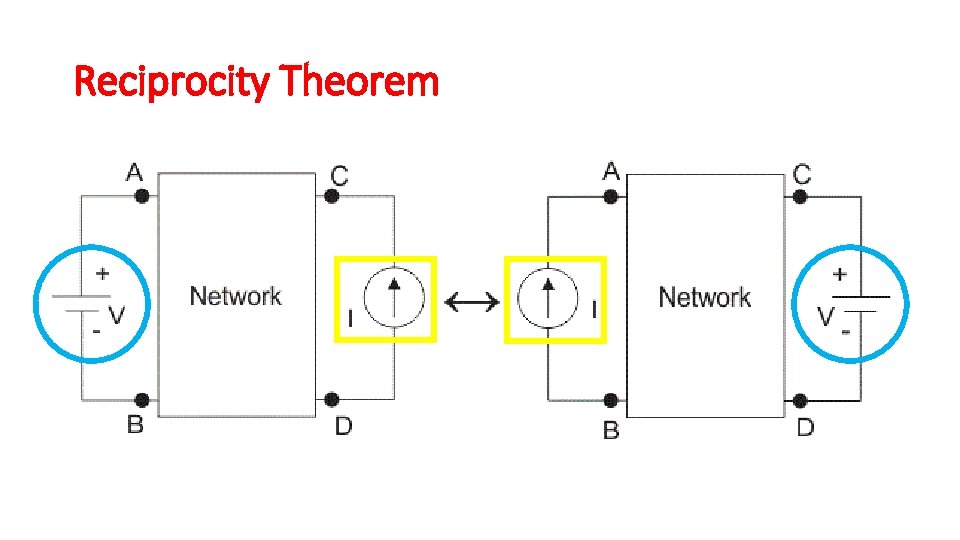

Reciprocity Theorem

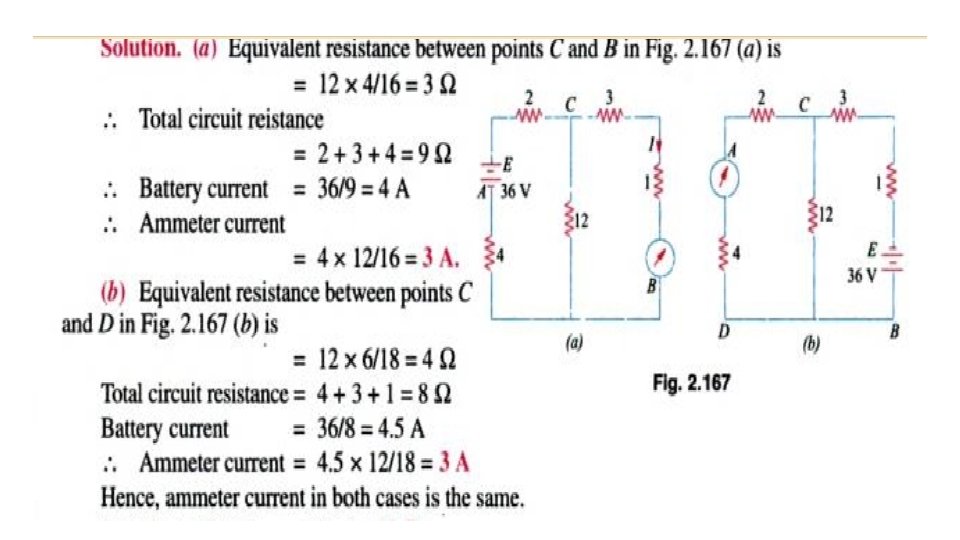

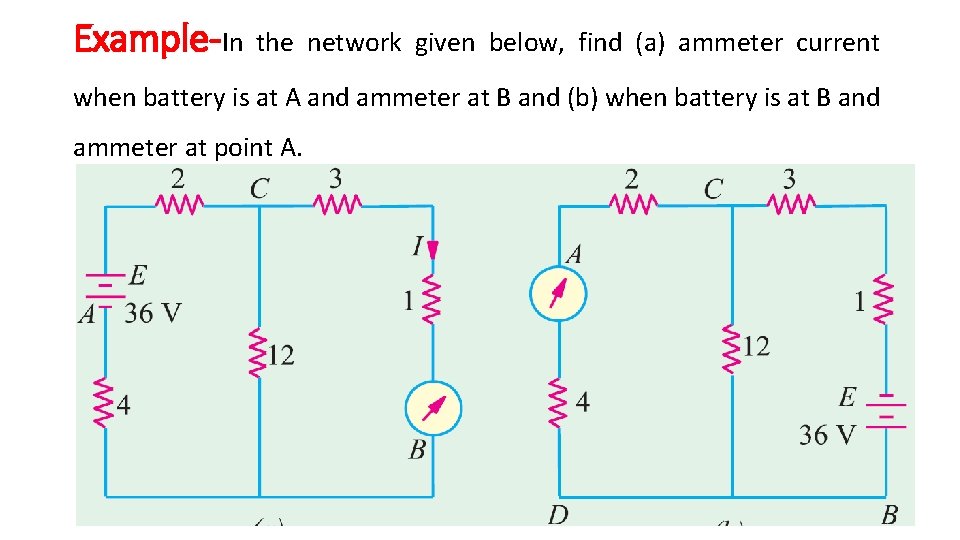

Example-In the network given below, find (a) ammeter current when battery is at A and ammeter at B and (b) when battery is at B and ammeter at point A.

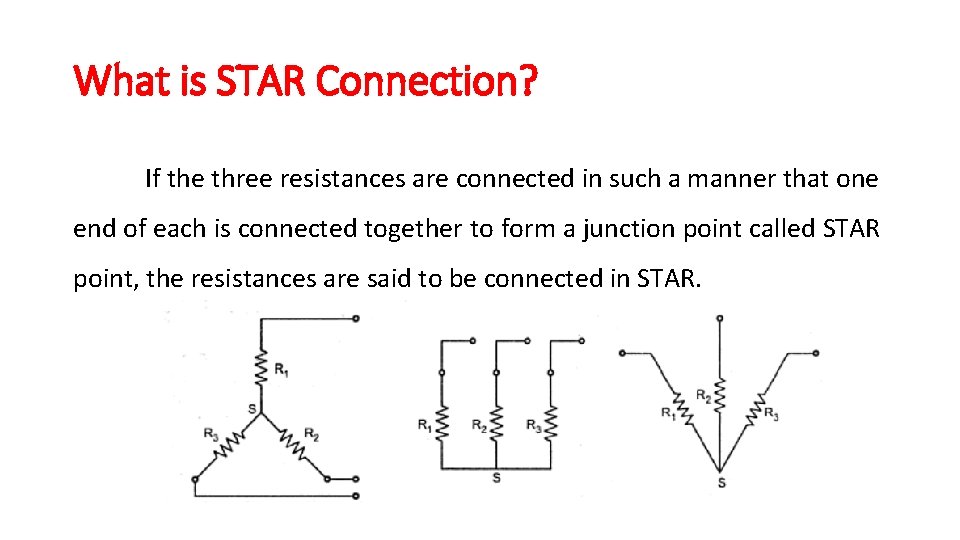

What is STAR Connection? If the three resistances are connected in such a manner that one end of each is connected together to form a junction point called STAR point, the resistances are said to be connected in STAR.

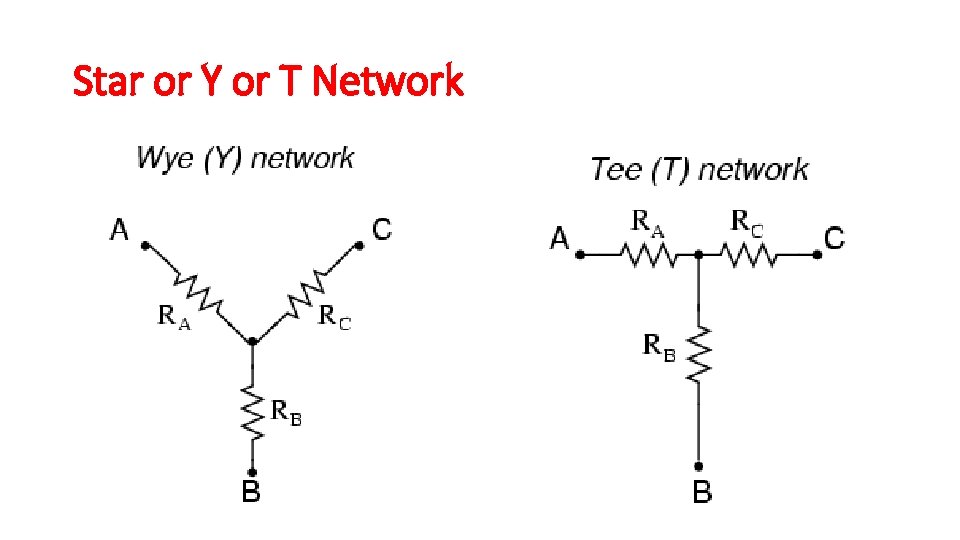

Star or Y or T Network

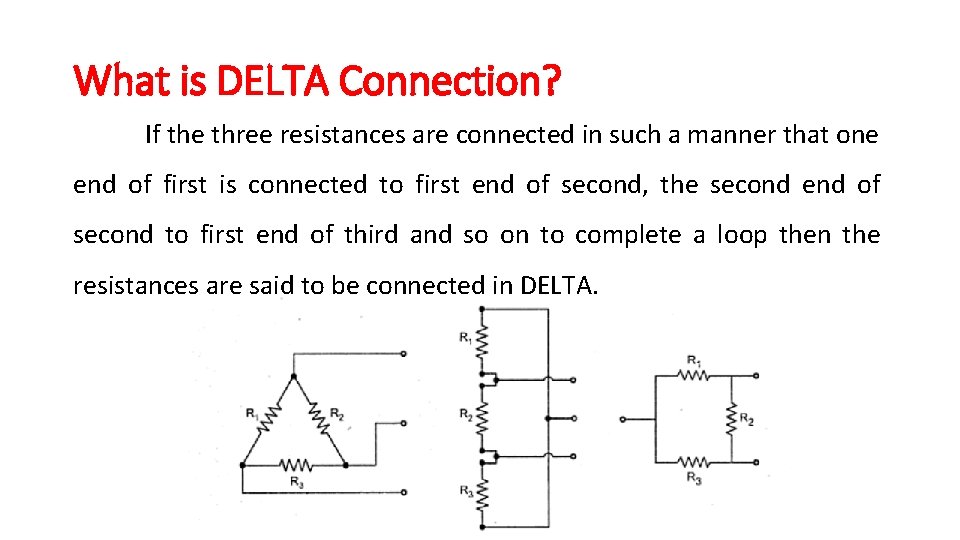

What is DELTA Connection? If the three resistances are connected in such a manner that one end of first is connected to first end of second, the second end of second to first end of third and so on to complete a loop then the resistances are said to be connected in DELTA.

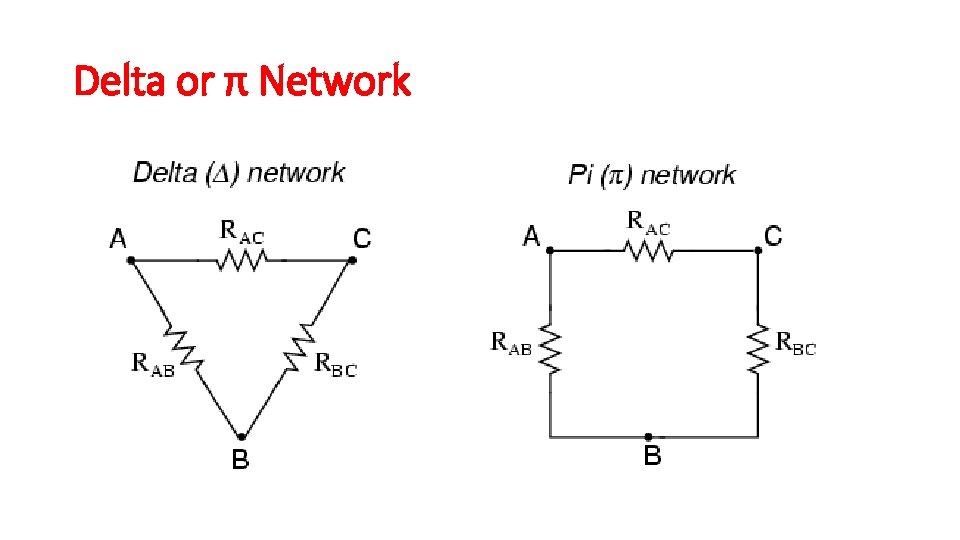

Delta or π Network

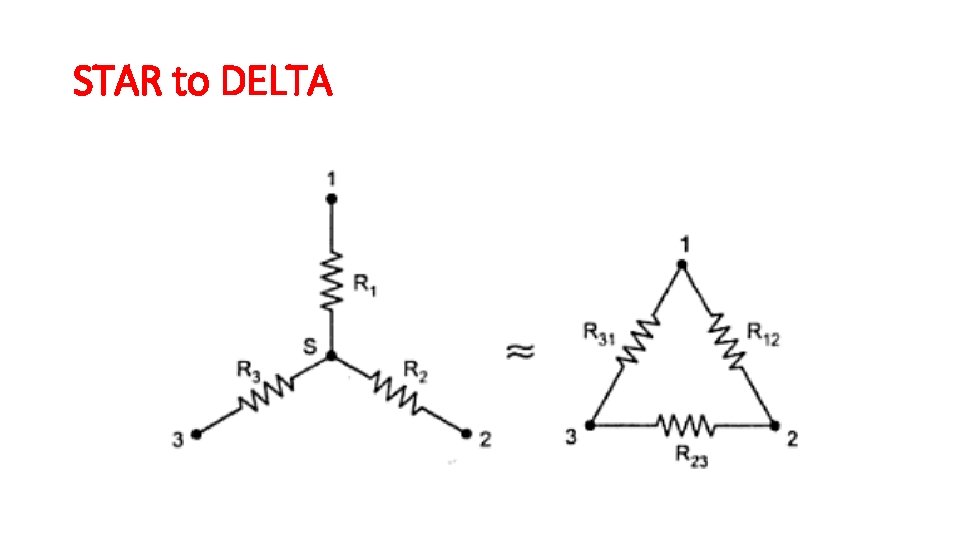

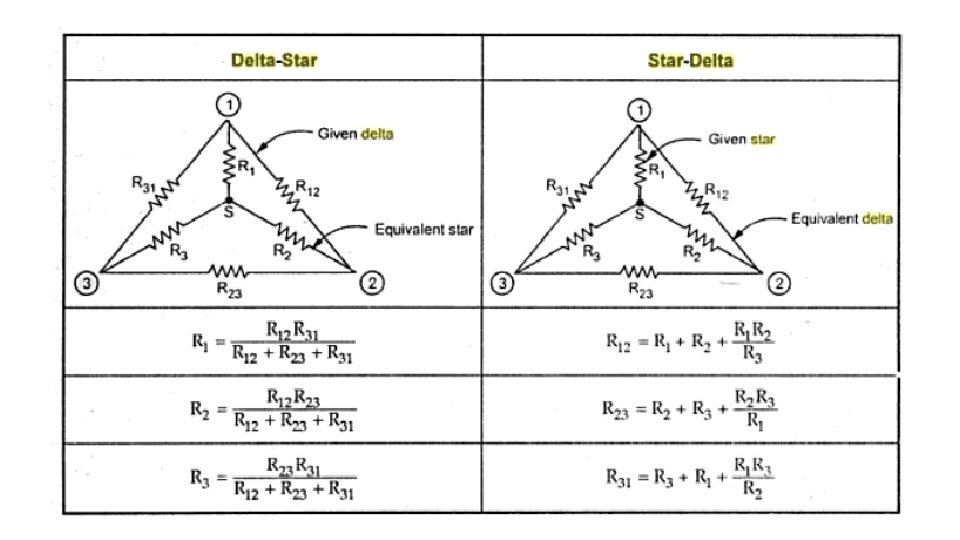

STAR to DELTA

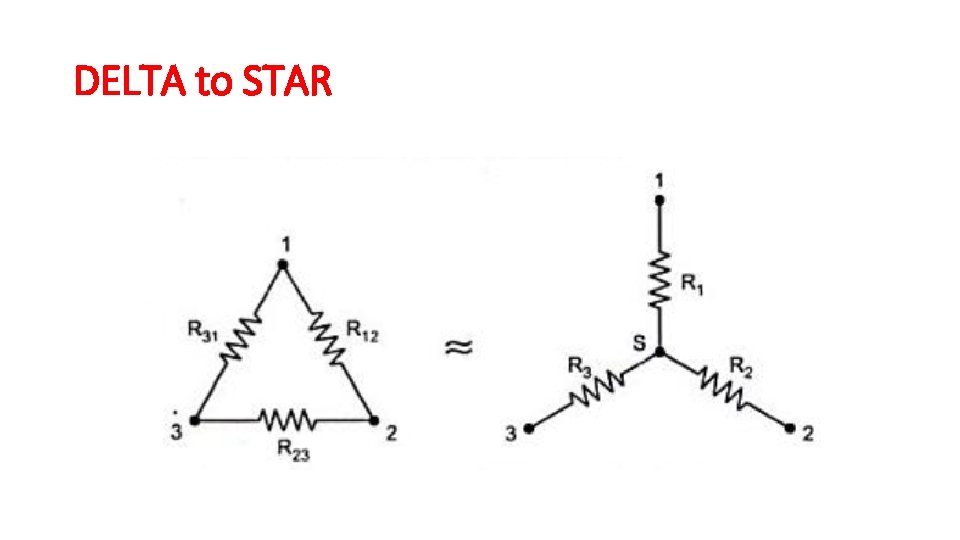

DELTA to STAR

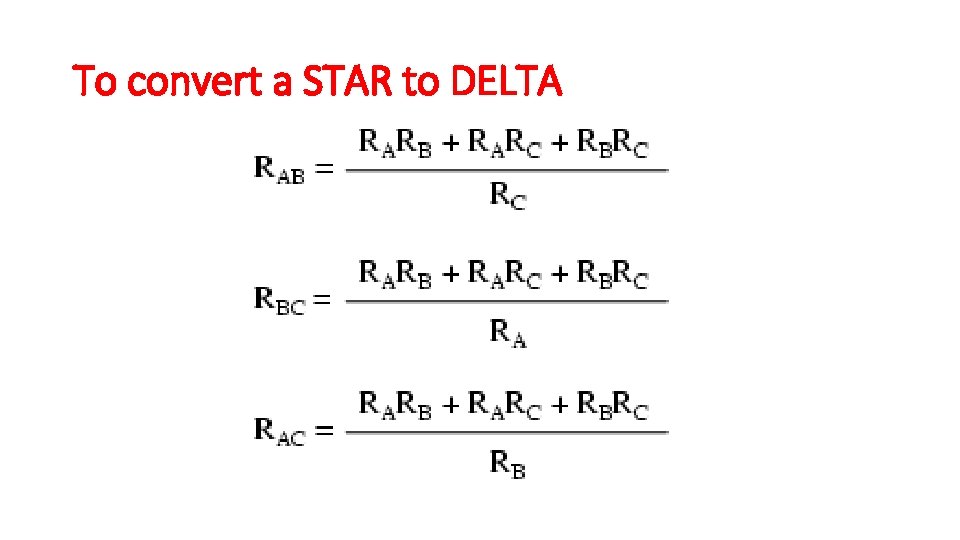

To convert a STAR to DELTA

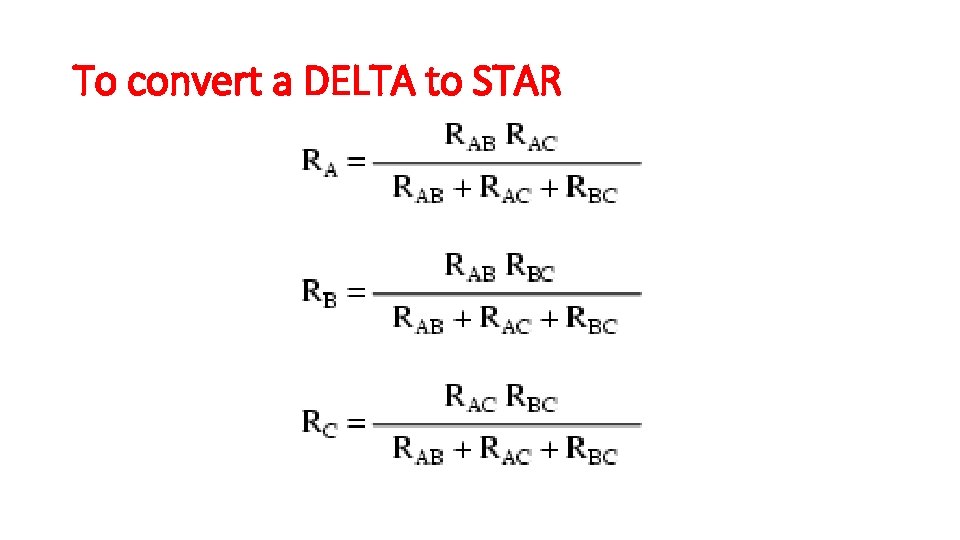

To convert a DELTA to STAR

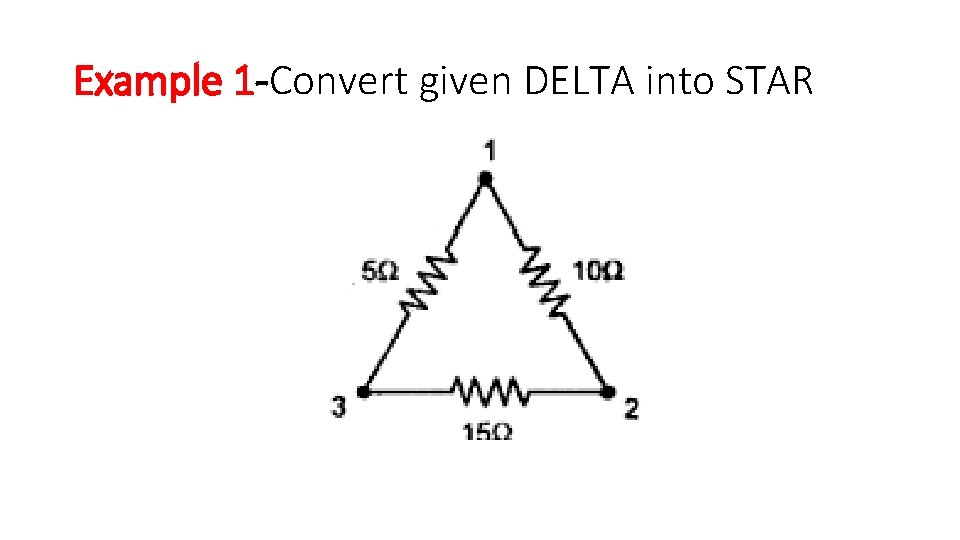

Example 1 -Convert given DELTA into STAR

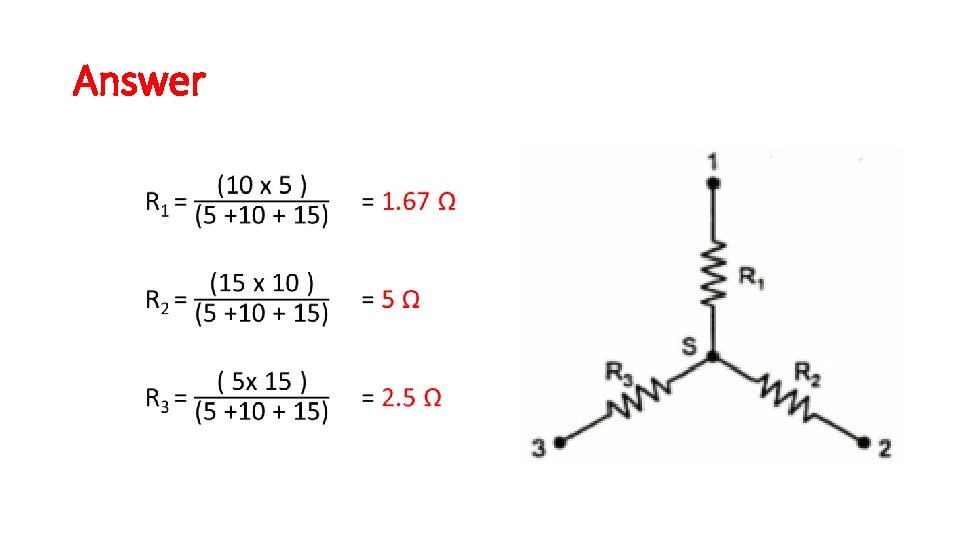

Answer •

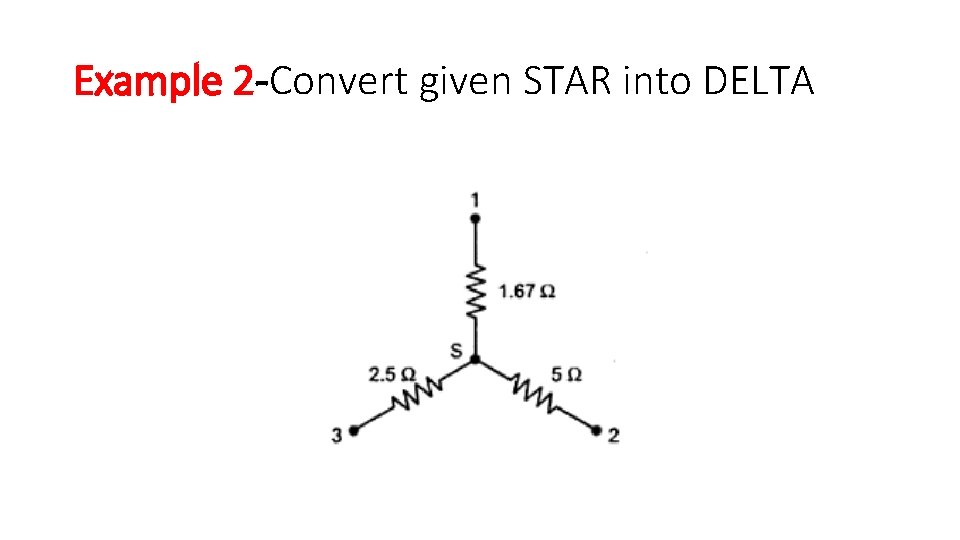

Example 2 -Convert given STAR into DELTA

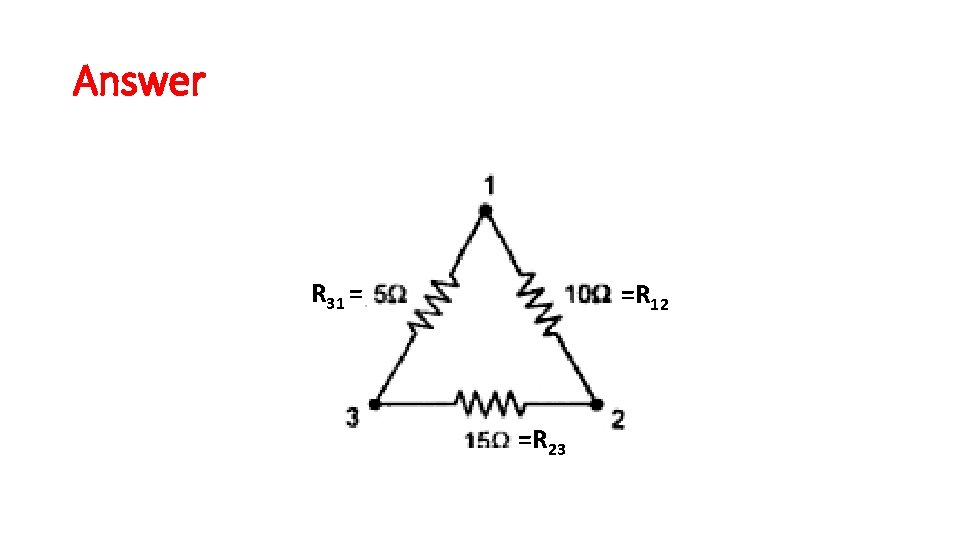

Answer R 31 = =R 12 =R 23

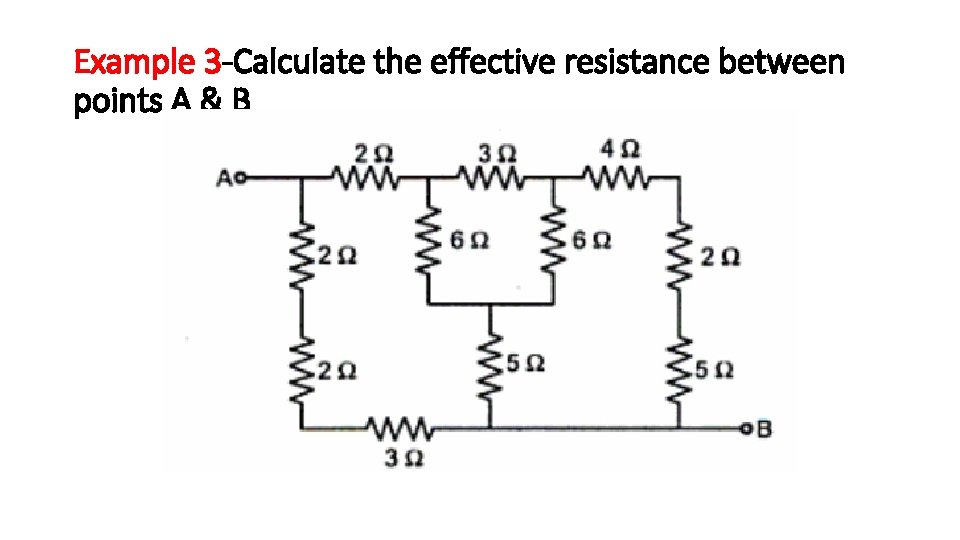

Example 3 -Calculate the effective resistance between points A & B

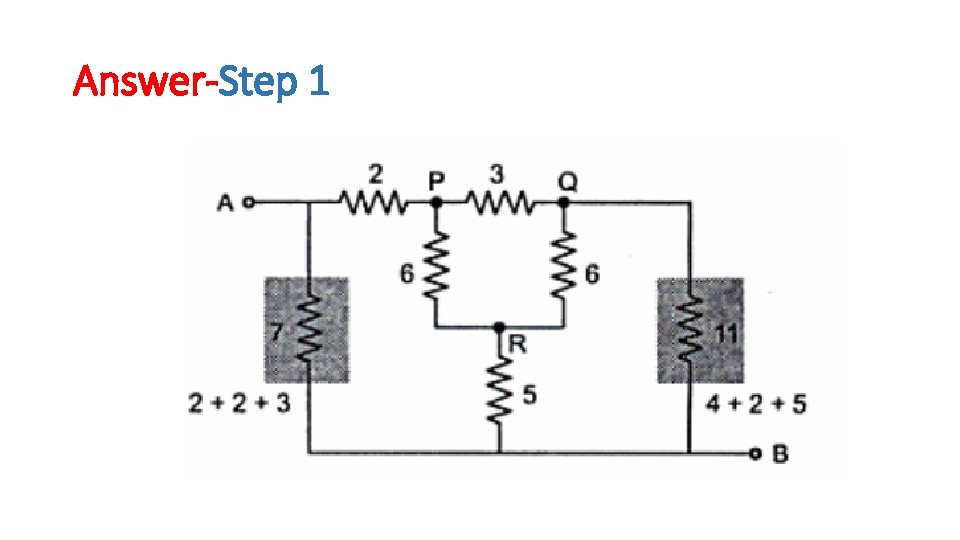

Answer-Step 1

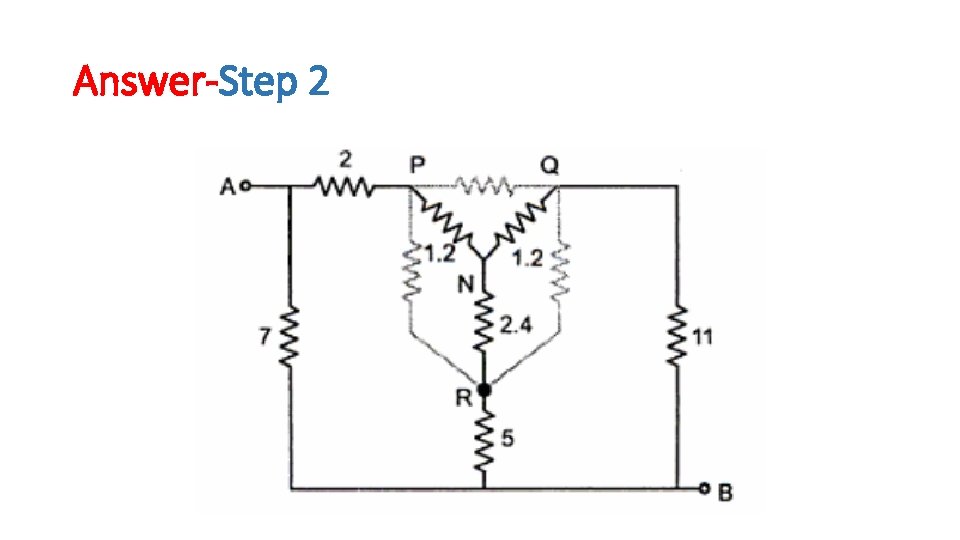

Answer-Step 2

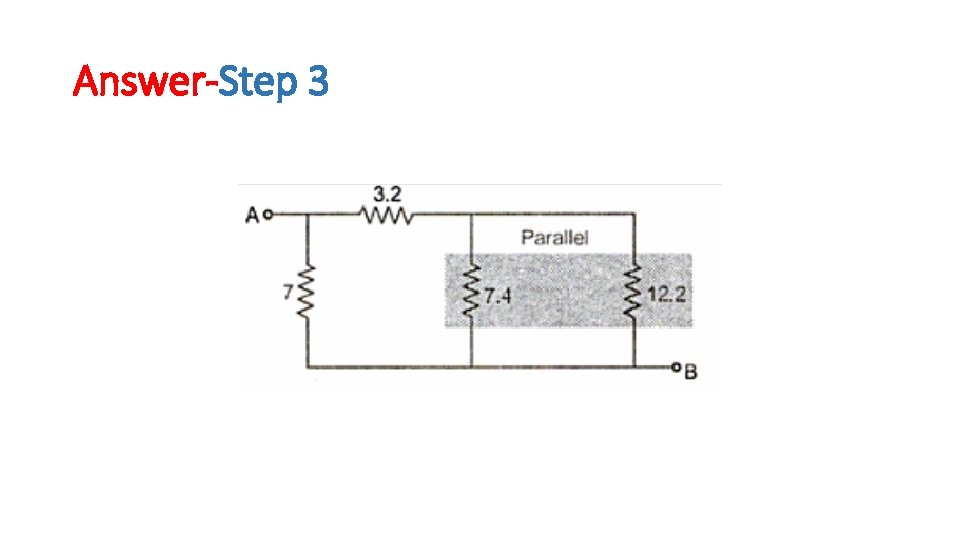

Answer-Step 3

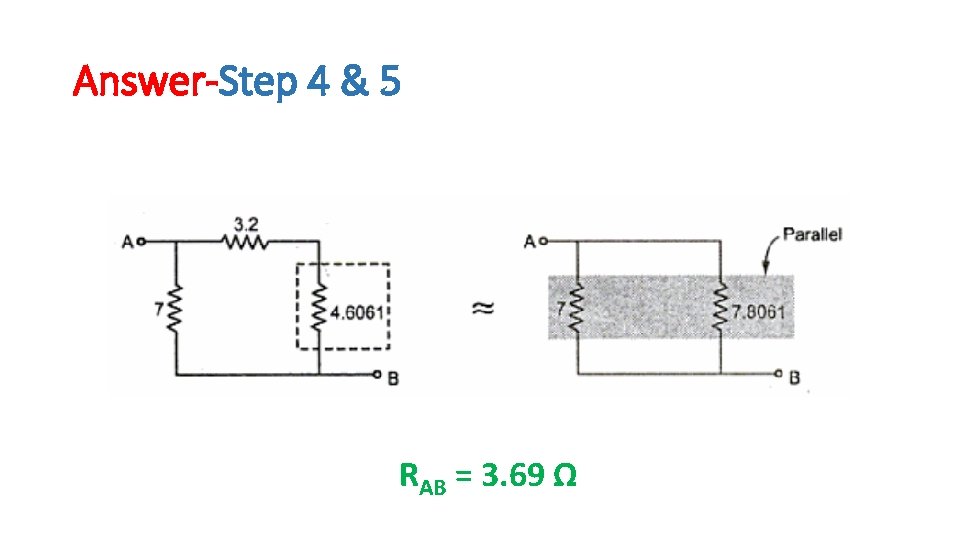

Answer-Step 4 & 5 RAB = 3. 69 Ω

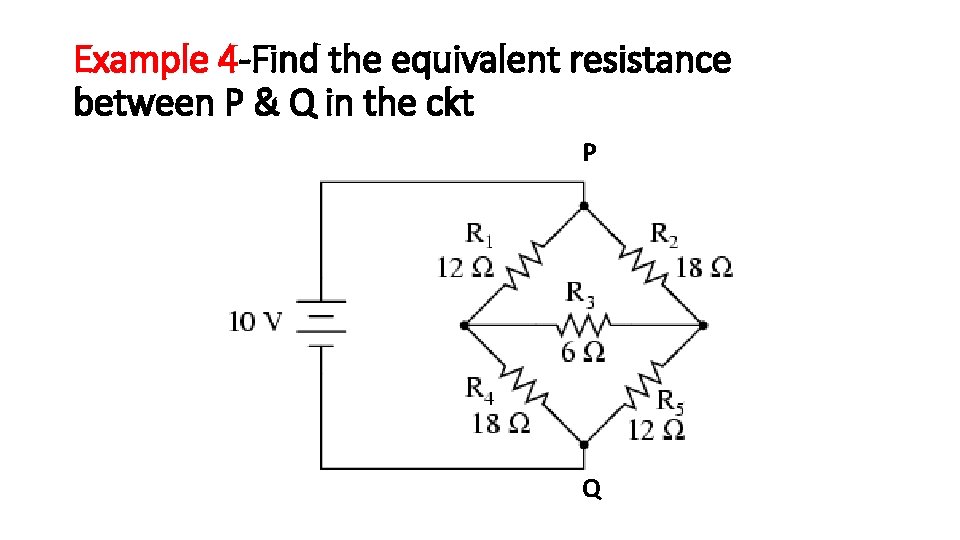

Example 4 -Find the equivalent resistance between P & Q in the ckt P Q

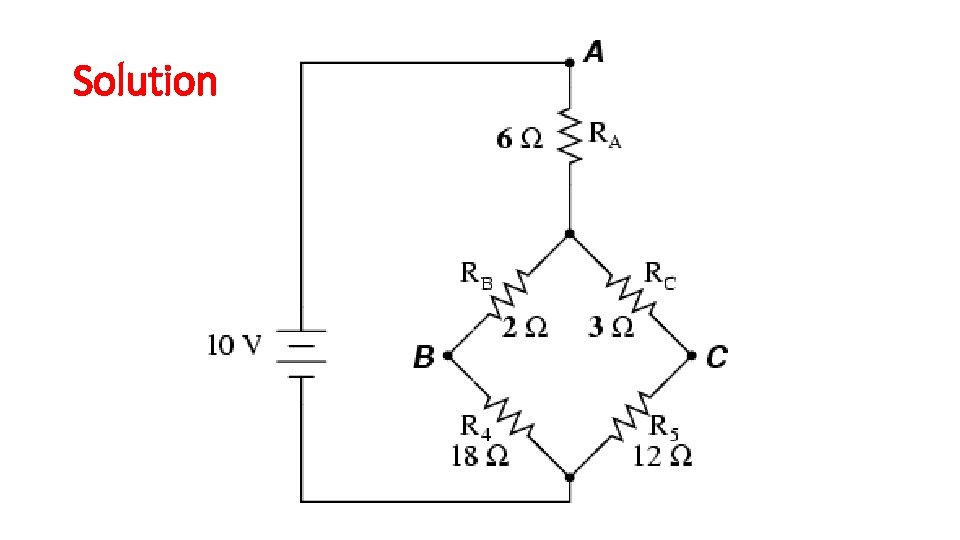

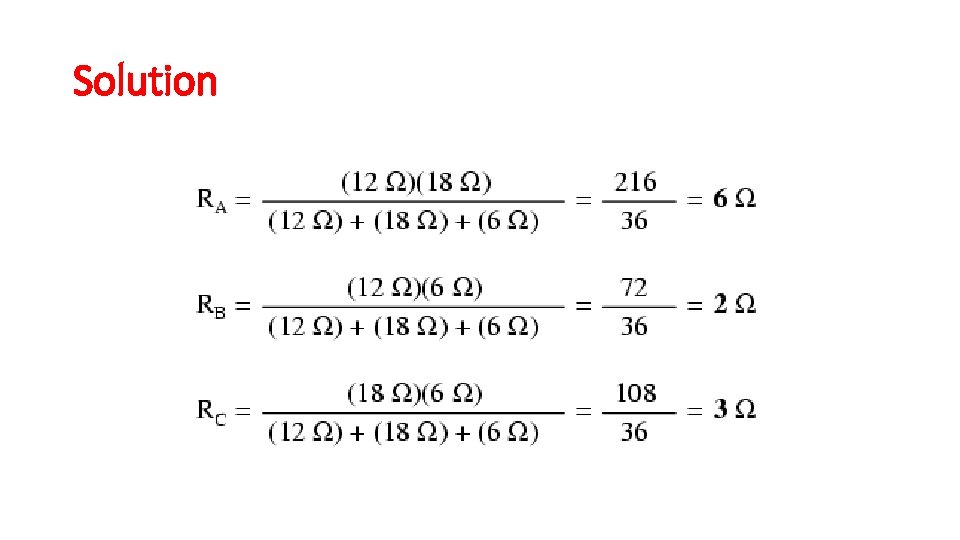

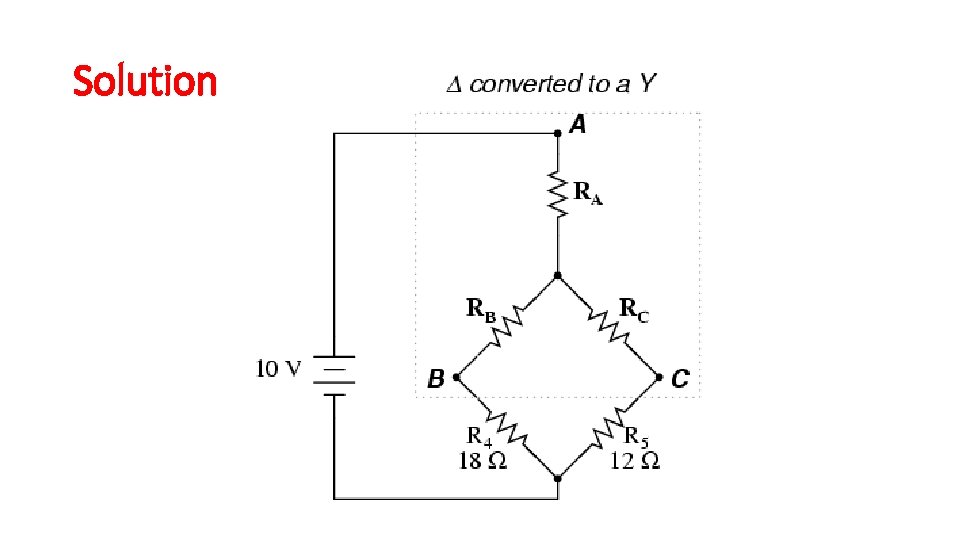

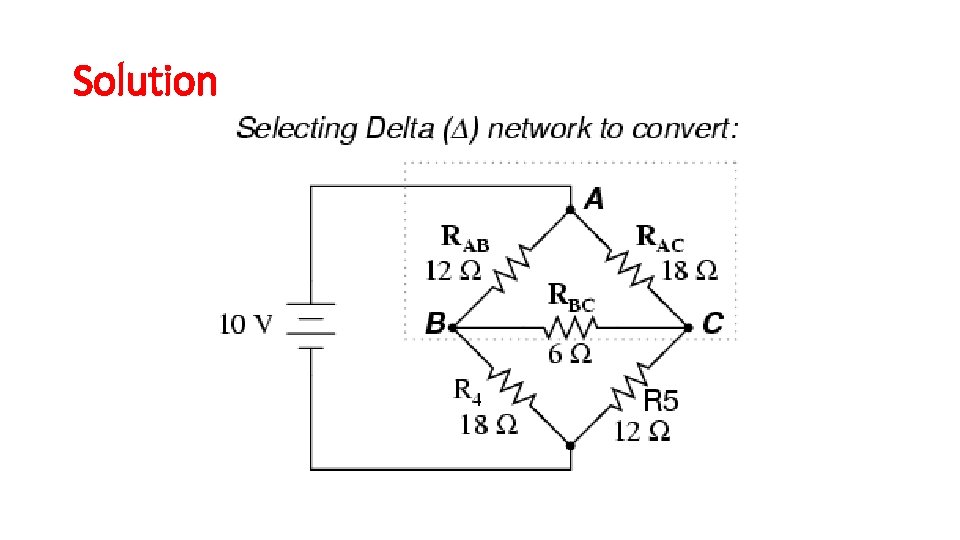

Solution

Solution

Solution

Solution

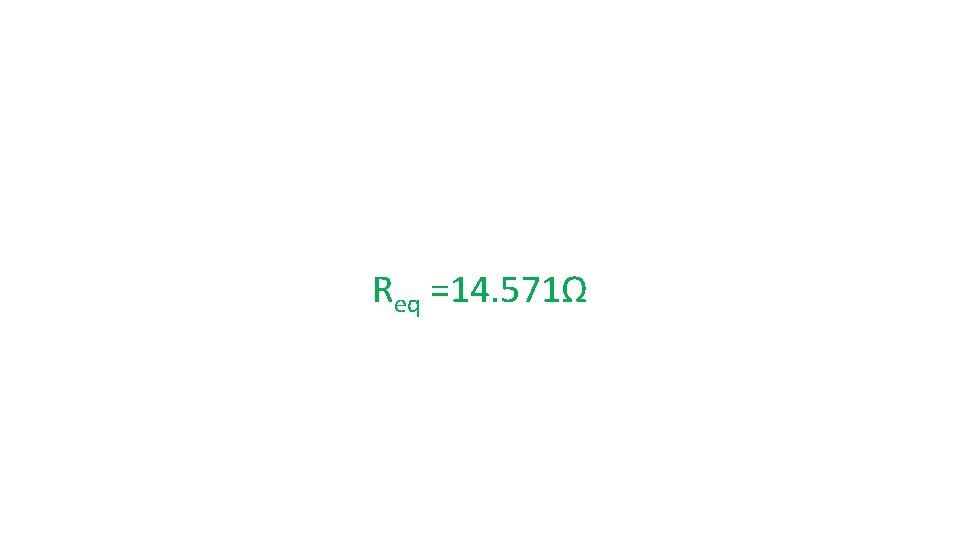

Req =14. 571Ω

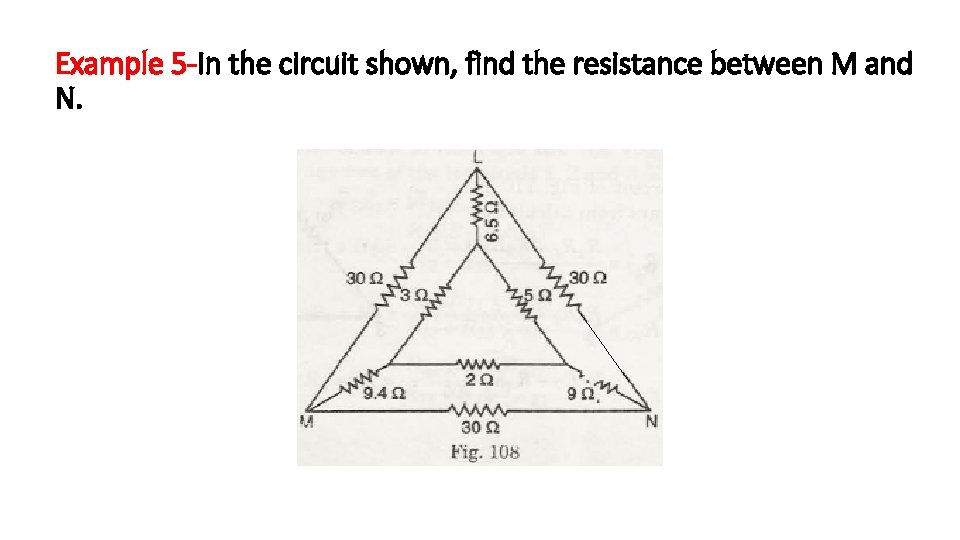

Example 5 -In the circuit shown, find the resistance between M and N.

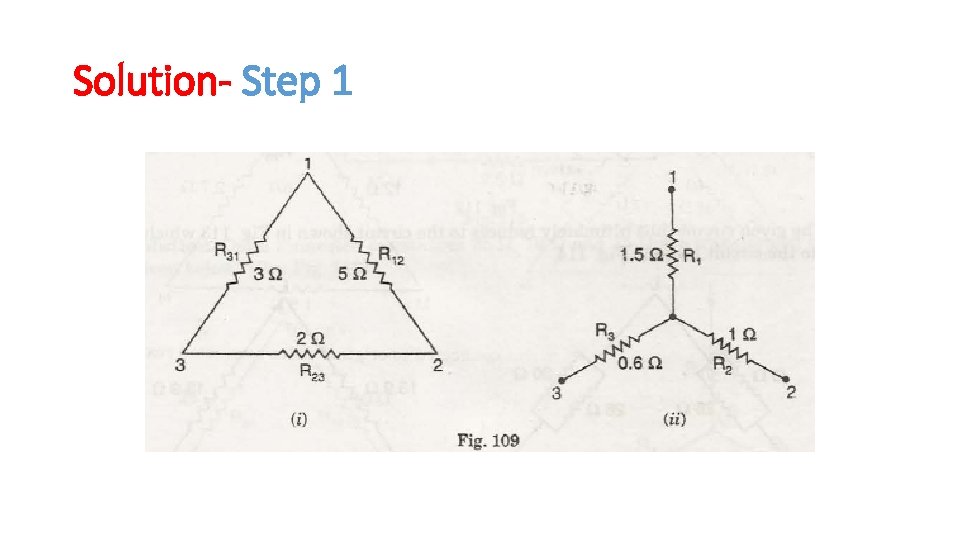

Solution- Step 1

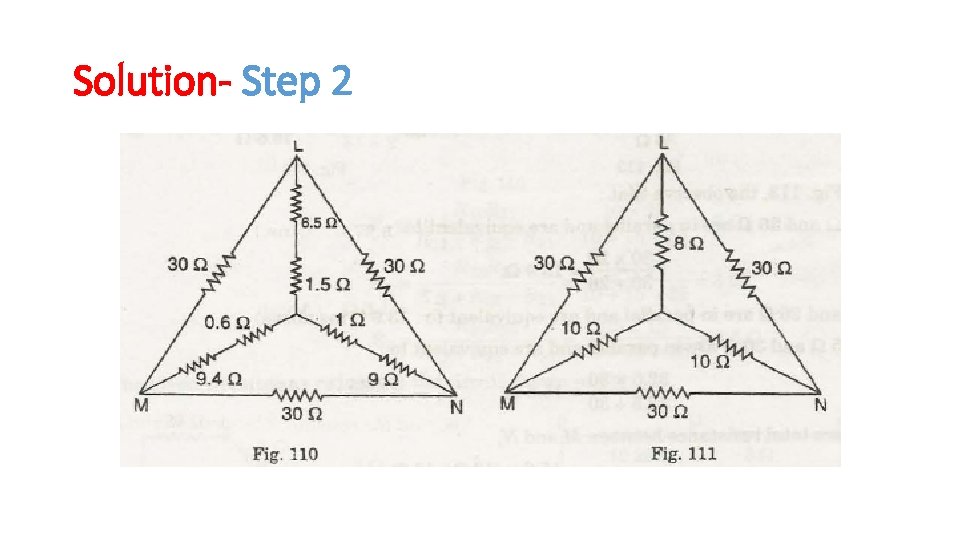

Solution- Step 2

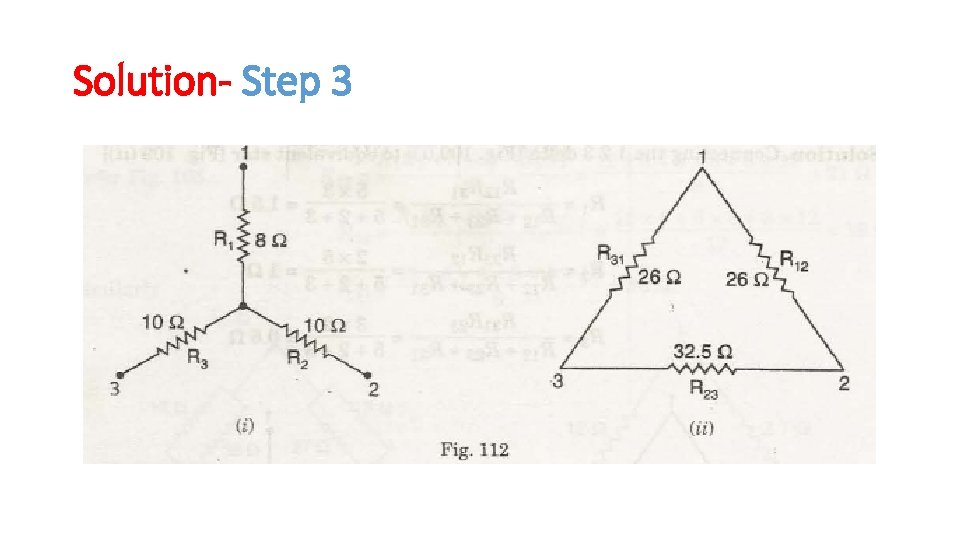

Solution- Step 3

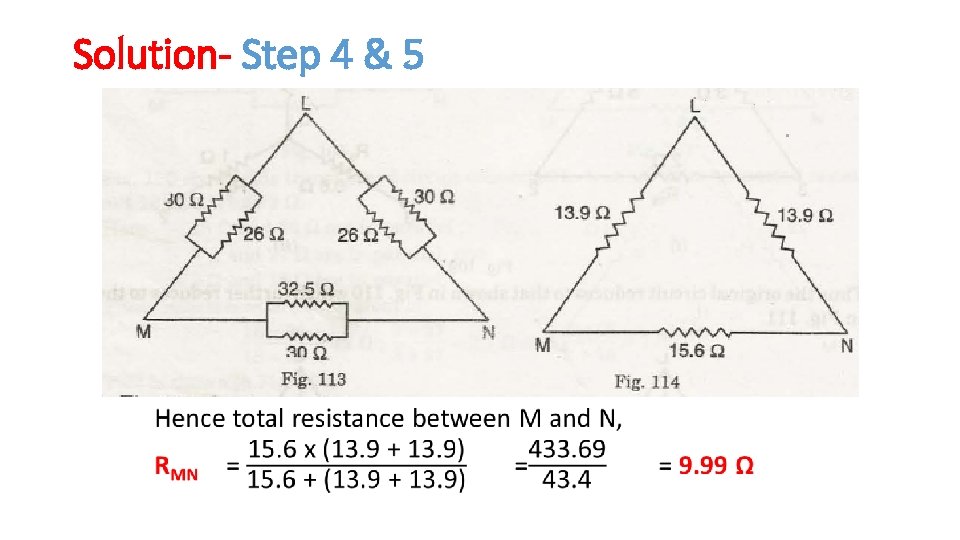

Solution- Step 4 & 5
