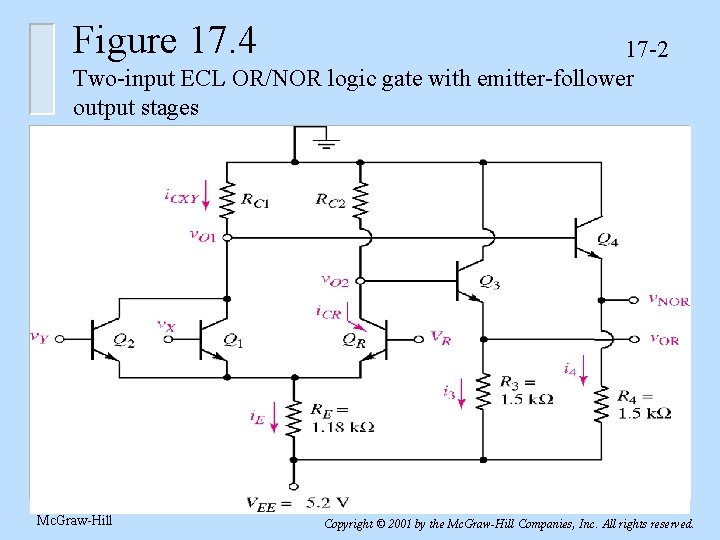

Figure 17. 4 17 -2 Two-input ECL OR/NOR logic gate with emitter-follower output stages Mc. Graw-Hill Copyright © 2001 by the Mc. Graw-Hill Companies, Inc. All rights reserved.

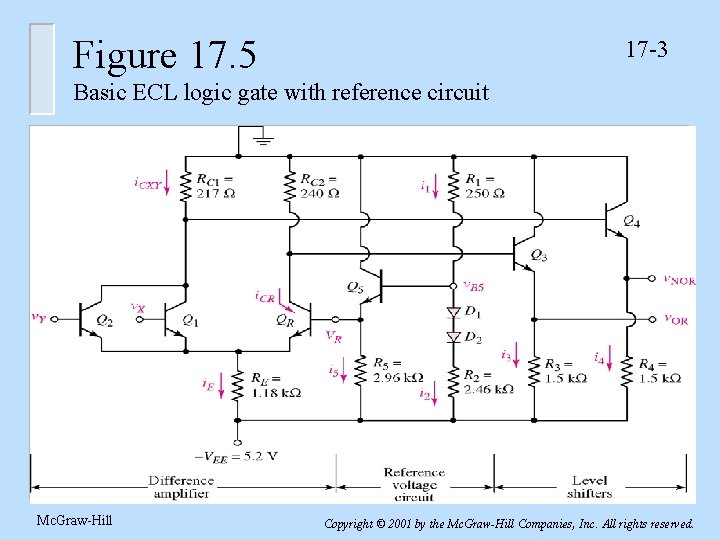

Figure 17. 5 17 -3 Basic ECL logic gate with reference circuit Mc. Graw-Hill Copyright © 2001 by the Mc. Graw-Hill Companies, Inc. All rights reserved.

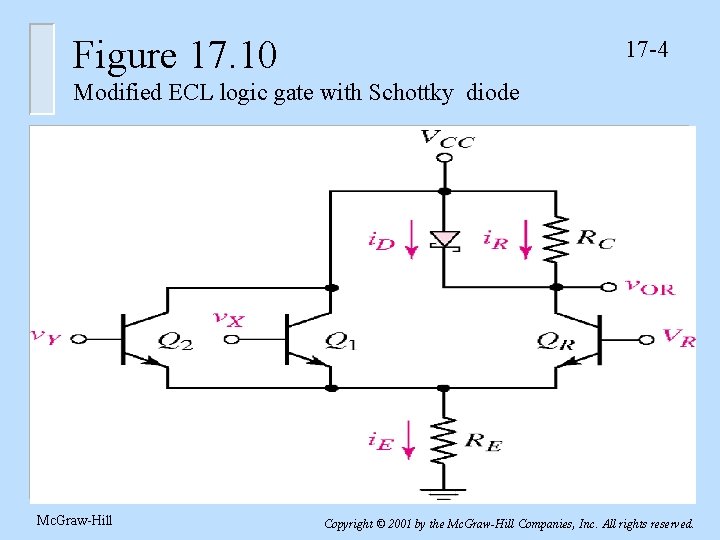

Figure 17. 10 17 -4 Modified ECL logic gate with Schottky diode Mc. Graw-Hill Copyright © 2001 by the Mc. Graw-Hill Companies, Inc. All rights reserved.

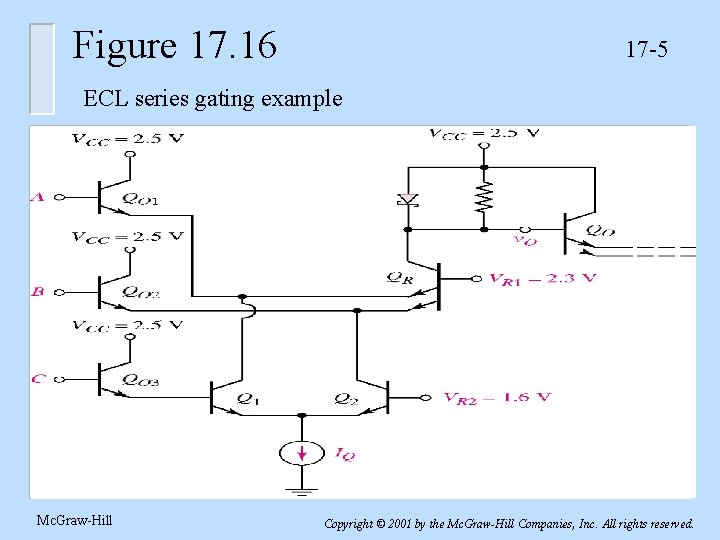

Figure 17. 16 17 -5 ECL series gating example Mc. Graw-Hill Copyright © 2001 by the Mc. Graw-Hill Companies, Inc. All rights reserved.

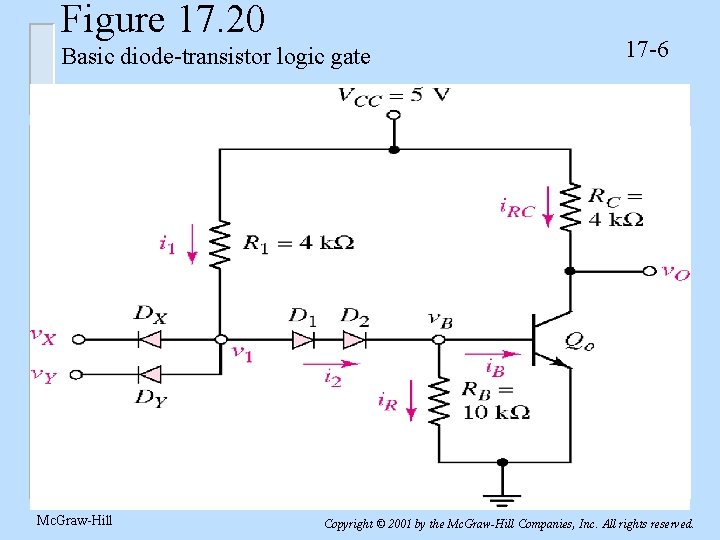

Figure 17. 20 Basic diode-transistor logic gate Mc. Graw-Hill 17 -6 Copyright © 2001 by the Mc. Graw-Hill Companies, Inc. All rights reserved.

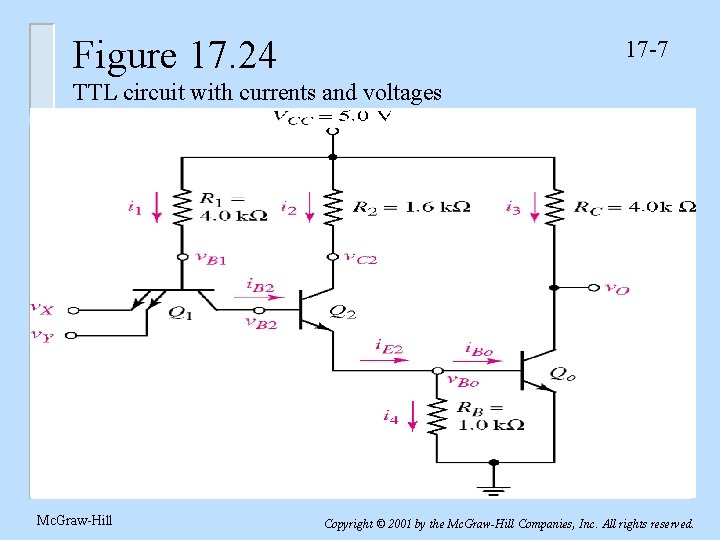

Figure 17. 24 17 -7 TTL circuit with currents and voltages Mc. Graw-Hill Copyright © 2001 by the Mc. Graw-Hill Companies, Inc. All rights reserved.

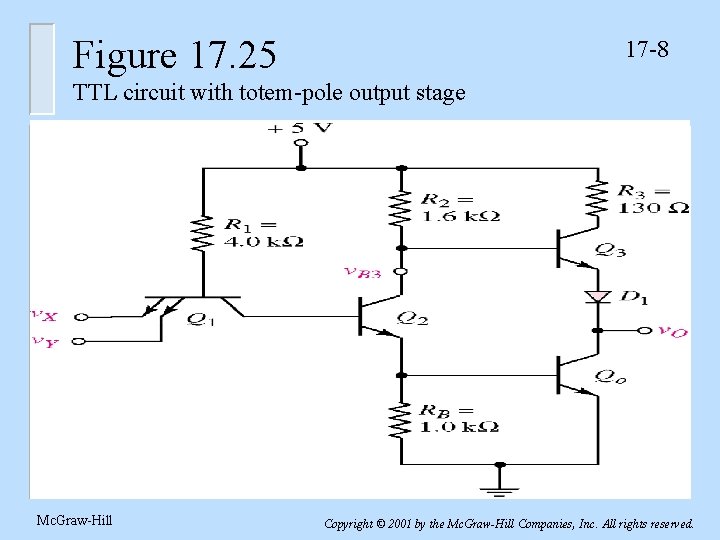

Figure 17. 25 17 -8 TTL circuit with totem-pole output stage Mc. Graw-Hill Copyright © 2001 by the Mc. Graw-Hill Companies, Inc. All rights reserved.

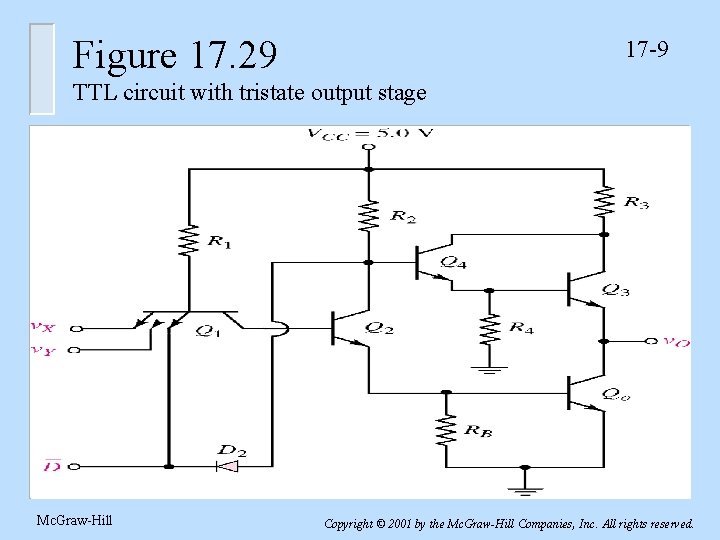

Figure 17. 29 17 -9 TTL circuit with tristate output stage Mc. Graw-Hill Copyright © 2001 by the Mc. Graw-Hill Companies, Inc. All rights reserved.

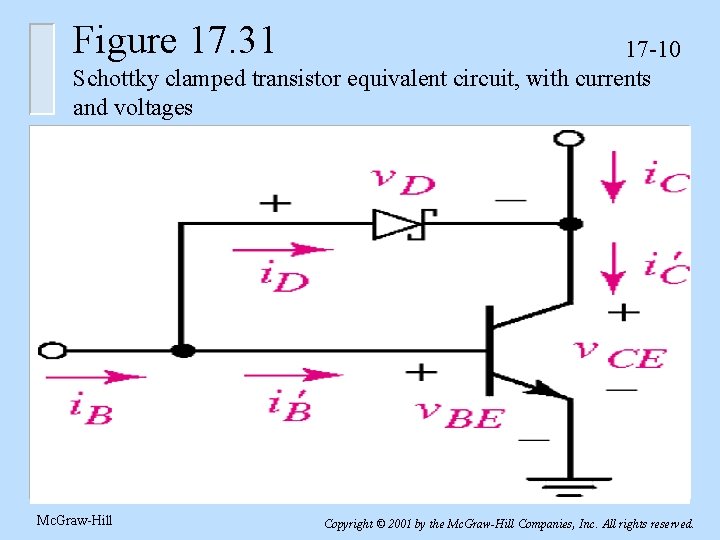

Figure 17. 31 17 -10 Schottky clamped transistor equivalent circuit, with currents and voltages Mc. Graw-Hill Copyright © 2001 by the Mc. Graw-Hill Companies, Inc. All rights reserved.

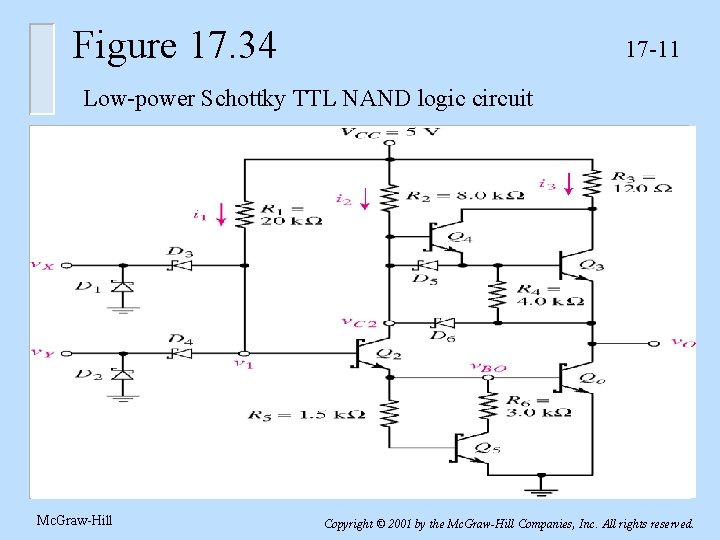

Figure 17. 34 17 -11 Low-power Schottky TTL NAND logic circuit Mc. Graw-Hill Copyright © 2001 by the Mc. Graw-Hill Companies, Inc. All rights reserved.

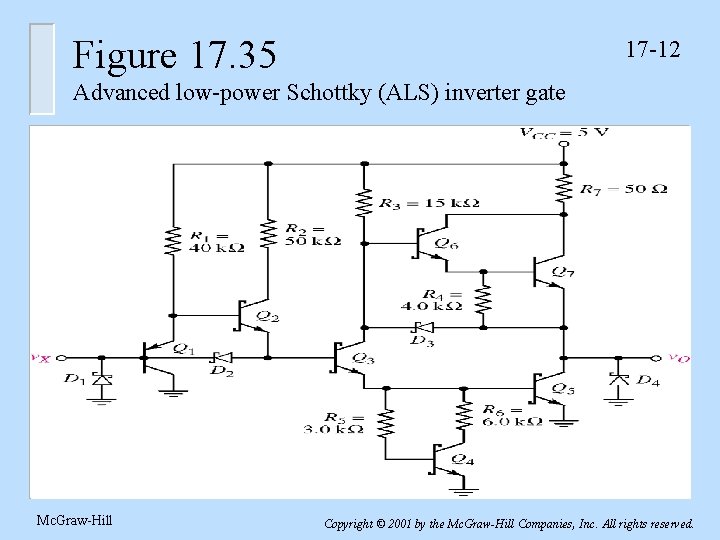

Figure 17. 35 17 -12 Advanced low-power Schottky (ALS) inverter gate Mc. Graw-Hill Copyright © 2001 by the Mc. Graw-Hill Companies, Inc. All rights reserved.
