Chapter Fourteen Streams & Floods

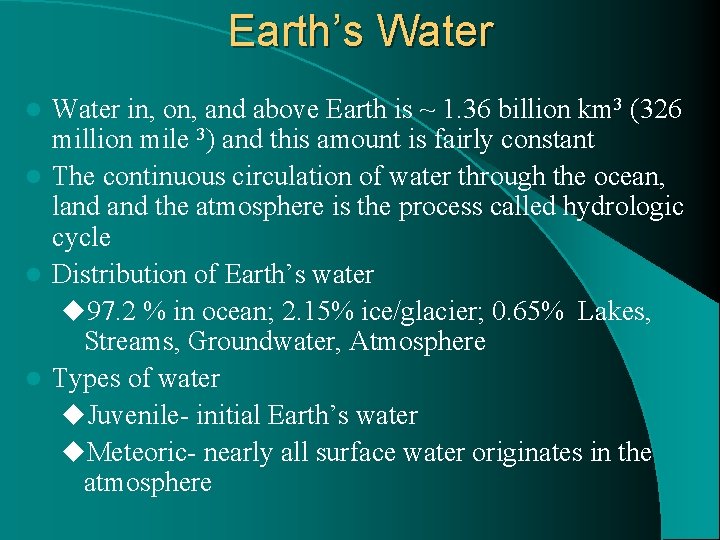

Earth’s Water in, on, and above Earth is ~ 1. 36 billion km 3 (326 million mile 3) and this amount is fairly constant l The continuous circulation of water through the ocean, land the atmosphere is the process called hydrologic cycle l Distribution of Earth’s water u 97. 2 % in ocean; 2. 15% ice/glacier; 0. 65% Lakes, Streams, Groundwater, Atmosphere l Types of water u. Juvenile- initial Earth’s water u. Meteoric- nearly all surface water originates in the atmosphere l

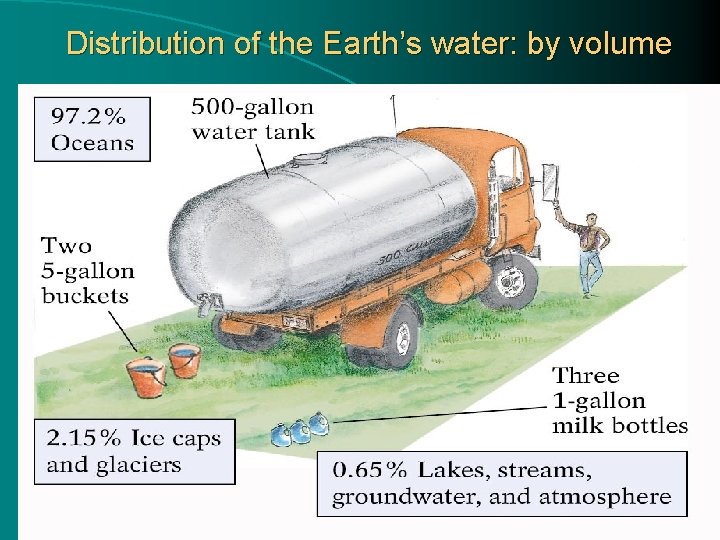

Distribution of the Earth’s water: by volume
Hydrologic Cycle
A stream system network

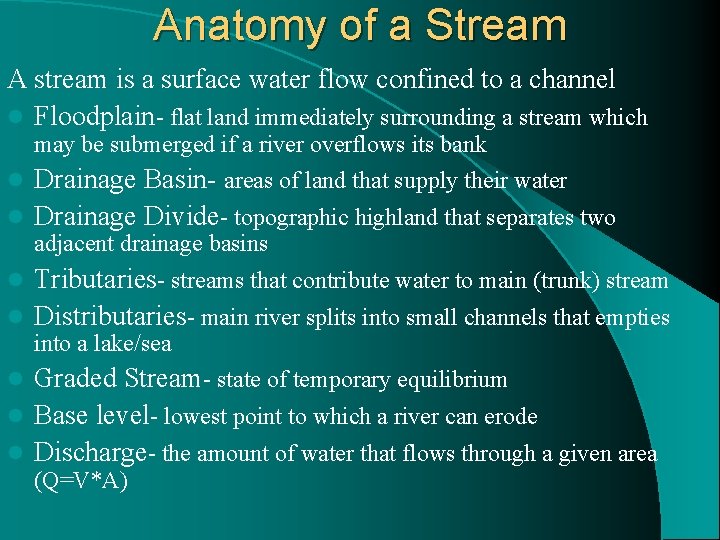

Anatomy of a Stream A stream is a surface water flow confined to a channel l Floodplain- flat land immediately surrounding a stream which may be submerged if a river overflows its bank Drainage Basin- areas of land that supply their water l Drainage Divide- topographic highland that separates two l adjacent drainage basins Tributaries- streams that contribute water to main (trunk) stream l Distributaries- main river splits into small channels that empties l into a lake/sea Graded Stream- state of temporary equilibrium l Base level- lowest point to which a river can erode l Discharge- the amount of water that flows through a given area l (Q=V*A)

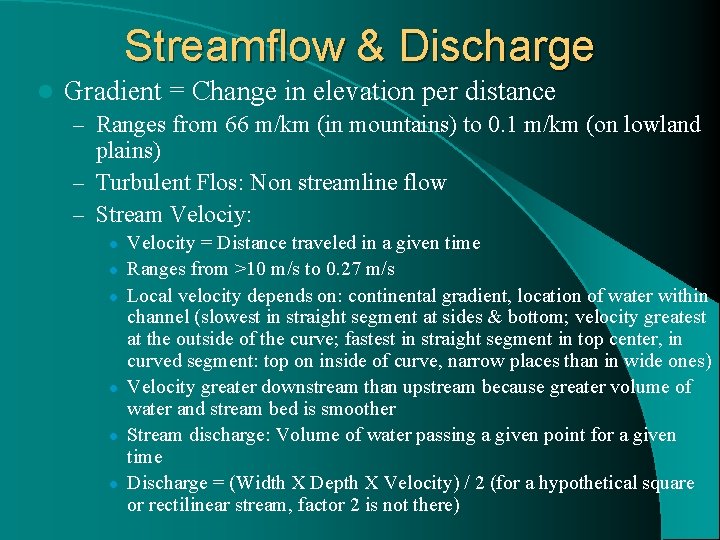

Streamflow & Discharge l Gradient = Change in elevation per distance – Ranges from 66 m/km (in mountains) to 0. 1 m/km (on lowland plains) – Turbulent Flos: Non streamline flow – Stream Velociy: l l l Velocity = Distance traveled in a given time Ranges from >10 m/s to 0. 27 m/s Local velocity depends on: continental gradient, location of water within channel (slowest in straight segment at sides & bottom; velocity greatest at the outside of the curve; fastest in straight segment in top center, in curved segment: top on inside of curve, narrow places than in wide ones) Velocity greater downstream than upstream because greater volume of water and stream bed is smoother Stream discharge: Volume of water passing a given point for a given time Discharge = (Width X Depth X Velocity) / 2 (for a hypothetical square or rectilinear stream, factor 2 is not there)
Streamflow and Discharge – contd. l Discharge depends on: – Size of drainage basin – Amount of precipitation in basin – Ranges from 200, 000 to 5 m 3/s (one day in Amazon for more than 5 yrs of New York need) – GEOLOGICAL WORK OF STREAMS Stream Erosion l Graded Streams- No net erosion, no net deposition (dynamic equilibrium) l u Aggregation- too much sediments-increased sediment load – steeper gradient – increases stream’s velocity - Regrading u Degradation- occurs when there is less sediments – steeper gradient - Regrading u Abrasion: Scouring of Particles u Hydraulic lifting – Erosion by water pressure
Stream Transport Streams erode their networks of tributary valleys and distinctive drainage patterns. A drainage pattern is a reflection of the underlying rock material or structure. l Drainage Types (Patterns) u Dendritic: Branching drainage pattern – develop on relatively flat sedimentary rocks u Radial: Streams typically drain from a Central high area like spoks of a wheel u Rectangular: Looks like a grid of city streets u Trellis: Develops where narrow valleys are separated by parallel ridges Stream Piracy l Superposed/Antecedent streams l Channel patterns- straight, braided or meandering, oxbow lake l

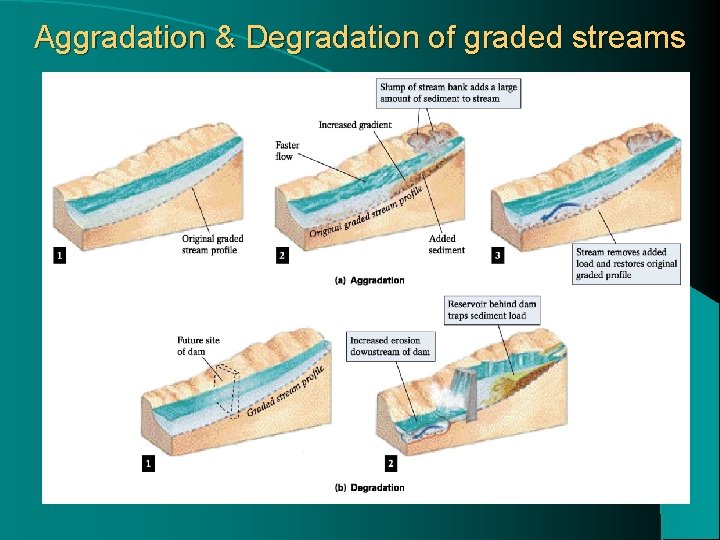

Aggradation & Degradation of graded streams
Four types of drainage pattern

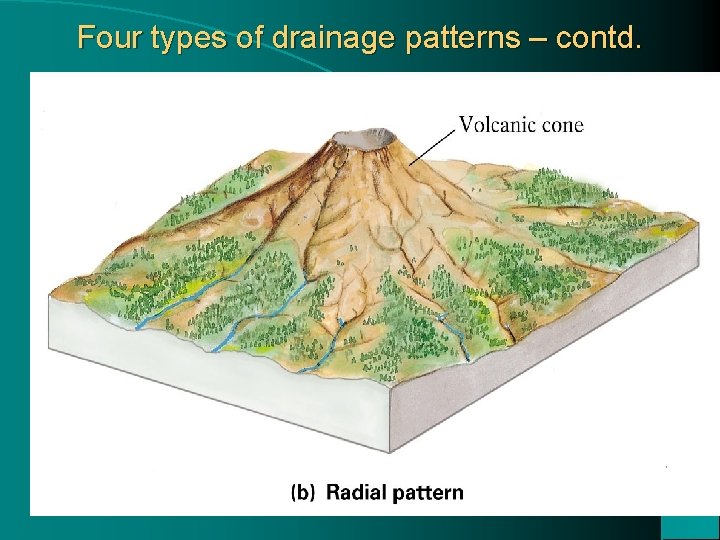

Four types of drainage patterns – contd.

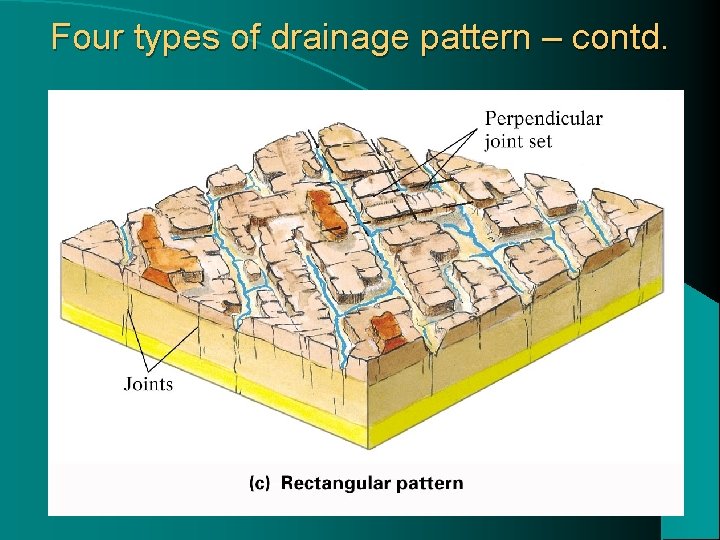

Four types of drainage pattern – contd.

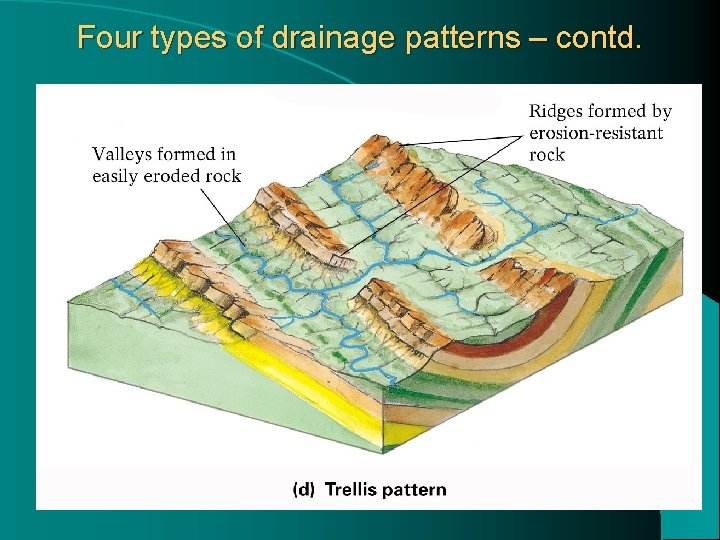

Four types of drainage patterns – contd.

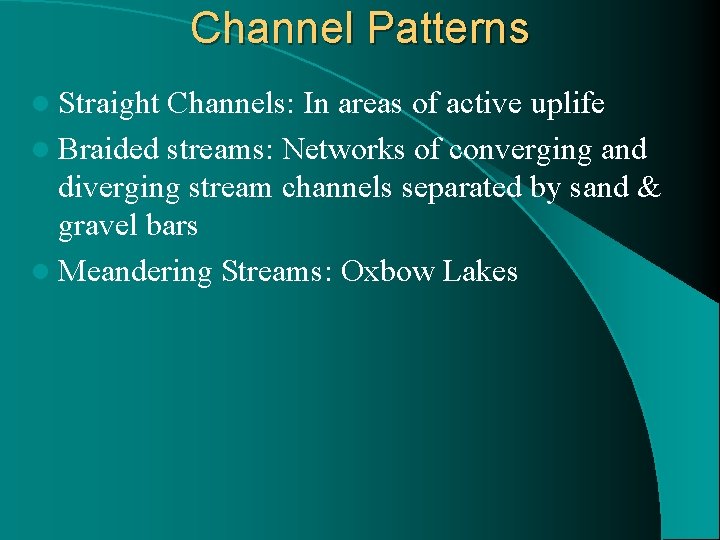

Channel Patterns l Straight Channels: In areas of active uplife l Braided streams: Networks of converging and diverging stream channels separated by sand & gravel bars l Meandering Streams: Oxbow Lakes

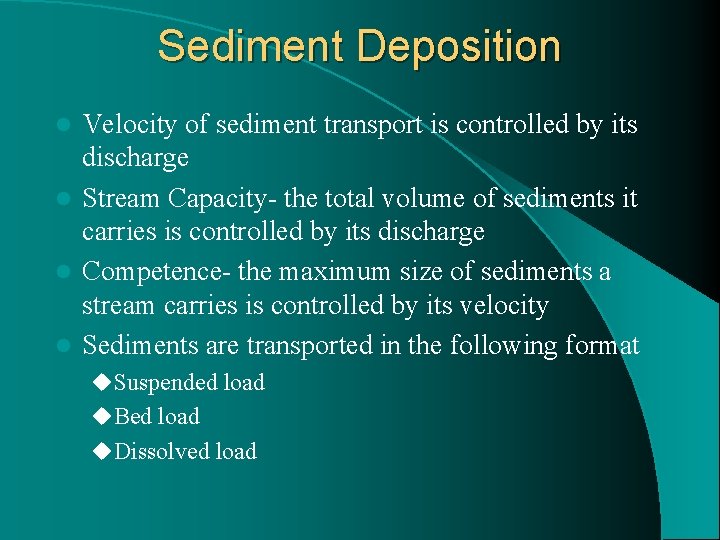

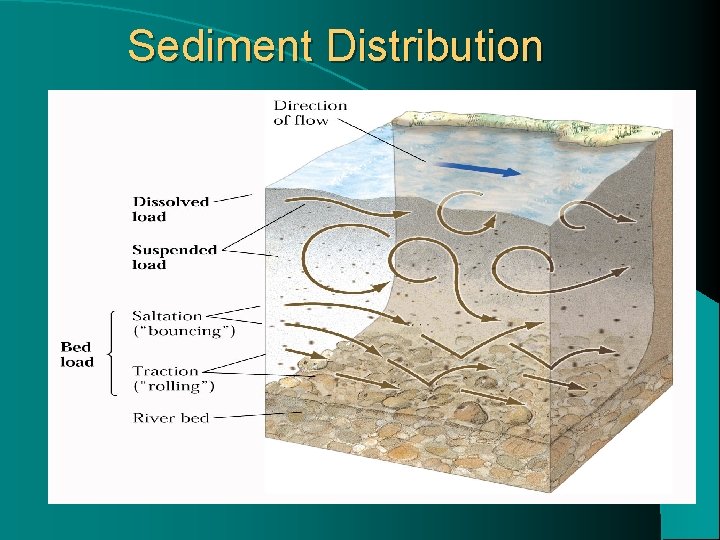

Sediment Deposition Velocity of sediment transport is controlled by its discharge l Stream Capacity- the total volume of sediments it carries is controlled by its discharge l Competence- the maximum size of sediments a stream carries is controlled by its velocity l Sediments are transported in the following format l u Suspended load u Bed load u Dissolved load

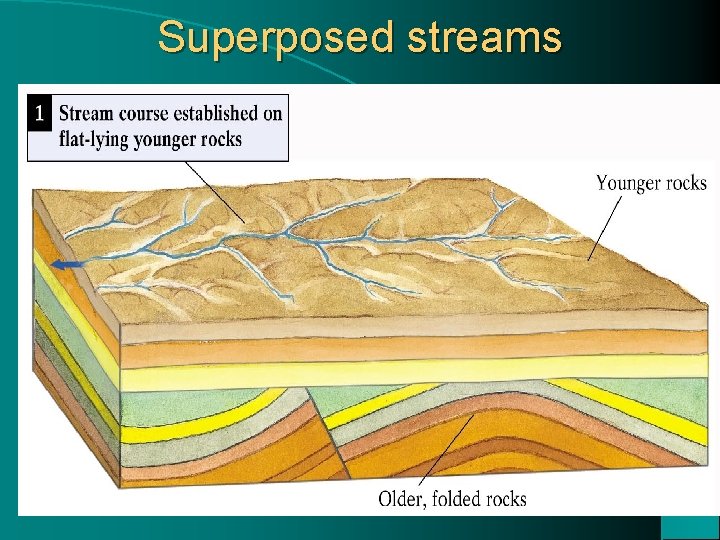

Superposed streams
Superposed streams – contd.

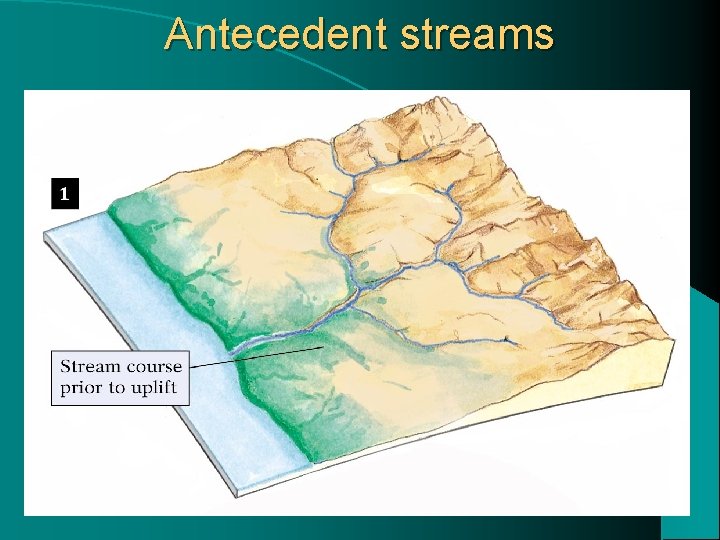

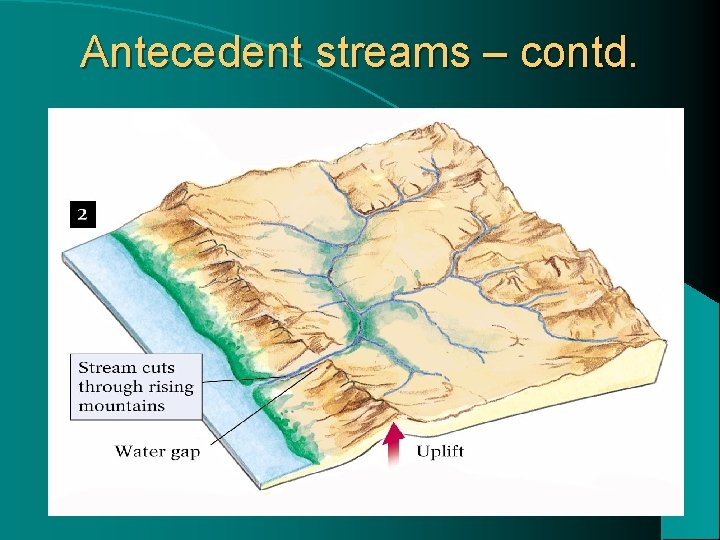

Antecedent streams
Antecedent streams – contd.
Antecedent streams – contd.

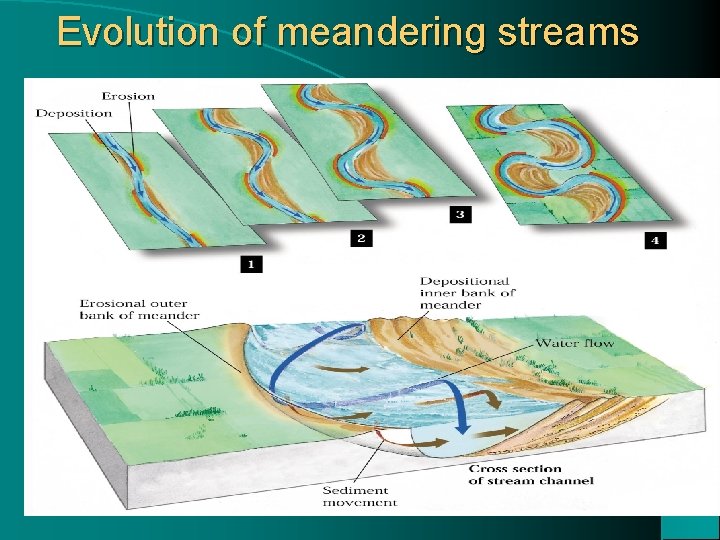

Evolution of meandering streams
Pronounced stream meander bends

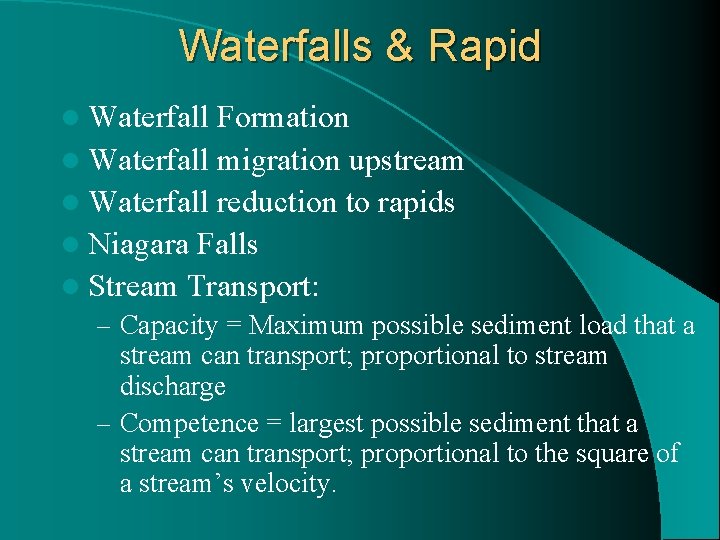

Waterfalls & Rapid l Waterfall Formation l Waterfall migration upstream l Waterfall reduction to rapids l Niagara Falls l Stream Transport: – Capacity = Maximum possible sediment load that a stream can transport; proportional to stream discharge – Competence = largest possible sediment that a stream can transport; proportional to the square of a stream’s velocity.

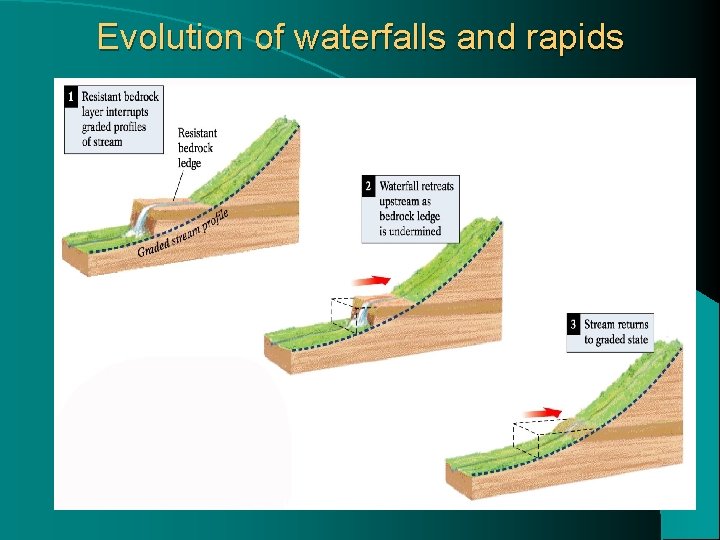

Evolution of waterfalls and rapids

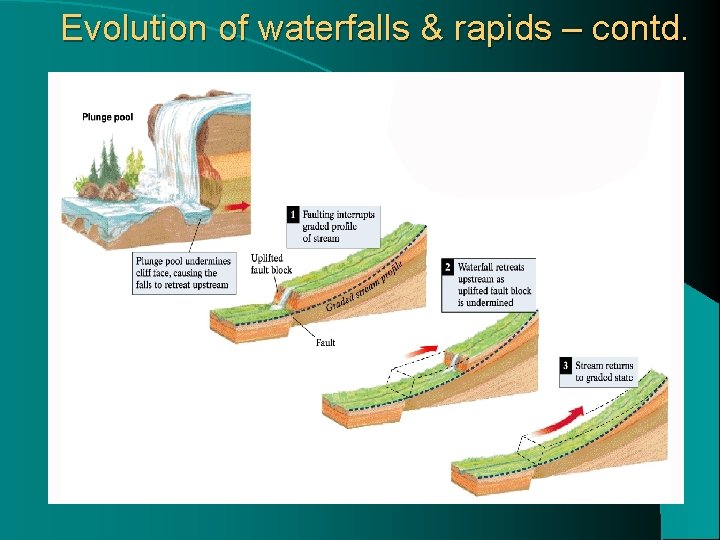

Evolution of waterfalls & rapids – contd.

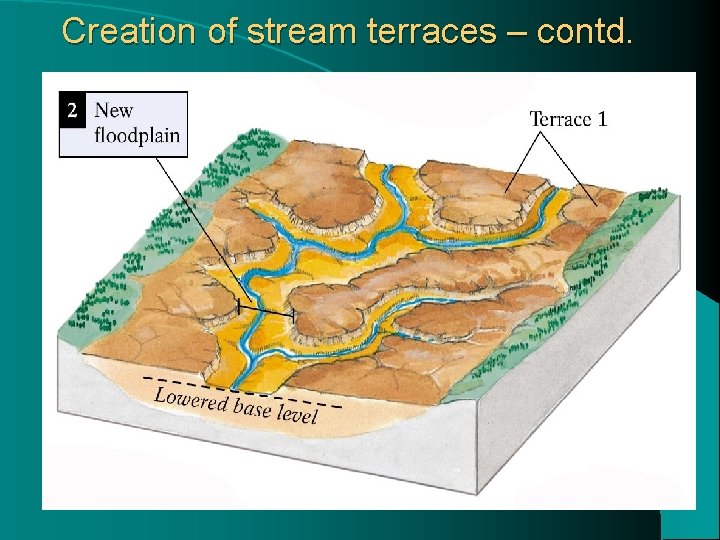

The creation of stream terraces
Creation of stream terraces – contd.
Creation of stream terraces – contd.
Sediment Distribution

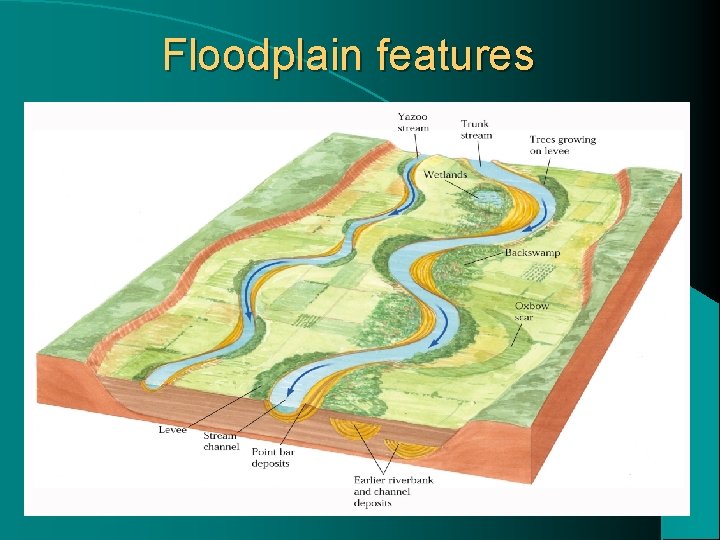

Floodplain features

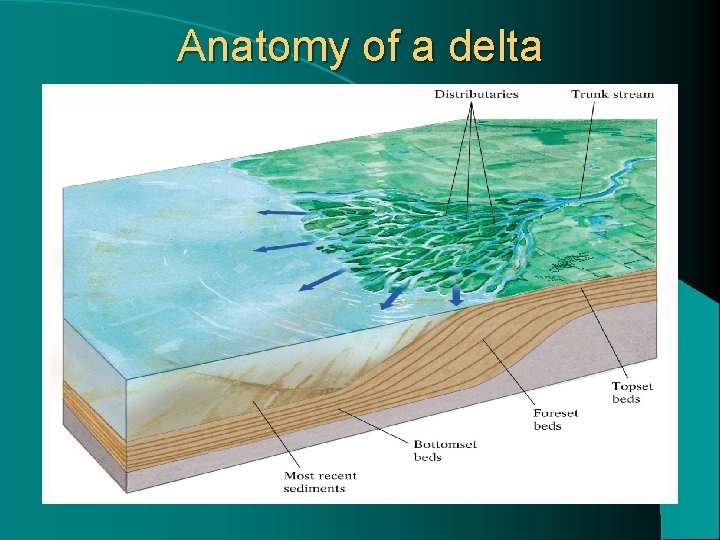

Anatomy of a delta

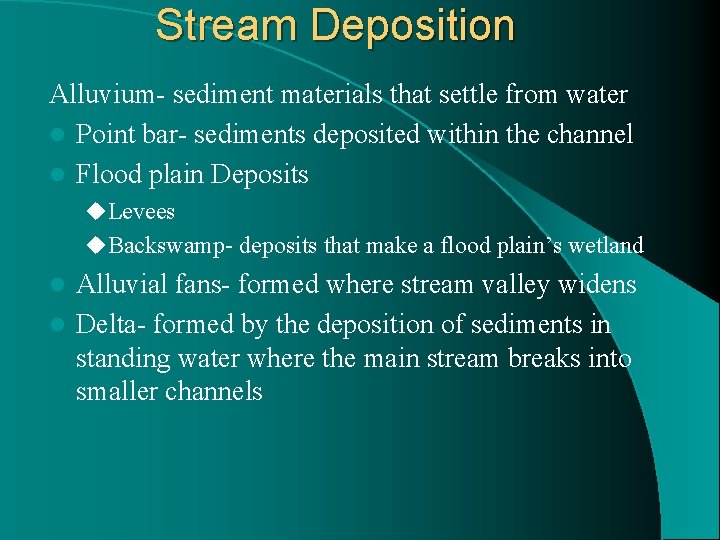

Stream Deposition Alluvium- sediment materials that settle from water l Point bar- sediments deposited within the channel l Flood plain Deposits u Levees u Backswamp- deposits that make a flood plain’s wetland Alluvial fans- formed where stream valley widens l Delta- formed by the deposition of sediments in standing water where the main stream breaks into smaller channels l
Large sediment loads
The evolution of the Mississippi River delta plain
Hydrographs - Illustrations
Hydrographs - Charts
A flood frequency curve for a hypothetical stream

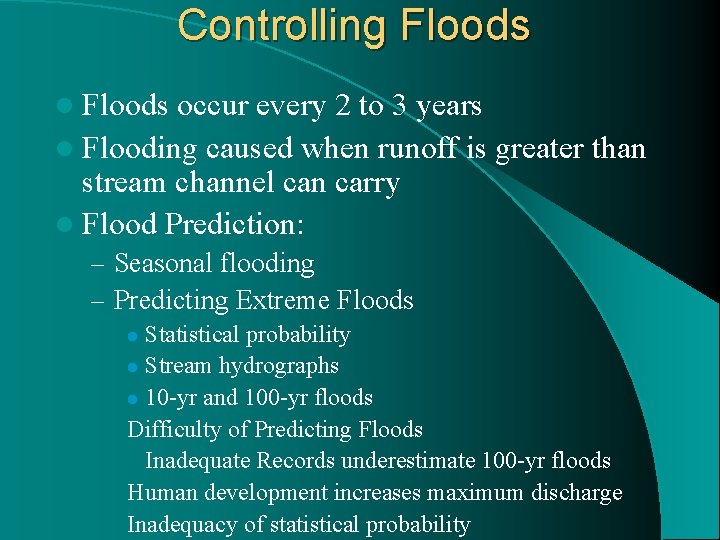

Controlling Floods l Floods occur every 2 to 3 years l Flooding caused when runoff is greater than stream channel can carry l Flood Prediction: – Seasonal flooding – Predicting Extreme Floods Statistical probability l Stream hydrographs l 10 -yr and 100 -yr floods Difficulty of Predicting Floods Inadequate Records underestimate 100 -yr floods Human development increases maximum discharge Inadequacy of statistical probability l
Flood Prevention l Artificial Strategies: – Artificial Levees & Flood walls – Flood-control dams – Channelization: Benefits and problems – Drawbacks to structural solutions: cost and false sense of security – Nonstructural Strategies: Identifying high-risk areas l Zoning against floodplain development l Managing resources to minimize floodwaters l
Artificial levees & flood wells

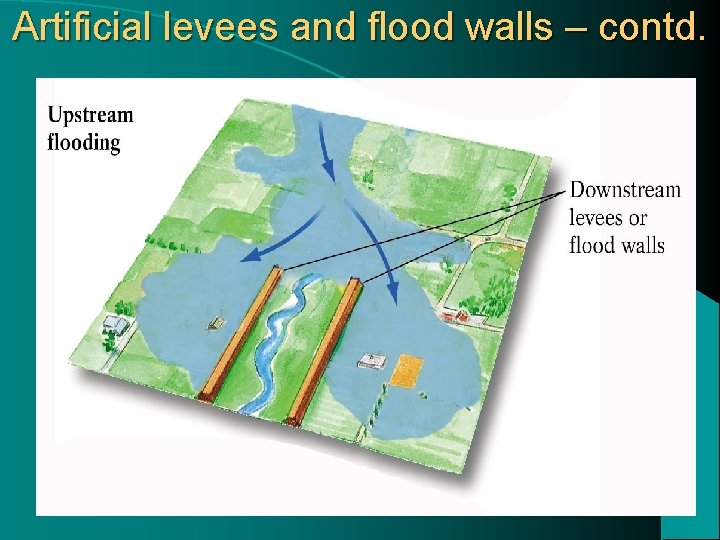

Artificial levees and flood walls – contd.
Artificial levees & flood walls – contd.
Flood-hazard map
