Models of Chemical Bonding 9. 1 Atomic Properties and Chemical Bonds 9. 2 The Ionic Bonding Model 9. 3 The Covalent Bonding Model 9. 4 Between the Extremes: Electronegativity and Bond Polarity 9. 5 An Introduction to Metallic Bonding 9 -2

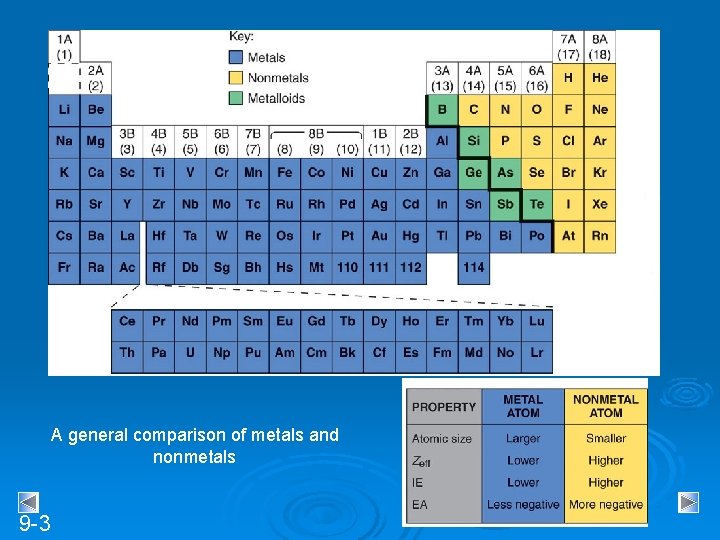

A general comparison of metals and nonmetals 9 -3

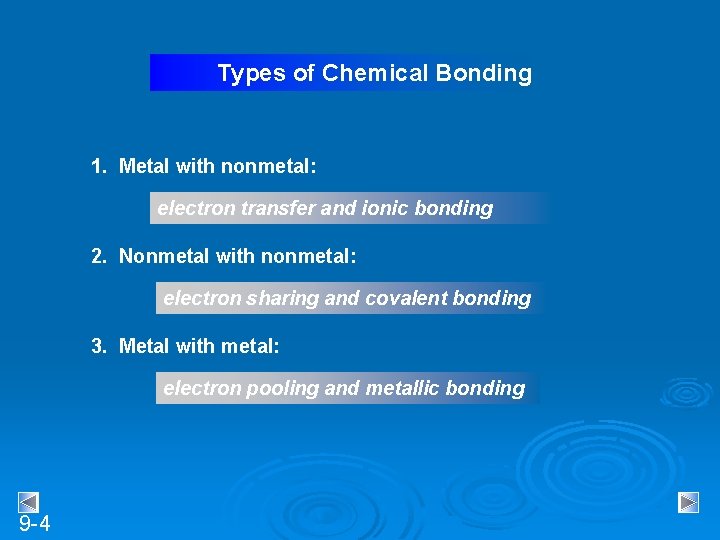

Types of Chemical Bonding 1. Metal with nonmetal: electron transfer and ionic bonding 2. Nonmetal with nonmetal: electron sharing and covalent bonding 3. Metal with metal: electron pooling and metallic bonding 9 -4

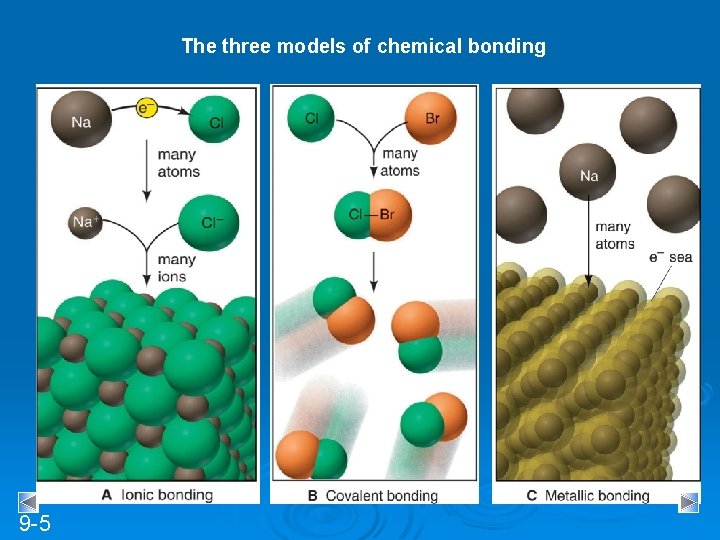

The three models of chemical bonding 9 -5

Lewis Electron-Dot Symbols For main group elements The A group number gives the number of valence electrons. Place one dot per valence electron on each of the four sides of the element symbol. Pair the dots (electrons) until all of the valence electrons are used. Example: Nitrogen, N, is in Group 5 A and therefore has 5 valence electrons. . : N. . 9 -6

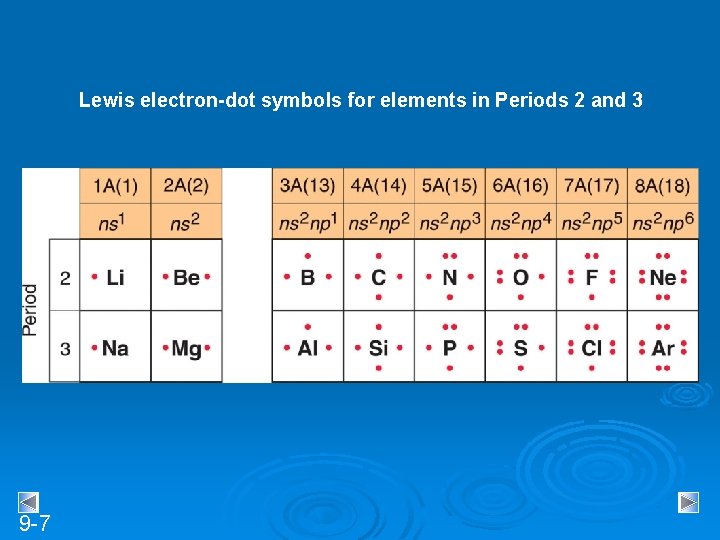

Lewis electron-dot symbols for elements in Periods 2 and 3 9 -7

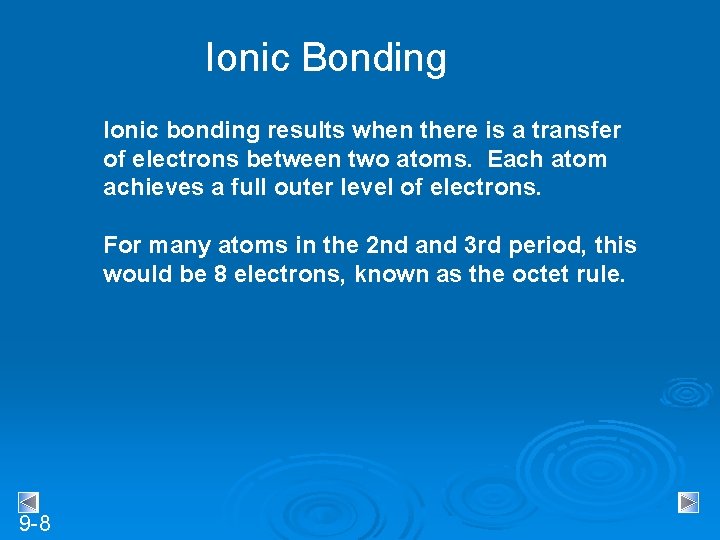

Ionic Bonding Ionic bonding results when there is a transfer of electrons between two atoms. Each atom achieves a full outer level of electrons. For many atoms in the 2 nd and 3 rd period, this would be 8 electrons, known as the octet rule. 9 -8

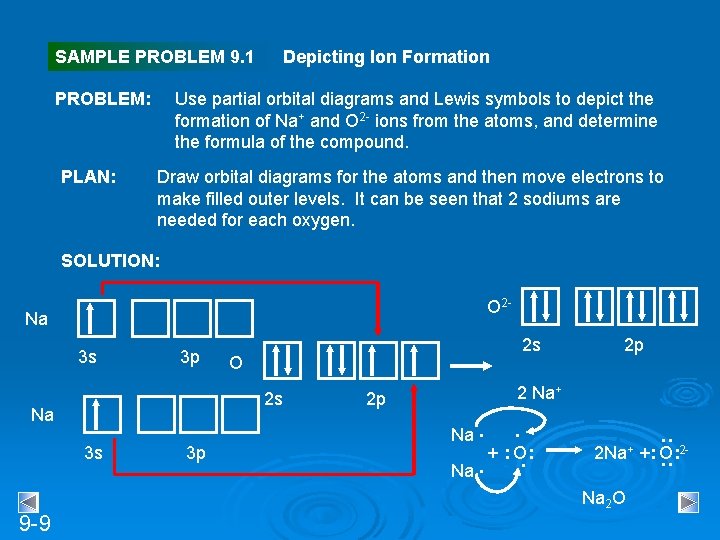

SAMPLE PROBLEM 9. 1 PROBLEM: PLAN: Depicting Ion Formation Use partial orbital diagrams and Lewis symbols to depict the formation of Na+ and O 2 - ions from the atoms, and determine the formula of the compound. Draw orbital diagrams for the atoms and then move electrons to make filled outer levels. It can be seen that 2 sodiums are needed for each oxygen. SOLUTION: O 2 - Na 2 s O 3 p Na + : O: 2 Na+ +: O : 2 - . 3 s : Na 2 Na+ 2 p : 2 s 2 p . 3 s Na 2 O 9 -9

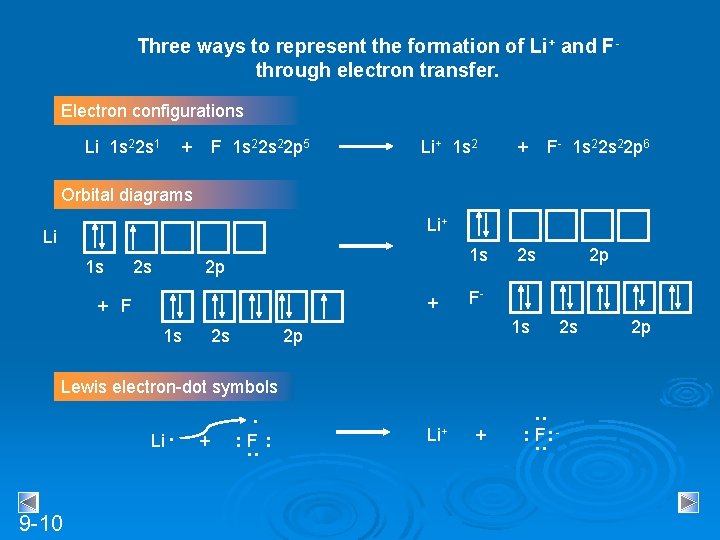

Three ways to represent the formation of Li+ and Fthrough electron transfer. Electron configurations Li 1 s 22 s 1 + F 1 s 22 p 5 Li+ 1 s 2 + F- 1 s 22 p 6 2 s 2 p Orbital diagrams Li+ Li 1 s 2 s 1 s 2 p + + F 1 s 2 s F 1 s 2 p 2 s Lewis electron-dot symbols : 9 -10 Li+ + : F: : + : Li. . : F: 2 p

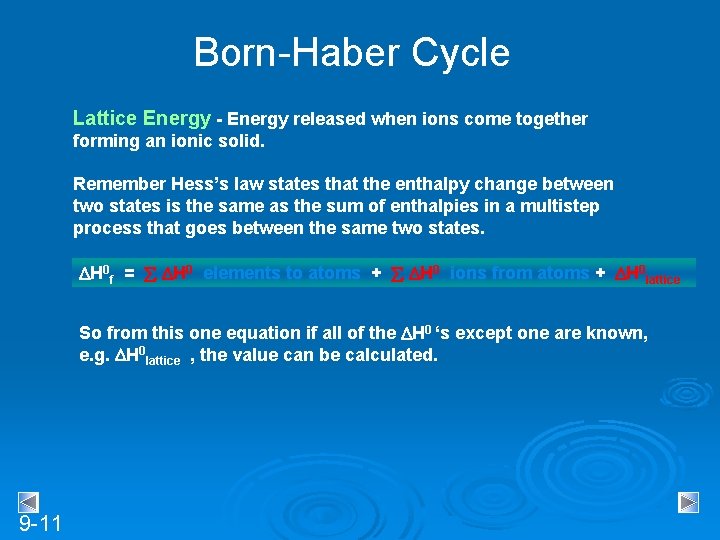

Born-Haber Cycle Lattice Energy - Energy released when ions come together forming an ionic solid. Remember Hess’s law states that the enthalpy change between two states is the same as the sum of enthalpies in a multistep process that goes between the same two states. H 0 f = H 0 elements to atoms + H 0 ions from atoms + H 0 lattice So from this one equation if all of the H 0 ‘s except one are known, e. g. H 0 lattice , the value can be calculated. 9 -11

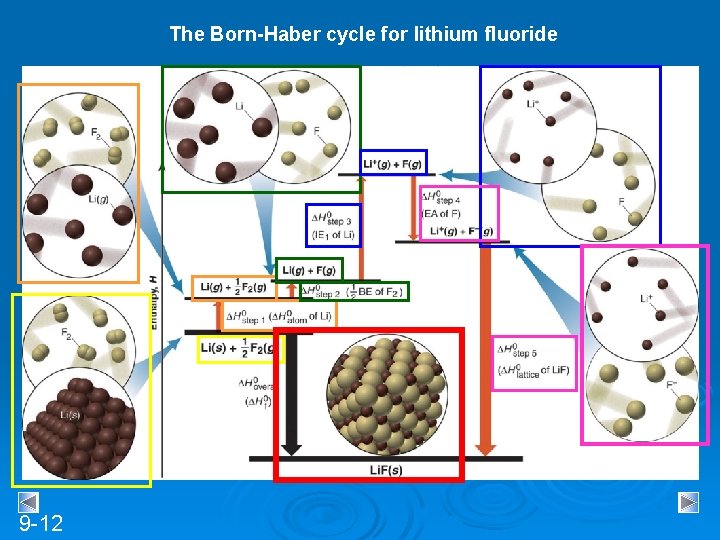

The Born-Haber cycle for lithium fluoride 9 -12

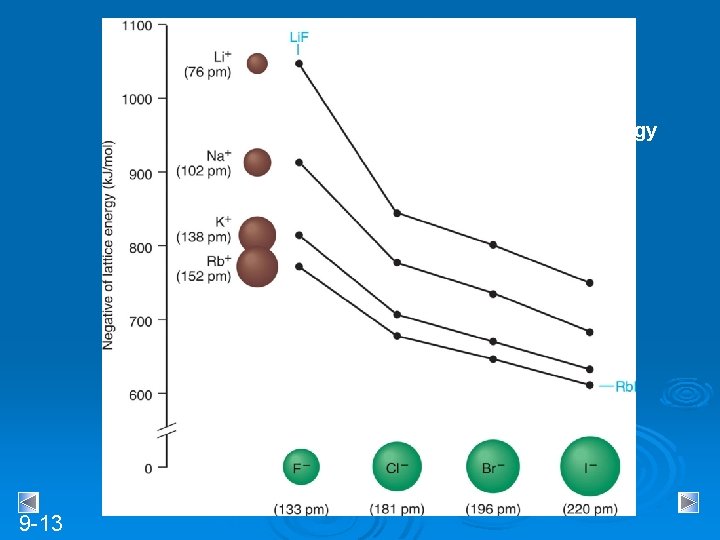

Trends in lattice energy 9 -13

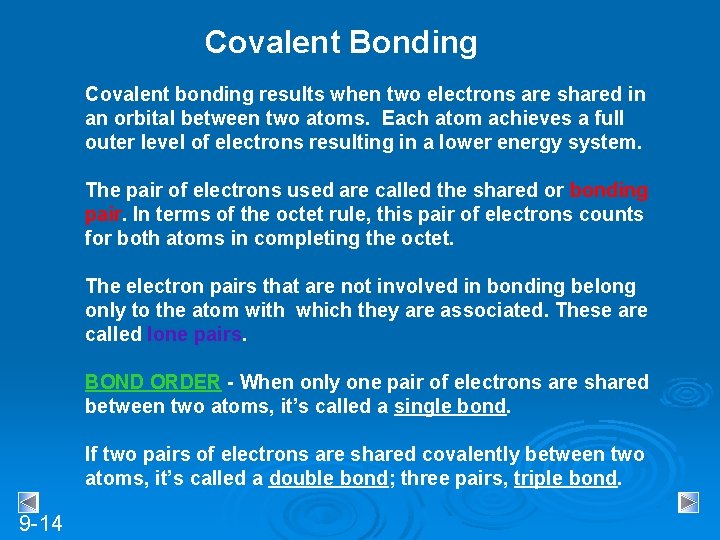

Covalent Bonding Covalent bonding results when two electrons are shared in an orbital between two atoms. Each atom achieves a full outer level of electrons resulting in a lower energy system. The pair of electrons used are called the shared or bonding pair. In terms of the octet rule, this pair of electrons counts for both atoms in completing the octet. The electron pairs that are not involved in bonding belong only to the atom with which they are associated. These are called lone pairs. BOND ORDER - When only one pair of electrons are shared between two atoms, it’s called a single bond. If two pairs of electrons are shared covalently between two atoms, it’s called a double bond; three pairs, triple bond. 9 -14

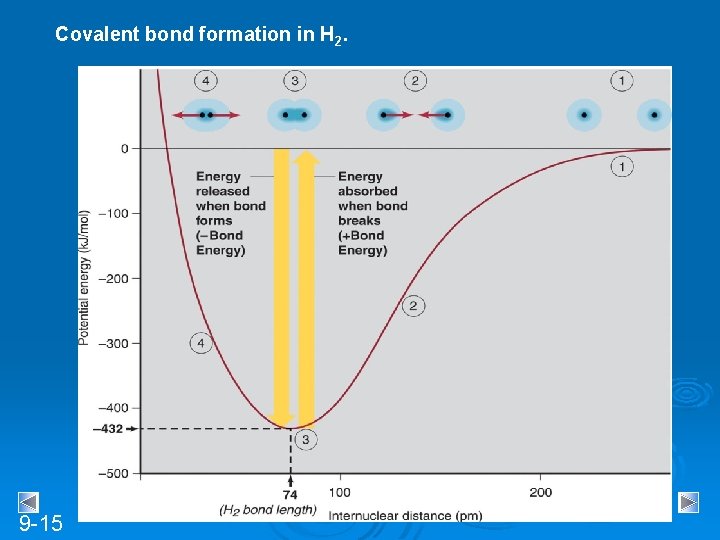

Covalent bond formation in H 2. 9 -15

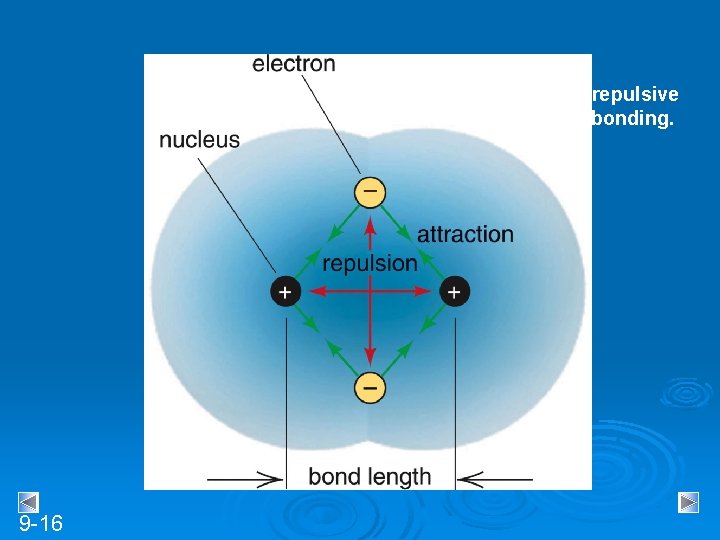

The attractive and repulsive forces in covalent bonding. 9 -16

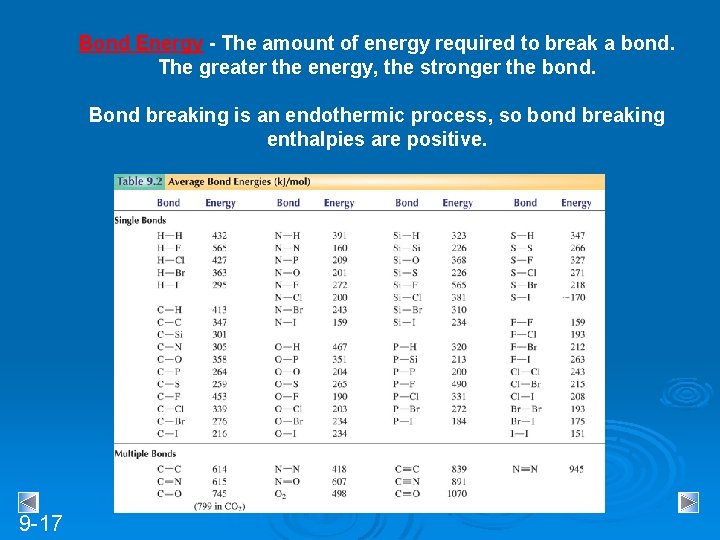

Bond Energy - The amount of energy required to break a bond. The greater the energy, the stronger the bond. Bond breaking is an endothermic process, so bond breaking enthalpies are positive. 9 -17

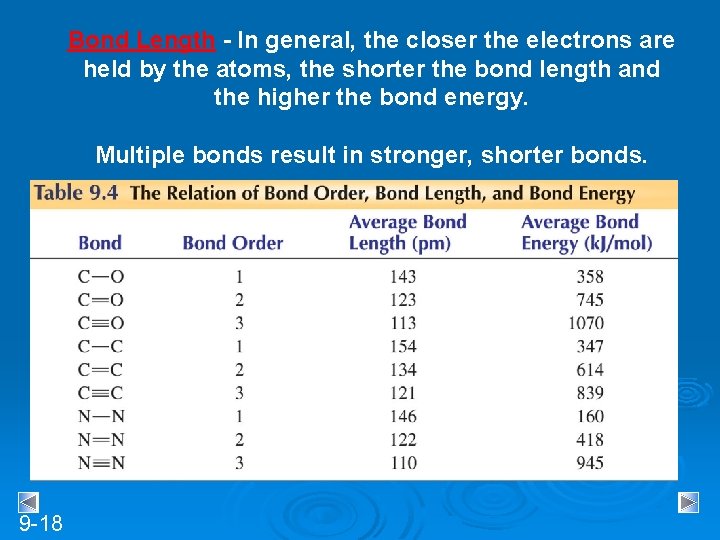

Bond Length - In general, the closer the electrons are held by the atoms, the shorter the bond length and the higher the bond energy. Multiple bonds result in stronger, shorter bonds. 9 -18

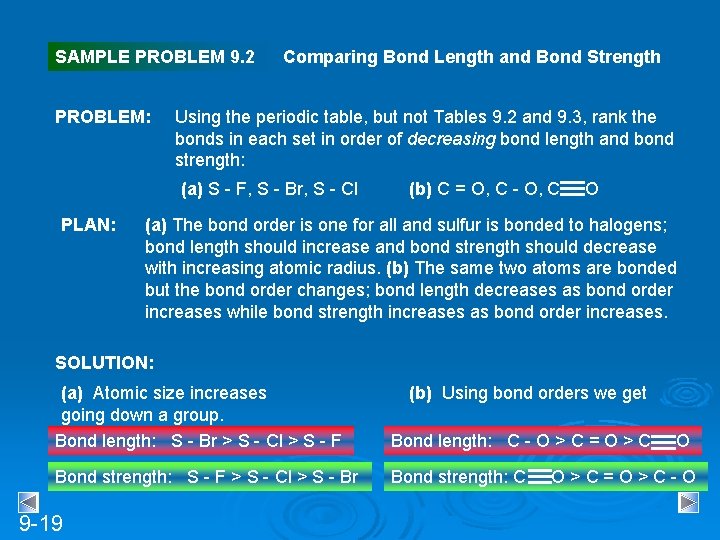

SAMPLE PROBLEM 9. 2 PROBLEM: Comparing Bond Length and Bond Strength Using the periodic table, but not Tables 9. 2 and 9. 3, rank the bonds in each set in order of decreasing bond length and bond strength: (a) S - F, S - Br, S - Cl PLAN: (b) C = O, C - O, C O (a) The bond order is one for all and sulfur is bonded to halogens; bond length should increase and bond strength should decrease with increasing atomic radius. (b) The same two atoms are bonded but the bond order changes; bond length decreases as bond order increases while bond strength increases as bond order increases. SOLUTION: (a) Atomic size increases going down a group. Bond length: S - Br > S - Cl > S - F Bond length: C - O > C = O > C Bond strength: S - F > S - Cl > S - Br Bond strength: C 9 -19 (b) Using bond orders we get O O>C=O>C-O

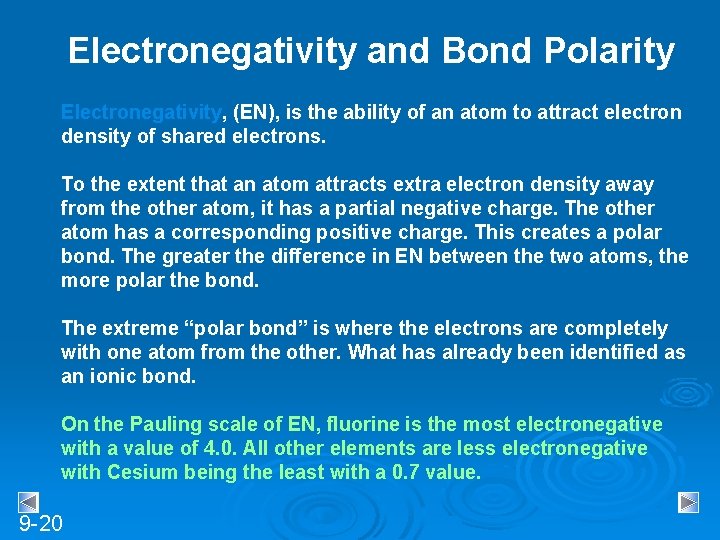

Electronegativity and Bond Polarity Electronegativity, (EN), is the ability of an atom to attract electron density of shared electrons. To the extent that an atom attracts extra electron density away from the other atom, it has a partial negative charge. The other atom has a corresponding positive charge. This creates a polar bond. The greater the difference in EN between the two atoms, the more polar the bond. The extreme “polar bond” is where the electrons are completely with one atom from the other. What has already been identified as an ionic bond. On the Pauling scale of EN, fluorine is the most electronegative with a value of 4. 0. All other elements are less electronegative with Cesium being the least with a 0. 7 value. 9 -20

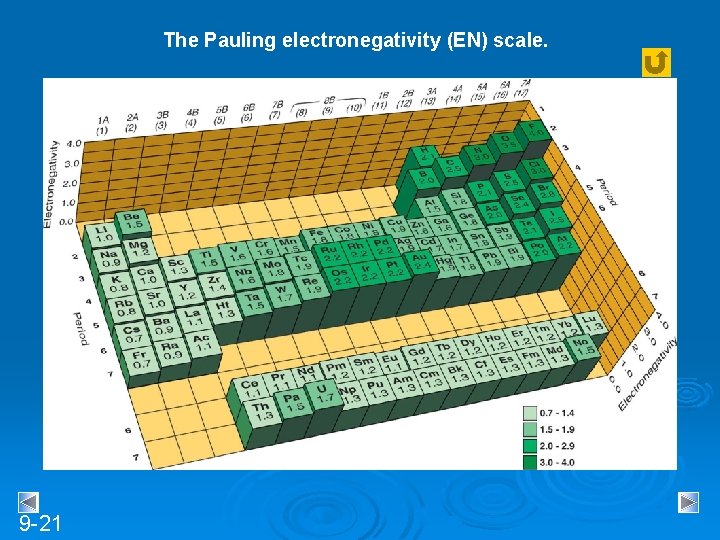

The Pauling electronegativity (EN) scale. 9 -21

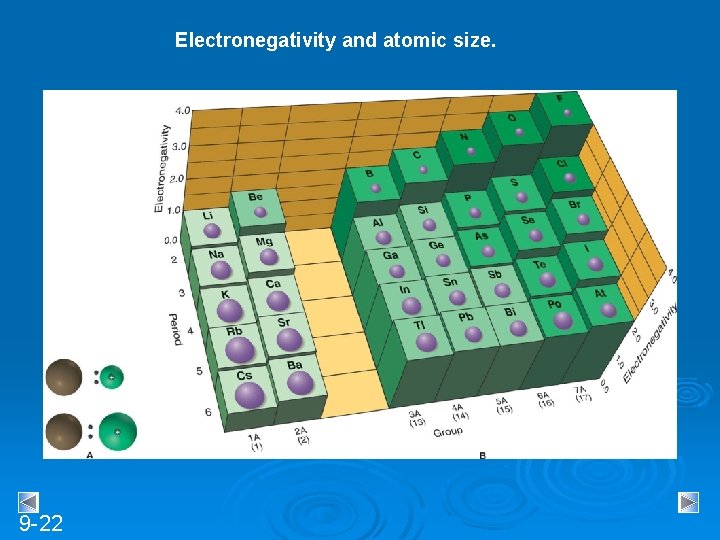

Electronegativity and atomic size. 9 -22

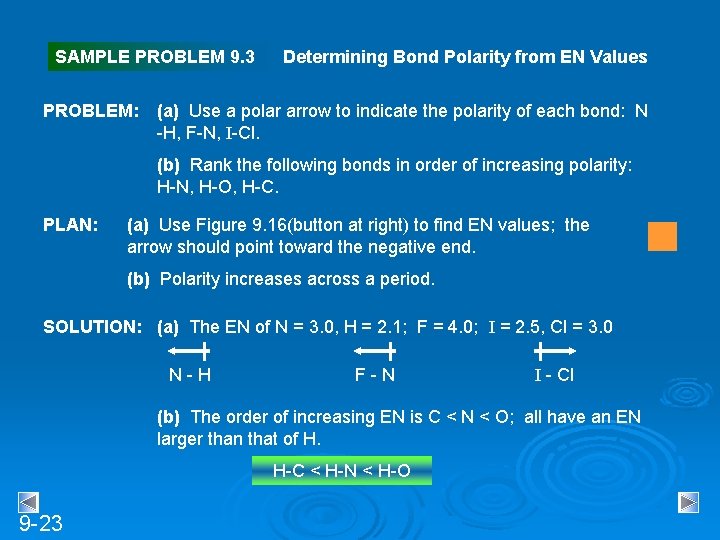

SAMPLE PROBLEM 9. 3 PROBLEM: Determining Bond Polarity from EN Values (a) Use a polar arrow to indicate the polarity of each bond: N -H, F-N, I-Cl. (b) Rank the following bonds in order of increasing polarity: H-N, H-O, H-C. PLAN: (a) Use Figure 9. 16(button at right) to find EN values; the arrow should point toward the negative end. (b) Polarity increases across a period. SOLUTION: (a) The EN of N = 3. 0, H = 2. 1; F = 4. 0; I = 2. 5, Cl = 3. 0 N-H F-N I - Cl (b) The order of increasing EN is C < N < O; all have an EN larger than that of H. H-C < H-N < H-O 9 -23

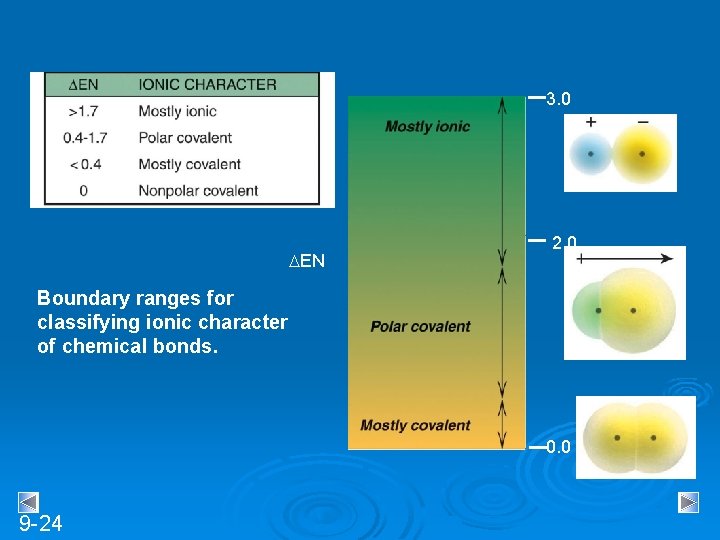

3. 0 DEN 2. 0 Boundary ranges for classifying ionic character of chemical bonds. 0. 0 9 -24

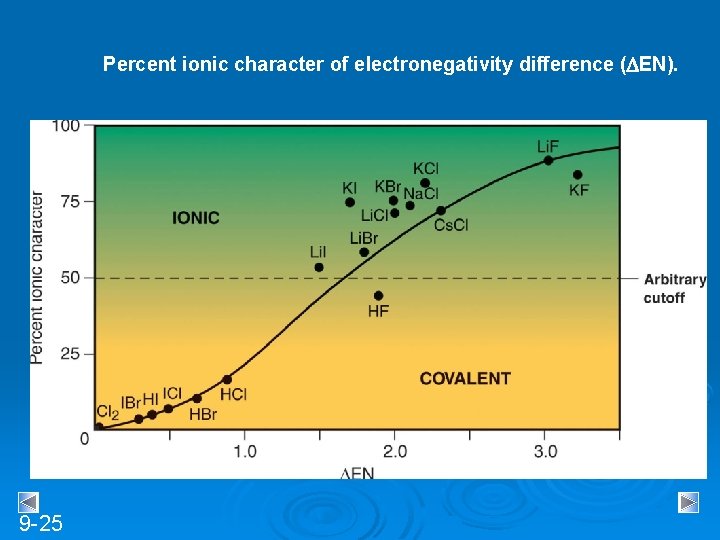

Percent ionic character of electronegativity difference ( EN). 9 -25

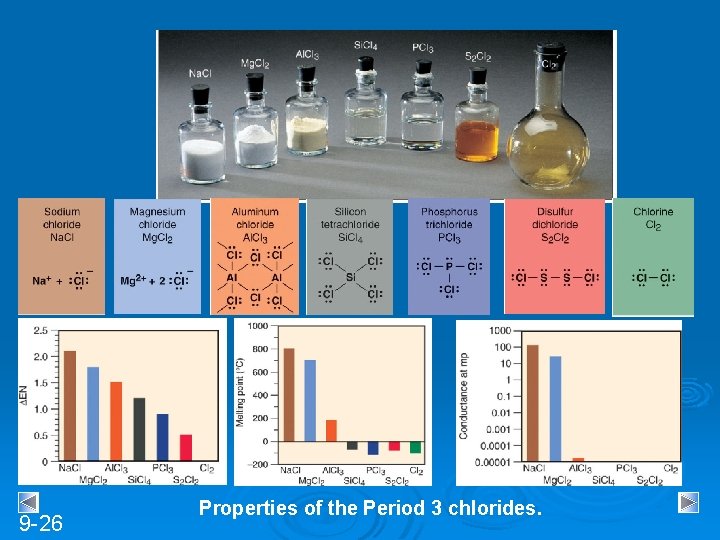

9 -26 Properties of the Period 3 chlorides.
