CHAPTER 9 Joints COMMON COURSE OBJECTIVES Joints Structural

CHAPTER 9 “Joints” COMMON COURSE OBJECTIVES: Joints: Structural and functional classification 2. Structure of a typical synovial joint 3. Types of synovial joints 4. Terms for descriptions of movements 1.

JOINTS – Defined: any place where two bones come together – General Function of Joints: - Hold the skeleton together - Allow for increased mobility and flexibility of skeleton

CLASSIFICATION OF JOINTS n Joints can be classified based on: -function (what kind of movement they allow) -structure (what material is found in the joint and if is there a joint cavity present). n You are required to know each of these categories.

Functional classification § Synarthroses – joints that have NO movement. – Examples: sutures of the skull, gomphoses- teeth § Amphiarthroses – partially movable joints. – Examples: intervertebral disc and pubic symphysis § Diarthroses – freely movable joints. The most common type of functional joint in the body. – Examples: knee joint, shoulder joint, finger joints, ankle and wrist joints, etc.

Structural Classification 1. Fibrous joints (synarthroses): adjacent bones are joined by collagen fibers. 3 kinds: - sutures, gomphoses and syndesmoses. 2. Cartilaginous joints (amphiarthroses): 3. Synovial joints (Diarthroses): freely movable and most common joint in the body. two bones are joined by cartilage. 2 kinds: - synchondroses, and symphyses.

Joint mobility comparison Note that as mobility decreases, stability increases.

Fibrous joints (synarthroses):

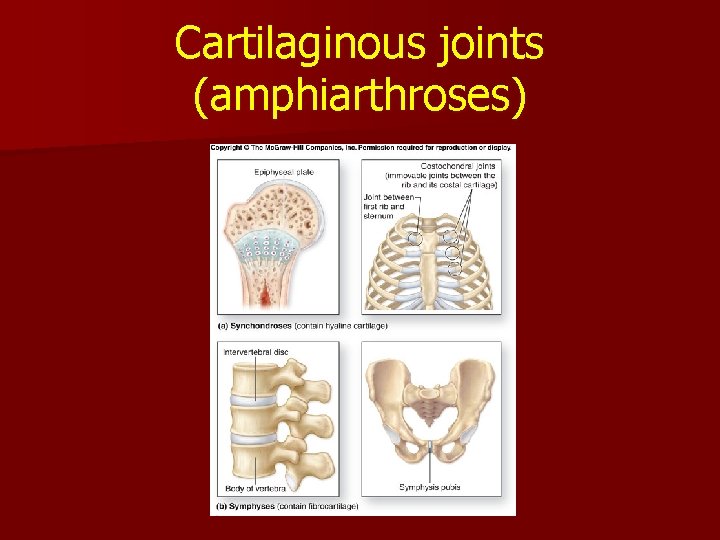

Cartilaginous joints (amphiarthroses)

Synovial Joints (diarthroses) § this type of joint is defined by the presence of a joint cavity filled with fluid. § Most joints of the body fall into this class. Examples: knee joint, elbow joint, shoulder and hip joints and the phalanges of hands and feet, etc.

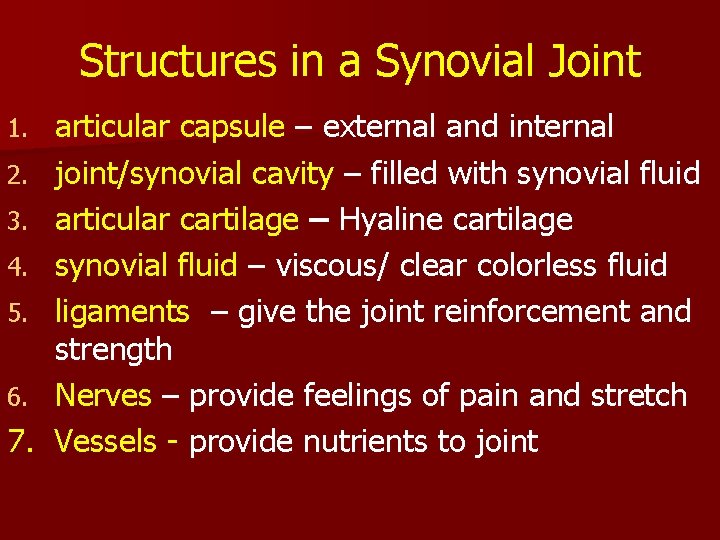

Structures in a Synovial Joint 1. 2. 3. 4. 5. 6. 7. articular capsule – external and internal joint/synovial cavity – filled with synovial fluid articular cartilage – Hyaline cartilage synovial fluid – viscous/ clear colorless fluid ligaments – give the joint reinforcement and strength Nerves – provide feelings of pain and stretch Vessels - provide nutrients to joint

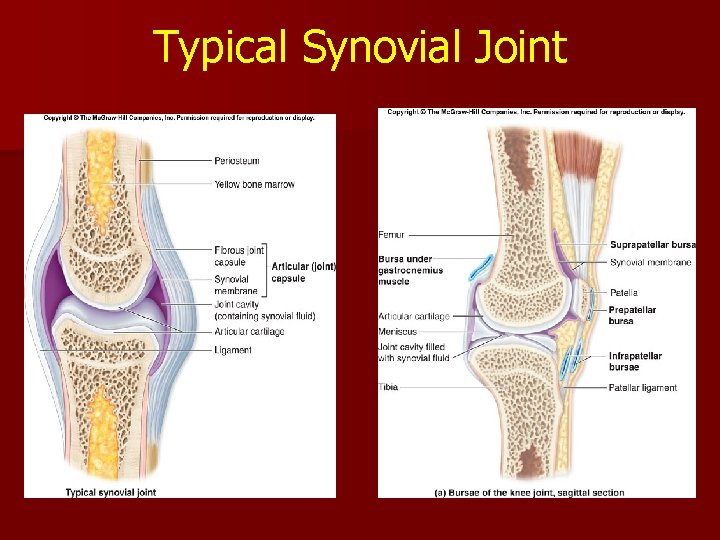

Typical Synovial Joint

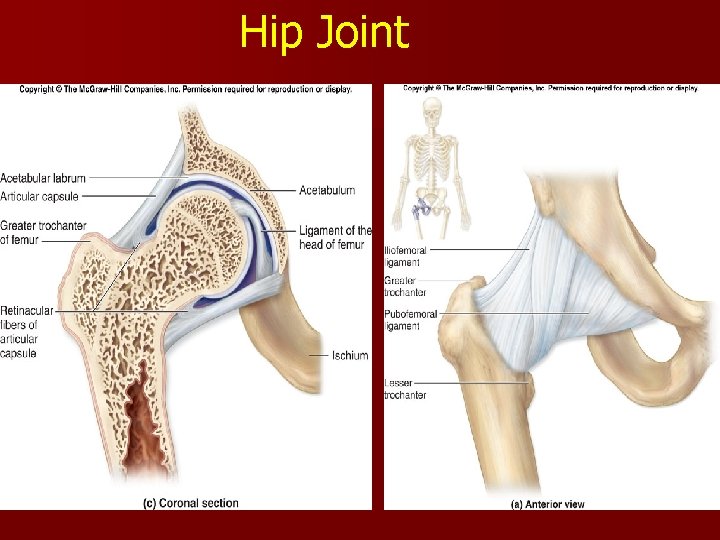

Hip Joint

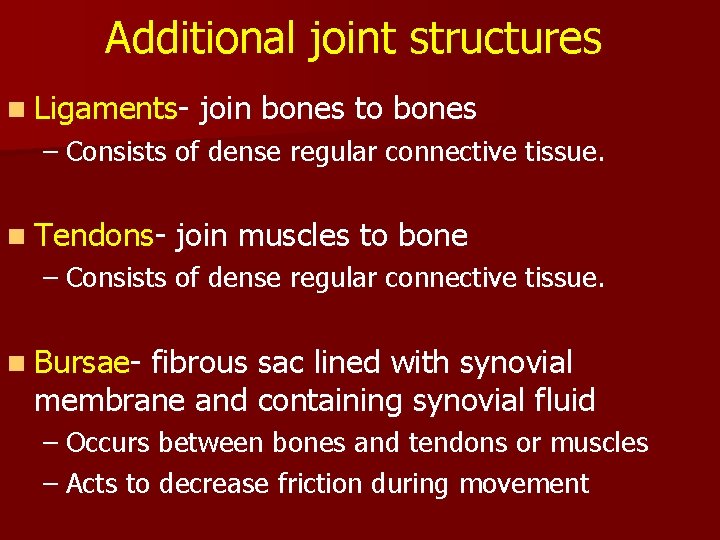

Additional joint structures n Ligaments- join bones to bones – Consists of dense regular connective tissue. n Tendons- join muscles to bone – Consists of dense regular connective tissue. n Bursae- fibrous sac lined with synovial membrane and containing synovial fluid – Occurs between bones and tendons or muscles – Acts to decrease friction during movement

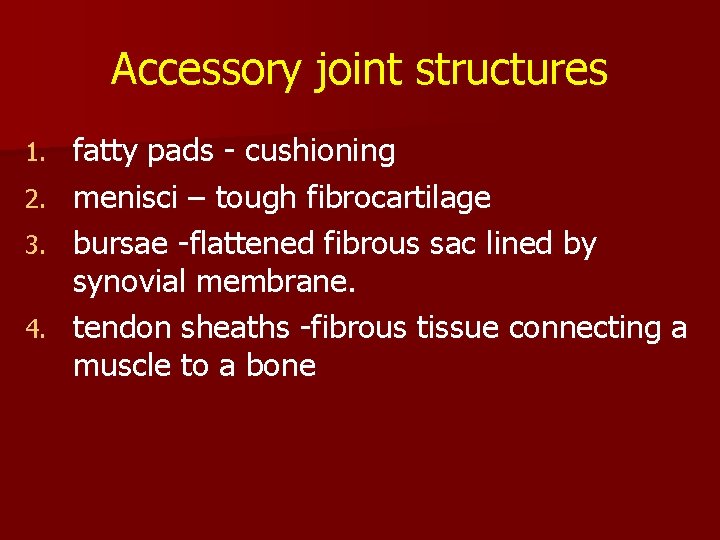

Accessory joint structures 1. 2. 3. 4. fatty pads - cushioning menisci – tough fibrocartilage bursae -flattened fibrous sac lined by synovial membrane. tendon sheaths -fibrous tissue connecting a muscle to a bone

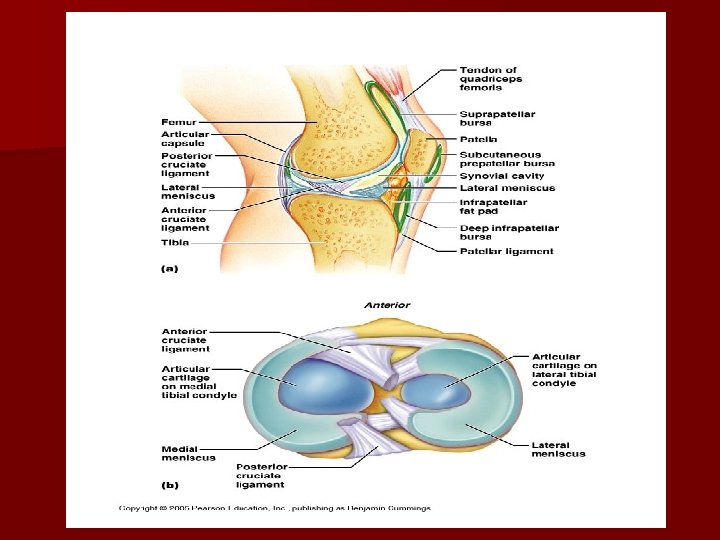

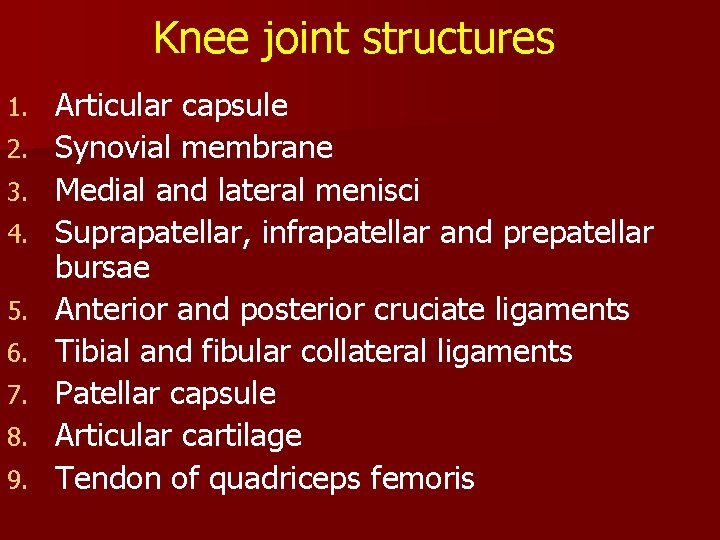

Knee joint structures 1. 2. 3. 4. 5. 6. 7. 8. 9. Articular capsule Synovial membrane Medial and lateral menisci Suprapatellar, infrapatellar and prepatellar bursae Anterior and posterior cruciate ligaments Tibial and fibular collateral ligaments Patellar capsule Articular cartilage Tendon of quadriceps femoris

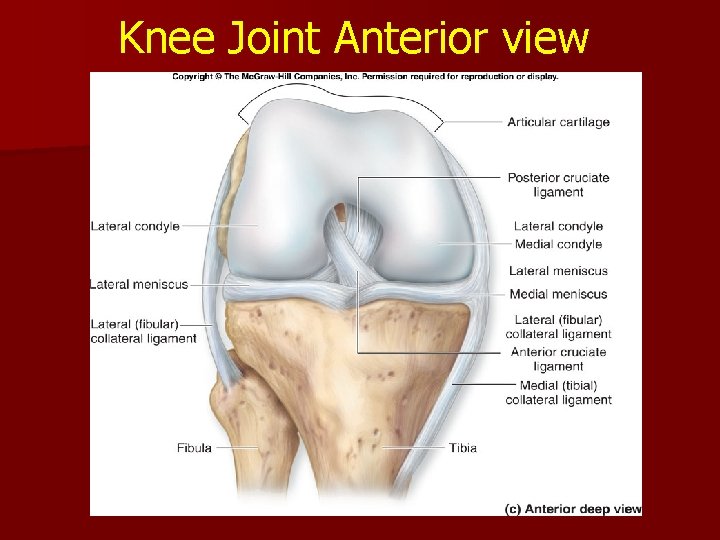

Knee Joint Anterior view

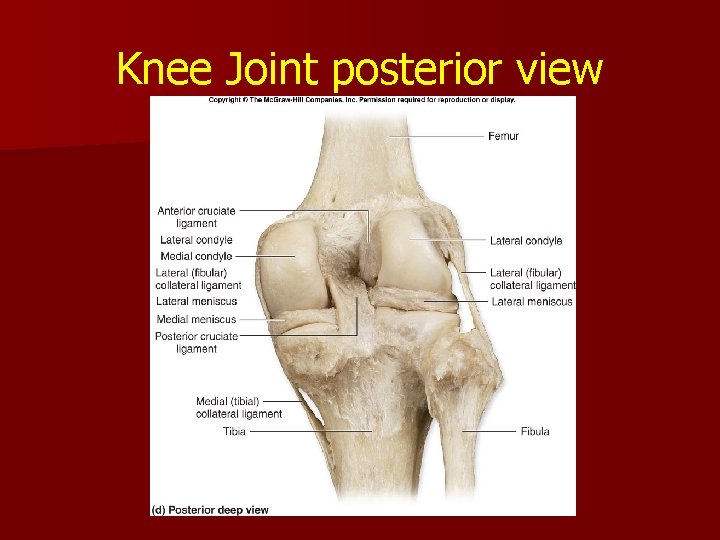

Knee Joint posterior view

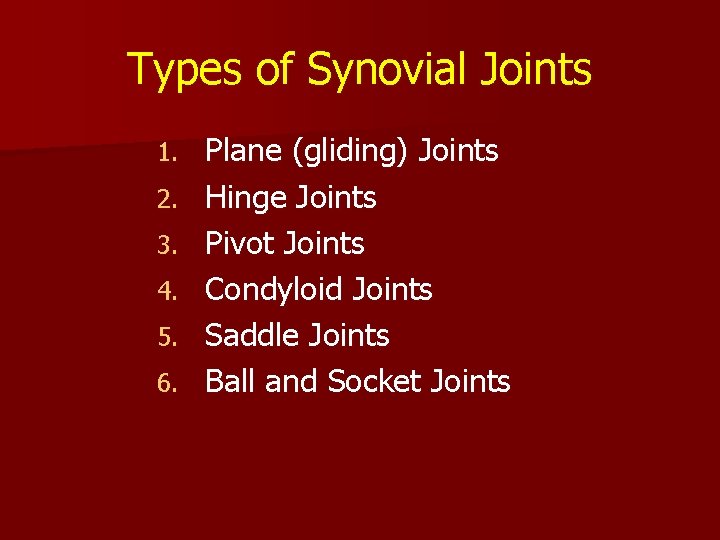

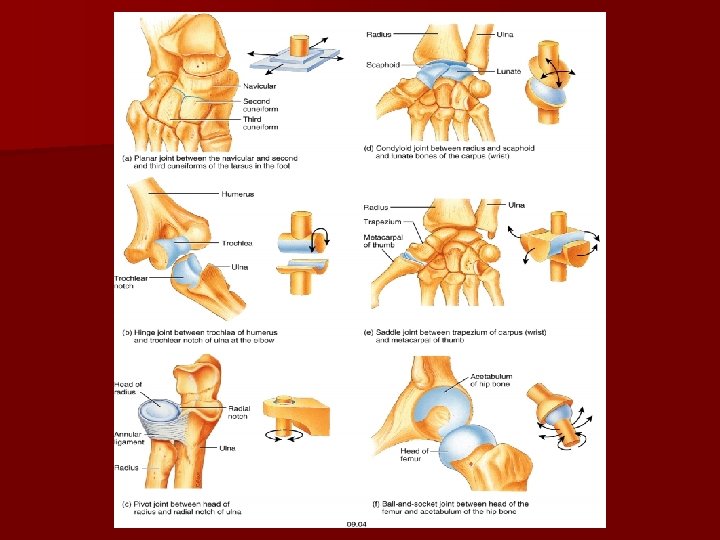

Types of Synovial Joints 1. 2. 3. 4. 5. 6. Plane (gliding) Joints Hinge Joints Pivot Joints Condyloid Joints Saddle Joints Ball and Socket Joints

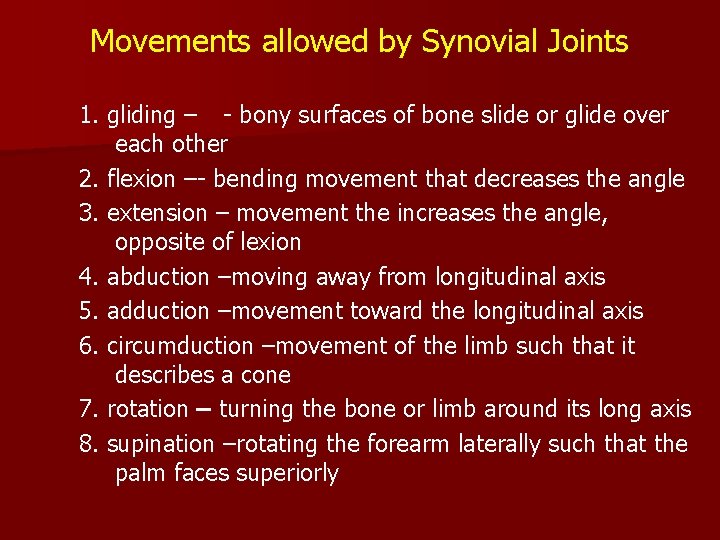

Movements allowed by Synovial Joints 1. gliding – - bony surfaces of bone slide or glide over each other 2. flexion –- bending movement that decreases the angle 3. extension – movement the increases the angle, opposite of lexion 4. abduction –moving away from longitudinal axis 5. adduction –movement toward the longitudinal axis 6. circumduction –movement of the limb such that it describes a cone 7. rotation – turning the bone or limb around its long axis 8. supination –rotating the forearm laterally such that the palm faces superiorly

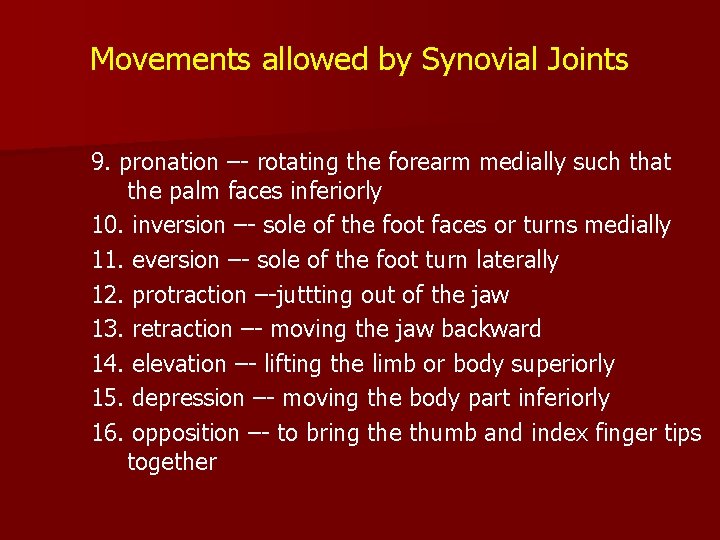

Movements allowed by Synovial Joints 9. pronation –- rotating the forearm medially such that the palm faces inferiorly 10. inversion –- sole of the foot faces or turns medially 11. eversion –- sole of the foot turn laterally 12. protraction –-juttting out of the jaw 13. retraction –- moving the jaw backward 14. elevation –- lifting the limb or body superiorly 15. depression –- moving the body part inferiorly 16. opposition –- to bring the thumb and index finger tips together

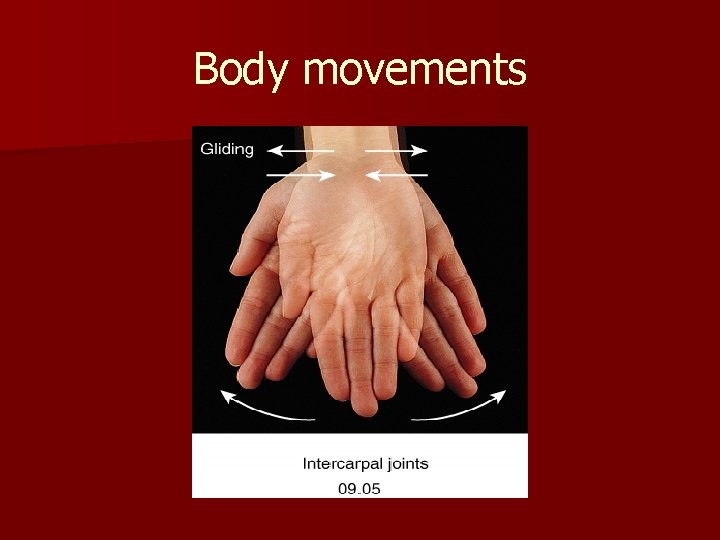

Body movements

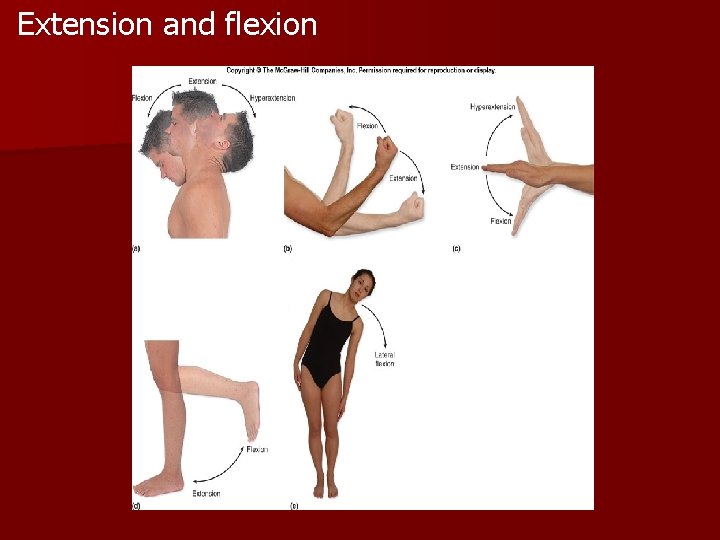

Extension and flexion

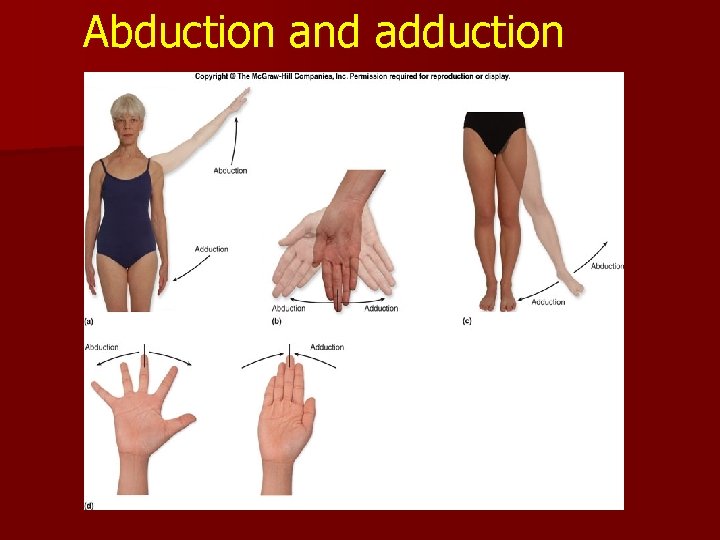

Abduction and adduction

Protraction/Retraction Pronation/Supination Opposition of thumb and pinky

Elevation/ Depression Inversion/Eversion

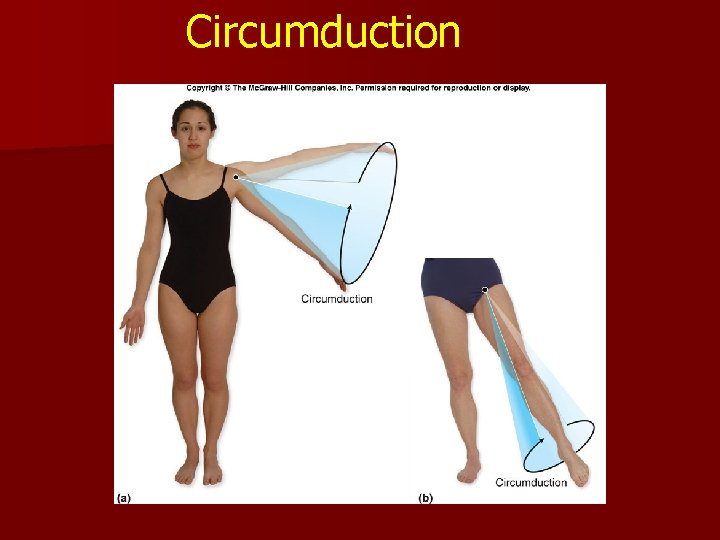

Circumduction
