Chapter 9 Digital Communications BER Performance In AWGN
Chapter 9 Digital Communications BER Performance In AWGN (Block Coding) 전자파연구실 1

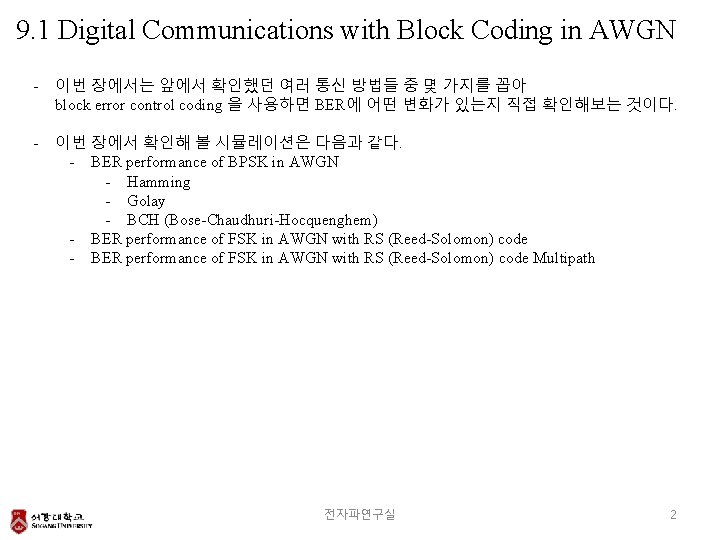

9. 1 Digital Communications with Block Coding in AWGN - 이번 장에서는 앞에서 확인했던 여러 통신 방법들 중 몇 가지를 꼽아 block error control coding 을 사용하면 BER에 어떤 변화가 있는지 직접 확인해보는 것이다. - 이번 장에서 확인해 볼 시뮬레이션은 다음과 같다. - BER performance of BPSK in AWGN - Hamming - Golay - BCH (Bose-Chaudhuri-Hocquenghem) - BER performance of FSK in AWGN with RS (Reed-Solomon) code Multipath 전자파연구실 2

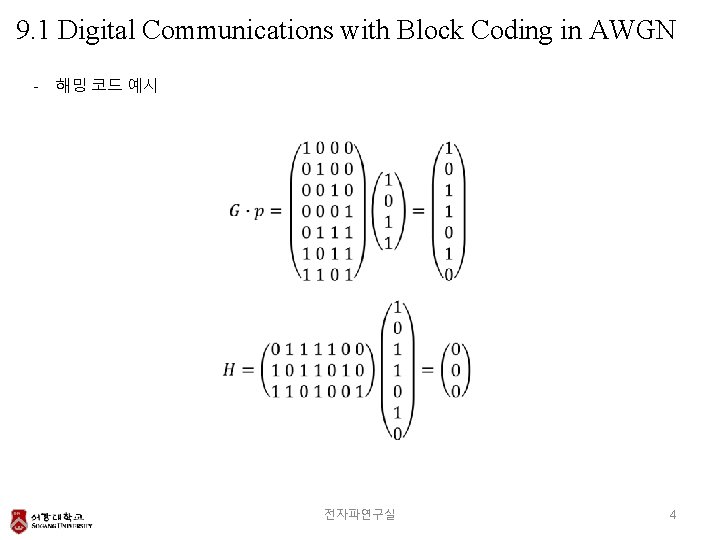

9. 1 Digital Communications with Block Coding in AWGN - 해밍 코드 예시 전자파연구실 4
9. 1 Digital Communications with Block Coding in AWGN 전자파연구실 8

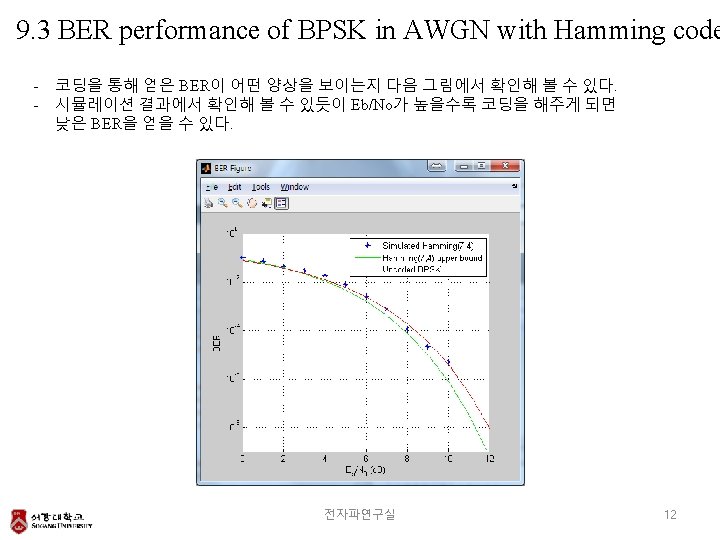

9. 3 BER performance of BPSK in AWGN with Hamming code - 앞의 과정과 마찬가지로 Hamming coding을 이용해본다. 코딩에 사용한 Hamming 블록은 Hamming(7, 4) 설정해준다. 전자파연구실 11

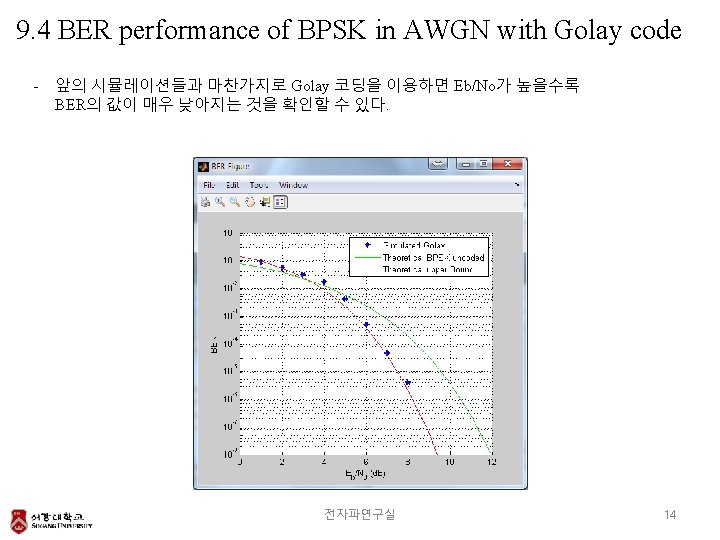

9. 4 BER performance of BPSK in AWGN with Golay code - 앞의 과정과 마찬가지로 Golay coding을 이용해본다. 코딩에 사용한 Golay 블록은 Golay(24, 12) 설정해준다. 전자파연구실 13
10. 2 BER Performance of BPSK in Rayleigh Fading with Interleaving and BCH Block Code - 이번 시뮬레이션은 Rayleigh Fading 환경에서 BPSK가 interleaving을 사용했을 때 어떤 BER을 가지는지 확인해본다. 코딩은 앞에서 사용한 BCH 코드를 사용한다. 전자파연구실 24
10. 2 BER Performance of BPSK in Rayleigh Fading with Interleaving and BCH Block Code - 인터리빙을 통해 에러를 분산시켜주면 BER이 매우 낮아지는 것을 볼 수 있다. 전자파연구실 25
10. 3 BER Performance of BPSK in Rayleigh Fading with Interleaving and Golay(24, 12) Block Code - 이번 시뮬레이션은 Rayleigh Fading 환경에서 BPSK가 interleaving을 사용했을 때 어떤 BER을 가지는지 확인해본다. Golay(24, 12) code를 이용해 부호화해준다. 전자파연구실 26
10. 3 BER Performance of BPSK in Rayleigh Fading with Interleaving and Golay(24, 12) Block Code - 앞의 시뮬레이션과 마찬가지로 인터리빙을 통해 BER이 낮아지는 것을 알 수 있다. 전자파연구실 27
