Chapter 9 Capacitors MECH 1100 Topics Basic Capacitor

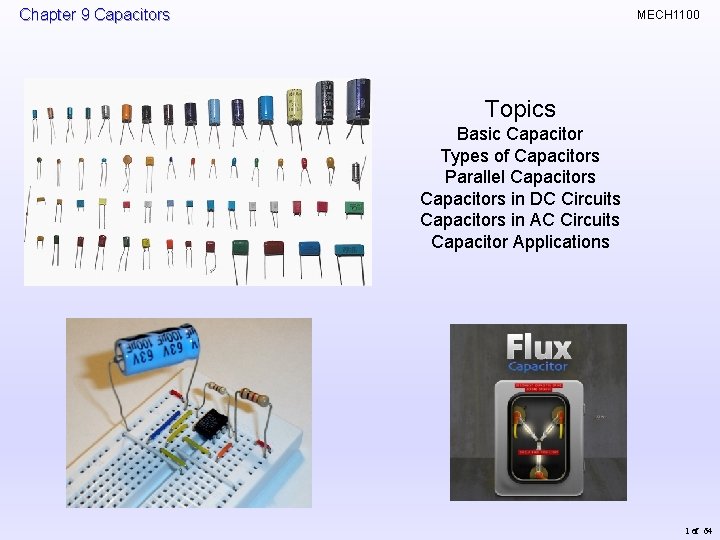

Chapter 9 Capacitors MECH 1100 Topics Basic Capacitor Types of Capacitors Parallel Capacitors in DC Circuits Capacitors in AC Circuits Capacitor Applications 1 of 64

Chapter 9 Capacitors MECH 1100 The Basic Capacitor: Electrical device composed of two parallel conductive plates separated by an insulating material (dielectric). The ability to store charge is the definition of capacitance. Conductors Dielectric 2 of 64

Chapter 9 Capacitors MECH 1100 The Basic Capacitor The charging process… Initially Source Fully charged removed uncharged Charging A capacitor with stored charge can act as a temporary battery. 3 of 64

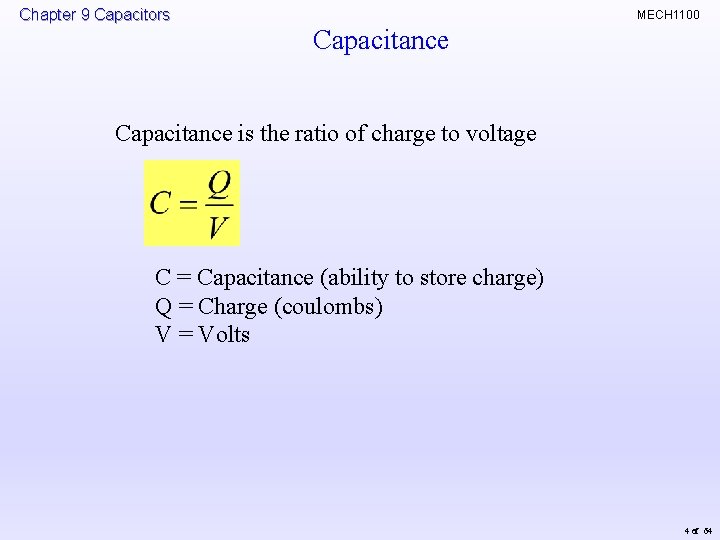

Chapter 9 Capacitors MECH 1100 Capacitance is the ratio of charge to voltage C = Capacitance (ability to store charge) Q = Charge (coulombs) V = Volts 4 of 64

Chapter 9 Capacitors MECH 1100 Capacitance (farad) Farad Amount of capacitance when one coulomb of charge is stored with one volt across the plates. The amount of charge on a capacitor is determined by the size of the capacitor (C) and the voltage (V). If a 22 m. F capacitor is connected to a 10 V source, the charge is 220 m. C 5 of 64

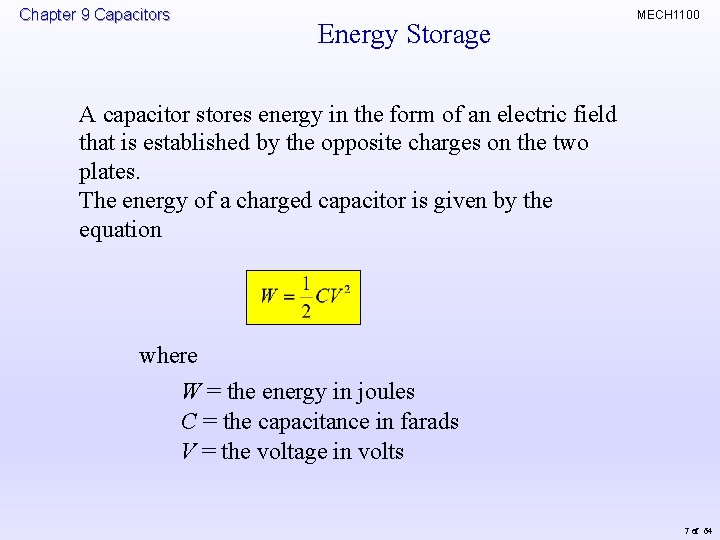

Chapter 9 Capacitors Energy Storage MECH 1100 A capacitor stores energy in the form of an electric field that is established by the opposite charges on the two plates. The energy of a charged capacitor is given by the equation where W = the energy in joules C = the capacitance in farads V = the voltage in volts 7 of 64

Chapter 9 Capacitors Electrical Characteristics MECH 1100 Voltage rating – amount of voltage that can be withstood across the plates Breakdown or working voltage - voltage at which physical damage is done to the capacitor. Dielectric strength – A measure of a compounds ability to serve as an insulator. V/mil (. 001” or 2. 54 * 10 -5 meter) See Table 9 -2 – Page 392 Temperature coefficient – indicates the amount and direction of change in capacitance value with temperature Leakage – amount of charge that leaks through the dielectric 8 of 64

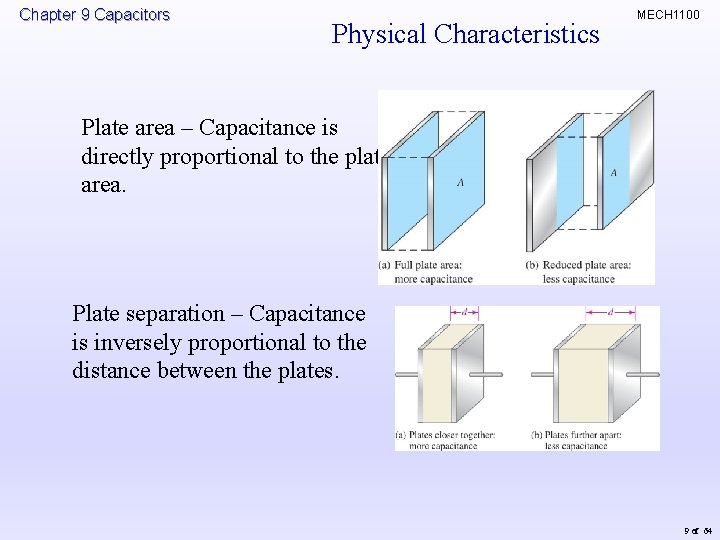

Chapter 9 Capacitors Physical Characteristics MECH 1100 Plate area – Capacitance is directly proportional to the plate area. Plate separation – Capacitance is inversely proportional to the distance between the plates. 9 of 64

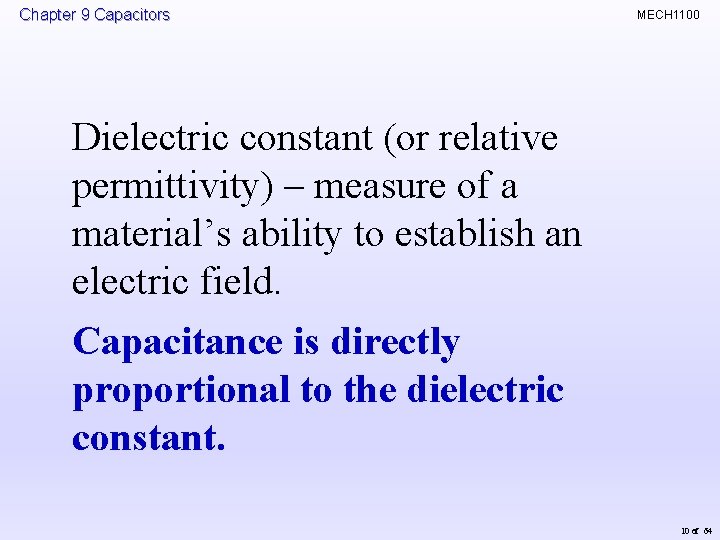

Chapter 9 Capacitors MECH 1100 Dielectric constant (or relative permittivity) – measure of a material’s ability to establish an electric field. Capacitance is directly proportional to the dielectric constant. 10 of 64

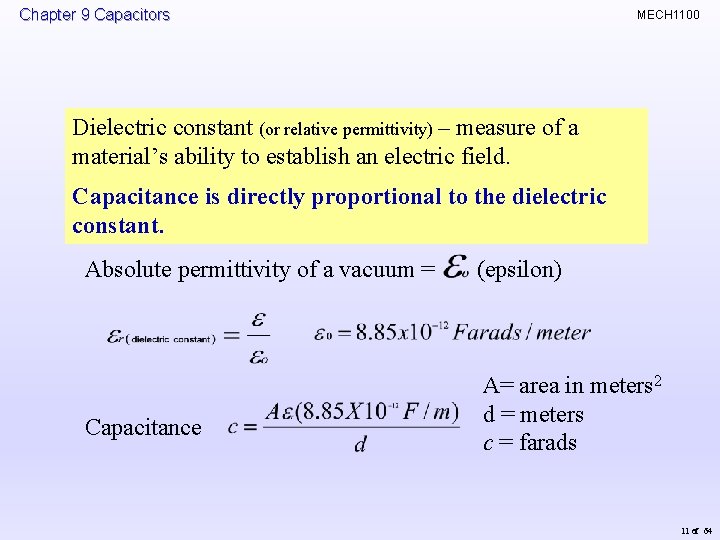

Chapter 9 Capacitors MECH 1100 Dielectric constant (or relative permittivity) – measure of a material’s ability to establish an electric field. Capacitance is directly proportional to the dielectric constant. Absolute permittivity of a vacuum = Capacitance (epsilon) A= area in meters 2 d = meters c = farads 11 of 64

Chapter 9 Capacitors MECH 1100 Capacitor types Mica - very hard, heat resistant mineral Mica capacitors are small with high working voltage. er (5) 12 of 64

Chapter 9 Capacitors MECH 1100 Capacitor types Ceramic disks are small non-polarized capacitors They have relatively high capacitance due to high er (1200) 13 of 64

Chapter 9 Capacitors MECH 1100 Capacitor types Plastic Film Plastic film capacitors are small and non-polarized. They have relatively high capacitance due to larger plate area. er (depends on the film used) 14 of 64

Chapter 9 Capacitors MECH 1100 Capacitor types Electrolytic (two types) • Electrolytic capacitors have very high capacitance 1. not as precise as other types and 2. tend to have more leakage current. • Electrolytic capacitors are the only ones polarized. Aluminum electrolytic Tantalum electrolytic Symbol for any electrolytic capacitor 15 of 64

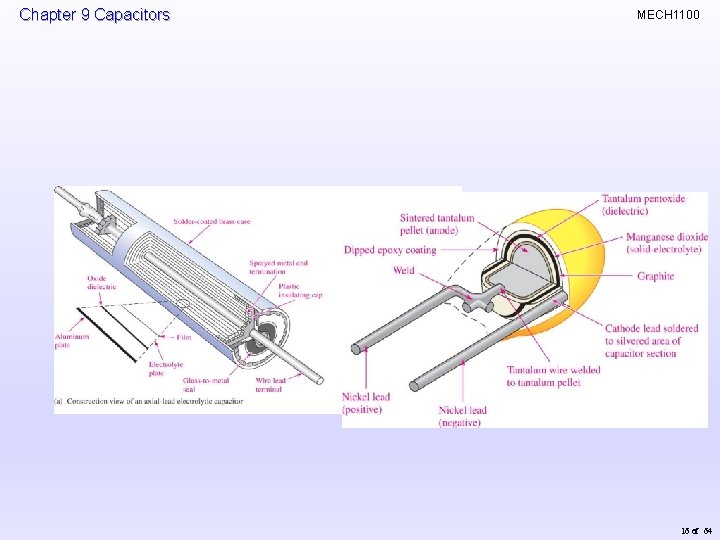

Chapter 9 Capacitors MECH 1100 16 of 64

Chapter 9 Capacitors Power Factor Correction MECH 1100 Defibrillator Capacitor can deliver over 500 joules of energy 17 of 64

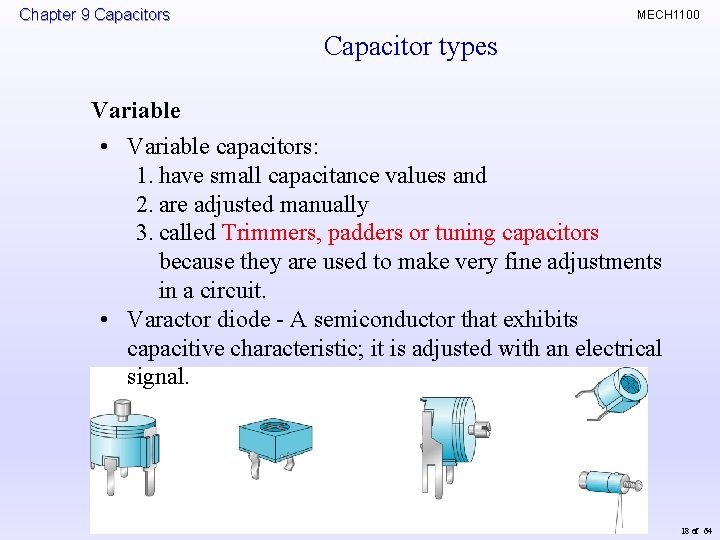

Chapter 9 Capacitors MECH 1100 Capacitor types Variable • Variable capacitors: 1. have small capacitance values and 2. are adjusted manually 3. called Trimmers, padders or tuning capacitors because they are used to make very fine adjustments in a circuit. • Varactor diode - A semiconductor that exhibits capacitive characteristic; it is adjusted with an electrical signal. 18 of 64

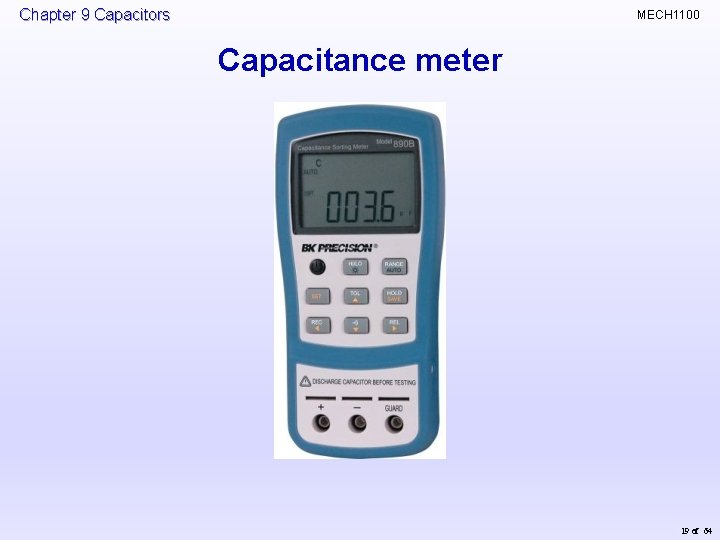

Chapter 9 Capacitors MECH 1100 Capacitance meter 19 of 64

Chapter 9 Capacitors MECH 1100 Capacitor labeling Small capacitors values are frequently stamped on them such as. 001 or. 01, which have implied units of microfarads. Electrolytic capacitors have larger values, so are read as m. F. Usually stamped as m. F, but some older ones may be shown as MF or MMF). 20 of 64

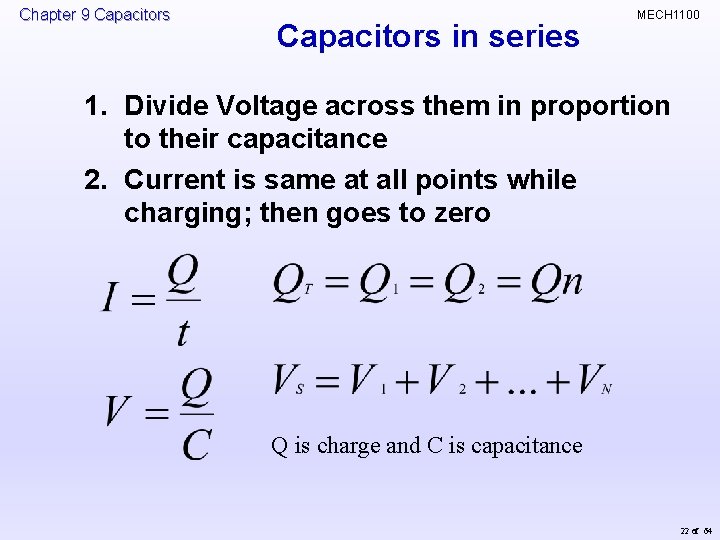

Chapter 9 Capacitors in series MECH 1100 1. Divide Voltage across them in proportion to their capacitance 2. Current is same at all points while charging; then goes to zero Q is charge and C is capacitance 22 of 64

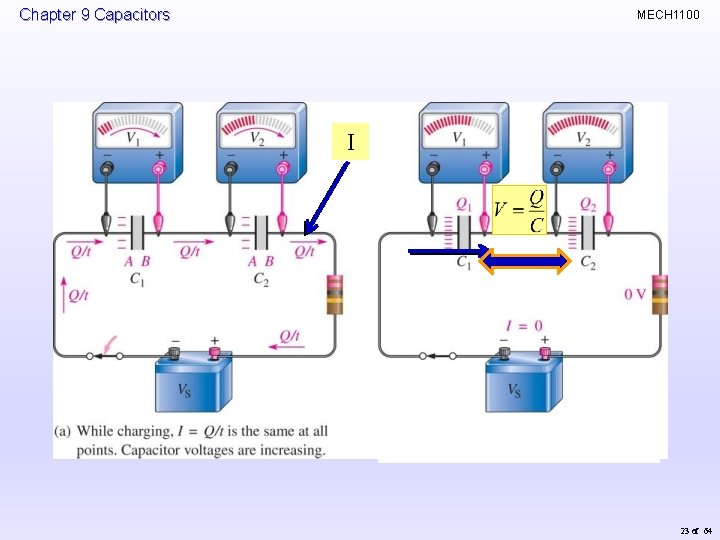

Chapter 9 Capacitors MECH 1100 I 23 of 64

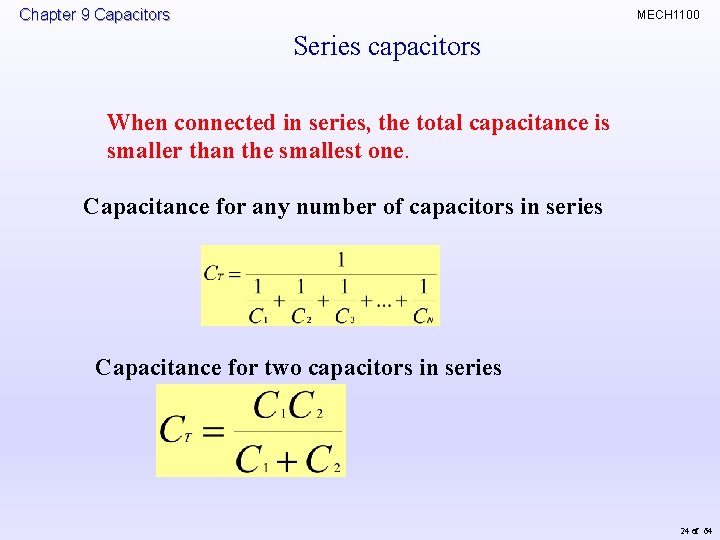

Chapter 9 Capacitors MECH 1100 Series capacitors When connected in series, the total capacitance is smaller than the smallest one. Capacitance for any number of capacitors in series Capacitance for two capacitors in series 24 of 64

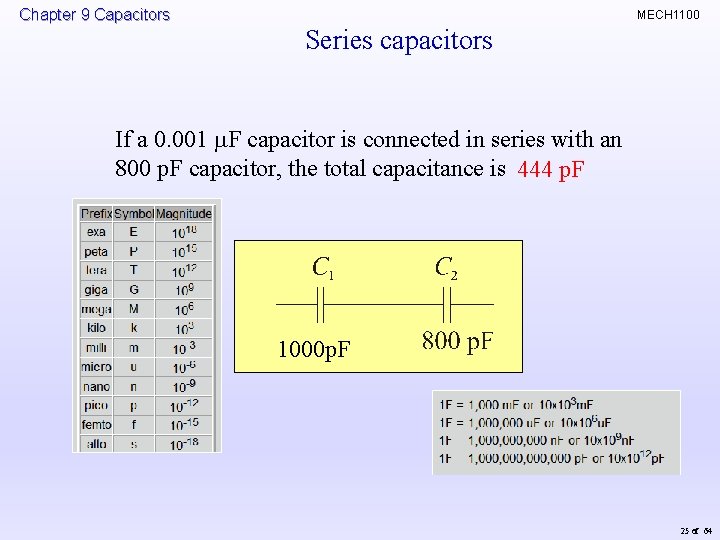

Chapter 9 Capacitors MECH 1100 Series capacitors If a 0. 001 m. F capacitor is connected in series with an 800 p. F capacitor, the total capacitance is 444 p. F 1000 p. F 25 of 64

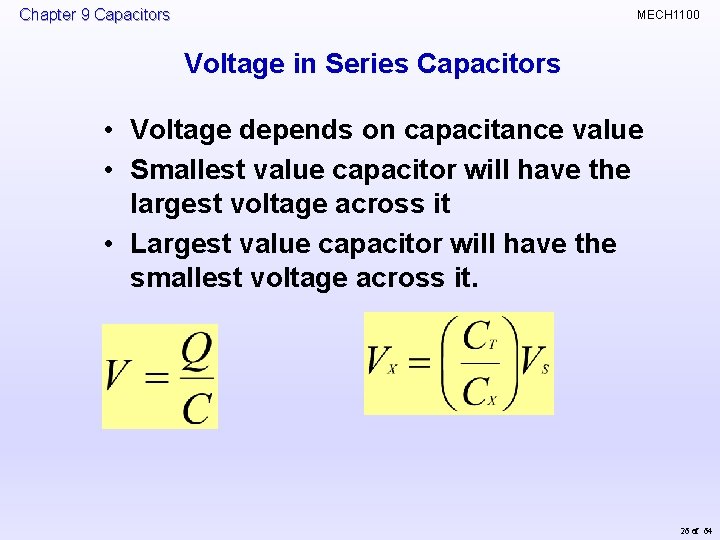

Chapter 9 Capacitors MECH 1100 Voltage in Series Capacitors • Voltage depends on capacitance value • Smallest value capacitor will have the largest voltage across it • Largest value capacitor will have the smallest voltage across it. 26 of 64

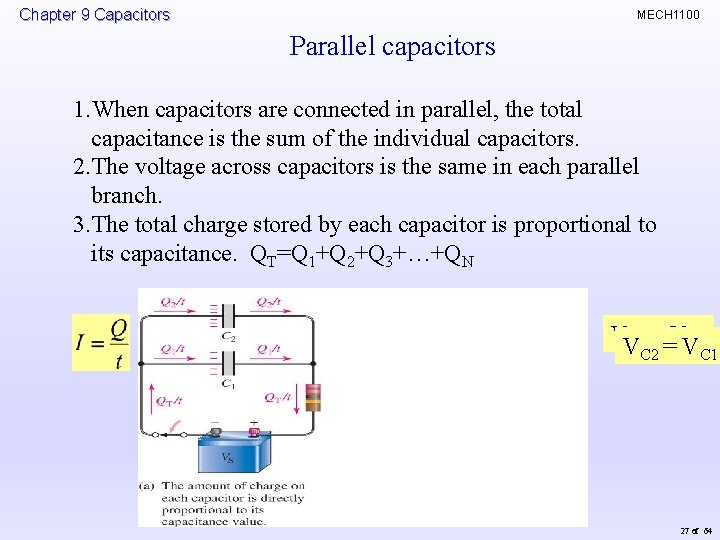

Chapter 9 Capacitors MECH 1100 Parallel capacitors 1. When capacitors are connected in parallel, the total capacitance is the sum of the individual capacitors. 2. The voltage across capacitors is the same in each parallel branch. 3. The total charge stored by each capacitor is proportional to its capacitance. QT=Q 1+Q 2+Q 3+…+QN VVC 2 ==VVC 1 C 2 C 1 27 of 64

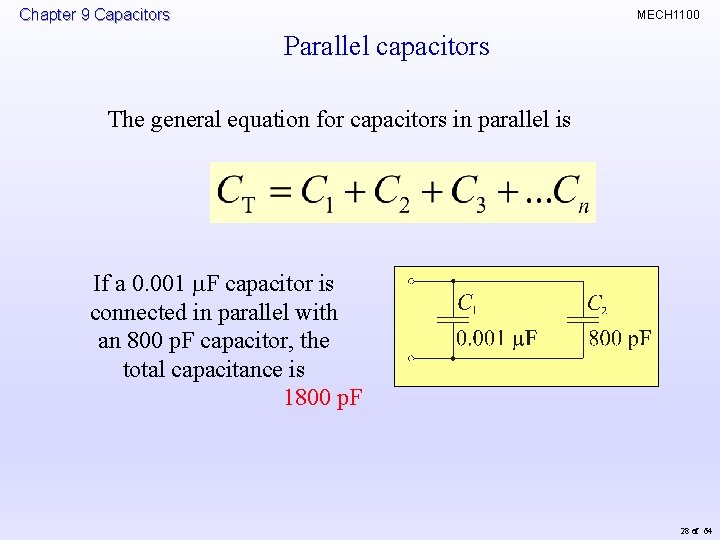

Chapter 9 Capacitors MECH 1100 Parallel capacitors The general equation for capacitors in parallel is If a 0. 001 m. F capacitor is connected in parallel with an 800 p. F capacitor, the total capacitance is 1800 p. F 28 of 64

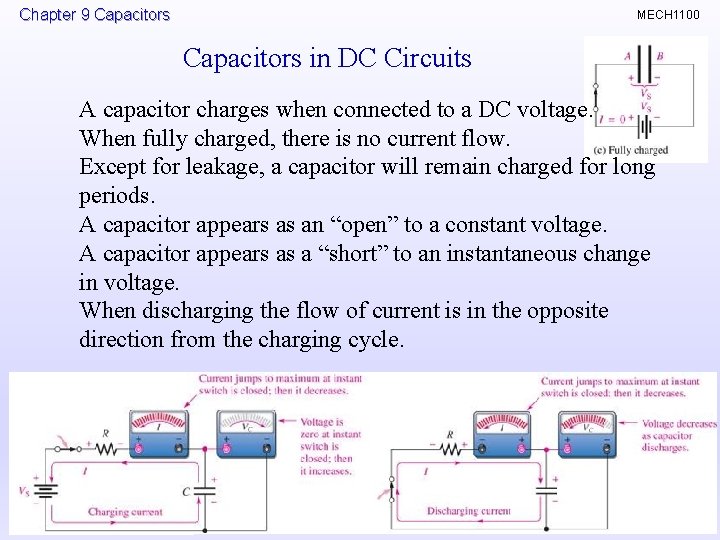

Chapter 9 Capacitors MECH 1100 Capacitors in DC Circuits A capacitor charges when connected to a DC voltage. When fully charged, there is no current flow. Except for leakage, a capacitor will remain charged for long periods. A capacitor appears as an “open” to a constant voltage. A capacitor appears as a “short” to an instantaneous change in voltage. When discharging the flow of current is in the opposite direction from the charging cycle. 29 of 64

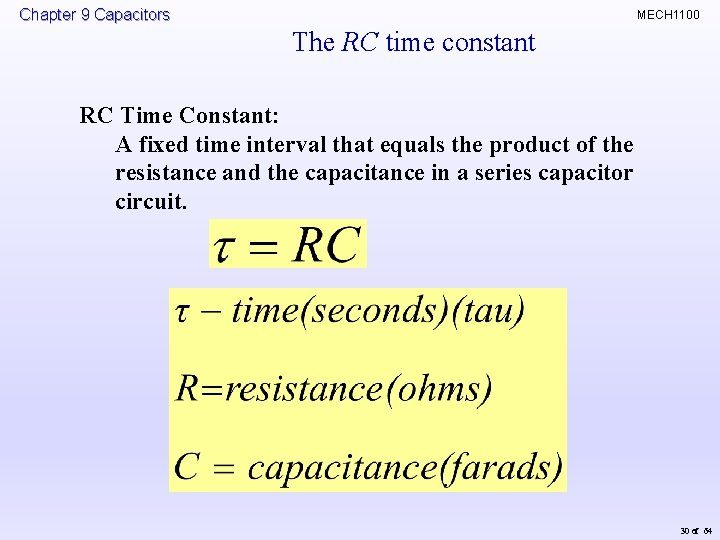

Chapter 9 Capacitors MECH 1100 The RC time constant RC Time Constant: A fixed time interval that equals the product of the resistance and the capacitance in a series capacitor circuit. 30 of 64

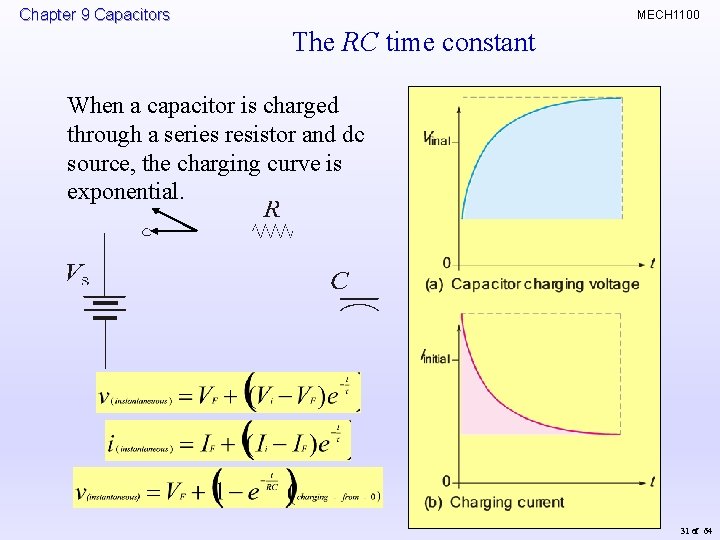

Chapter 9 Capacitors MECH 1100 The RC time constant When a capacitor is charged through a series resistor and dc source, the charging curve is exponential. 31 of 64

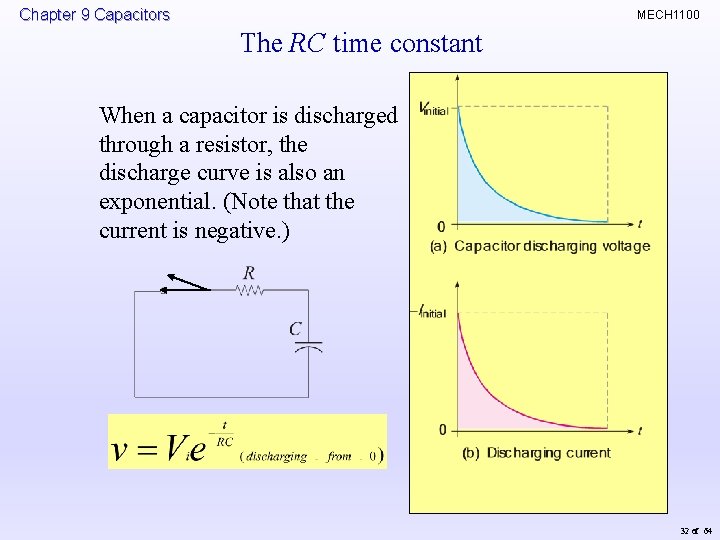

Chapter 9 Capacitors MECH 1100 The RC time constant When a capacitor is discharged through a resistor, the discharge curve is also an exponential. (Note that the current is negative. ) 32 of 64

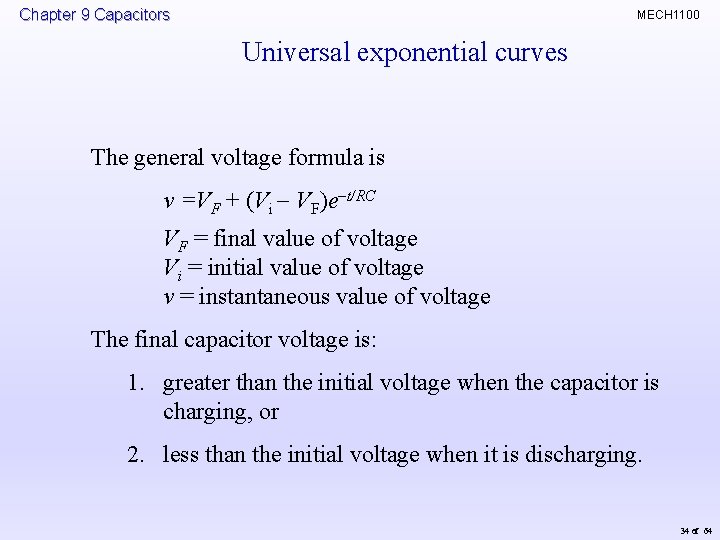

Chapter 9 Capacitors MECH 1100 Universal exponential curves The general voltage formula is v =VF + (Vi - VF)e-t/RC VF = final value of voltage Vi = initial value of voltage v = instantaneous value of voltage The final capacitor voltage is: 1. greater than the initial voltage when the capacitor is charging, or 2. less than the initial voltage when it is discharging. 34 of 64

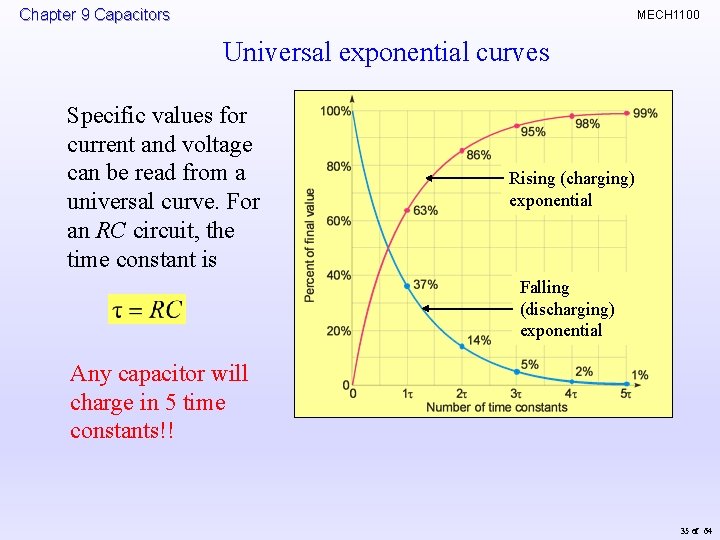

Chapter 9 Capacitors MECH 1100 Universal exponential curves Specific values for current and voltage can be read from a universal curve. For an RC circuit, the time constant is Rising (charging) exponential Falling (discharging) exponential Any capacitor will charge in 5 time constants!! 35 of 64

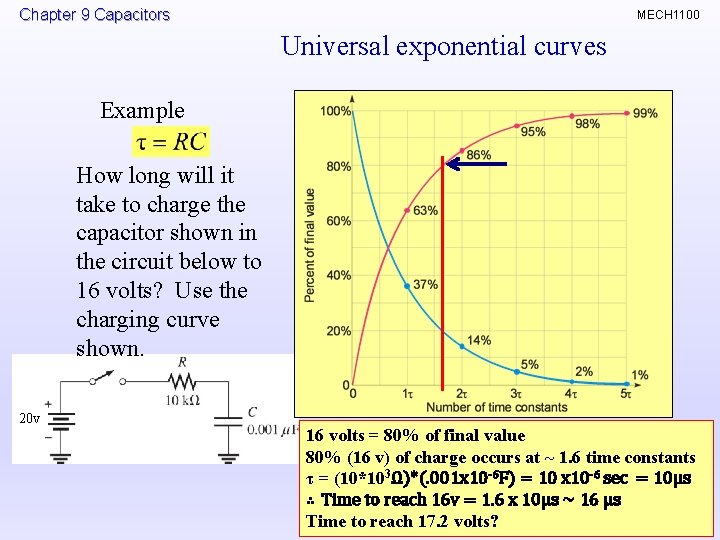

Chapter 9 Capacitors MECH 1100 Universal exponential curves Example How long will it take to charge the capacitor shown in the circuit below to 16 volts? Use the charging curve shown. 20 v 16 volts = 80% of final value 80% (16 v) of charge occurs at ~ 1. 6 time constants τ = (10*103Ω)*(. 001 x 10 -6 F) = 10 x 10 -6 sec = 10µs ∴ Time to reach 16 v = 1. 6 x 10µs ~ 16 µs Time to reach 17. 2 volts? 36 of 64

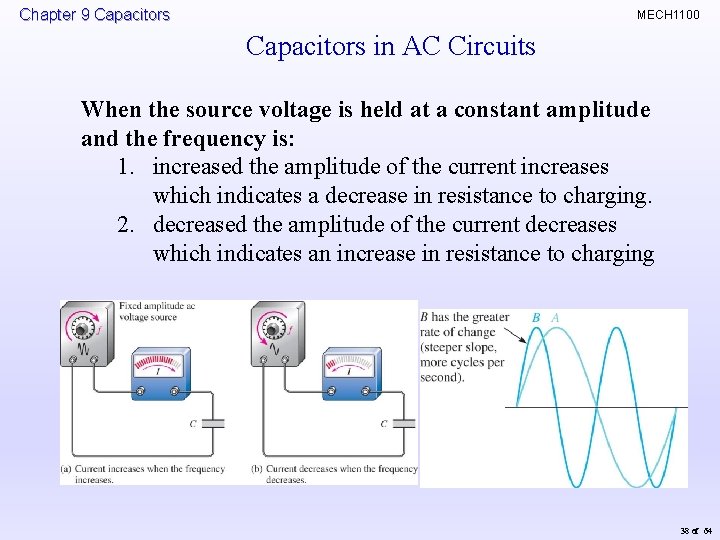

Chapter 9 Capacitors MECH 1100 Capacitors in AC Circuits When the source voltage is held at a constant amplitude and the frequency is: 1. increased the amplitude of the current increases which indicates a decrease in resistance to charging. 2. decreased the amplitude of the current decreases which indicates an increase in resistance to charging 38 of 64

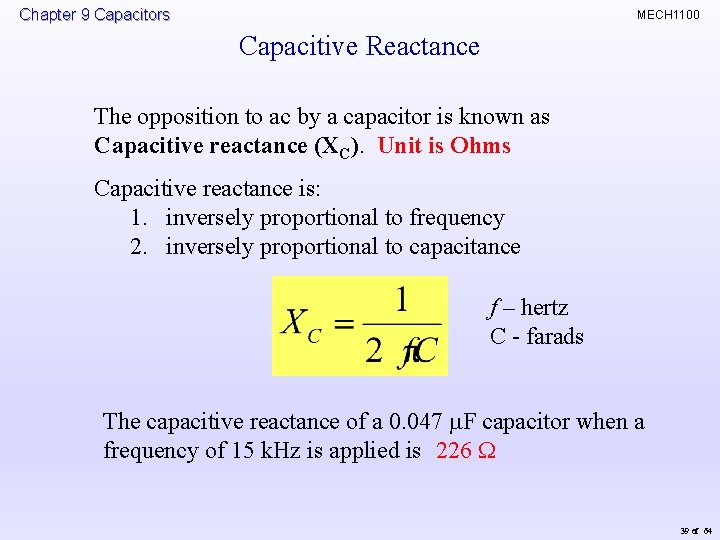

Chapter 9 Capacitors MECH 1100 Capacitive Reactance The opposition to ac by a capacitor is known as Capacitive reactance (XC). Unit is Ohms Capacitive reactance is: 1. inversely proportional to frequency 2. inversely proportional to capacitance f – hertz C - farads The capacitive reactance of a 0. 047 m. F capacitor when a frequency of 15 k. Hz is applied is 226 W 39 of 64

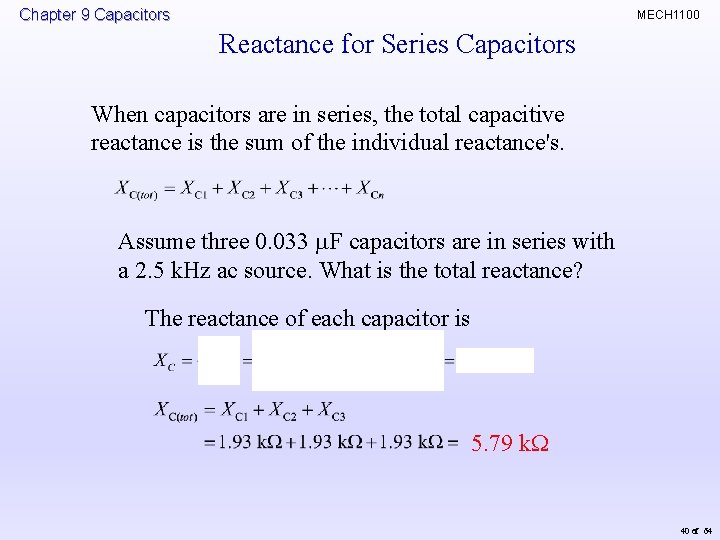

Chapter 9 Capacitors MECH 1100 Reactance for Series Capacitors When capacitors are in series, the total capacitive reactance is the sum of the individual reactance's. Assume three 0. 033 m. F capacitors are in series with a 2. 5 k. Hz ac source. What is the total reactance? The reactance of each capacitor is 5. 79 k. W 40 of 64

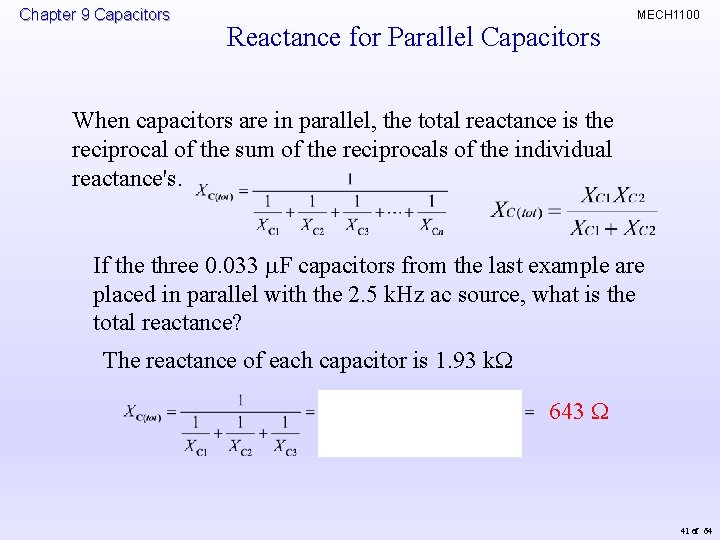

Chapter 9 Capacitors Reactance for Parallel Capacitors MECH 1100 When capacitors are in parallel, the total reactance is the reciprocal of the sum of the reciprocals of the individual reactance's. If the three 0. 033 m. F capacitors from the last example are placed in parallel with the 2. 5 k. Hz ac source, what is the total reactance? The reactance of each capacitor is 1. 93 k. W 643 W 41 of 64

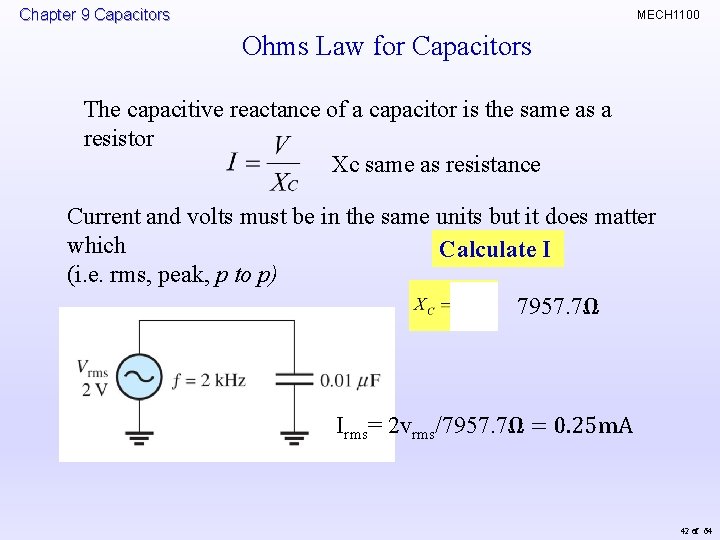

Chapter 9 Capacitors MECH 1100 Ohms Law for Capacitors The capacitive reactance of a capacitor is the same as a resistor Xc same as resistance Current and volts must be in the same units but it does matter which Calculate I (i. e. rms, peak, p to p) 7957. 7Ω Irms= 2 vrms/7957. 7Ω = 0. 25 m. A 42 of 64

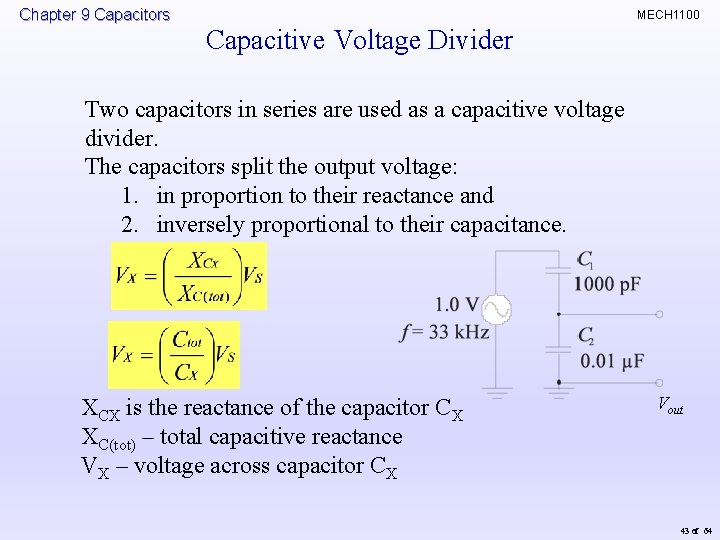

Chapter 9 Capacitors MECH 1100 Capacitive Voltage Divider Two capacitors in series are used as a capacitive voltage divider. The capacitors split the output voltage: 1. in proportion to their reactance and 2. inversely proportional to their capacitance. XCX is the reactance of the capacitor CX XC(tot) – total capacitive reactance VX – voltage across capacitor CX Vout 43 of 64

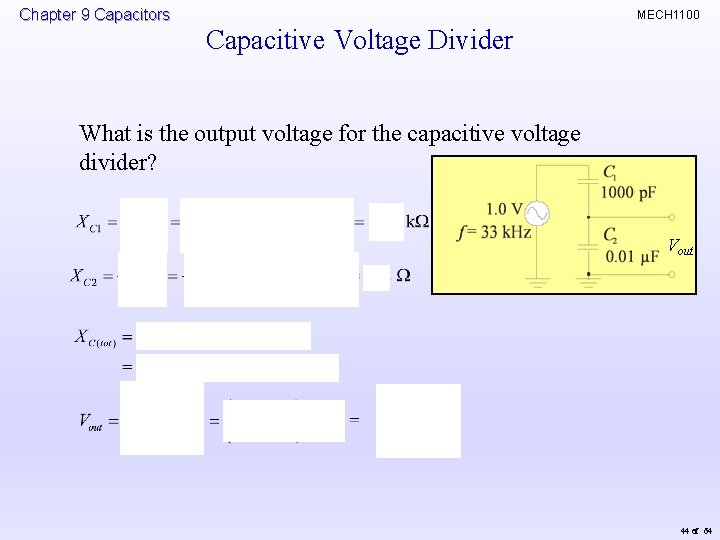

Chapter 9 Capacitors MECH 1100 Capacitive Voltage Divider What is the output voltage for the capacitive voltage divider? Vout 91 m. V 44 of 64

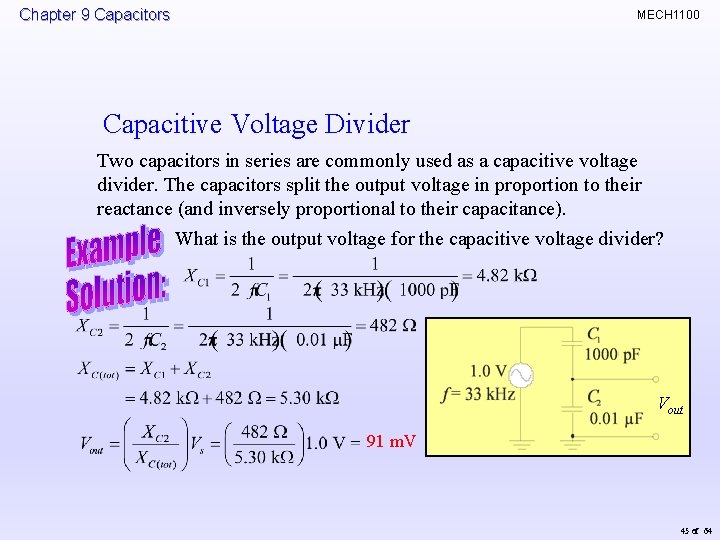

Chapter 9 Capacitors MECH 1100 Capacitive Voltage Divider Two capacitors in series are commonly used as a capacitive voltage divider. The capacitors split the output voltage in proportion to their reactance (and inversely proportional to their capacitance). What is the output voltage for the capacitive voltage divider? Vout 91 m. V 45 of 64

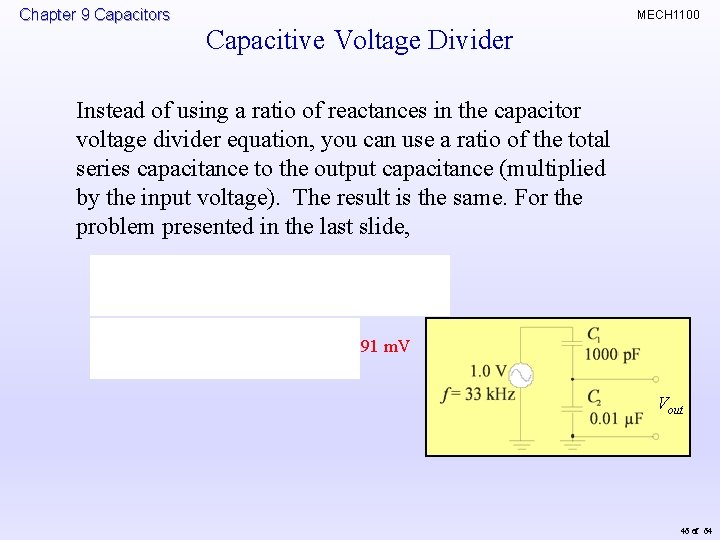

Chapter 9 Capacitors MECH 1100 Capacitive Voltage Divider Instead of using a ratio of reactances in the capacitor voltage divider equation, you can use a ratio of the total series capacitance to the output capacitance (multiplied by the input voltage). The result is the same. For the problem presented in the last slide, 91 m. V Vout 46 of 64

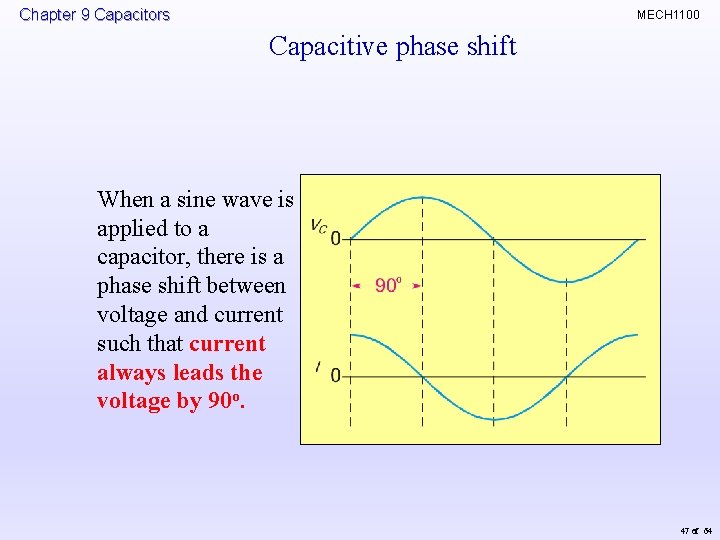

Chapter 9 Capacitors MECH 1100 Capacitive phase shift When a sine wave is applied to a capacitor, there is a phase shift between voltage and current such that current always leads the voltage by 90 o. 47 of 64

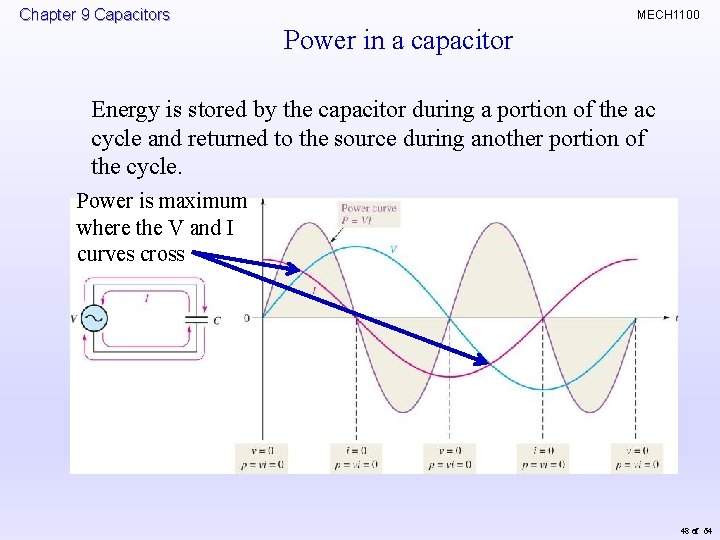

Chapter 9 Capacitors MECH 1100 Power in a capacitor Energy is stored by the capacitor during a portion of the ac cycle and returned to the source during another portion of the cycle. Power is maximum where the V and I curves cross 48 of 64

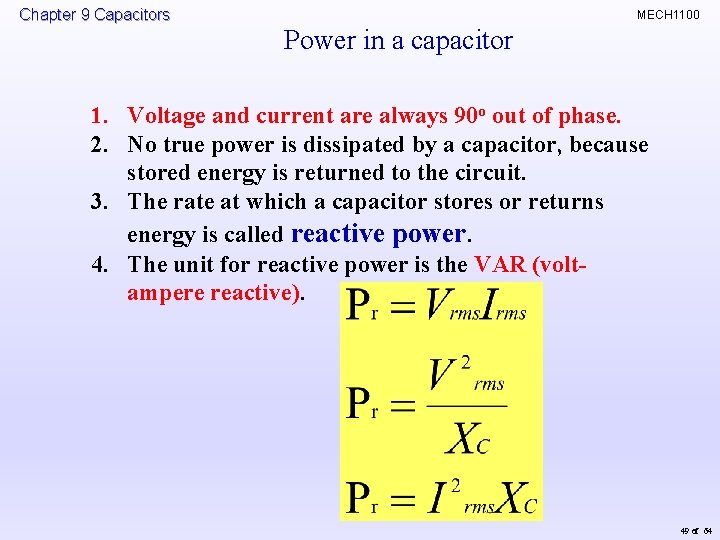

Chapter 9 Capacitors MECH 1100 Power in a capacitor 1. Voltage and current are always 90 o out of phase. 2. No true power is dissipated by a capacitor, because stored energy is returned to the circuit. 3. The rate at which a capacitor stores or returns energy is called reactive power. 4. The unit for reactive power is the VAR (voltampere reactive). 49 of 64

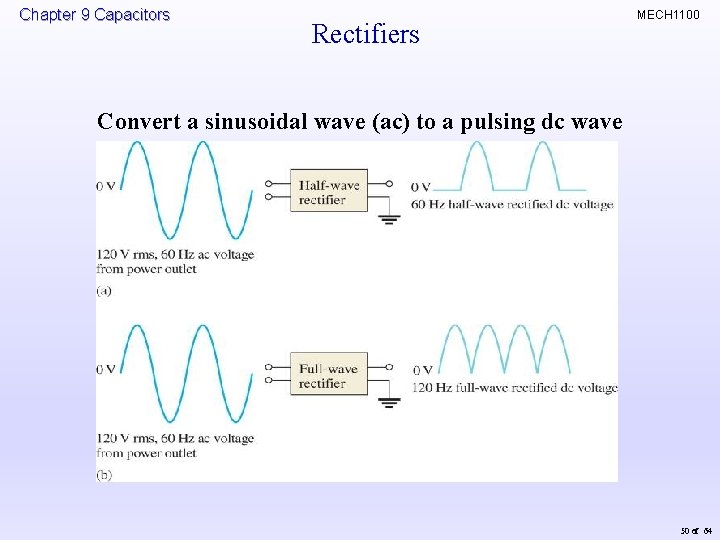

Chapter 9 Capacitors Rectifiers MECH 1100 Convert a sinusoidal wave (ac) to a pulsing dc wave 50 of 64

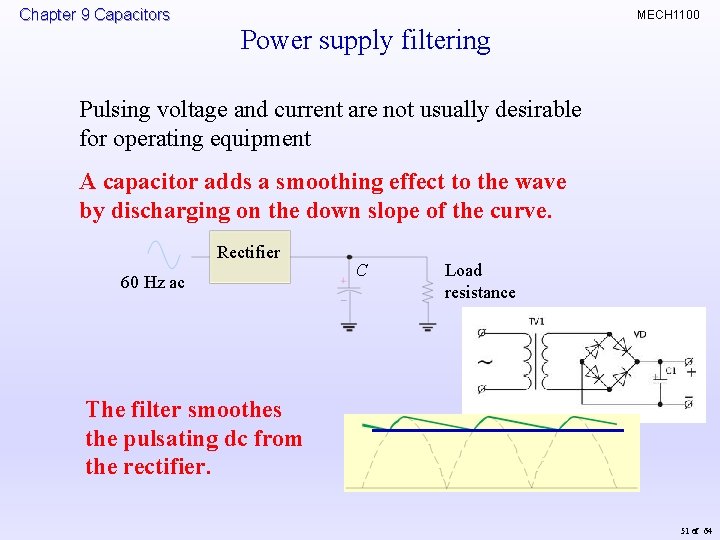

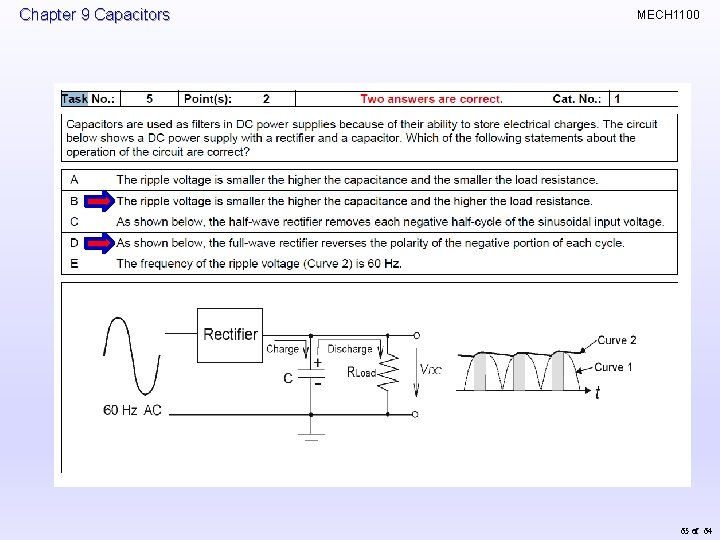

Chapter 9 Capacitors MECH 1100 Power supply filtering Pulsing voltage and current are not usually desirable for operating equipment A capacitor adds a smoothing effect to the wave by discharging on the down slope of the curve. Rectifier 60 Hz ac C Load resistance The filter smoothes the pulsating dc from the rectifier. 51 of 64

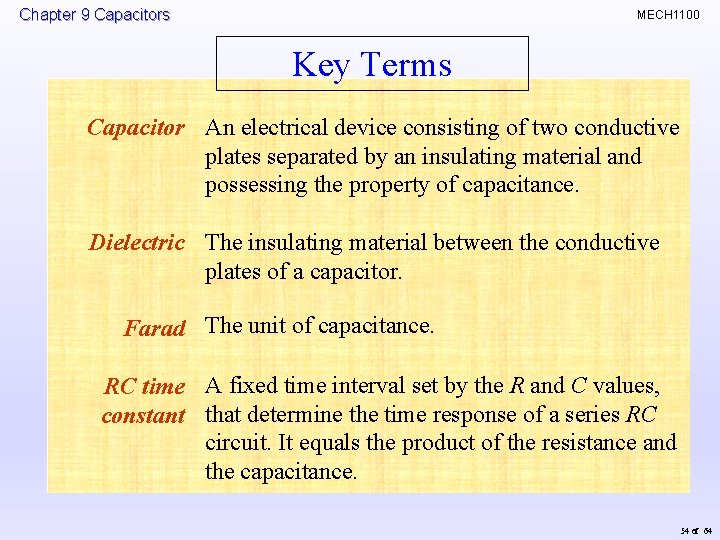

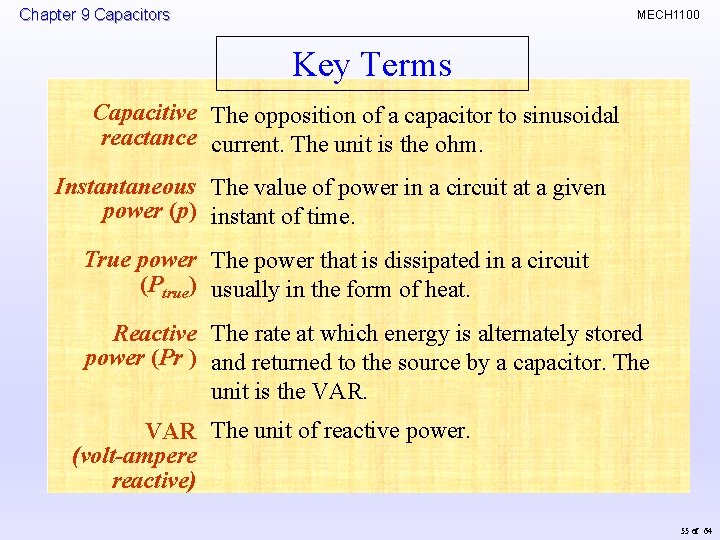

Chapter 9 Capacitors MECH 1100 Key Terms Capacitor An electrical device consisting of two conductive plates separated by an insulating material and possessing the property of capacitance. Dielectric The insulating material between the conductive plates of a capacitor. Farad The unit of capacitance. RC time A fixed time interval set by the R and C values, constant that determine the time response of a series RC circuit. It equals the product of the resistance and the capacitance. 54 of 64

Chapter 9 Capacitors MECH 1100 Key Terms Capacitive The opposition of a capacitor to sinusoidal reactance current. The unit is the ohm. Instantaneous The value of power in a circuit at a given power (p) instant of time. True power The power that is dissipated in a circuit (Ptrue) usually in the form of heat. Reactive The rate at which energy is alternately stored power (Pr ) and returned to the source by a capacitor. The unit is the VAR The unit of reactive power. (volt-ampere reactive) 55 of 64

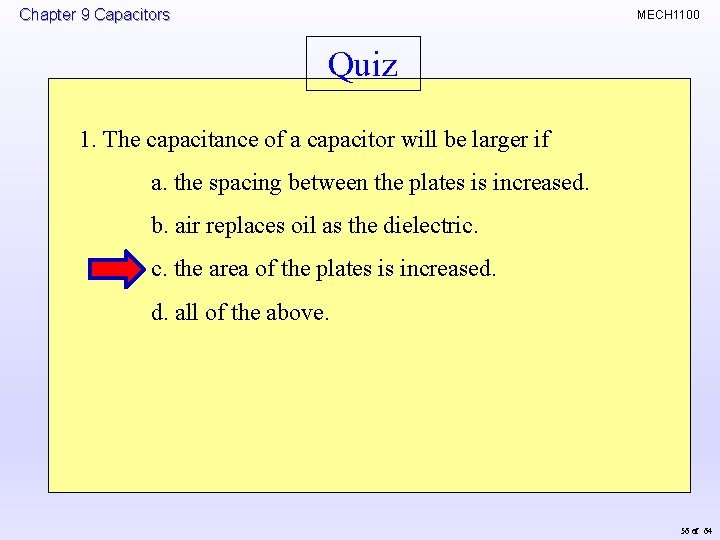

Chapter 9 Capacitors MECH 1100 Quiz 1. The capacitance of a capacitor will be larger if a. the spacing between the plates is increased. b. air replaces oil as the dielectric. c. the area of the plates is increased. d. all of the above. 56 of 64

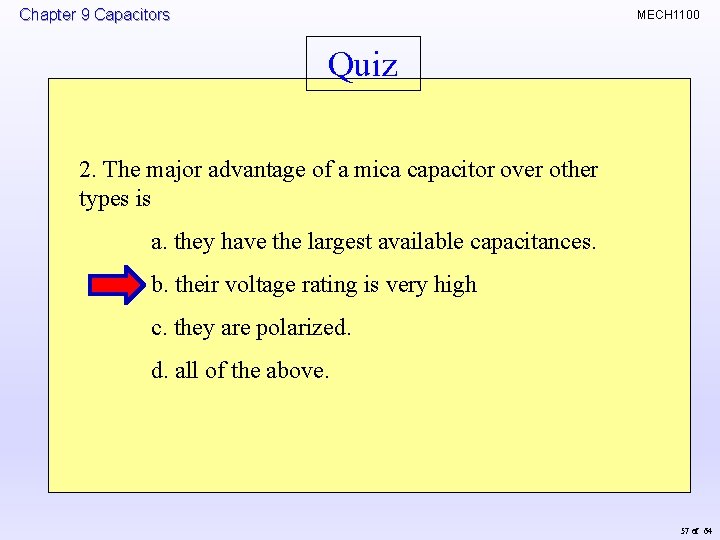

Chapter 9 Capacitors MECH 1100 Quiz 2. The major advantage of a mica capacitor over other types is a. they have the largest available capacitances. b. their voltage rating is very high c. they are polarized. d. all of the above. 57 of 64

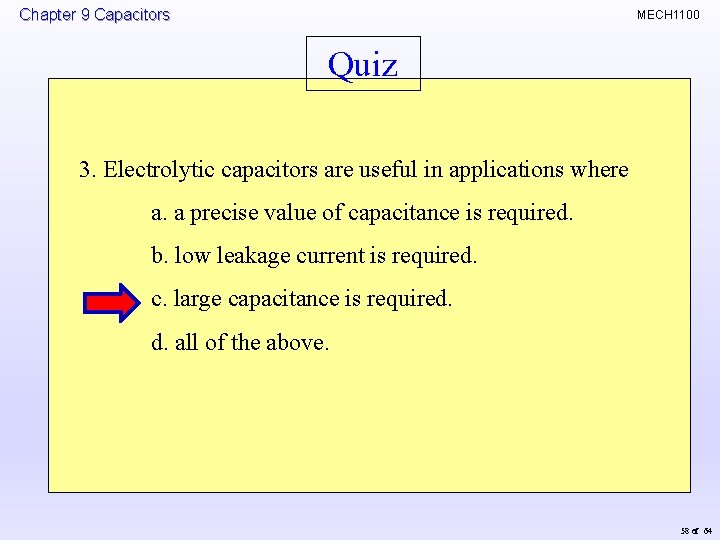

Chapter 9 Capacitors MECH 1100 Quiz 3. Electrolytic capacitors are useful in applications where a. a precise value of capacitance is required. b. low leakage current is required. c. large capacitance is required. d. all of the above. 58 of 64

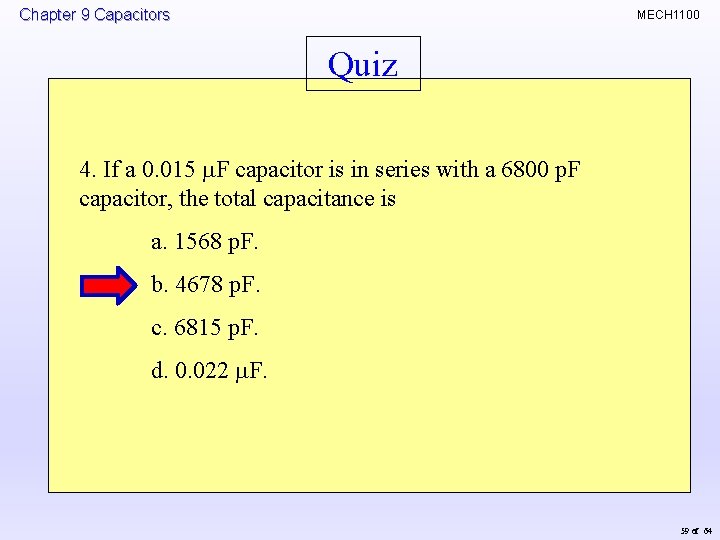

Chapter 9 Capacitors MECH 1100 Quiz 4. If a 0. 015 m. F capacitor is in series with a 6800 p. F capacitor, the total capacitance is a. 1568 p. F. b. 4678 p. F. c. 6815 p. F. d. 0. 022 m. F. 59 of 64

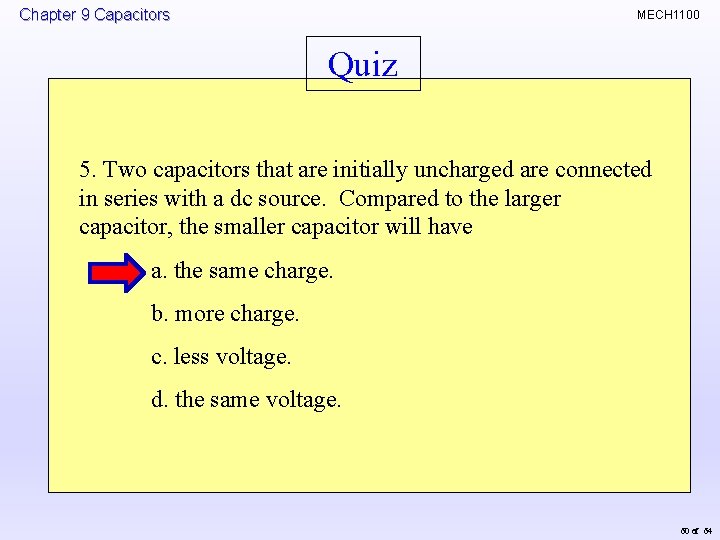

Chapter 9 Capacitors MECH 1100 Quiz 5. Two capacitors that are initially uncharged are connected in series with a dc source. Compared to the larger capacitor, the smaller capacitor will have a. the same charge. b. more charge. c. less voltage. d. the same voltage. 60 of 64

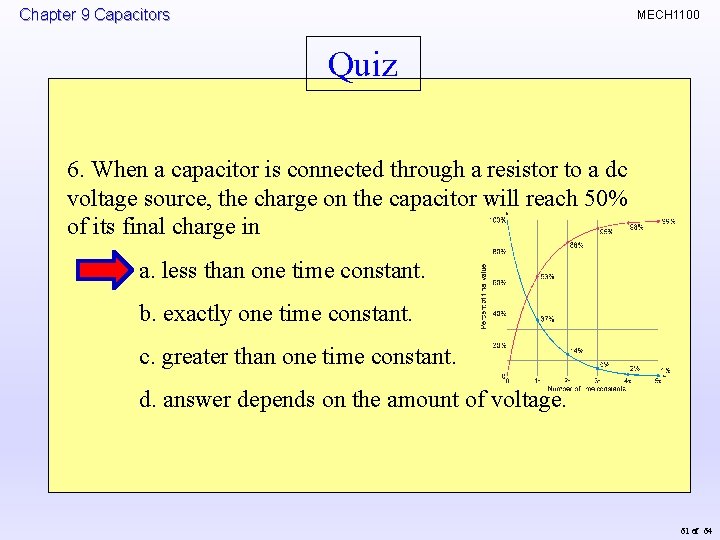

Chapter 9 Capacitors MECH 1100 Quiz 6. When a capacitor is connected through a resistor to a dc voltage source, the charge on the capacitor will reach 50% of its final charge in a. less than one time constant. b. exactly one time constant. c. greater than one time constant. d. answer depends on the amount of voltage. 61 of 64

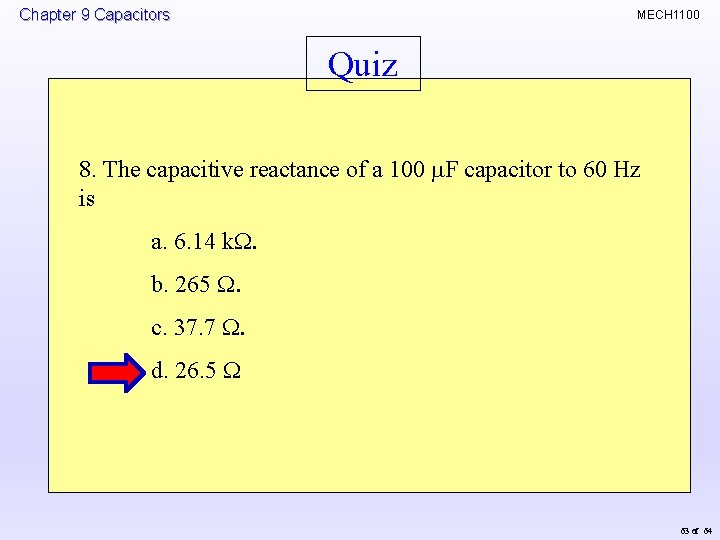

Chapter 9 Capacitors MECH 1100 Quiz 8. The capacitive reactance of a 100 m. F capacitor to 60 Hz is a. 6. 14 k. W. b. 265 W. c. 37. 7 W. d. 26. 5 W 63 of 64

Chapter 9 Capacitors MECH 1100 65 of 64
