Chapter 9 Adaptive Filters

Objectives • Show and describe the structure of the discrete Wiener filter. • Derive the statistical requirement for optimal estimation of a signal component using the discrete Wiener filter. • Describe and demonstrate the basic operation of the Widrow-Hoff least-mean-squares (LMS) algorithm. • Describe and configure an adaptive predictor and demonstrate its use in the minimization of interfering noise. • Describe the principles of adaptive system identification and demonstrate its use in several applications.

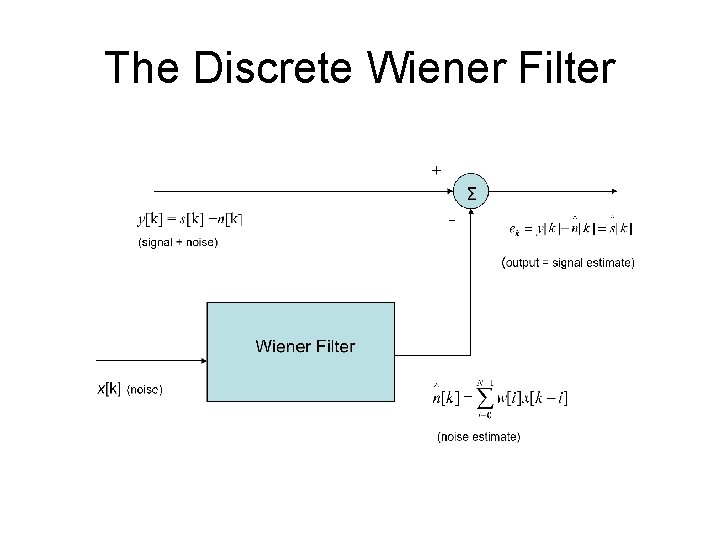

The Discrete Wiener Filter

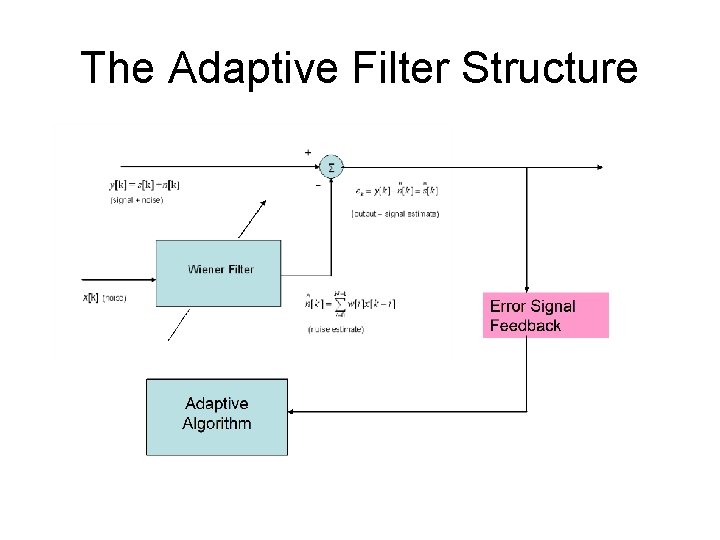

The Adaptive Filter Structure

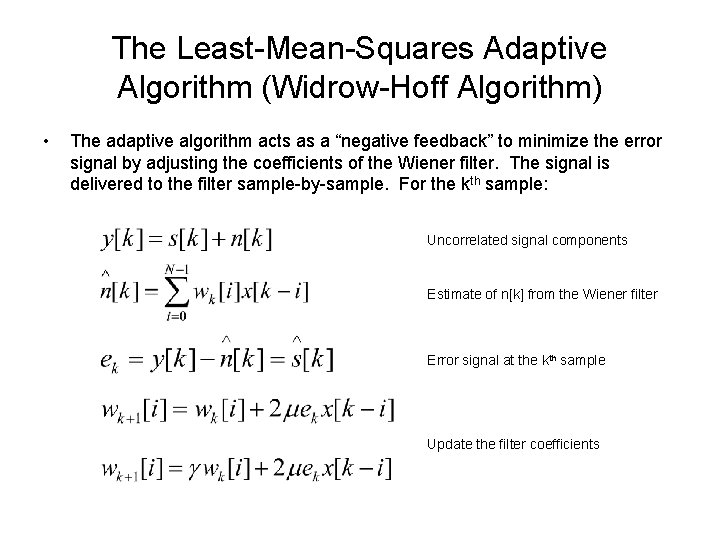

The Least-Mean-Squares Adaptive Algorithm (Widrow-Hoff Algorithm) • The adaptive algorithm acts as a “negative feedback” to minimize the error signal by adjusting the coefficients of the Wiener filter. The signal is delivered to the filter sample-by-sample. For the kth sample: Uncorrelated signal components Estimate of n[k] from the Wiener filter Error signal at the kth sample Update the filter coefficients

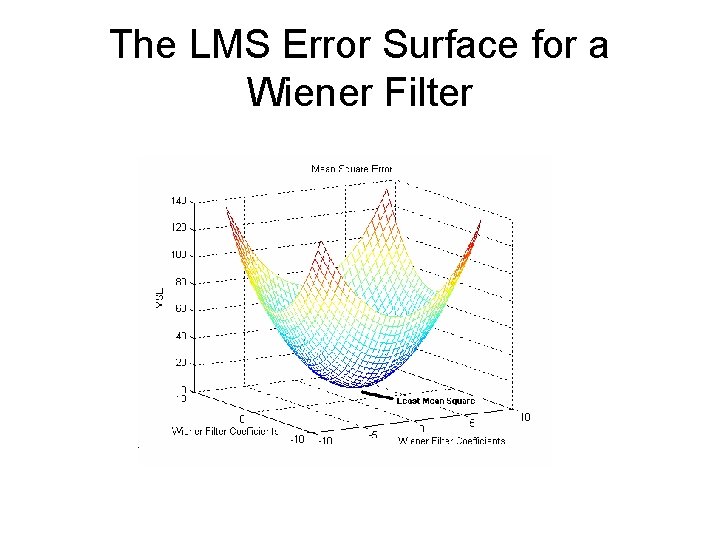

The LMS Error Surface for a Wiener Filter

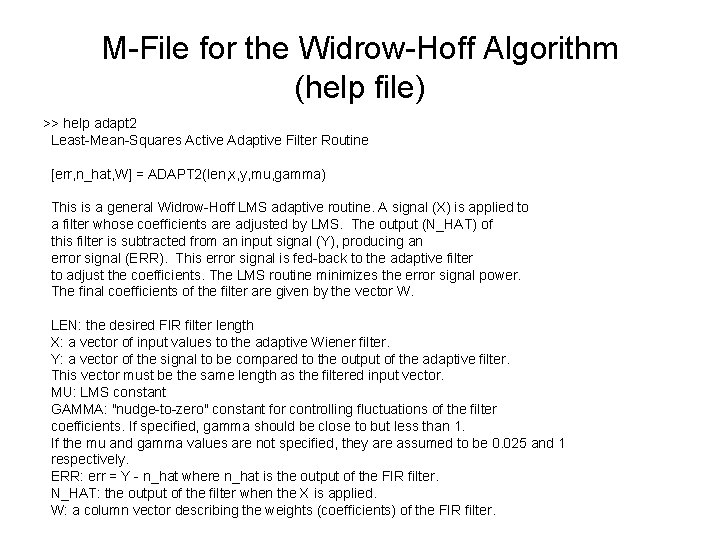

M-File for the Widrow-Hoff Algorithm (help file) >> help adapt 2 Least-Mean-Squares Active Adaptive Filter Routine [err, n_hat, W] = ADAPT 2(len, x, y, mu, gamma) This is a general Widrow-Hoff LMS adaptive routine. A signal (X) is applied to a filter whose coefficients are adjusted by LMS. The output (N_HAT) of this filter is subtracted from an input signal (Y), producing an error signal (ERR). This error signal is fed-back to the adaptive filter to adjust the coefficients. The LMS routine minimizes the error signal power. The final coefficients of the filter are given by the vector W. LEN: the desired FIR filter length X: a vector of input values to the adaptive Wiener filter. Y: a vector of the signal to be compared to the output of the adaptive filter. This vector must be the same length as the filtered input vector. MU: LMS constant GAMMA: "nudge-to-zero" constant for controlling fluctuations of the filter coefficients. If specified, gamma should be close to but less than 1. If the mu and gamma values are not specified, they are assumed to be 0. 025 and 1 respectively. ERR: err = Y - n_hat where n_hat is the output of the FIR filter. N_HAT: the output of the filter when the X is applied. W: a column vector describing the weights (coefficients) of the FIR filter.

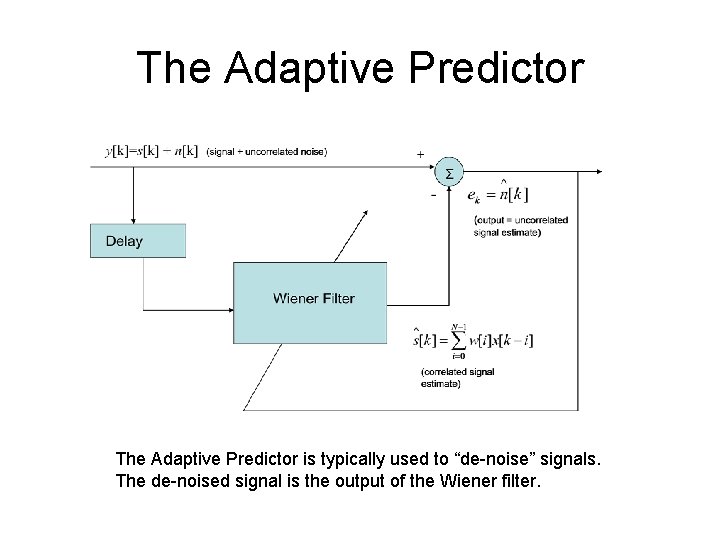

The Adaptive Predictor is typically used to “de-noise” signals. The de-noised signal is the output of the Wiener filter.

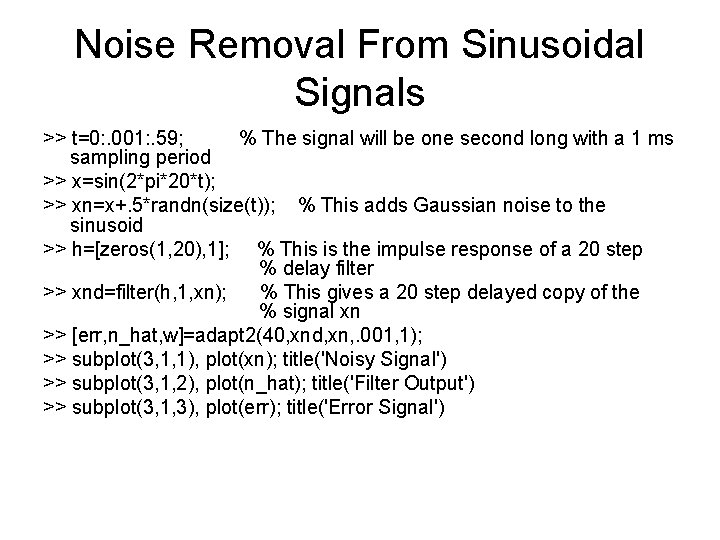

Noise Removal From Sinusoidal Signals >> t=0: . 001: . 59; % The signal will be one second long with a 1 ms sampling period >> x=sin(2*pi*20*t); >> xn=x+. 5*randn(size(t)); % This adds Gaussian noise to the sinusoid >> h=[zeros(1, 20), 1]; % This is the impulse response of a 20 step % delay filter >> xnd=filter(h, 1, xn); % This gives a 20 step delayed copy of the % signal xn >> [err, n_hat, w]=adapt 2(40, xnd, xn, . 001, 1); >> subplot(3, 1, 1), plot(xn); title('Noisy Signal') >> subplot(3, 1, 2), plot(n_hat); title('Filter Output') >> subplot(3, 1, 3), plot(err); title('Error Signal')

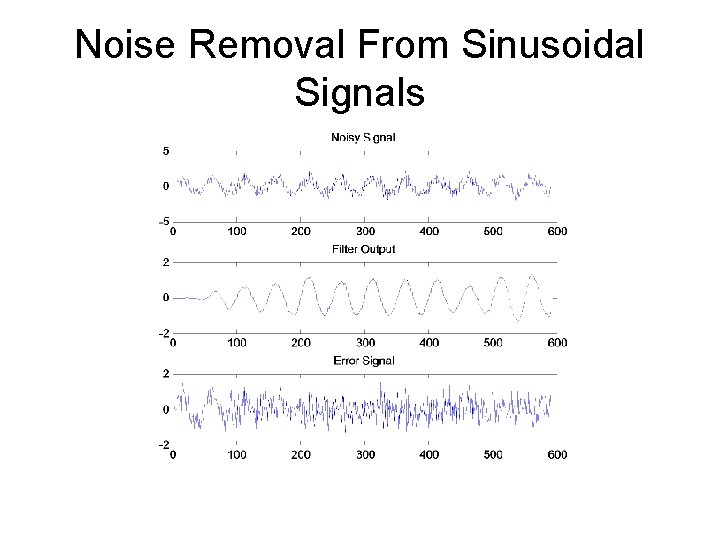

Noise Removal From Sinusoidal Signals

Noise Removal From Sinusoidal Signals >> fvtool(w, 1) % The final Wiener filter coefficients are in the vector w The Wiener filter converged to a narrow band-pass centered on 20 Hz, thus isolating that component of the signal

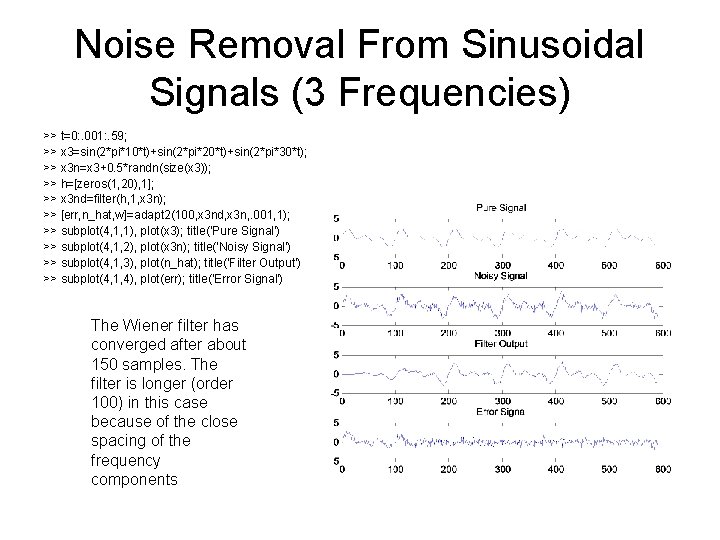

Noise Removal From Sinusoidal Signals (3 Frequencies) >> t=0: . 001: . 59; >> x 3=sin(2*pi*10*t)+sin(2*pi*20*t)+sin(2*pi*30*t); >> x 3 n=x 3+0. 5*randn(size(x 3)); >> h=[zeros(1, 20), 1]; >> x 3 nd=filter(h, 1, x 3 n); >> [err, n_hat, w]=adapt 2(100, x 3 nd, x 3 n, . 001, 1); >> subplot(4, 1, 1), plot(x 3); title('Pure Signal') >> subplot(4, 1, 2), plot(x 3 n); title('Noisy Signal') >> subplot(4, 1, 3), plot(n_hat); title('Filter Output') >> subplot(4, 1, 4), plot(err); title('Error Signal') The Wiener filter has converged after about 150 samples. The filter is longer (order 100) in this case because of the close spacing of the frequency components

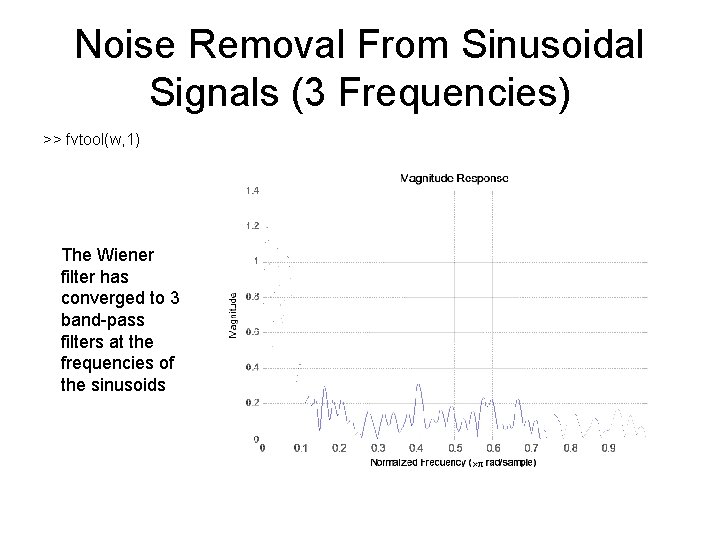

Noise Removal From Sinusoidal Signals (3 Frequencies) >> fvtool(w, 1) The Wiener filter has converged to 3 band-pass filters at the frequencies of the sinusoids

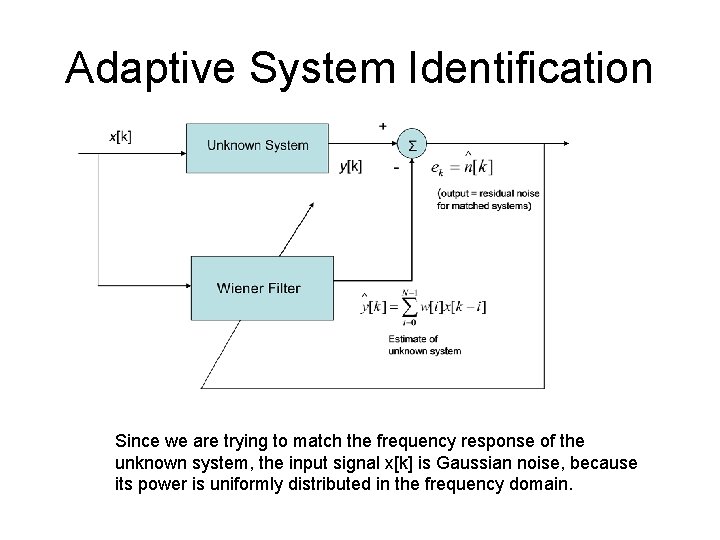

Adaptive System Identification Since we are trying to match the frequency response of the unknown system, the input signal x[k] is Gaussian noise, because its power is uniformly distributed in the frequency domain.

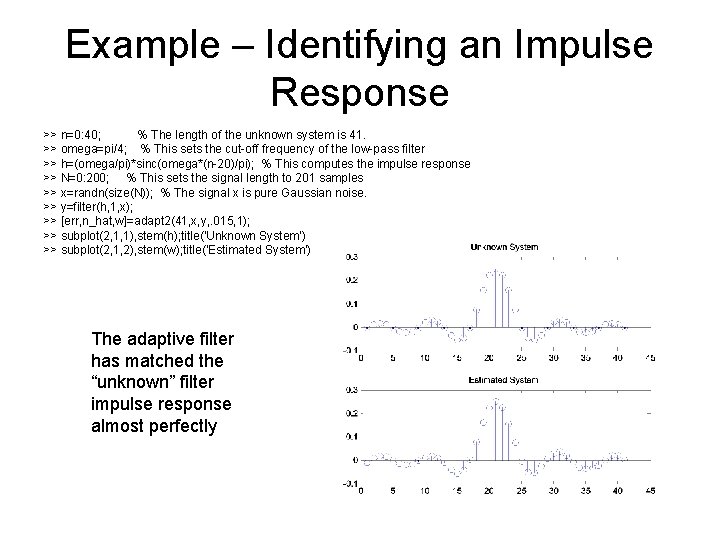

Example – Identifying an Impulse Response >> n=0: 40; % The length of the unknown system is 41. >> omega=pi/4; % This sets the cut-off frequency of the low-pass filter >> h=(omega/pi)*sinc(omega*(n-20)/pi); % This computes the impulse response >> N=0: 200; % This sets the signal length to 201 samples >> x=randn(size(N)); % The signal x is pure Gaussian noise. >> y=filter(h, 1, x); >> [err, n_hat, w]=adapt 2(41, x, y, . 015, 1); >> subplot(2, 1, 1), stem(h); title('Unknown System') >> subplot(2, 1, 2), stem(w); title('Estimated System') The adaptive filter has matched the “unknown” filter impulse response almost perfectly

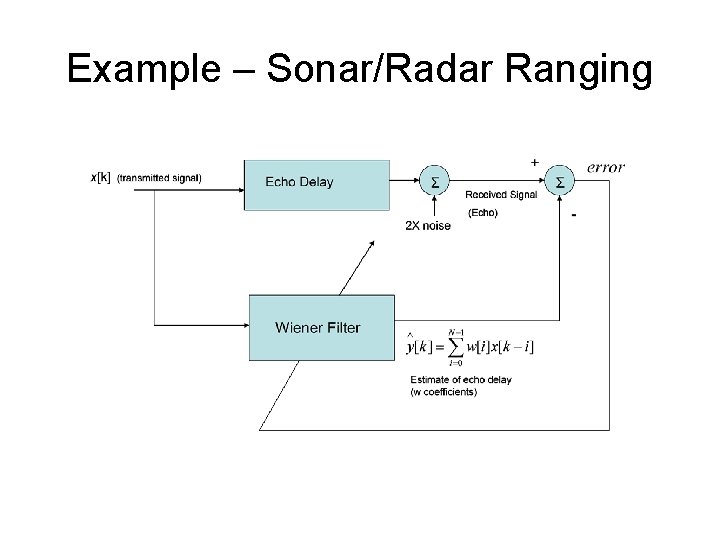

Example – Sonar/Radar Ranging

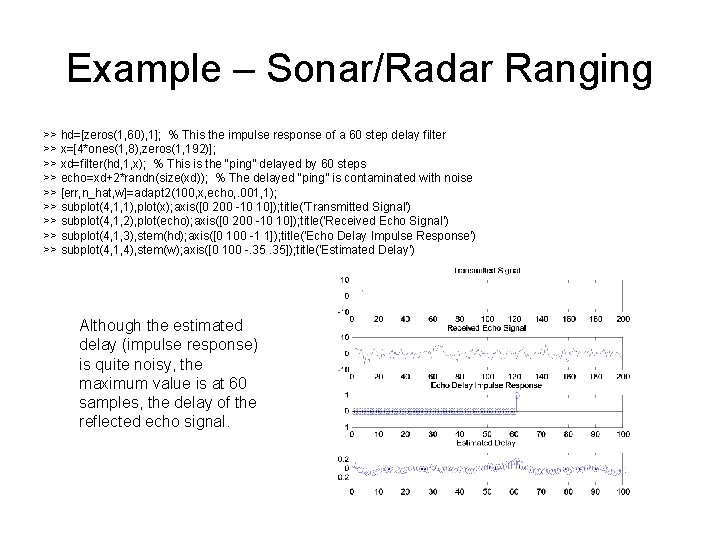

Example – Sonar/Radar Ranging >> hd=[zeros(1, 60), 1]; % This the impulse response of a 60 step delay filter >> x=[4*ones(1, 8), zeros(1, 192)]; >> xd=filter(hd, 1, x); % This is the “ping” delayed by 60 steps >> echo=xd+2*randn(size(xd)); % The delayed “ping” is contaminated with noise >> [err, n_hat, w]=adapt 2(100, x, echo, . 001, 1); >> subplot(4, 1, 1), plot(x); axis([0 200 -10 10]); title('Transmitted Signal') >> subplot(4, 1, 2), plot(echo); axis([0 200 -10 10]); title('Received Echo Signal') >> subplot(4, 1, 3), stem(hd); axis([0 100 -1 1]); title('Echo Delay Impulse Response') >> subplot(4, 1, 4), stem(w); axis([0 100 -. 35]); title('Estimated Delay') Although the estimated delay (impulse response) is quite noisy, the maximum value is at 60 samples, the delay of the reflected echo signal.

Example – FIR Filters with an IIR Frequency Response • An interesting example of system identification is using the Wiener filter (FIR) to match the frequency response of an IIR filter • This is using the adaptive filter to solve an otherwise difficult design problem. • To illustrate the procedure, let’s first use MATLAB design tools to design an IIR filter with a low-pass Butterworth response to the following specifications: – – Sampling frequency = 2000 Hz Transition from the pass-band to the stop-band: 300 to 400 Hz Pass-band variation less than 1 d. B Stop-band attenuation at least -20 d. B

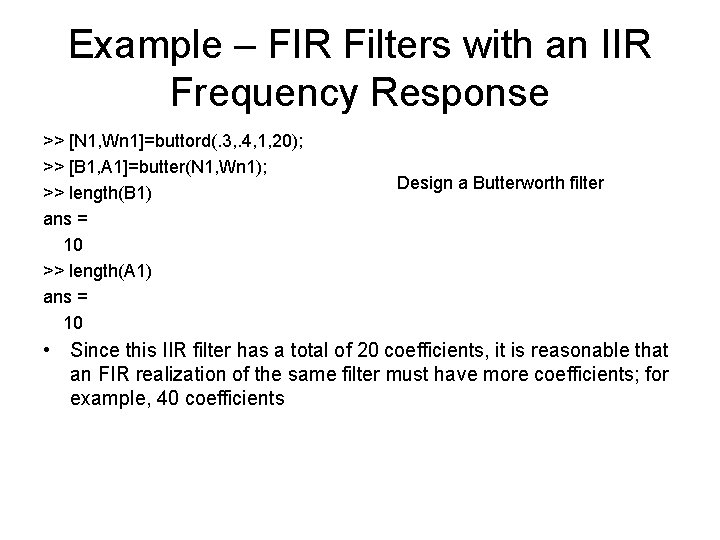

Example – FIR Filters with an IIR Frequency Response >> [N 1, Wn 1]=buttord(. 3, . 4, 1, 20); >> [B 1, A 1]=butter(N 1, Wn 1); >> length(B 1) ans = 10 >> length(A 1) ans = 10 Design a Butterworth filter • Since this IIR filter has a total of 20 coefficients, it is reasonable that an FIR realization of the same filter must have more coefficients; for example, 40 coefficients

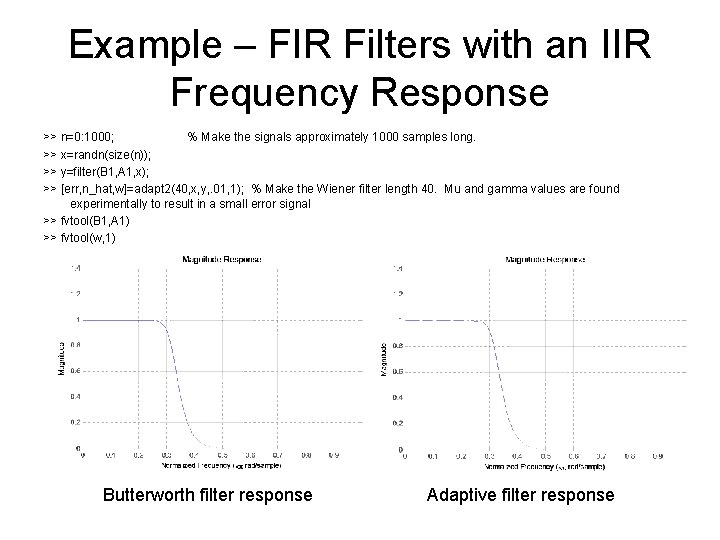

Example – FIR Filters with an IIR Frequency Response >> n=0: 1000; % Make the signals approximately 1000 samples long. >> x=randn(size(n)); >> y=filter(B 1, A 1, x); >> [err, n_hat, w]=adapt 2(40, x, y, . 01, 1); % Make the Wiener filter length 40. Mu and gamma values are found experimentally to result in a small error signal >> fvtool(B 1, A 1) >> fvtool(w, 1) Butterworth filter response Adaptive filter response

Summary • Adaptive filters respond in real-time to statistical properties of signals • Many adaptive filters are based on the discrete Wiener filter and the Widrow-Hoff least-meansquares algortithm. • Several applications were illustrated: – Adaptive predictor: removal of noise or interfering tones from signals – System identification: sonar/radar ranging and design of FIR filters with a classic IIR response.
