Chapter 9 2 Announcements Homework 9 2 due
- Slides: 34

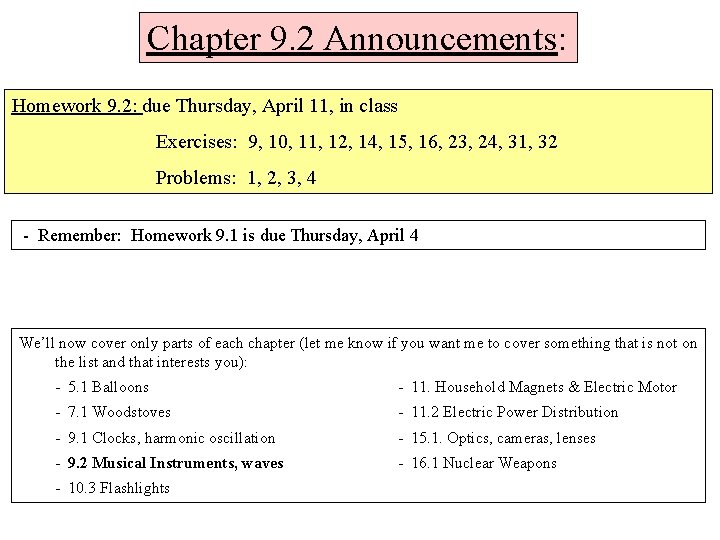

Chapter 9. 2 Announcements: Homework 9. 2: due Thursday, April 11, in class Exercises: 9, 10, 11, 12, 14, 15, 16, 23, 24, 31, 32 Problems: 1, 2, 3, 4 - Remember: Homework 9. 1 is due Thursday, April 4 We’ll now cover only parts of each chapter (let me know if you want me to cover something that is not on the list and that interests you): - 5. 1 Balloons - 11. Household Magnets & Electric Motor - 7. 1 Woodstoves - 11. 2 Electric Power Distribution - 9. 1 Clocks, harmonic oscillation - 15. 1. Optics, cameras, lenses - 9. 2 Musical Instruments, waves - 16. 1 Nuclear Weapons - 10. 3 Flashlights
Chapter 9. 2 Musical Instruments (waves) Concepts Demos and Objects - waves in a room/stadium waves in a pipe a speaker (creating sound) ear tuning fork waves on a string wave modes (harmonics) - longitudinal waves transverse waves traveling & standing waves on a string waves in an air column ear and hearing wave length frequency/pitch sound
Traveling transverse waves Crest/bump travels Transverse waves: particle wave The particles of the disturbed medium move perpendicular to the wave motion
Traveling, longitudinal waves compression travels Longitudinal waves: The particles of the disturbed medium move parallel to the wave motion
Examples of waves (i-clicker-1): Which wave is a longitudinal wave? A. “Bump” traveling down a string: __________ B. Sound waves: __________ C. La ola in a stadium (getting up/sitting down): _______ D. Water wave: ______________
Basic Variables of Wave Motion Terminology to describe waves

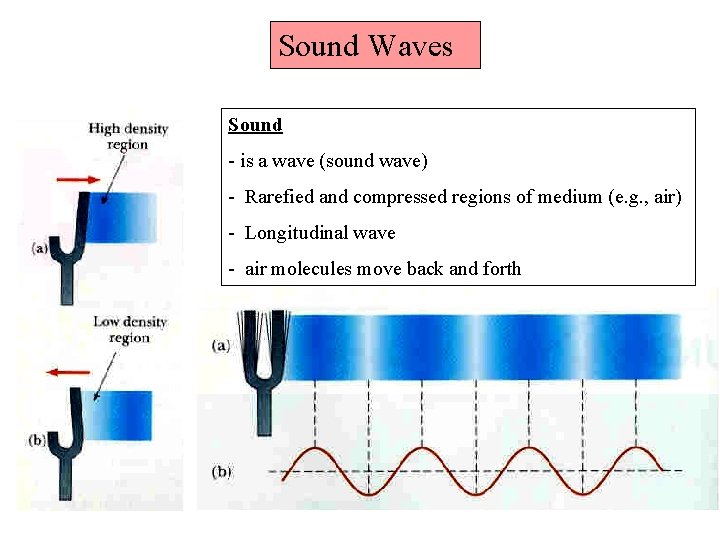

Sound Waves Sound - is a wave (sound wave) - Rarefied and compressed regions of medium (e. g. , air) - Longitudinal wave - air molecules move back and forth

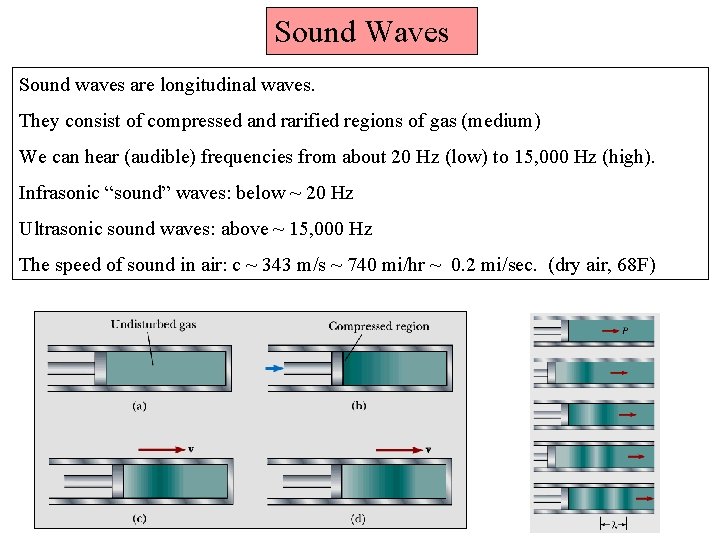

Sound Waves Sound waves are longitudinal waves. They consist of compressed and rarified regions of gas (medium) We can hear (audible) frequencies from about 20 Hz (low) to 15, 000 Hz (high). Infrasonic “sound” waves: below ~ 20 Hz Ultrasonic sound waves: above ~ 15, 000 Hz The speed of sound in air: c ~ 343 m/s ~ 740 mi/hr ~ 0. 2 mi/sec. (dry air, 68 F)
i-clicker-2 It is a dark and stormy night. Lightning strikes in the distance. You see the lighting, then, after ten seconds you hear the thunder. How far away did the lighting strike? A. 1 mile B. 2 miles C. 3 miles D. 4 miles E. 5 miles
Sound waves, hearing and the ear Short video about human hearing: https: //www. youtube. com/watch? v=qgdqp-o. Pb 1 Q
Notes and their fundamental frequency Octaves: frequency doubles for each tone
Creating standing waves: When two waves are traveling back and forth, under the right conditions (right frequency), we can create standing waves. Standing waves have stationary nodes and antinodes Examples we’ll talk about: - Standing waves on a string. - Standing waves in a pipe (open and closed).

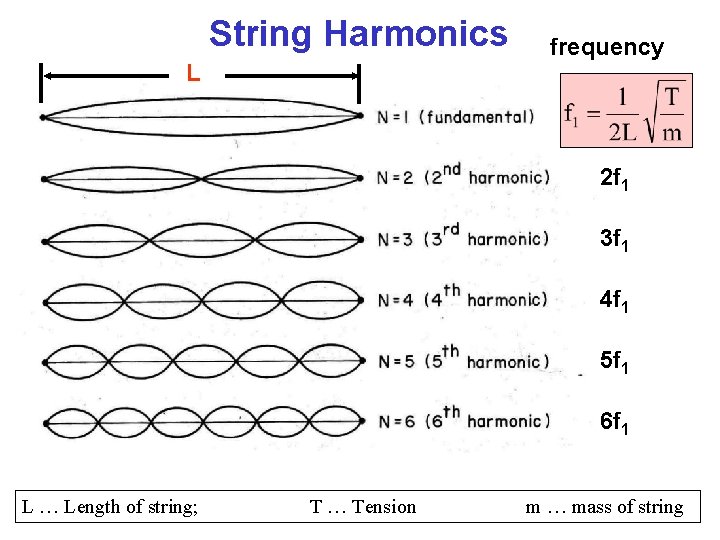

String Harmonics L frequency 2 f 1 3 f 1 4 f 1 5 f 1 6 f 1 L … Length of string; T … Tension m … mass of string

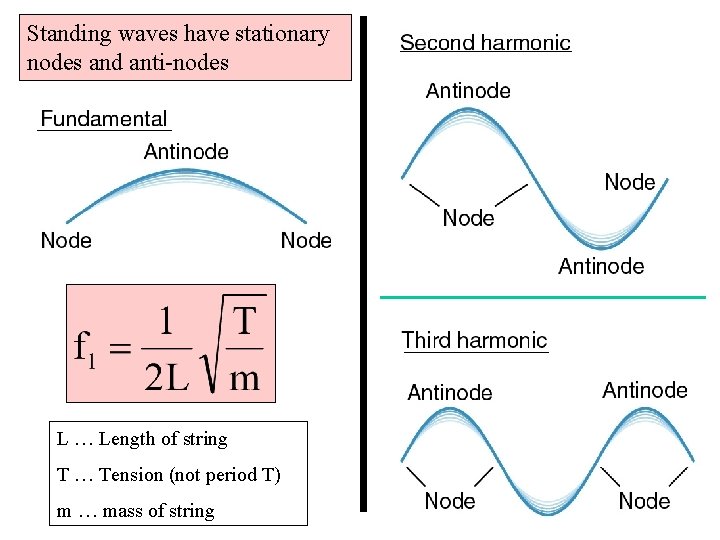

Standing waves have stationary nodes and anti-nodes L … Length of string T … Tension (not period T) m … mass of string
Strings as Harmonic Oscillators • A string is a harmonic oscillator – Its mass gives it inertia – Its tension gives it a restoring force – It has a stable equilibrium – Restoring forces are proportional to displacement • Stiffness of restoring forces determined by – String’s curvature – String’s tension
Fundamental Vibration • String vibrates as a single arc, up and down – velocity antinode occurs at center of string • This is the fundamental vibrational mode • Pitch (frequency of vibration) is – proportional to – inversely proportional to string length – inversely proportional to

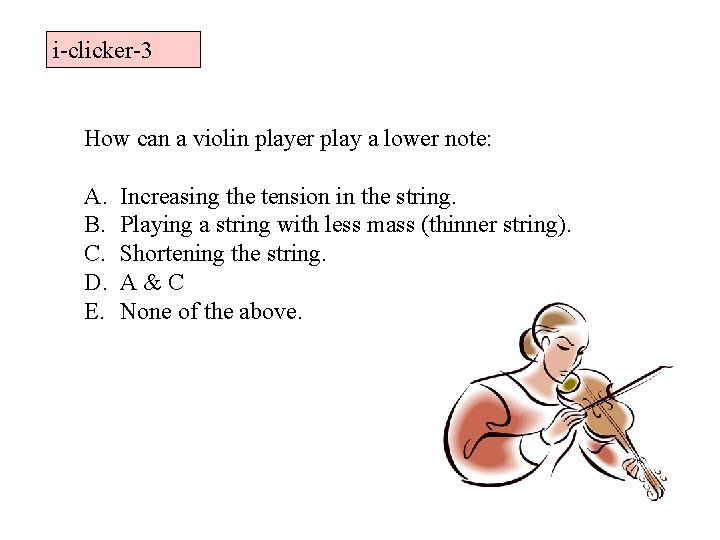

i-clicker-3 How can a violin player play a lower note: A. B. C. D. E. Increasing the tension in the string. Playing a string with less mass (thinner string). Shortening the string. A & C None of the above.
Overtone Vibrations • In addition, string can vibrate as – two half-strings – three third-strings – etc. • These are higher-order vibrational modes • These modes have higher pitches – overtones
Harmonics in a String • In a string, the overtone pitches are – two times the fundamental frequency (octave) – three times the fundamental frequency – etc. • These integer multiples are called harmonics • Bowing or plucking a string tends to excite a mixture of fundamental and harmonic vibrations, giving character to the sound
notes E 5 A 4 D 4 G 3 i-clicker-4: Why do all musical instruments have a body (wood body, metal shell, etc)? A. B. C. D. E. They look prettier They are easier to hold They act as resonators (amplify sound) They act as dampers (reduce sound) No good reason
Music and Resonance: Primary and secondary oscillators strings body Mouthpiece Air column String Instruments Wind Instruments
Connecting primary (strings) and secondary (body) oscillators
Producing Sound • Thin objects don’t project sound well – Air flows around objects – Compression and rarefaction is minimal • Surfaces project sound much better – Air can’t flow around surfaces easily – Compression and rarefaction is substantial • Many instruments use surfaces for sound

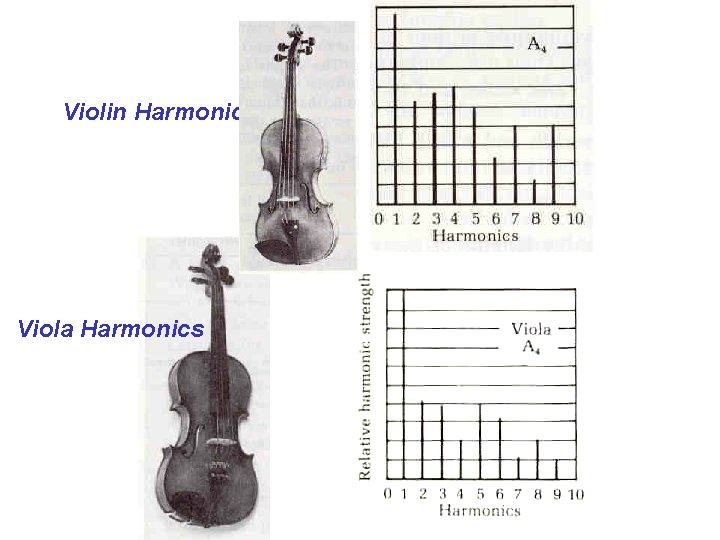

Violin Harmonics Viola Harmonics

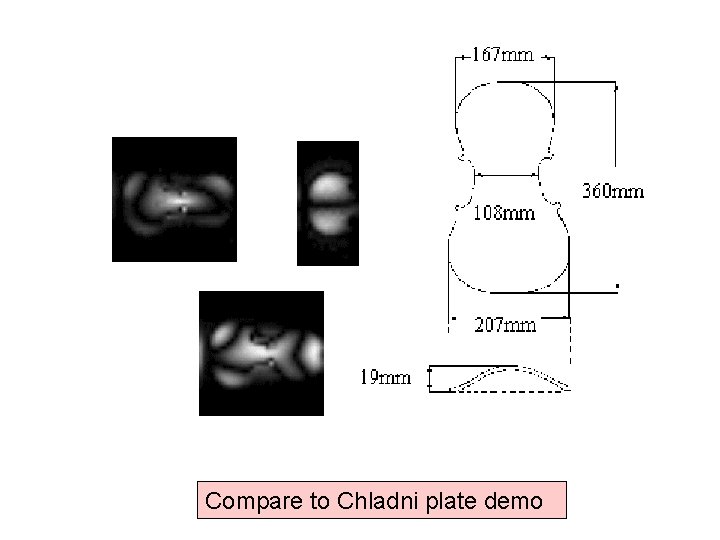

Compare to Chladni plate demo
i-clicker-5: Why are some violins so expensive (Stradivarius : $ 1. 5 M)? Computer Tomography scan of a Nicolo Amati Violin (1654) A. B. C. D. E. Old stuff is always expensive. They are made of expensive materials. In fashion and music, you pay for the label. The secondary oscillator mixes a rich sound of harmonics. The primary oscillator produces unusual frequencies.
Primary Resonators: Wind Instruments Flute Woodwinds Brass Lips Fixed Edge Reed
Open pipe:

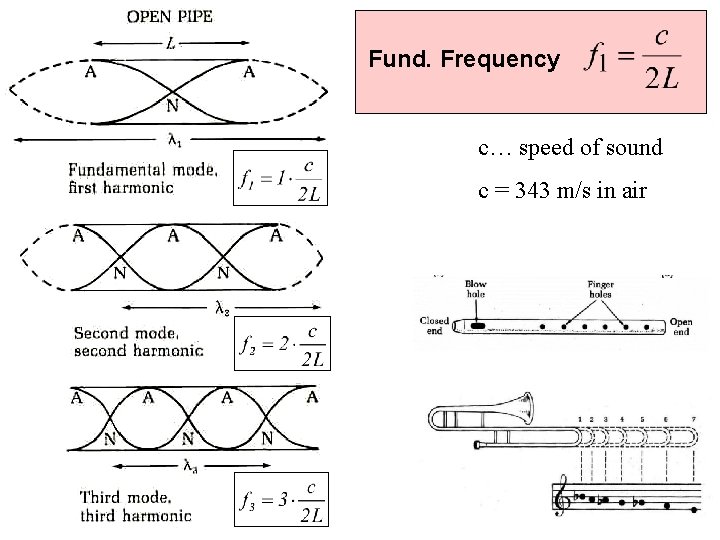

Fund. Frequency c… speed of sound c = 343 m/s in air
Half-closed pipe: Fundamental frequency:

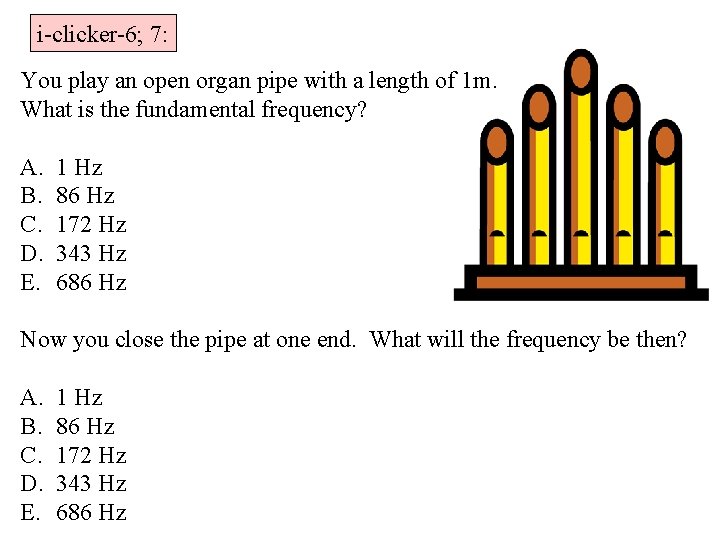

i-clicker-6; 7: You play an open organ pipe with a length of 1 m. What is the fundamental frequency? A. B. C. D. E. 1 Hz 86 Hz 172 Hz 343 Hz 686 Hz Now you close the pipe at one end. What will the frequency be then? A. B. C. D. E. 1 Hz 86 Hz 172 Hz 343 Hz 686 Hz

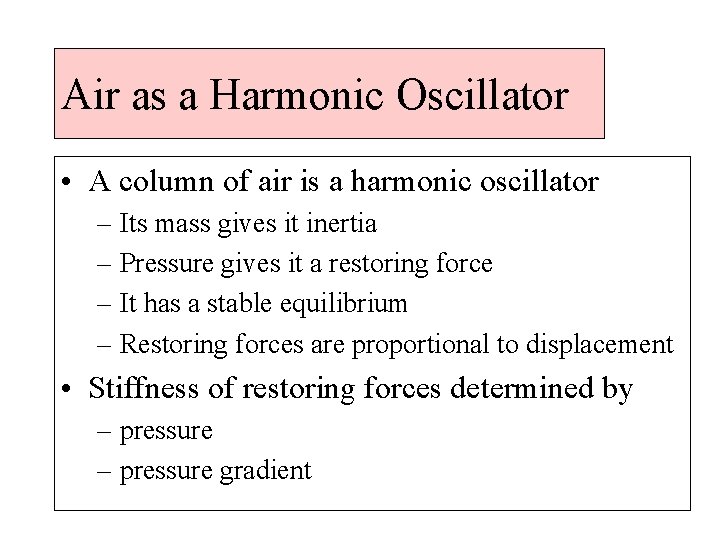

Air as a Harmonic Oscillator • A column of air is a harmonic oscillator – Its mass gives it inertia – Pressure gives it a restoring force – It has a stable equilibrium – Restoring forces are proportional to displacement • Stiffness of restoring forces determined by – pressure gradient
Fundamental Vibration • Air column vibrates as a single object – Pressure antinode occurs at center of open column – Velocity antinode occurs at ends of open column • Pitch (frequency of vibration) is – inversely proportional to column length – inversely proportional to air density • A closed pipe vibrates as half an open column – pressure antinode occurs at sealed end – Velocity node occurs at the sealed end – frequency is half that of an open pipe
Harmonic Vibrations • In addition, column of air can vibrate as – two half-columns – three third-columns – fourth-columns • These higher-order modes are the harmonics • Pitches are integer multiples of the fundamental • Blowing across column tends to excite a mixture of fundamental and harmonic vibrations
