Chapter 8 Memory Management Operating System Concepts with

Chapter 8: Memory Management n Background n Swapping n Contiguous Memory Allocation n Paging

Objectives n To provide a detailed description of various ways of organizing memory hardware

Background n Program must be brought (from disk) into memory and placed within a

Base and Limit Registers n A pair of base and limit registers define the

Binding of Instructions and Data to Memory n Address binding of instructions and data

Logical vs. Physical Address Space n The concept of a logical address space that

Memory-Management Unit (MMU) n Hardware device that maps virtual to physical address n In

Dynamic Loading n Routine is not loaded until it is called n Better memory-space

Dynamic Linking n Linking postponed until execution time n Small piece of code, stub,

Swapping n A process can be swapped temporarily out of memory to a backing

Swapping n Major part of swap time is transfer time; total transfer time is

Schematic View of Swapping Operating System Concepts with Java – 8 th Edition 8.

Example: Assume a user process is 100 MB in size and the backing store

Contiguous Allocation n Main memory usually into two partitions: l Resident operating system, usually

Hardware Support for Relocation and Limit Registers • Relocation register contains the value of

Contiguous Allocation (Cont) n Multiple-partition allocation Hole – block of available memory; holes of

Dynamic Storage-Allocation Problem How to satisfy a request of size n from a list

Fragmentation n As processes are loaded and removed from memory, the free memory space

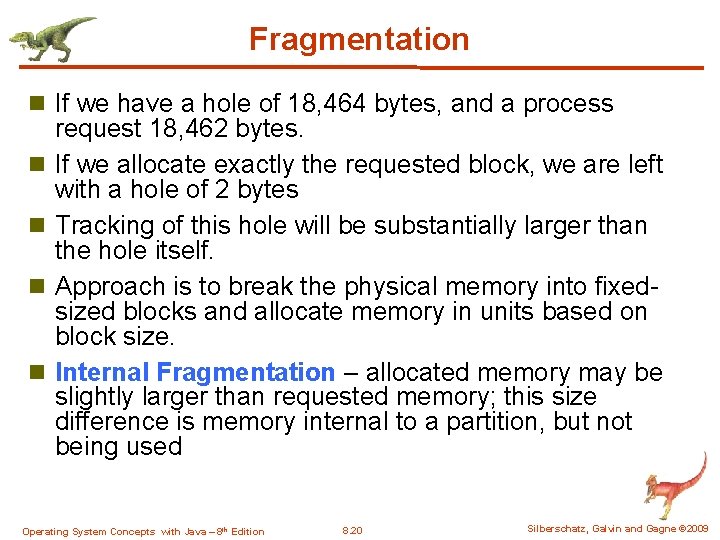

Fragmentation n If we have a hole of 18, 464 bytes, and a process

Fragmentation (cond. ) n Reduce external fragmentation by compaction l Shuffle memory contents to

Paging n Logical address space of a process can be noncontiguous; process is allocated

Paging (cond. ) n Keep track of all free frames n To run a

Address Translation Scheme n Address generated by CPU is divided into: l Page number

Paging Hardware p: page number f: base address d: offset Operating System Concepts with

Paging Model of Logical and Physical Memory Operating System Concepts with Java – 8

Paging Example Physical memory: 32 bytes, 8 pages, (2^4) Page size: 4 bytes, 2^2

Free Frames After allocation Before allocation Operating System Concepts with Java – 8 th

Implementation of Page Table n Page table is kept in main memory n Page-table

Associative Memory n Associative memory – parallel search Page # Frame # Address translation

Paging Hardware With TLB is a fast cache Operating System Concepts with Java –

Effective Access Time n Associative Lookup = time unit n Assume memory cycle time

Example An 80 -percent hit ratio means that we can find the desired page

Memory Protection n Memory protection implemented by associating protection bit with each frame n

Valid (v) or Invalid (i) Bit In A Page Table Operating System Concepts with

Shared Pages n Shared code l One copy of read-only (reentrant) code shared among

Shared Pages Example We only need one copy of editor (3, 4, 6), and

Structure of the Page Table n Hierarchical Paging n Hashed Page Tables n Inverted

Hierarchical Page Tables n Break up the logical address space into multiple page tables

Two-Level Page-Table Scheme Operating System Concepts with Java – 8 th Edition 8. 40

Two-Level Paging Example n A logical address (on 32 -bit machine with 1 K

Address-Translation Scheme Operating System Concepts with Java – 8 th Edition 8. 42 Silberschatz,

Three-level Paging Scheme Operating System Concepts with Java – 8 th Edition 8. 43

Hashed Page Tables n Common in address spaces > 32 bits n The virtual

Hashed Page Table Operating System Concepts with Java – 8 th Edition 8. 45

Inverted Page Table n One entry for each real page of memory n Entry

Inverted Page Table Architecture Operating System Concepts with Java – 8 th Edition 8.

End of Chapter 8 Operating System Concepts with Java – 8 th Edition 8.
