Chapter 8 Main Memory Chapter 8 Memory Management
- Slides: 69
Chapter 8: Main Memory
Chapter 8: Memory Management n Background n Swapping n Contiguous Memory Allocation n Paging n Structure of the Page Table n Segmentation n Example: The Intel Pentium Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 2 Silberschatz, Galvin and Gagne © 2005
Objectives n To provide a detailed description of various ways of organizing memory hardware n To discuss various memory-management techniques, including paging and segmentation n To provide a detailed description of the Intel Pentium, which supports both pure segmentation and segmentation with paging Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 3 Silberschatz, Galvin and Gagne © 2005
Background n Program must be brought (from disk) into memory and placed within a process for it to be run n Main memory and registers are only storage CPU can access directly n Register access in one CPU clock (or less) n Main memory can take many cycles n Cache sits between main memory and CPU registers n Protection of memory required to ensure correct operation Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 4 Silberschatz, Galvin and Gagne © 2005

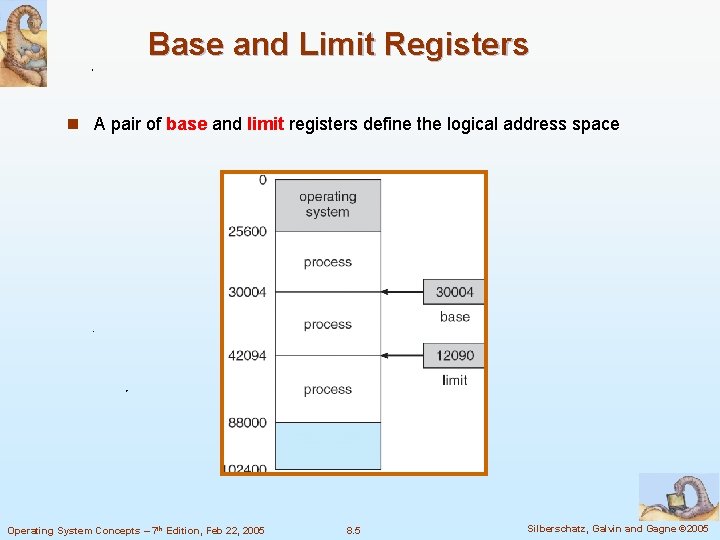

Base and Limit Registers n A pair of base and limit registers define the logical address space Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 5 Silberschatz, Galvin and Gagne © 2005
Binding of Instructions and Data to Memory n Address binding of instructions and data to memory addresses can happen at three different stages l Compile time: If memory location known a priori, absolute code can be generated; must recompile code if starting location changes l Load time: Must generate relocatable code if memory location is not known at compile time l Execution time: Binding delayed until run time if the process can be moved during its execution from one memory segment to another. Need hardware support for address maps (e. g. , base and limit registers) Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 6 Silberschatz, Galvin and Gagne © 2005
Multistep Processing of a User Program Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 7 Silberschatz, Galvin and Gagne © 2005
Logical vs. Physical Address Space n The concept of a logical address space that is bound to a separate physical address space is central to proper memory management l Logical address – generated by the CPU; also referred to as virtual address l Physical address – address seen by the memory unit n Logical and physical addresses are the same in compile-time and load-time address-binding schemes; logical (virtual) and physical addresses differ in execution-time address-binding scheme Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 8 Silberschatz, Galvin and Gagne © 2005
Memory-Management Unit (MMU) n Hardware device that maps virtual to physical address n In MMU scheme, the value in the relocation register is added to every address generated by a user process at the time it is sent to memory n The user program deals with logical addresses; it never sees the real physical addresses Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 9 Silberschatz, Galvin and Gagne © 2005
Dynamic relocation using a relocation register Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 10 Silberschatz, Galvin and Gagne © 2005
Dynamic Loading n Routine is not loaded until it is called n Better memory-space utilization; unused routine is never loaded n Useful when large amounts of code are needed to handle infrequently occurring cases n No special support from the operating system is required implemented through program design Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 11 Silberschatz, Galvin and Gagne © 2005
Dynamic Linking n Linking postponed until execution time n Small piece of code, stub, used to locate the appropriate memory-resident library routine n Stub replaces itself with the address of the routine, and executes the routine n Operating system needed to check if routine is in processes’ memory address n Dynamic linking is particularly useful for libraries n System also known as shared libraries Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 12 Silberschatz, Galvin and Gagne © 2005
Swapping n A process can be swapped temporarily out of memory to a backing store, and then brought back into memory for continued execution n Backing store – fast disk large enough to accommodate copies of all memory images for all users; must provide direct access to these memory images n Roll out, roll in – swapping variant used for priority-based scheduling algorithms; lower-priority process is swapped out so higher-priority process can be loaded and executed n Major part of swap time is transfer time; total transfer time is directly proportional to the amount of memory swapped Modified versions of swapping are found on many systems (i. e. , UNIX, Linux, and Windows) n System maintains a ready queue of ready-to-run processes which have memory images on disk n Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 13 Silberschatz, Galvin and Gagne © 2005
Schematic View of Swapping Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 14 Silberschatz, Galvin and Gagne © 2005
Contiguous Allocation n Main memory usually into two partitions: l Resident operating system, usually held in low memory with interrupt vector l User processes then held in high memory n Relocation registers used to protect user processes from each other, and from changing operating-system code and data l Base register contains value of smallest physical address l Limit register contains range of logical addresses – each logical address must be less than the limit register l MMU maps logical address dynamically Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 15 Silberschatz, Galvin and Gagne © 2005
HW address protection with base and limit registers Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 16 Silberschatz, Galvin and Gagne © 2005
Contiguous Allocation (Cont. ) n Multiple-partition allocation l Hole – block of available memory; holes of various size are scattered throughout memory l When a process arrives, it is allocated memory from a hole large enough to accommodate it l Operating system maintains information about: a) allocated partitions b) free partitions (hole) OS OS process 5 process 9 process 8 process 2 process 10 process 2 Operating System Concepts – 7 th Edition, Feb 22, 2005 process 2 8. 17 process 2 Silberschatz, Galvin and Gagne © 2005
Dynamic Storage-Allocation Problem How to satisfy a request of size n from a list of free holes n First-fit: Allocate the first hole that is big enough n Best-fit: Allocate the smallest hole that is big enough; must search entire list, unless ordered by size l Produces the smallest leftover hole n Worst-fit: Allocate the largest hole; must also search entire list l Produces the largest leftover hole First-fit and best-fit better than worst-fit in terms of speed and storage utilization Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 18 Silberschatz, Galvin and Gagne © 2005
Fragmentation n External Fragmentation – total memory space exists to satisfy a request, but it is not contiguous n Internal Fragmentation – allocated memory may be slightly larger than requested memory; this size difference is memory internal to a partition, but not being used n Reduce external fragmentation by compaction l Shuffle memory contents to place all free memory together in one large block l Compaction is possible only if relocation is dynamic, and is done at execution time l I/O problem 4 Latch 4 Do job in memory while it is involved in I/O only into OS buffers Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 19 Silberschatz, Galvin and Gagne © 2005
Paging n Logical address space of a process can be noncontiguous; process is allocated physical memory whenever the latter is available n Divide physical memory into fixed-sized blocks called frames (size is power of 2, between 512 bytes and 8, 192 bytes) n Divide logical memory into blocks of same size called pages n Keep track of all free frames n To run a program of size n pages, need to find n free frames and load program n Set up a page table to translate logical to physical addresses n Internal fragmentation Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 20 Silberschatz, Galvin and Gagne © 2005
Address Translation Scheme n Address generated by CPU is divided into: l Page number (p) – used as an index into a page table which contains base address of each page in physical memory l Page offset (d) – combined with base address to define the physical memory address that is sent to the memory unit page number l page offset p d m-n n For given logical address space 2 m and page size 2 n Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 21 Silberschatz, Galvin and Gagne © 2005
Paging Hardware Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 22 Silberschatz, Galvin and Gagne © 2005
Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 23 Silberschatz, Galvin and Gagne © 2005
Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 24 Silberschatz, Galvin and Gagne © 2005
Paging Model of Logical and Physical Memory Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 25 Silberschatz, Galvin and Gagne © 2005
Paging Example 32 -byte memory and 4 -byte pages Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 26 Silberschatz, Galvin and Gagne © 2005
Free Frames After allocation Before allocation Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 27 Silberschatz, Galvin and Gagne © 2005
Implementation of Page Table n Page table is kept in main memory n Page-table base register (PTBR) points to the page table n Page-table length register (PRLR) indicates size of the page table n In this scheme every data/instruction access requires two memory accesses. One for the page table and one for the data/instruction. n The two memory access problem can be solved by the use of a special fast-lookup hardware cache called associative memory or translation look-aside buffers (TLBs) n Some TLBs store address-space identifiers (ASIDs) in each TLB entry – uniquely identifies each process to provide address-space protection for that process Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 28 Silberschatz, Galvin and Gagne © 2005
Associative Memory n Associative memory – parallel search Page # Frame # Address translation (p, d) l If p is in associative register, get frame # out l Otherwise get frame # from page table in memory Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 29 Silberschatz, Galvin and Gagne © 2005
Paging Hardware With TLB Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 30 Silberschatz, Galvin and Gagne © 2005
Effective Access Time n Associative Lookup = time unit n Assume memory cycle time is 1 microsecond n Hit ratio – percentage of times that a page number is found in the associative registers; ratio related to number of associative registers n Hit ratio = n Effective Access Time (EAT) EAT = (1 + ) + (2 + )(1 – ) =2+ – Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 31 Silberschatz, Galvin and Gagne © 2005
Memory Protection n Memory protection implemented by associating protection bit with each frame n Valid-invalid bit attached to each entry in the page table: l “valid” indicates that the associated page is in the process’ logical address space, and is thus a legal page l “invalid” indicates that the page is not in the process’ logical address space Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 32 Silberschatz, Galvin and Gagne © 2005
Valid (v) or Invalid (i) Bit In A Page Table Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 33 Silberschatz, Galvin and Gagne © 2005
Shared Pages n Shared code l One copy of read-only (reentrant) code shared among processes (i. e. , text editors, compilers, window systems). l Shared code must appear in same location in the logical address space of all processes n Private code and data l Each process keeps a separate copy of the code and data l The pages for the private code and data can appear anywhere in the logical address space Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 34 Silberschatz, Galvin and Gagne © 2005
Shared Pages Example Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 35 Silberschatz, Galvin and Gagne © 2005

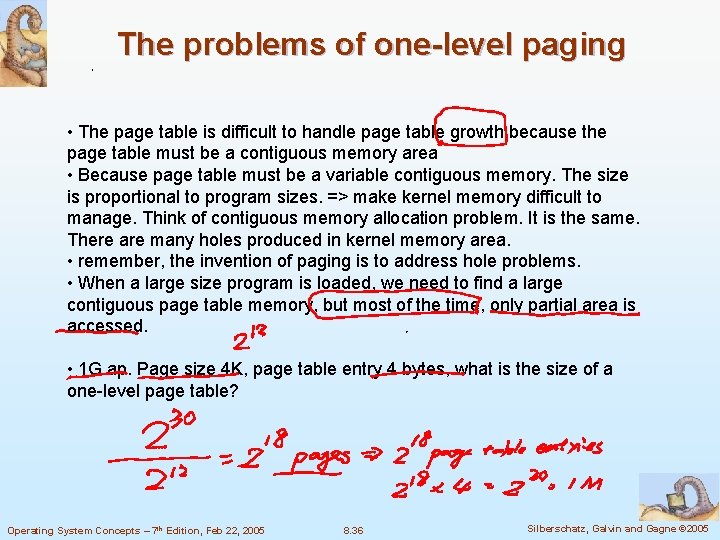

The problems of one-level paging • The page table is difficult to handle page table growth because the page table must be a contiguous memory area • Because page table must be a variable contiguous memory. The size is proportional to program sizes. => make kernel memory difficult to manage. Think of contiguous memory allocation problem. It is the same. There are many holes produced in kernel memory area. • remember, the invention of paging is to address hole problems. • When a large size program is loaded, we need to find a large contiguous page table memory, but most of the time, only partial area is accessed. • 1 G ap. Page size 4 K, page table entry 4 bytes, what is the size of a one-level page table? Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 36 Silberschatz, Galvin and Gagne © 2005
So, solution? We want the page table become partitioned to something like pages so that kernel does not need to address hole problems and the page table can be managed like paging hardware Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 37 Silberschatz, Galvin and Gagne © 2005
Structure of the Page Table n Hierarchical Paging n Hashed Page Tables n Inverted Page Tables Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 38 Silberschatz, Galvin and Gagne © 2005
Hierarchical Page Tables n Break up the logical address space into multiple page tables n A simple technique is a two-level page table Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 39 Silberschatz, Galvin and Gagne © 2005

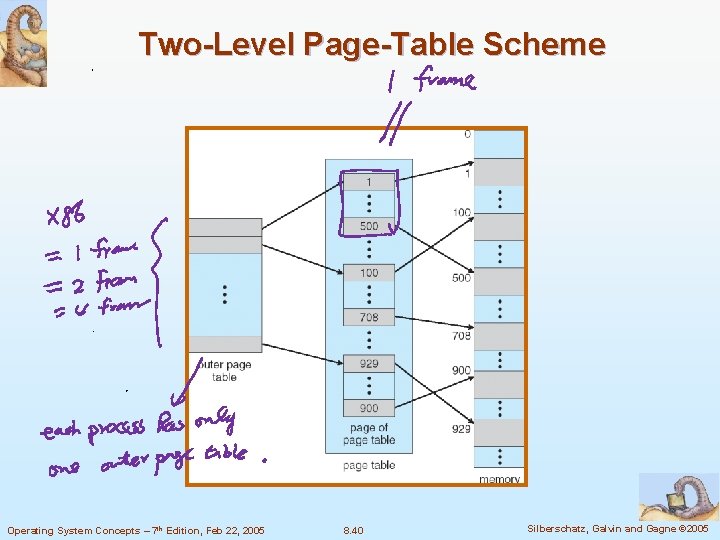

Two-Level Page-Table Scheme Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 40 Silberschatz, Galvin and Gagne © 2005
Two-Level Paging Example n A logical address (on 32 -bit machine with 1 K page size) is divided into: l a page number consisting of 22 bits a page offset consisting of 10 bits n Since the page table is paged, the page number is further divided into: l a 12 -bit page number l a 10 -bit page offset n Thus, a logical address is as follows: l page number pi 12 page offset p 2 d 10 10 where pi is an index into the outer page table, and p 2 is the displacement within the page of the outer page table Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 41 Silberschatz, Galvin and Gagne © 2005
Address-Translation Scheme Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 42 Silberschatz, Galvin and Gagne © 2005
Intel 32 bit address mode n The magic 10 10 12 : p 1 = 10 , p 2 = 10, d = 12 This is a magic combination. n Why? Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 43 Silberschatz, Galvin and Gagne © 2005
n An intel engineering design a CPU which has two level paging using 33 bit address. He divide it into 11 11 11. Is it good? Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 44 Silberschatz, Galvin and Gagne © 2005
The magic of 10 10 12 Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 45 Silberschatz, Galvin and Gagne © 2005
X 86 two level paging hardware Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 46 Silberschatz, Galvin and Gagne © 2005
The pros and cons two level paging n Pros l Do not have the problem of one level paging l Provide easy memory layout for process 4 Recall in one-level paging, process growth is a problem. Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 47 Silberschatz, Galvin and Gagne © 2005

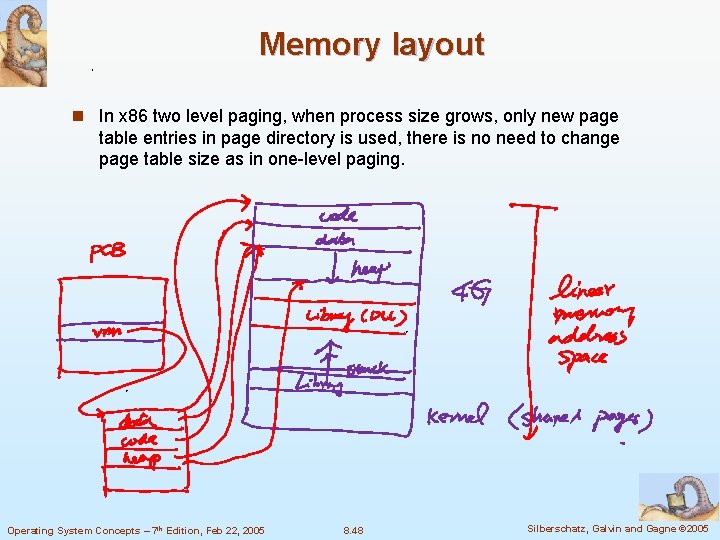

Memory layout n In x 86 two level paging, when process size grows, only new page table entries in page directory is used, there is no need to change page table size as in one-level paging. Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 48 Silberschatz, Galvin and Gagne © 2005

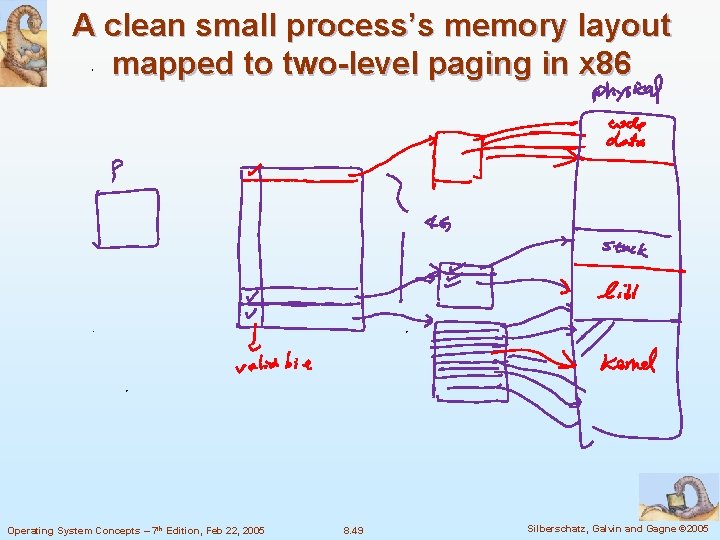

A clean small process’s memory layout mapped to two-level paging in x 86 Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 49 Silberschatz, Galvin and Gagne © 2005
Three-level Paging Scheme Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 50 Silberschatz, Galvin and Gagne © 2005
Hashed Page Tables n Common in address spaces > 32 bits n The virtual page number is hashed into a page table. This page table contains a chain of elements hashing to the same location. n Virtual page numbers are compared in this chain searching for a match. If a match is found, the corresponding physical frame is extracted. Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 51 Silberschatz, Galvin and Gagne © 2005

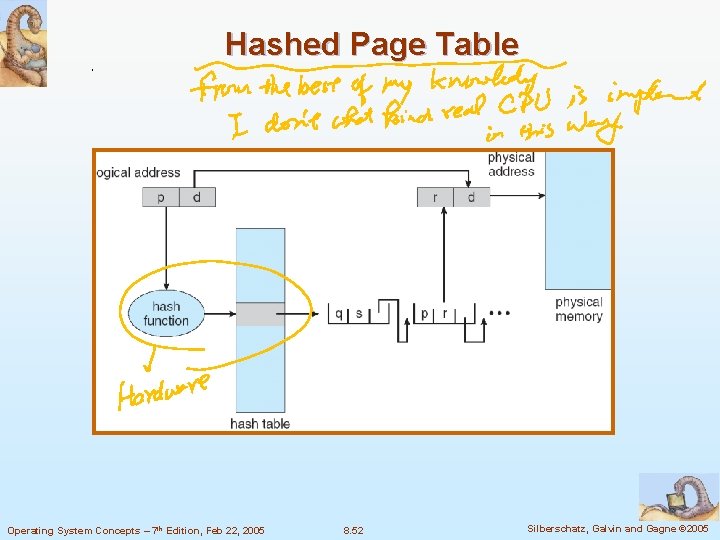

Hashed Page Table Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 52 Silberschatz, Galvin and Gagne © 2005
Inverted Page Table n One entry for each real page of memory n Entry consists of the virtual address of the page stored in that real memory location, with information about the process that owns that page n Decreases memory needed to store each page table, but increases time needed to search the table when a page reference occurs n Use hash table to limit the search to one — or at most a few — page-table entries Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 53 Silberschatz, Galvin and Gagne © 2005

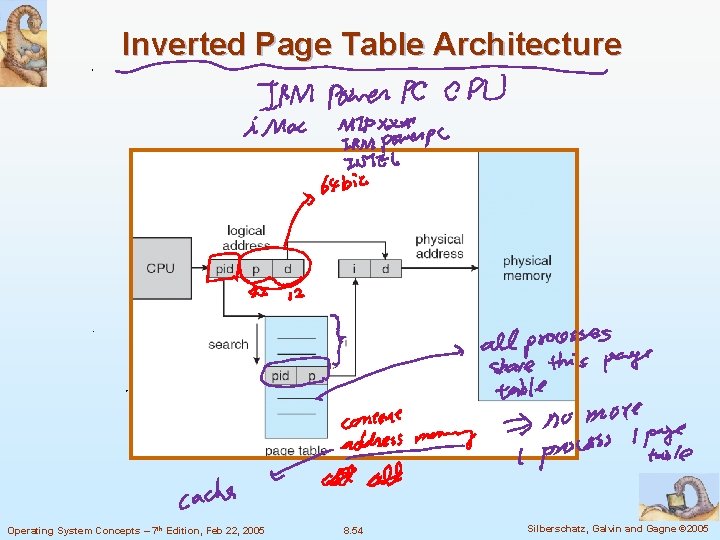

Inverted Page Table Architecture Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 54 Silberschatz, Galvin and Gagne © 2005
Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 55 Silberschatz, Galvin and Gagne © 2005
Segmentation n Memory-management scheme that supports user view of memory n A program is a collection of segments. A segment is a logical unit such as: main program, procedure, function, method, object, local variables, global variables, common block, stack, symbol table, arrays Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 56 Silberschatz, Galvin and Gagne © 2005
User’s View of a Program Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 57 Silberschatz, Galvin and Gagne © 2005
Logical View of Segmentation 1 4 1 2 3 2 4 3 user space Operating System Concepts – 7 th Edition, Feb 22, 2005 physical memory space 8. 58 Silberschatz, Galvin and Gagne © 2005
Segmentation Architecture n Logical address consists of a two tuple: <segment-number, offset>, n Segment table – maps two-dimensional physical addresses; each table entry has: l base – contains the starting physical address where the segments reside in memory l limit – specifies the length of the segment n Segment-table base register (STBR) points to the segment table’s location in memory n Segment-table length register (STLR) indicates number of segments used by a program; segment number s is legal if s < STLR Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 59 Silberschatz, Galvin and Gagne © 2005
Segmentation Architecture (Cont. ) n Protection l With each entry in segment table associate: 4 validation bit = 0 illegal segment 4 read/write/execute privileges n Protection bits associated with segments; code sharing occurs at segment level n Since segments vary in length, memory allocation is a dynamic storage-allocation problem n A segmentation example is shown in the following diagram Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 60 Silberschatz, Galvin and Gagne © 2005

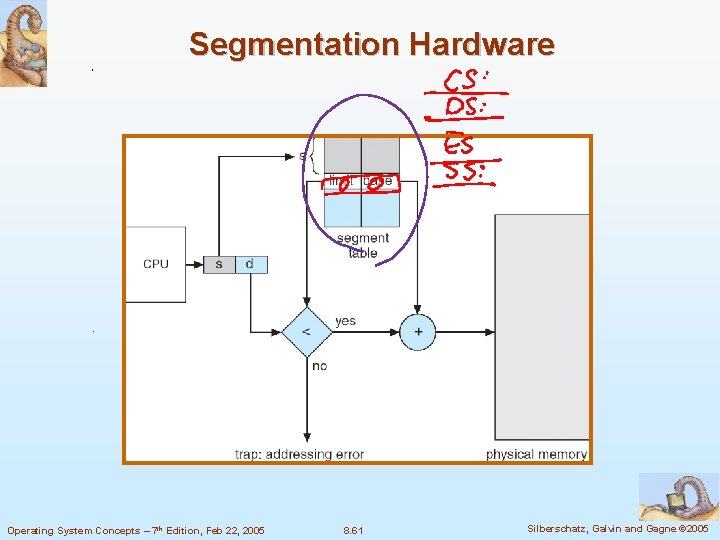

Segmentation Hardware Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 61 Silberschatz, Galvin and Gagne © 2005
Example of Segmentation Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 62 Silberschatz, Galvin and Gagne © 2005
Example: The Intel Pentium n Supports both segmentation and segmentation with paging n CPU generates logical address l Given to segmentation unit 4 Which l produces linear addresses Linear address given to paging unit 4 Which generates physical address in main memory 4 Paging units form equivalent of MMU Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 63 Silberschatz, Galvin and Gagne © 2005
Logical to Physical Address Translation in Pentium Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 64 Silberschatz, Galvin and Gagne © 2005
Intel Pentium Segmentation Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 65 Silberschatz, Galvin and Gagne © 2005
Pentium Paging Architecture Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 66 Silberschatz, Galvin and Gagne © 2005
Linear Address in Linux Broken into four parts: Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 67 Silberschatz, Galvin and Gagne © 2005
Three-level Paging in Linux Operating System Concepts – 7 th Edition, Feb 22, 2005 8. 68 Silberschatz, Galvin and Gagne © 2005
End of Chapter 8
