Chapter 8 Chromosomal Structure and Chromosomal Mutations Objectives

Chapter 8 Chromosomal Structure and Chromosomal Mutations

Objectives § Define mutations and polymorphisms. § Distinguish the three types of DNA mutations: genome, chromosomal, and gene. § Diagram a human chromosome and label the centromere, q arm, p arm, and telomere. § Illustrate the different types of structural mutations that occur in chromosomes. § Show karyotypes reveal chromosomal abnormalities. § Describe interphase and metaphase FISH analyses.

Mutations and Polymorphisms § Mutation: a permanent transmissable change in the genetic material, usually in a single gene § Polymorphism: two or more genetically determined, proportionally represented phenotypes in the same population

Types of Mutations § Genomic: abnormal chromosome number (monosomy, polysomy, aneuploidy) § Chromosomal: abnormal chromosome structure § Gene: DNA sequence changes in specific genes

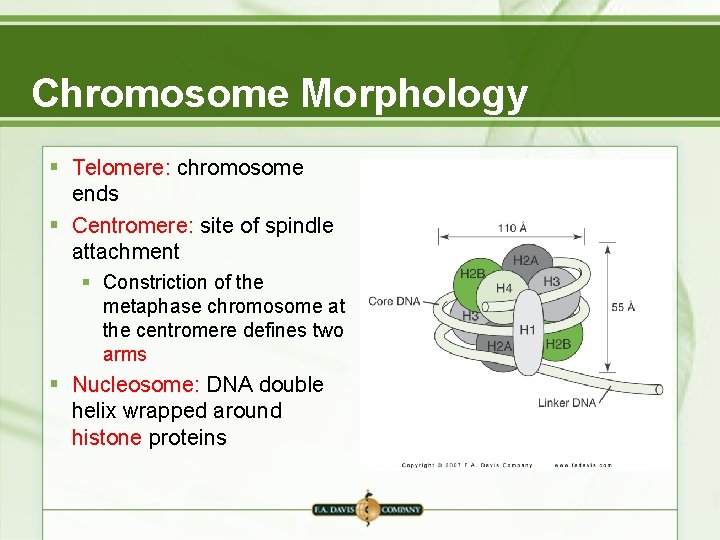

Chromosome Morphology § Telomere: chromosome ends § Centromere: site of spindle attachment § Constriction of the metaphase chromosome at the centromere defines two arms § Nucleosome: DNA double helix wrapped around histone proteins

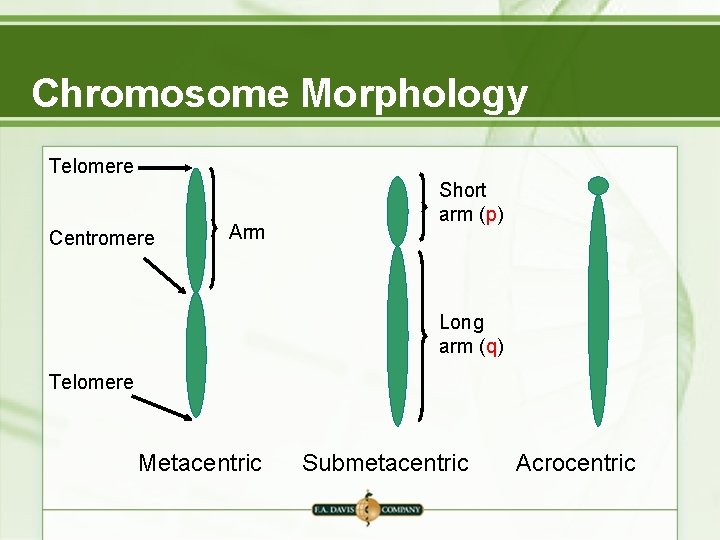

Chromosome Morphology Telomere Centromere Arm Short arm (p) Long arm (q) Telomere Metacentric Submetacentric Acrocentric

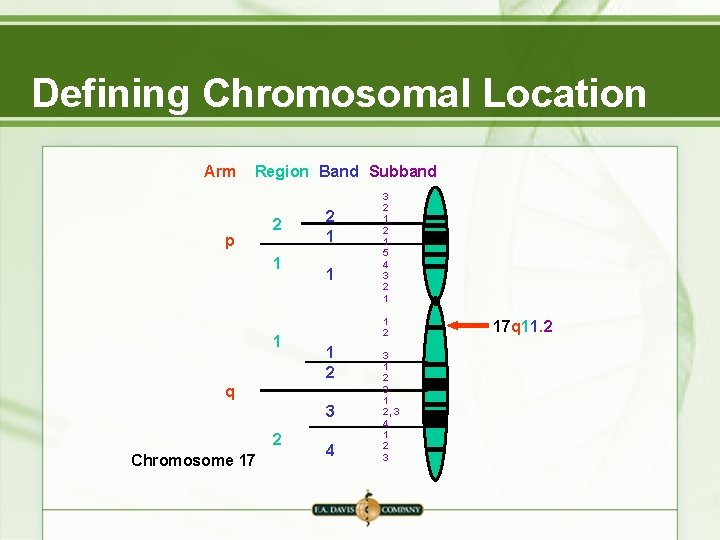

Defining Chromosomal Location Arm Region Band Subband p 2 1 1 1 2 q 3 2 Chromosome 17 3 2 1 5 4 3 2 1 4 3 1 2, 3 4 1 2 3 17 q 11. 2

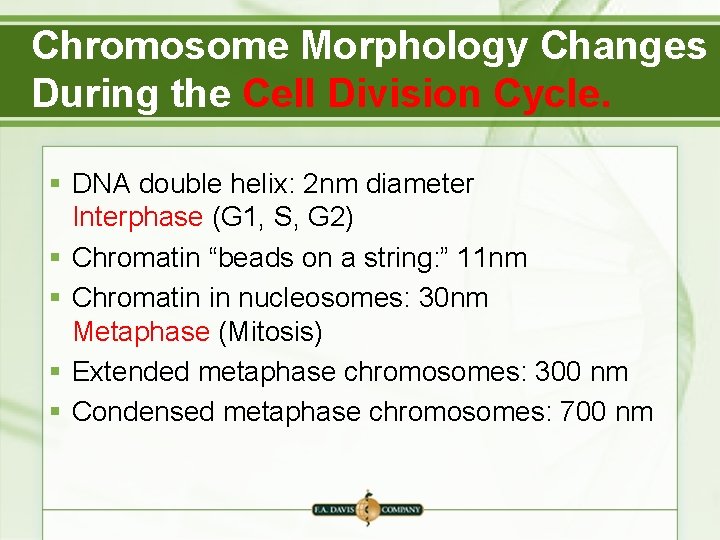

Chromosome Morphology Changes During the Cell Division Cycle. § DNA double helix: 2 nm diameter Interphase (G 1, S, G 2) § Chromatin “beads on a string: ” 11 nm § Chromatin in nucleosomes: 30 nm Metaphase (Mitosis) § Extended metaphase chromosomes: 300 nm § Condensed metaphase chromosomes: 700 nm

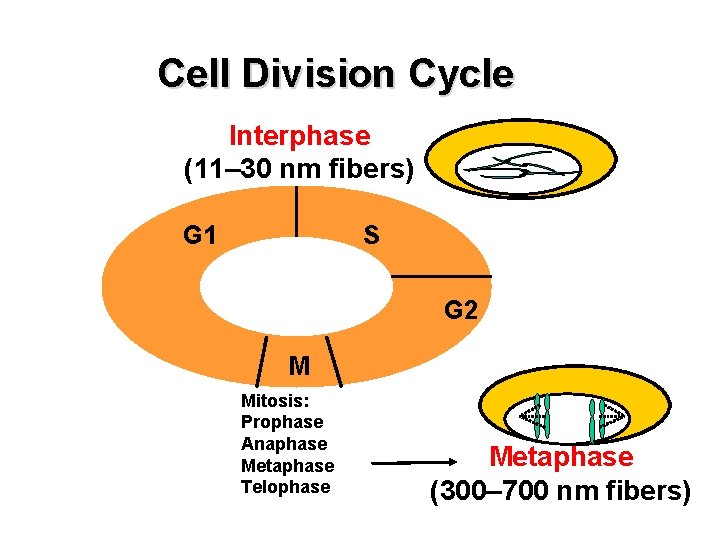

Cell Division Cycle Interphase (11– 30 nm fibers) G 1 S G 2 M Mitosis: Prophase Anaphase Metaphase Telophase Metaphase (300– 700 nm fibers)

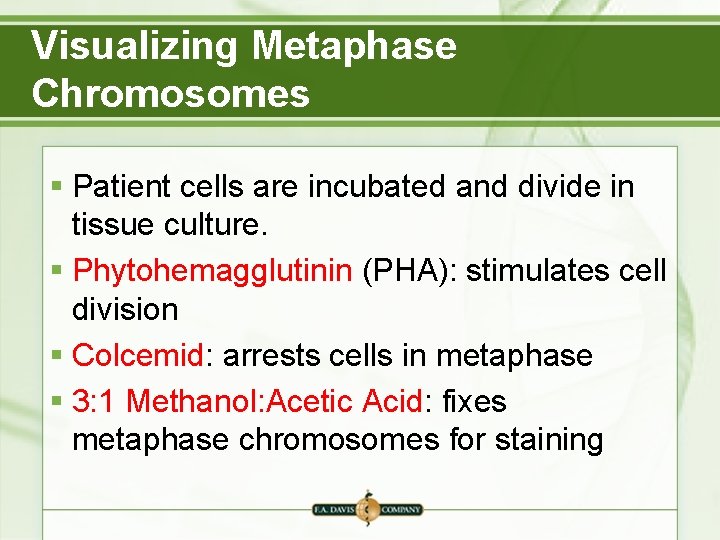

Visualizing Metaphase Chromosomes § Patient cells are incubated and divide in tissue culture. § Phytohemagglutinin (PHA): stimulates cell division § Colcemid: arrests cells in metaphase § 3: 1 Methanol: Acetic Acid: fixes metaphase chromosomes for staining

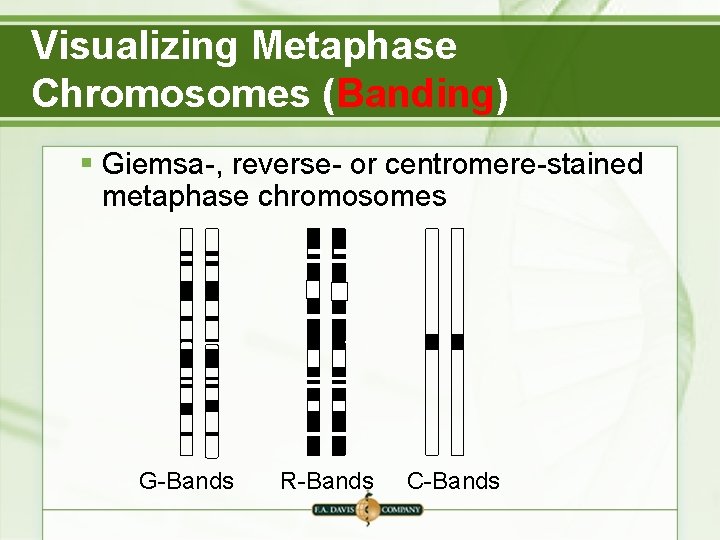

Visualizing Metaphase Chromosomes (Banding) § Giemsa-, reverse- or centromere-stained metaphase chromosomes G-Bands R-Bands C-Bands

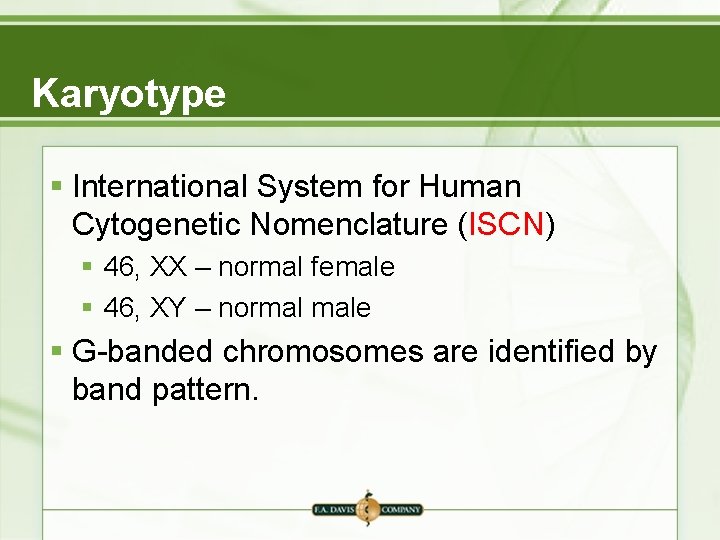

Karyotype § International System for Human Cytogenetic Nomenclature (ISCN) § 46, XX – normal female § 46, XY – normal male § G-banded chromosomes are identified by band pattern.

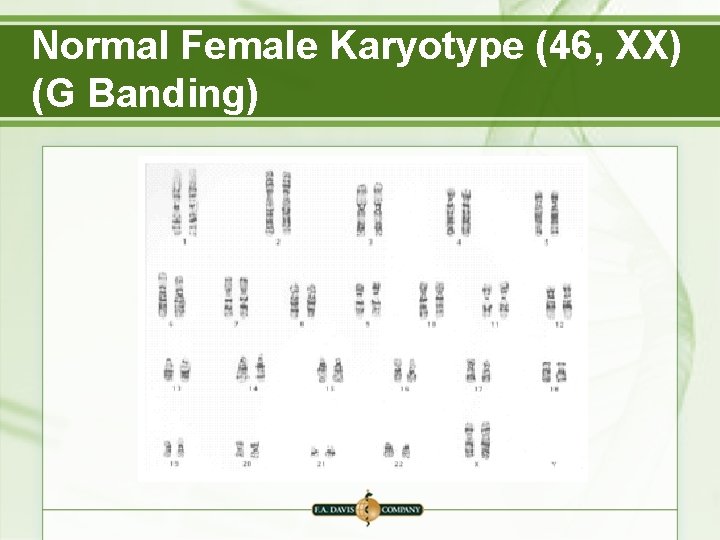

Normal Female Karyotype (46, XX) (G Banding)

Normal Female Karyotype (High-Resolution G Banding)

Chromosome Number Abnormality Aneuploidy (48, XXXX)

Chromosome Number Abnormality Trisomy 21 (47, XX, +21)

Chromosome Structure Abnormalities Translocation Deletion Derivative chromosome Inversion Insertion Isochromosome Ring chromosome

Chromosome Structure Abnormality: Balanced Translocation 45, XY, t(14 q 21 q)

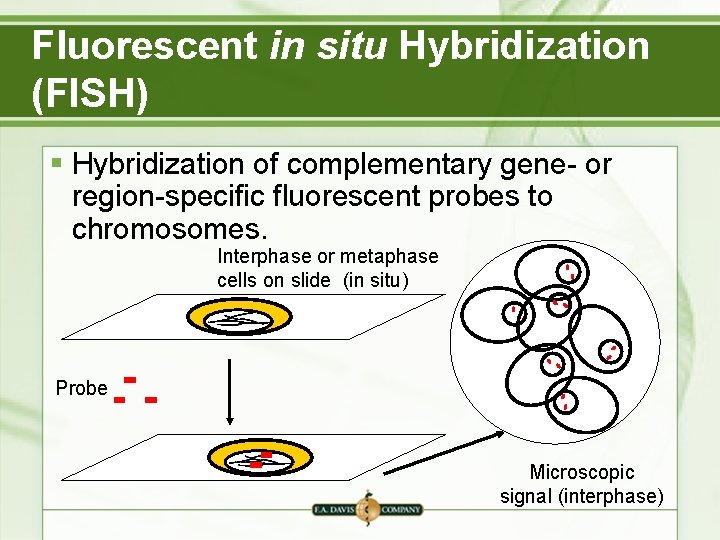

Fluorescent in situ Hybridization (FISH) § Hybridization of complementary gene- or region-specific fluorescent probes to chromosomes. Interphase or metaphase cells on slide (in situ) Probe Microscopic signal (interphase)

Fluorescent in situ Hybridization (FISH) § Metaphase FISH § Chromosome painting § Spectral karyotyping § Interphase FISH

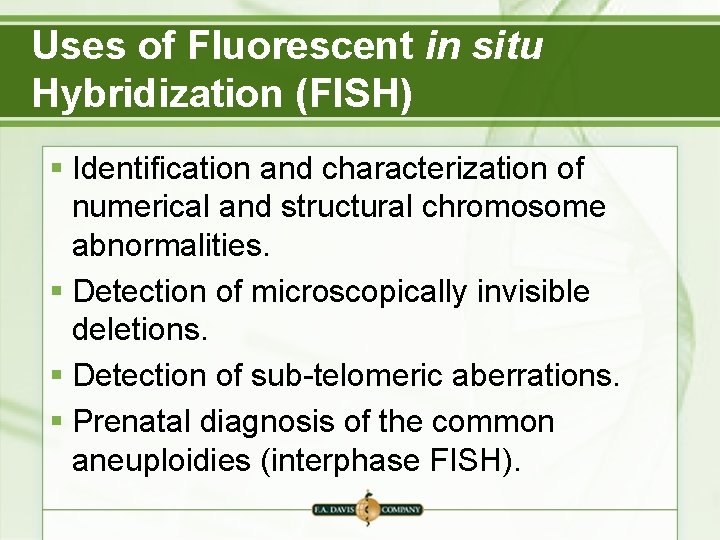

Uses of Fluorescent in situ Hybridization (FISH) § Identification and characterization of numerical and structural chromosome abnormalities. § Detection of microscopically invisible deletions. § Detection of sub-telomeric aberrations. § Prenatal diagnosis of the common aneuploidies (interphase FISH).

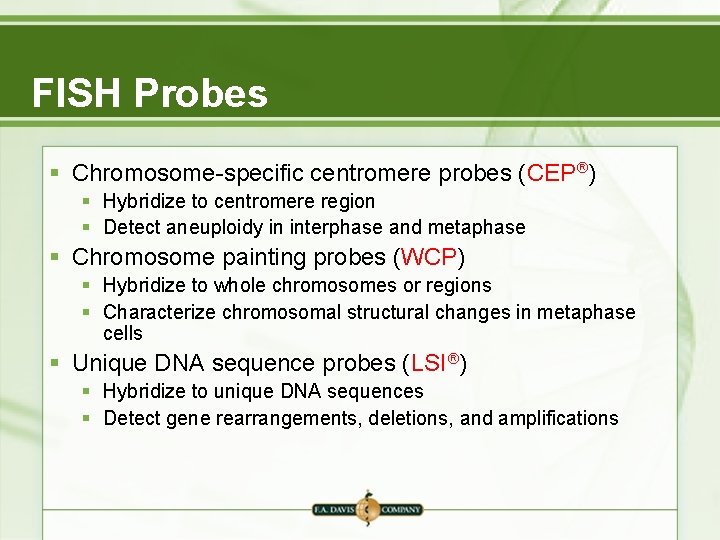

FISH Probes § Chromosome-specific centromere probes (CEP ) § Hybridize to centromere region § Detect aneuploidy in interphase and metaphase § Chromosome painting probes (WCP) § Hybridize to whole chromosomes or regions § Characterize chromosomal structural changes in metaphase cells § Unique DNA sequence probes (LSI ) § Hybridize to unique DNA sequences § Detect gene rearrangements, deletions, and amplifications

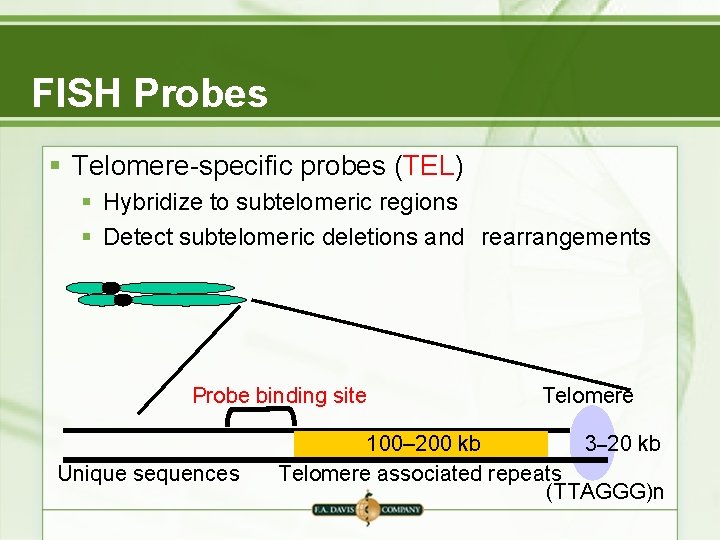

FISH Probes § Telomere-specific probes (TEL) § Hybridize to subtelomeric regions § Detect subtelomeric deletions and rearrangements Probe binding site Unique sequences Telomere 100– 200 kb 3– 20 kb Telomere associated repeats (TTAGGG)n

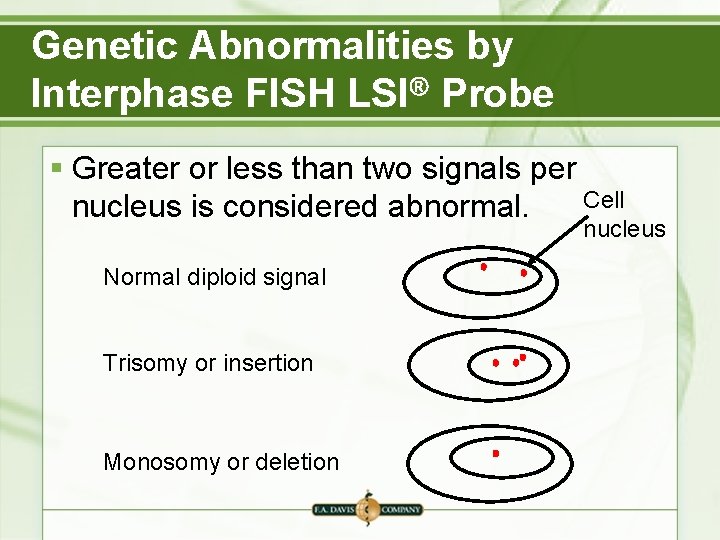

Genetic Abnormalities by Interphase FISH LSI Probe § Greater or less than two signals per Cell nucleus is considered abnormal. nucleus Normal diploid signal Trisomy or insertion Monosomy or deletion

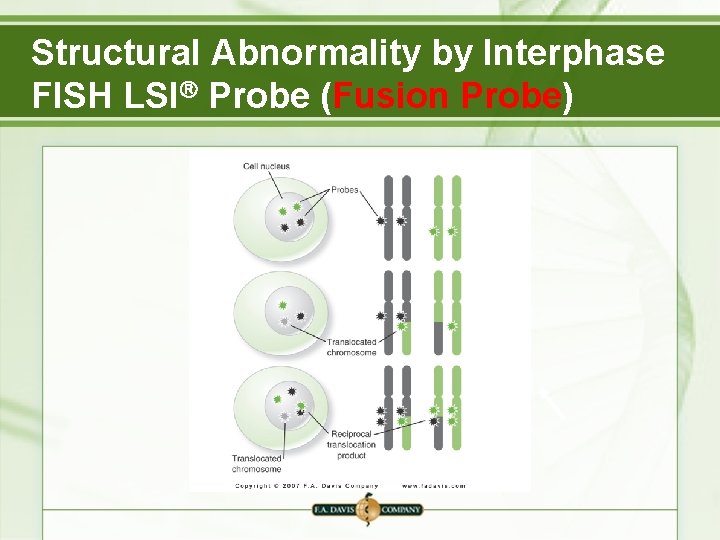

Structural Abnormality by Interphase FISH LSI Probe (Fusion Probe)

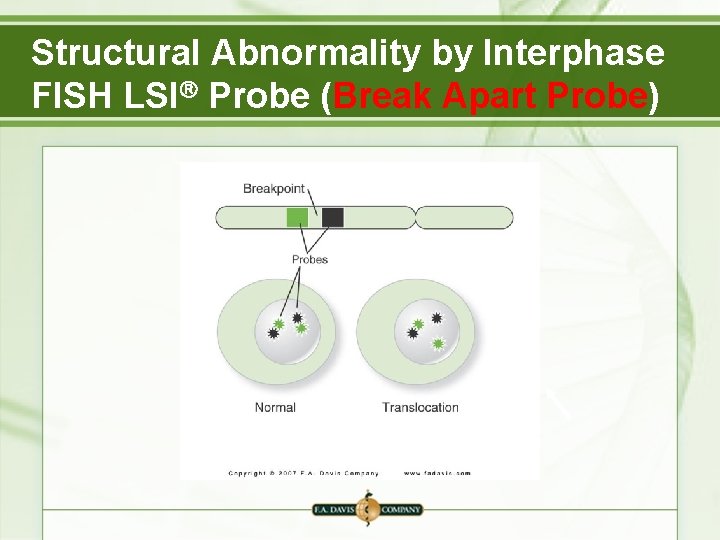

Structural Abnormality by Interphase FISH LSI Probe (Break Apart Probe)

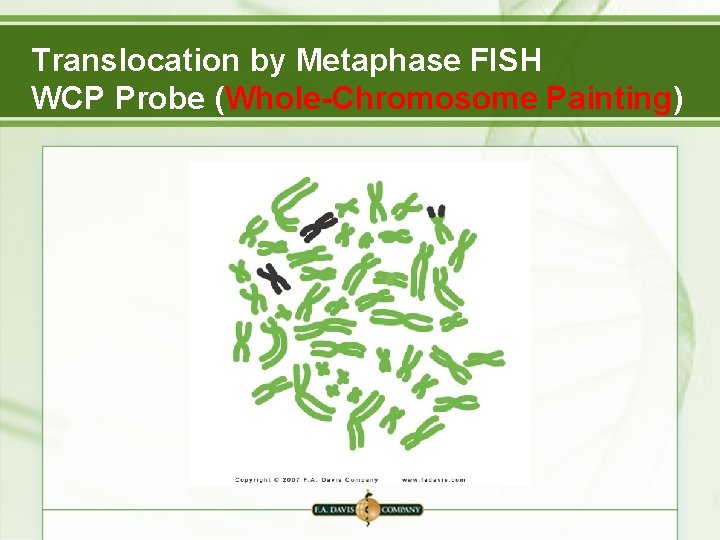

Translocation by Metaphase FISH WCP Probe (Whole-Chromosome Painting)

Summary § Mutations are heritable changes in DNA. § Mutations include changes in chromosome number, structure, and gene mutations. § Chromosomes are analyzed by Giemsa staining and karyotyping. § Karyotyping detects changes in chromosome number and large structural changes. § Structural changes include translocation, duplication, and deletion of chromosomal regions. § More subtle chromosomal changes can be detected by metaphase or interphase FISH.
