Chapter 8 All About SCSI You Will Learn

Chapter 8 All About SCSI

You Will Learn… • About basics of SCSI (Small Computer System • • • Interface) technology and components How SCSI hard drives compare to IDE drives How to install a SCSI device Some troubleshooting tips for SCSI

SCSI Basics • • • Standard for communication between subsystem of peripheral devices and system bus Bus can contain/be used by up to 7 or 15 devices, depending on SCSI standard Bus controller can be either: An expansion card (host adapter) § Embedded on motherboard § • Faster, more expensive, more difficult to install than similar IDE devices

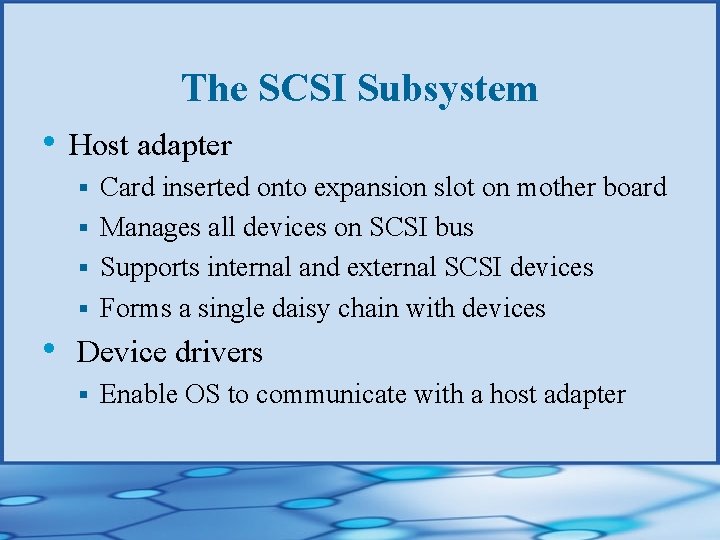

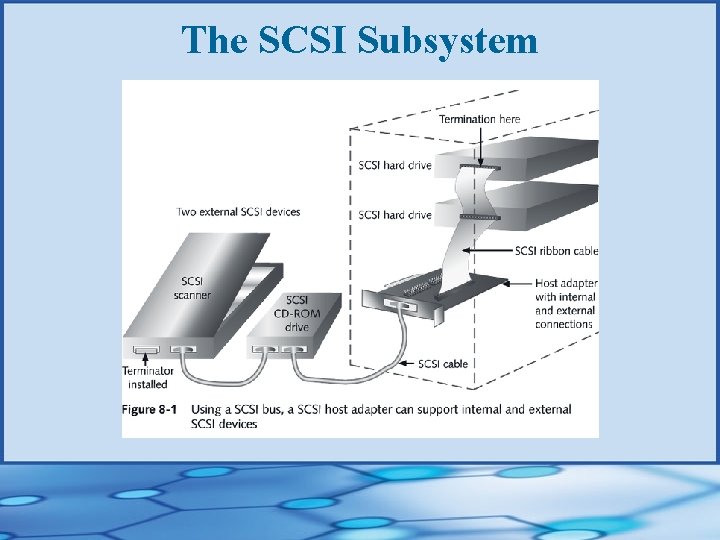

The SCSI Subsystem • Host adapter Card inserted onto expansion slot on mother board § Manages all devices on SCSI bus § Supports internal and external SCSI devices § Forms a single daisy chain with devices § • Device drivers § Enable OS to communicate with a host adapter

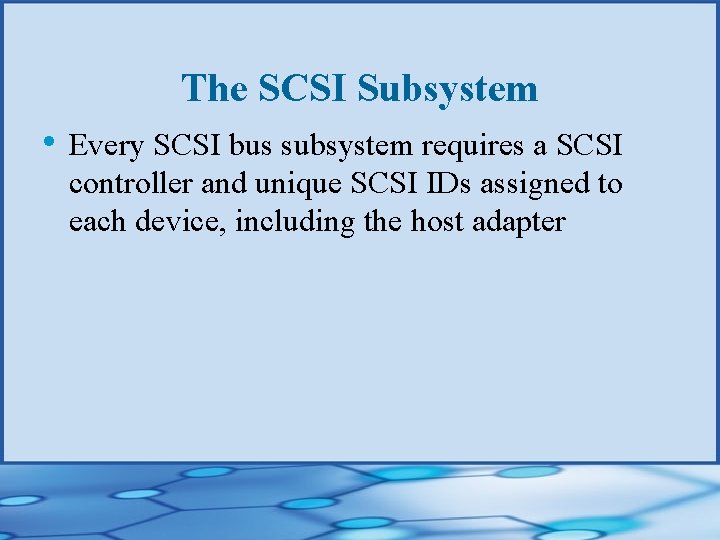

The SCSI Subsystem • Every SCSI bus subsystem requires a SCSI controller and unique SCSI IDs assigned to each device, including the host adapter

The SCSI Subsystem

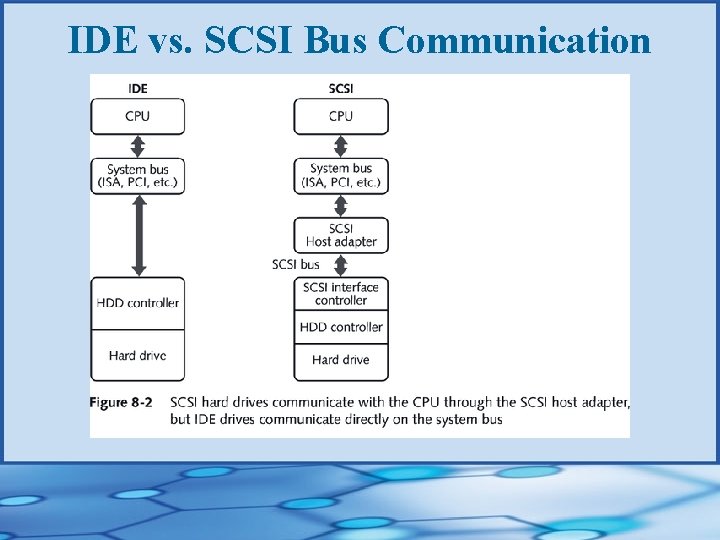

IDE vs. SCSI Bus Communication

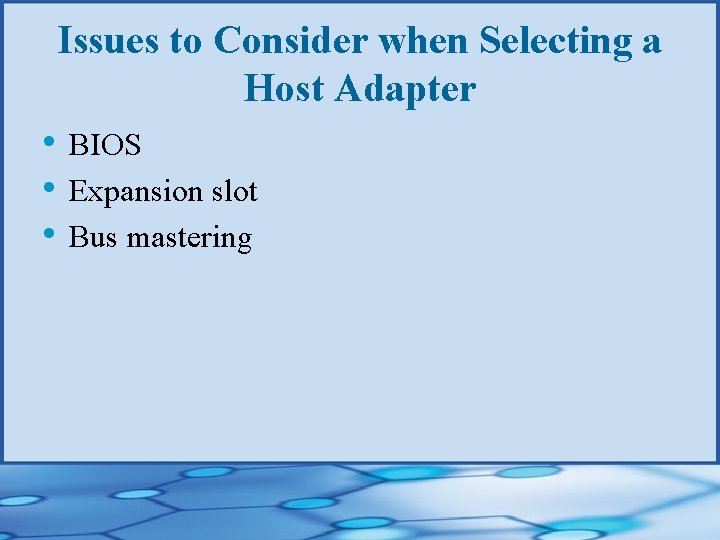

Issues to Consider when Selecting a Host Adapter • BIOS • Expansion slot • Bus mastering

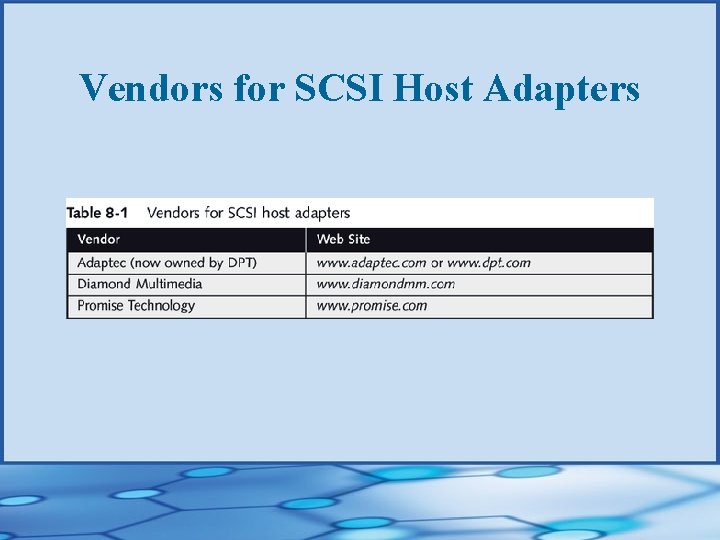

Vendors for SCSI Host Adapters

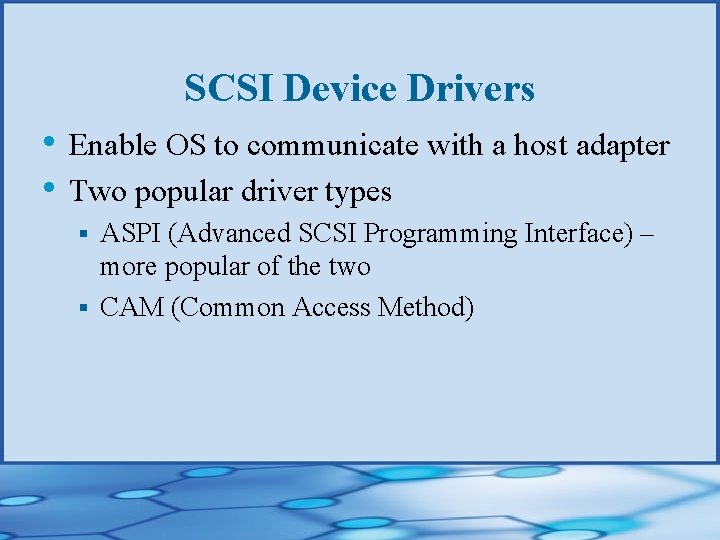

SCSI Device Drivers • Enable OS to communicate with a host adapter • Two popular driver types ASPI (Advanced SCSI Programming Interface) – more popular of the two § CAM (Common Access Method) §

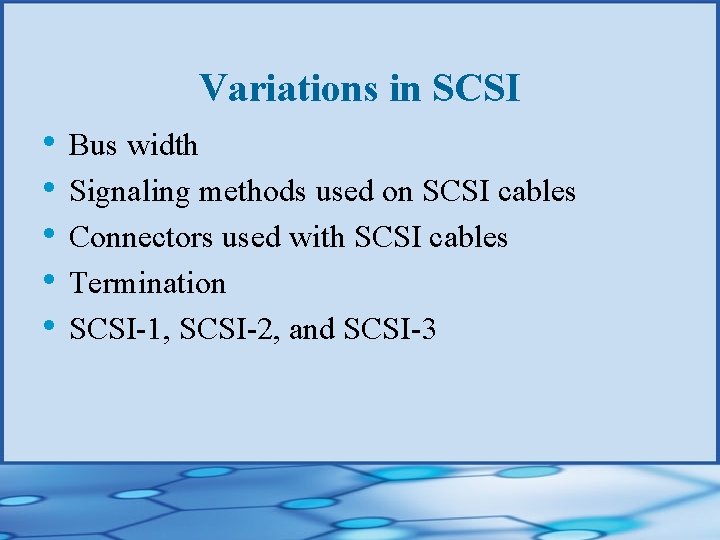

Variations in SCSI • Bus width • Signaling methods used on SCSI cables • Connectors used with SCSI cables • Termination • SCSI-1, SCSI-2, and SCSI-3

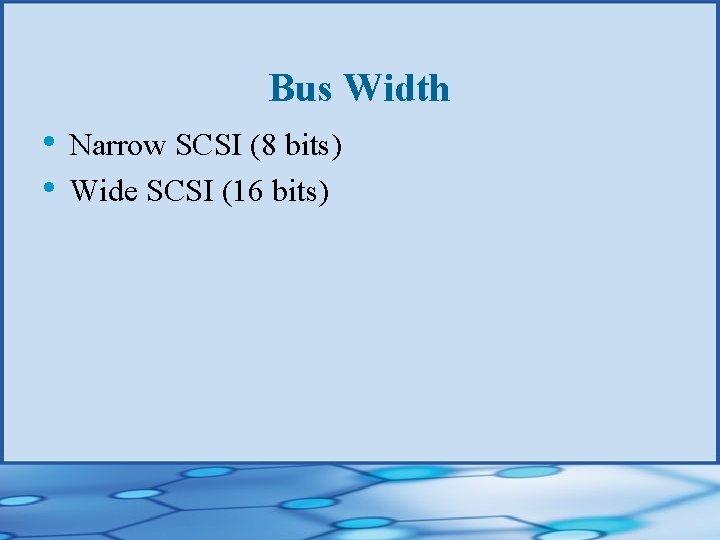

Bus Width • Narrow SCSI (8 bits) • Wide SCSI (16 bits)

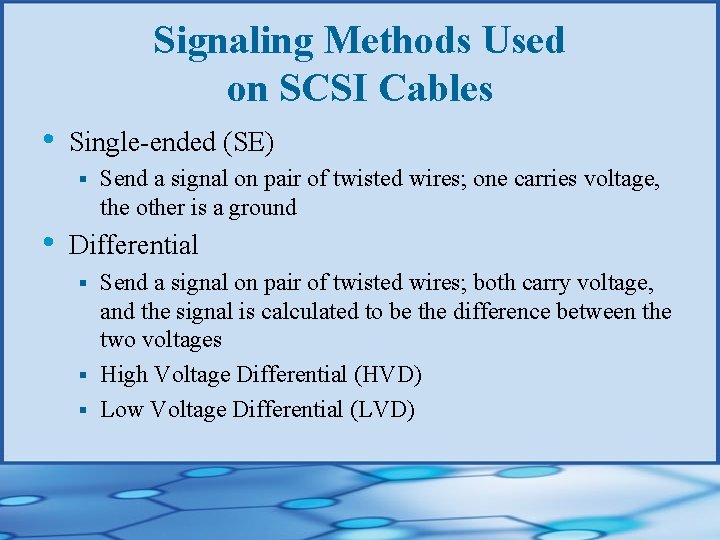

Signaling Methods Used on SCSI Cables • Single-ended (SE) § • Send a signal on pair of twisted wires; one carries voltage, the other is a ground Differential Send a signal on pair of twisted wires; both carry voltage, and the signal is calculated to be the difference between the two voltages § High Voltage Differential (HVD) § Low Voltage Differential (LVD) §

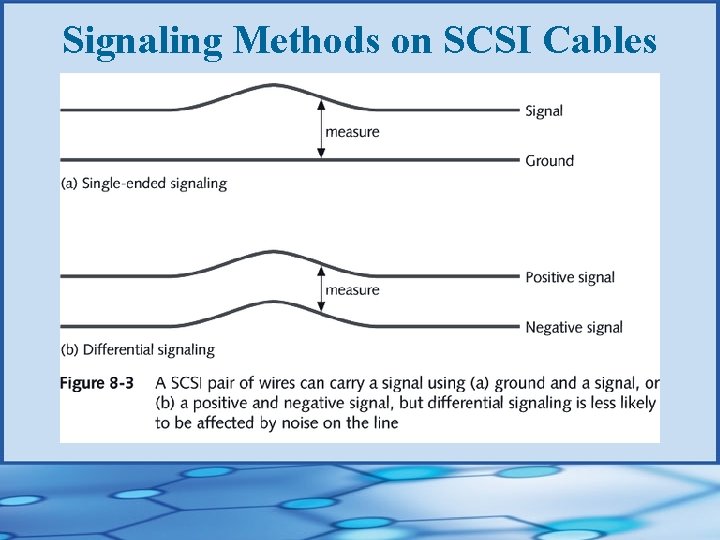

Signaling Methods on SCSI Cables

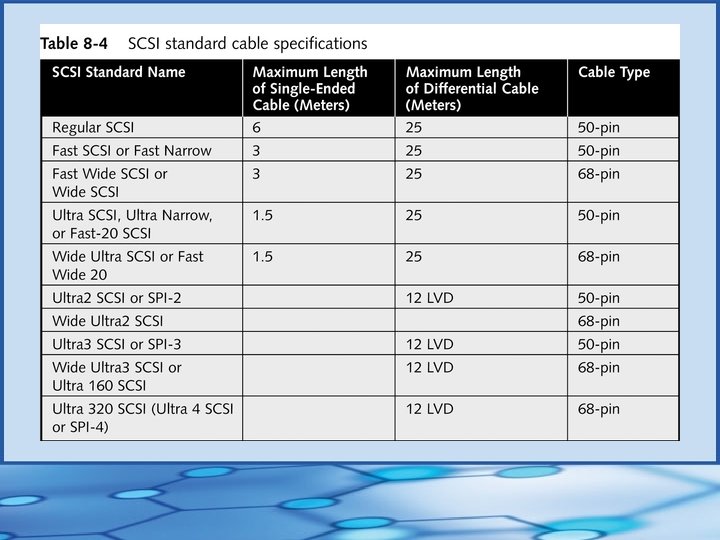

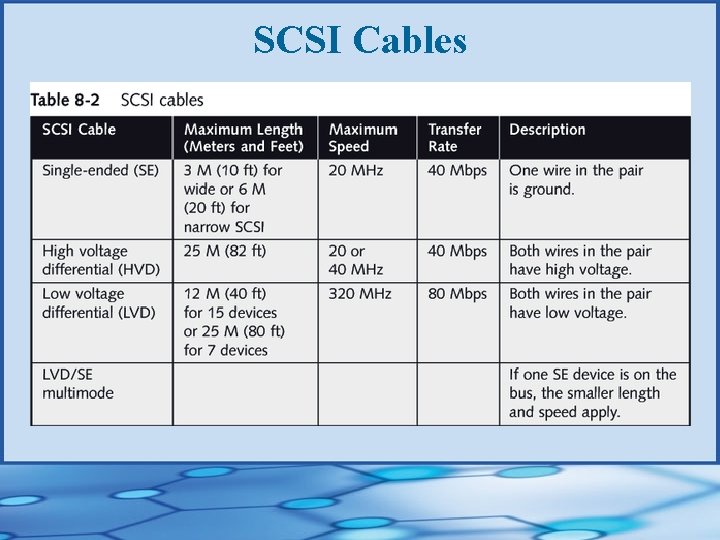

SCSI Cables

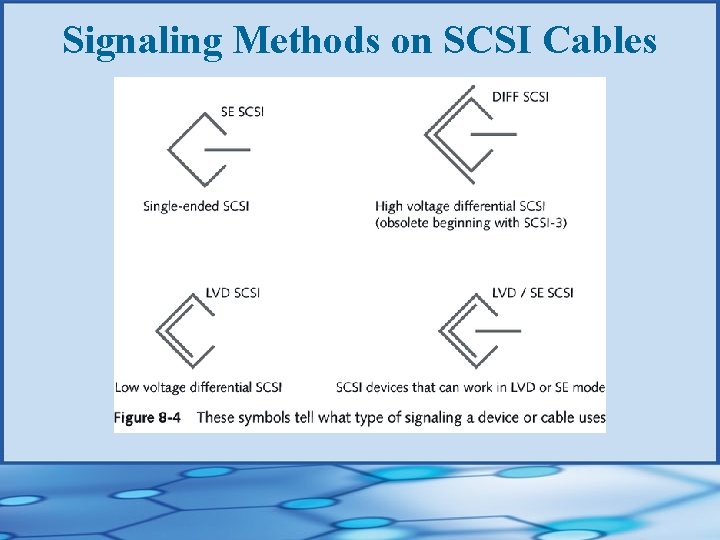

Signaling Methods on SCSI Cables

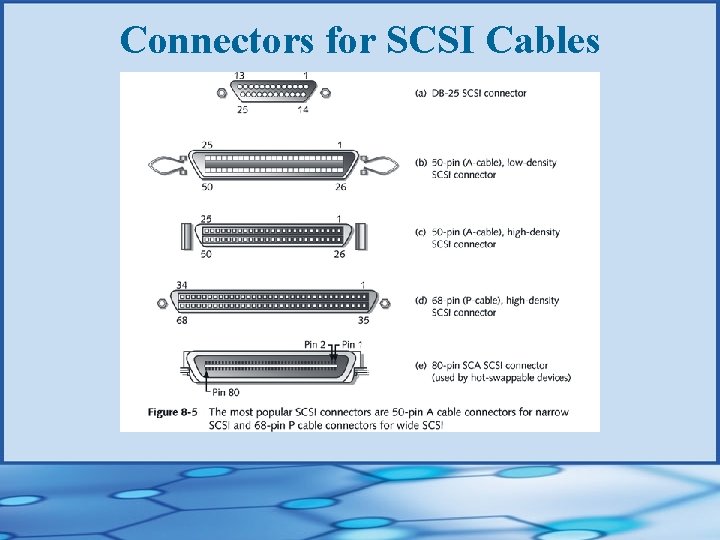

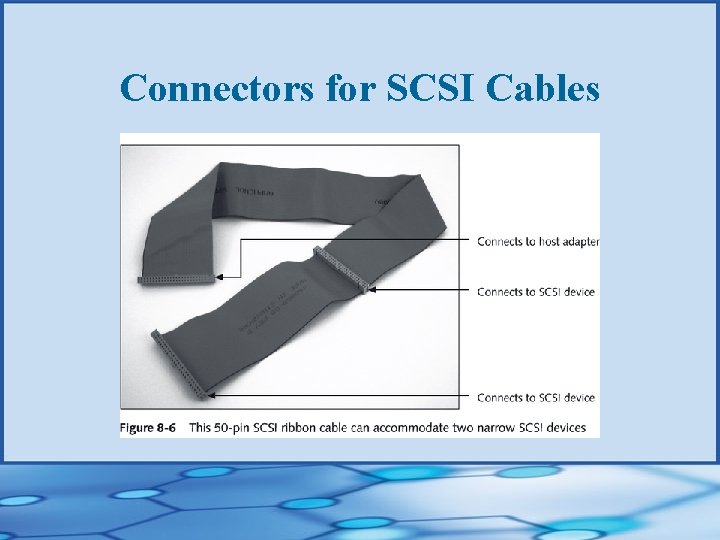

Connectors for SCSI Cables

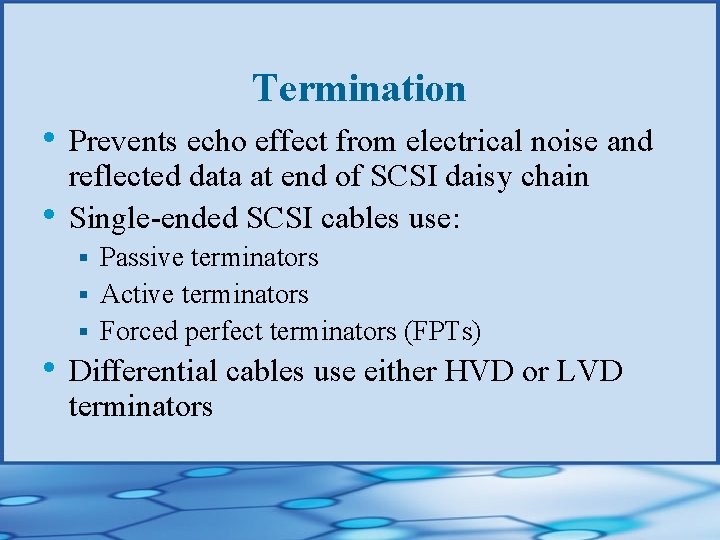

Termination • Prevents echo effect from electrical noise and • reflected data at end of SCSI daisy chain Single-ended SCSI cables use: Passive terminators § Active terminators § Forced perfect terminators (FPTs) § • Differential cables use either HVD or LVD terminators

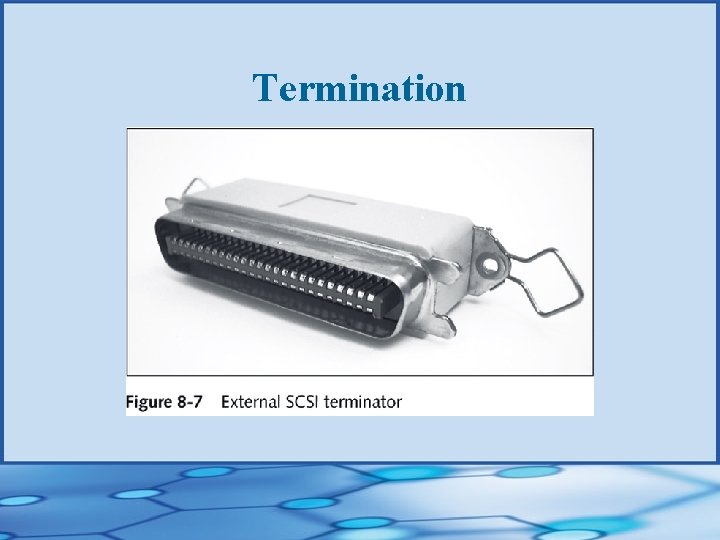

Termination

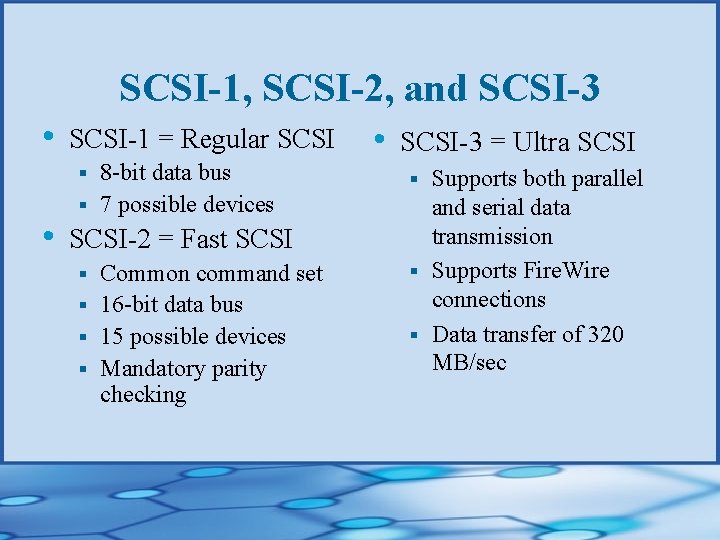

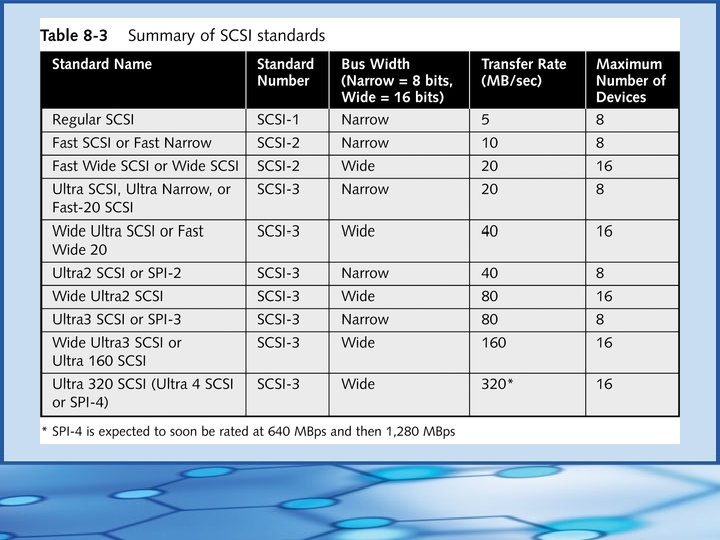

SCSI-1, SCSI-2, and SCSI-3 • SCSI-1 = Regular SCSI 8 -bit data bus § 7 possible devices § • SCSI-2 = Fast SCSI Common command set § 16 -bit data bus § 15 possible devices § Mandatory parity checking § • SCSI-3 = Ultra SCSI Supports both parallel and serial data transmission § Supports Fire. Wire connections § Data transfer of 320 MB/sec §

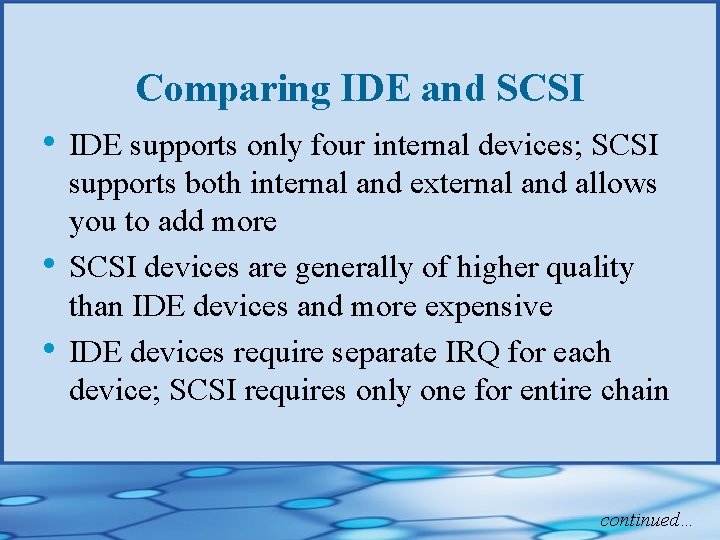

Comparing IDE and SCSI • IDE supports only four internal devices; SCSI • • supports both internal and external and allows you to add more SCSI devices are generally of higher quality than IDE devices and more expensive IDE devices require separate IRQ for each device; SCSI requires only one for entire chain continued…

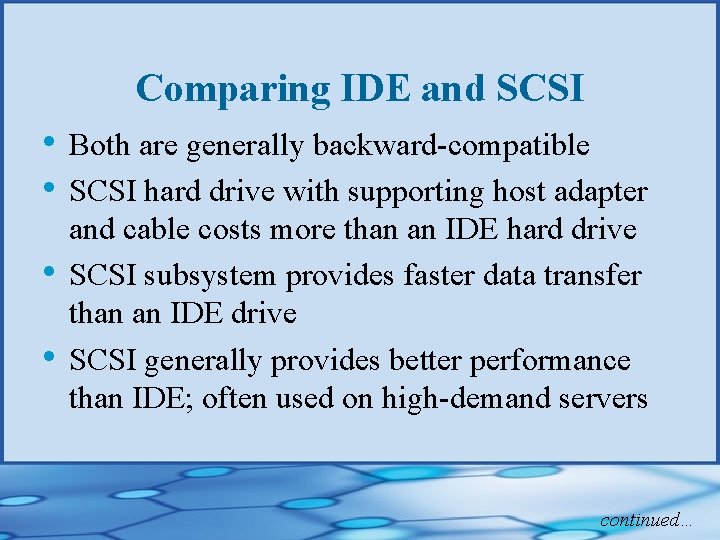

Comparing IDE and SCSI • Both are generally backward-compatible • SCSI hard drive with supporting host adapter • • and cable costs more than an IDE hard drive SCSI subsystem provides faster data transfer than an IDE drive SCSI generally provides better performance than IDE; often used on high-demand servers continued…

Comparing IDE and SCSI • Good host SCSI host adapter allows connection • of other SCSI devices to it With SCSI, two or more devices can operate simultaneously; with IDE, only one IDE drive on an IDE channel can be busy at a time

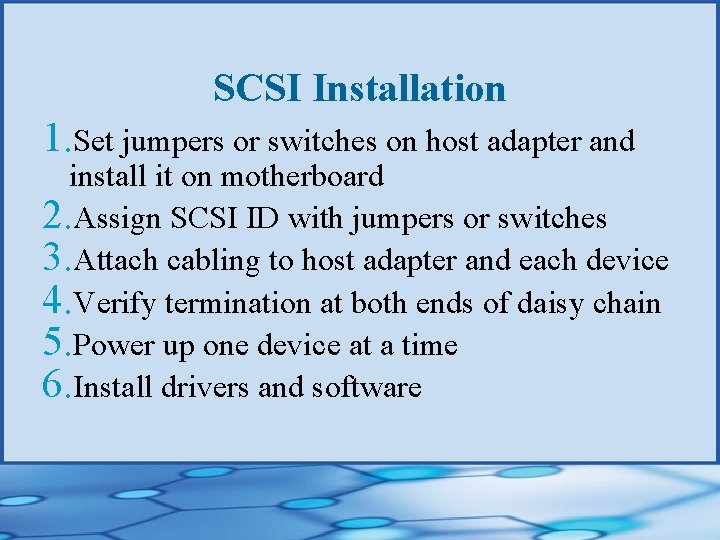

SCSI Installation 1. Set jumpers or switches on host adapter and install it on motherboard 2. Assign SCSI ID with jumpers or switches 3. Attach cabling to host adapter and each device 4. Verify termination at both ends of daisy chain 5. Power up one device at a time 6. Install drivers and software

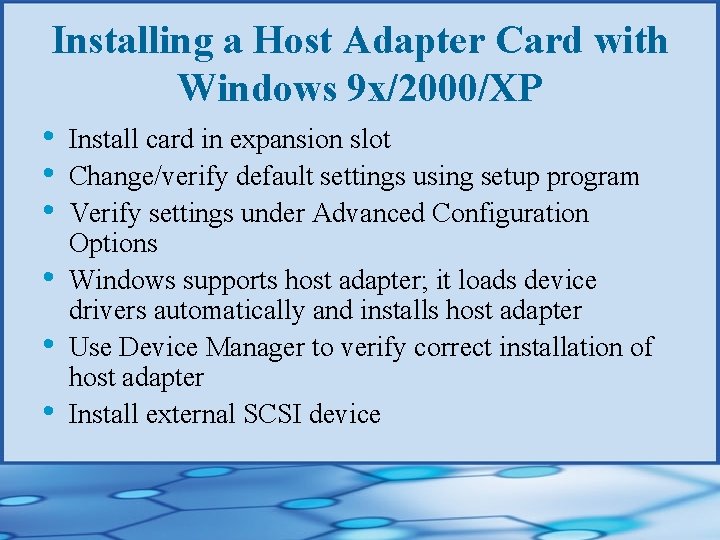

Installing a Host Adapter Card with Windows 9 x/2000/XP • • • Install card in expansion slot Change/verify default settings using setup program Verify settings under Advanced Configuration Options Windows supports host adapter; it loads device drivers automatically and installs host adapter Use Device Manager to verify correct installation of host adapter Install external SCSI device

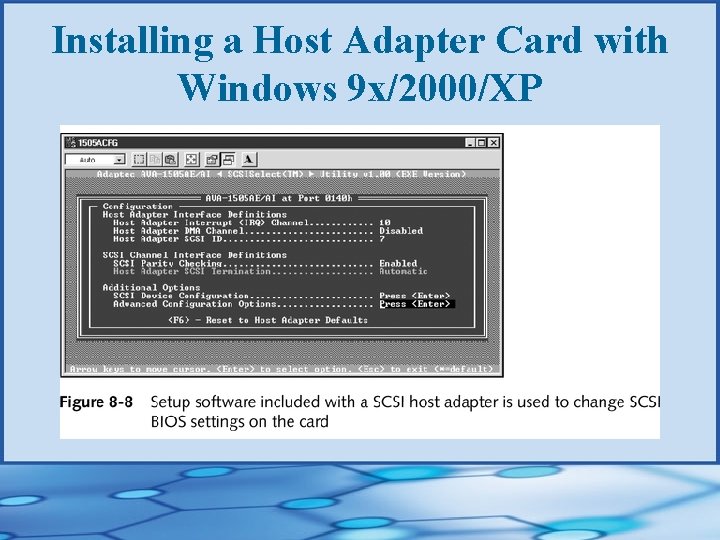

Installing a Host Adapter Card with Windows 9 x/2000/XP

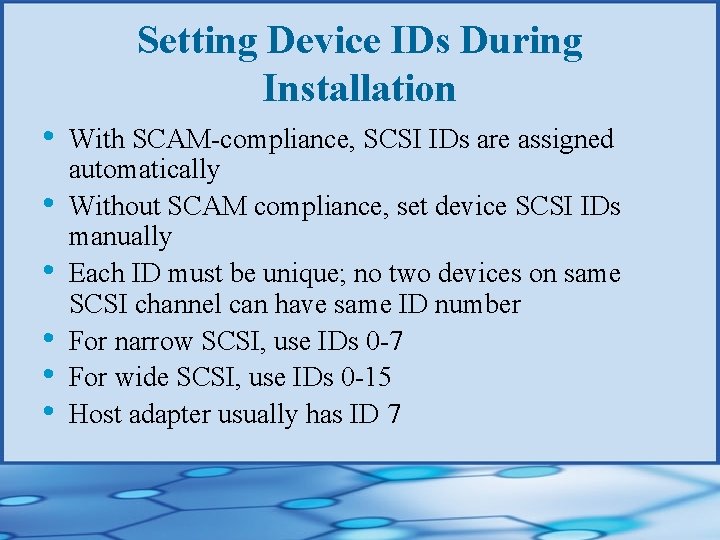

Setting Device IDs During Installation • • • With SCAM-compliance, SCSI IDs are assigned automatically Without SCAM compliance, set device SCSI IDs manually Each ID must be unique; no two devices on same SCSI channel can have same ID number For narrow SCSI, use IDs 0 -7 For wide SCSI, use IDs 0 -15 Host adapter usually has ID 7

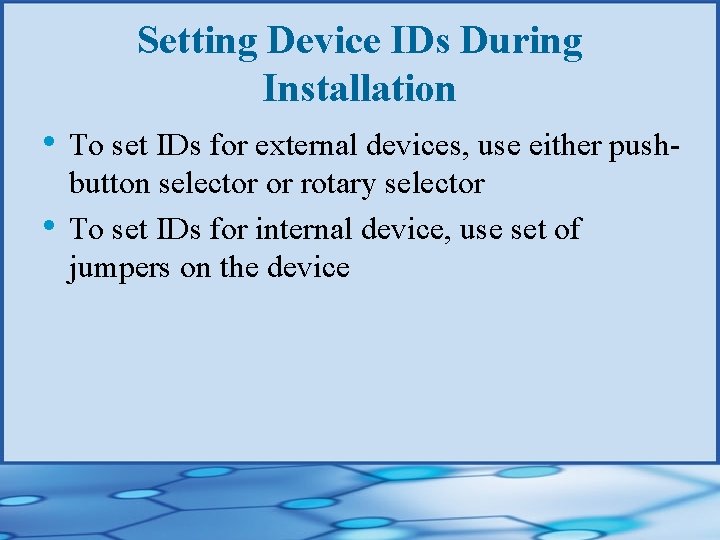

Setting Device IDs During Installation • To set IDs for external devices, use either push • button selector or rotary selector To set IDs for internal device, use set of jumpers on the device

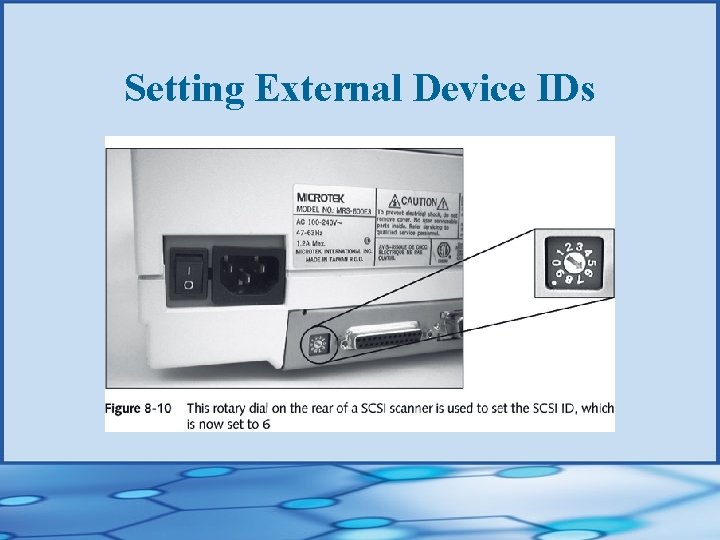

Setting External Device IDs

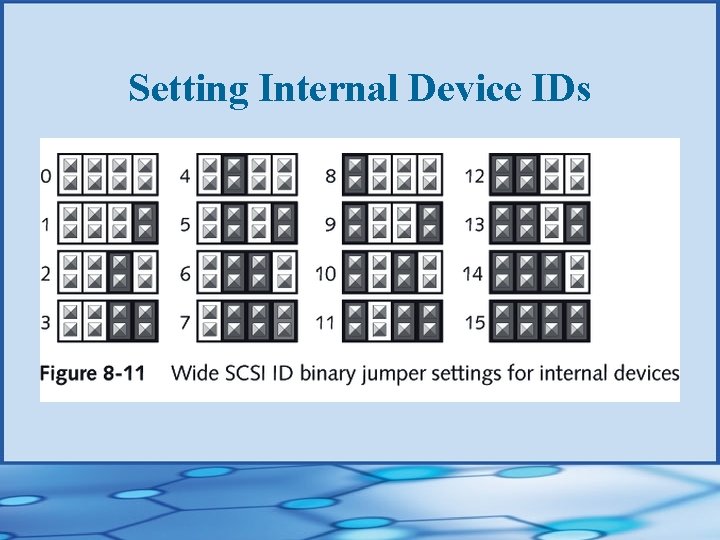

Setting Internal Device IDs

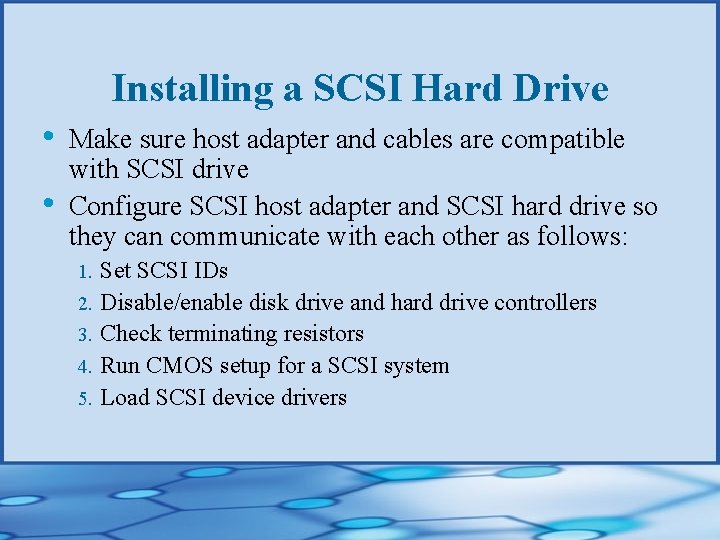

Installing a SCSI Hard Drive • • Make sure host adapter and cables are compatible with SCSI drive Configure SCSI host adapter and SCSI hard drive so they can communicate with each other as follows: 1. 2. 3. 4. 5. Set SCSI IDs Disable/enable disk drive and hard drive controllers Check terminating resistors Run CMOS setup for a SCSI system Load SCSI device drivers

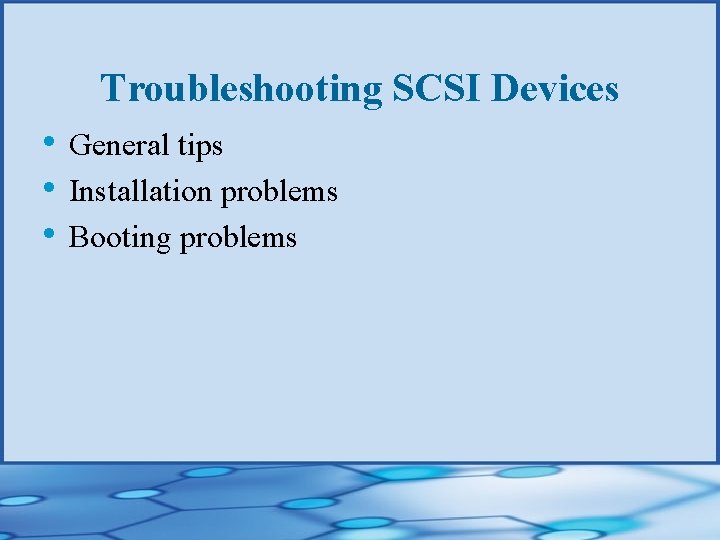

Troubleshooting SCSI Devices • General tips • Installation problems • Booting problems

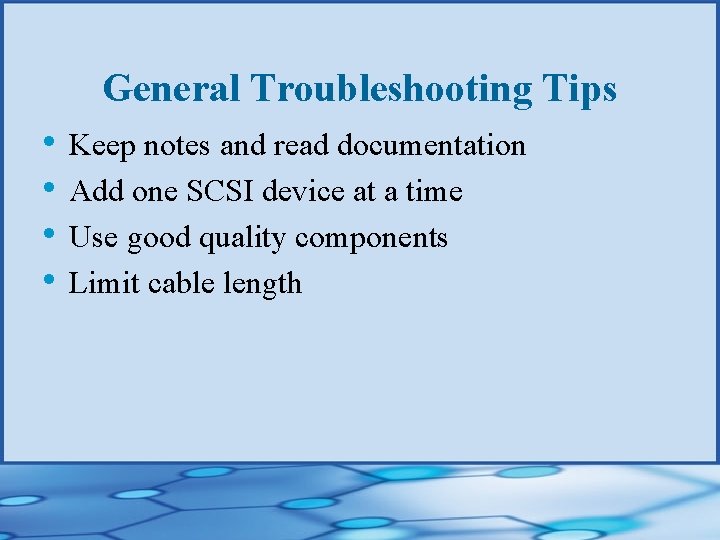

General Troubleshooting Tips • Keep notes and read documentation • Add one SCSI device at a time • Use good quality components • Limit cable length

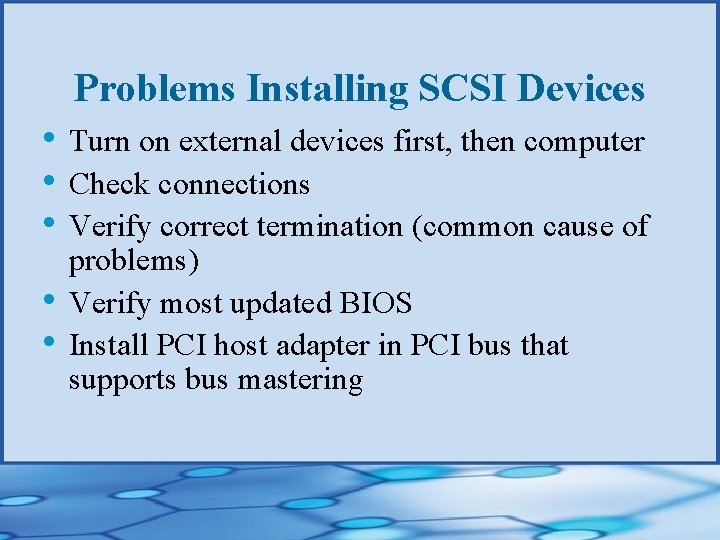

Problems Installing SCSI Devices • Turn on external devices first, then computer • Check connections • Verify correct termination (common cause of • • problems) Verify most updated BIOS Install PCI host adapter in PCI bus that supports bus mastering

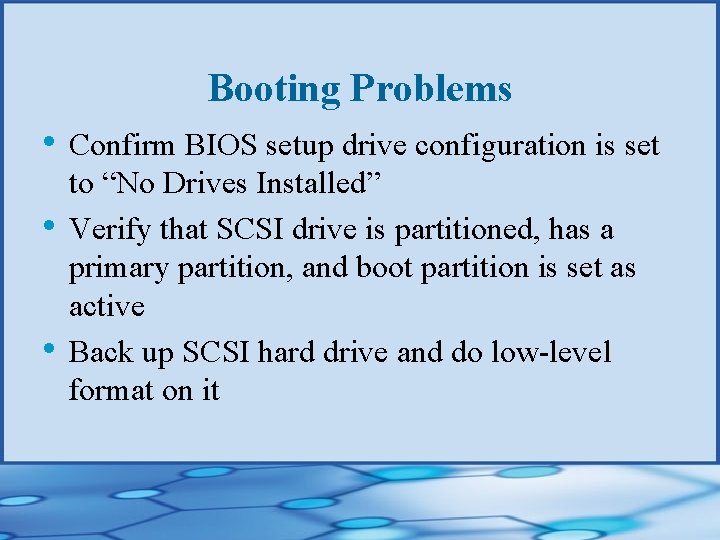

Booting Problems • Confirm BIOS setup drive configuration is set • • to “No Drives Installed” Verify that SCSI drive is partitioned, has a primary partition, and boot partition is set as active Back up SCSI hard drive and do low-level format on it

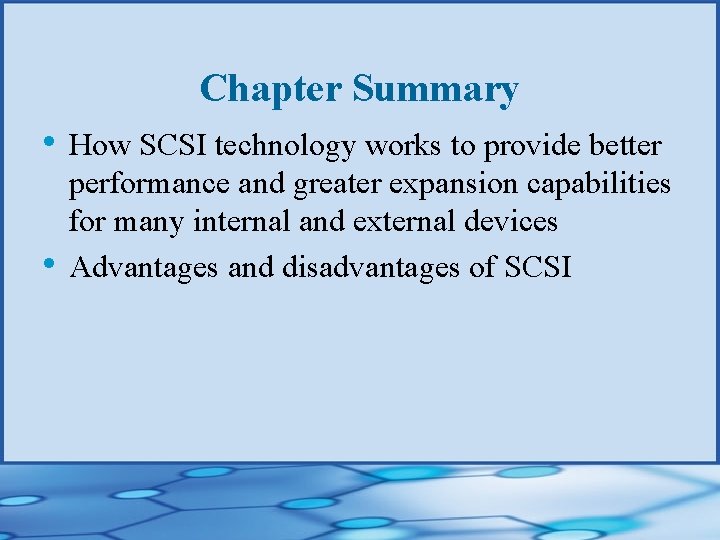

Chapter Summary • How SCSI technology works to provide better • performance and greater expansion capabilities for many internal and external devices Advantages and disadvantages of SCSI
