Chapter 7 Skeletal Tissues FUNCTIONS OF BONE Support

Chapter 7: Skeletal Tissues

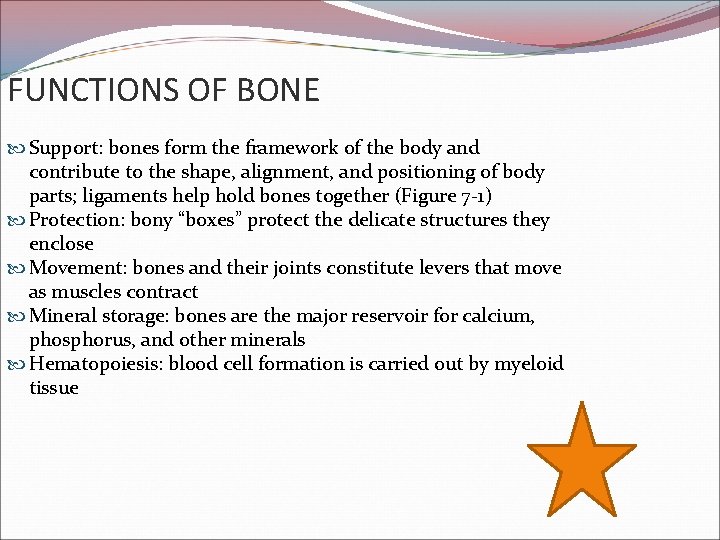

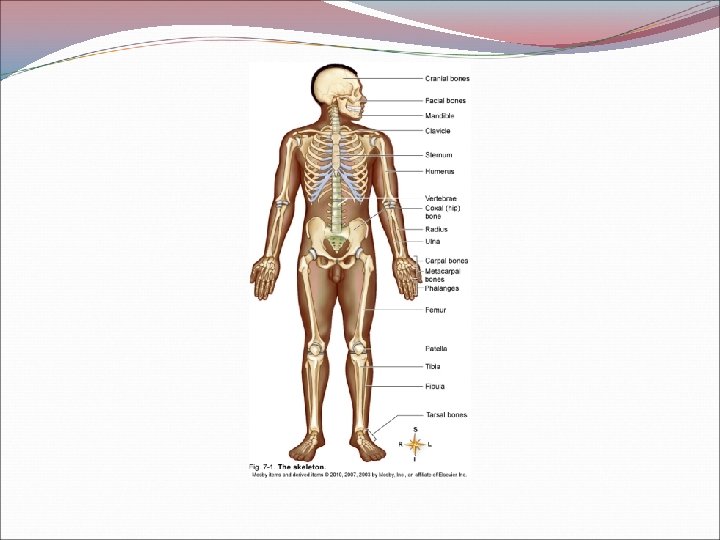

FUNCTIONS OF BONE Support: bones form the framework of the body and contribute to the shape, alignment, and positioning of body parts; ligaments help hold bones together (Figure 7 -1) Protection: bony “boxes” protect the delicate structures they enclose Movement: bones and their joints constitute levers that move as muscles contract Mineral storage: bones are the major reservoir for calcium, phosphorus, and other minerals Hematopoiesis: blood cell formation is carried out by myeloid tissue

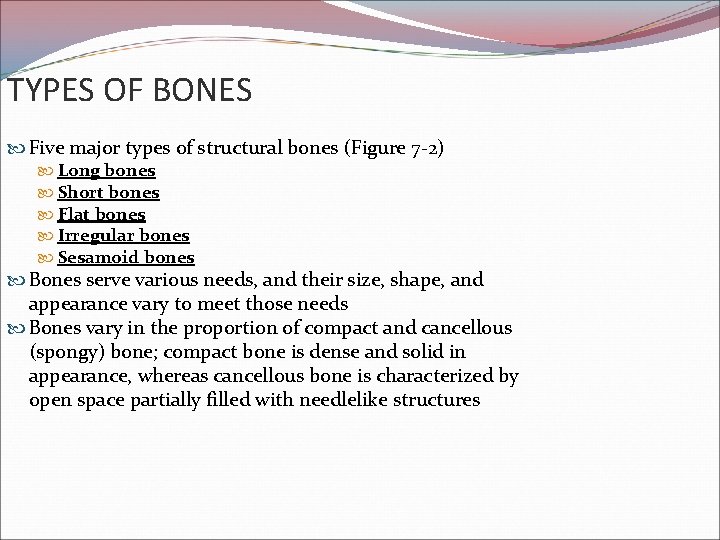

TYPES OF BONES Five major types of structural bones (Figure 7 -2) Long bones Short bones Flat bones Irregular bones Sesamoid bones Bones serve various needs, and their size, shape, and appearance vary to meet those needs Bones vary in the proportion of compact and cancellous (spongy) bone; compact bone is dense and solid in appearance, whereas cancellous bone is characterized by open space partially filled with needlelike structures

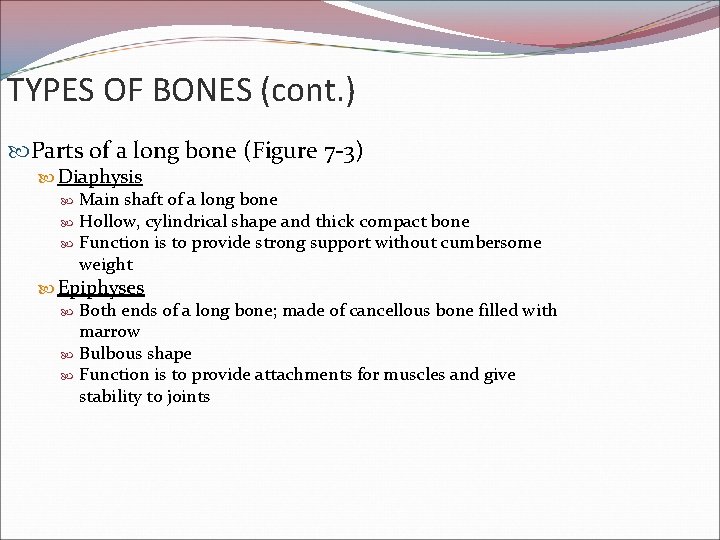

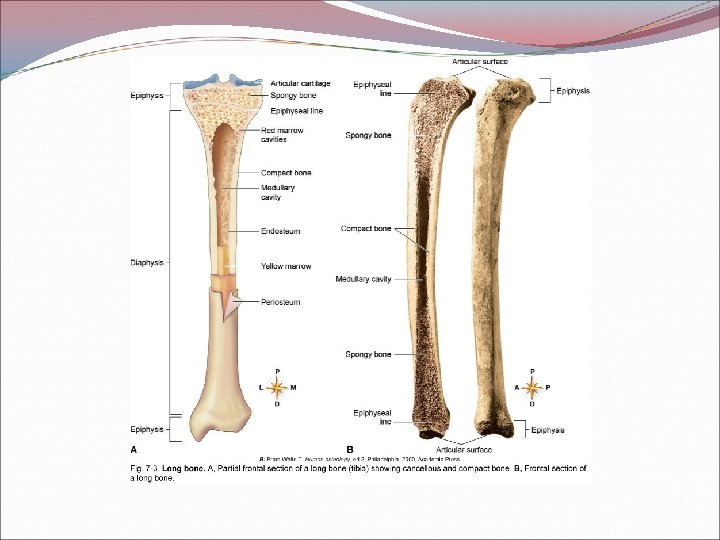

TYPES OF BONES (cont. ) Parts of a long bone (Figure 7 -3) Diaphysis Main shaft of a long bone Hollow, cylindrical shape and thick compact bone Function is to provide strong support without cumbersome weight Epiphyses Both ends of a long bone; made of cancellous bone filled with marrow Bulbous shape Function is to provide attachments for muscles and give stability to joints

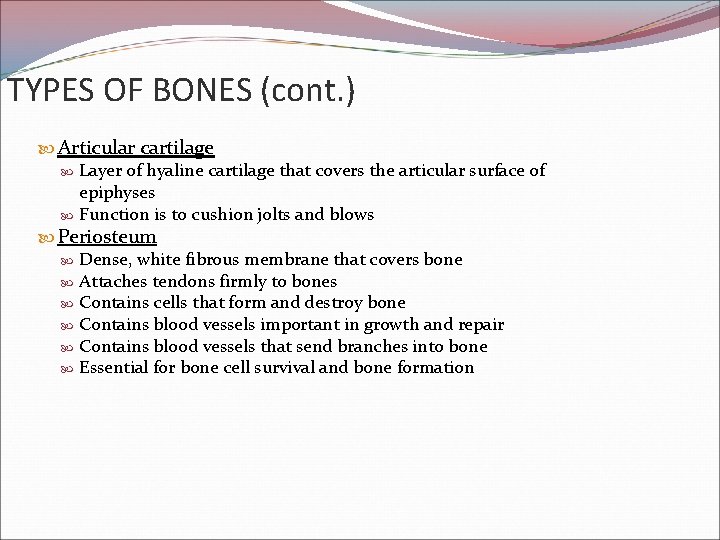

TYPES OF BONES (cont. ) Articular cartilage Layer of hyaline cartilage that covers the articular surface of epiphyses Function is to cushion jolts and blows Periosteum Dense, white fibrous membrane that covers bone Attaches tendons firmly to bones Contains cells that form and destroy bone Contains blood vessels important in growth and repair Contains blood vessels that send branches into bone Essential for bone cell survival and bone formation

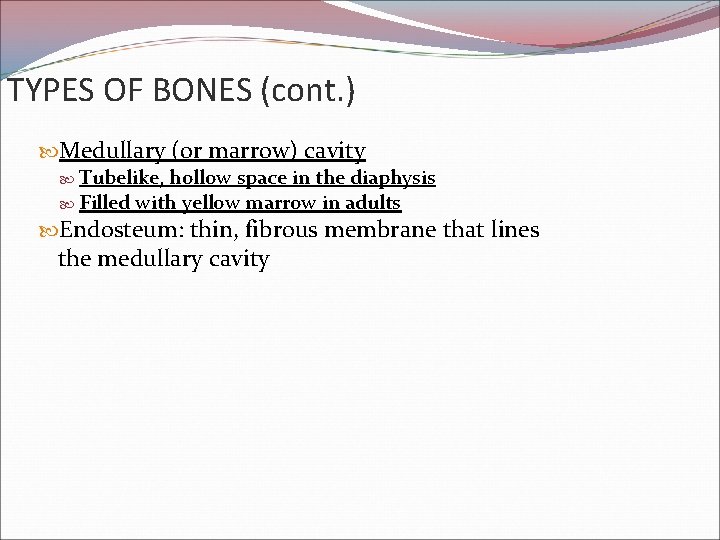

TYPES OF BONES (cont. ) Medullary (or marrow) cavity Tubelike, hollow space in the diaphysis Filled with yellow marrow in adults Endosteum: thin, fibrous membrane that lines the medullary cavity

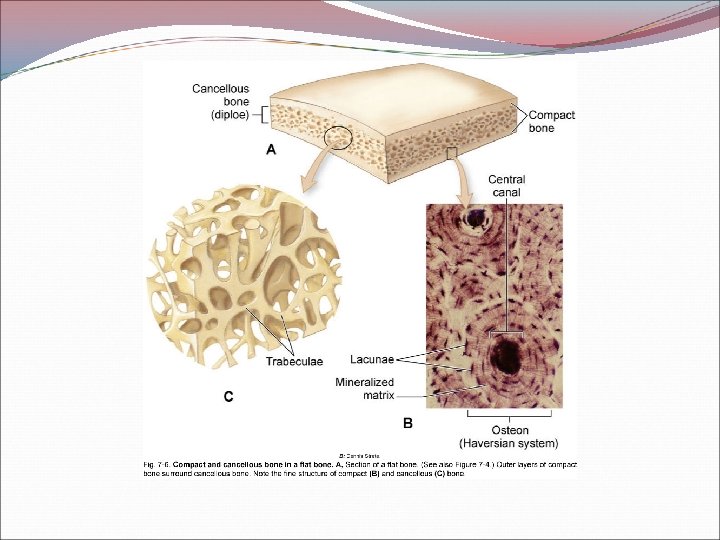

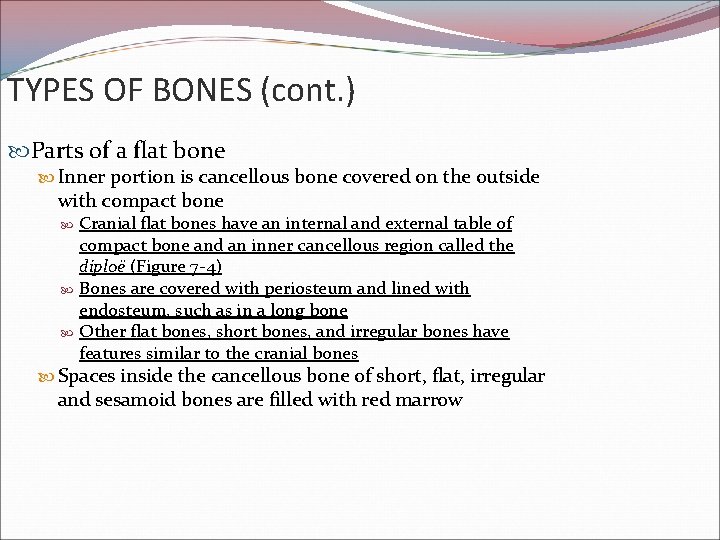

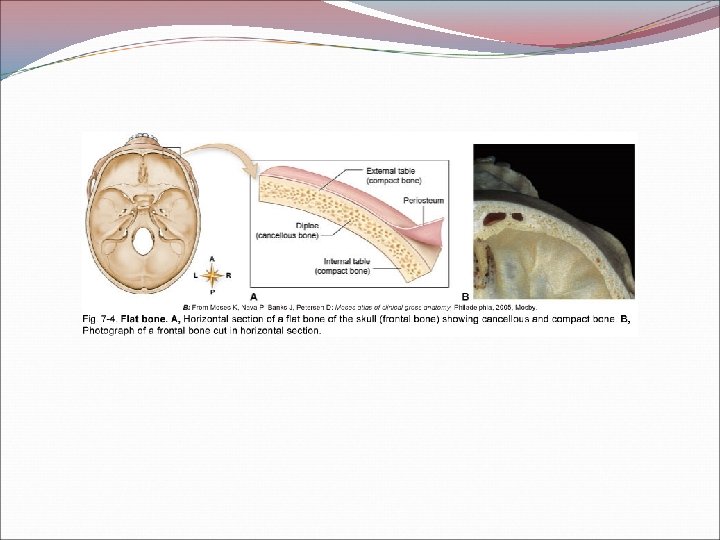

TYPES OF BONES (cont. ) Parts of a flat bone Inner portion is cancellous bone covered on the outside with compact bone Cranial flat bones have an internal and external table of compact bone and an inner cancellous region called the diploë (Figure 7 -4) Bones are covered with periosteum and lined with endosteum, such as in a long bone Other flat bones, short bones, and irregular bones have features similar to the cranial bones Spaces inside the cancellous bone of short, flat, irregular and sesamoid bones are filled with red marrow

BONE TISSUE Most distinctive form of connective tissue Extracellular components are hard and calcified Rigidity of bone gives it supportive and protective functions Tensile strength nearly equal to that of cast iron at less than one third the weight

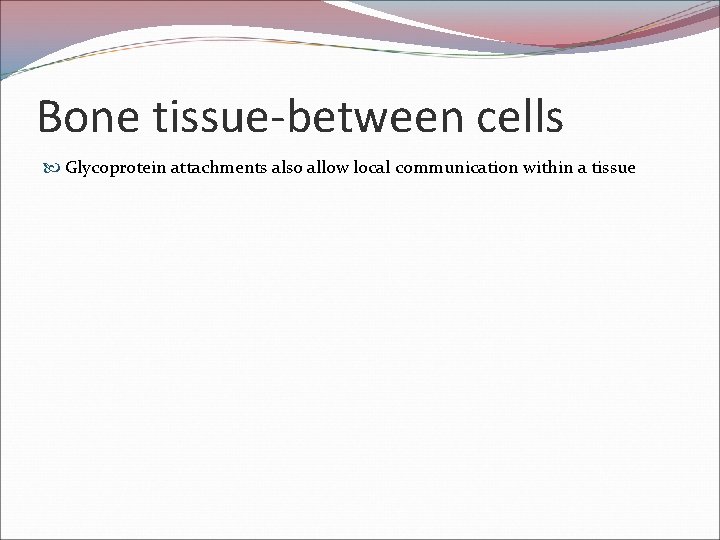

Bone tissue-between cells Glycoprotein attachments also allow local communication within a tissue

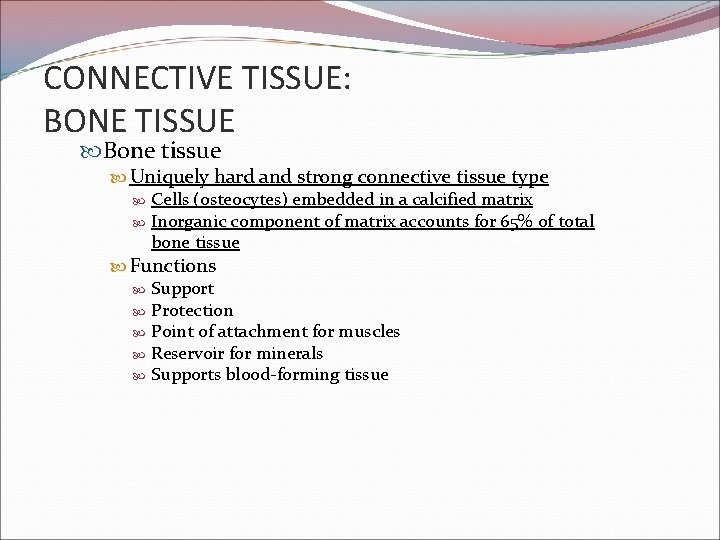

CONNECTIVE TISSUE: BONE TISSUE Bone tissue Uniquely hard and strong connective tissue type Cells (osteocytes) embedded in a calcified matrix Inorganic component of matrix accounts for 65% of total bone tissue Functions Support Protection Point of attachment for muscles Reservoir for minerals Supports blood-forming tissue

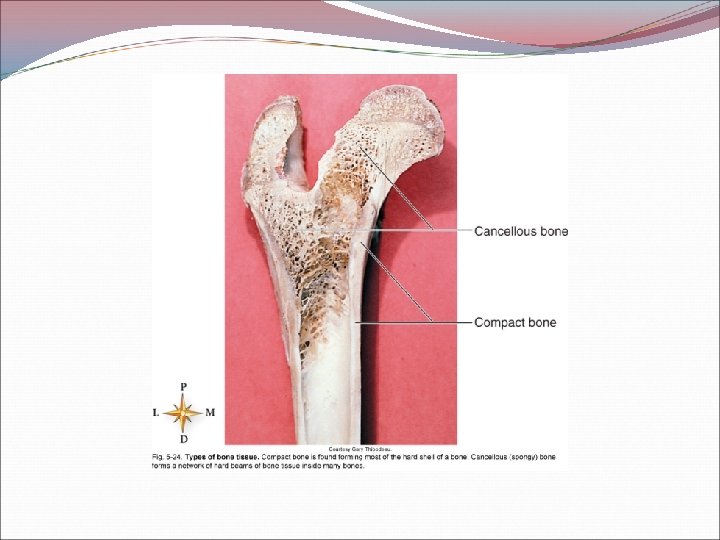

CONNECTIVE TISSUE: BONE TISSUE (cont. ) Compact bone (Figures 5 -24 and 5 -25) Osteon (Haversian system) Structural unity of bone Spaces for osteocytes called lacunae Matrix present in concentric rings called lamellae Canaliculi are canals that join lacunae with the central Haversian canal Cell types Osteocyte: mature, inactive bone cell Osteoblast: active bone-forming cell Osteoclast: bone-destroying cell

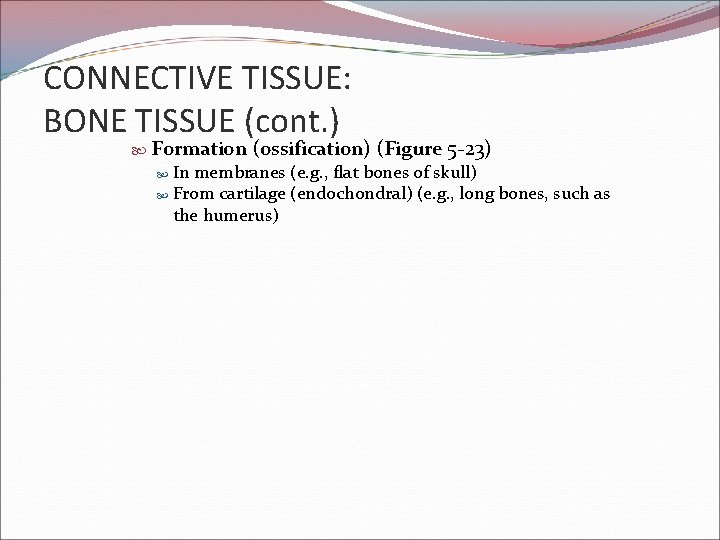

CONNECTIVE TISSUE: BONE TISSUE (cont. ) Formation (ossification) (Figure 5 -23) In membranes (e. g. , flat bones of skull) From cartilage (endochondral) (e. g. , long bones, such as the humerus)

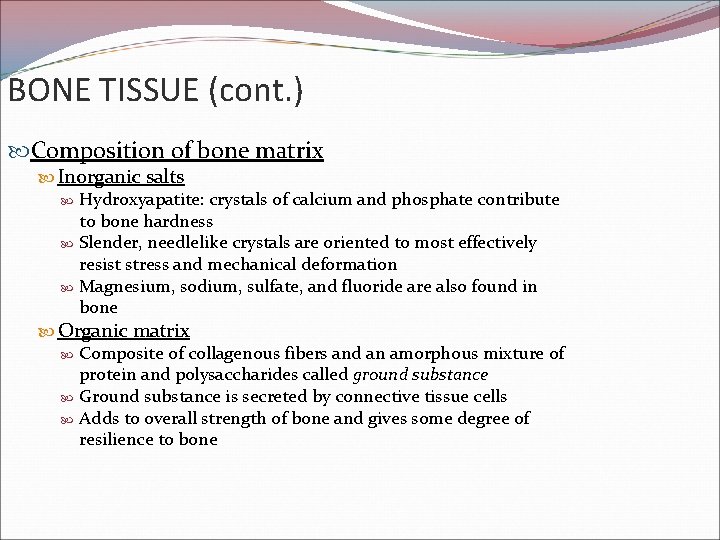

BONE TISSUE (cont. ) Composition of bone matrix Inorganic salts Hydroxyapatite: crystals of calcium and phosphate contribute to bone hardness Slender, needlelike crystals are oriented to most effectively resist stress and mechanical deformation Magnesium, sodium, sulfate, and fluoride are also found in bone Organic matrix Composite of collagenous fibers and an amorphous mixture of protein and polysaccharides called ground substance Ground substance is secreted by connective tissue cells Adds to overall strength of bone and gives some degree of resilience to bone

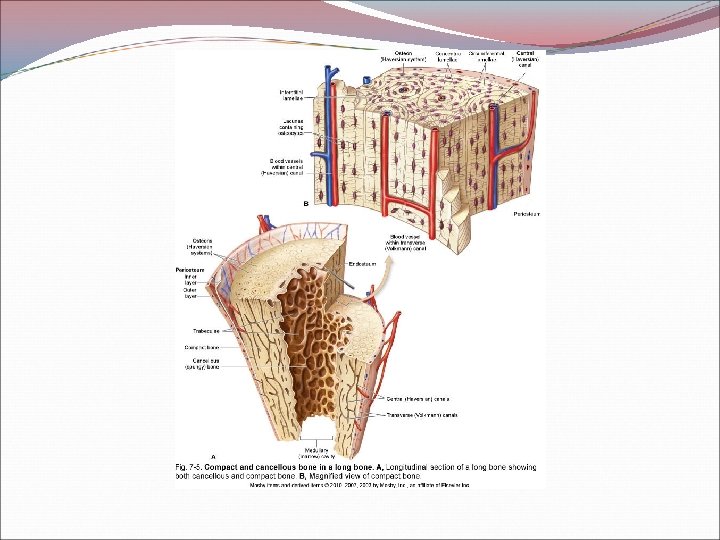

MICROSCOPIC STRUCTURE OF BONE Compact bone (Figure 7 -5) Contains many cylinder-shaped structural units called osteons, or haversian systems (Figure 7 -6) Osteons surround central (osteonal or haversian) canals that run lengthwise through bone and are connected by transverse (Volkmann) canals Living bone cells are located in these units, which constitute the structural framework of compact bone Osteons permit delivery of nutrients and removal of waste products

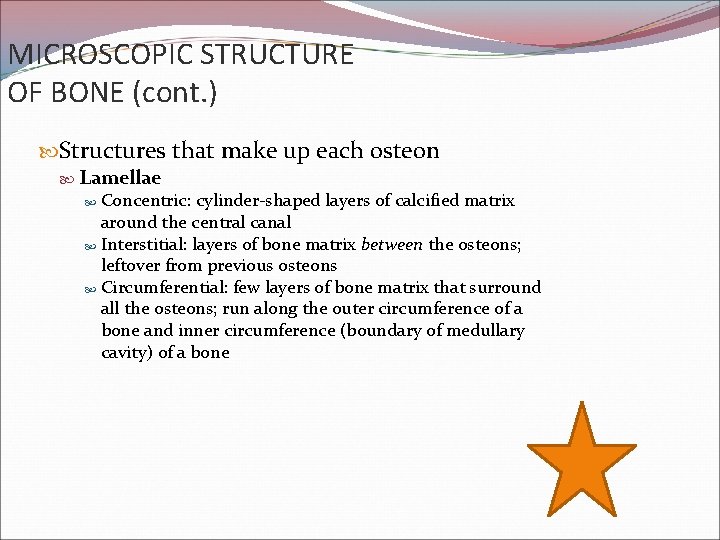

MICROSCOPIC STRUCTURE OF BONE (cont. ) Structures that make up each osteon Lamellae Concentric: cylinder-shaped layers of calcified matrix around the central canal Interstitial: layers of bone matrix between the osteons; leftover from previous osteons Circumferential: few layers of bone matrix that surround all the osteons; run along the outer circumference of a bone and inner circumference (boundary of medullary cavity) of a bone

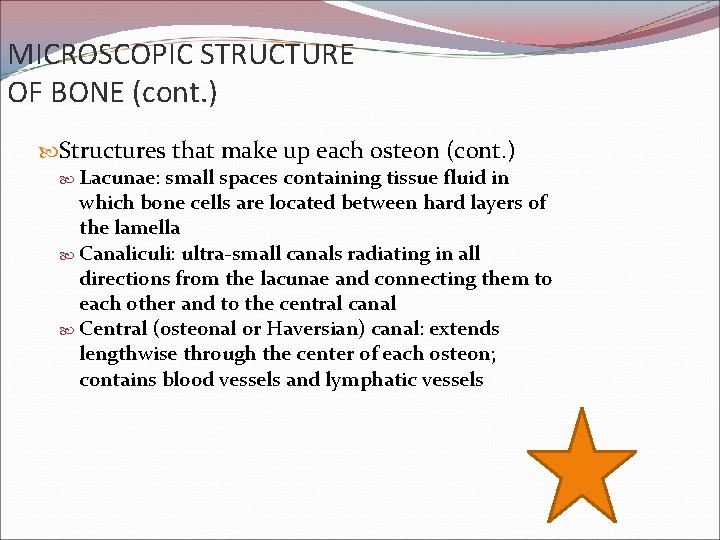

MICROSCOPIC STRUCTURE OF BONE (cont. ) Structures that make up each osteon (cont. ) Lacunae: small spaces containing tissue fluid in which bone cells are located between hard layers of the lamella Canaliculi: ultra-small canals radiating in all directions from the lacunae and connecting them to each other and to the central canal Central (osteonal or Haversian) canal: extends lengthwise through the center of each osteon; contains blood vessels and lymphatic vessels

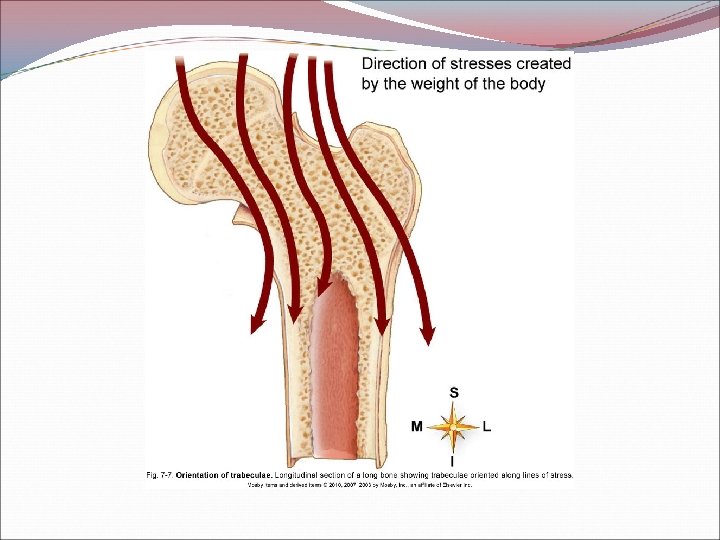

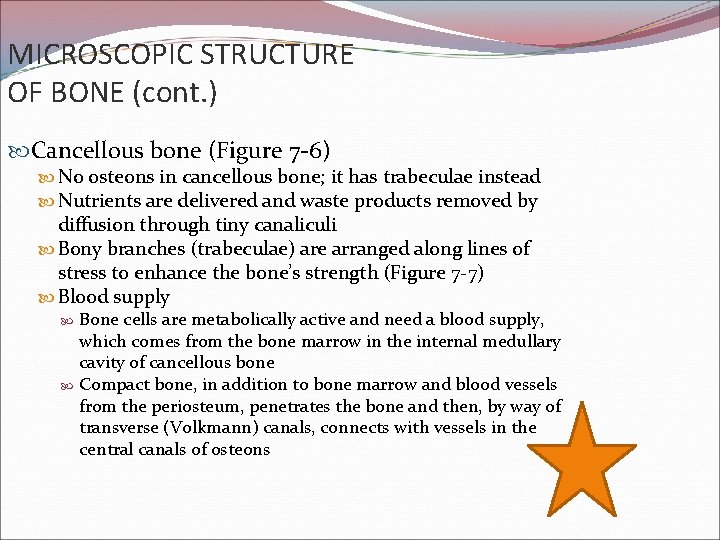

MICROSCOPIC STRUCTURE OF BONE (cont. ) Cancellous bone (Figure 7 -6) No osteons in cancellous bone; it has trabeculae instead Nutrients are delivered and waste products removed by diffusion through tiny canaliculi Bony branches (trabeculae) are arranged along lines of stress to enhance the bone’s strength (Figure 7 -7) Blood supply Bone cells are metabolically active and need a blood supply, which comes from the bone marrow in the internal medullary cavity of cancellous bone Compact bone, in addition to bone marrow and blood vessels from the periosteum, penetrates the bone and then, by way of transverse (Volkmann) canals, connects with vessels in the central canals of osteons

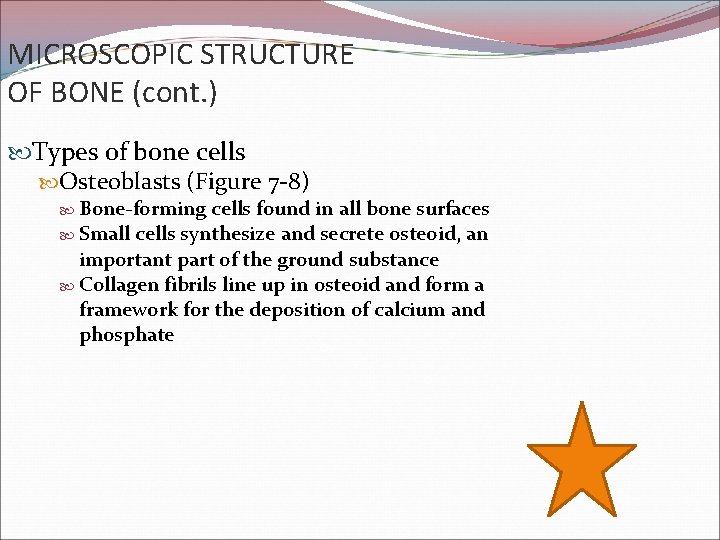

MICROSCOPIC STRUCTURE OF BONE (cont. ) Types of bone cells Osteoblasts (Figure 7 -8) Bone-forming cells found in all bone surfaces Small cells synthesize and secrete osteoid, an important part of the ground substance Collagen fibrils line up in osteoid and form a framework for the deposition of calcium and phosphate

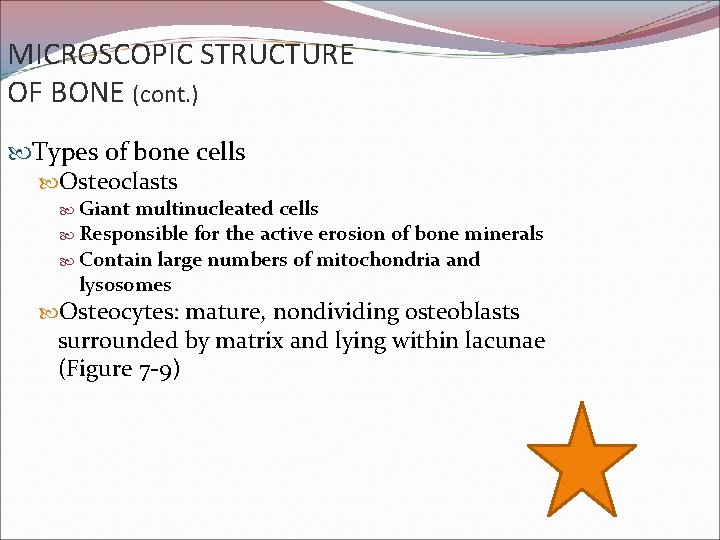

MICROSCOPIC STRUCTURE OF BONE (cont. ) Types of bone cells Osteoclasts Giant multinucleated cells Responsible for the active erosion of bone minerals Contain large numbers of mitochondria and lysosomes Osteocytes: mature, nondividing osteoblasts surrounded by matrix and lying within lacunae (Figure 7 -9)

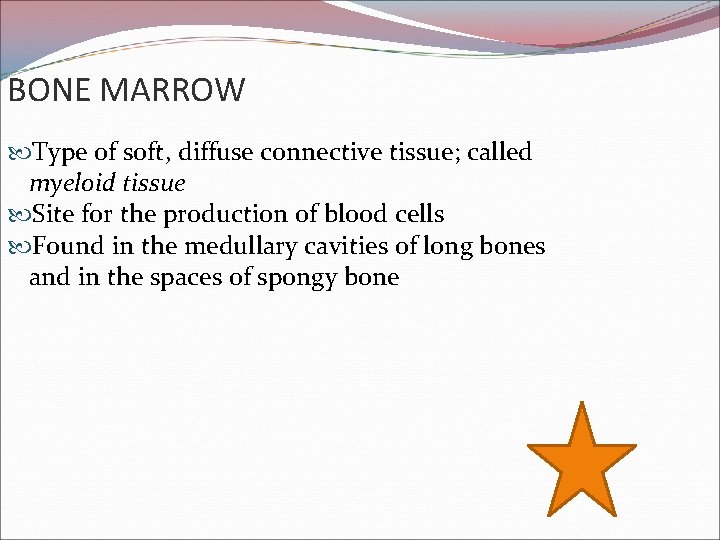

BONE MARROW Type of soft, diffuse connective tissue; called myeloid tissue Site for the production of blood cells Found in the medullary cavities of long bones and in the spaces of spongy bone

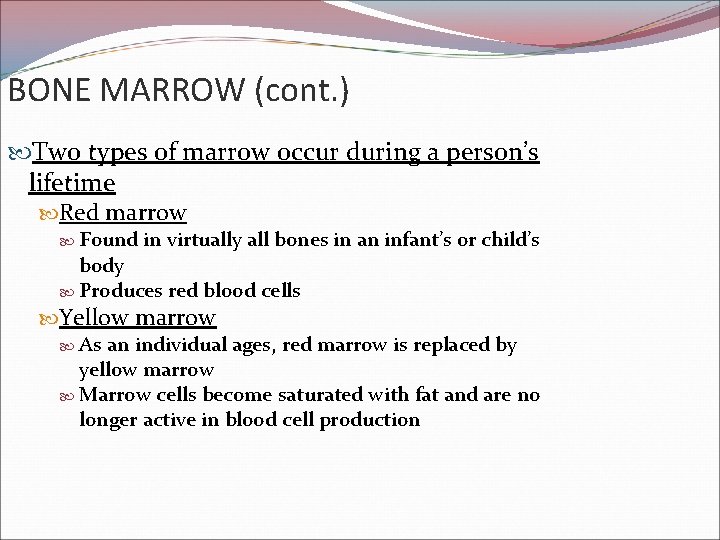

BONE MARROW (cont. ) Two types of marrow occur during a person’s lifetime Red marrow Found in virtually all bones in an infant’s or child’s body Produces red blood cells Yellow marrow As an individual ages, red marrow is replaced by yellow marrow Marrow cells become saturated with fat and are no longer active in blood cell production

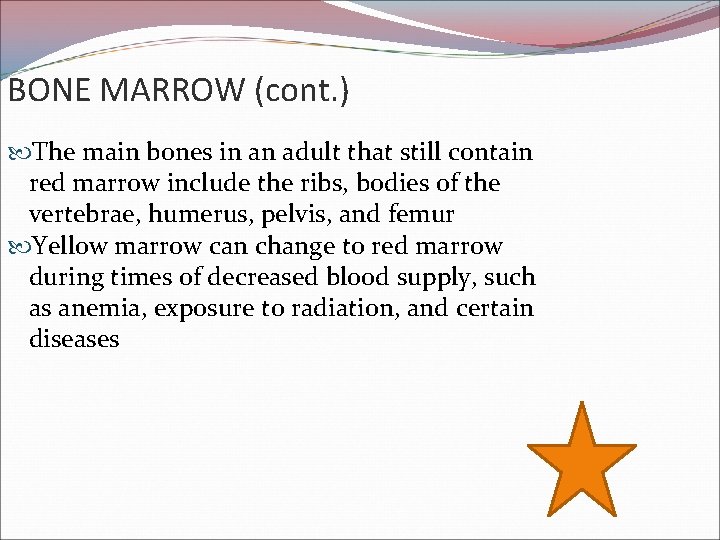

BONE MARROW (cont. ) The main bones in an adult that still contain red marrow include the ribs, bodies of the vertebrae, humerus, pelvis, and femur Yellow marrow can change to red marrow during times of decreased blood supply, such as anemia, exposure to radiation, and certain diseases

REGULATION OF BLOOD CALCIUM LEVELS Skeletal system is a storehouse for about 98% of body calcium reserves Helps maintain constancy of blood calcium levels Calcium is mobilized and moves in and out of blood during bone remodeling During bone formation, osteoblasts remove calcium from blood and lower circulating levels During breakdown of bone, osteoclasts release calcium into blood and increase circulating levels

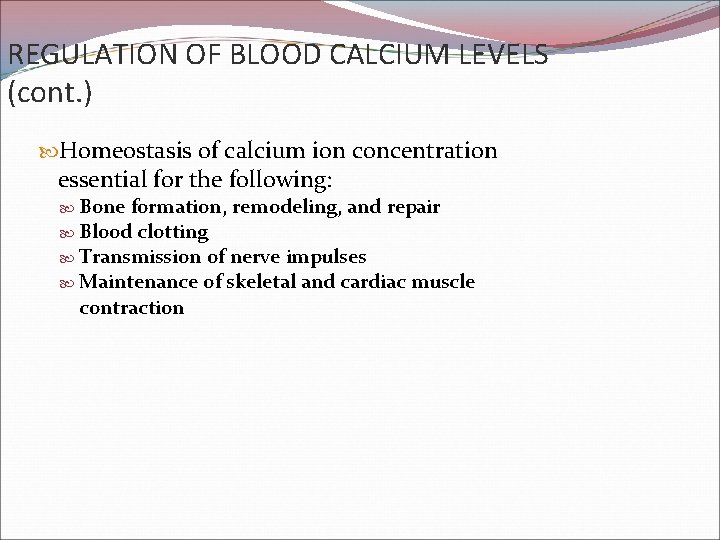

REGULATION OF BLOOD CALCIUM LEVELS (cont. ) Homeostasis of calcium ion concentration essential for the following: Bone formation, remodeling, and repair Blood clotting Transmission of nerve impulses Maintenance of skeletal and cardiac muscle contraction

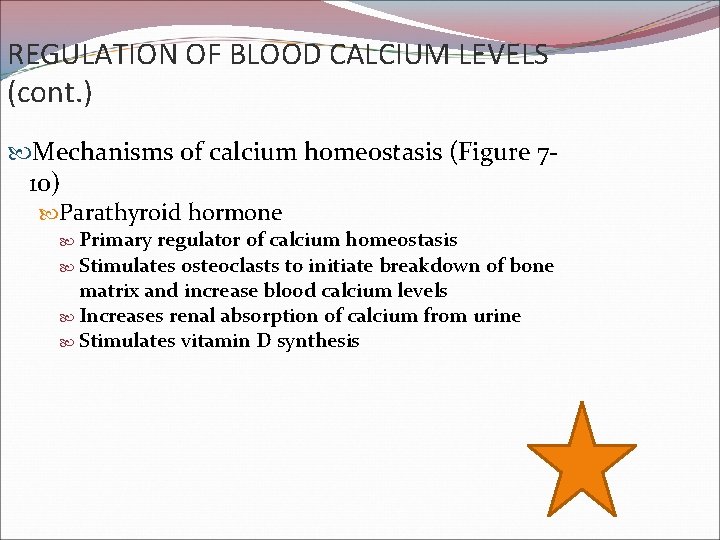

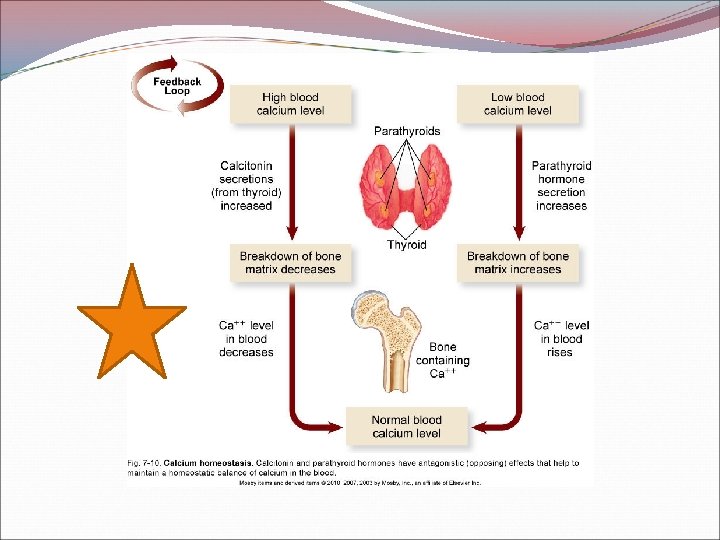

REGULATION OF BLOOD CALCIUM LEVELS (cont. ) Mechanisms of calcium homeostasis (Figure 710) Parathyroid hormone Primary regulator of calcium homeostasis Stimulates osteoclasts to initiate breakdown of bone matrix and increase blood calcium levels Increases renal absorption of calcium from urine Stimulates vitamin D synthesis

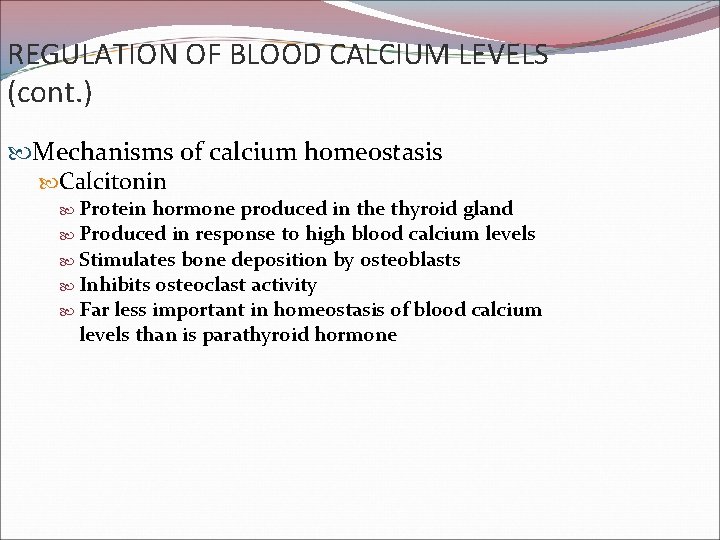

REGULATION OF BLOOD CALCIUM LEVELS (cont. ) Mechanisms of calcium homeostasis Calcitonin Protein hormone produced in the thyroid gland Produced in response to high blood calcium levels Stimulates bone deposition by osteoblasts Inhibits osteoclast activity Far less important in homeostasis of blood calcium levels than is parathyroid hormone

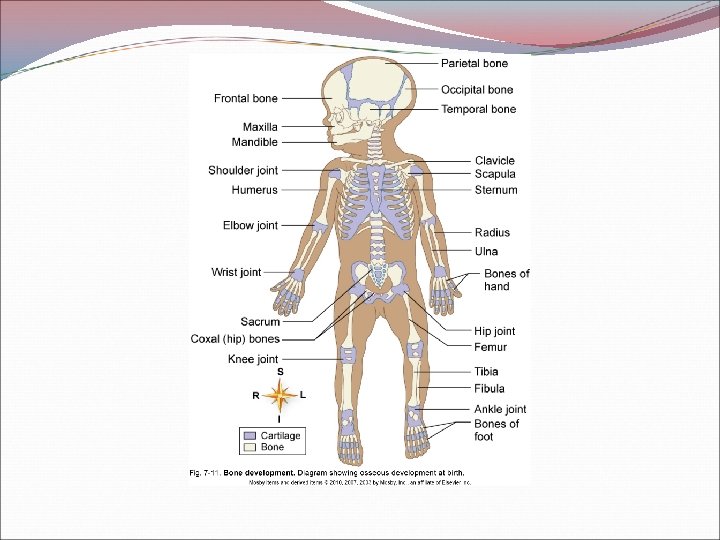

DEVELOPMENT OF BONES Osteogenesis: development of bone from small cartilage model to adult bone (Figure 7 -11) Intramembranous ossification Occurs within a connective tissue membrane Flat bones begin when groups of cells differentiate into osteoblasts Osteoblasts are clustered together in ossification center Osteoblasts secrete matrix material and collagenous fibrils

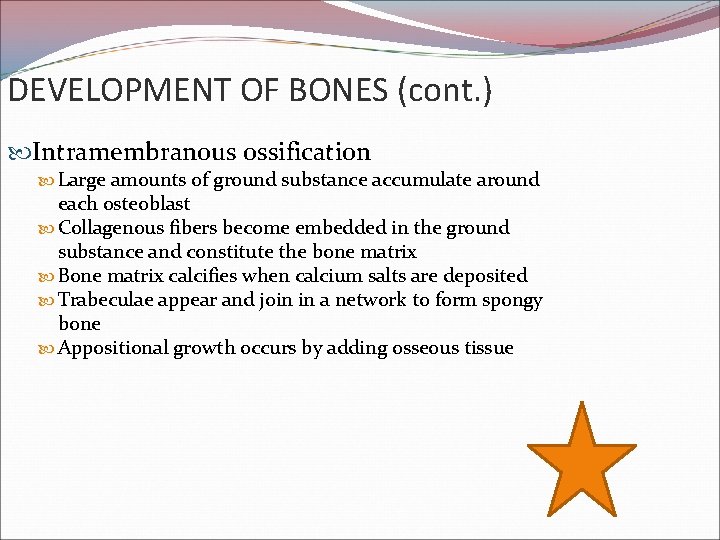

DEVELOPMENT OF BONES (cont. ) Intramembranous ossification Large amounts of ground substance accumulate around each osteoblast Collagenous fibers become embedded in the ground substance and constitute the bone matrix Bone matrix calcifies when calcium salts are deposited Trabeculae appear and join in a network to form spongy bone Appositional growth occurs by adding osseous tissue

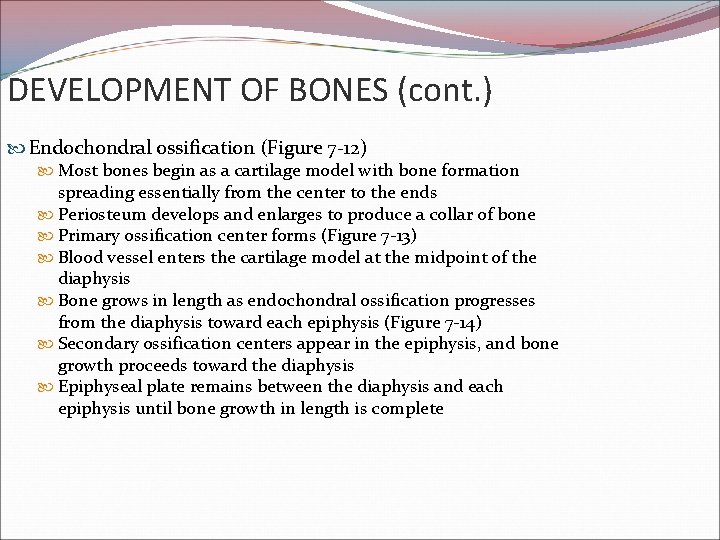

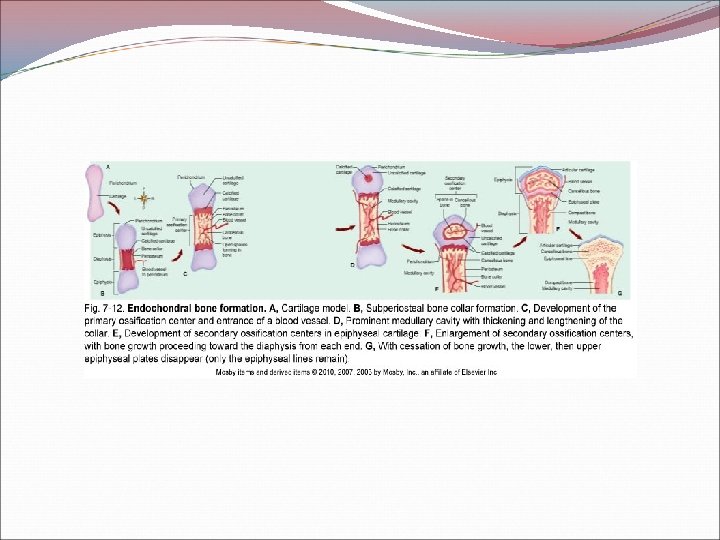

DEVELOPMENT OF BONES (cont. ) Endochondral ossification (Figure 7 -12) Most bones begin as a cartilage model with bone formation spreading essentially from the center to the ends Periosteum develops and enlarges to produce a collar of bone Primary ossification center forms (Figure 7 -13) Blood vessel enters the cartilage model at the midpoint of the diaphysis Bone grows in length as endochondral ossification progresses from the diaphysis toward each epiphysis (Figure 7 -14) Secondary ossification centers appear in the epiphysis, and bone growth proceeds toward the diaphysis Epiphyseal plate remains between the diaphysis and each epiphysis until bone growth in length is complete

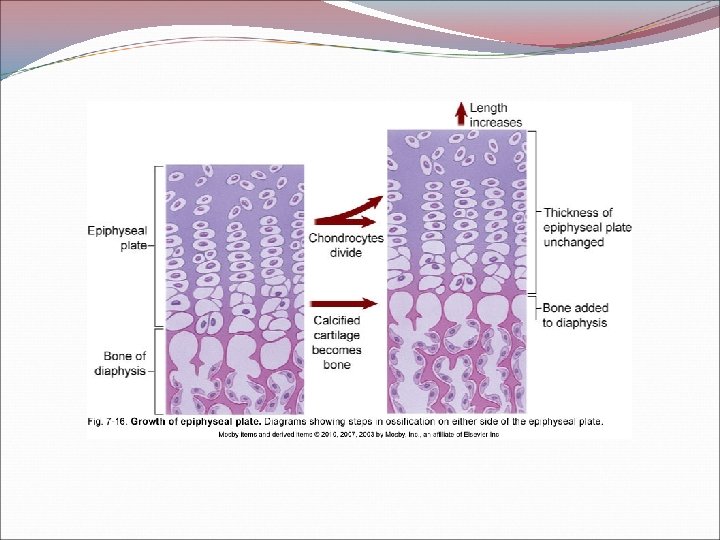

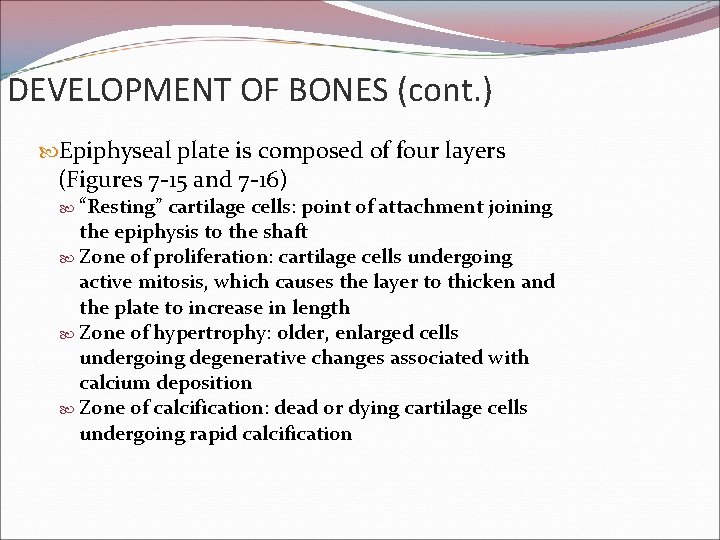

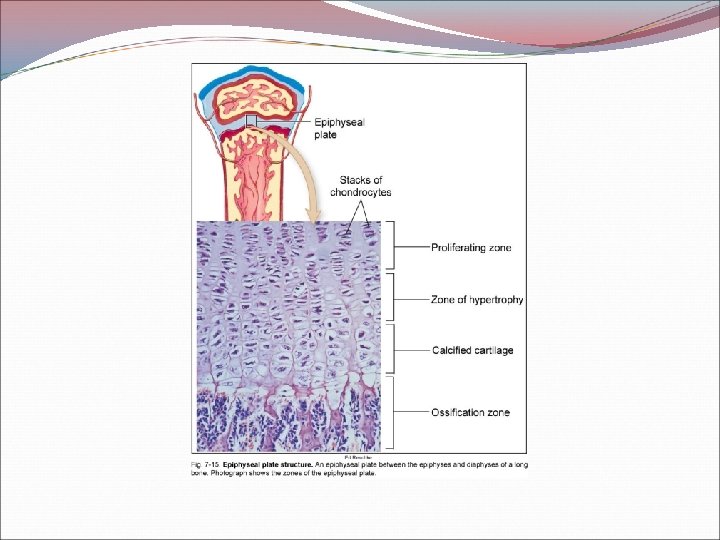

DEVELOPMENT OF BONES (cont. ) Epiphyseal plate is composed of four layers (Figures 7 -15 and 7 -16) “Resting” cartilage cells: point of attachment joining the epiphysis to the shaft Zone of proliferation: cartilage cells undergoing active mitosis, which causes the layer to thicken and the plate to increase in length Zone of hypertrophy: older, enlarged cells undergoing degenerative changes associated with calcium deposition Zone of calcification: dead or dying cartilage cells undergoing rapid calcification

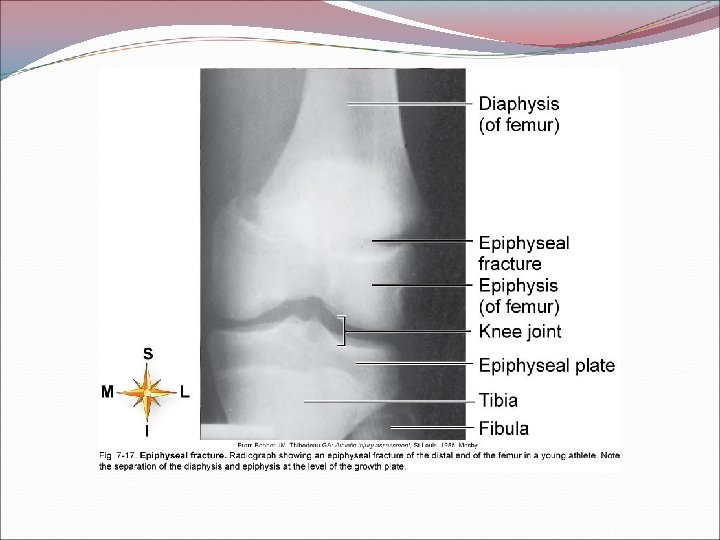

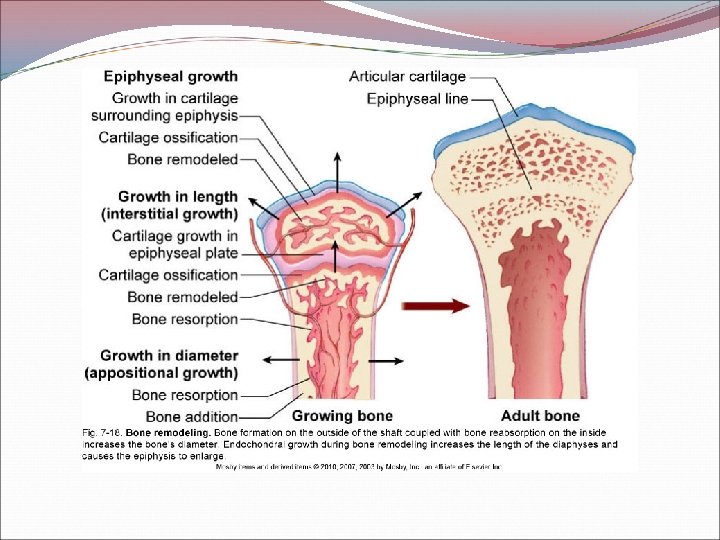

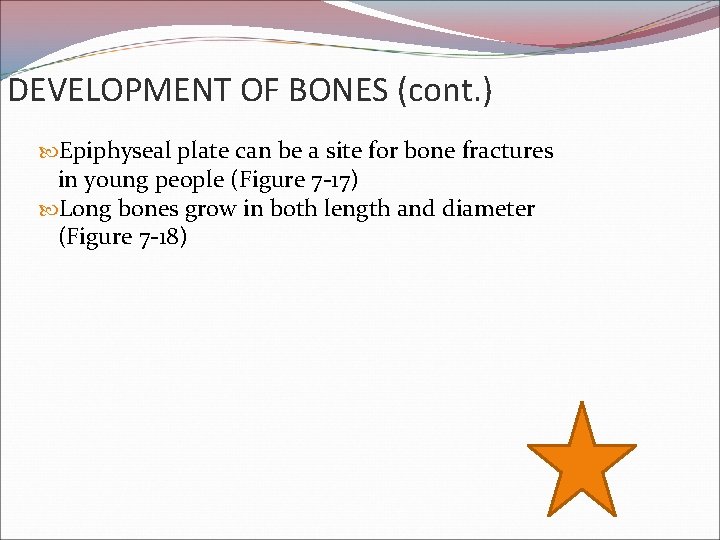

DEVELOPMENT OF BONES (cont. ) Epiphyseal plate can be a site for bone fractures in young people (Figure 7 -17) Long bones grow in both length and diameter (Figure 7 -18)

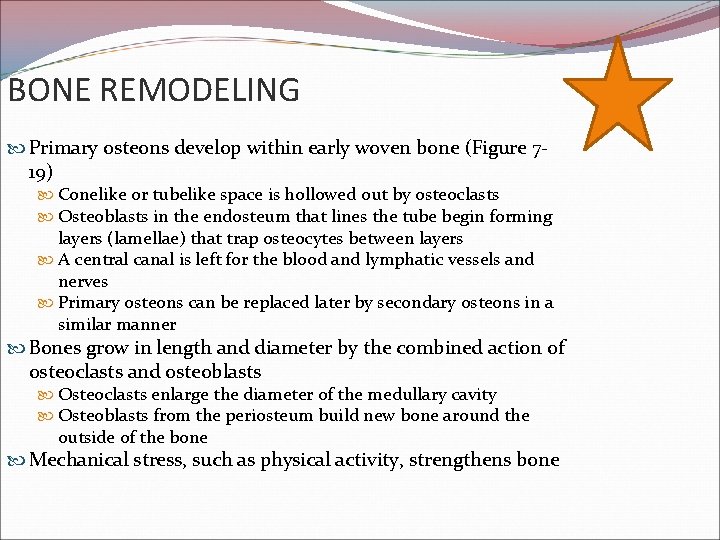

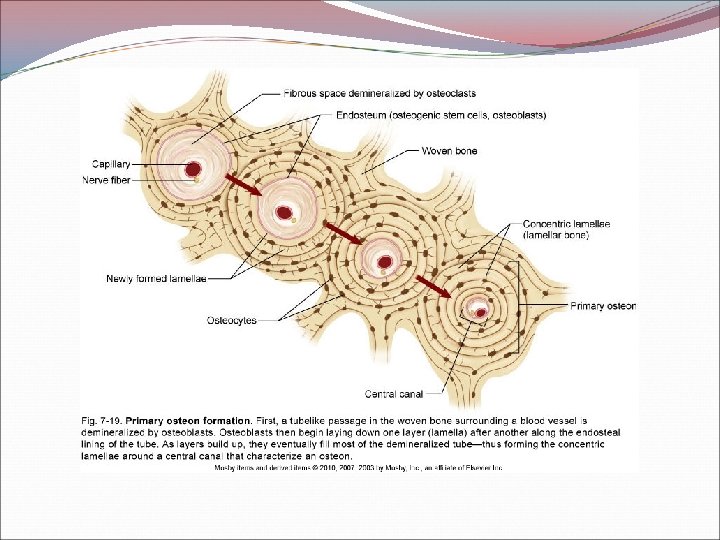

BONE REMODELING Primary osteons develop within early woven bone (Figure 719) Conelike or tubelike space is hollowed out by osteoclasts Osteoblasts in the endosteum that lines the tube begin forming layers (lamellae) that trap osteocytes between layers A central canal is left for the blood and lymphatic vessels and nerves Primary osteons can be replaced later by secondary osteons in a similar manner Bones grow in length and diameter by the combined action of osteoclasts and osteoblasts Osteoclasts enlarge the diameter of the medullary cavity Osteoblasts from the periosteum build new bone around the outside of the bone Mechanical stress, such as physical activity, strengthens bone

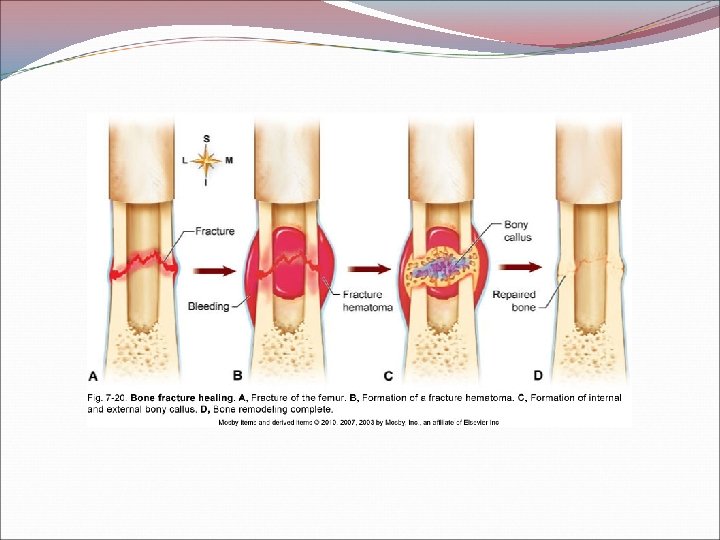

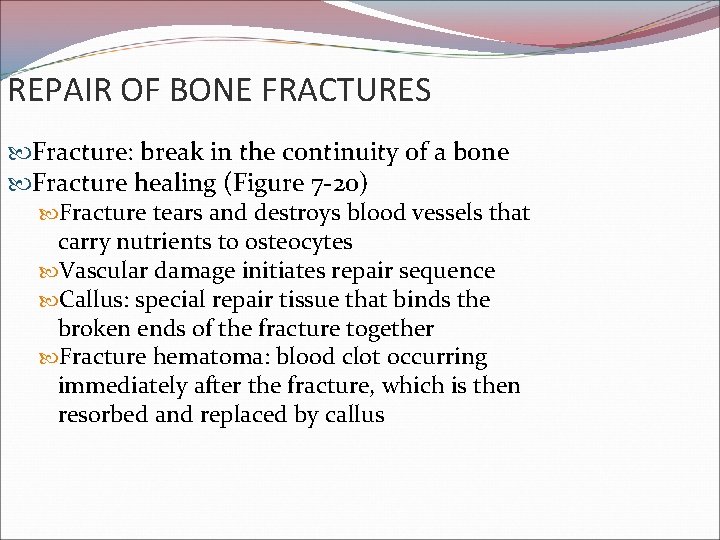

REPAIR OF BONE FRACTURES Fracture: break in the continuity of a bone Fracture healing (Figure 7 -20) Fracture tears and destroys blood vessels that carry nutrients to osteocytes Vascular damage initiates repair sequence Callus: special repair tissue that binds the broken ends of the fracture together Fracture hematoma: blood clot occurring immediately after the fracture, which is then resorbed and replaced by callus

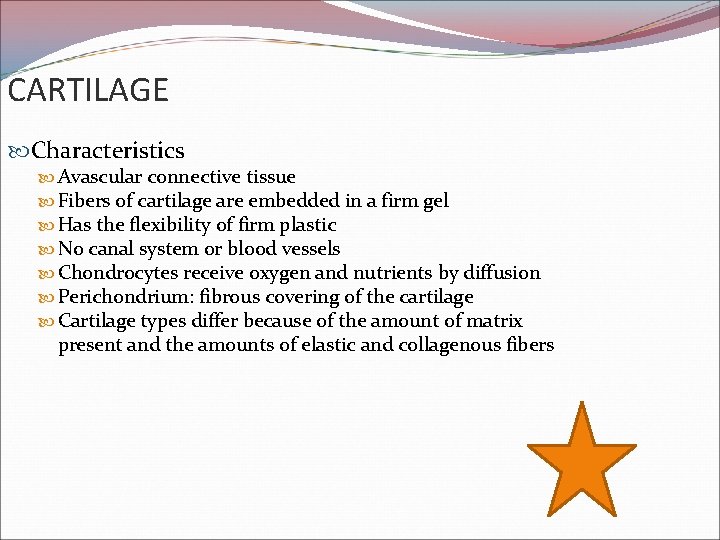

CARTILAGE Characteristics Avascular connective tissue Fibers of cartilage are embedded in a firm gel Has the flexibility of firm plastic No canal system or blood vessels Chondrocytes receive oxygen and nutrients by diffusion Perichondrium: fibrous covering of the cartilage Cartilage types differ because of the amount of matrix present and the amounts of elastic and collagenous fibers

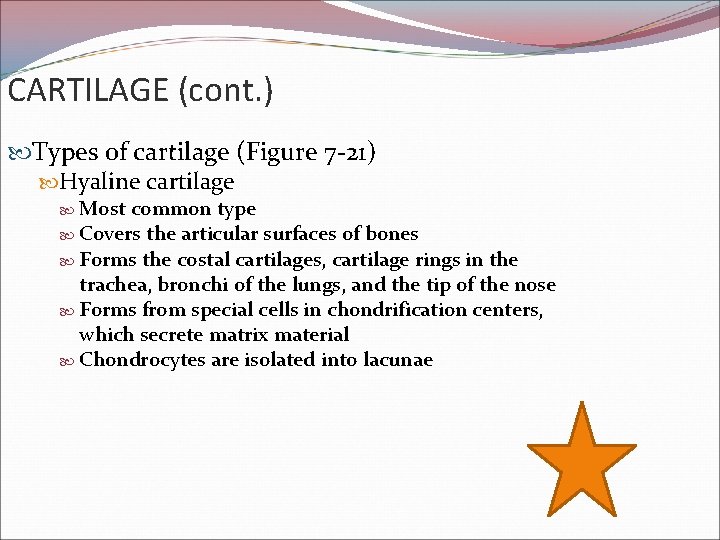

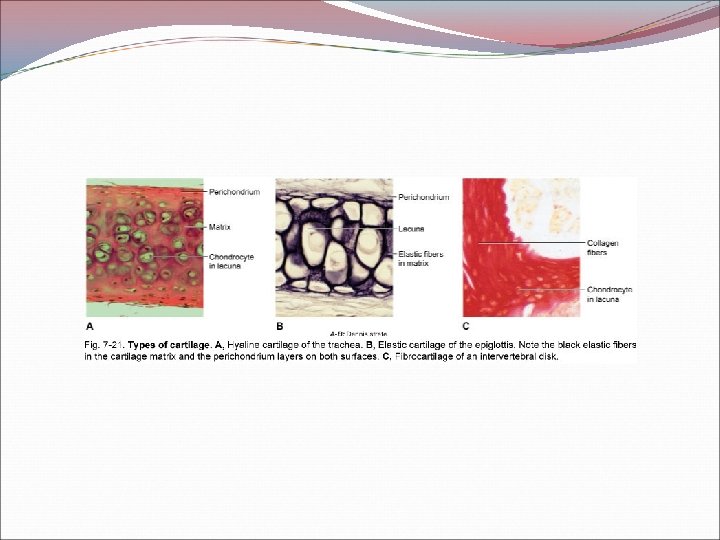

CARTILAGE (cont. ) Types of cartilage (Figure 7 -21) Hyaline cartilage Most common type Covers the articular surfaces of bones Forms the costal cartilages, cartilage rings in the trachea, bronchi of the lungs, and the tip of the nose Forms from special cells in chondrification centers, which secrete matrix material Chondrocytes are isolated into lacunae

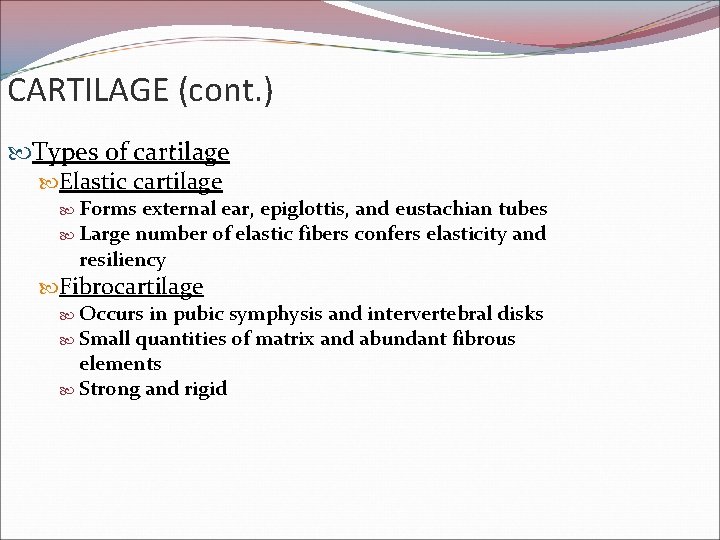

CARTILAGE (cont. ) Types of cartilage Elastic cartilage Forms external ear, epiglottis, and eustachian tubes Large number of elastic fibers confers elasticity and resiliency Fibrocartilage Occurs in pubic symphysis and intervertebral disks Small quantities of matrix and abundant fibrous elements Strong and rigid

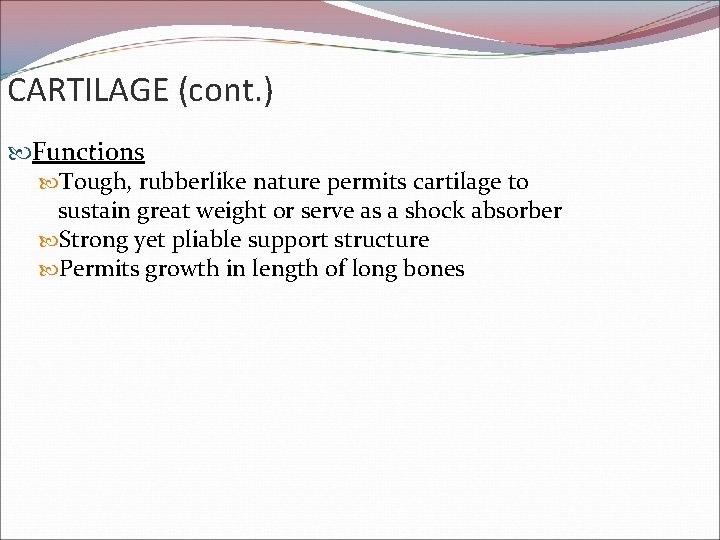

CARTILAGE (cont. ) Functions Tough, rubberlike nature permits cartilage to sustain great weight or serve as a shock absorber Strong yet pliable support structure Permits growth in length of long bones

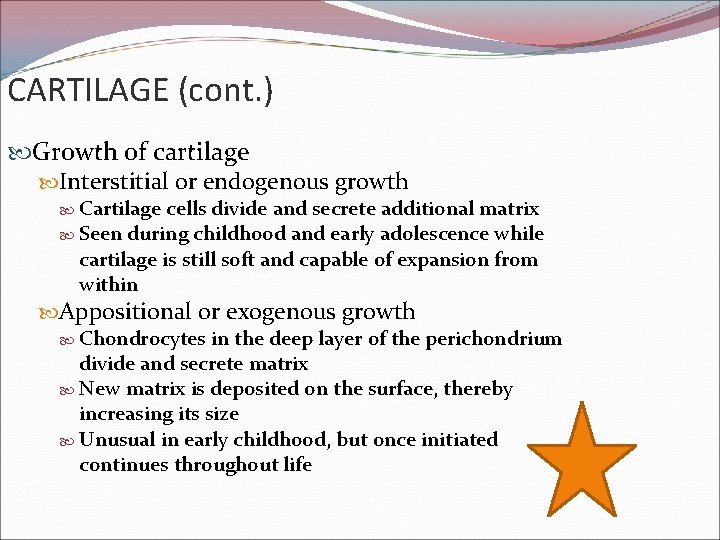

CARTILAGE (cont. ) Growth of cartilage Interstitial or endogenous growth Cartilage cells divide and secrete additional matrix Seen during childhood and early adolescence while cartilage is still soft and capable of expansion from within Appositional or exogenous growth Chondrocytes in the deep layer of the perichondrium divide and secrete matrix New matrix is deposited on the surface, thereby increasing its size Unusual in early childhood, but once initiated continues throughout life

CYCLE OF LIFE: SKELETAL TISSUES Skeleton fully ossified by mid-20 s Soft tissue may continue to grow; ossifies more slowly Adults: changes occur from specific conditions Increased density and strength from exercise Decreased density and strength from pregnancy, nutritional deficiencies, and illness Advanced adulthood: apparent degeneration Hard bone matrix replaced by softer connective tissue Exercise can counteract degeneration
