Chapter 7 Lipids Lipid Subclasses Fatty acids Fatty

Chapter 7 Lipids

Lipid Subclasses

Fatty acids

Fatty acid nomenclature

Common saturated fatty acids common name IUPAC name melting point (Co) 12: 0 laurate dodeconoate 44 14: 0 myristate tetradeconoate 52 16: 0 palmitate hexadeconoate 63 18: 0 stearate octadeconoate 70 20: 0 arachidate eicosanoate 75 22: 0 behenate docosanoate 81 24: 0 lignocerate tetracosanate 84

Common unsaturated fatty acids common name IUPAC name melting point (Co) 16: 0 palmitate hexadeconoate 63 16: 1 D 9 palmitoleate cis-D 9 -hexadeconoate -0. 5 18: 0 stearate octadeconoate 70 18: 1 D 9 oleate cis-D 9 - octadeconoate 13 18: 2 D 9, 12 linoleate cis-D 9, 12 - octadeconoate -9 18: 3 D 9, 12, 15 linolenate cis-D 9, 12, 15 - octadeconoate -17 20: 0 arachidate eicosanoate 75 20: 4 D 5, 8, 11, 14 arachindonate cis- D 5, 8, 11, 14 -eicosatetraenoate -49

18: 0 18: 1 18: 3 Physical Properties of Fatty acids 70 o 13 o -17 o

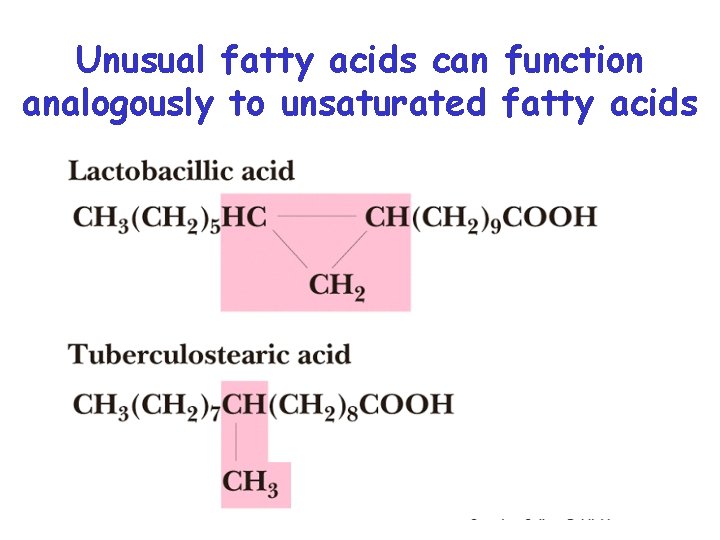

Unusual fatty acids can function analogously to unsaturated fatty acids

Phospholipids

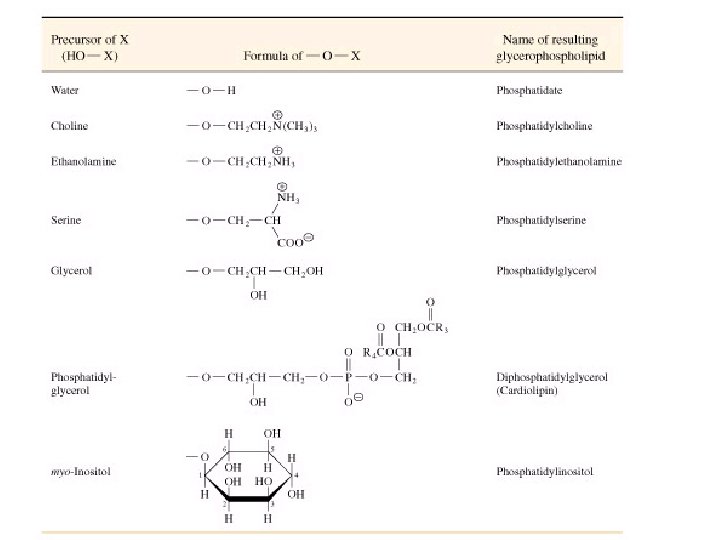

Common membrane phospholipids

Enzymes used to Dissect Phospholipid Structure

Lipids • Function: – energy storage • very concentrated • twice the energy as carbohydrates! – cell membrane – cushions organs – insulates body • think whale blubber!

Fatty Acids • The simplest lipids are the fatty acids, which rarely exist alone in nature, but instead are usually a component of more complex lipids • Fatty acids are carboxylic acids with a long hydrocarbon chain attached • Although the acid end is polar, the nonpolar hydrocarbon tail makes fatty acids insoluble (or sparingly soluble) in water • Fatty acids can be classified by how many double bonds are present in the hydrocarbon tail: - Saturated fatty acids have only single bonds - Monounsaturated fatty acids have one double bond - Polyunsaturated fatty acids have two or more double bonds

Structure of Fat not a chain (polymer) = just a “big fat molecule”

Structures and Melting Points of Saturated Fatty Acids

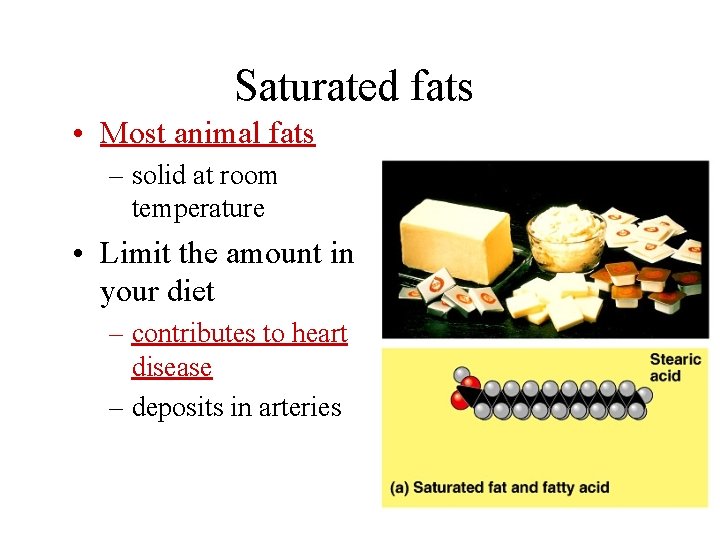

Saturated fats • Most animal fats – solid at room temperature • Limit the amount in your diet – contributes to heart disease – deposits in arteries

Physical Properties of Saturated Fatty Acids Saturated fatty acids have: • Molecules that fit closely together in a regular pattern • Strong attractions (dispersion forces) between fatty acid chains • High melting points that makes them solids at room temperature.

Structures and Melting Points of Unsaturated Fatty Acids

Unsaturated fats • Plant, vegetable & fish fats – liquid at room temperature • the fat molecules don’t stack tightly together • Better choice in your diet

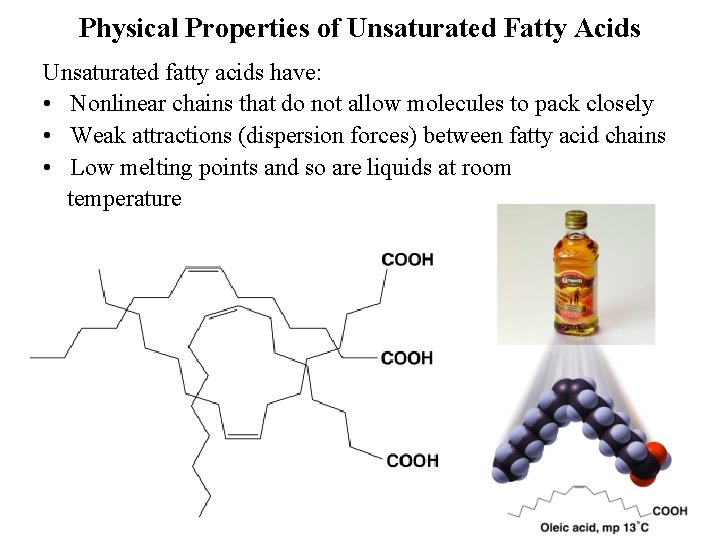

Physical Properties of Unsaturated Fatty Acids Unsaturated fatty acids have: • Nonlinear chains that do not allow molecules to pack closely • Weak attractions (dispersion forces) between fatty acid chains • Low melting points and so are liquids at room temperature

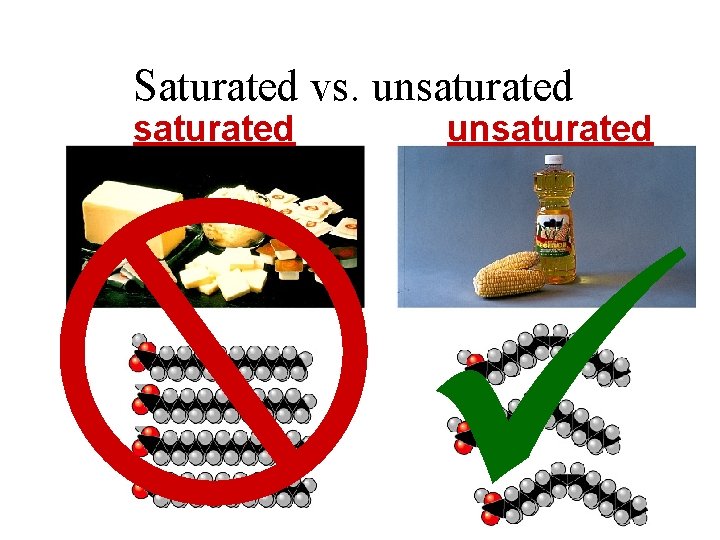

Saturated vs. unsaturated

Triacylglycerols • Triacylglycerols (also called triglycerides) are tri-fatty acid esters of glycerol • Triacylglycerols are the major form of fatty acid storage in plants and animals • Triacylglycerols can be classified as fats or oils - fats are solid at room temperature and most come from animals - oils are usually liquid at room temperature and come from plants (palm and coconut oils are solids at room temperature)

Melting Point and Fatty Acid Composition of Some Fats and Oils

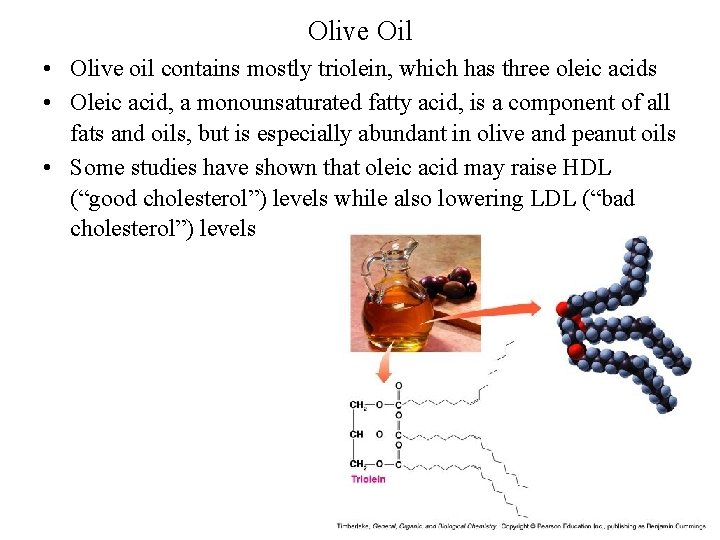

Olive Oil • Olive oil contains mostly triolein, which has three oleic acids • Oleic acid, a monounsaturated fatty acid, is a component of all fats and oils, but is especially abundant in olive and peanut oils • Some studies have shown that oleic acid may raise HDL (“good cholesterol”) levels while also lowering LDL (“bad cholesterol”) levels

Olestra: a Fat Subsitute • Olestra is: - used in foods as an artificial fat - sucrose linked by ester bonds to several long-chain fatty chains - not broken down in the intestinal tract • Olestra inhibits the absorbtion of fat-soluble vitamins (A, D, E and K) and carotenoids • There are many reports of problems such as diarrhea and abdominal cramps with olestra use, but the manufacturers claim there’s no proof

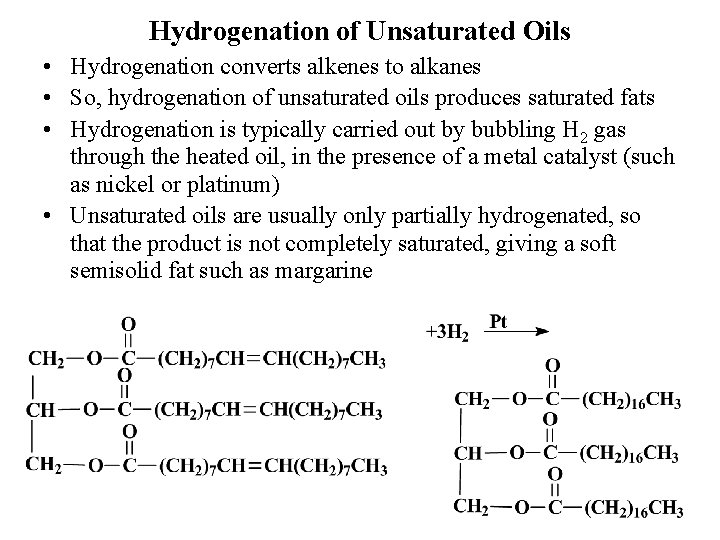

Hydrogenation of Unsaturated Oils • Hydrogenation converts alkenes to alkanes • So, hydrogenation of unsaturated oils produces saturated fats • Hydrogenation is typically carried out by bubbling H 2 gas through the heated oil, in the presence of a metal catalyst (such as nickel or platinum) • Unsaturated oils are usually only partially hydrogenated, so that the product is not completely saturated, giving a soft semisolid fat such as margarine

Cis and Trans Unsaturated Fatty Acids • Natural unsaturated fatty acids have cis double bonds • When unsaturated vegetable oils are hydrogenated to form more saturated oils (as in margarine), some of the cis fatty acids are isomerized to trans fatty acids • Trans fatty acids are much more linear than cis fatty acids, so their melting points are higher and studies have shown that trans fats may act similarly to saturated fats and could contribute to heart disease and some cancers • Due to new requirements for including amounts of trans fats on food labels, many companies are developing hydrogenation methods that do not produce trans fats

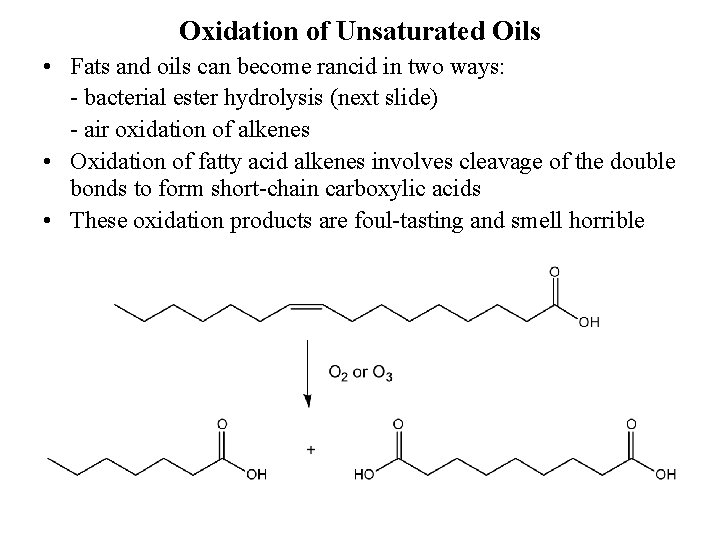

Oxidation of Unsaturated Oils • Fats and oils can become rancid in two ways: - bacterial ester hydrolysis (next slide) - air oxidation of alkenes • Oxidation of fatty acid alkenes involves cleavage of the double bonds to form short-chain carboxylic acids • These oxidation products are foul-tasting and smell horrible

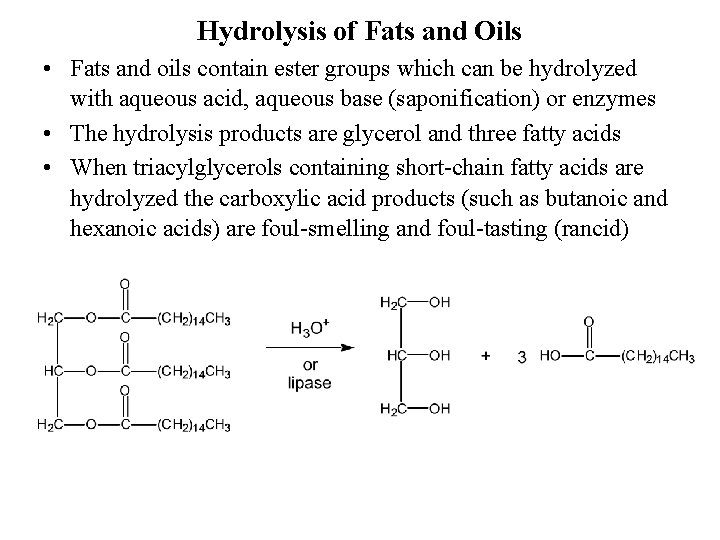

Hydrolysis of Fats and Oils • Fats and oils contain ester groups which can be hydrolyzed with aqueous acid, aqueous base (saponification) or enzymes • The hydrolysis products are glycerol and three fatty acids • When triacylglycerols containing short-chain fatty acids are hydrolyzed the carboxylic acid products (such as butanoic and hexanoic acids) are foul-smelling and foul-tasting (rancid)

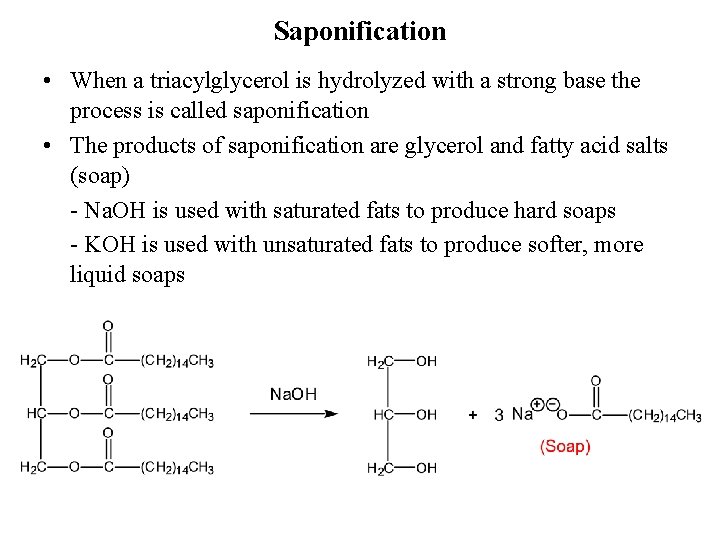

Saponification • When a triacylglycerol is hydrolyzed with a strong base the process is called saponification • The products of saponification are glycerol and fatty acid salts (soap) - Na. OH is used with saturated fats to produce hard soaps - KOH is used with unsaturated fats to produce softer, more liquid soaps
