Chapter 7 Internet Protocol Version 4 IPv 4

Chapter 7 Internet Protocol Version 4 (IPv 4) Kyung Hee University 1

7. 1 Introduction q. The transmission mechanism used by the TCP/IP q. Unreliable and connectionless datagram protocol Best-effort delivery service IP packets can be corrupted, lost, arrive out of order, or delayed and may create congestion for the network q. Each datagram is handled independently q. Each datagram can follow a different route to destination Datagram sent by the same source to the same destination could arrive out of order. Kyung Hee University 2

Position of IP in TCP/IP protocol suite Kyung Hee University 3

7. 2 Datagrams q. Datagrams are packets in the network layer q. Datagram is a variable-length packet consisting of header and data. The header is 20 to 60 bytes, contains information essential to routing and delivery It is customary in TCP/IP to show the header in 4 -byte section q. Field in Header Version(VER) – the version of IP protocol (4 -bit) Header length(HLEN) – total length of the datagram header in 4 -byte words. Kyung Hee University 4

IP Datagram Kyung Hee University 5

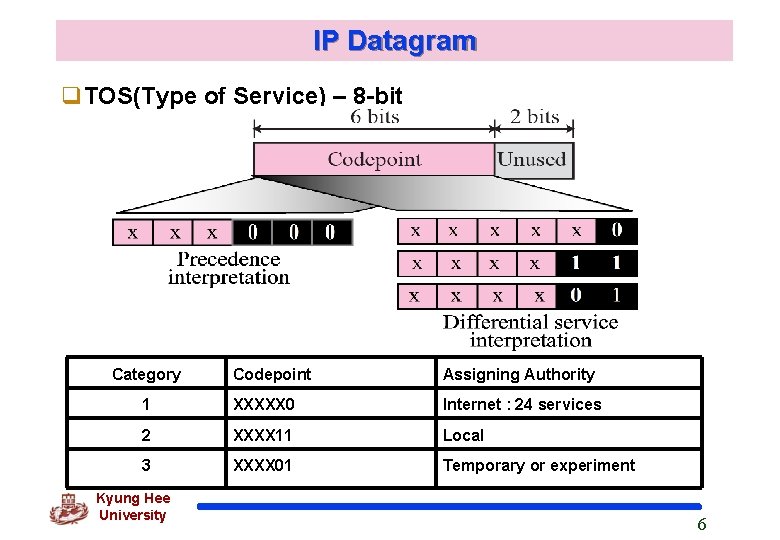

IP Datagram q. TOS(Type of Service) – 8 -bit Category Codepoint Assigning Authority 1 XXXXX 0 Internet : 24 services 2 XXXX 11 Local 3 XXXX 01 Temporary or experiment Kyung Hee University 6

IP Datagram q. Total Length 16 -bit field (limited to 65, 535 bytes) Define the total length of the IP datagram in bytes Length of data = total length – header length q. Encapsulation of a small datagram in an Ethernet frame Figure 7. 4 Encapsulation of a small datagram in an Ethernet frame Kyung Hee University 7

IP Datagram q. Identification – used in fragmentation q. Flags – used in fragmentation q. Fragmentation offset – used in fragmentation q. Time to love – limited life time of datagram q. Protocol – the higher level protocol that uses the services of the IP layer Kyung Hee University Fig. 7. 5 Multiplexing 8

IP Datagram q. Checksum – Check errors q. Source address – The IP address of source q. Destination address – The IP address of destination Kyung Hee University 9

Example 7. 1 An IP packet has arrived with the first 8 bit shown: The receiver discards the packet. Why? Solution There is an error in this packet. The 4 left-most bit(0100) show the version, which is correct. The next 4 bit(0010) show the wrong header length(2 × 4 = 8). The minimum number of byte in the header must be 20. The packet has been corrupted in transmission. Kyung Hee University 10

Example 7. 2 In an IP packet, the value of HLEN is 1000 in binary. How many byte of option are being carried by this packet? Solution The HLEN value is 8, which means the total number of bytes in the header is 8 × 4 or 32 bytes. The first 20 bytes are the base header, the next 12 bytes are the option. Kyung Hee University 11

Example 7. 3 In an IP packet, the value of HLEN is 516 and the value of the total length field is 002816. How many bytes of data are being carried by this packet? Solution The HLEN value is 5, which mean the total number of bytes in the header is 5 × 4 or 20 bytes (no options). The total length is 40 bytes, which means the packet is carrying 20 bytes of data (40 − 20). Kyung Hee University 12

7. 3 Fragmentation q. The format and size of the received frame depend on the protocol used by the physical network q. When a datagram encapsulated in a frame, the total size of the datagram must be less than MTU(Maximum Transfer Unit) size q. We must divide the datagram to make it possible to pass through the network; this is called fragmentation Kyung Hee University 13

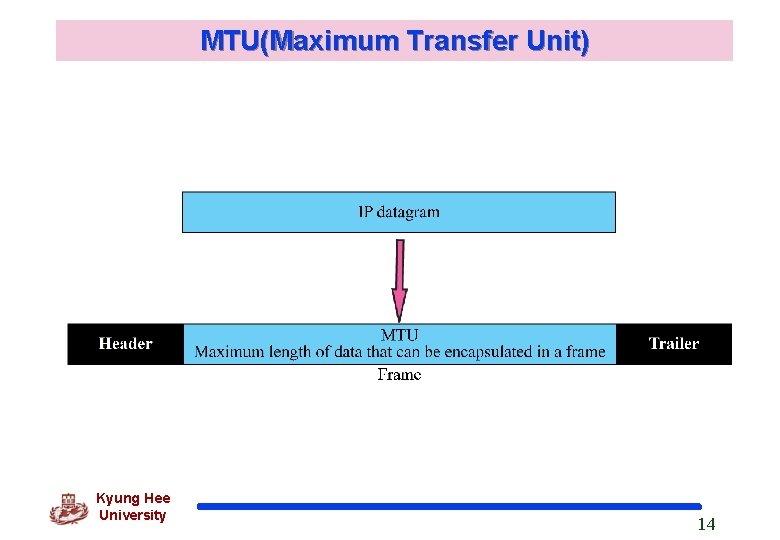

MTU(Maximum Transfer Unit) Kyung Hee University 14

Fragmentation q. The value of the MTU differs from one physical network protocol to another Kyung Hee University 15

Fields Related to Fragmentation q. Identification – All fragments have the same identification value q. Flag – 3 -bit field q. Fragmentation offset – 13 -bit field, the relative position of this fragment with respect to the whole datagram Kyung Hee University 16

Fragmentation Example Kyung Hee University 17

Detailed Fragmentation Example Kyung Hee University 18

Example 7. 5 A packet has arrived with an M bit value of 0. Is this first fragment, or a middle fragment? Do we know if the packet was fragment? Solution If the M bit is 0, it means that there are no more fragment; the fragment is the last one. However, we cannot say if the original packet was fragment or not. A nonfragmented packet is considered the last fragment. Kyung Hee University 19

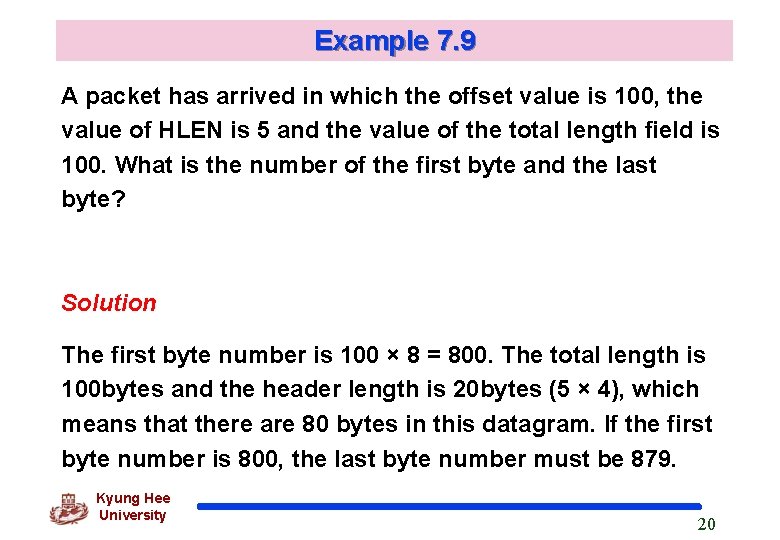

Example 7. 9 A packet has arrived in which the offset value is 100, the value of HLEN is 5 and the value of the total length field is 100. What is the number of the first byte and the last byte? Solution The first byte number is 100 × 8 = 800. The total length is 100 bytes and the header length is 20 bytes (5 × 4), which means that there are 80 bytes in this datagram. If the first byte number is 800, the last byte number must be 879. Kyung Hee University 20

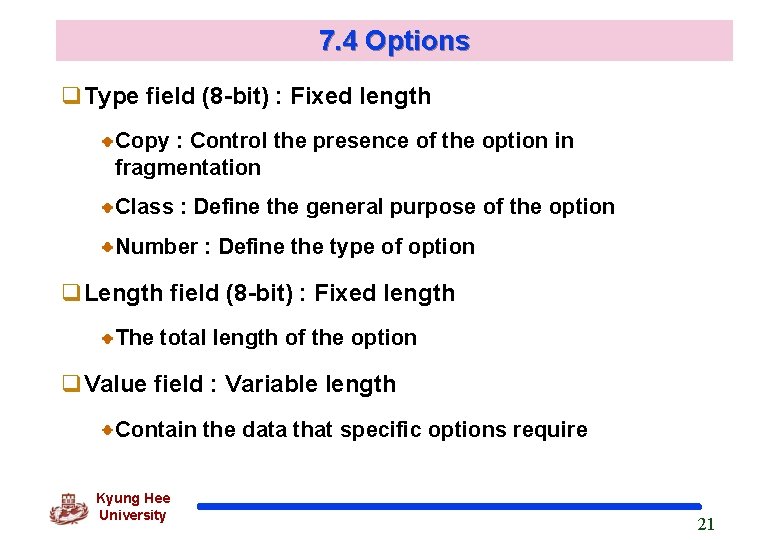

7. 4 Options q. Type field (8 -bit) : Fixed length Copy : Control the presence of the option in fragmentation Class : Define the general purpose of the option Number : Define the type of option q. Length field (8 -bit) : Fixed length The total length of the option q. Value field : Variable length Contain the data that specific options require Kyung Hee University 21

Option Format Kyung Hee University 22

Categories of Options Kyung Hee University 23

No Operation Option q 1 -byte option used as a filter between options Kyung Hee University 24

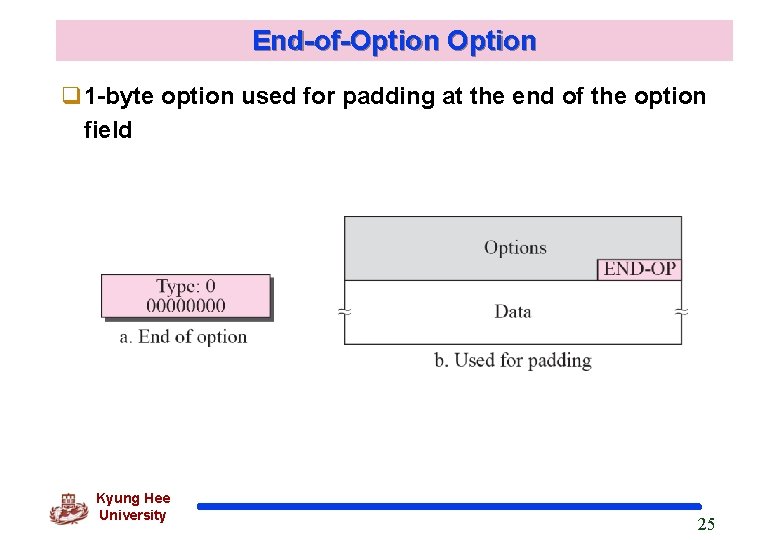

End-of-Option q 1 -byte option used for padding at the end of the option field Kyung Hee University 25

Record-Route Option q. Used to record the Internet routers that handle the datagram Kyung Hee University 26

Record-Route Concept 4 Kyung Hee University 8 27

Strict-Source-Route Option q. Used by source to predetermine a route for the datagram as it travels through the Internet q. All of routers defined in the option must be visited by the datagram Kyung Hee University 28

Strict-Source-Route Concept Kyung Hee University 29

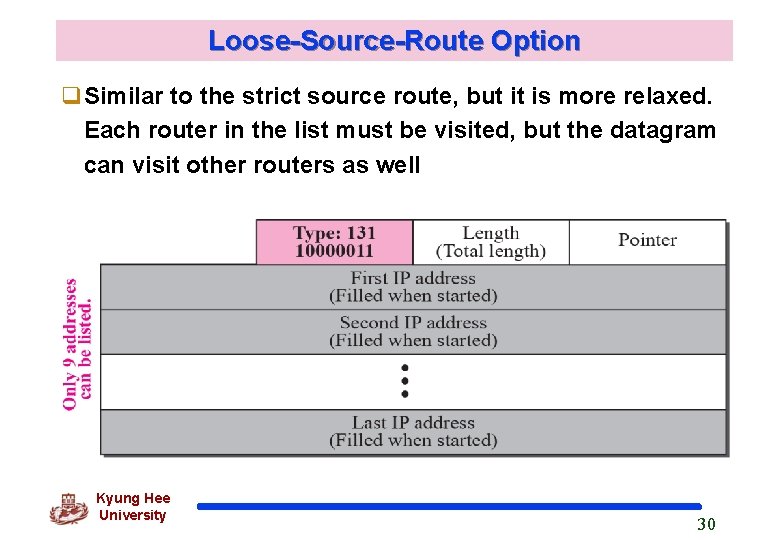

Loose-Source-Route Option q. Similar to the strict source route, but it is more relaxed. Each router in the list must be visited, but the datagram can visit other routers as well Kyung Hee University 30

Timestamp Option q Used to record the time of datagram processing by a router q The time is expressed in miliseconds from Universal Time Kyung Hee University 31

Use of Flag in Timestamp q Flag 0 : each router adds only the timestamp in the provided field q Flag 1 : each router must add its outgoing IP address and the timestamp q Flag 3 : the IP addresses are given, and each router must check the given IP address with its own incoming IP address 1 0 Kyung Hee University 32

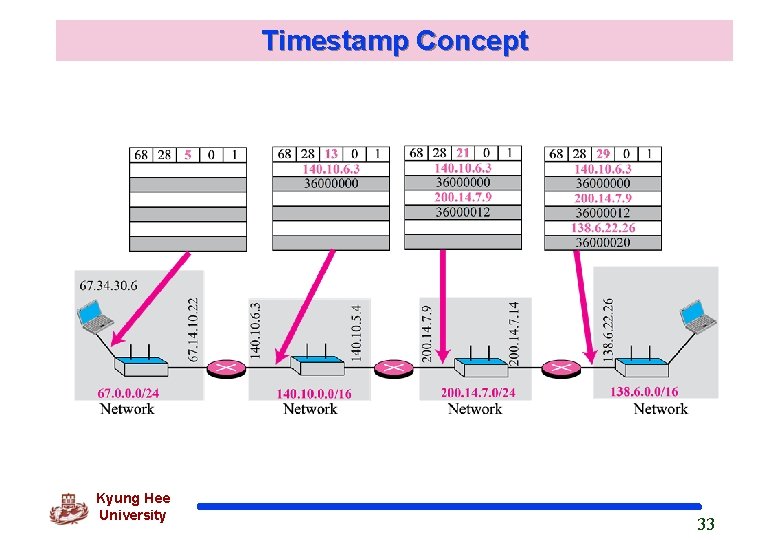

Timestamp Concept Kyung Hee University 33

Example 7. 11 Which of the six option are used for datagram control and which are used for debugging and management? Solution We look at the second and third (left-most) bits of the type. a. No operation: type is 00000001; datagram control. b. End of option: type is 0000; datagram control. c. Record route: type is 00000111; datagram control. d. Strict source route: type is 10001001; datagram control. e. Loose source route: type is 10000011; datagram control. f. Timestamp: type is 0100; debugging and management control. Kyung Hee University 34

Example 7. 12 One of the utilities available in UNIX to check the traveling of the IP packets is ping. In the next chapter, we talk about the ping program in more detail. In this example, we want to show to use the program to see if a host is available. We ping a server at De Anza College named fhda. edu. The result shows that the IP address of the host is 153. 18. 8. 1. The result also shows the number of bytes used. Kyung Hee University 35

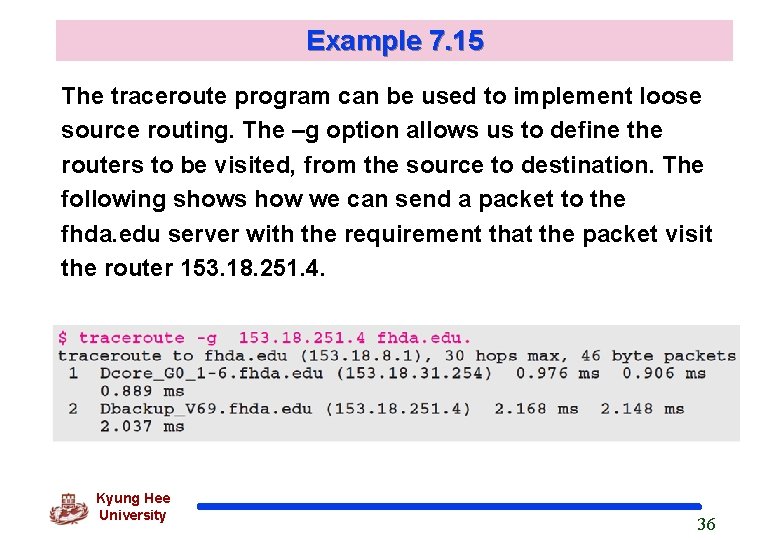

Example 7. 15 The traceroute program can be used to implement loose source routing. The –g option allows us to define the routers to be visited, from the source to destination. The following shows how we can send a packet to the fhda. edu server with the requirement that the packet visit the router 153. 18. 251. 4. Kyung Hee University 36

Example 7. 16 The traceroute program can also be used to implement strict source routing. The –G option forces the packet to visit the routers in the command line. The following shows how we can send a packet to the fhda. edu server and force the packet to visit only the router 153. 18. 251. 4. Kyung Hee University 37

7. 5 Checksum q. Checksum – The error detection method used by most TCP/IP protocol Protect against the corruption that may occur during the transmission of a packet Redundant information added to the packet Calculated at the sender and the value obtained is sent with the packet The receiver repeats the same calculation on the whole packet including the checksum If the result is satisfactory, the packet is accepted; otherwise, it is rejected Kyung Hee University 38

Checksum Concept Kyung Hee University 39

Checksum in One’s Complement Arithmetic Kyung Hee University 40

Example 7. 17 Figure shows an example of a checksum calculation at the sender site for an IP header without option. The header is divided into 16 -bit sections. All the sections are added and the sum is complemented. The result is inserted in the checksum field. Example of checksum calculation at the sender Kyung Hee University 41

Example 7. 18 Figure shows the checking of checksum calculation at the receiver site ( or intermediate router ) assuming that no errors occurred in the header. The header is divided into 16 -bit sections. All the sections are added and the sum is complement. Since the result is 16 0 s, the packet is accepted. Kyung Hee University 42

7. 6 IP over ATM q. In this section, we want to see how an IP datagram is moving through a switched WAN such as an ATM The IP packet is encapsulated in cells An ATM network has its own definition for the physical address of a device Binding between an IP address and a physical address is attained through a protocol called ATMARP Kyung Hee University 43

An ATM WAN in the Internet Kyung Hee University 44

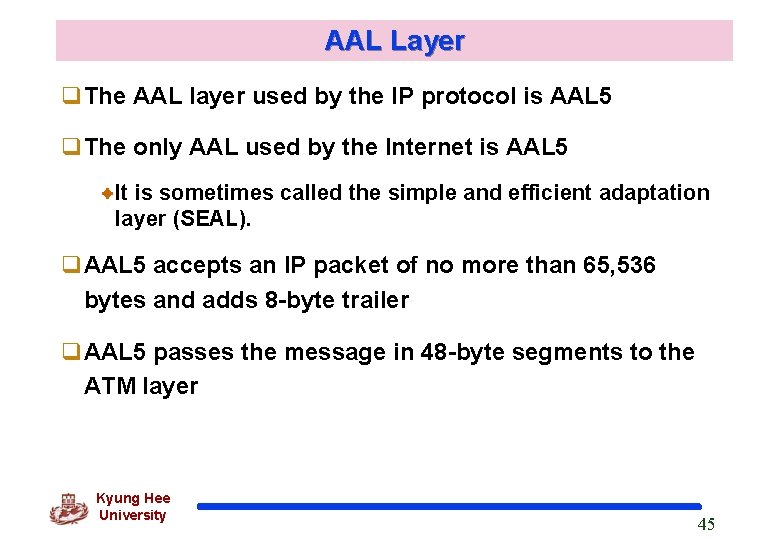

AAL Layer q. The AAL layer used by the IP protocol is AAL 5 q. The only AAL used by the Internet is AAL 5 It is sometimes called the simple and efficient adaptation layer (SEAL). q. AAL 5 accepts an IP packet of no more than 65, 536 bytes and adds 8 -byte trailer q. AAL 5 passes the message in 48 -byte segments to the ATM layer Kyung Hee University 45

Cell Routing q. The cells start from the entering-point router and end at the exiting-point router Kyung Hee University 46

Address Binding in IP over ATM q. An ATM network needs virtual circuit identifiers to route the cell IP datagram contains only source and destination IP address Virtual circuit identifiers must be determined from the destination IP address. Kyung Hee University 47

7. 7 Security q. Since the IPv 4 protocol was started when the Internet user trusted each other, no security was provided for the IPv 4 protocol q. Today, however, the situation is different The Internet is not secure any more q. In this section, we give a brief idea about the security issues in IP protocol and the solution Kyung Hee University 48

Security Issues q Packet sniffing Passive attack The attacker does not change the contents of the packet Encryption of the packet – attacker cannot see the contents of packet q Packet modification Active attack The attacker intercepts the packet, change the contents of the packet Data integrity – receiver can make sure that packet has not been changed during the transmission q IP spoofing An attacker can masquerade as somebody else and create an IP packet that carries the source address of another computer Origin authentication mechanism can prevent this type of attack Kyung Hee University 49

IPSec (IP Security) § Create a connection-oriented service between two entities in which they can exchange IP packet without worrying about the three attacks discussed before q Defining Algorithms and Key The two entities that want to create a secure channel between themselves can agree on some available algorithms and keys to be used for security purpose q Packet Encryption Make the packet sniffing attack useless q Data Integrity Guarantee that the packet is not modified during the transmission q Origin Authentication Prevent IP spoofing attack Kyung Hee University 50

7. 8 IP Package q. IP package involves eight component Header-adding module Processing module Forwarding module Fragmentation module Reassembly module Routing module MTU table Reassembly table Kyung Hee University 51

IP Component Kyung Hee University 52

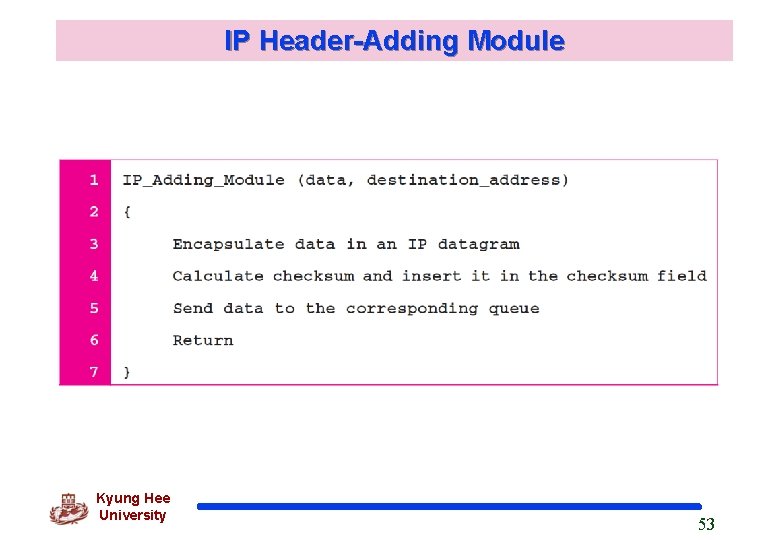

IP Header-Adding Module Kyung Hee University 53

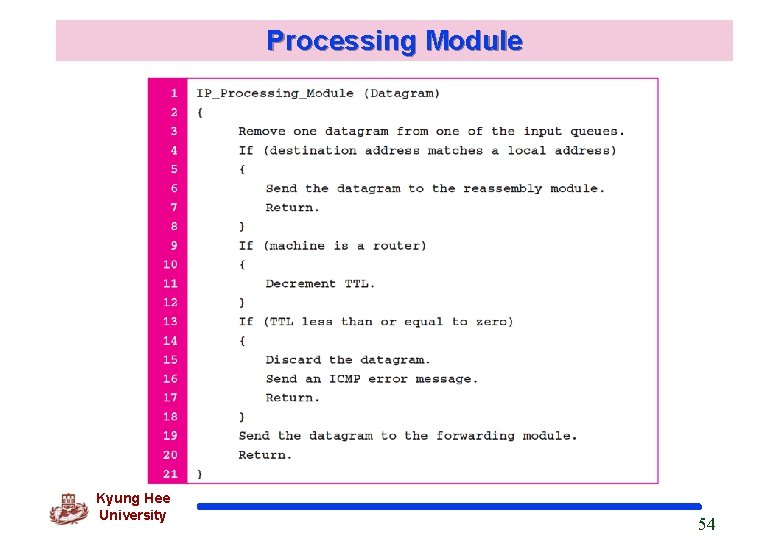

Processing Module Kyung Hee University 54

IP Package q Queue Input queue – store the datagram coming from the data link layer or the upper-layer protocols Output queue – store the datagram going to the data link layer or the upper-layer protocols q Routing table Used by the forwarding module to determine the next-hop address of the packet q Forwarding module Receive an IP packet from the processing module Find the IP address of the next station along with the interface number to which the packet should be sent q MTU table Used by the fragmentation module to find the maximum transfer unit of a particular interface Kyung Hee University 55

Fragmentation Module Kyung Hee University 56

Fragmentation Module Kyung Hee University 57

Reassembly Table q. Used by reassembly module State field : FREE or IN-USE IP address field : define the source IP address of the datagram Datagram ID : number that uniquely defines a datagram Timeout : predetermined amount of time in which all fragments must arrive Fragment field : a pointer to a linked list of fragment Kyung Hee University 58

Reassembly Module Kyung Hee University 59

Summary q IP is an unreliable connectionless protocol responsible for source-to-destination delivery. Packets in the IP layer are called datagrams q The MTU is the maximum number of bytes that a data link protocol can encapsulate. MTUs vary from protocol to protocol. Fragmentation is the division of a datagram into smaller units to accommodate the MTU of a data link protocol q The IP datagram header consists of a fixed, 20 -byte section and a variable options section with a maximum 40 bytes. The options section of the IP header is used for network testing and debugging. The six IP options each have a specific function Kyung Hee University 60

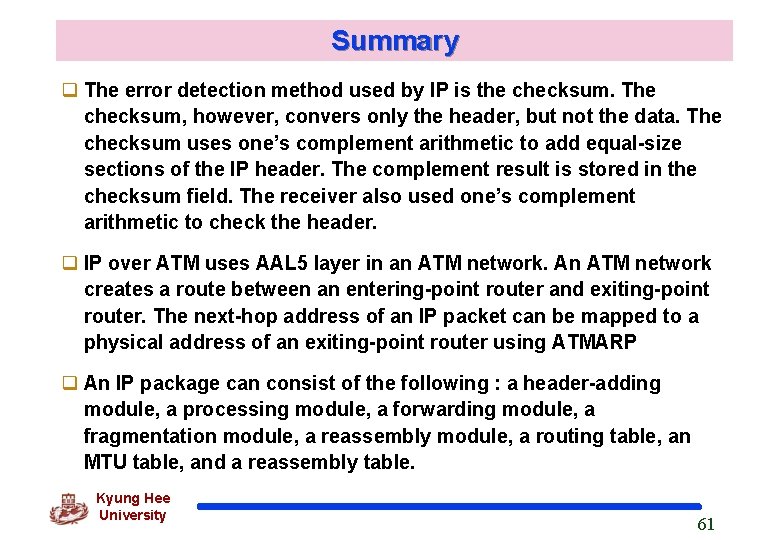

Summary q The error detection method used by IP is the checksum. The checksum, however, convers only the header, but not the data. The checksum uses one’s complement arithmetic to add equal-size sections of the IP header. The complement result is stored in the checksum field. The receiver also used one’s complement arithmetic to check the header. q IP over ATM uses AAL 5 layer in an ATM network. An ATM network creates a route between an entering-point router and exiting-point router. The next-hop address of an IP packet can be mapped to a physical address of an exiting-point router using ATMARP q An IP package can consist of the following : a header-adding module, a processing module, a forwarding module, a fragmentation module, a reassembly module, a routing table, an MTU table, and a reassembly table. Kyung Hee University 61
