CHAPTER 7 CELLULAR RESPIRATION Biology 20 Unit C

CHAPTER 7 CELLULAR RESPIRATION Biology 20: Unit C Textbook: Pages 202 -233

CURRICULAR OUTCOMES General Outcome 2: Explain the role of cellular respiration in releasing energy from organic compounds 20–C 2. 1 k Explain, in general terms, how carbohydrates are oxidized by glycolysis and Krebs cycle to produce reducing power in NADH and FADH, and chemical potential in ATP, describing where in the cell those processes occur 20–C 2. 2 k Explain, in general terms, how chemiosmosis converts the reducing power of NADH and FADH to the chemical potential of ATP, describing where in the mitochondria the process occurs 20–C 2. 3 k Distinguish, in general terms, between animal and plant fermentation and aerobic respiration 20–C 2. 4 k Summarize and explain the role of ATP in cell metabolism

7. 1 CELLULAR RESPIRATION (PAGES 204 -209) A series of chemical reactions that breaks down glucose to release energy The energy is then stored in ATP Cellular respiration takes place in all Eukaryotic cells (Plants, Animals, Protista, and Fungi) Formula is:

FYI - Has the same format as a combustion reaction FYI - Is different from a combustion reaction because: • It is a slower reaction • The energy released in steps (otherwise spontaneous combustion would be the result!) • The energy released is stored in ATP

CELLULAR RESPIRATION BANKS ENERGY AS ATP 1 molecule of glucose has a LOT of energy (too much at once!) so cells change it into a more useable form: many ATP It’s like changing a $100 bill for 100 loonies (it’s easier to spend loonies!) Uh… except that the process of Cellular Respiration is only 36% efficient so you trade a $100 bill for only 36 loonies. . . The other 64% is released as HEAT (keeps you warm!)

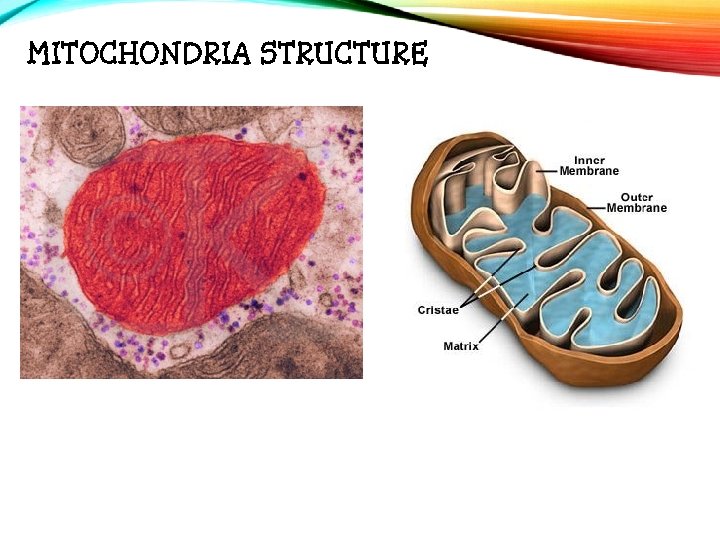

MITOCHONDRIA STRUCTURE

Mitochondria Anatomy Label the diagram choosing from the following words or phrases: • Inner membrane • Mitochondrion • Outer membrane • Cristae • Intermembrane space • Matrix

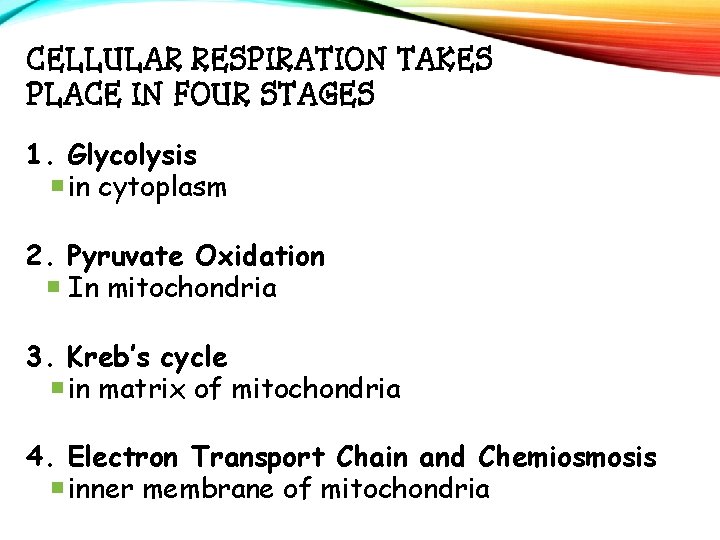

CELLULAR RESPIRATION TAKES PLACE IN FOUR STAGES 1. Glycolysis in cytoplasm 2. Pyruvate Oxidation In mitochondria 3. Kreb’s cycle in matrix of mitochondria 4. Electron Transport Chain and Chemiosmosis inner membrane of mitochondria

OVERVIEW OF CELLULAR RESPIRATION Pyruvate Oxidation Remember This !!!

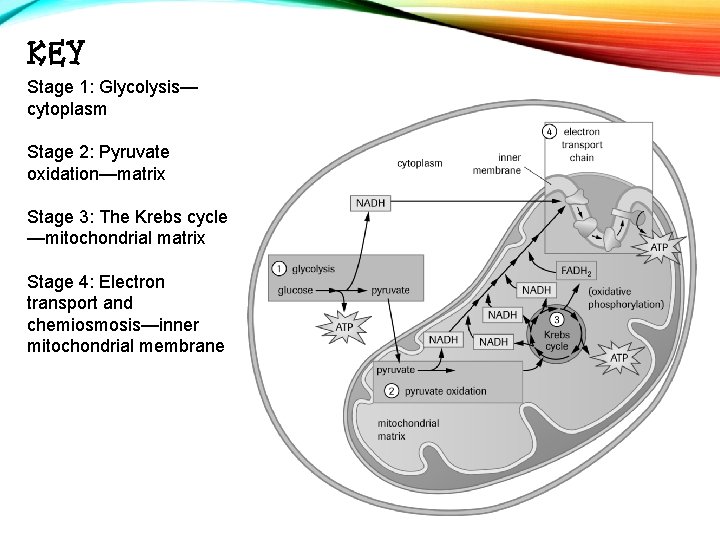

KEY Stage 1: Glycolysis— cytoplasm Stage 2: Pyruvate oxidation—matrix Stage 3: The Krebs cycle —mitochondrial matrix Stage 4: Electron transport and chemiosmosis—inner mitochondrial membrane

SECTION 7. 2 - GLYCOLOSIS Nelson Biology Textbook Reference- Pages 210 -212

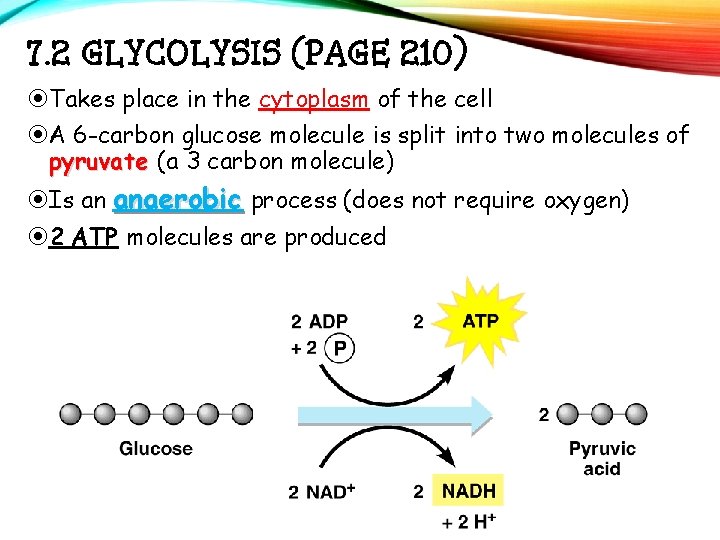

7. 2 GLYCOLYSIS (PAGE 210) Takes place in the cytoplasm of the cell A 6 -carbon glucose molecule is split into two molecules of pyruvate (a 3 carbon molecule) Is an anaerobic process (does not require oxygen) 2 ATP molecules are produced

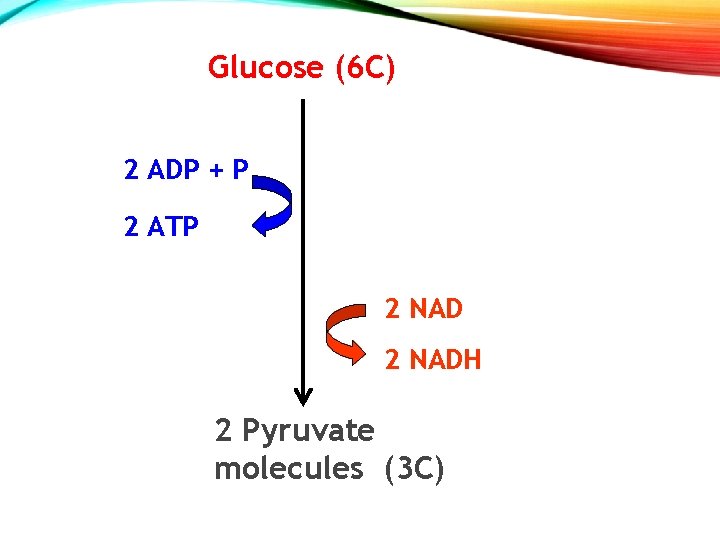

Glucose (6 C) 2 ADP + P 2 ATP 2 NADH 2 Pyruvate molecules (3 C)

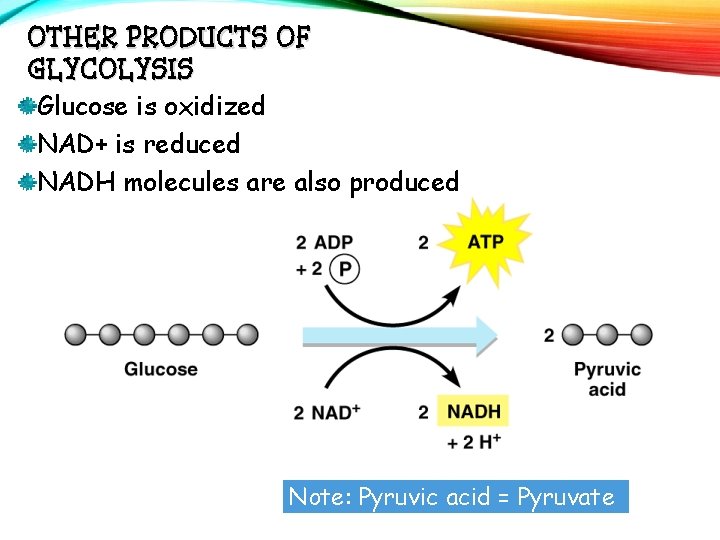

OTHER PRODUCTS OF GLYCOLYSIS Glucose is oxidized NAD+ is reduced NADH molecules are also produced Note: Pyruvic acid = Pyruvate

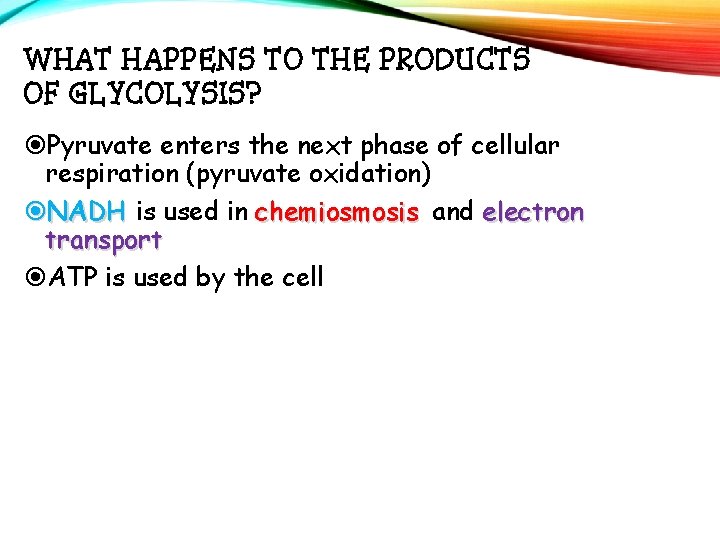

WHAT HAPPENS TO THE PRODUCTS OF GLYCOLYSIS? Pyruvate enters the next phase of cellular respiration (pyruvate oxidation) NADH is used in chemiosmosis and electron transport ATP is used by the cell

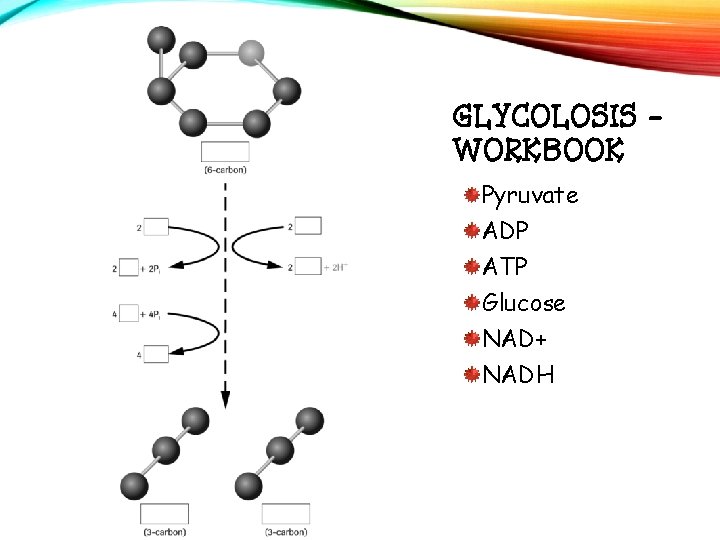

GLYCOLOSIS WORKBOOK Pyruvate ADP ATP Glucose NAD+ NADH

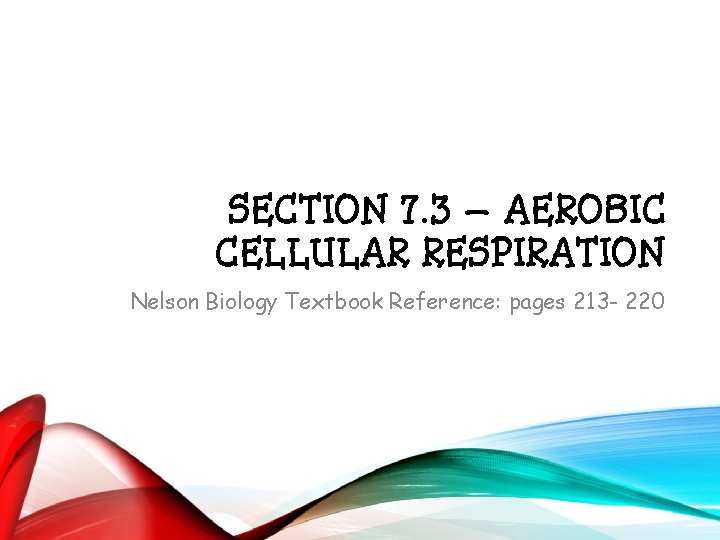

SECTION 7. 3 – AEROBIC CELLULAR RESPIRATION Nelson Biology Textbook Reference: pages 213 - 220

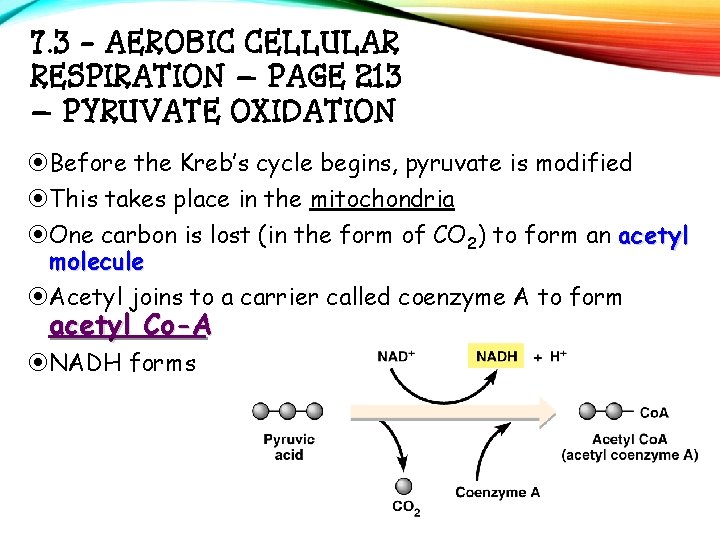

7. 3 - AEROBIC CELLULAR RESPIRATION – PAGE 213 – PYRUVATE OXIDATION Before the Kreb’s cycle begins, pyruvate is modified This takes place in the mitochondria One carbon is lost (in the form of CO 2) to form an acetyl molecule Acetyl joins to a carrier called coenzyme A to form acetyl Co-A NADH forms

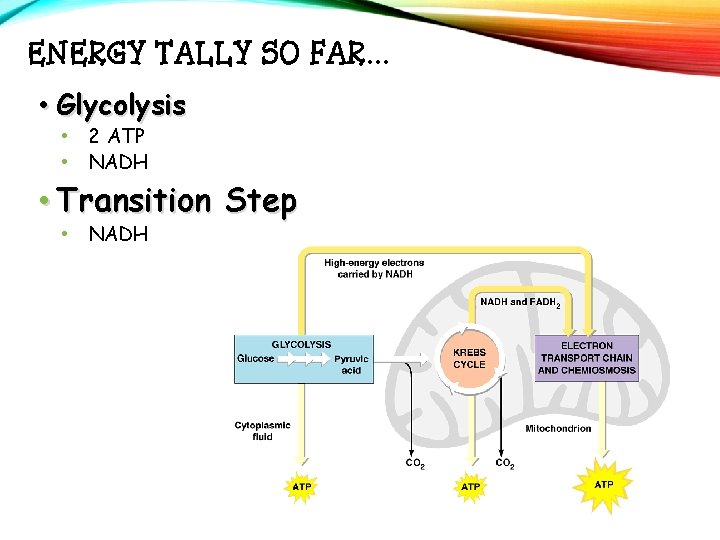

ENERGY TALLY SO FAR… • Glycolysis • 2 ATP • NADH • Transition Step • NADH

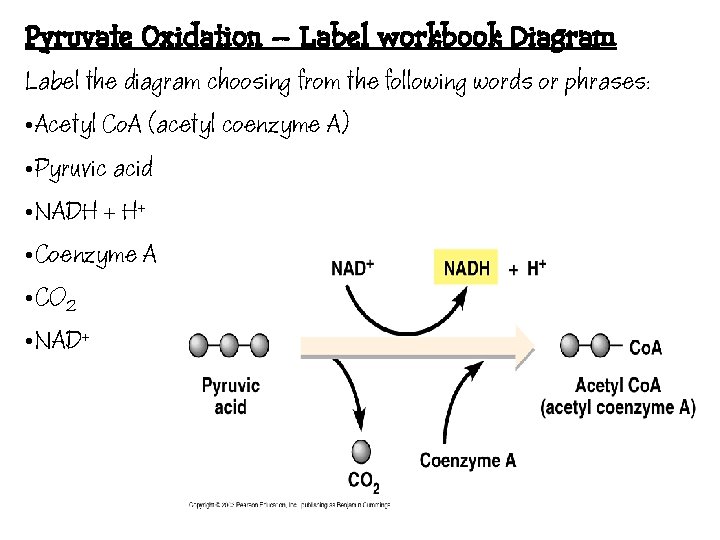

Pyruvate Oxidation – Label workbook Diagram Label the diagram choosing from the following words or phrases: • Acetyl Co. A (acetyl coenzyme A) • Pyruvic acid • NADH + H+ • Coenzyme A • CO 2 • NAD+

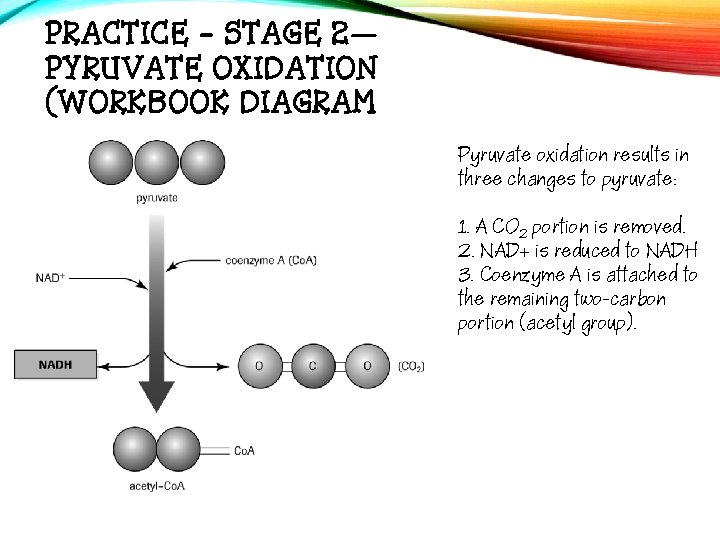

PRACTICE - STAGE 2— PYRUVATE OXIDATION (WORKBOOK DIAGRAM Pyruvate oxidation results in three changes to pyruvate: 1. A CO 2 portion is removed. 2. NAD+ is reduced to NADH 3. Coenzyme A is attached to the remaining two-carbon portion (acetyl group).

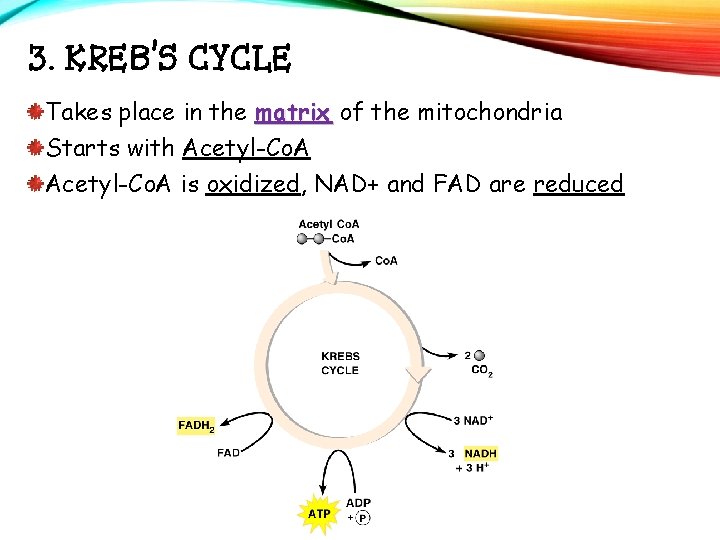

3. KREB’S CYCLE Takes place in the matrix of the mitochondria Starts with Acetyl-Co. A is oxidized, NAD+ and FAD are reduced

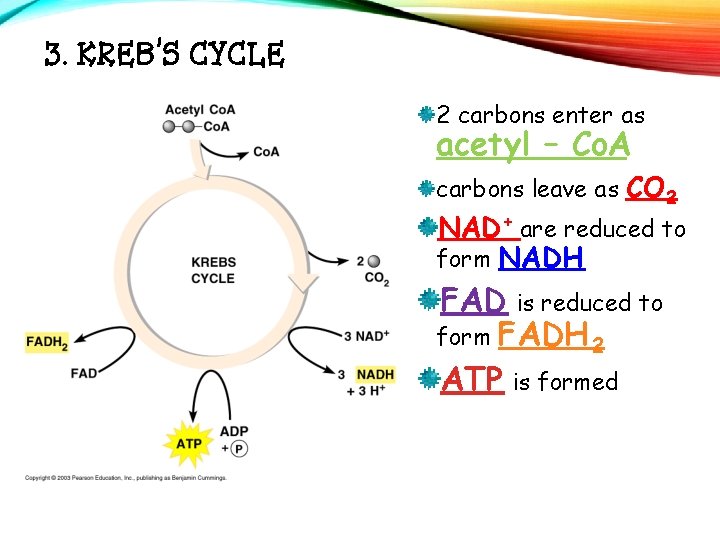

3. KREB’S CYCLE 2 carbons enter as acetyl – Co. A carbons leave as CO 2 NAD + are reduced to form NADH FAD is reduced to form FADH 2 ATP is formed

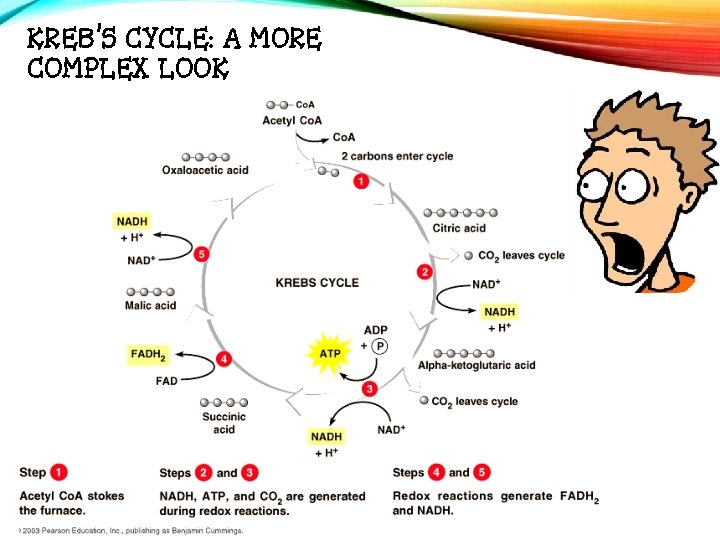

KREB’S CYCLE: A MORE COMPLEX LOOK

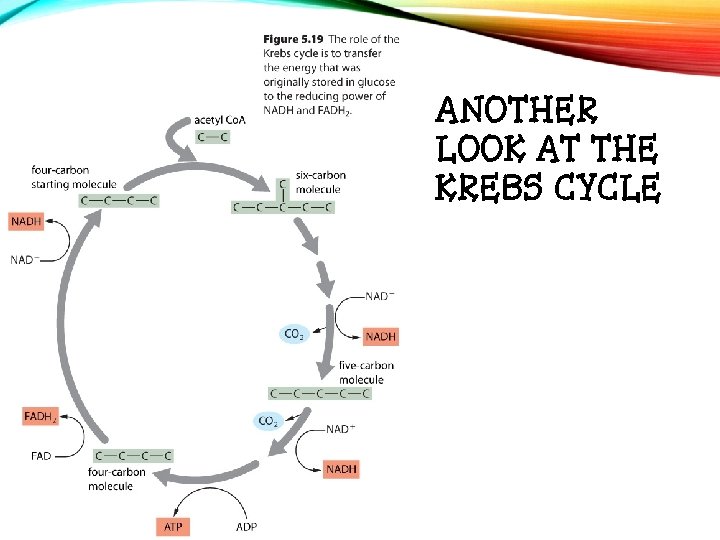

ANOTHER LOOK AT THE KREBS CYCLE

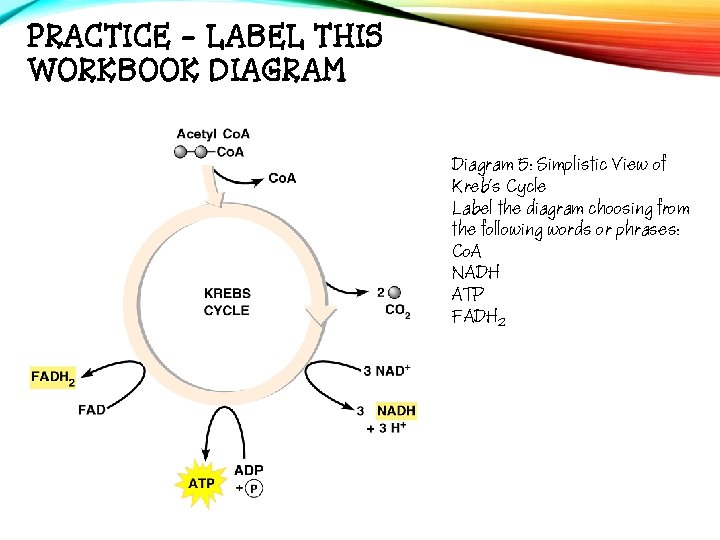

PRACTICE - LABEL THIS WORKBOOK DIAGRAM Diagram 5: Simplistic View of Kreb’s Cycle Label the diagram choosing from the following words or phrases: Co. A NADH ATP FADH 2

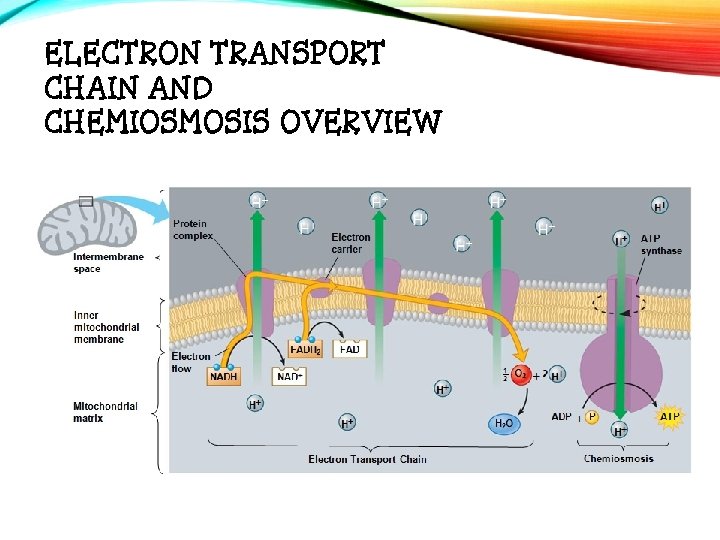

ELECTRON TRANSPORT CHAIN AND CHEMIOSMOSIS OVERVIEW

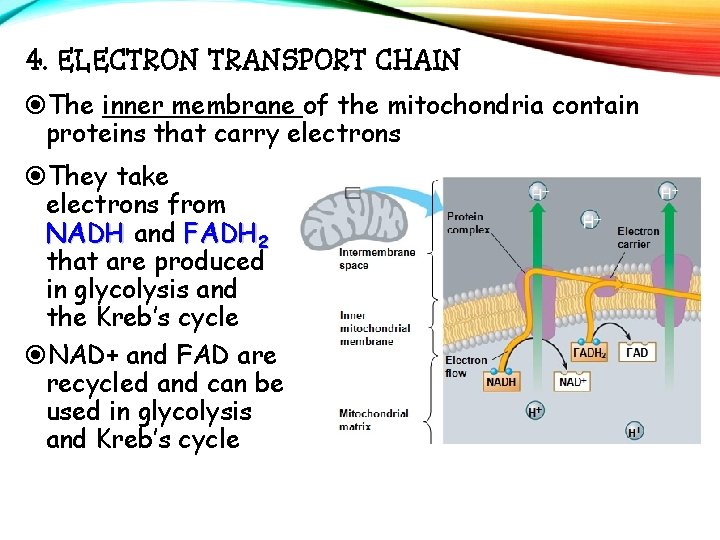

4. ELECTRON TRANSPORT CHAIN The inner membrane of the mitochondria contain proteins that carry electrons They take electrons from NADH and FADH 2 that are produced in glycolysis and the Kreb’s cycle NAD+ and FAD are recycled and can be used in glycolysis and Kreb’s cycle

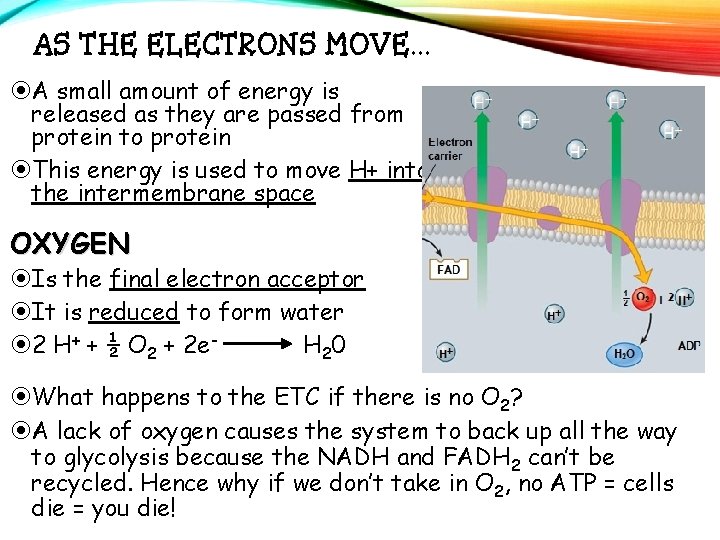

AS THE ELECTRONS MOVE… A small amount of energy is released as they are passed from protein to protein This energy is used to move H+ into the intermembrane space OXYGEN Is the final electron acceptor It is reduced to form water 2 H+ + ½ O 2 + 2 e. H 2 0 What happens to the ETC if there is no O 2? A lack of oxygen causes the system to back up all the way to glycolysis because the NADH and FADH 2 can’t be recycled. Hence why if we don’t take in O 2, no ATP = cells die = you die!

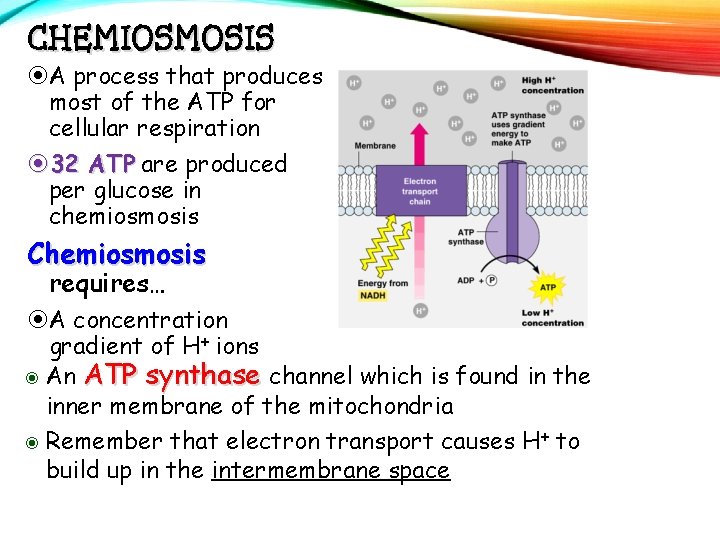

CHEMIOSMOSIS A process that produces most of the ATP for cellular respiration 32 ATP are produced per glucose in chemiosmosis Chemiosmosis requires… A concentration gradient of H+ ions An ATP synthase channel which is found in the inner membrane of the mitochondria Remember that electron transport causes H + to build up in the intermembrane space

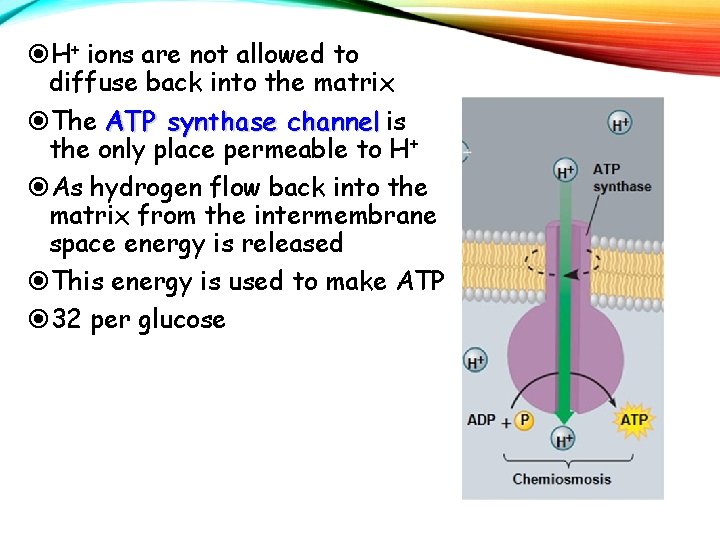

H+ ions are not allowed to diffuse back into the matrix The ATP synthase channel is the only place permeable to H+ As hydrogen flow back into the matrix from the intermembrane space energy is released This energy is used to make ATP 32 per glucose

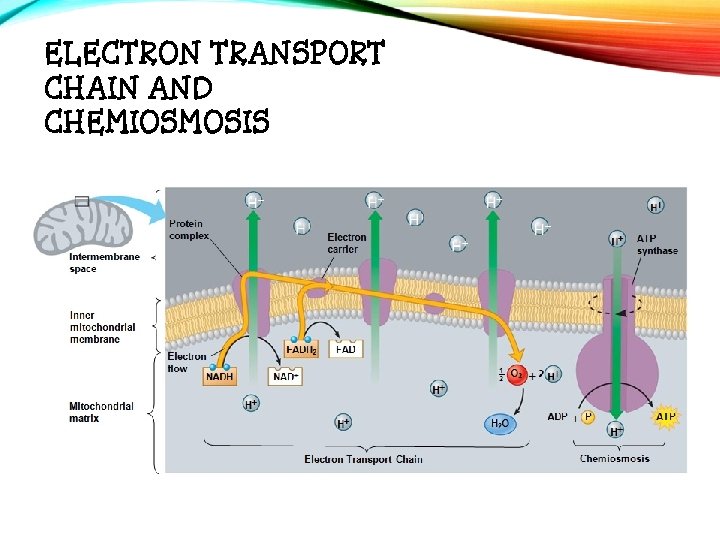

ELECTRON TRANSPORT CHAIN AND CHEMIOSMOSIS

A Summary of Cellular Respiration

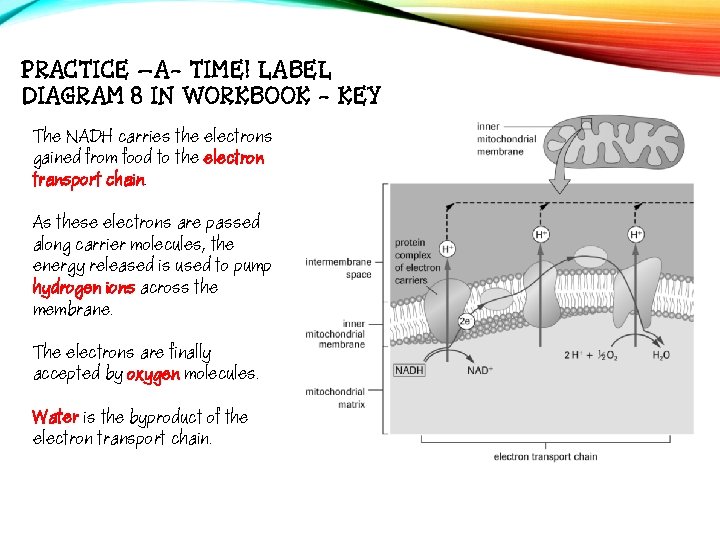

PRACTICE –A- TIME! LABEL DIAGRAM 8 IN WORKBOOK - KEY The NADH carries the electrons gained from food to the electron transport chain. As these electrons are passed along carrier molecules, the energy released is used to pump hydrogen ions across the membrane. The electrons are finally accepted by oxygen molecules. Water is the byproduct of the electron transport chain.

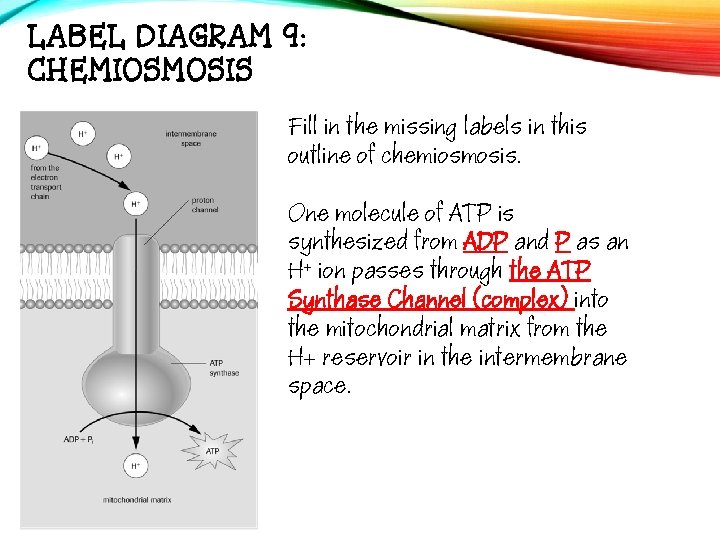

LABEL DIAGRAM 9: CHEMIOSMOSIS Fill in the missing labels in this outline of chemiosmosis. One molecule of ATP is synthesized from ADP and P as an H+ ion passes through the ATP Synthase Channel (complex) into the mitochondrial matrix from the H+ reservoir in the intermembrane space.

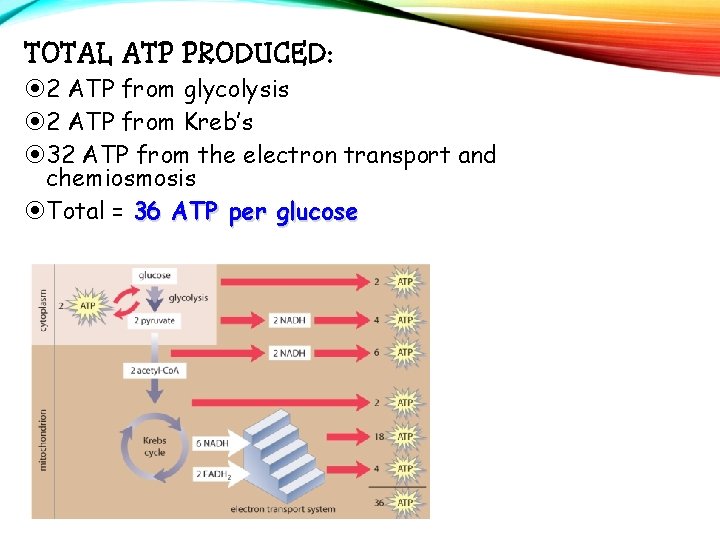

TOTAL ATP PRODUCED: 2 ATP from glycolysis 2 ATP from Kreb’s 32 ATP from the electron transport and chemiosmosis Total = 36 ATP per glucose

DIAGRAM 10: THEORETICAL ATP YIELD FROM AEROBIC RESPIRATION Fill in the missing labels in this outline of chemiosmosis In the empty boxes on the diagram, fill in the numbers of molecules produced from one glucose molecule at each step of aerobic cellular respiration.

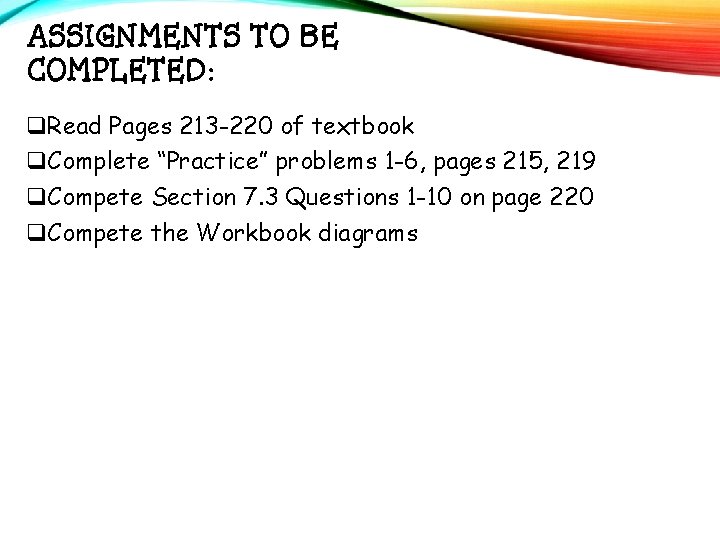

ASSIGNMENTS TO BE COMPLETED: q. Read Pages 213 -220 of textbook q. Complete “Practice” problems 1 -6, pages 215, 219 q. Compete Section 7. 3 Questions 1 -10 on page 220 q. Compete the Workbook diagrams

7. 4 ANAEROBIC RESPIRATION (Pages 221 – 228)

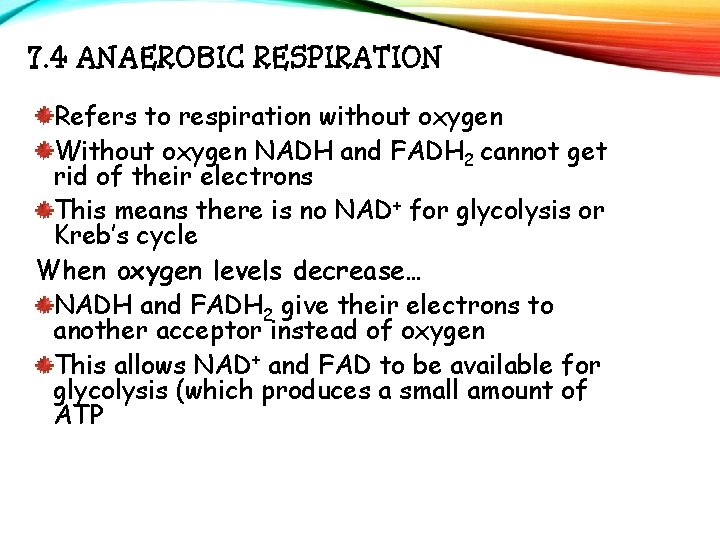

7. 4 ANAEROBIC RESPIRATION Refers to respiration without oxygen Without oxygen NADH and FADH 2 cannot get rid of their electrons This means there is no NAD+ for glycolysis or Kreb’s cycle When oxygen levels decrease… NADH and FADH 2 give their electrons to another acceptor instead of oxygen This allows NAD+ and FAD to be available for glycolysis (which produces a small amount of ATP

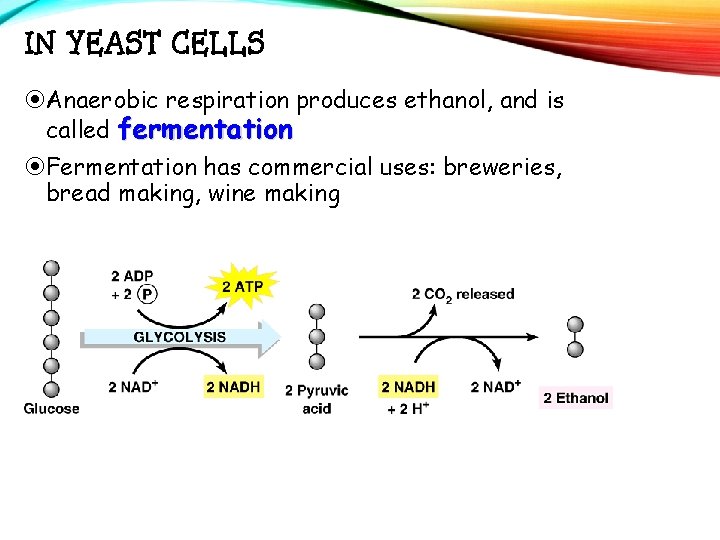

IN YEAST CELLS Anaerobic respiration produces ethanol, and is called fermentation Fermentation has commercial uses: breweries, bread making, wine making

IN ANIMAL CELLS Anaerobic respiration produces lactic acid When cells are not receiving enough oxygen, muscles become cramped due to a build of lactic acid When oxygen becomes available, lactic acid is converted back into pyruvate Pyruvate then continues to Kreb’s cycle Anaerobic respiration is useful because it provides a short burst of energy when oxygen is not available However, it can only produce a small amount of ATP compared with aerobic respiration (2 ATP)

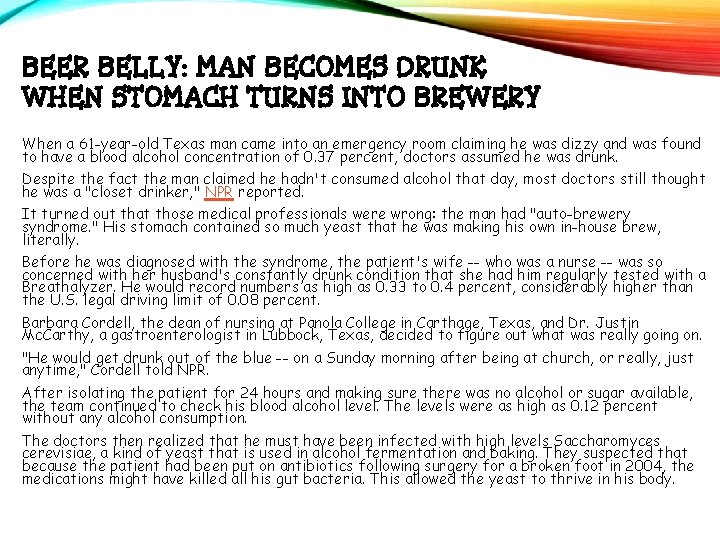

BEER BELLY: MAN BECOMES DRUNK WHEN STOMACH TURNS INTO BREWERY When a 61 -year-old Texas man came into an emergency room claiming he was dizzy and was found to have a blood alcohol concentration of 0. 37 percent, doctors assumed he was drunk. Despite the fact the man claimed he hadn't consumed alcohol that day, most doctors still thought he was a "closet drinker, " NPR reported. It turned out that those medical professionals were wrong: the man had "auto-brewery syndrome. " His stomach contained so much yeast that he was making his own in-house brew, literally. Before he was diagnosed with the syndrome, the patient's wife -- who was a nurse -- was so concerned with her husband's constantly drunk condition that she had him regularly tested with a Breathalyzer. He would record numbers as high as 0. 33 to 0. 4 percent, considerably higher than the U. S. legal driving limit of 0. 08 percent. Barbara Cordell, the dean of nursing at Panola College in Carthage, Texas, and Dr. Justin Mc. Carthy, a gastroenterologist in Lubbock, Texas, decided to figure out what was really going on. "He would get drunk out of the blue -- on a Sunday morning after being at church, or really, just anytime, " Cordell told NPR. After isolating the patient for 24 hours and making sure there was no alcohol or sugar available, the team continued to check his blood alcohol level. The levels were as high as 0. 12 percent without any alcohol consumption. The doctors then realized that he must have been infected with high levels Saccharomyces cerevisiae, a kind of yeast that is used in alcohol fermentation and baking. They suspected that because the patient had been put on antibiotics following surgery for a broken foot in 2004, the medications might have killed all his gut bacteria. This allowed the yeast to thrive in his body.

EXERCISE PHYSIOLOGY VO 2 MAX LACTIC ACID THRESHOLD SUPPLEMENTS & TOXINS read pages 225 -227

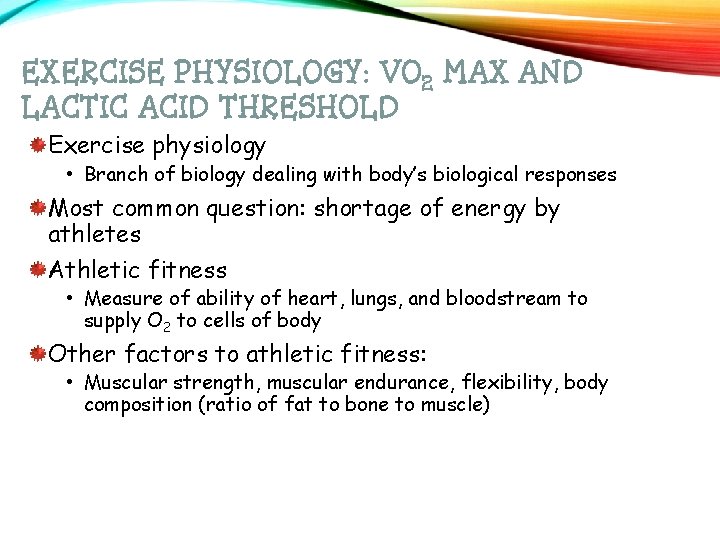

EXERCISE PHYSIOLOGY: VO 2 MAX AND LACTIC ACID THRESHOLD Exercise physiology • Branch of biology dealing with body’s biological responses Most common question: shortage of energy by athletes Athletic fitness • Measure of ability of heart, lungs, and bloodstream to supply O 2 to cells of body Other factors to athletic fitness: • Muscular strength, muscular endurance, flexibility, body composition (ratio of fat to bone to muscle)

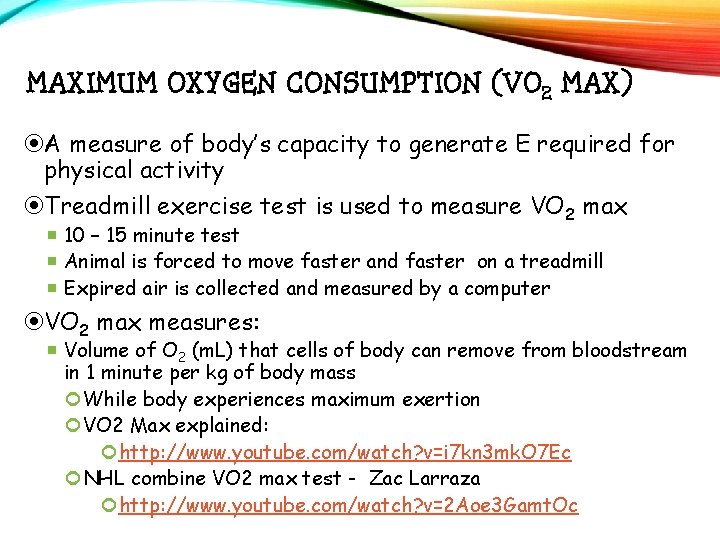

MAXIMUM OXYGEN CONSUMPTION (VO 2 MAX) A measure of body’s capacity to generate E required for physical activity Treadmill exercise test is used to measure VO 2 max 10 – 15 minute test Animal is forced to move faster and faster on a treadmill Expired air is collected and measured by a computer VO 2 max measures: Volume of O 2 (m. L) that cells of body can remove from bloodstream in 1 minute per kg of body mass While body experiences maximum exertion VO 2 Max explained: http: //www. youtube. com/watch? v=i 7 kn 3 mk. O 7 Ec NHL combine VO 2 max test - Zac Larraza http: //www. youtube. com/watch? v=2 Aoe 3 Gamt. Oc

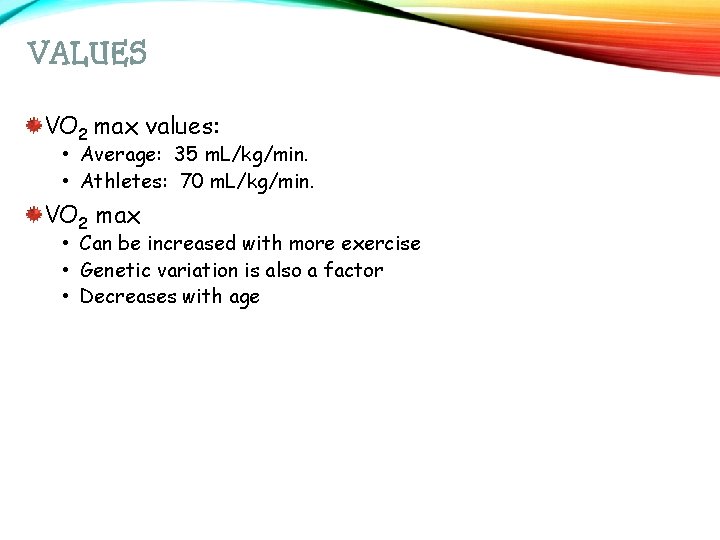

VALUES VO 2 max values: • Average: 35 m. L/kg/min. • Athletes: 70 m. L/kg/min. VO 2 max • Can be increased with more exercise • Genetic variation is also a factor • Decreases with age

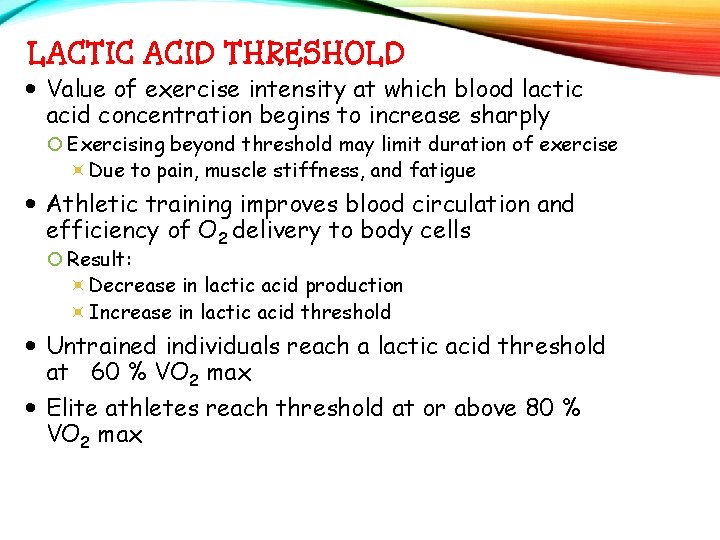

LACTIC ACID THRESHOLD Value of exercise intensity at which blood lactic acid concentration begins to increase sharply Exercising beyond threshold may limit duration of exercise Due to pain, muscle stiffness, and fatigue Athletic training improves blood circulation and efficiency of O 2 delivery to body cells Result: Decrease in lactic acid production Increase in lactic acid threshold Untrained individuals reach a lactic acid threshold at 60 % VO 2 max Elite athletes reach threshold at or above 80 % VO 2 max

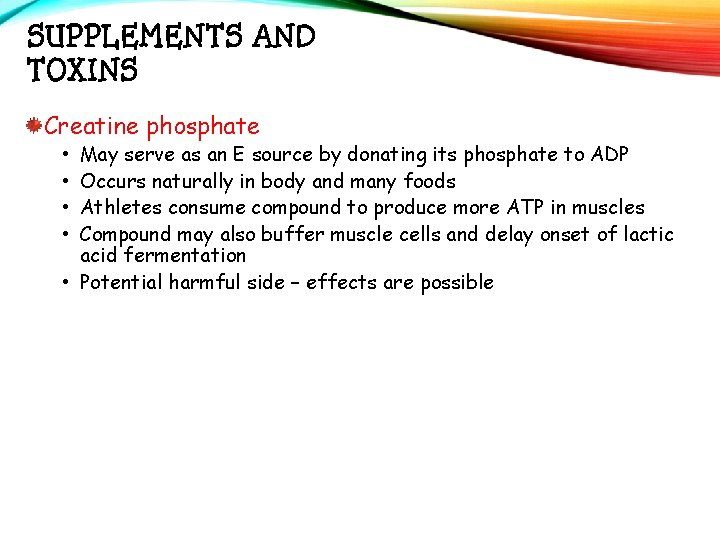

SUPPLEMENTS AND TOXINS Creatine phosphate May serve as an E source by donating its phosphate to ADP Occurs naturally in body and many foods Athletes consume compound to produce more ATP in muscles Compound may also buffer muscle cells and delay onset of lactic acid fermentation • Potential harmful side – effects are possible • •

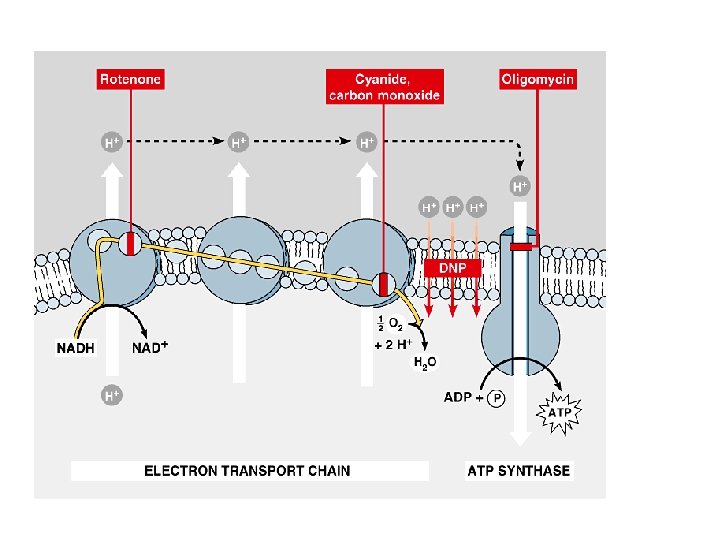

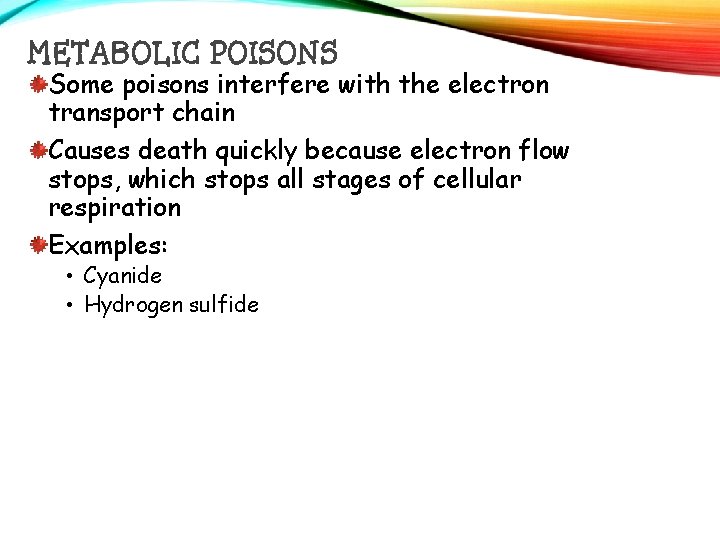

METABOLIC POISONS Some poisons interfere with the electron transport chain Causes death quickly because electron flow stops, which stops all stages of cellular respiration Examples: • Cyanide • Hydrogen sulfide

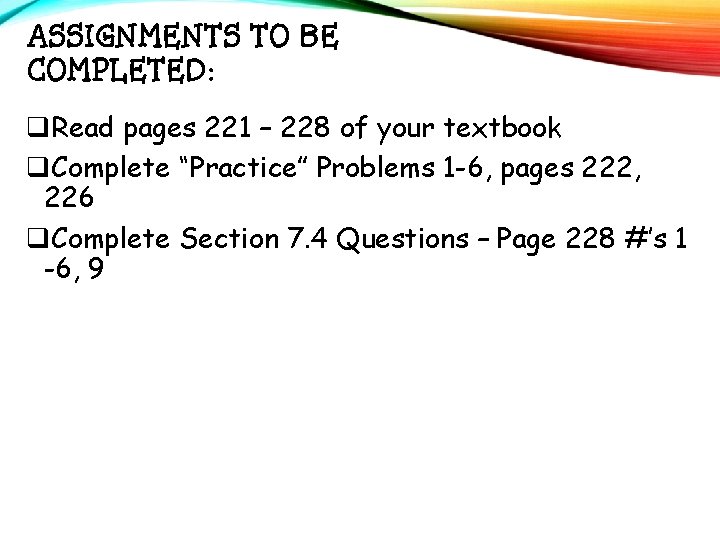

ASSIGNMENTS TO BE COMPLETED: q. Read pages 221 – 228 of your textbook q. Complete “Practice” Problems 1 -6, pages 222, 226 q. Complete Section 7. 4 Questions – Page 228 #’s 1 -6, 9

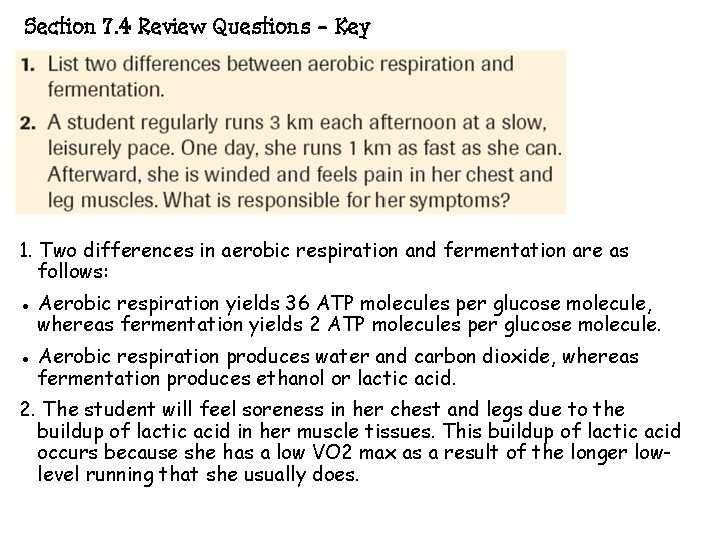

Section 7. 4 Review Questions - Key 1. Two differences in aerobic respiration and fermentation are as follows: ● Aerobic respiration yields 36 ATP molecules per glucose molecule, whereas fermentation yields 2 ATP molecules per glucose molecule. ● Aerobic respiration produces water and carbon dioxide, whereas fermentation produces ethanol or lactic acid. 2. The student will feel soreness in her chest and legs due to the buildup of lactic acid in her muscle tissues. This buildup of lactic acid occurs because she has a low VO 2 max as a result of the longer lowlevel running that she usually does.

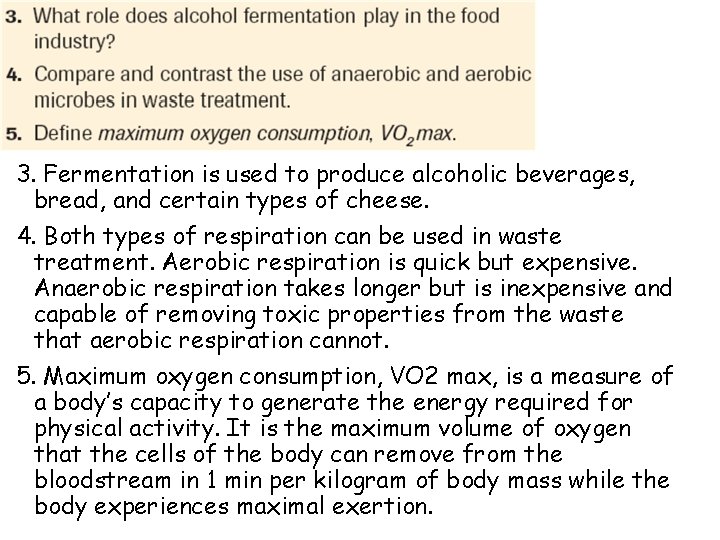

3. Fermentation is used to produce alcoholic beverages, bread, and certain types of cheese. 4. Both types of respiration can be used in waste treatment. Aerobic respiration is quick but expensive. Anaerobic respiration takes longer but is inexpensive and capable of removing toxic properties from the waste that aerobic respiration cannot. 5. Maximum oxygen consumption, VO 2 max, is a measure of a body’s capacity to generate the energy required for physical activity. It is the maximum volume of oxygen that the cells of the body can remove from the bloodstream in 1 min per kilogram of body mass while the body experiences maximal exertion.

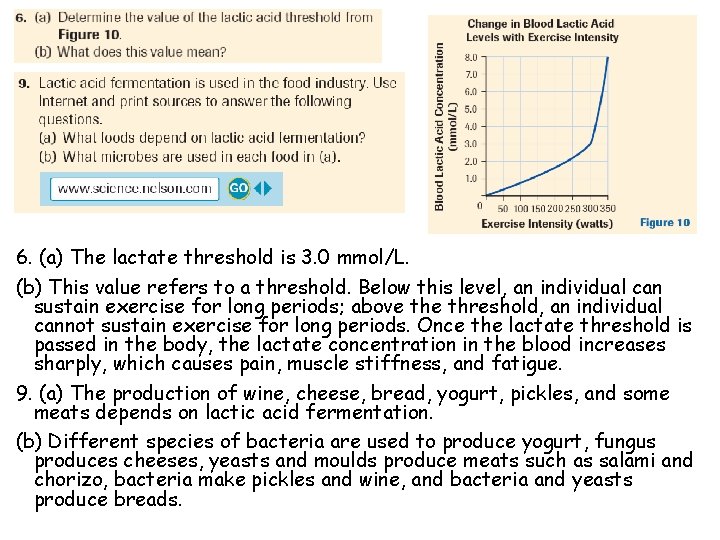

6. (a) The lactate threshold is 3. 0 mmol/L. (b) This value refers to a threshold. Below this level, an individual can sustain exercise for long periods; above threshold, an individual cannot sustain exercise for long periods. Once the lactate threshold is passed in the body, the lactate concentration in the blood increases sharply, which causes pain, muscle stiffness, and fatigue. 9. (a) The production of wine, cheese, bread, yogurt, pickles, and some meats depends on lactic acid fermentation. (b) Different species of bacteria are used to produce yogurt, fungus produces cheeses, yeasts and moulds produce meats such as salami and chorizo, bacteria make pickles and wine, and bacteria and yeasts produce breads.

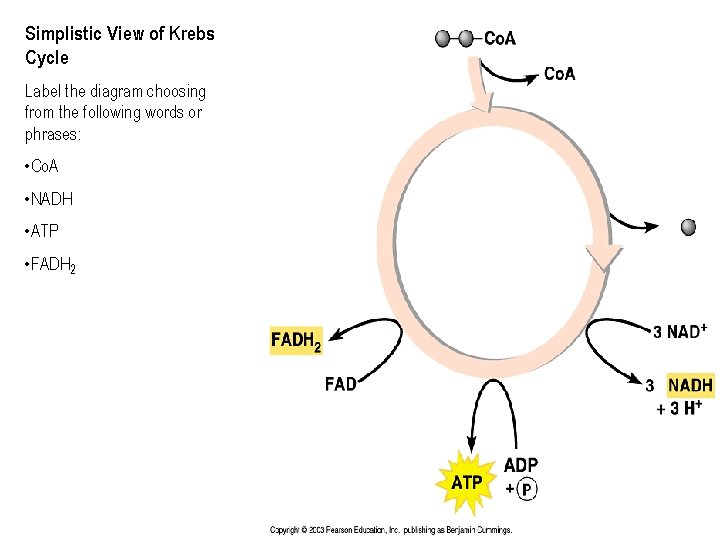

Simplistic View of Krebs Cycle Label the diagram choosing from the following words or phrases: • Co. A • NADH • ATP • FADH 2

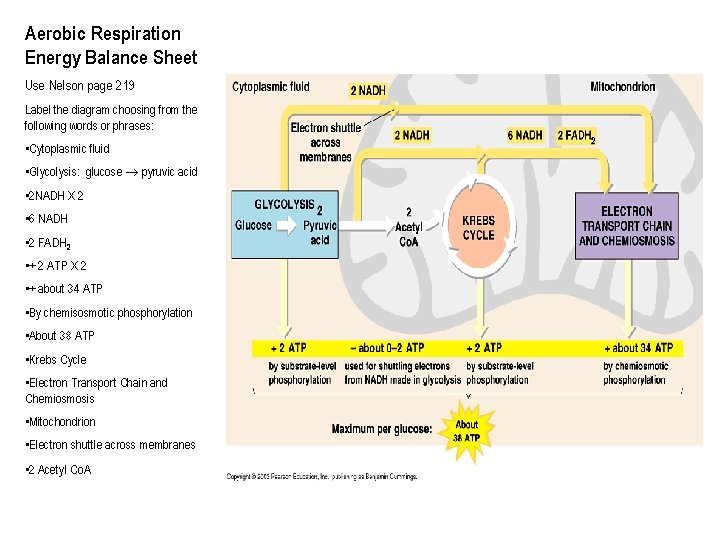

Aerobic Respiration Energy Balance Sheet Use Nelson page 219 Label the diagram choosing from the following words or phrases: • Cytoplasmic fluid • Glycolysis: glucose pyruvic acid • 2 NADH X 2 • 6 NADH • 2 FADH 2 • + 2 ATP X 2 • + about 34 ATP • By chemisosmotic phosphorylation • About 38 ATP • Krebs Cycle • Electron Transport Chain and Chemiosmosis • Mitochondrion • Electron shuttle across membranes • 2 Acetyl Co. A

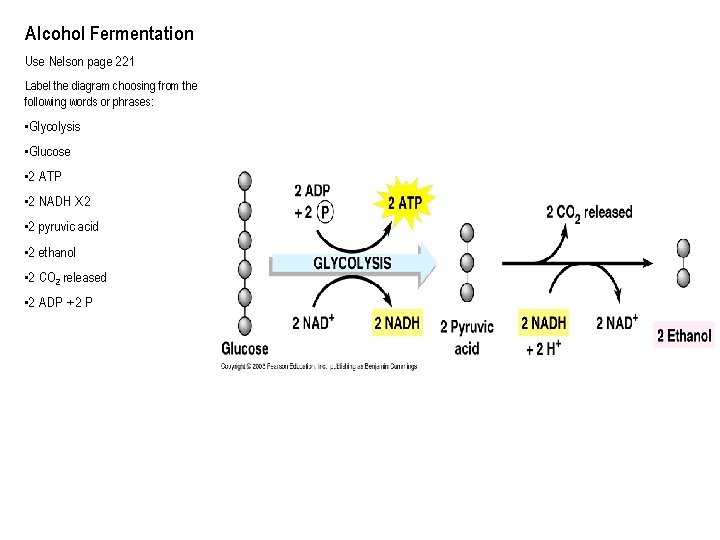

Alcohol Fermentation Use Nelson page 221 Label the diagram choosing from the following words or phrases: • Glycolysis • Glucose • 2 ATP • 2 NADH X 2 • 2 pyruvic acid • 2 ethanol • 2 CO 2 released • 2 ADP + 2 P

Lactic Acid Fermentation Use Nelson page 224 Label the diagram choosing from the following words or phrases: • Glycolysis • Glucose • 2 ATP • 2 NADH X 2 • 2 pyruvic acid • 2 lactic acid • 2 ADP + 2 P

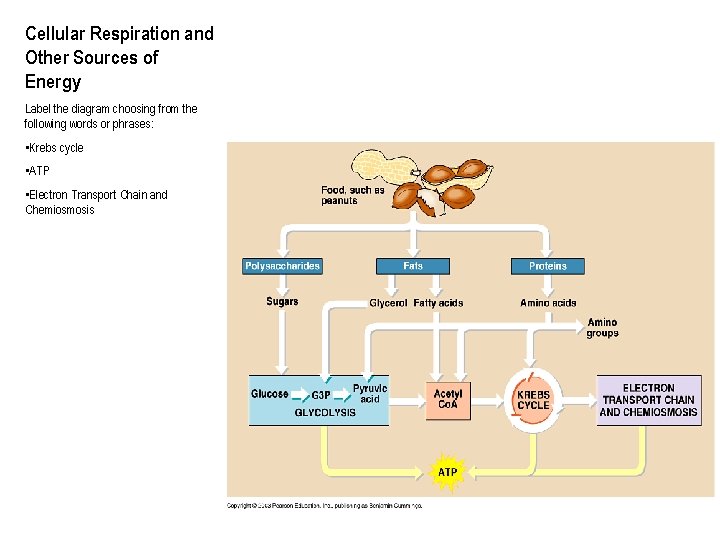

Cellular Respiration and Other Sources of Energy Label the diagram choosing from the following words or phrases: • Krebs cycle • ATP • Electron Transport Chain and Chemiosmosis

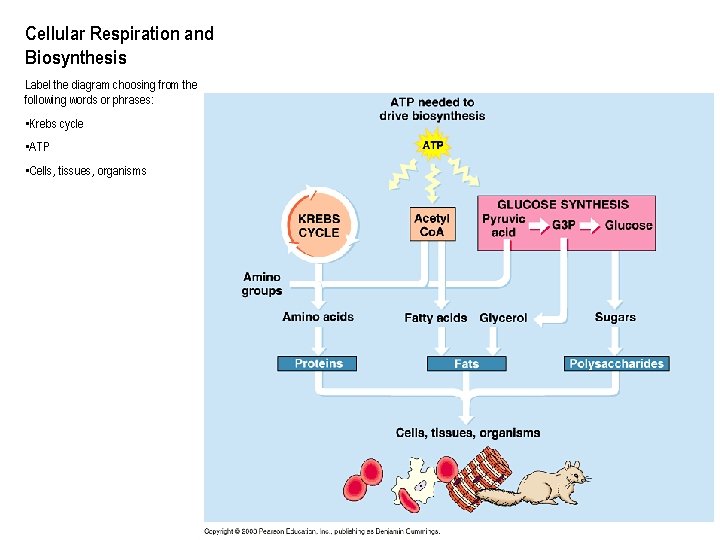

Cellular Respiration and Biosynthesis Label the diagram choosing from the following words or phrases: • Krebs cycle • ATP • Cells, tissues, organisms

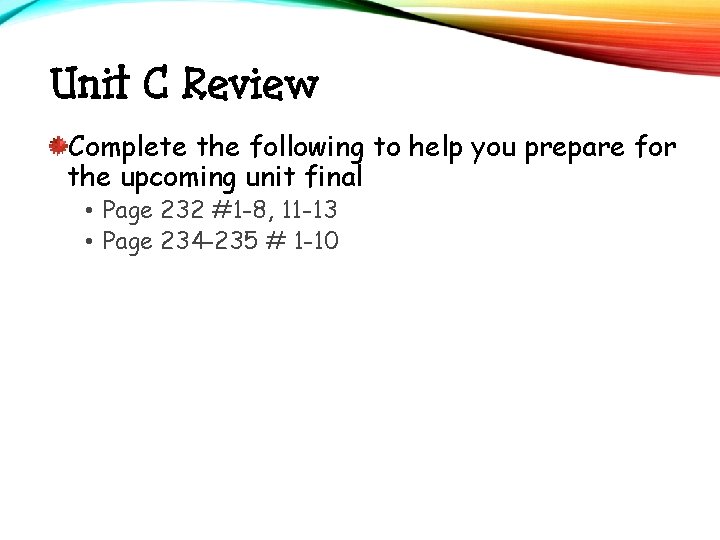

Unit C Review Complete the following to help you prepare for the upcoming unit final • Page 232 #1 -8, 11 -13 • Page 234 -235 # 1 -10

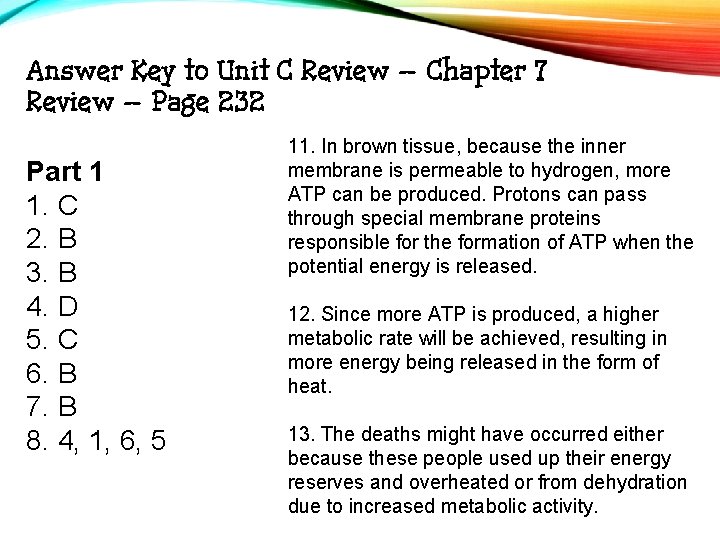

Answer Key to Unit C Review – Chapter 7 Review – Page 232 Part 1 1. C 2. B 3. B 4. D 5. C 6. B 7. B 8. 4, 1, 6, 5 11. In brown tissue, because the inner membrane is permeable to hydrogen, more ATP can be produced. Protons can pass through special membrane proteins responsible for the formation of ATP when the potential energy is released. 12. Since more ATP is produced, a higher metabolic rate will be achieved, resulting in more energy being released in the form of heat. 13. The deaths might have occurred either because these people used up their energy reserves and overheated or from dehydration due to increased metabolic activity.

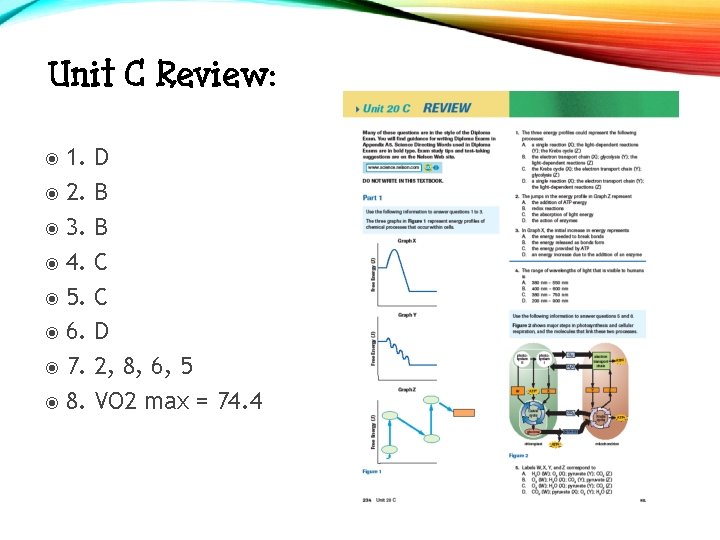

Unit C Review: 1. 2. 3. 4. 5. 6. 7. 8. D B B C C D 2, 8, 6, 5 VO 2 max = 74. 4

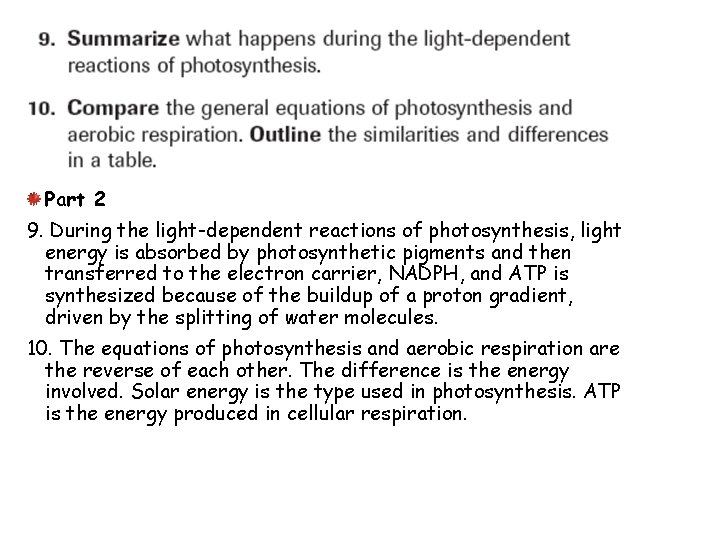

Part 2 9. During the light-dependent reactions of photosynthesis, light energy is absorbed by photosynthetic pigments and then transferred to the electron carrier, NADPH, and ATP is synthesized because of the buildup of a proton gradient, driven by the splitting of water molecules. 10. The equations of photosynthesis and aerobic respiration are the reverse of each other. The difference is the energy involved. Solar energy is the type used in photosynthesis. ATP is the energy produced in cellular respiration.
