Chapter 7 Atmospheric Circulations Scales of atmospheric motions

Chapter 7: Atmospheric Circulations Scales of atmospheric motions n Eddies - big and small n Local wind systems n Global wind patterns and the oceans n 1

Scales of Atmospheric Motions n n Microscale: meters - kilometers Mesoscale: km – a few hundred km synoptic scale: a few hundred km – a few thousand km planetary scale: a few thousand km and larger Q: what is the scale of atmospheric boundary layer turbulence? a) microscale, b) mesoscale, c) synoptic scale Q: what is the scale of weather fronts? a) microscale, b) mesoscale, c) synoptic scale Q: what is the scale of lake breeze over the Great Lakes a) microscale, b) mesoscale, c) synoptic scale 2

3

Eddies - Big and Small n n eddy or turbulent eddy: caused by convection (heating or cooling), wind shear (or near surface wind), or waves Rotor: caused by mountain waves wind shear: change of wind speed or direction with height 4

• Clear-air turbulence: caused by wind shear; important for aviation Billow clouds: caused by mountain waves in a wind shear zone Q: what could cause bumpy aircraft flight in the upper troposphere? a) clear-air turbulence, b) rotor, c) billow clouds 5

Local Wind Systems Thermal Circulations: warm air rises and cool air sinks • • • Warm air leads to H in the air (i, e, pushing isobar up); Air moves from H to L; increases surface pressure (i. e. , pushing near-surface isobar up) over cool place; Leads to circulation from cool place to warm place near surface Pay attention to the change of isobars with height 6

Sea and Land Breezes n n sea breeze: from sea to land breeze: land to sea breeze front: clouds Florida sea breezes • Sea and land breezes also occur near the shores of large lakes, such as the Great Lakes • Pay attention to the change of isobars with height Q: which is stronger in general? a) sea breeze, b) land breeze, c) the same 7

Q: When do you expect to see thunderstorm in summer in Florida? a) 10 am, b) noon, c) 3 pm, d) 6 pm Q: For the prevailing northeasterly wind over southern Florida, where does the strongest sea breeze occur in general ? a) Eastern coast of southern Florida, b) western coast, c) central part 8

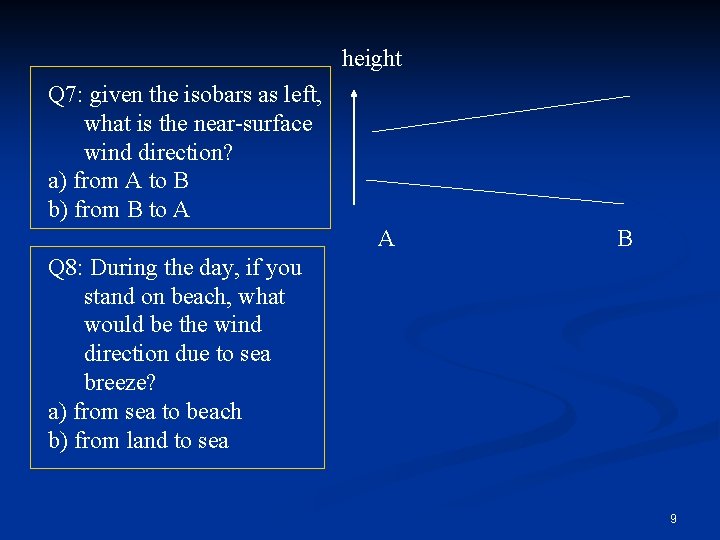

height Q 7: given the isobars as left, what is the near-surface wind direction? a) from A to B b) from B to A A B Q 8: During the day, if you stand on beach, what would be the wind direction due to sea breeze? a) from sea to beach b) from land to sea 9

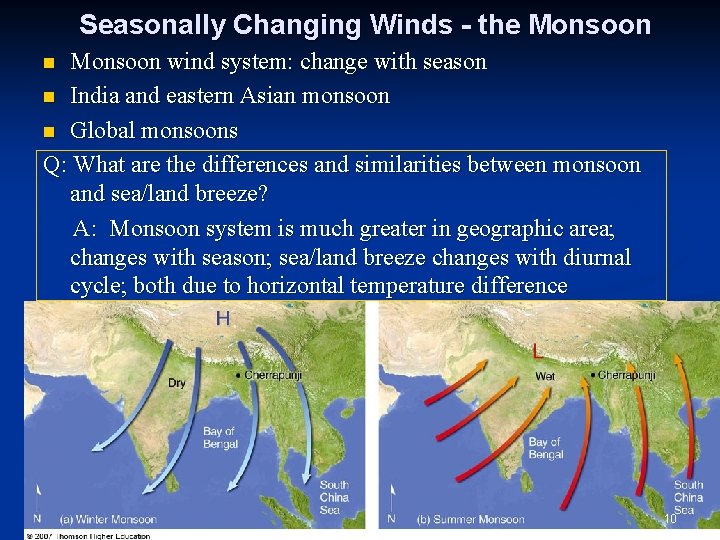

Seasonally Changing Winds - the Monsoon wind system: change with season n India and eastern Asian monsoon n Global monsoons Q: What are the differences and similarities between monsoon and sea/land breeze? A: Monsoon system is much greater in geographic area; changes with season; sea/land breeze changes with diurnal cycle; both due to horizontal temperature difference n 10

11

12

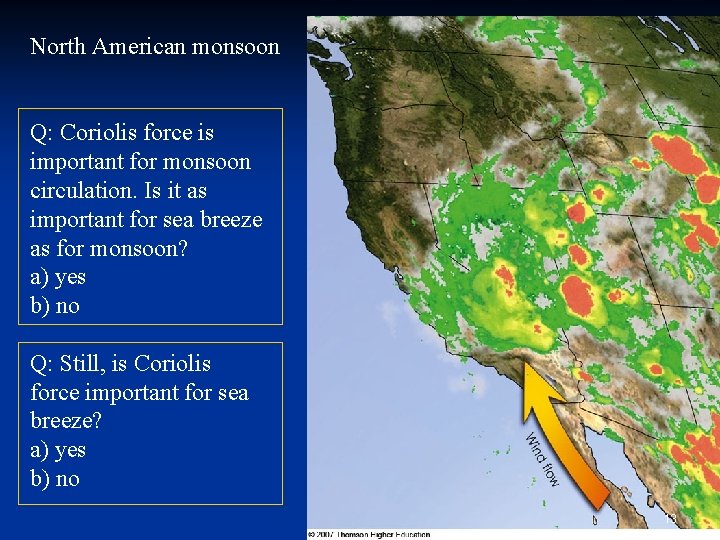

North American monsoon Q: Coriolis force is important for monsoon circulation. Is it as important for sea breeze as for monsoon? a) yes b) no Q: Still, is Coriolis force important for sea breeze? a) yes b) no 13

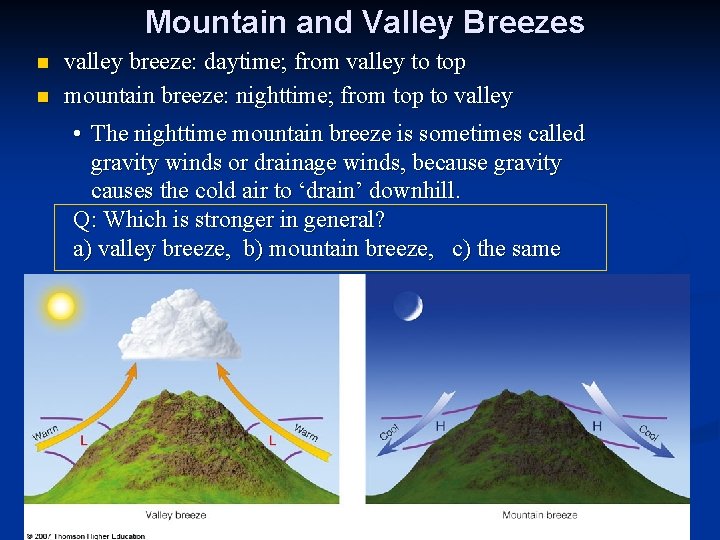

Mountain and Valley Breezes n n valley breeze: daytime; from valley to top mountain breeze: nighttime; from top to valley • The nighttime mountain breeze is sometimes called gravity winds or drainage winds, because gravity causes the cold air to ‘drain’ downhill. Q: Which is stronger in general? a) valley breeze, b) mountain breeze, c) the same 14

Katabatic Winds n Strong drainage wind from cold elevated plateau down steep slope and/or narrow channel • Katabatic winds are quite fierce in parts of Antarctica, with hurricane-force wind speeds. • Bora: a cold, gusty northeasterly wind along the Adriatic coast in the former Yugoslavia Q: why is the air parcel temperature much warmer at bottom of the mountain in the figure? 15

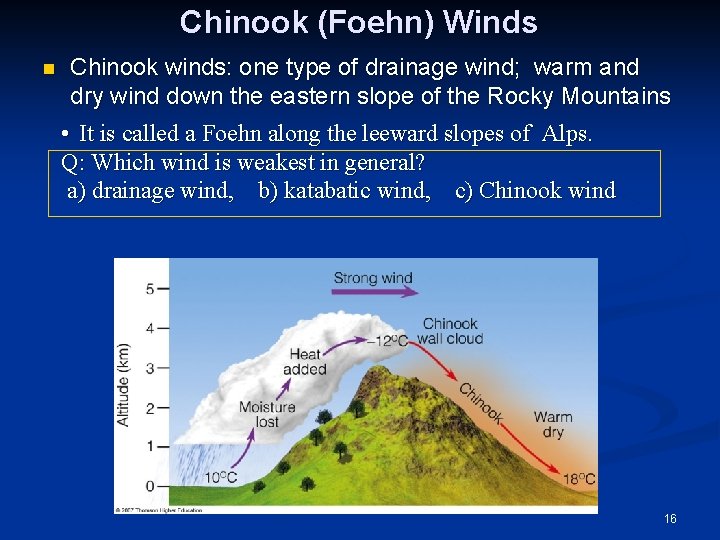

Chinook (Foehn) Winds n Chinook winds: one type of drainage wind; warm and dry wind down the eastern slope of the Rocky Mountains • It is called a Foehn along the leeward slopes of Alps. Q: Which wind is weakest in general? a) drainage wind, b) katabatic wind, c) Chinook wind 16

Chinook wall cloud indicates that chinook is coming 17

Santa Ana Winds n n Santa Ana wind: warm, dry wind from the elevated desert plateau down to southern California compressional heating Could have very strong wind wildfires Q: which wind comes from elevated desert plateau? a) Chinook wind; b) Santa Ana wind; c) Katabatic wind; d) mountain breeze Q: The drainage wind over the lee side of the Rocky Mountain is a) Chinook wind; b) Santa Ana wind; c) Katabatic wind; d) mountain breeze 18

Desert Winds dust and storms: occurs over arid and semiarid regions n dust devils – from surface; usually with a diameter of a few meters and a height of <100 m Q: What is the difference between tornado and dust devil? A: Tornado is larger horizontally and deeper vertically; from cloud base down n 19

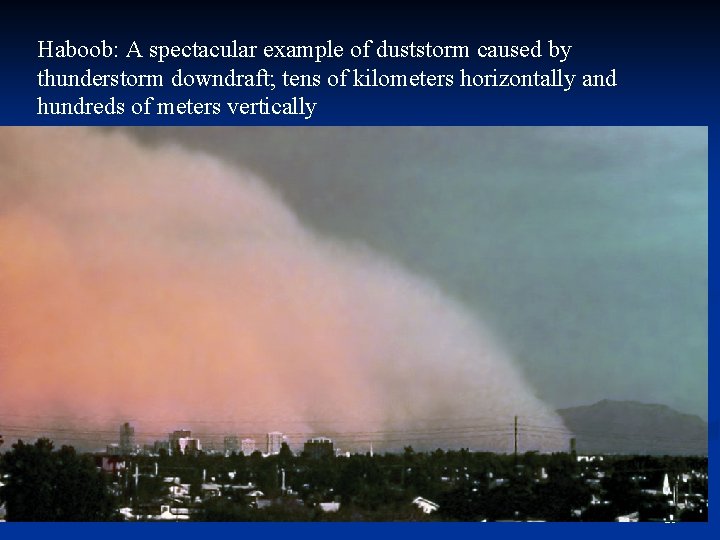

Haboob: A spectacular example of duststorm caused by thunderstorm downdraft; tens of kilometers horizontally and hundreds of meters vertically 20

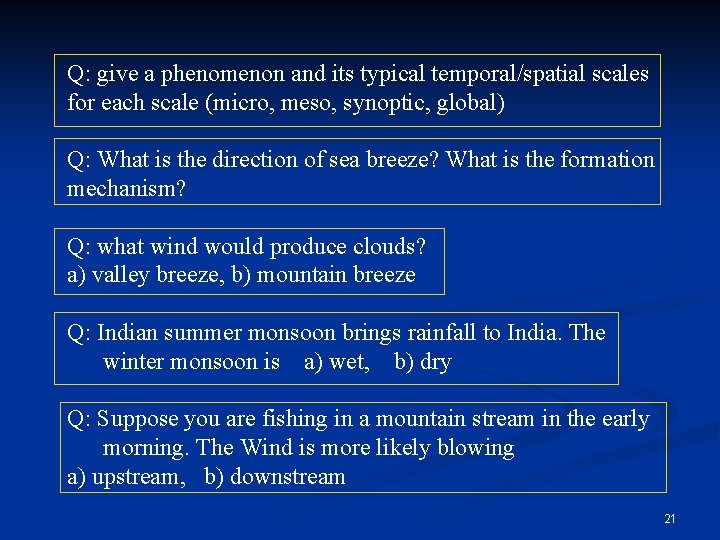

Q: give a phenomenon and its typical temporal/spatial scales for each scale (micro, meso, synoptic, global) Q: What is the direction of sea breeze? What is the formation mechanism? Q: what wind would produce clouds? a) valley breeze, b) mountain breeze Q: Indian summer monsoon brings rainfall to India. The winter monsoon is a) wet, b) dry Q: Suppose you are fishing in a mountain stream in the early morning. The Wind is more likely blowing a) upstream, b) downstream 21

General Circulation of the Atmosphere n n cause: unequal net heating of the earth’s surface and atmosphere effect: atmospheric circulation and ocean currents to transport heat from the equator to the poles Fig. 2. 19 on p. 46 22

Single-cell Model basic assumptions: no rotation n Originally proposed by George Hadley in England in the 18 th Century n Hadley cell Q: Why is the single-cell model wrong? A: Because single cell does not exist due to earth’s rotation n • UK’s Hadley Centre for Climate Research is named after George Hadley. 23

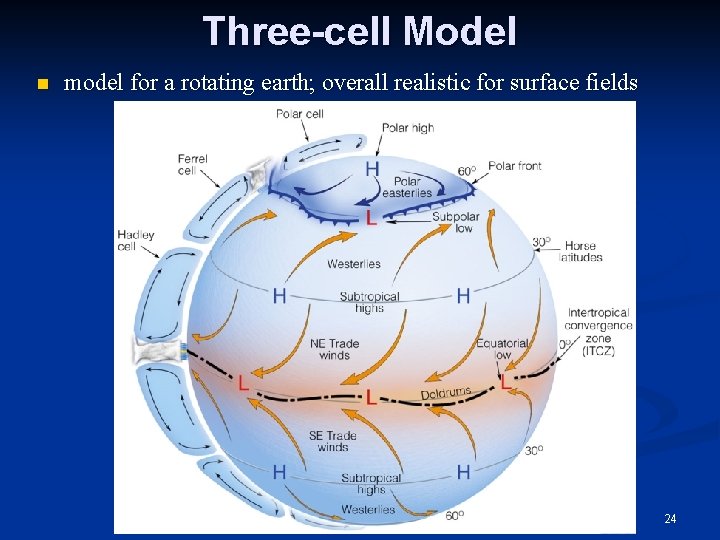

Three-cell Model n model for a rotating earth; overall realistic for surface fields 24

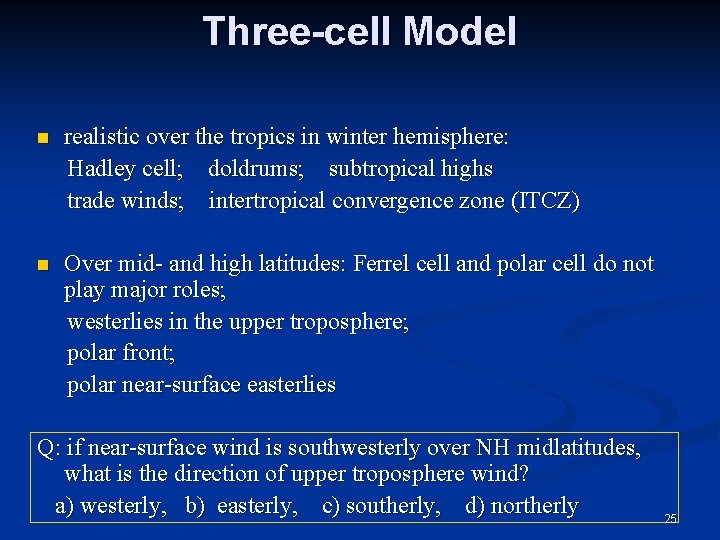

Three-cell Model n realistic over the tropics in winter hemisphere: Hadley cell; doldrums; subtropical highs trade winds; intertropical convergence zone (ITCZ) n Over mid- and high latitudes: Ferrel cell and polar cell do not play major roles; westerlies in the upper troposphere; polar front; polar near-surface easterlies Q: if near-surface wind is southwesterly over NH midlatitudes, what is the direction of upper troposphere wind? a) westerly, b) easterly, c) southerly, d) northerly 25

Average Surface Winds and Pressure: The Real World n n n semipermanent highs: Bermuda high & Pacific high moves north in summer; Bermuda high moves west in summer Semipermanent low: Icelandic low it moves north in summer Siberian high in winter due to very cold air Aleutian low in winter due to storm track ITCZ stays in the warm hemisphere (e. g. , NH in July) There are three semipermanent highs in SH 26

27

28

The General Circulation and Precipitation Patterns • • • Most of the world’s thunderstorms are found along the ITCZ. Low rainfall over the subtropical regions Fronts and precipitation over the subpolar lows Q: which is correct? a) desert causes subtropical high; b) subtropical high causes desert 29

Q: Why is Los Angeles dry in summer, while Atlanta is wet? 30

Westerly Winds and the Jet Stream n n n jet streams subtropical jet stream polar front jet stream Low-level jet stream over the Central plains of the U. S. (within 2 km above surface), bringing moist and warm air to form nighttime thunderstorms 31

32

(warm) Gulf Stream; (warm) Kuroshio Current; (cold) California Current; (cold) Canary Current; Equatorial Current and Counter Current in the Pacific Global wind drives ocean current Q: These ocean circulations are consistent with wind of a) high pressure system; b) low pressure system 33 Fig. 7 -29, p. 193

Winds and Upwelling is strongest when wind is parallel to the coastline Q: Why is ocean coldest in northern California in the left figure? A: wind is parallel to the coastline; upwelling is strongest; cold deep water is brought to surface n 34

El Niño and the Southern Oscillation Q: what is the El Niño? A: warming, pressure decrease, and weakened upwelling over the central and eastern Pacific; trade wind weakened as well; (cooling, pressure increase over western Pacific) n La Niña: opposite Q: What is the Southern Oscillation (SO)? A: oscillation of surface pressure over tropical western and eastern Pacific n ENSO: El Nino and SO are closely related Q: What is teleconnections? A: local changes (e. g. , in sea surface temperature) affect weather in remote regions. SST animation: www. esrl. noaa. gov/psd/map/clim/sst. anom. anim. year. html n 35

Thermocline is incorrect in bottom panel 36

37

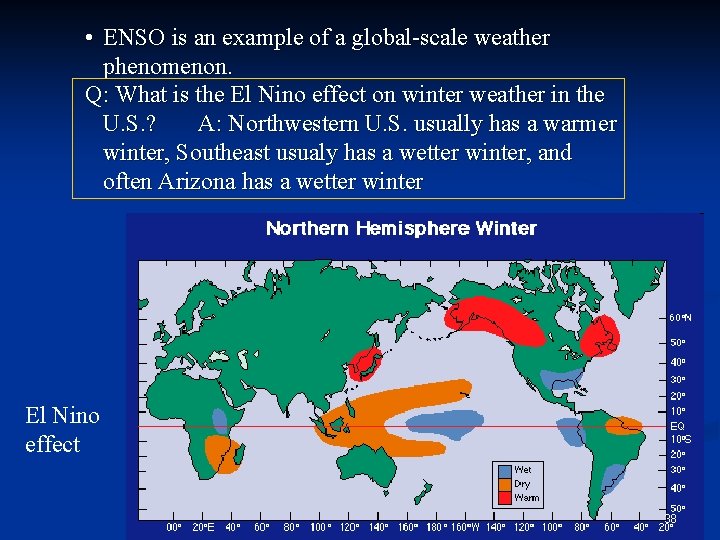

• ENSO is an example of a global-scale weather phenomenon. Q: What is the El Nino effect on winter weather in the U. S. ? A: Northwestern U. S. usually has a warmer winter, Southeast usualy has a wetter winter, and often Arizona has a wetter winter El Nino effect 38

Other Atmosphere-Ocean Interactions n n n North Atlantic Oscillation (NAO): based on pressure difference between Bermuda and Iceland Arctic Oscillation (AO): pressure difference between about 45 o. N and Arctic; describes the same phenomenon in a similar way as NAO. Positive (negative) phase: stronger (weaker) zonal wind 39

Pacific Decadal Oscillation: Pacific surface temperature pattern changes every 20 -30 years; Over the tropical Pacific, PDO pattern is not very different from ENSO; Over midlatitude Pacific, PDO pattern is different from ENSO; Positive (negative) phase: warmer (cooler) surface water along the west coast of North America; Amplitude is smaller than ENSO 40

Q: Most U. S. is located in : a) westerly wind belt, b) easterly wind belt, c) southerly wind belt, d) northerly wind belt Q: Why do summers along the west coast of U. S. tend to be dry? Q: What coastal wind along the west coast of North America would produce strong upwelling? a) northerly, b) southerly, c) easterly, d) westerly Q: What is a major El Nino? Q: for the positive phase of NAO, a) Greenland is colder and northern Europe is milder, b) Greenland is milder and northern Europe is colder, c) Greenland northern Europe are both colder, d) Greenland northern Europe are both milder 41
