Chapter 6 Work and Kinetic Energy Power Point
- Slides: 20
Chapter 6 Work and Kinetic Energy Power. Point® Lectures for University Physics, Thirteenth Edition – Hugh D. Young and Roger A. Freedman Lectures by Wayne Anderson Copyright © 2012 Pearson Education Inc. Modifications by Mike Brotherton

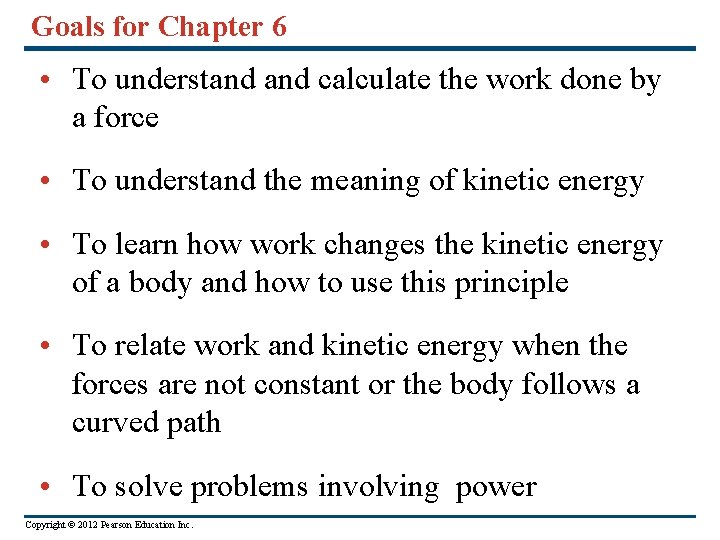

Goals for Chapter 6 • To understand calculate the work done by a force • To understand the meaning of kinetic energy • To learn how work changes the kinetic energy of a body and how to use this principle • To relate work and kinetic energy when the forces are not constant or the body follows a curved path • To solve problems involving power Copyright © 2012 Pearson Education Inc.
Introduction • The simple methods we’ve learned using Newton’s laws are inadequate when the forces are not constant. • In this chapter, the introduction of the new concepts of work, energy, and the conservation of energy will allow us to deal with such problems. Copyright © 2012 Pearson Education Inc.
Work • A force on a body does work if the body undergoes a displacement. • Figures 6. 1 and 6. 2 illustrate forces doing work. Copyright © 2012 Pearson Education Inc.
Work done by a constant force • The work done by a constant force acting at an angle to the displacement is W = Fs cos . Figure 6. 3 illustrates this point. • Follow Example 6. 1. Copyright © 2012 Pearson Education Inc.

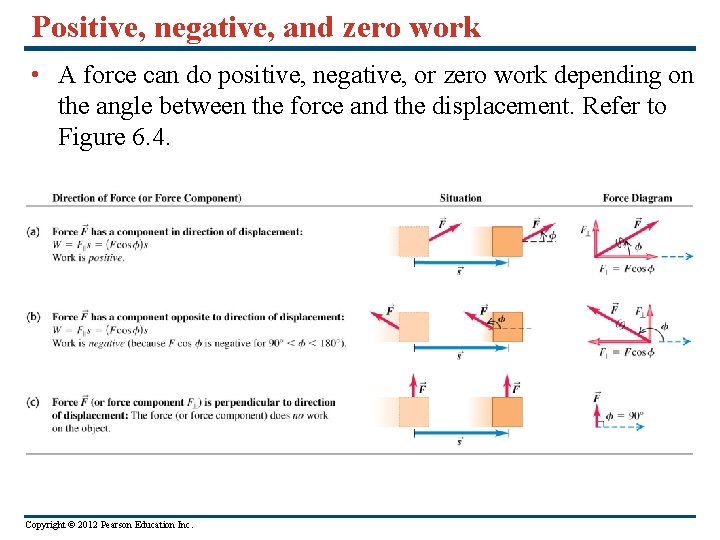

Positive, negative, and zero work • A force can do positive, negative, or zero work depending on the angle between the force and the displacement. Refer to Figure 6. 4. Copyright © 2012 Pearson Education Inc.
Kinetic energy • The kinetic energy of a particle is K = 1/2 mv 2. • The net work on a body changes its speed and therefore its kinetic energy, as shown in Figure 6. 8 below. Copyright © 2012 Pearson Education Inc.
The work-energy theorem • The work-energy theorem: The work done by the net force on a particle equals the change in the particle’s kinetic energy. • Mathematically, the work-energy theorem is expressed as Wtot = K 2 – K 1 = K. • Follow Problem-Solving Strategy 6. 1. Copyright © 2012 Pearson Education Inc.
Work and energy with varying forces—Figure 6. 16 • Many forces, such as the force to stretch a spring, are not constant. • In Figure 6. 16, we approximate the work by dividing the total displacement into many small segments. Copyright © 2012 Pearson Education Inc.
Stretching a spring • The force required to stretch a spring a distance x is proportional to x: Fx = kx. • k is the force constant (or spring constant) of the spring. • The area under the graph represents the work done on the spring to stretch it a distance X: W = 1/2 k. X 2. Copyright © 2012 Pearson Education Inc.
Work done on a spring scale • A woman steps on a bathroom scale. • Follow Example 6. 6. Copyright © 2012 Pearson Education Inc.
Motion with a varying force • An air-track glider is attached to a spring, so the force on the glider is varying. • Follow Example 6. 7 using Figure 6. 22. Copyright © 2012 Pearson Education Inc.
Power • Power is the rate at which work is done. • Average power is Pav = W/ t and instantaneous power is P = d. W/dt. Copyright © 2012 Pearson Education Inc.

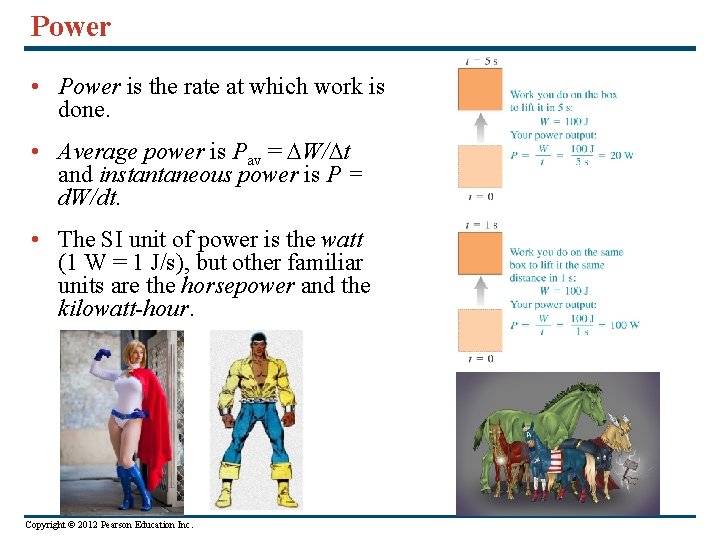

Power • Power is the rate at which work is done. • Average power is Pav = W/ t and instantaneous power is P = d. W/dt. • The SI unit of power is the watt (1 W = 1 J/s), but other familiar units are the horsepower and the kilowatt-hour. Copyright © 2012 Pearson Education Inc.
Work done by several forces • Example 6. 2 shows two ways to find the total work done by several forces. • Follow Example 6. 2. Copyright © 2012 Pearson Education Inc.
Using work and energy to calculate speed • Revisit the sled from Example 6. 2. • Follow Example 6. 3 using Figure 6. 11 below and Problem-Solving Strategy 6. 1. Copyright © 2012 Pearson Education Inc.
Forces on a hammerhead • The hammerhead of a pile driver is used to drive a beam into the ground. • Follow Example 6. 4 and see Figure 6. 12 below. Copyright © 2012 Pearson Education Inc.
Comparing kinetic energies • In Conceptual Example 6. 5, two iceboats have different masses. • Follow Conceptual Example 6. 5. Copyright © 2012 Pearson Education Inc.
Force and power • In Example 6. 9, jet engines develop power to fly the plane. • Follow Example 6. 9. Copyright © 2012 Pearson Education Inc.
A “power climb” • A person runs up stairs. Refer to Figure 6. 28 while following Example 6. 10. Copyright © 2012 Pearson Education Inc.
