Chapter 6 - Objectives • After completing this chapter, you will be able to perform the following: – Understand the assembly options – Create bottom-up assemblies – Create top-down assemblies – Create subassemblies – Constrain components together using assembly constraints – Edit assembly constraints – Create adaptive parts – Pattern components in an assembly – Check parts in an assembly for interference – Drive constraints – Create a presentation file – Manipulate and edit the Bill of Materials (BOM) – Create individual and automatic balloons – Create and perform edits on a Parts List of an assembly

Creating Assemblies • New Assembly Files –. IAM Extension • New icon – What To Do • New – File Menu • New icon – Down Arrow

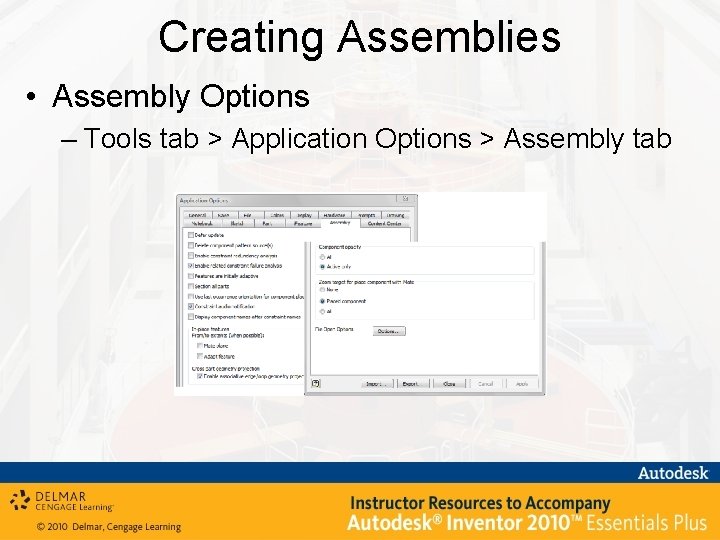

Creating Assemblies • Assembly Options – Tools tab > Application Options > Assembly tab

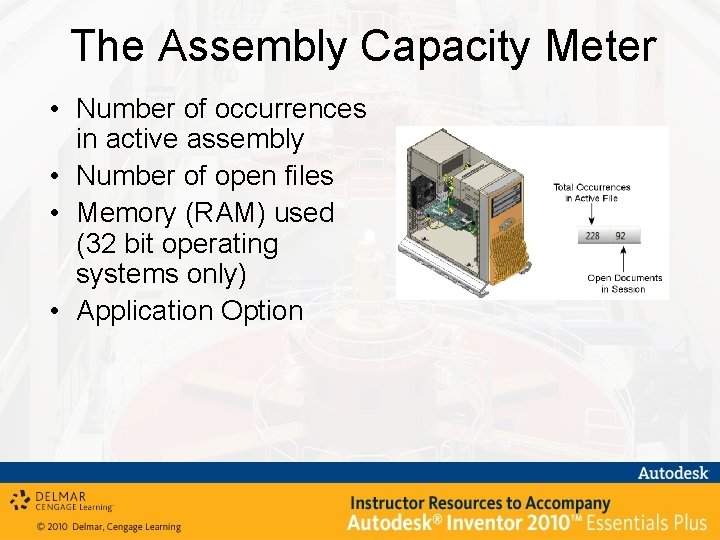

The Assembly Capacity Meter • Number of occurrences in active assembly • Number of open files • Memory (RAM) used (32 bit operating systems only) • Application Option

Creating Assemblies • Assembly Browser – Part Occurrence – Assembly Constraints – Subassembly Occurrence

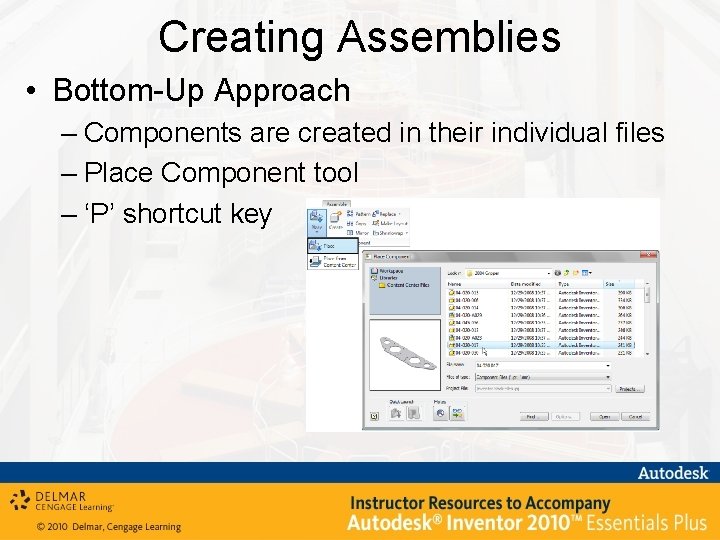

Creating Assemblies • Bottom-Up Approach – Components are created in their individual files – Place Component tool – ‘P’ shortcut key

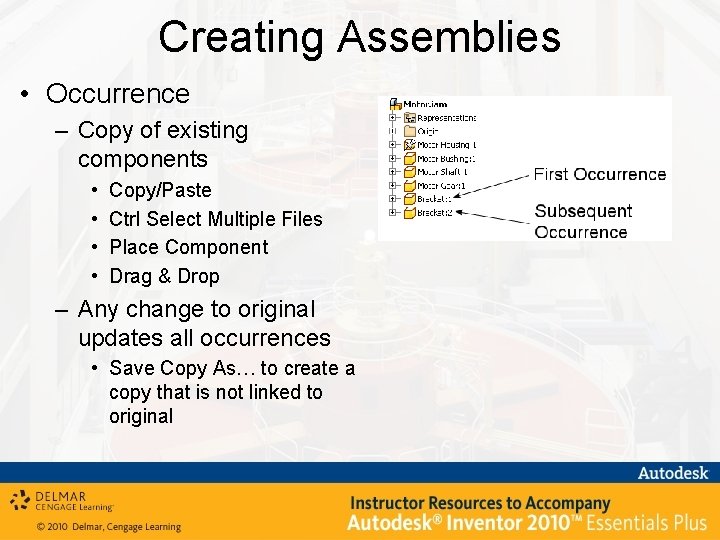

Creating Assemblies • Occurrence – Copy of existing components • • Copy/Paste Ctrl Select Multiple Files Place Component Drag & Drop – Any change to original updates all occurrences • Save Copy As… to create a copy that is not linked to original

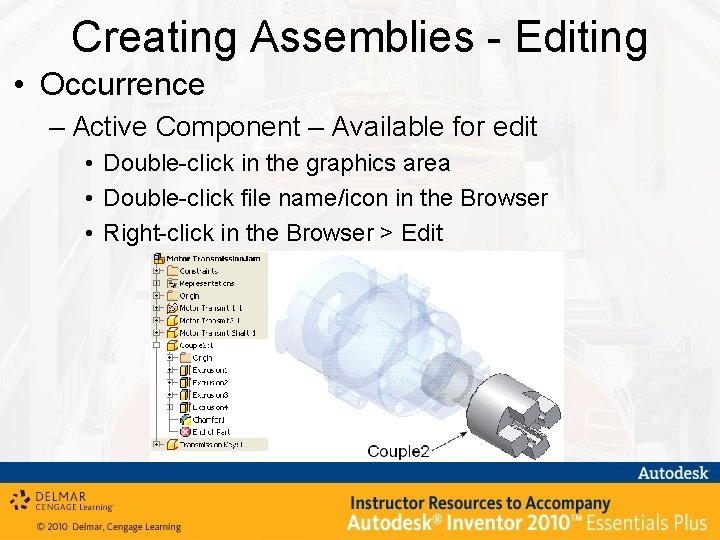

Creating Assemblies - Editing • Occurrence – Active Component – Available for edit • Double-click in the graphics area • Double-click file name/icon in the Browser • Right-click in the Browser > Edit

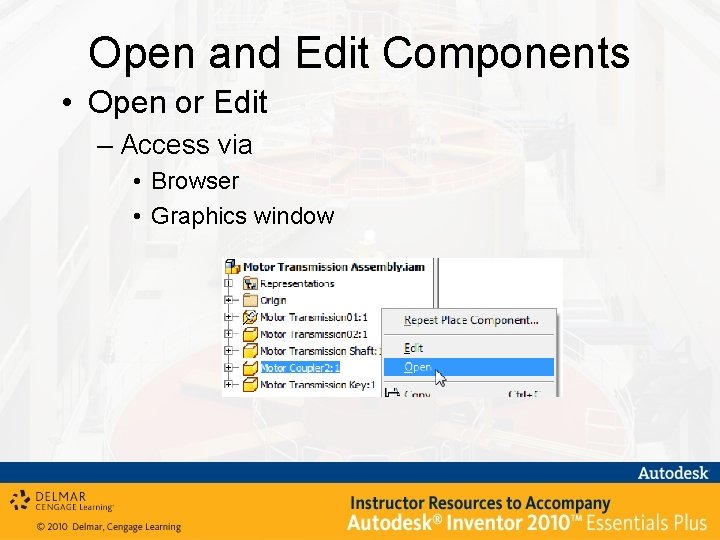

Open and Edit Components • Open or Edit – Access via • Browser • Graphics window

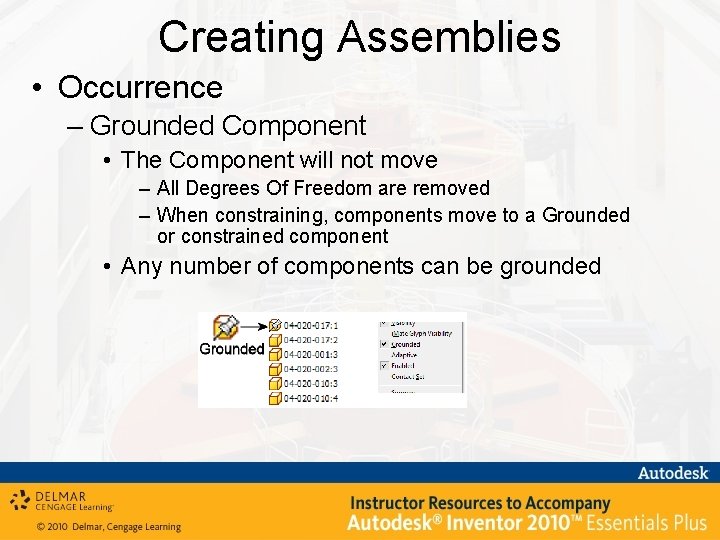

Creating Assemblies • Occurrence – Grounded Component • The Component will not move – All Degrees Of Freedom are removed – When constraining, components move to a Grounded or constrained component • Any number of components can be grounded

Assembly Constraints • Constraints – Create relationships between components • Example - Bolt and a Hole – Degree of Freedom • Constraints reduce the number of Degrees of Freedom – 6 total (3 -translational & 3 -rotational) – View tab > Visibility panel > Degrees of Freedom – Component Properties > Occurrence tab

Assembly Constraints • Constraints – Placing Constraints • Constraint tool – Right-click > Constraint – ‘C’ shortcut key • Place Constraint Dialog

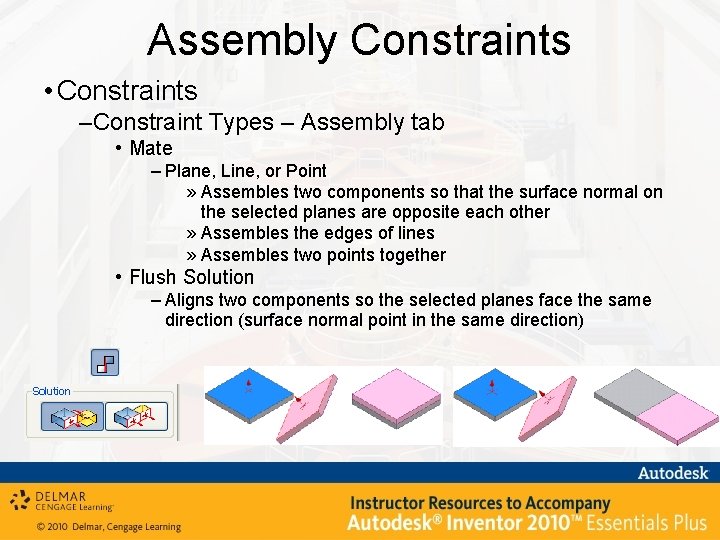

Assembly Constraints • Constraints –Constraint Types – Assembly tab • Mate – Plane, Line, or Point » Assembles two components so that the surface normal on the selected planes are opposite each other » Assembles the edges of lines » Assembles two points together • Flush Solution – Aligns two components so the selected planes face the same direction (surface normal point in the same direction)

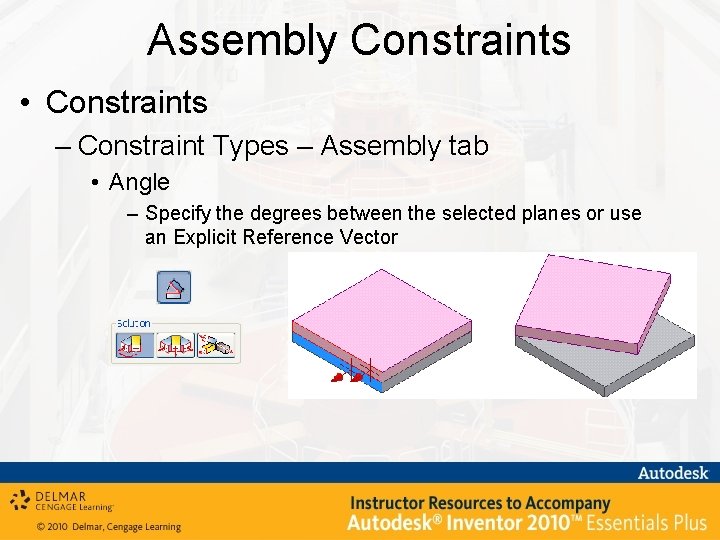

Assembly Constraints • Constraints – Constraint Types – Assembly tab • Angle – Specify the degrees between the selected planes or use an Explicit Reference Vector

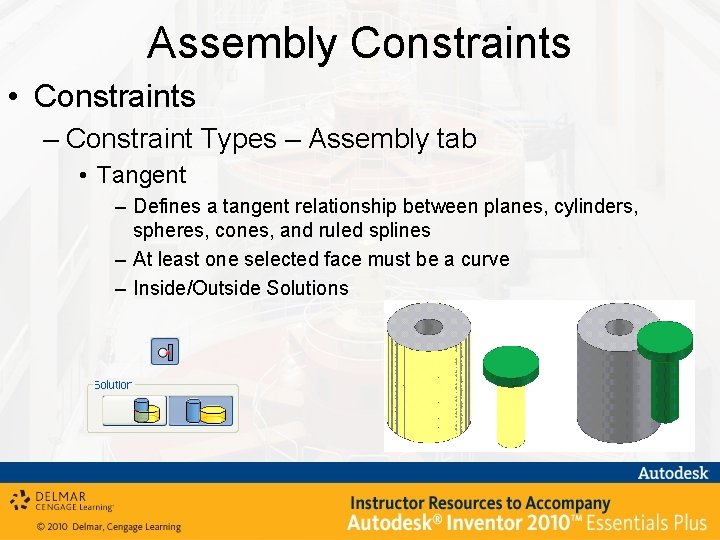

Assembly Constraints • Constraints – Constraint Types – Assembly tab • Tangent – Defines a tangent relationship between planes, cylinders, spheres, cones, and ruled splines – At least one selected face must be a curve – Inside/Outside Solutions

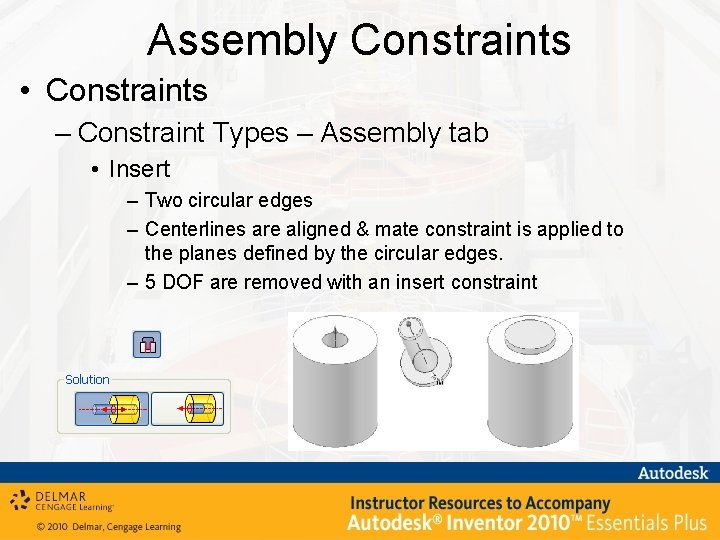

Assembly Constraints • Constraints – Constraint Types – Assembly tab • Insert – Two circular edges – Centerlines are aligned & mate constraint is applied to the planes defined by the circular edges. – 5 DOF are removed with an insert constraint

Assembly Constraints • Constraints – Constraint Types – Motion tab • Animation the motion of gears pulleys, rack and pinions, etc. – You can drive one component and cause others to move accordingly • Motion constraints are secondary constraints – They do not maintain positional relationships between components • Recommended: fully constrain components before applying motion constraints, then suppress the constraints restricting motion –Rotation • Define a component that will rotate in relation to another component • Specify a ratio for the rotation between the two components • Forward & Backward solution types

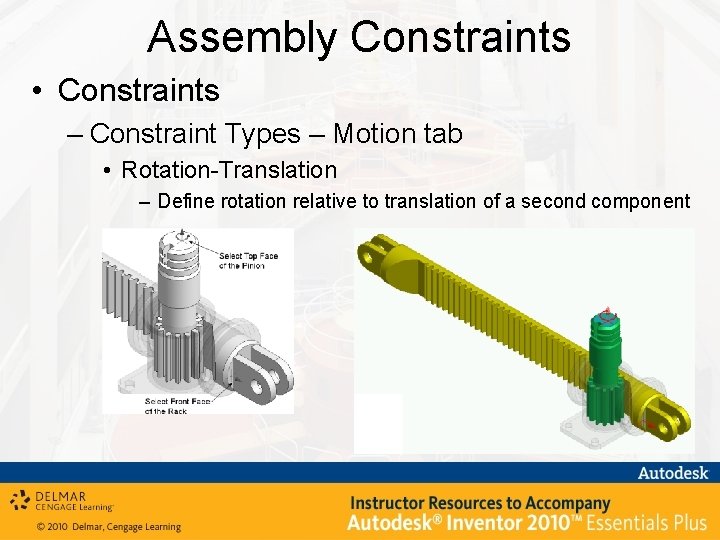

Assembly Constraints • Constraints – Constraint Types – Motion tab • Rotation-Translation – Define rotation relative to translation of a second component

Assembly Constraints • Constraints – Constraint Types – Transitional tab • Transitional – Specifies a transitional relationship between a cylindrical part face and a contiguous set of faces on another part

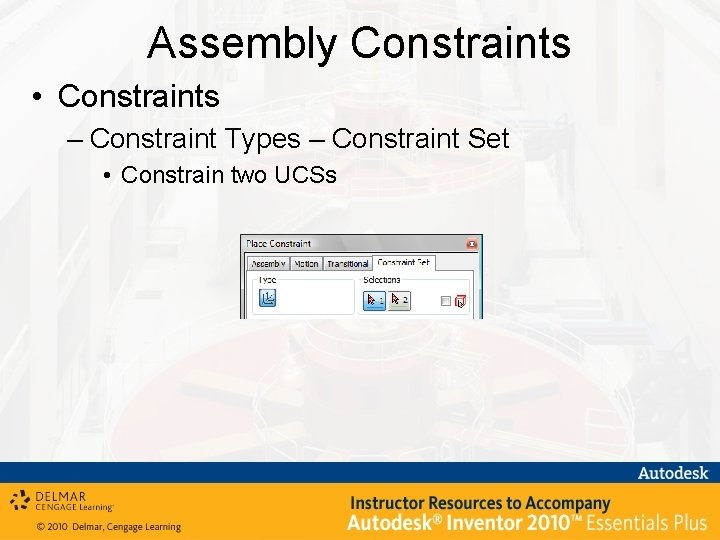

Assembly Constraints • Constraints – Constraint Types – Constraint Set • Constrain two UCSs

Assembly Constraints • Constraints – ALT – drag a part to another part • No Place Constraint dialog box • Select correct area on the part to apply the constraint M or 1 Changes to a mate constraint. Spacebar flips to a flush solution. A or 2 Changes to an angle constraint. Spacebar flips angle direction. T or 3 Changes to a tangent constraint. Spacebar flips between inside/outside solutions. I or 4 Changes to an insert constraint. Spacebar flips insert direction. R or 5 Changes to a rotation motion constraint. Spacebar flips the rotation direction. S or 6 Changes to a rotation-translation constraint. Spacebar flips the translation direction X or 8 Changes to a transitional constraint.

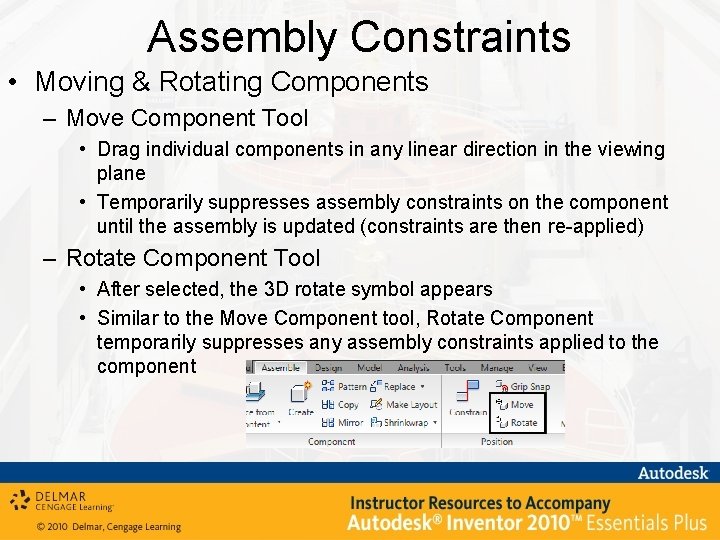

Assembly Constraints • Moving & Rotating Components – Move Component Tool • Drag individual components in any linear direction in the viewing plane • Temporarily suppresses assembly constraints on the component until the assembly is updated (constraints are then re-applied) – Rotate Component Tool • After selected, the 3 D rotate symbol appears • Similar to the Move Component tool, Rotate Component temporarily suppresses any assembly constraints applied to the component

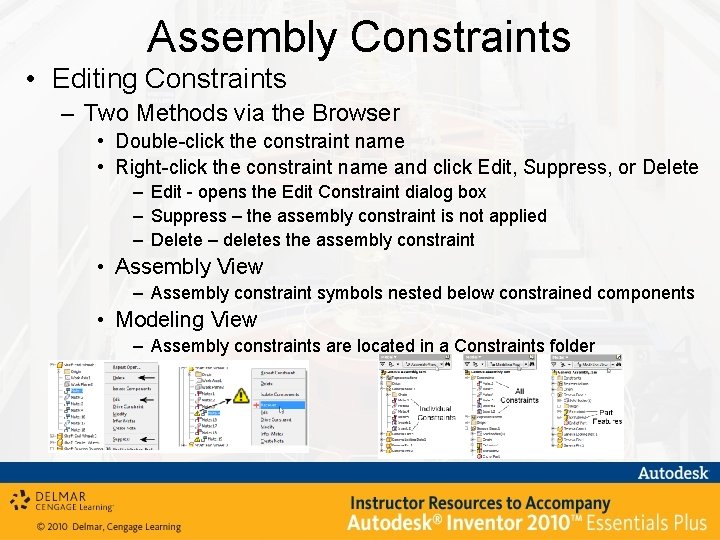

Assembly Constraints • Editing Constraints – Two Methods via the Browser • Double-click the constraint name • Right-click the constraint name and click Edit, Suppress, or Delete – Edit - opens the Edit Constraint dialog box – Suppress – the assembly constraint is not applied – Delete – deletes the assembly constraint • Assembly View – Assembly constraint symbols nested below constrained components • Modeling View – Assembly constraints are located in a Constraints folder

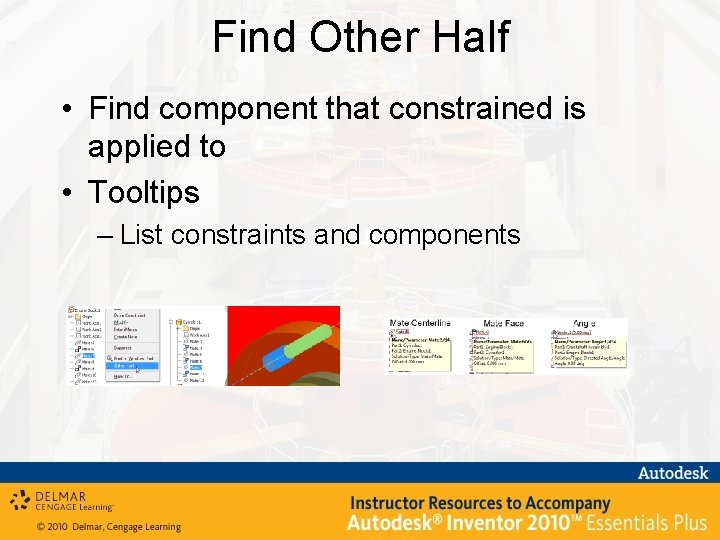

Find Other Half • Find component that constrained is applied to • Tooltips – List constraints and components

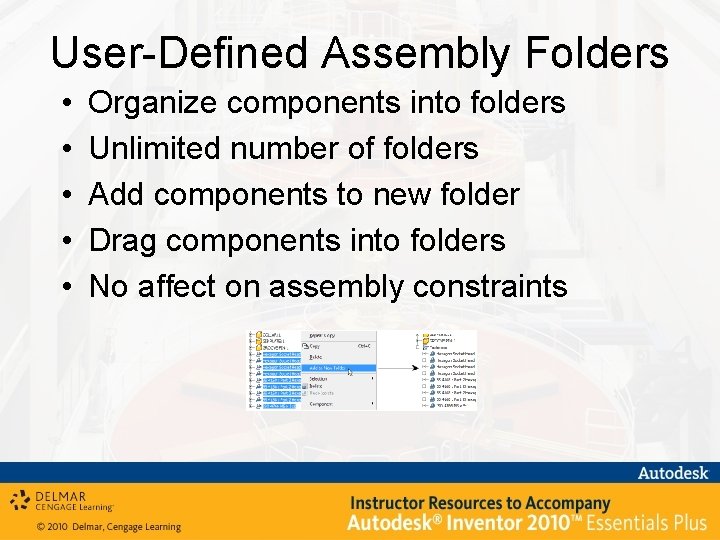

User-Defined Assembly Folders • • • Organize components into folders Unlimited number of folders Add components to new folder Drag components into folders No affect on assembly constraints

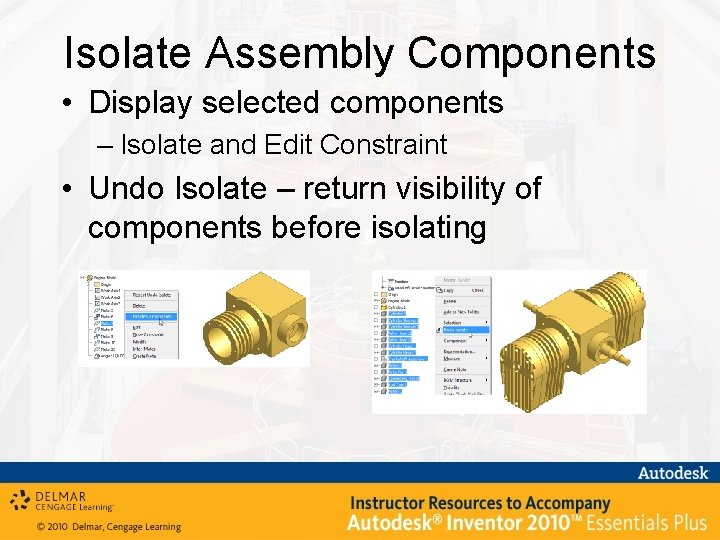

Isolate Assembly Components • Display selected components – Isolate and Edit Constraint • Undo Isolate – return visibility of components before isolating

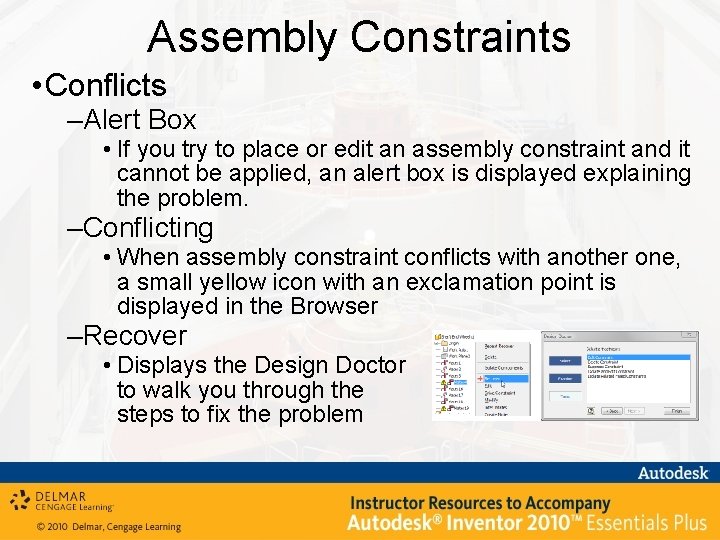

Assembly Constraints • Conflicts –Alert Box • If you try to place or edit an assembly constraint and it cannot be applied, an alert box is displayed explaining the problem. –Conflicting • When assembly constraint conflicts with another one, a small yellow icon with an exclamation point is displayed in the Browser –Recover • Displays the Design Doctor to walk you through the steps to fix the problem

Exercise 6 -1 • Assembling Parts

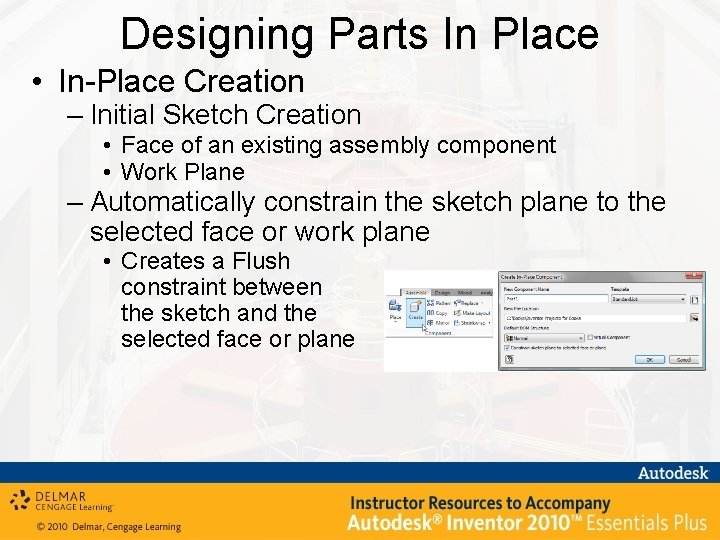

Designing Parts In Place • In-Place Creation – Initial Sketch Creation • Face of an existing assembly component • Work Plane – Automatically constrain the sketch plane to the selected face or work plane • Creates a Flush constraint between the sketch and the selected face or plane

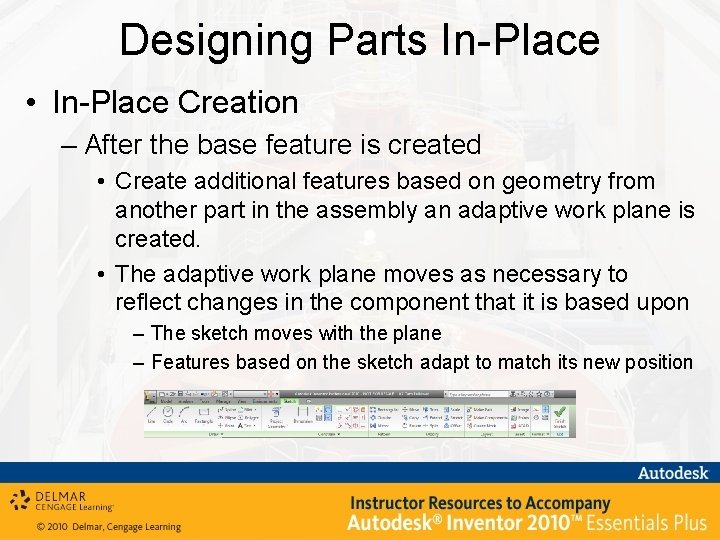

Designing Parts In-Place • In-Place Creation – After the base feature is created • Create additional features based on geometry from another part in the assembly an adaptive work plane is created. • The adaptive work plane moves as necessary to reflect changes in the component that it is based upon – The sketch moves with the plane – Features based on the sketch adapt to match its new position

Exercise 6 -2 • Designing Parts in the Assembly Context

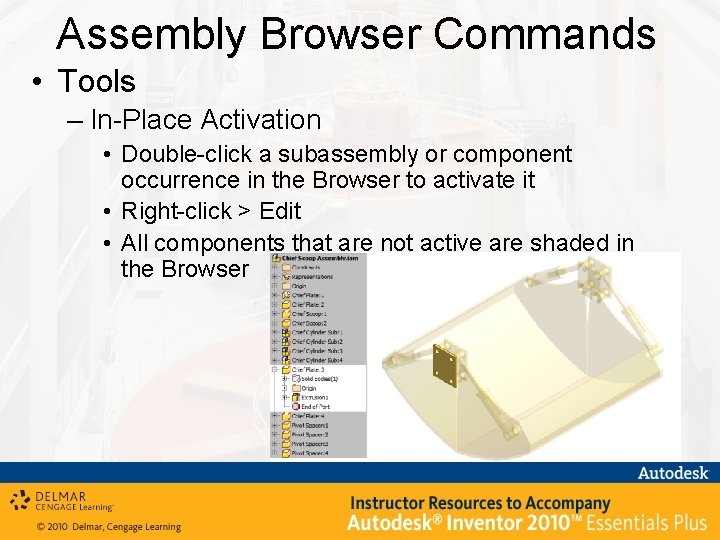

Assembly Browser Commands • Tools – In-Place Activation • Double-click a subassembly or component occurrence in the Browser to activate it • Right-click > Edit • All components that are not active are shaded in the Browser

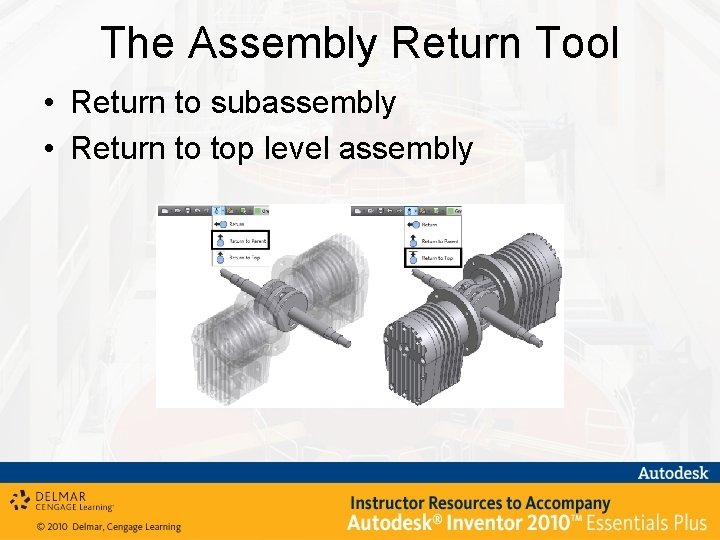

The Assembly Return Tool • Return to subassembly • Return to top level assembly

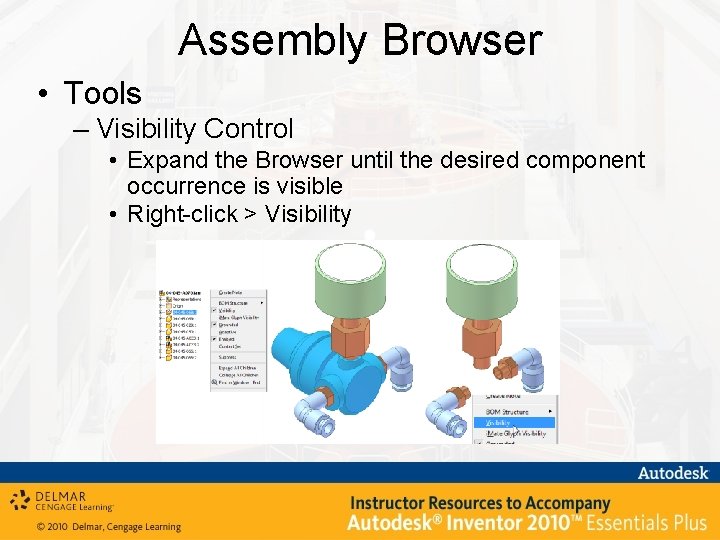

Assembly Browser • Tools – Visibility Control • Expand the Browser until the desired component occurrence is visible • Right-click > Visibility

Adaptivity • Definition –Allows the size of a part to be determined by setting up a relationship between the part and another part in the assembly • Under-constrained sketches and features can adapt • The adaptivity relationship is acquired by applying constraints between an adaptive sketch or feature and another part – The sketch cannot be fully constrained – A part can only be adaptive in one assembly at a time – Only one occurrence of a part can be adaptive – other occurrences reflect the size of the adaptive part –Example • Diameter of a pin from the size of a hole or vice-versa

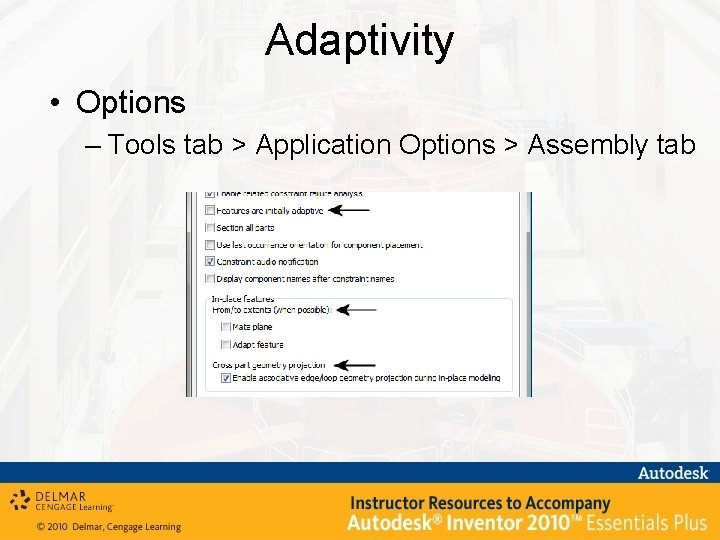

Adaptivity • Options – Tools tab > Application Options > Assembly tab

Adaptivity • Example – The rectangular sketch is not dimensioned along its length – The extruded feature is defined as adaptive

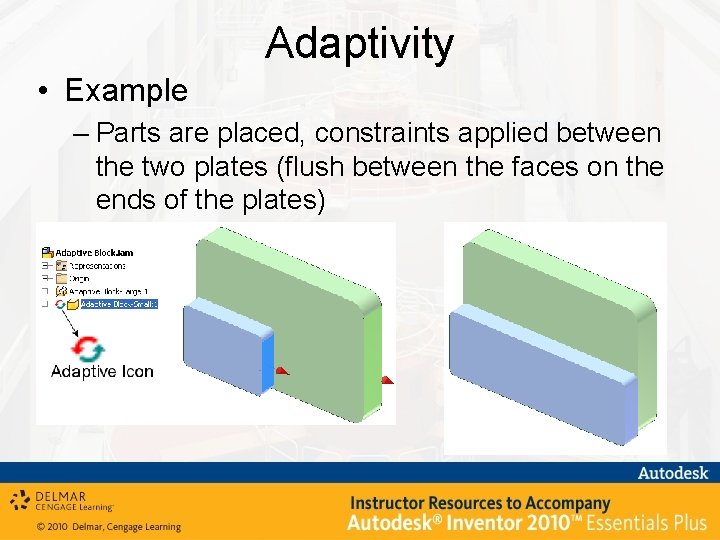

Adaptivity • Example – Parts are placed, constraints applied between the two plates (flush between the faces on the ends of the plates)

Exercise 6 -3 • Creating Adaptive Parts

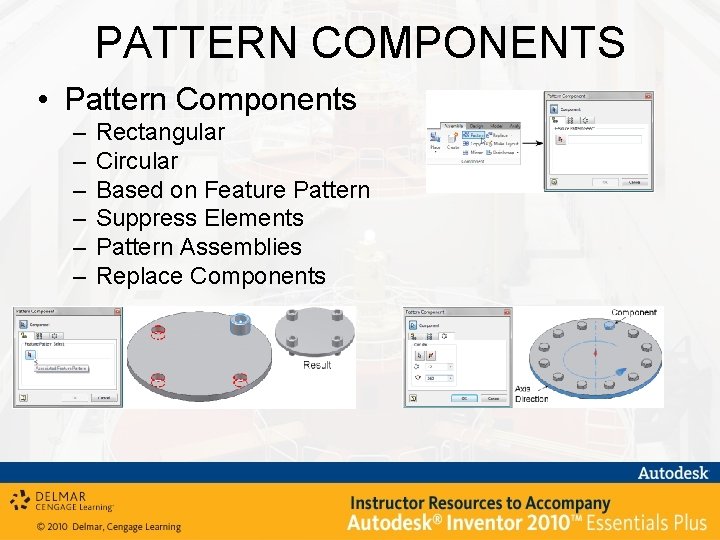

PATTERN COMPONENTS • Pattern Components – – – Rectangular Circular Based on Feature Pattern Suppress Elements Pattern Assemblies Replace Components

Exercise 6 -4 • Patterning Components

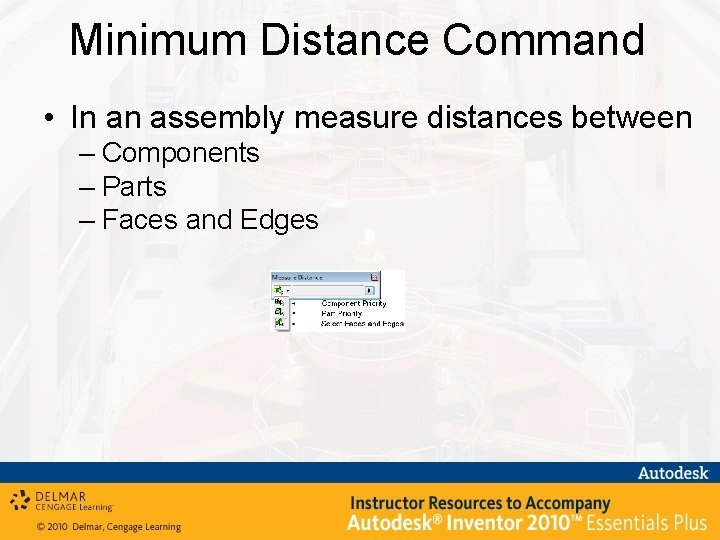

Minimum Distance Command • In an assembly measure distances between – Components – Parts – Faces and Edges

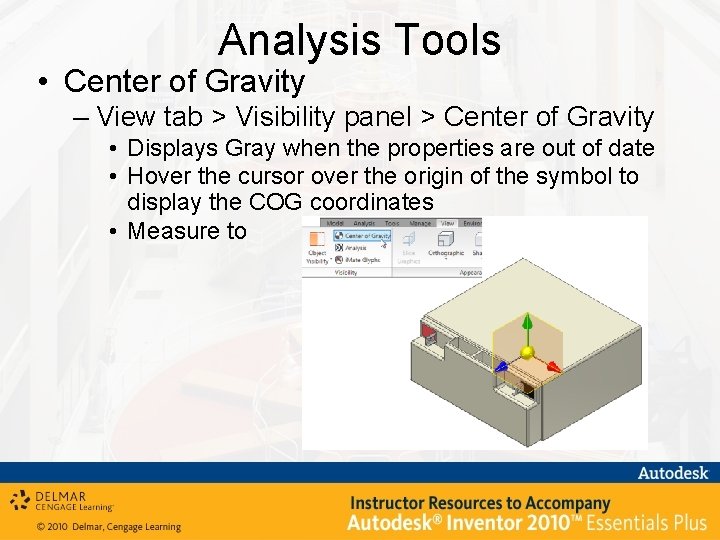

Analysis Tools • Center of Gravity – View tab > Visibility panel > Center of Gravity • Displays Gray when the properties are out of date • Hover the cursor over the origin of the symbol to display the COG coordinates • Measure to

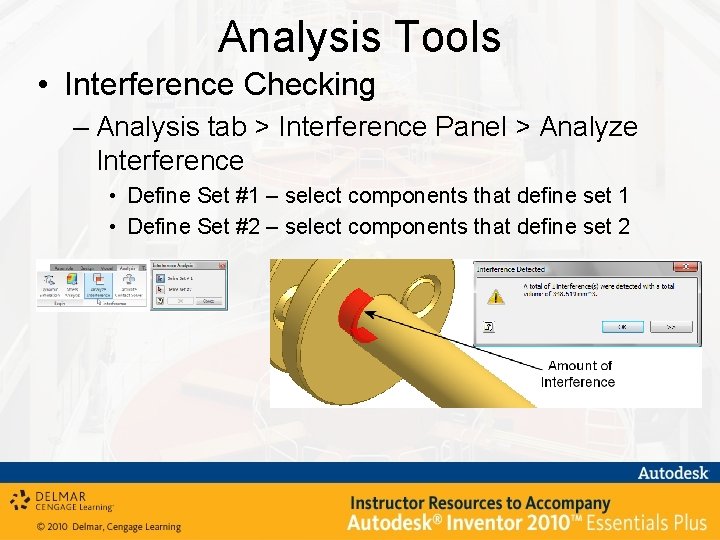

Analysis Tools • Interference Checking – Analysis tab > Interference Panel > Analyze Interference • Define Set #1 – select components that define set 1 • Define Set #2 – select components that define set 2

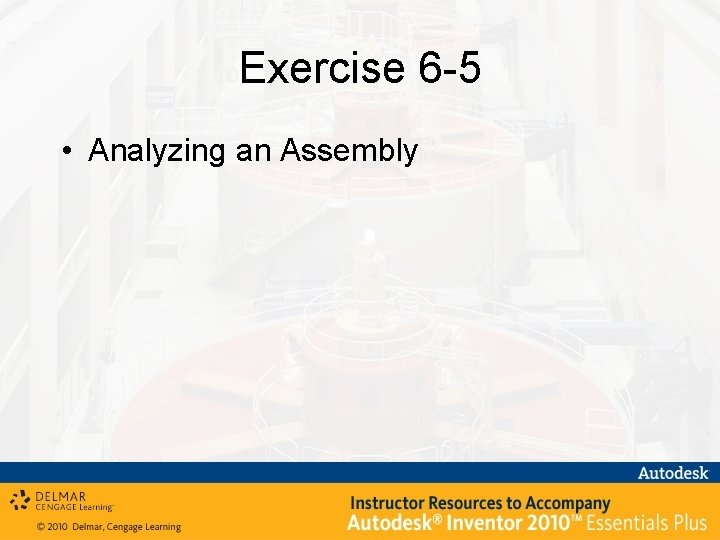

Exercise 6 -5 • Analyzing an Assembly

Driving Constraints • Drive Constraint tool – Simulate motion • Right-click on a constraint in the Browser > Drive Constraint

Driving Constraints • Drive Constraint tool – Assembly Constraints – Record – Drive Adaptivity – Collision Detection

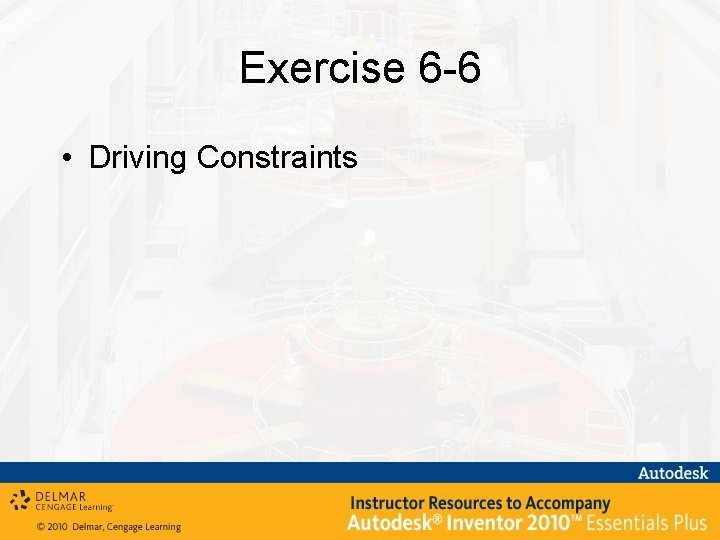

Exercise 6 -6 • Driving Constraints

Presentation Files • . IPN Extension – Exploded Views – Hide specific components – Create animations of assembly and disassembly of components – Work Plane • Associated with the assembly file – Changes made to the assembly are reflected in the presentation file

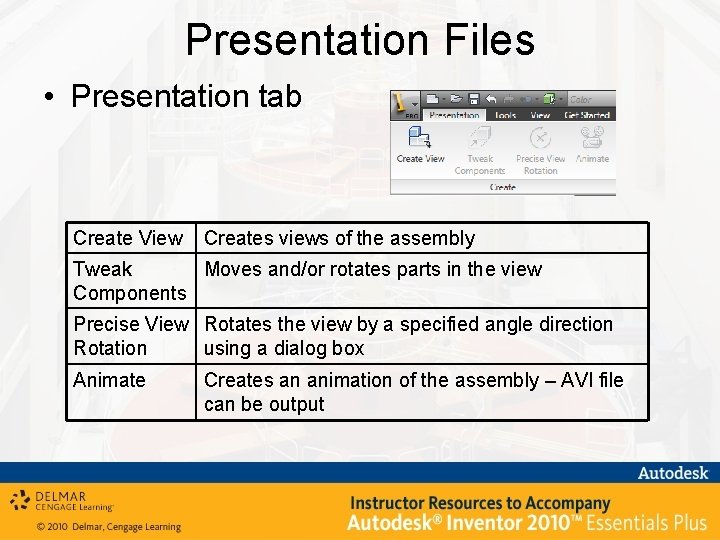

Presentation Files • Presentation tab Create View Creates views of the assembly Tweak Moves and/or rotates parts in the view Components Precise View Rotates the view by a specified angle direction Rotation using a dialog box Animate Creates an animation of the assembly – AVI file can be output

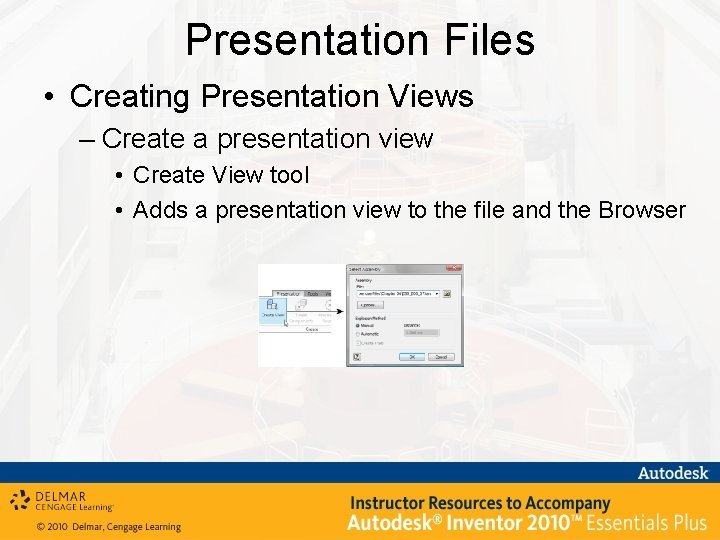

Presentation Files • Creating Presentation Views – Create a presentation view • Create View tool • Adds a presentation view to the file and the Browser

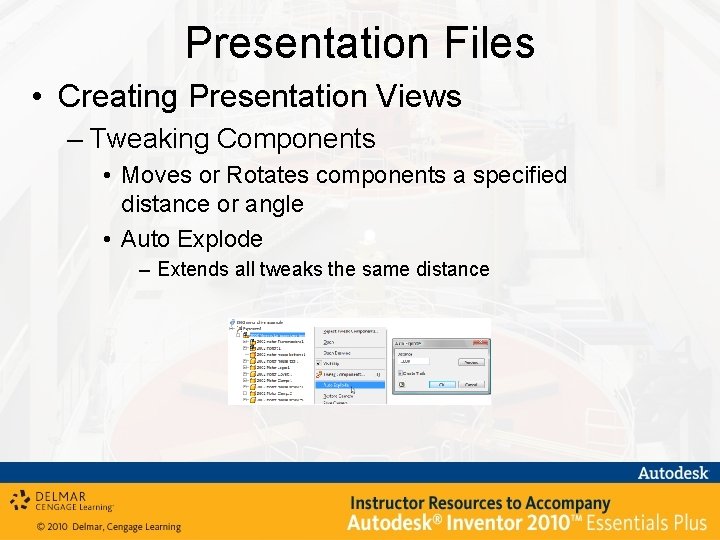

Presentation Files • Creating Presentation Views – Tweaking Components • Moves or Rotates components a specified distance or angle • Auto Explode – Extends all tweaks the same distance

Presentation Files • Creating Presentation Views – Tweaking Components • Tweak Component Dialog Box – Manual Tweaks

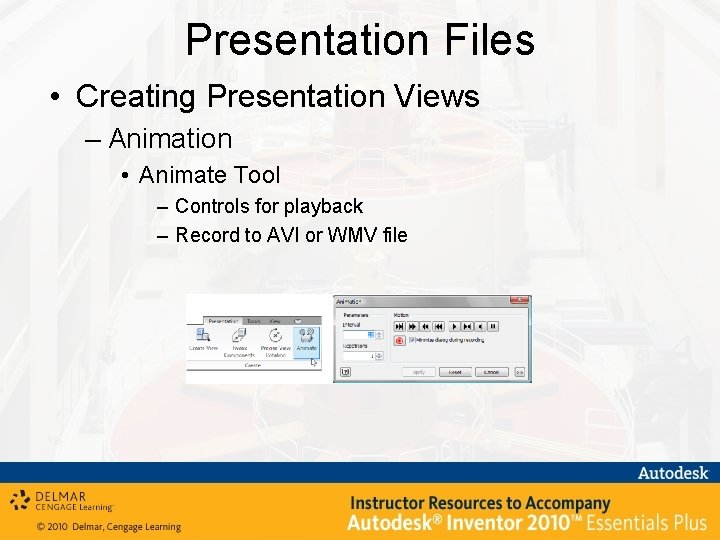

Presentation Files • Creating Presentation Views – Animation • Animate Tool – Controls for playback – Record to AVI or WMV file

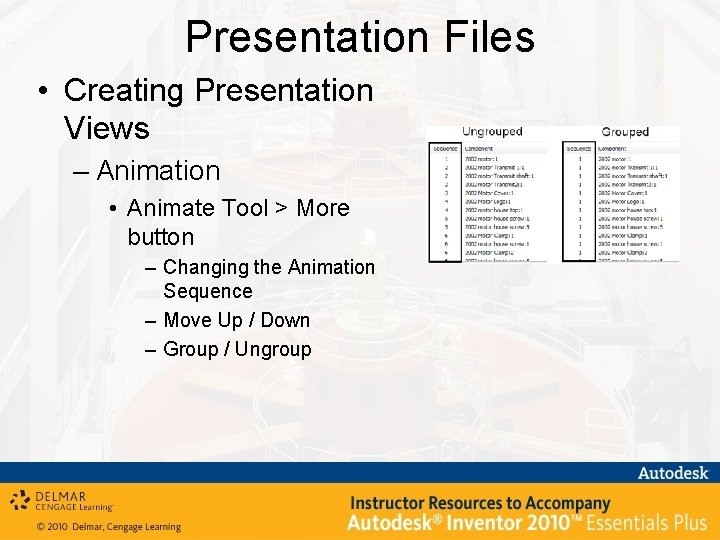

Presentation Files • Creating Presentation Views – Animation • Animate Tool > More button – Changing the Animation Sequence – Move Up / Down – Group / Ungroup

Exercise 6 -7 • Creating Presentation Views

Creating Drawing Views (Assemblies & Presentations) • Base View – Base View tool – IAM and IPN files

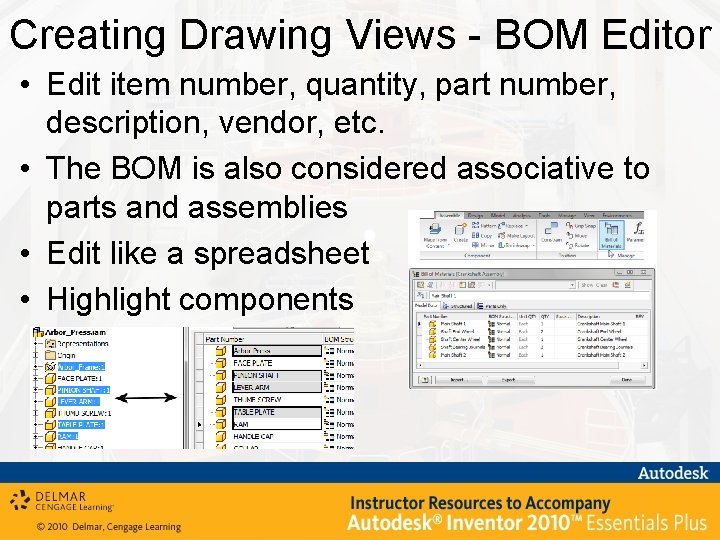

Creating Drawing Views - BOM Editor • Edit item number, quantity, part number, description, vendor, etc. • The BOM is also considered associative to parts and assemblies • Edit like a spreadsheet • Highlight components

EXERCISE 6 -8 • Editing the BOM

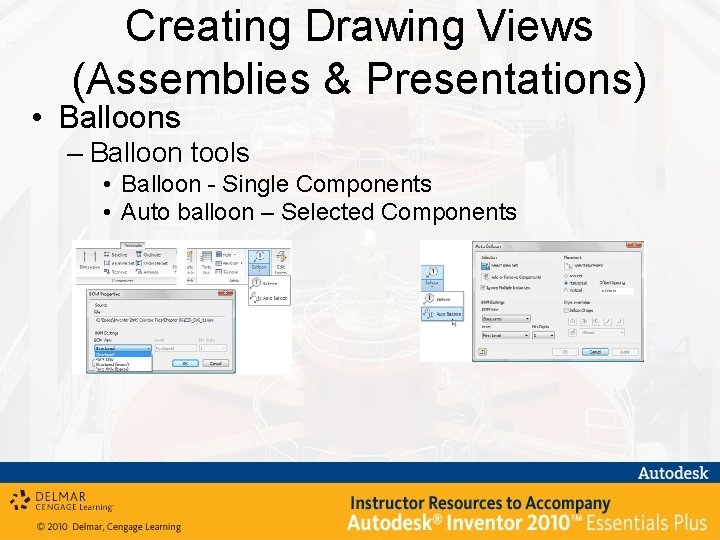

Creating Drawing Views (Assemblies & Presentations) • Balloons – Balloon tools • Balloon - Single Components • Auto balloon – Selected Components

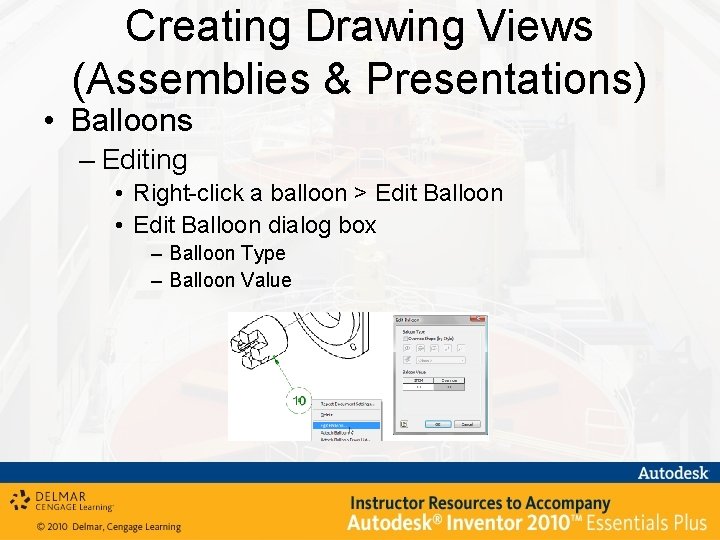

Creating Drawing Views (Assemblies & Presentations) • Balloons – Editing • Right-click a balloon > Edit Balloon • Edit Balloon dialog box – Balloon Type – Balloon Value

Creating Drawing Views (Assemblies & Presentations) • Parts List – Parts List tool • Select a view • Enter options in the Parts List dialog • Click OK

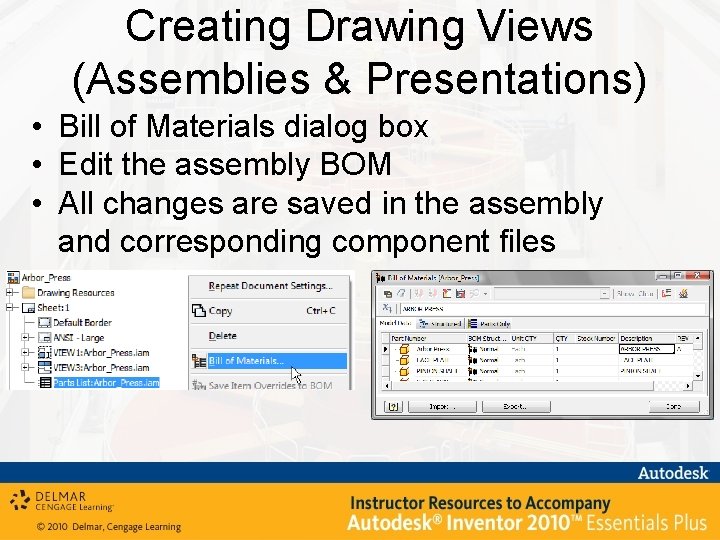

Creating Drawing Views (Assemblies & Presentations) • Bill of Materials dialog box • Edit the assembly BOM • All changes are saved in the assembly and corresponding component files

Creating Drawing Views (Assemblies & Presentations) • Parts Lists – Editing • Right-click and click Edit Parts List

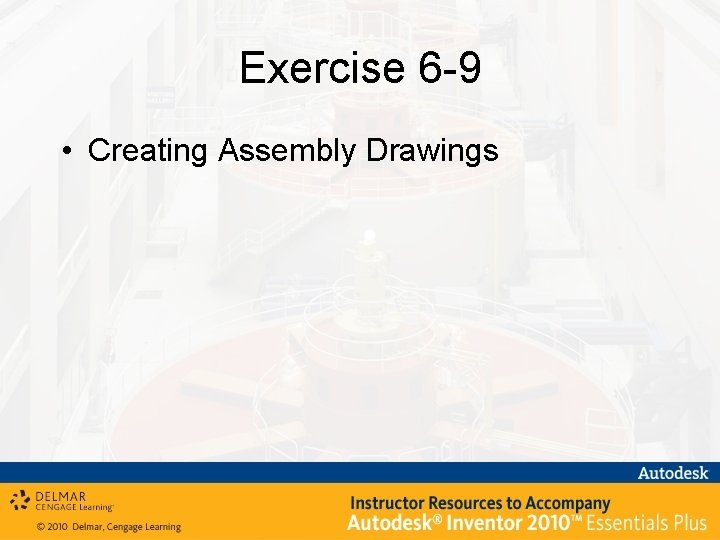

Exercise 6 -9 • Creating Assembly Drawings

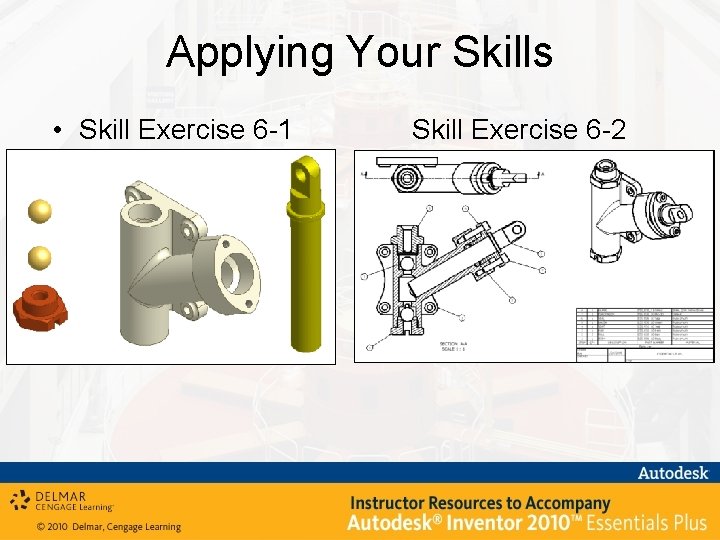

Applying Your Skills • Skill Exercise 6 -1 Skill Exercise 6 -2

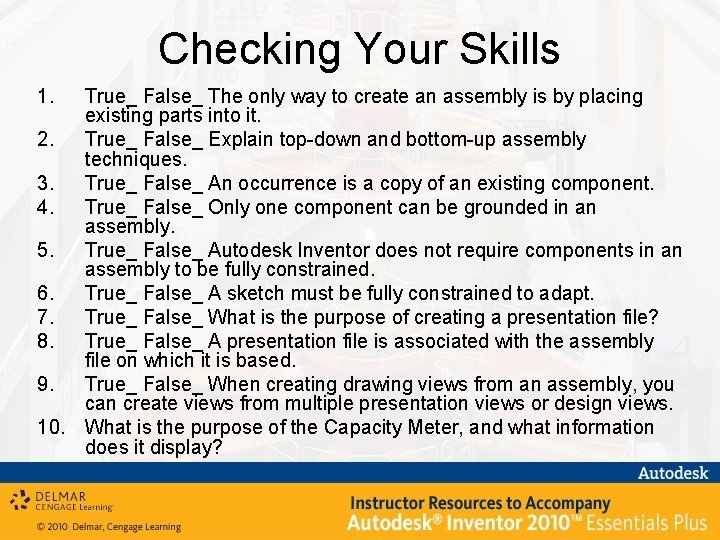

Checking Your Skills 1. True_ False_ The only way to create an assembly is by placing existing parts into it. 2. True_ False_ Explain top-down and bottom-up assembly techniques. 3. True_ False_ An occurrence is a copy of an existing component. 4. True_ False_ Only one component can be grounded in an assembly. 5. True_ False_ Autodesk Inventor does not require components in an assembly to be fully constrained. 6. True_ False_ A sketch must be fully constrained to adapt. 7. True_ False_ What is the purpose of creating a presentation file? 8. True_ False_ A presentation file is associated with the assembly file on which it is based. 9. True_ False_ When creating drawing views from an assembly, you can create views from multiple presentation views or design views. 10. What is the purpose of the Capacity Meter, and what information does it display?
