Chapter 6 Architectural Lines and Lettering

Chapter 6 Architectural Lines and Lettering

Introduction • Drafting – Universal graphic language – Uses lines, symbols, dimensions, and notes

Introduction • Drafting – Universal graphic language – Uses lines, symbols, dimensions, and notes to describe a structure to be built – Properly drawn lines are dark, crisp, sharp, and of a uniform thickness

Line Characteristics • Each line conveys a particular meaning – Thicker lines are more

Line Characteristics • Each line conveys a particular meaning – Thicker lines are more dominant and intended to be seen – Thinner lines are subordinate but just as important – Lighter lines can be used as guides for drawing other features or for lettering properly

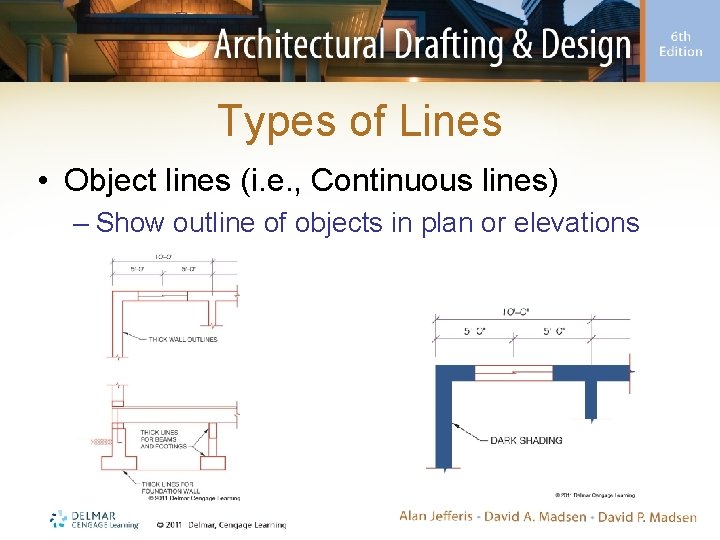

Types of Lines • Object lines (i. e. , Continuous lines) – Show outline

Types of Lines • Object lines (i. e. , Continuous lines) – Show outline of objects in plan or elevations

Types of Lines (cont’d. ) • Dashed lines (i. e. , hidden lines) –

Types of Lines (cont’d. ) • Dashed lines (i. e. , hidden lines) – Show features not visible in the view or plan

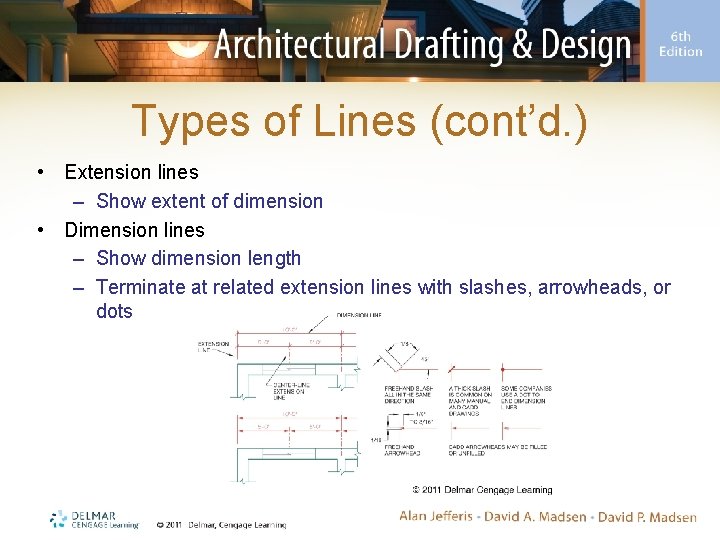

Types of Lines (cont’d. ) • Extension lines – Show extent of dimension •

Types of Lines (cont’d. ) • Extension lines – Show extent of dimension • Dimension lines – Show dimension length – Terminate at related extension lines with slashes, arrowheads, or dots

Types of Lines (cont’d. ) • Leader lines – Thin, dark, and crisp –

Types of Lines (cont’d. ) • Leader lines – Thin, dark, and crisp – Used to connect notes to related features – Drawn freehand or with irregular curve

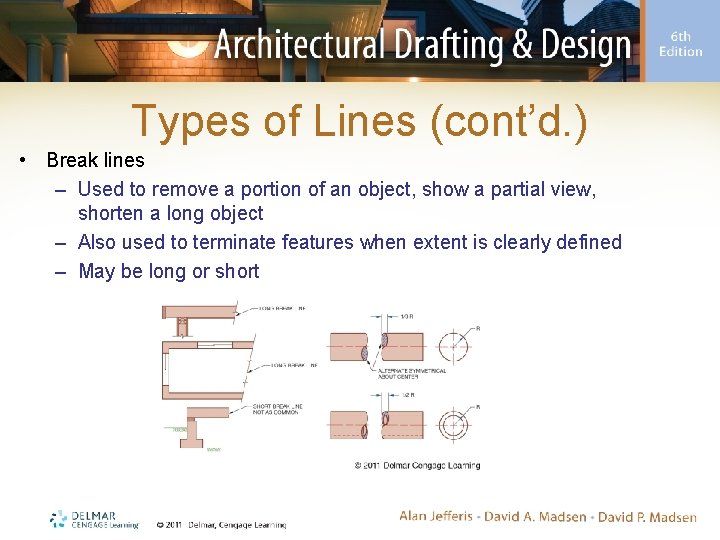

Types of Lines (cont’d. ) • Break lines – Used to remove a portion

Types of Lines (cont’d. ) • Break lines – Used to remove a portion of an object, show a partial view, shorten a long object – Also used to terminate features when extent is clearly defined – May be long or short

Line Sizes in CAD • • • Color Dependent Plotting – White-Walls are thick

Line Sizes in CAD • • • Color Dependent Plotting – White-Walls are thick – Cyan-Dimensions are thin Thick (0. 025”) – Floor plan wall outlines – Elevation Outline/ Accent – Section Accent – Foundation outline Thin (0. 012”) – Floor plan symbols – Elevation Features – Section Features in foreground

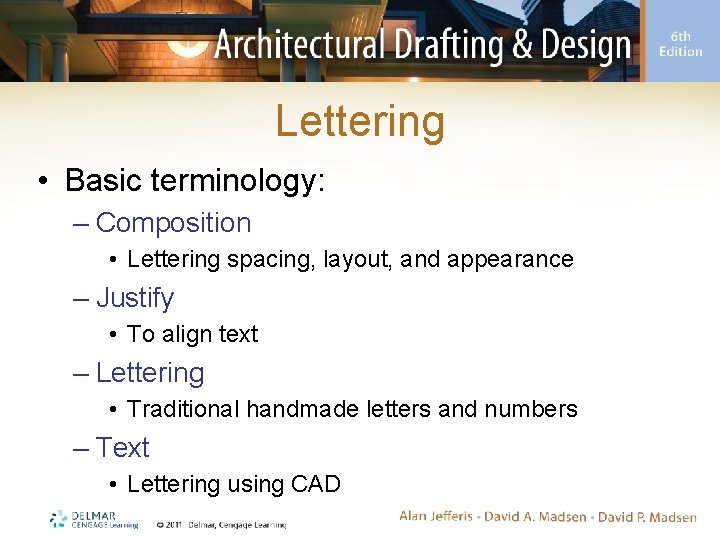

Lettering • Basic terminology: – Composition • Lettering spacing, layout, and appearance – Justify

Lettering • Basic terminology: – Composition • Lettering spacing, layout, and appearance – Justify • To align text – Lettering • Traditional handmade letters and numbers – Text • Lettering using CAD

Lettering (cont’d. ) • Basic terminology (cont’d. ): – Annotation • Text, notes, dimensions,

Lettering (cont’d. ) • Basic terminology (cont’d. ): – Annotation • Text, notes, dimensions, and text symbols – Font • Assortment of one size and style of lettering or text – Text style • Set of text characters (e. g. , font, height, width)

Lettering (cont’d. ) • Single-stroke lettering – Single straight or curved line elements •

Lettering (cont’d. ) • Single-stroke lettering – Single straight or curved line elements • Makes text easy and clear to read

Lettering (cont’d. ) • Slanted lettering – Slant to the right with an angle

Lettering (cont’d. ) • Slanted lettering – Slant to the right with an angle of 68° from horizontal • Uppercase slanted lettering is used for water feature names in mapping

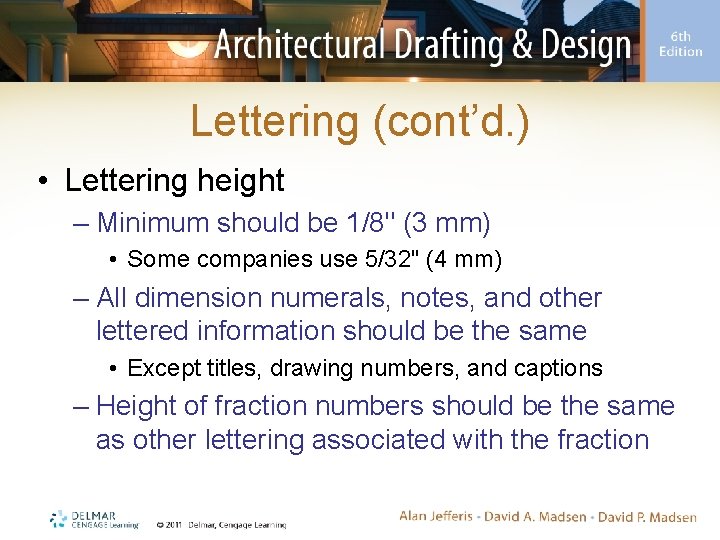

Lettering (cont’d. ) • Lettering height – Minimum should be 1/8" (3 mm) •

Lettering (cont’d. ) • Lettering height – Minimum should be 1/8" (3 mm) • Some companies use 5/32" (4 mm) – All dimension numerals, notes, and other lettered information should be the same • Except titles, drawing numbers, and captions – Height of fraction numbers should be the same as other lettering associated with the fraction

Lettering (cont’d. ) • Rules for lettering and text numeral applications: – Foot units

Lettering (cont’d. ) • Rules for lettering and text numeral applications: – Foot units are followed by foot symbol ('), and inch units are followed by inch symbol (″) – Inches and fractions are used for values less than 12 inches (e. g. , 6″)

What are Advantages of CAD Lettering • • Text is consistently placed in shape

What are Advantages of CAD Lettering • • Text is consistently placed in shape and size Text is easily modified Insertion point indicates where the text starts Text can be easily moved, copied, etc. – Architectural Fonts • • • Sylus. BT City. Blueprint Archstyle Archquick

Lines and Lettering Assignment • Sketch the kitchen example in figure 5. 1 using

Lines and Lettering Assignment • Sketch the kitchen example in figure 5. 1 using most of the line types. Sketch the remaining line types below and label with proper architectural lettering what each line type is and use is. Use construction lines to keep lettering lined up.
