Chapter 5 WEB SERVERS DatabaseDriven Web Sites Second

Chapter 5 WEB SERVERS Database-Driven Web Sites, Second Edition 1

Objectives In this chapter, you will: • Learn about Internet Information Services • Become familiar with the components of a Web server, and specify the Web server's home directory and default document • Create and configure Web server physical directories, virtual directories, and applications Database-Driven Web Sites, Second Edition 2

Objectives In this chapter, you will: • Learn how to organize a Web server • Learn how to reference files on a Web server • Understand the factors that impact Web site performance Database-Driven Web Sites, Second Edition 3

Web Servers • Web servers: computers that are connected to the Internet and run Web server software • A personal Web server: allows only a limited number of user connections • A production Web server: available to anyone who connects to the Internet Database-Driven Web Sites, Second Edition 4

Internet Information Services • Internet Information Services (IIS) – Web server software that comes with Windows NT, Windows 2000, and Windows XP – Includes an administration utility to create, manage, and administer a Web server • A Web server is also called a Web site Database-Driven Web Sites, Second Edition 5

Internet Information Services • IIS administrative utility: performs Web server administrative tasks within IIS • In Windows XP, the administrative utility is part of Internet Information Services • IIS: the Web server software • IIS console: the administrative utility within IIS Database-Driven Web Sites, Second Edition 6

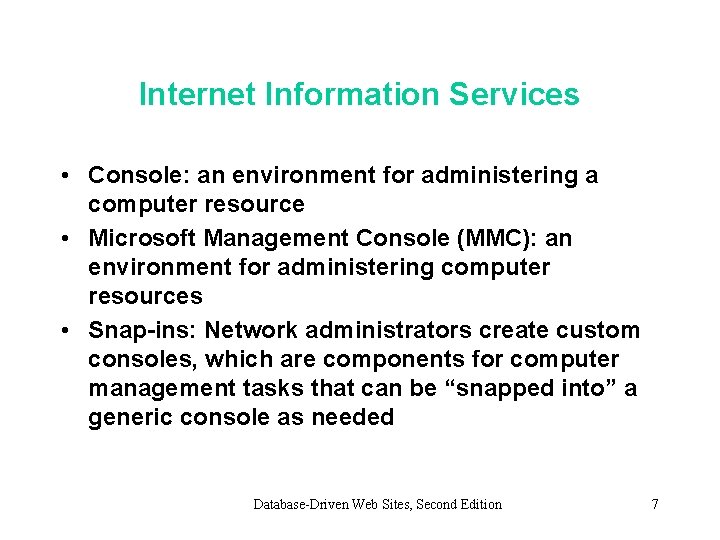

Internet Information Services • Console: an environment for administering a computer resource • Microsoft Management Console (MMC): an environment for administering computer resources • Snap-ins: Network administrators create custom consoles, which are components for computer management tasks that can be “snapped into” a generic console as needed Database-Driven Web Sites, Second Edition 7

Internet Information Services • IIS console: a custom console containing the Internet Information Services snap-in, which includes components for administering Web servers • Figure 5 -1 shows the IIS console Database-Driven Web Sites, Second Edition 8

Web Server Components • Home directory: directory on the Web server that is the starting point for accessing the Web pages, graphic image files, programs, and other files that are available from the Web site • Console tree: displays the components within a Web server’s home directory as physical directories, virtual directories, and applications Database-Driven Web Sites, Second Edition 9

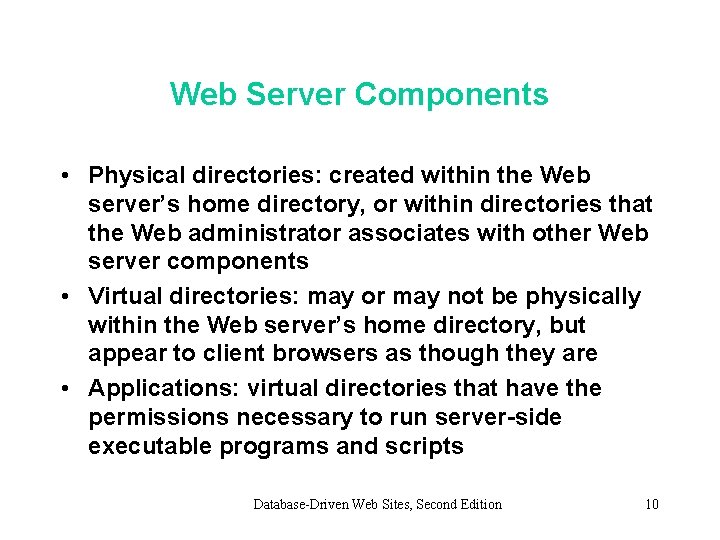

Web Server Components • Physical directories: created within the Web server’s home directory, or within directories that the Web administrator associates with other Web server components • Virtual directories: may or may not be physically within the Web server’s home directory, but appear to client browsers as though they are • Applications: virtual directories that have the permissions necessary to run server-side executable programs and scripts Database-Driven Web Sites, Second Edition 10

Web Server Components • To administer a Web server, a Web administrator must – Designate and configure the Web server’s home directory and default document – Create and configure the Web server’s physical directories, virtual directories, and applications • Many Web server configuration tasks are performed using the Web Site Properties dialog box in the IIS console Database-Driven Web Sites, Second Edition 11

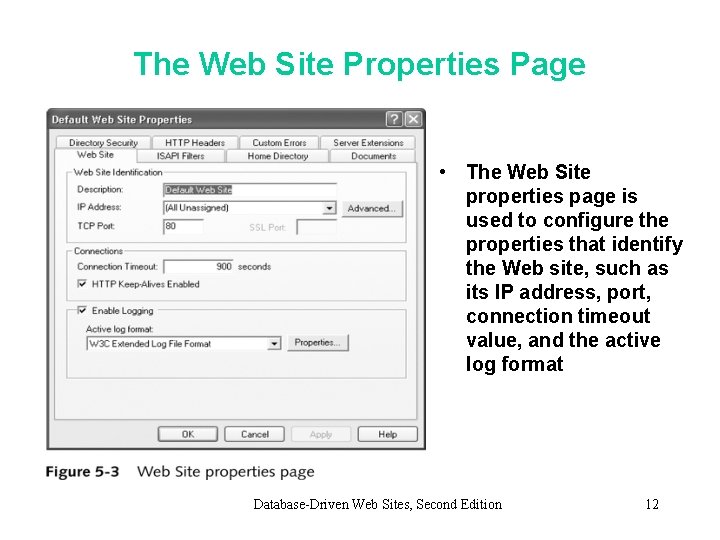

The Web Site Properties Page • The Web Site properties page is used to configure the properties that identify the Web site, such as its IP address, port, connection timeout value, and the active log format Database-Driven Web Sites, Second Edition 12

The Home Directory Properties Page • The home directory for a Web server is specified on the Home Directory properties page Database-Driven Web Sites, Second Edition 13

The Home Directory Properties Page • The first three option buttons on the Home Directory properties page specify whether the Web site displays documents from: – A directory located on this computer – A share located on another computer – A redirection to a URL • Local Path field: specifies the path to the home directory • The remaining properties on the Home Directory properties page specify permissions that the system grants to users who connect to the Web site in the home directory Database-Driven Web Sites, Second Edition 14

The Home Directory Properties Page • Today, most computers are connected to networks • Network share: – makes computer files available to other users on a network – a drive or directory that network administrators configure so that users can view and manipulate its files and subdirectories from other network computers Database-Driven Web Sites, Second Edition 15

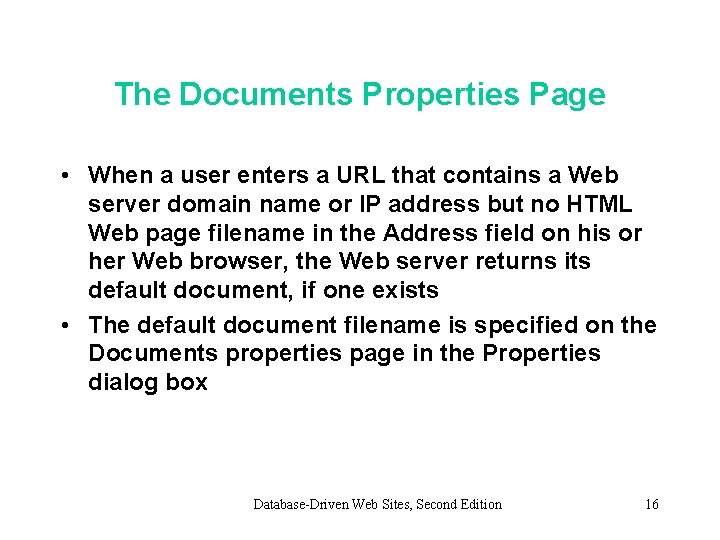

The Documents Properties Page • When a user enters a URL that contains a Web server domain name or IP address but no HTML Web page filename in the Address field on his or her Web browser, the Web server returns its default document, if one exists • The default document filename is specified on the Documents properties page in the Properties dialog box Database-Driven Web Sites, Second Edition 16

The Documents Properties Page • On this page, the Enable Default Document check box is used to enable or disable the default document Database-Driven Web Sites, Second Edition 17

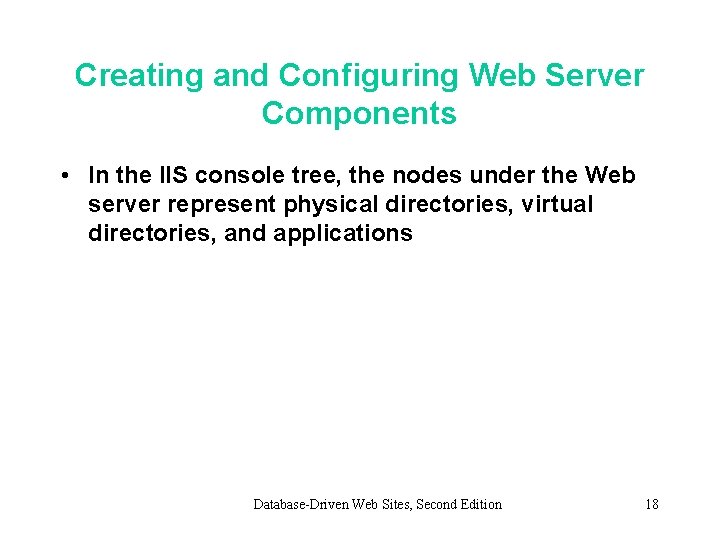

Creating and Configuring Web Server Components • In the IIS console tree, the nodes under the Web server represent physical directories, virtual directories, and applications Database-Driven Web Sites, Second Edition 18

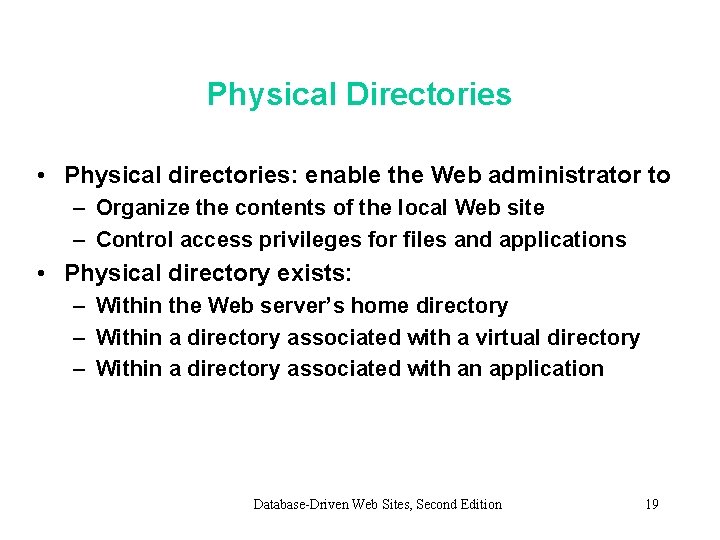

Physical Directories • Physical directories: enable the Web administrator to – Organize the contents of the local Web site – Control access privileges for files and applications • Physical directory exists: – Within the Web server’s home directory – Within a directory associated with a virtual directory – Within a directory associated with an application Database-Driven Web Sites, Second Edition 19

Physical Directories • To access files that are in a physical directory on the Web server’s home directory, a user can enter the URL for a Web server, a front slash (/), the name of the physical directory, another front slash, and the filename Database-Driven Web Sites, Second Edition 20

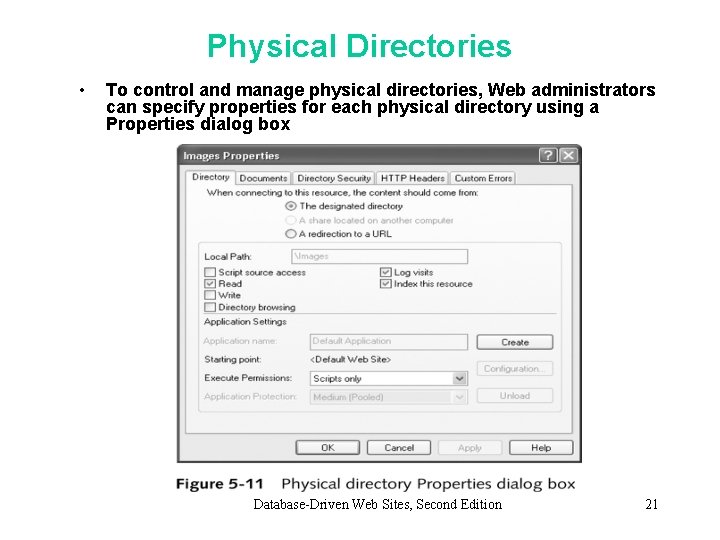

Physical Directories • To control and manage physical directories, Web administrators can specify properties for each physical directory using a Properties dialog box Database-Driven Web Sites, Second Edition 21

Virtual Directories • Virtual directory – Appears to client browsers as a physical directory within the home directory – Can be associated with a physical directory that is located anywhere in the Web server’s file system, on a network share, or using a redirection to a URL that references a directory on another Web server Database-Driven Web Sites, Second Edition 22

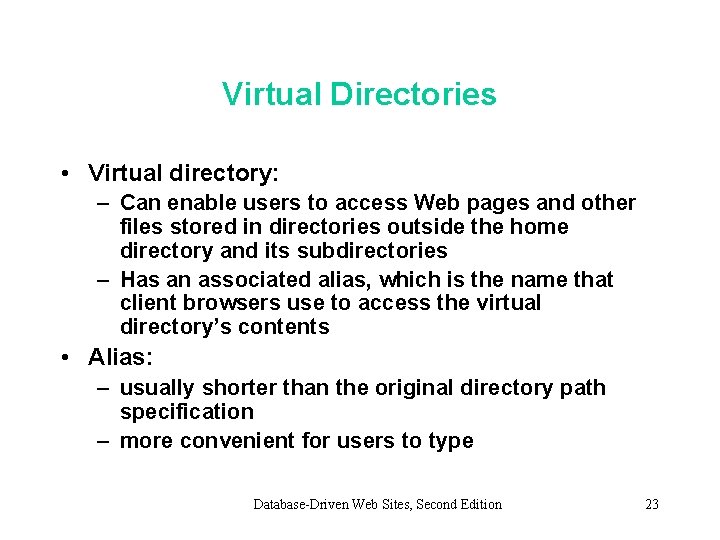

Virtual Directories • Virtual directory: – Can enable users to access Web pages and other files stored in directories outside the home directory and its subdirectories – Has an associated alias, which is the name that client browsers use to access the virtual directory’s contents • Alias: – usually shorter than the original directory path specification – more convenient for users to type Database-Driven Web Sites, Second Edition 23

Virtual Directories • Virtual Directory Creation Wizard: – Creates a virtual directory in the IIS console – Presents a series of pages that prompt the administrator to enter the specifications for the virtual directory Database-Driven Web Sites, Second Edition 24

Virtual Directories • These pages include: – – – A Welcome page An Alias page A Web Site Content Directory page An Access Permissions page A Finish page Database-Driven Web Sites, Second Edition 25

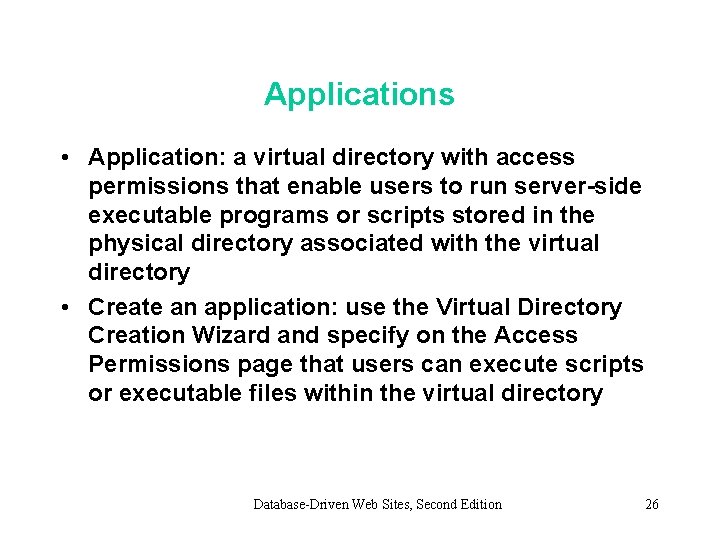

Applications • Application: a virtual directory with access permissions that enable users to run server-side executable programs or scripts stored in the physical directory associated with the virtual directory • Create an application: use the Virtual Directory Creation Wizard and specify on the Access Permissions page that users can execute scripts or executable files within the virtual directory Database-Driven Web Sites, Second Edition 26

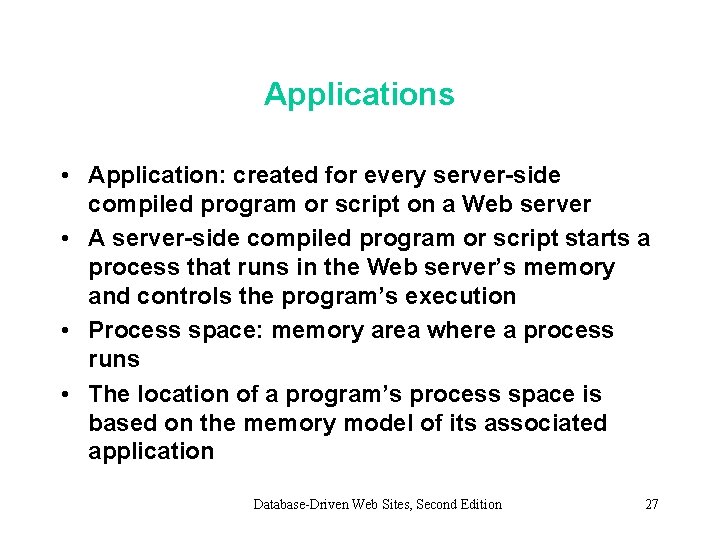

Applications • Application: created for every server-side compiled program or script on a Web server • A server-side compiled program or script starts a process that runs in the Web server’s memory and controls the program’s execution • Process space: memory area where a process runs • The location of a program’s process space is based on the memory model of its associated application Database-Driven Web Sites, Second Edition 27

Applications • A memory model specifies how an environment stores the data for its processes in the main memory of a computer Database-Driven Web Sites, Second Edition 28

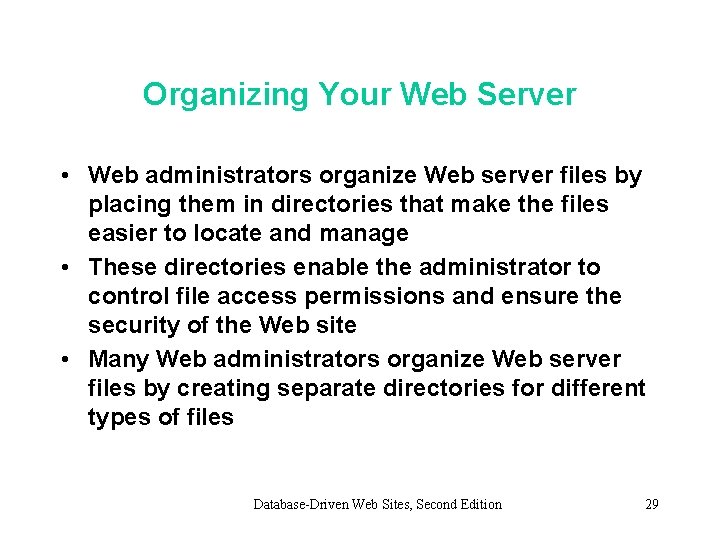

Organizing Your Web Server • Web administrators organize Web server files by placing them in directories that make the files easier to locate and manage • These directories enable the administrator to control file access permissions and ensure the security of the Web site • Many Web administrators organize Web server files by creating separate directories for different types of files Database-Driven Web Sites, Second Edition 29

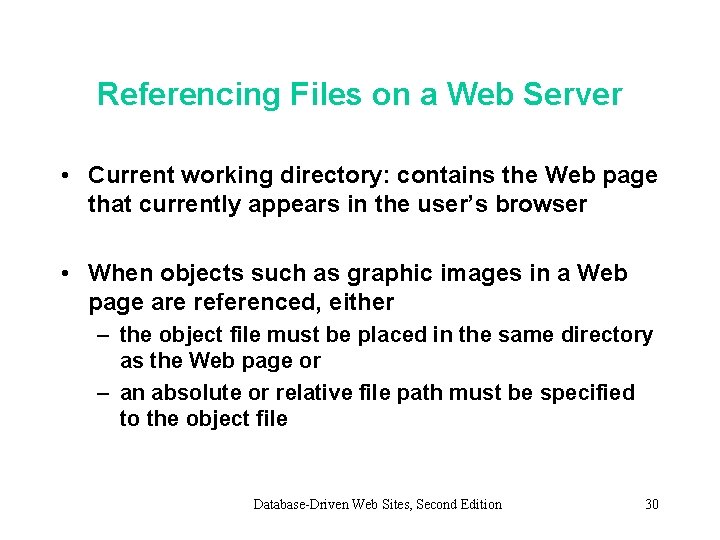

Referencing Files on a Web Server • Current working directory: contains the Web page that currently appears in the user’s browser • When objects such as graphic images in a Web page are referenced, either – the object file must be placed in the same directory as the Web page or – an absolute or relative file path must be specified to the object file Database-Driven Web Sites, Second Edition 30

Absolute URL Addresses • Absolute URL address specifies: – Web server IP address or domain name – Complete path or virtual directory path to the Web page file, and – Name of the Web page file • Absolute URL address – can be placed in a browser’s Address field – in a hyperlink tag to specify the location of a Web page file or – as the src attribute value in an <img> tag Database-Driven Web Sites, Second Edition 31

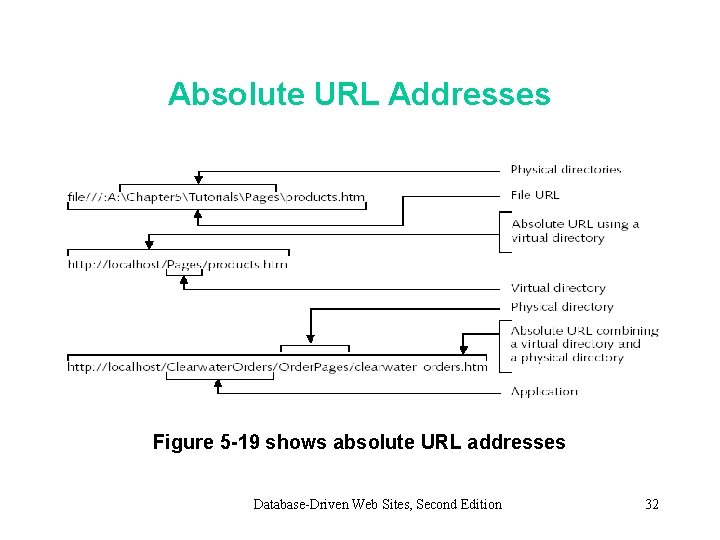

Absolute URL Addresses Figure 5 -19 shows absolute URL addresses Database-Driven Web Sites, Second Edition 32

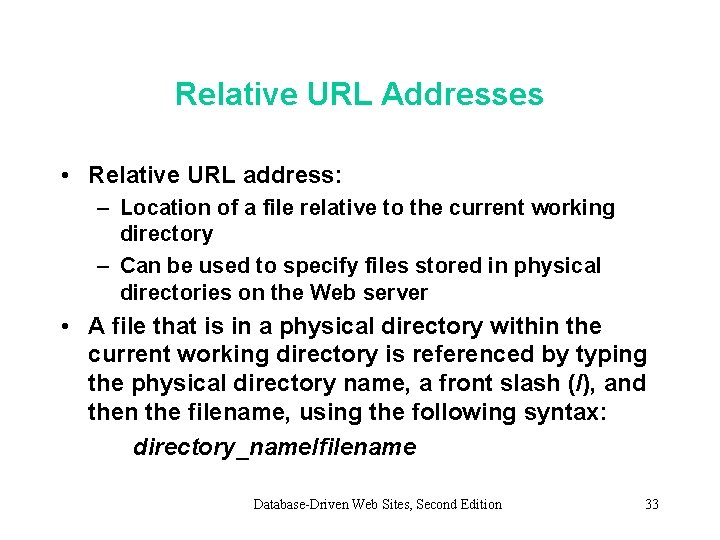

Relative URL Addresses • Relative URL address: – Location of a file relative to the current working directory – Can be used to specify files stored in physical directories on the Web server • A file that is in a physical directory within the current working directory is referenced by typing the physical directory name, a front slash (/), and then the filename, using the following syntax: directory_name/filename Database-Driven Web Sites, Second Edition 33

Relative URL Addresses • A file that is in the parent directory of the current working directory is referenced by specifying the parent directory using two periods (. . ) followed by a front slash (/), using the following syntax: . . /filename Database-Driven Web Sites, Second Edition 34

Factors Impacting Web Site Performance • Users of Web sites frequently experience delays while waiting for their browsers to display the pages they request • Factors in response time include: – Speed of the Web server’s network connection – Amount of main memory that the Web server's administrator allocates to process Web page requests – Web server's processor speed Database-Driven Web Sites, Second Edition 35

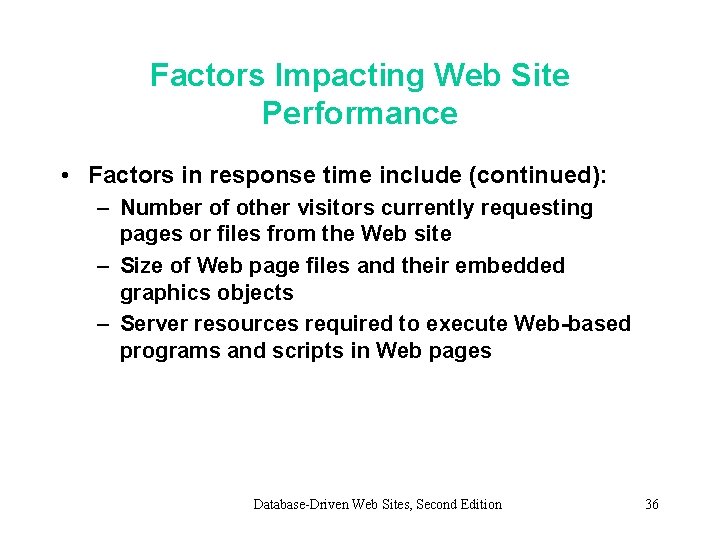

Factors Impacting Web Site Performance • Factors in response time include (continued): – Number of other visitors currently requesting pages or files from the Web site – Size of Web page files and their embedded graphics objects – Server resources required to execute Web-based programs and scripts in Web pages Database-Driven Web Sites, Second Edition 36

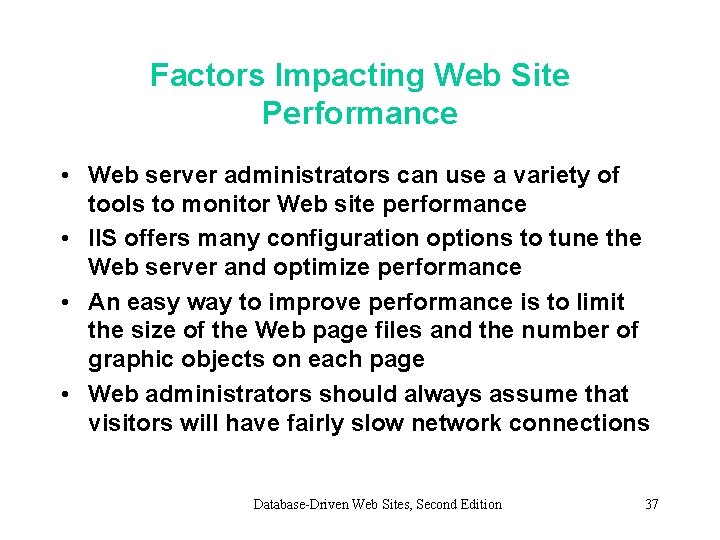

Factors Impacting Web Site Performance • Web server administrators can use a variety of tools to monitor Web site performance • IIS offers many configuration options to tune the Web server and optimize performance • An easy way to improve performance is to limit the size of the Web page files and the number of graphic objects on each page • Web administrators should always assume that visitors will have fairly slow network connections Database-Driven Web Sites, Second Edition 37

Summary • Internet Information Services (IIS) includes the IIS console for administering a Web server and the listener process for servicing user requests to a Web server • A Web server’s home directory is the Web server directory that contains the Web server’s default document • A physical directory is a folder within the Web server’s file system that is within the home directory, a virtual directory, or an application Database-Driven Web Sites, Second Edition 38

Summary • A virtual directory is not necessarily physically within the home directory, but appears to client browsers as though it is • Applications: virtual directories in which permissions exist to allow users to run scripts or executable files • When an object on a Web page is referenced, the referenced object must be in the same physical or virtual directory as the Web page that currently appears, or an absolute or relative URL address to the object on the Web server must be specified Database-Driven Web Sites, Second Edition 39
