Chapter 5 The Periodic Table Organizing the Elements

Chapter 5 The Periodic Table

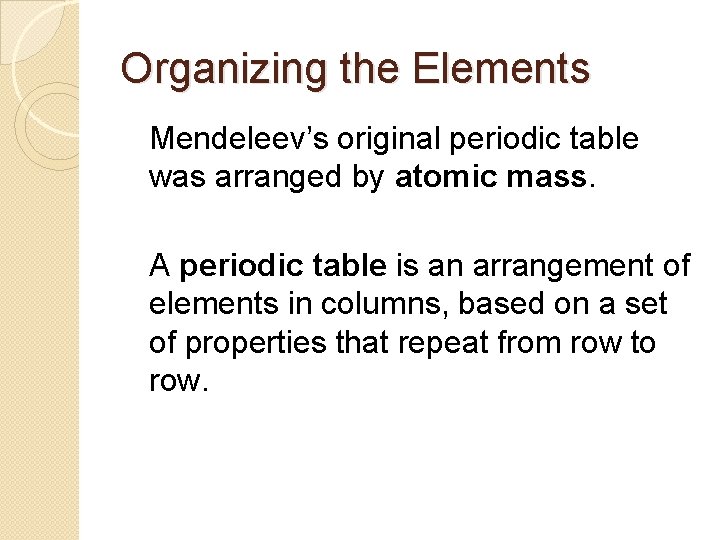

Organizing the Elements Mendeleev’s original periodic table was arranged by atomic mass. A periodic table is an arrangement of elements in columns, based on a set of properties that repeat from row to row.

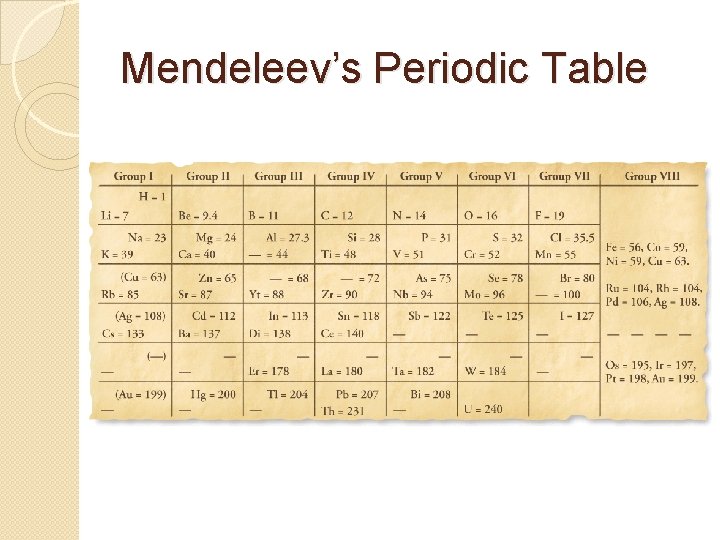

Mendeleev’s Periodic Table

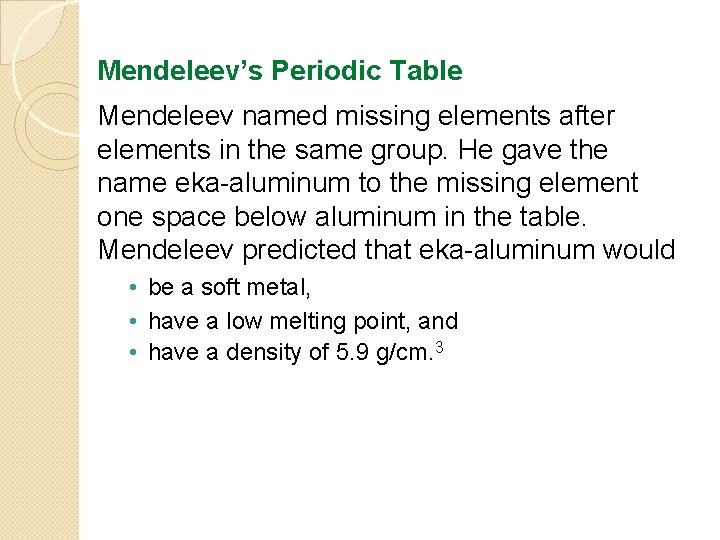

Mendeleev’s Periodic Table Mendeleev named missing elements after elements in the same group. He gave the name eka-aluminum to the missing element one space below aluminum in the table. Mendeleev predicted that eka-aluminum would • be a soft metal, • have a low melting point, and • have a density of 5. 9 g/cm. 3

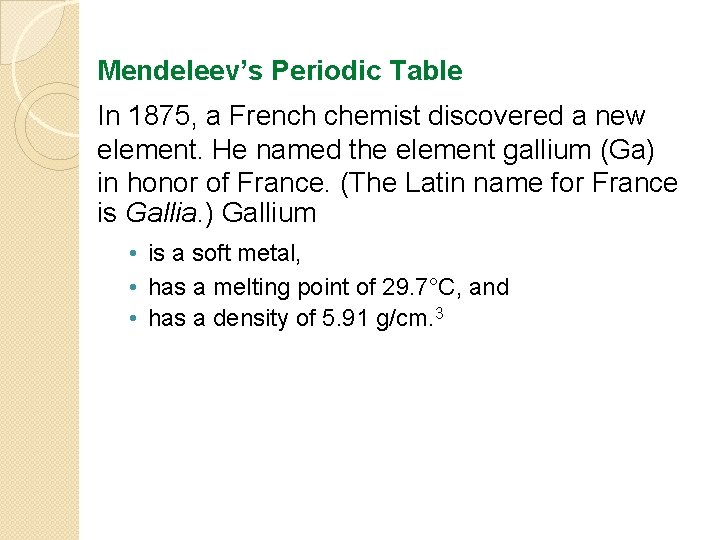

Mendeleev’s Periodic Table In 1875, a French chemist discovered a new element. He named the element gallium (Ga) in honor of France. (The Latin name for France is Gallia. ) Gallium • is a soft metal, • has a melting point of 29. 7°C, and • has a density of 5. 91 g/cm. 3

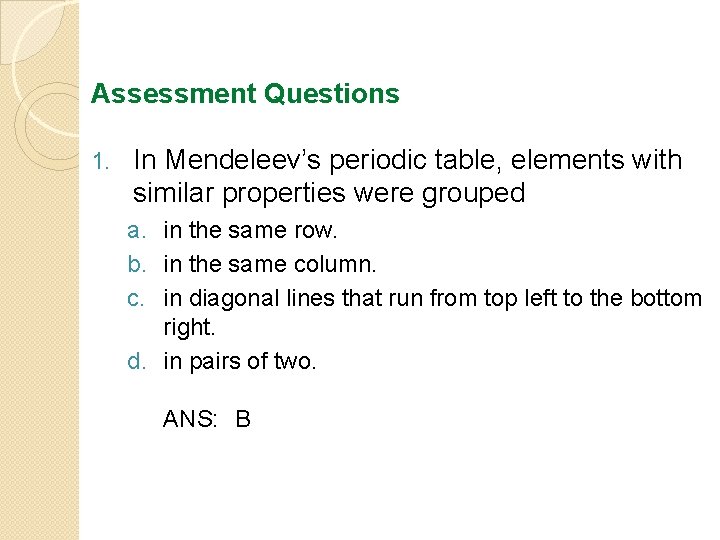

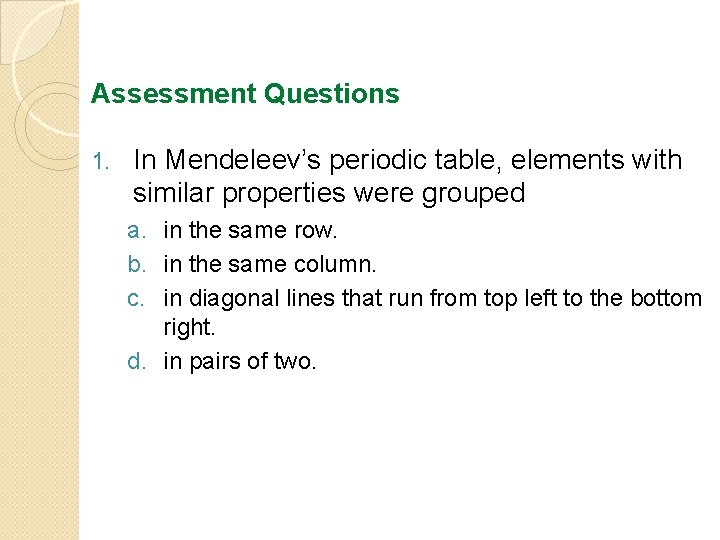

Assessment Questions 1. In Mendeleev’s periodic table, elements with similar properties were grouped a. in the same row. b. in the same column. c. in diagonal lines that run from top left to the bottom right. d. in pairs of two.

Assessment Questions 1. In Mendeleev’s periodic table, elements with similar properties were grouped a. in the same row. b. in the same column. c. in diagonal lines that run from top left to the bottom right. d. in pairs of two. ANS: B

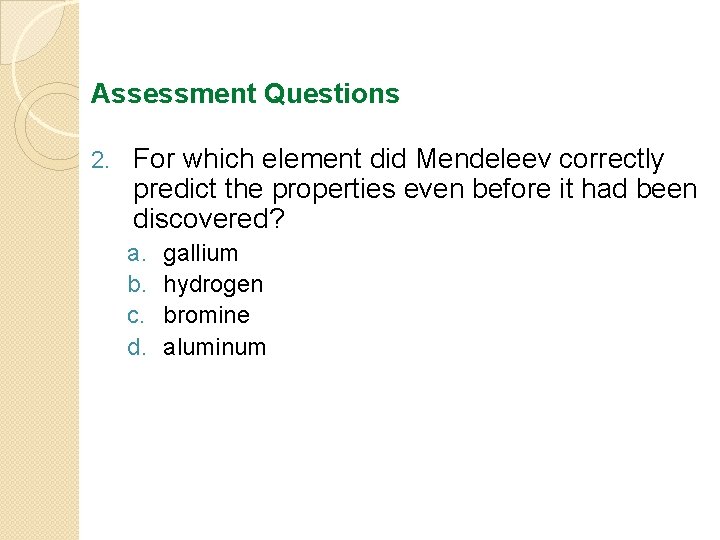

Assessment Questions 2. For which element did Mendeleev correctly predict the properties even before it had been discovered? a. b. c. d. gallium hydrogen bromine aluminum

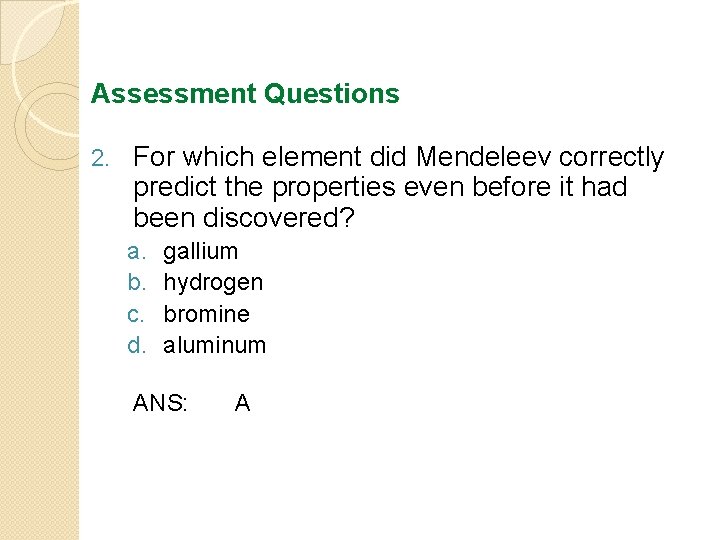

Assessment Questions 2. For which element did Mendeleev correctly predict the properties even before it had been discovered? a. b. c. d. gallium hydrogen bromine aluminum ANS: A

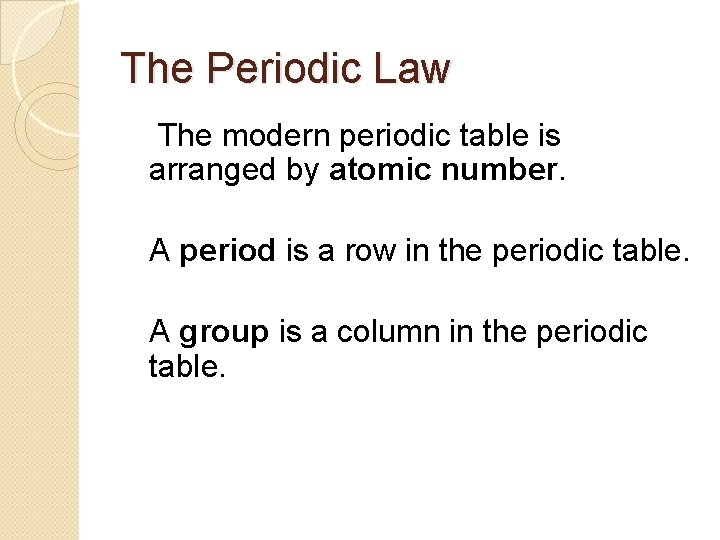

The Periodic Law The modern periodic table is arranged by atomic number. A period is a row in the periodic table. A group is a column in the periodic table.

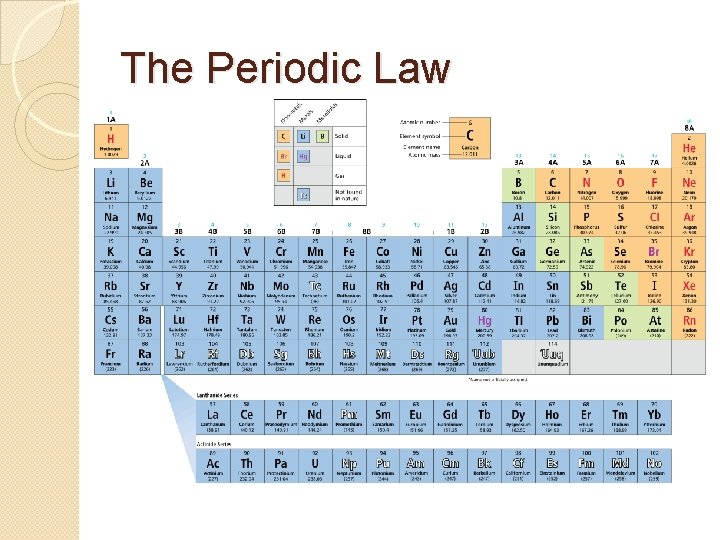

The Periodic Law

Classes of Elements are classified as metals, nonmetals, and metalloids. Metals are elements that are good conductors of electric current and heat. Nonmetals are elements that are poor conductors of heat and electric current. Metalloids are elements with properties that fall between those of metals and nonmetals.

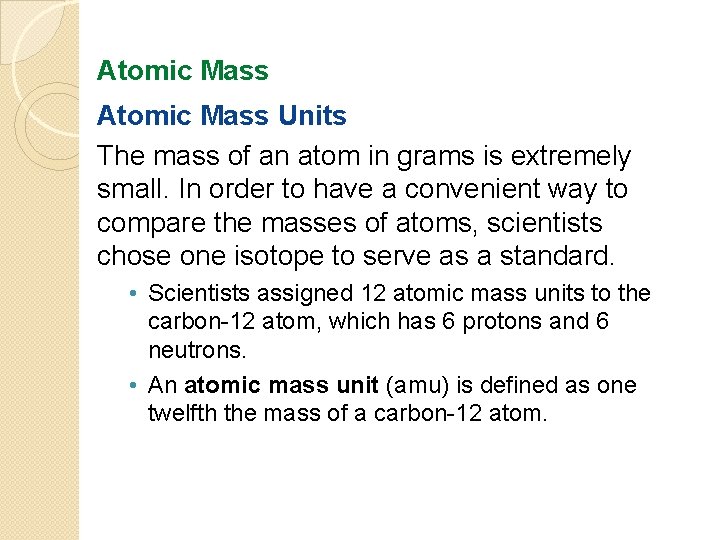

Atomic Mass Units The mass of an atom in grams is extremely small. In order to have a convenient way to compare the masses of atoms, scientists chose one isotope to serve as a standard. • Scientists assigned 12 atomic mass units to the carbon-12 atom, which has 6 protons and 6 neutrons. • An atomic mass unit (amu) is defined as one twelfth the mass of a carbon-12 atom.

Atomic Mass There are four pieces of information for each element. Atomic number Element symbol Element name Atomic mass

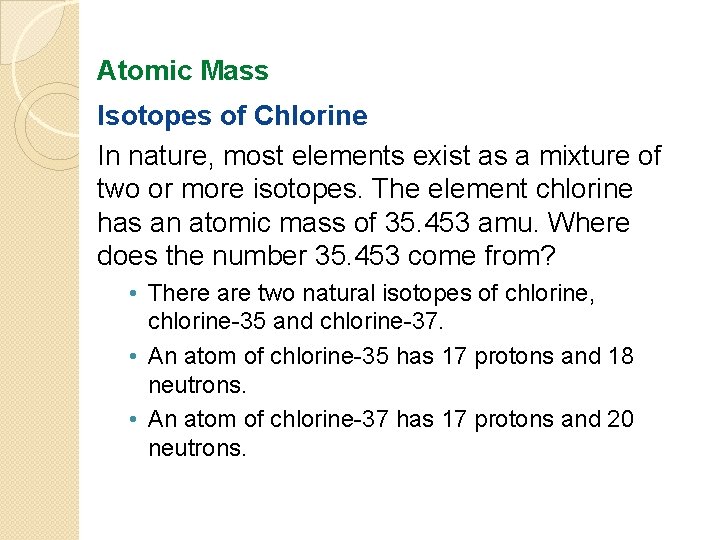

Atomic Mass Isotopes of Chlorine In nature, most elements exist as a mixture of two or more isotopes. The element chlorine has an atomic mass of 35. 453 amu. Where does the number 35. 453 come from? • There are two natural isotopes of chlorine, chlorine-35 and chlorine-37. • An atom of chlorine-35 has 17 protons and 18 neutrons. • An atom of chlorine-37 has 17 protons and 20 neutrons.

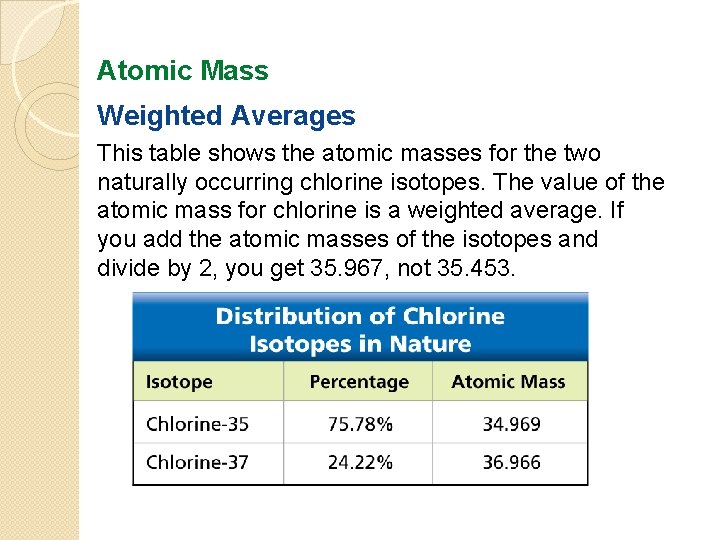

Atomic Mass Weighted Averages This table shows the atomic masses for the two naturally occurring chlorine isotopes. The value of the atomic mass for chlorine is a weighted average. If you add the atomic masses of the isotopes and divide by 2, you get 35. 967, not 35. 453.

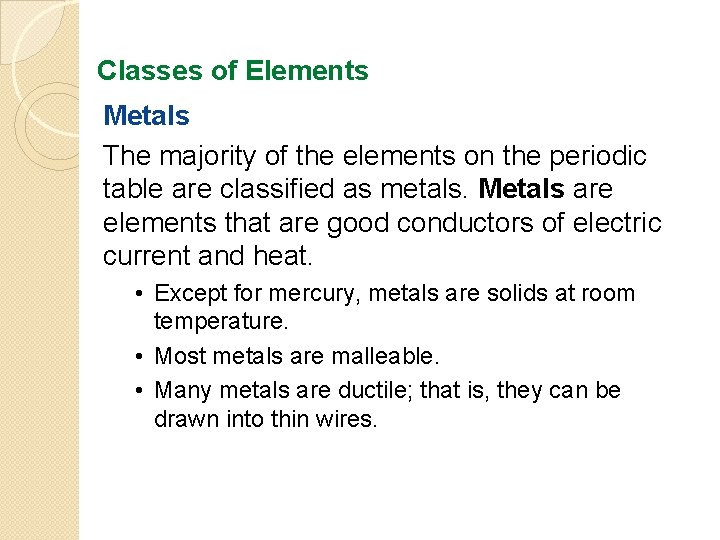

Classes of Elements Metals The majority of the elements on the periodic table are classified as metals. Metals are elements that are good conductors of electric current and heat. • Except for mercury, metals are solids at room temperature. • Most metals are malleable. • Many metals are ductile; that is, they can be drawn into thin wires.

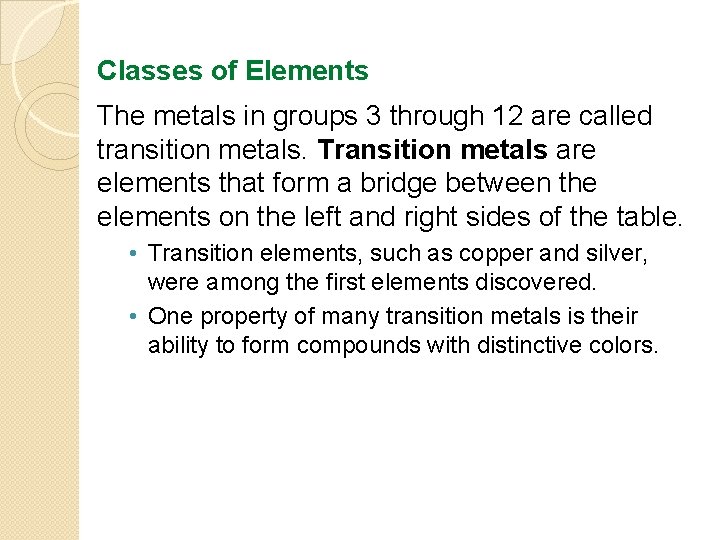

Classes of Elements The metals in groups 3 through 12 are called transition metals. Transition metals are elements that form a bridge between the elements on the left and right sides of the table. • Transition elements, such as copper and silver, were among the first elements discovered. • One property of many transition metals is their ability to form compounds with distinctive colors.

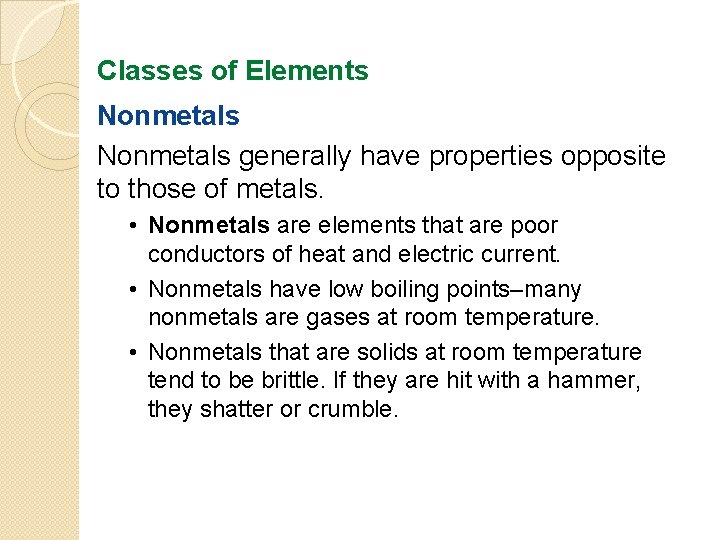

Classes of Elements Nonmetals generally have properties opposite to those of metals. • Nonmetals are elements that are poor conductors of heat and electric current. • Nonmetals have low boiling points–many nonmetals are gases at room temperature. • Nonmetals that are solids at room temperature tend to be brittle. If they are hit with a hammer, they shatter or crumble.

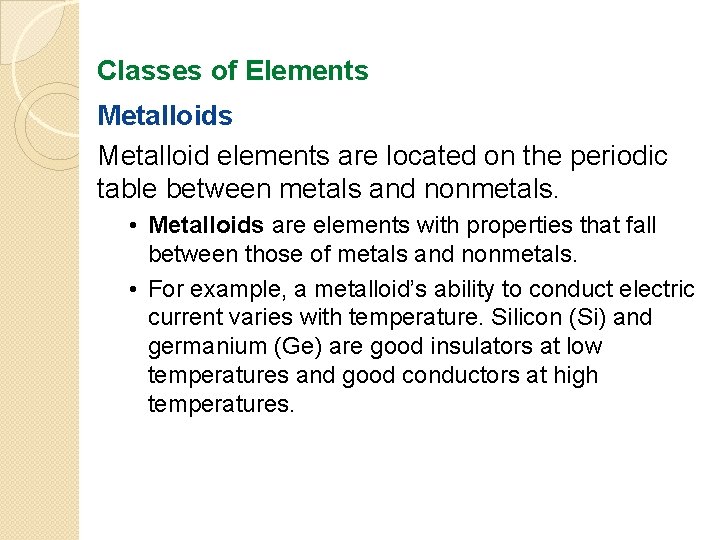

Classes of Elements Metalloid elements are located on the periodic table between metals and nonmetals. • Metalloids are elements with properties that fall between those of metals and nonmetals. • For example, a metalloid’s ability to conduct electric current varies with temperature. Silicon (Si) and germanium (Ge) are good insulators at low temperatures and good conductors at high temperatures.

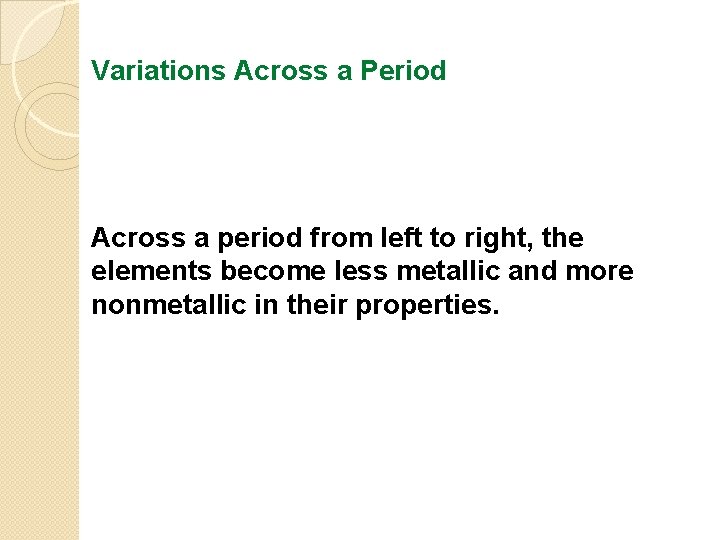

Variations Across a Period Across a period from left to right, the elements become less metallic and more nonmetallic in their properties.

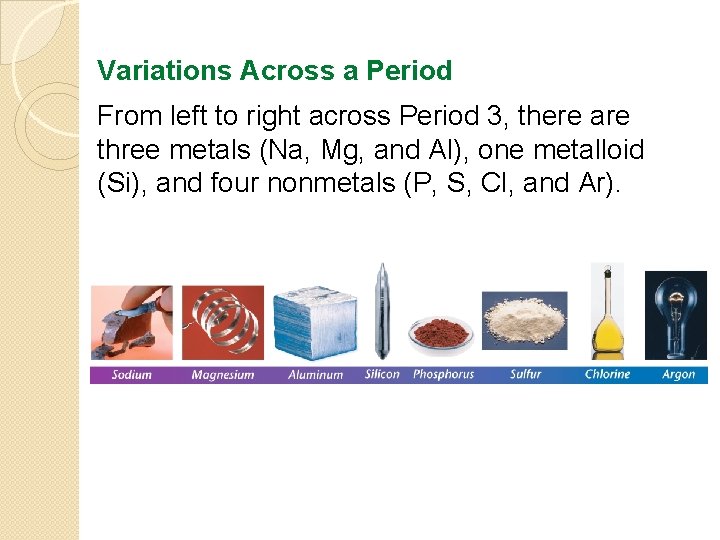

Variations Across a Period From left to right across Period 3, there are three metals (Na, Mg, and Al), one metalloid (Si), and four nonmetals (P, S, Cl, and Ar).

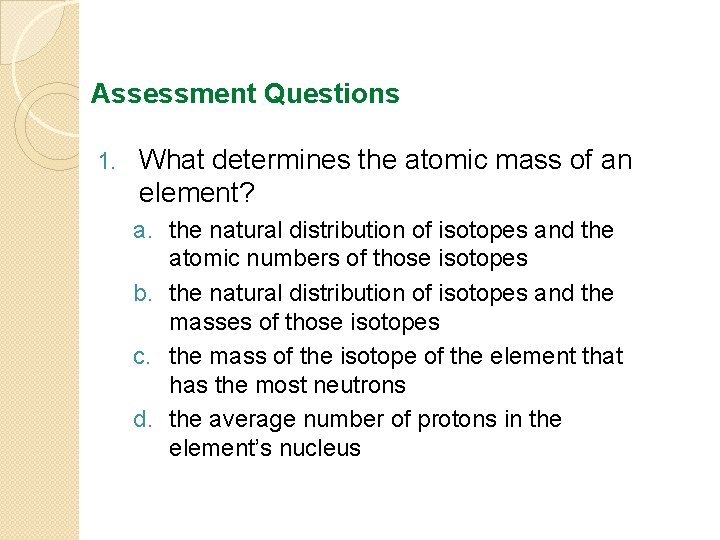

Assessment Questions 1. What determines the atomic mass of an element? a. the natural distribution of isotopes and the atomic numbers of those isotopes b. the natural distribution of isotopes and the masses of those isotopes c. the mass of the isotope of the element that has the most neutrons d. the average number of protons in the element’s nucleus

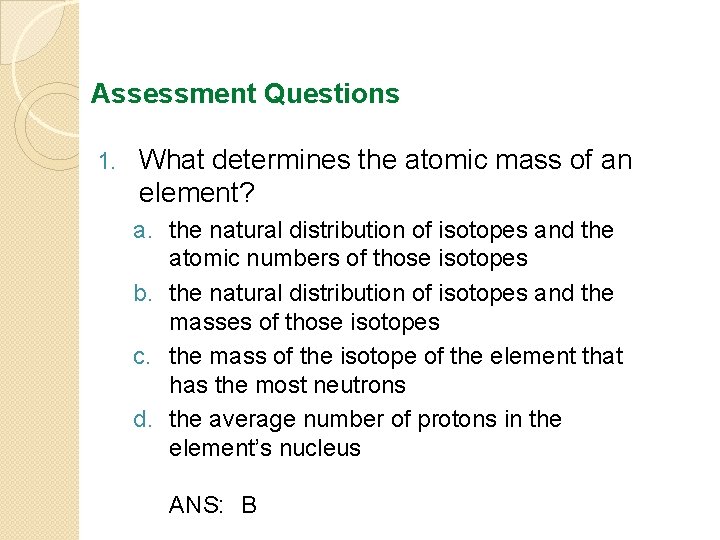

Assessment Questions 1. What determines the atomic mass of an element? a. the natural distribution of isotopes and the atomic numbers of those isotopes b. the natural distribution of isotopes and the masses of those isotopes c. the mass of the isotope of the element that has the most neutrons d. the average number of protons in the element’s nucleus ANS: B

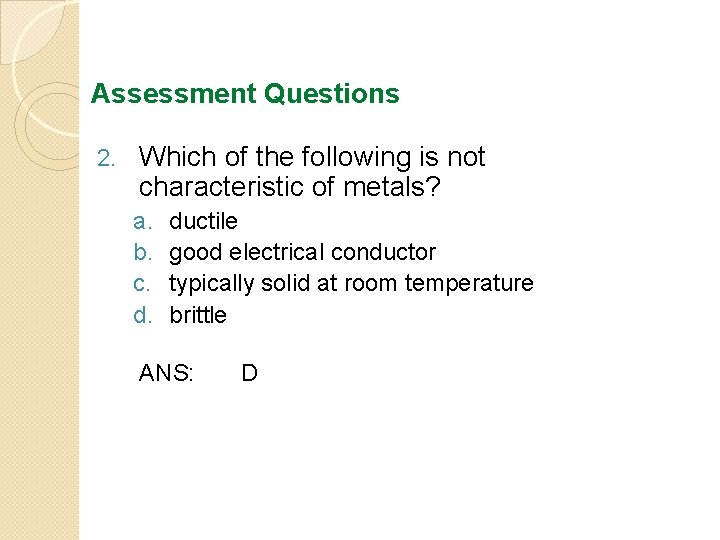

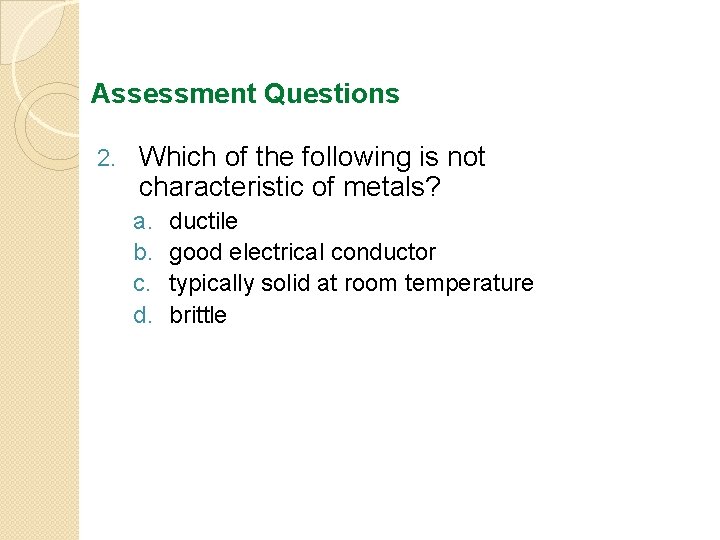

Assessment Questions 2. Which of the following is not characteristic of metals? a. b. c. d. ductile good electrical conductor typically solid at room temperature brittle

Assessment Questions 2. Which of the following is not characteristic of metals? a. b. c. d. ductile good electrical conductor typically solid at room temperature brittle ANS: D

Assessment Questions 3. Within a period of the periodic table, how do the properties of the elements vary? a. Metallic characteristics increase from left to right. b. Metallic characteristics decrease from left to right. c. Reactivity increases from left to right. d. Reactivity decreases from left to right.

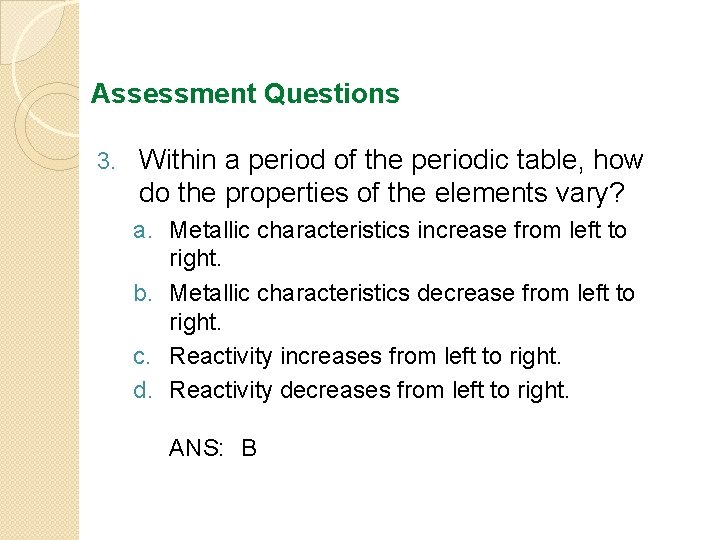

Assessment Questions 3. Within a period of the periodic table, how do the properties of the elements vary? a. Metallic characteristics increase from left to right. b. Metallic characteristics decrease from left to right. c. Reactivity increases from left to right. d. Reactivity decreases from left to right. ANS: B

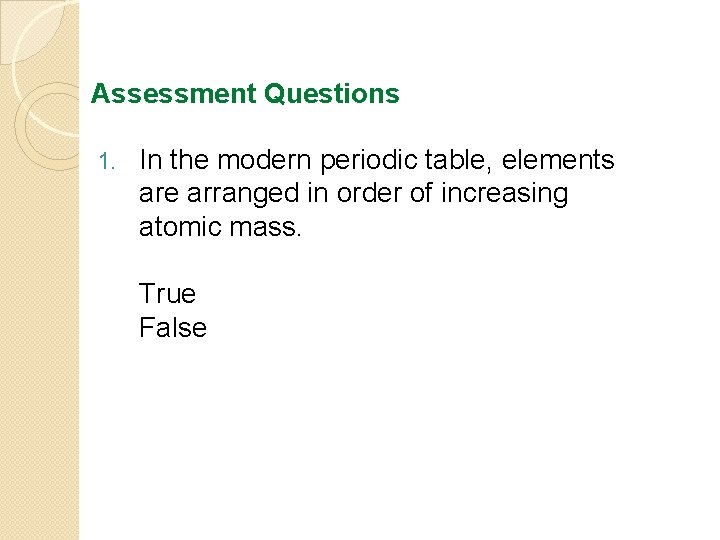

Assessment Questions 1. In the modern periodic table, elements are arranged in order of increasing atomic mass. True False

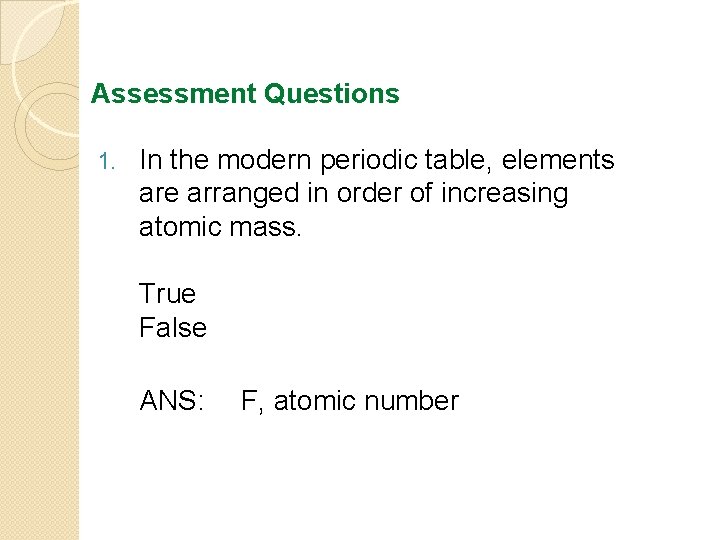

Assessment Questions 1. In the modern periodic table, elements are arranged in order of increasing atomic mass. True False ANS: F, atomic number

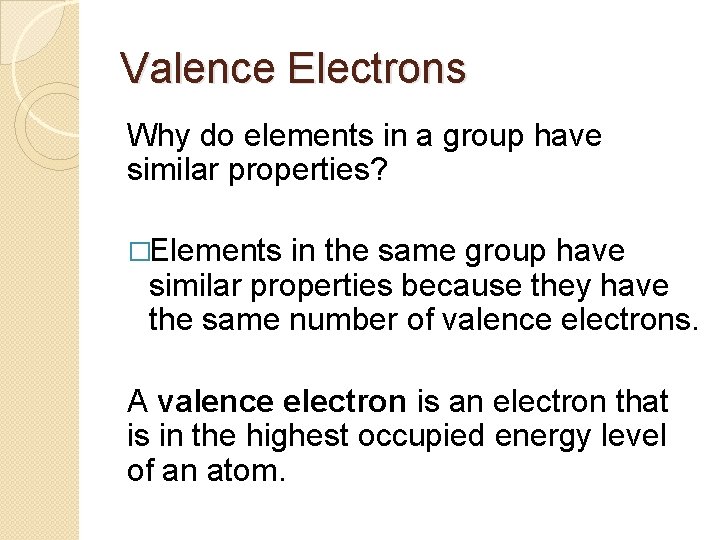

Valence Electrons Why do elements in a group have similar properties? �Elements in the same group have similar properties because they have the same number of valence electrons. A valence electron is an electron that is in the highest occupied energy level of an atom.

Valence Electrons �The number of valence electrons is equal to the group number for groups 1 A – 8 A in the periodic table. �Elements in the same group have similar properties because they have the same number of valence electrons. �The properties are not identical because the valence electrons are in different energy levels.

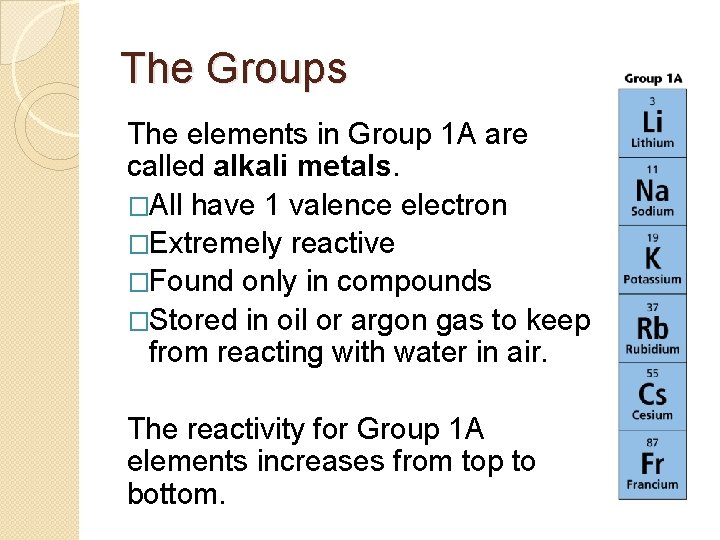

The Groups The elements in Group 1 A are called alkali metals. �All have 1 valence electron �Extremely reactive �Found only in compounds �Stored in oil or argon gas to keep from reacting with water in air. The reactivity for Group 1 A elements increases from top to bottom.

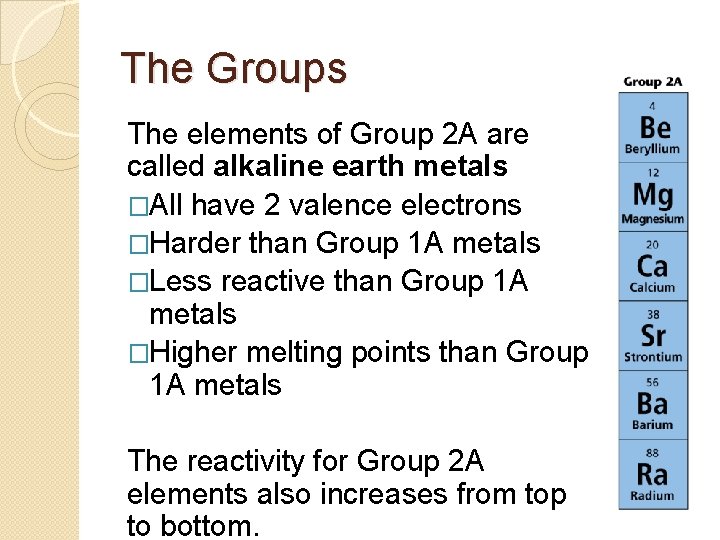

The Groups The elements of Group 2 A are called alkaline earth metals �All have 2 valence electrons �Harder than Group 1 A metals �Less reactive than Group 1 A metals �Higher melting points than Group 1 A metals The reactivity for Group 2 A elements also increases from top to bottom.

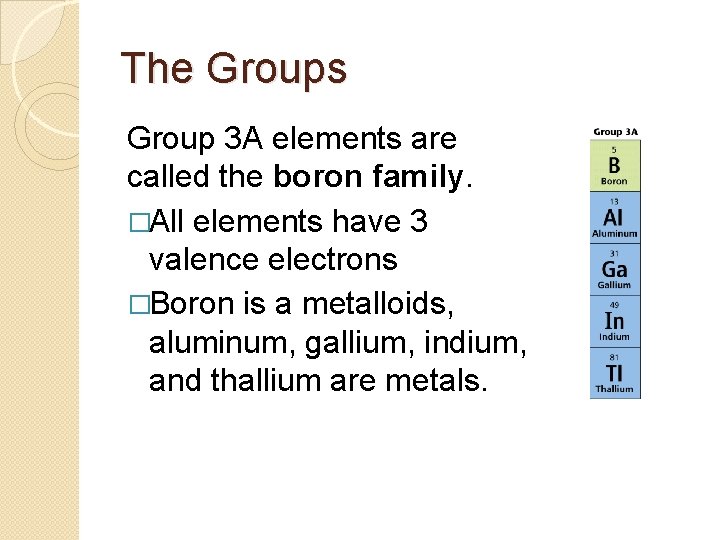

The Groups Group 3 A elements are called the boron family. �All elements have 3 valence electrons �Boron is a metalloids, aluminum, gallium, indium, and thallium are metals.

The Groups Group 4 A elements are called the carbon family. �All elements have 4 valence electrons �Carbon is a nonmetal, silicon and germanium are metalloids, and tin and lead are metals. �Carbon is found in most compounds in your body, except water

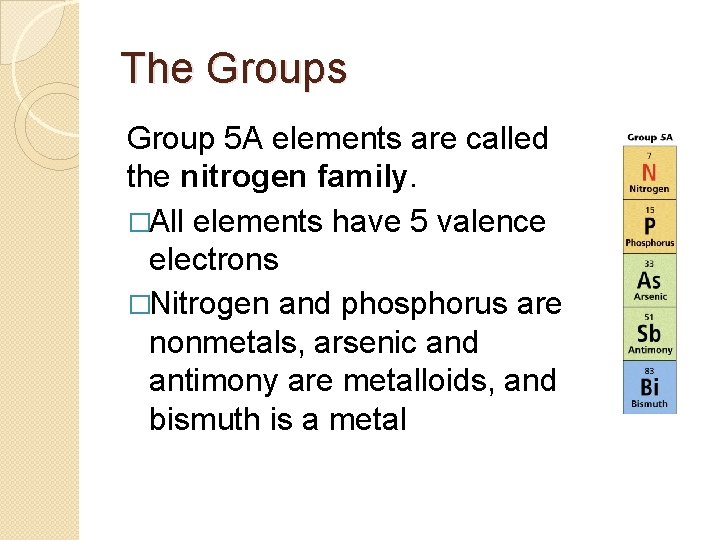

The Groups Group 5 A elements are called the nitrogen family. �All elements have 5 valence electrons �Nitrogen and phosphorus are nonmetals, arsenic and antimony are metalloids, and bismuth is a metal

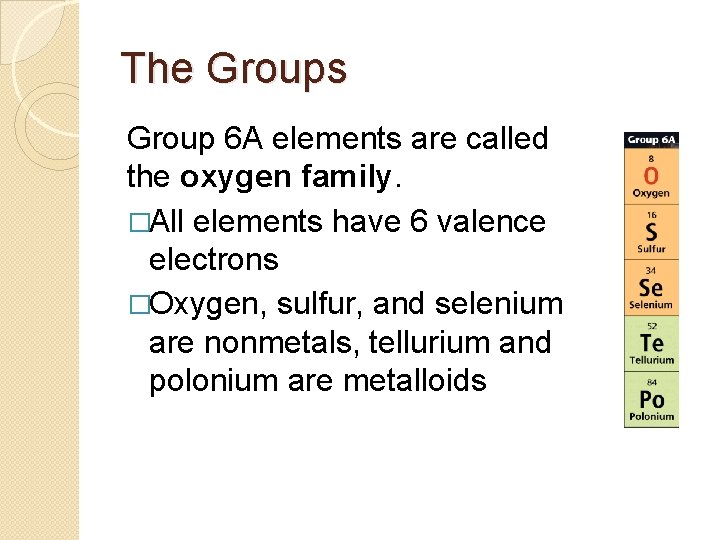

The Groups Group 6 A elements are called the oxygen family. �All elements have 6 valence electrons �Oxygen, sulfur, and selenium are nonmetals, tellurium and polonium are metalloids

The Groups Group 7 A elements are called the halogens. � Each element has 7 valence electrons � Fluorine and Chlorine are gases, Bromine is a liquid, and Iodine is a solid � They are all nonmetals, except astatine is a metalloid � React most easily with metals (Group 1 A especially) The reactivity for Group 7 A decreases from top to bottom. Fluorine is the most reactive halogen.

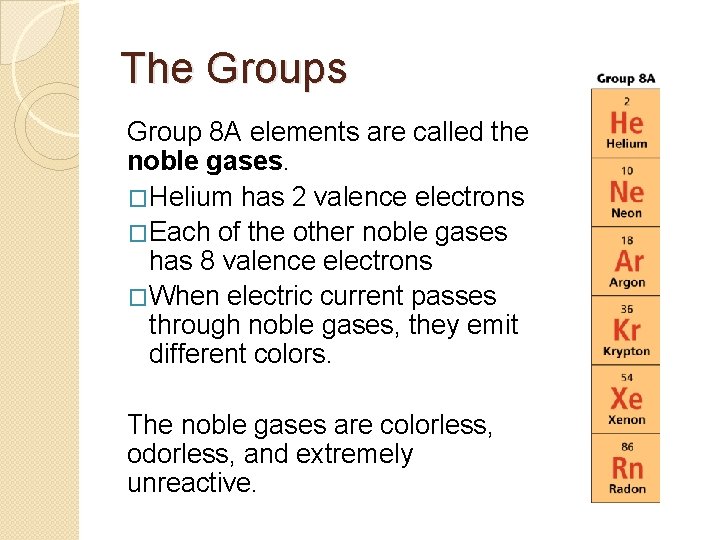

The Groups Group 8 A elements are called the noble gases. �Helium has 2 valence electrons �Each of the other noble gases has 8 valence electrons �When electric current passes through noble gases, they emit different colors. The noble gases are colorless, odorless, and extremely unreactive.

Assessment Questions 1. Why do elements in a group have similar chemical properties? a) They have the same number of valence electrons b) They have the same ratio of protons to neutrons. c) Their atomic masses are multiples of the least massive element of the group. d) They have the same number of total electrons. Answer: A

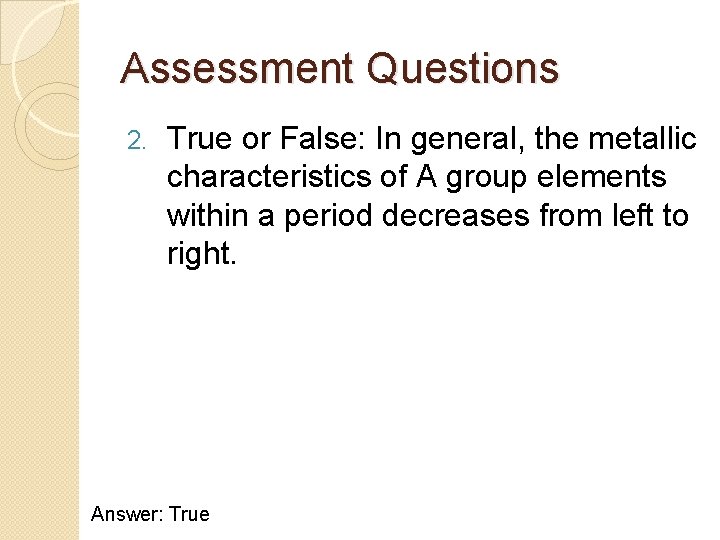

Assessment Questions 2. True or False: In general, the metallic characteristics of A group elements within a period decreases from left to right. Answer: True
