Chapter 5 Pharmaceutical Measurements and Calculations Created by

Chapter 5 Pharmaceutical Measurements and Calculations Created by Jennifer Majeske, Mineral Area College

Learning Objectives � Describe four systems of measurement commonly used in pharmacy and convert units from one system to another. � Explain the meanings of the prefixes most commonly used in metric measurement. � Convert from one metric unit to another. � Convert Roman numerals to Arabic numerals. � Convert temp to and from the Fahrenheit and Celsius scales. � Round decimals up and down appropriately. Created by Jennifer Majeske, Mineral Area College

Learning Objectives � Perform basic operations with proportions, including identifying equivalent ratios and finding an unknown quantity in a proportion. � Convert percentages to and from fractions, ratios, and decimals. � Perform fundamental dosage calculations and conversions. � Solve problems involving powder solutions and dilutions. � Use the alligation method to prepare solutions. � Calculate the specific gravity of a liquid. Created by Jennifer Majeske, Mineral Area College

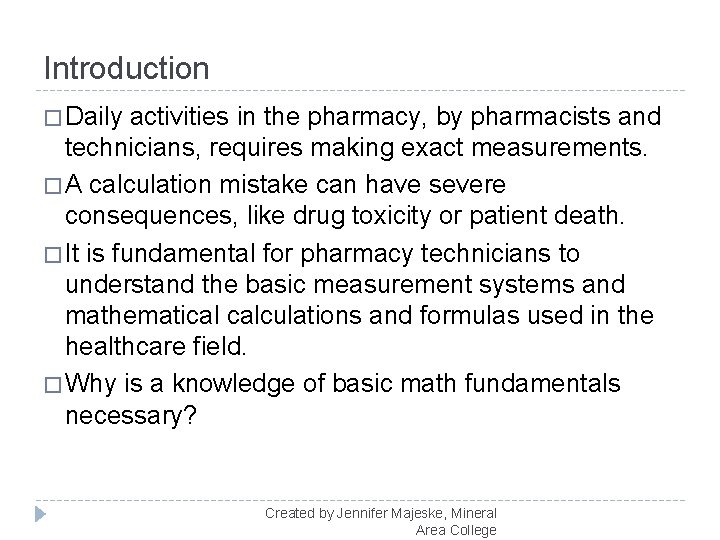

Introduction � Daily activities in the pharmacy, by pharmacists and technicians, requires making exact measurements. � A calculation mistake can have severe consequences, like drug toxicity or patient death. � It is fundamental for pharmacy technicians to understand the basic measurement systems and mathematical calculations and formulas used in the healthcare field. � Why is a knowledge of basic math fundamentals necessary? Created by Jennifer Majeske, Mineral Area College

Systems of Pharmaceutical Measurement � Systems of measurements are widely accepted standards to determine quantities…temperature, distance, volume, and weight are most important to the pharmacy profession. � Quantities of temp and weight are the simplest and most familiar measurements. � Distance is a measurement of extension in space in one dimension. � Volume, is a measurement of extension in space in three dimensions. Created by Jennifer Majeske, Mineral Area College

The Metric System � Metric system: the legal standard of measure for pharmaceutical measurements and calculations in the U. S. � Based on decimal notation, units are described as multiples of ten (0. 001, 0. 1, 1, 100, 1000). � Contains clear correlations among units of measurement of length, volume, and weight. � Metric system is used worldwide, a “universal language. ” Created by Jennifer Majeske, Mineral Area College

The Metric System � The modern metric system makes use of the standardized units of the Système International (SI). � To convert from one metric unit to another, simply move the decimal point. � Moving the decimal to the left converts to larger units; moving the decimal to the right converts to smaller units. � To prevent misreading of numbers less than one (1), a zero (0) is placed before the decimal; this is known as the leading zero. � Diligence must be exercised when recording, interpreting, and measuring medication dosages Created by Jennifer Majeske, Mineral containing decimals. Area College

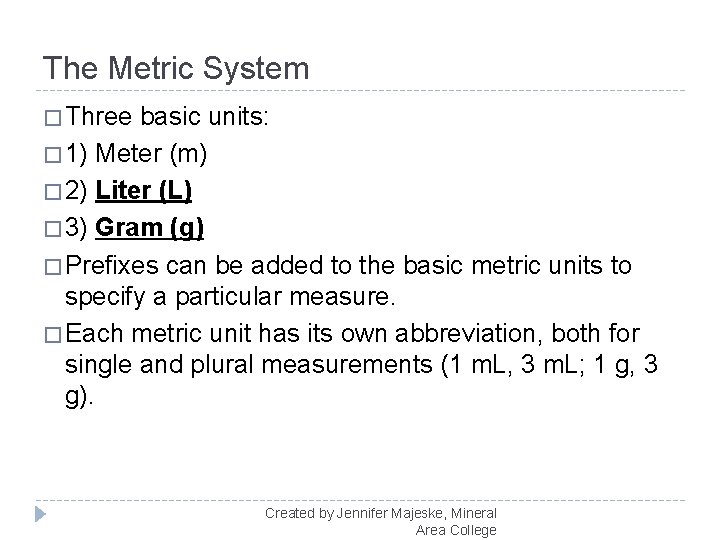

The Metric System � Three basic units: � 1) Meter (m) � 2) Liter (L) � 3) Gram (g) � Prefixes can be added to the basic metric units to specify a particular measure. � Each metric unit has its own abbreviation, both for single and plural measurements (1 m. L, 3 m. L; 1 g, 3 g). Created by Jennifer Majeske, Mineral Area College

Meter, Liter, and Gram � Meter – used for measuring distance, area, and volume and has limited application in pharmacy practice. � Liter – used for measuring the volume of liquid medications as well as liquids for oral and parenteral solutions. 1 L = 1000 cc (cubic centimeters) � 1 cc = 1 m. L (milliliter) � � Gram – used for measuring 1) the amount of medication in a solid dosage form, 2) the amount of solid medication in a solution, and 3) express the weight of an object or person. � Most pharmacy calculations involve conversions to and from grams, milligrams, and kilograms and to and from milliliters and liters. Created by Jennifer Majeske, Mineral Area College

Other Systems of Pharmaceutical Measurement � A foot was originally equal in length to an average person’s foot. , a cubit was equal to the length of a forearm from the elbow to the middle finger. � Common measurements were inconsistent and imprecise. � Need for standardized measurements resulted in the establishment of three different systems of pharmaceutical measurement over the centuries: � Apothecary system � Avoirdupois system � Household system Created by Jennifer Majeske, Mineral Area College

Apothecary System � Apothecary system – one of the oldest systems of measurement, based on the weight system developed by the Romans. � Dram: approximately equal to 4 m. L � Scruple: roughly equivalent to 1. 3 g � Grain (gr) – a dry weight measure that is the most commonly encountered nonmetric unit. � Other apothecary units of measure: � Pint, quart, gallon, ounce, and pound � Apothecary system was widely used until the beginning of the 20 th century Created by Jennifer Majeske, Mineral Area College

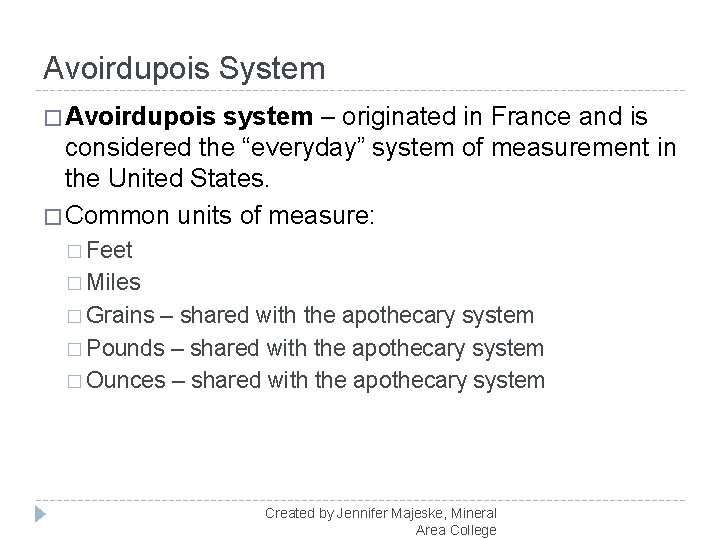

Avoirdupois System � Avoirdupois system – originated in France and is considered the “everyday” system of measurement in the United States. � Common units of measure: � Feet � Miles � Grains – shared with the apothecary system � Pounds – shared with the apothecary system � Ounces – shared with the apothecary system Created by Jennifer Majeske, Mineral Area College

Household System � Household system – based on the apothecary system and was established to help patients take their medications at home. � Common units of measure: Ounce � Pound � Drop � Teaspoon � Tablespoon � Cup � Hogshead – obsolete in pharmacy (1 hogshead = 238. 480942 liters) � Jigger – obsolete in pharmacy (1 shot = 44. 3602943 m. L) � Created by Jennifer Majeske, Mineral Area College

Conversion Equivalents Among Different Measurement Systems � One challenge, prior to the 19 th century, was lack of standard equivalences among the three measurement systems. � Depending on the system of use, practitioners were dispensing widely different doses. � Discrepancies often resulted in medication errors; a standardized system was needed to ensure accuracy in medication doses for patients which led to the adoption of the metric system. � Many pharmacy computer programs only accept amounts entered in metric units. � Why should pharmacy technicians be familiar with all measurement systems? Created by Jennifer Majeske, Mineral Area College

Common Practice Issues with Conversions � Conversions of certain units of measure to their metric equivalents results in decimals; to simplify and standardize these conversions, rounding up or down was universally adopted in pharmacy practice. � Use the rounded 30 m. L value for a fluid ounce. � Many physicians write prescription orders in ounces of medication for liquid dosage forms; the metric system of measurement is much more accurate. � Most pharmacists consider 1 gr to equal 65 mg, but some manufacturers use 1 gr to equal 60 mg. Created by Jennifer Majeske, Mineral Area College

Numeric Systems � Arabic – uses numbers, fractions and decimals. � Roman - numerals are expressed in either lowercase or capital letters. � Most frequently used Roman numerals in pharmacy are I, V, and X, which represent 1, 5 and 10. � Lowercase roman numerals i, ii, and iii are occasionally used. � Example: “aspirin gr vi” means “six grains of aspirin” � Roman numerals are equal or smaller when reading left to right; the total value equals the sum of their individual values. Created by Jennifer Majeske, Mineral Area College

Time � In the hospital setting, medication orders are commonly stamped with military or 24 -hour time. � Administration schedules for unit dose and IV admixtures also use this method. � Military time – based on a 24 -hour clock, with midnight considered time 0000 0600 1200 1800 Midnight 6 AM Noon 6 PM � The first two digits are the time in hours, the second two digits are the time in minutes. � No AM or PM are used, reducing confusion – fewer medication errors � Example 1 Created by Jennifer Majeske, Mineral Area College

Temperature � Fahrenheit temperature scale: � 32° F when water freezes � 212° F when water boils � Celsius temperature scale: � 0° C as the freezing point � 100° C as the boiling point � Celsius is the scale used in healthcare settings, including pharmacy. � Most refrigerators in the pharmacy need to maintain a 2° C to 8° C temperature. Created by Jennifer Majeske, Mineral Area College

Temperature � Storing of drugs under proper temperature is an important responsibility of the pharmacy technician. � Pharmacy refrigerators (for medications) should be maintained between 5 and 10° C. � Every 5° C change in temperature equals a 9° F change. °F = (1. 8 x °C) + 32° � °C = (°F - 32°) ÷ 1. 8 � � 5 x °F = 9 x °C + 160 (alternative method) � Most pharmacy temperature logs document to the tenth place for accuracy. If a decimal is not required, then the temperature should be rounded down if it is 0. 1 – 0. 4 and rounded up if 0. 5 – 0. 9. � Examples 2 – 6 Created by Jennifer Majeske, Mineral Area College

Basic Calculations Used in Pharmacy Practice � Fractions: when something is divided into parts. � Numerator – the number on the top or the left � Denominator – the number on the bottom or the right � A pie divided into eight slices, each slice represents a fraction, or 1/8 of the whole pie. � 1 is one slice of pie, 8 is the number of slices in the whole pie. (see Figure 5. 2 pg. 170) � 6/3 = 6 divided by 3, which equals 2. � 7/8 = 7 divided by 8, which equals 0. 875 � The number obtained upon dividing the numerator by the denominator is the value of the fraction. Created by Jennifer Majeske, Mineral Area College

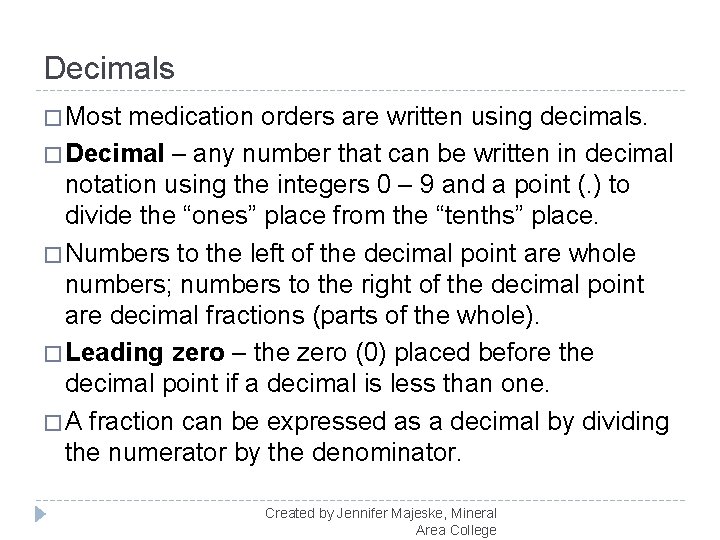

Decimals � Most medication orders are written using decimals. � Decimal – any number that can be written in decimal notation using the integers 0 – 9 and a point (. ) to divide the “ones” place from the “tenths” place. � Numbers to the left of the decimal point are whole numbers; numbers to the right of the decimal point are decimal fractions (parts of the whole). � Leading zero – the zero (0) placed before the decimal point if a decimal is less than one. � A fraction can be expressed as a decimal by dividing the numerator by the denominator. Created by Jennifer Majeske, Mineral Area College

Converting Decimals to Fractions � The metric system usually used numbers in decimal form. � Any decimal number can be expressed as a decimal fraction that has a power of 10 as its denominator. Created by Jennifer Majeske, Mineral Area College

Converting Decimals to Fractions � Created by Jennifer Majeske, Mineral Area College

Rounding Decimals � To round to the nearest tenth, carry the division out two places, to the hundredths place. � If the number is greater than 5, round up by adding one to the tenths-place number; if less than 5 round down by omitting the digit in the tenths place. � In pharmacy calculations it is common to round off to the nearest tenth. Sometimes it may be necessary to round to the nearest hundredth or thousandth. � Check with the pharmacist to confirm proper rounding practices. Created by Jennifer Majeske, Mineral Area College

Ratios and Proportions � Ratio: a comparison of two like quantities and can be expressed in a fraction or in ratio notation. � Example: two parts water to three parts alcohol. What would the ratio look like? � Common use of ratios is the number of parts of one substance contained in a known number of parts of another substance. � Ratios that have the same value, ½ and 2/4 are said to be equivalent ratios. � When ratios are equivalent, the product of the numerator (of the first ratio) and the denominator (of the second ratio) is equal to the product of the denominator (of the first ratio) and the numerator (of the second ratio) Created by Jennifer Majeske, Mineral Area College

Ratios and Proportions � Created by Jennifer Majeske, Mineral Area College

Converting Quantities between the Metric and Common Measure Systems � Many situations in the pharmacy call for converting between one system of measure and another. � When possible, convert to the metric system because it is the preferred system. � Know the equivalent measures. � Examples 9 – 14 Created by Jennifer Majeske, Mineral Area College

Calculating Dosages � Created by Jennifer Majeske, Mineral Area College

Converting Quantities between the Metric and Common Measure Systems � Body surface area (BSA): is an expression of a patient’s weight and height used to calculate patientspecific dosages. � Medications can have wide dosage ranges, and patient’s responses and adverse reactions can vary, even for adults. � Most physicians prefer to prescribe to children only those medications that have a known pediatric-dose. � Example 17 Created by Jennifer Majeske, Mineral Area College

Percents � Percent comes from the Latin phrase per centum, meaning “in one hundred. ” � Percent: a given part or amount in a hundred. � Percents can be expressed: � An actual percent (3%) � A fraction with 100 as the denominator (3/100) � As a ratio (3: 100) � As a decimal (0. 03) � Percent conversions are often calculated by the pharmacy technician. Accuracy is critical to minimizing medication errors. Created by Jennifer Majeske, Mineral Area College

Converting Ratios and Percents � Created by Jennifer Majeske, Mineral Area College

Converting Ratios and Percents � Created by Jennifer Majeske, Mineral Area College

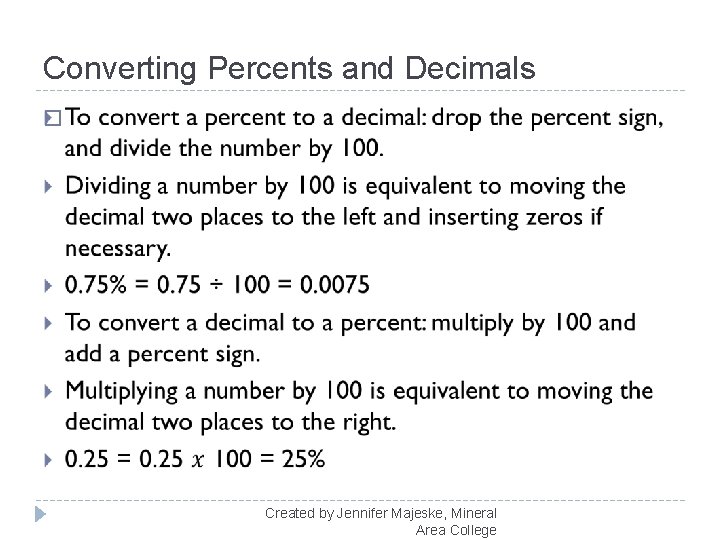

Converting Percents and Decimals � Created by Jennifer Majeske, Mineral Area College

Dimensional Analysis � Dimensional analysis is also known as “calculation by cancellation. ” � Drug calculations have units of measure or “dimensions” attached to them. � The dimensional analysis method is based on the principle that any number can be multiplied by one without changing its value. � Example 18 Created by Jennifer Majeske, Mineral Area College

Advanced Calculations Used in Pharmacy Practice � Pharmacy technicians will need to calculate the amount of ingredients required to create prescribed solutions. � Parenteral products are of reconstituted by adding a diluent. � The product is commercially manufactured in a powder because of the instability of the drug in solution over a long period of time. � Technicians may be asked to create solutions of specific concentrations by combining measured amounts of solutions of more and less concentrations. Created by Jennifer Majeske, Mineral Area College

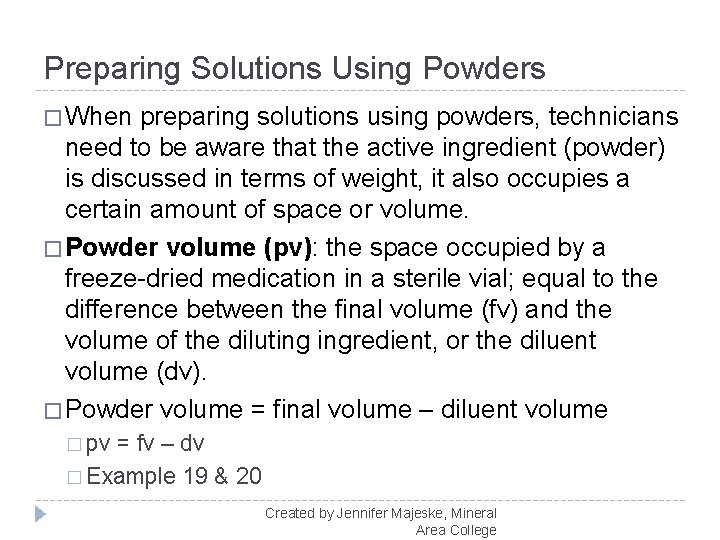

Preparing Solutions Using Powders � When preparing solutions using powders, technicians need to be aware that the active ingredient (powder) is discussed in terms of weight, it also occupies a certain amount of space or volume. � Powder volume (pv): the space occupied by a freeze-dried medication in a sterile vial; equal to the difference between the final volume (fv) and the volume of the diluting ingredient, or the diluent volume (dv). � Powder volume = final volume – diluent volume � pv = fv – dv � Example 19 & 20 Created by Jennifer Majeske, Mineral Area College

Working with Dilutions � Medications can be diluted for many reasons, for administration to children, infants, and older adults to meet dosage requirements, or so they can be measured more accurately and easily. � First, solve for the volume of the final product by using a ratio of diluted solution to desired concentration. � Second, determine the amount of diluent by subtracting the concentrate from the total volume. � Example 21 Created by Jennifer Majeske, Mineral Area College

Using Alligation to Prepare Compounded Products � Physicians often prescribed concentrations of medications that are not commercially available, these prescriptions must be compounded. � When an ordered concentration is not commercially available, it may be necessary to combine two different products, in differing strengths, with the same active ingredients. � The result is a concentration that is greater than the weaker strength, lesser than the stronger strength. � Alligation: is used when the two quantities needed to prepare the desired concentrations are both relatively large. � Alligation alternate method is the calculation used to determine proportions of available products needed to prepare the desired concentration. � Examples 22 & 23 Created by Jennifer Majeske, Mineral Area College

Calculating Specific Gravity � Created by Jennifer Majeske, Mineral Area College
