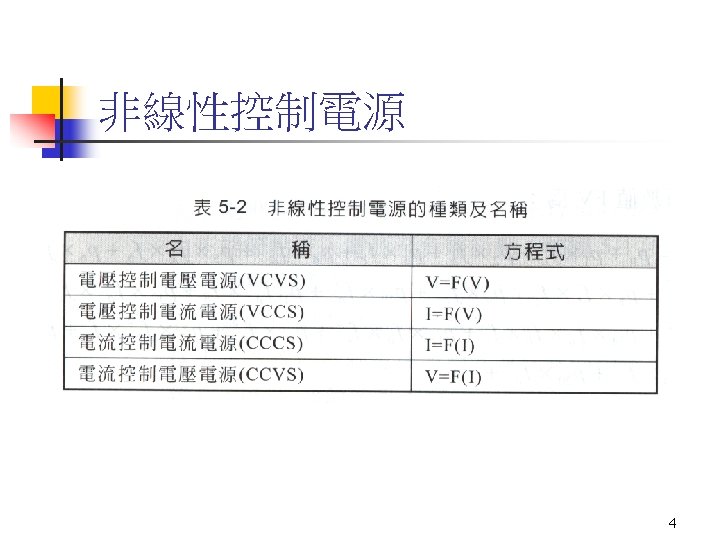

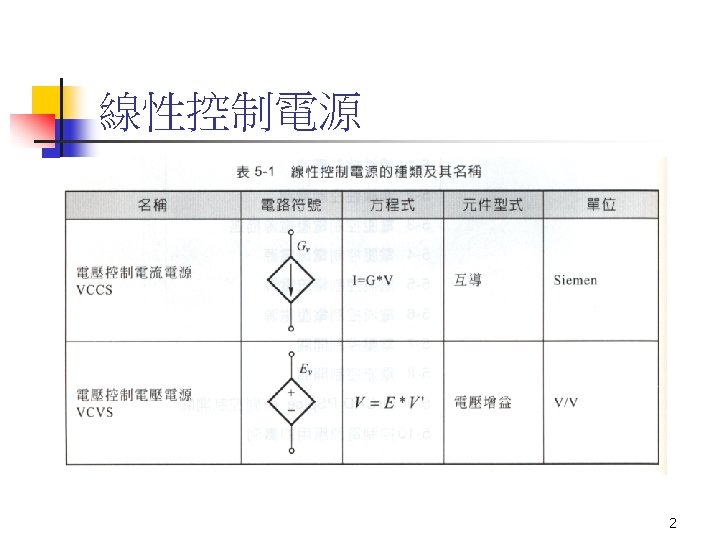

Chapter 5 控制電源元件及其描述 n n n n 線性控制電源 非線性控制電源 電壓控制電壓電源 (VCVS: Voltage-Controlled 電壓控制電流電源 (VCCS: Voltage-Controlled 電流控制電流電源 (CCCS: Current-Controlled 電流控制電壓電源 (CCVS: Current-Controlled 控制電源應用實例 Voltage Source) Current Source) Voltage Source) 1
3

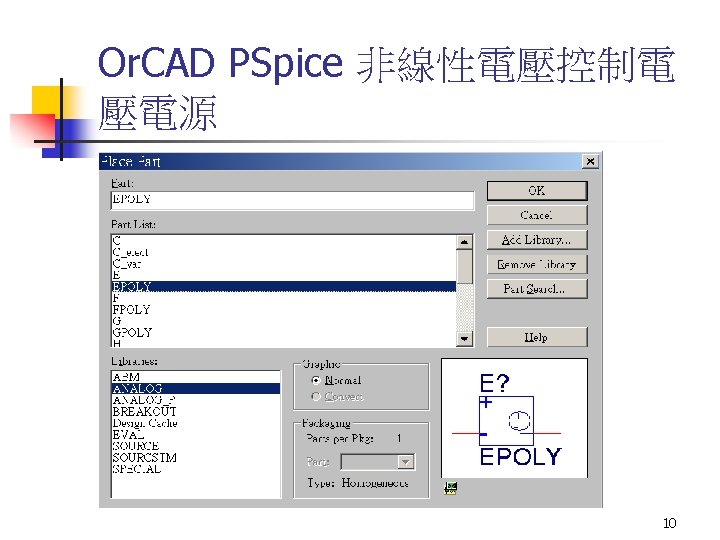

電壓控制電壓電源(VCVS) n SPICE 之格式 n n n EXXXX N+ N- NC+ NC- GAIN EXXXX N+ N- <POLY> <NC 1+ NC 1 -> < NC 2+ NC 2 - > …P 0 <P 1…. ><IC=…. > Or. CAD PSpice之格式 n n EXXXX N+ N- NC+ NC- GAIN EXXXX N+ N- <POLY(D)> <NC 1+ NC 1 -> < NC 2+ NC 2 - > …P 0 <P 1…. > 5
Examples n E 1 3 4 1 2 100 6

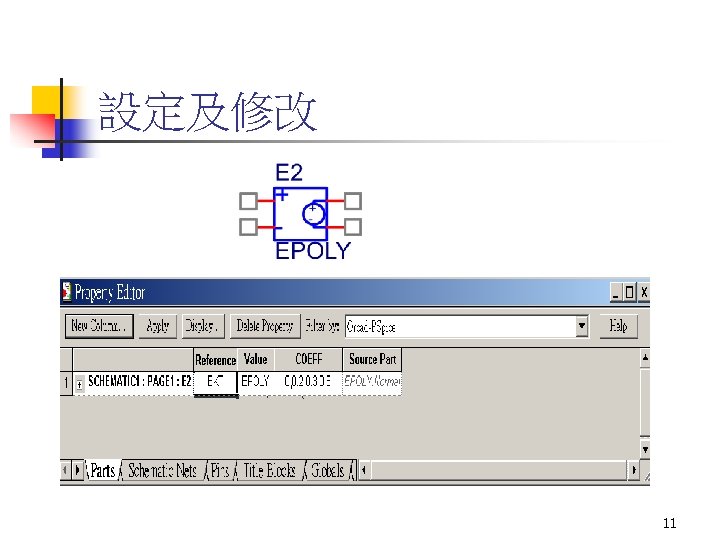

n EKT 1 3 POLY(1) 7 2 0 0. 2 0. 3 0. 8 7

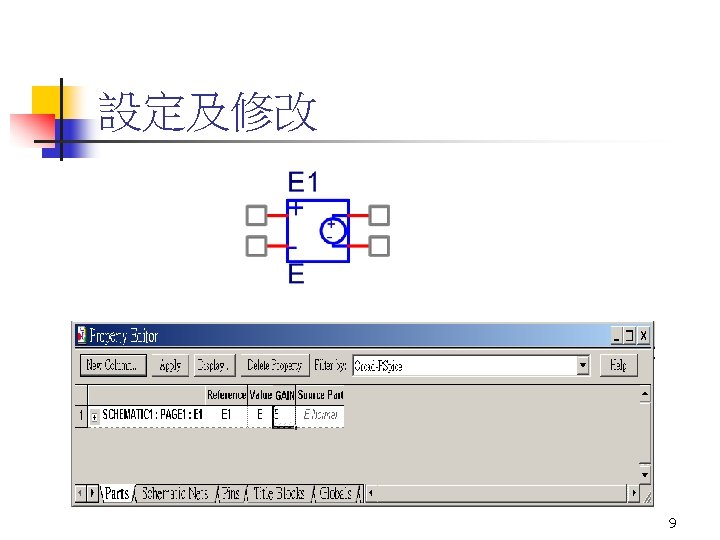

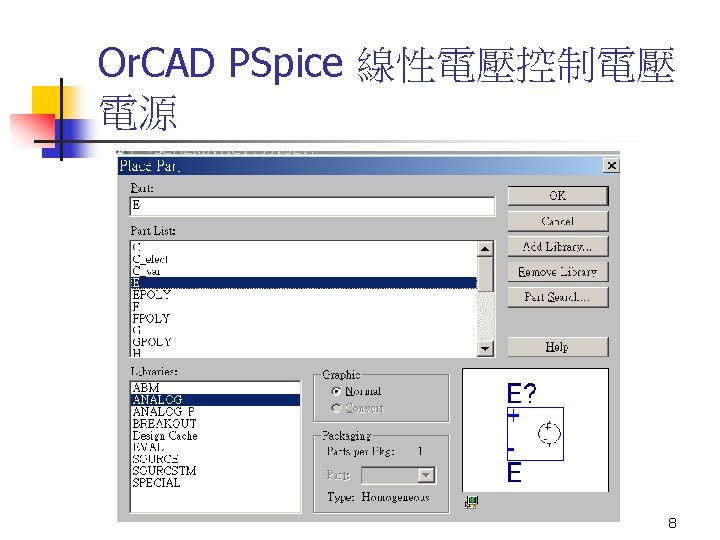

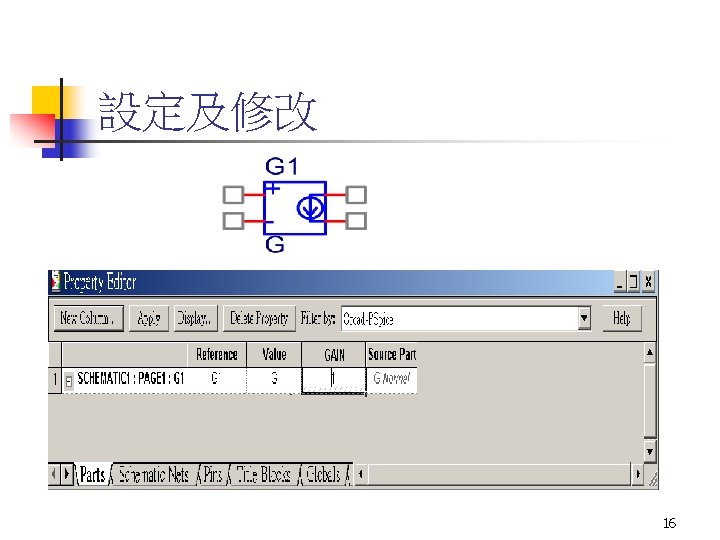

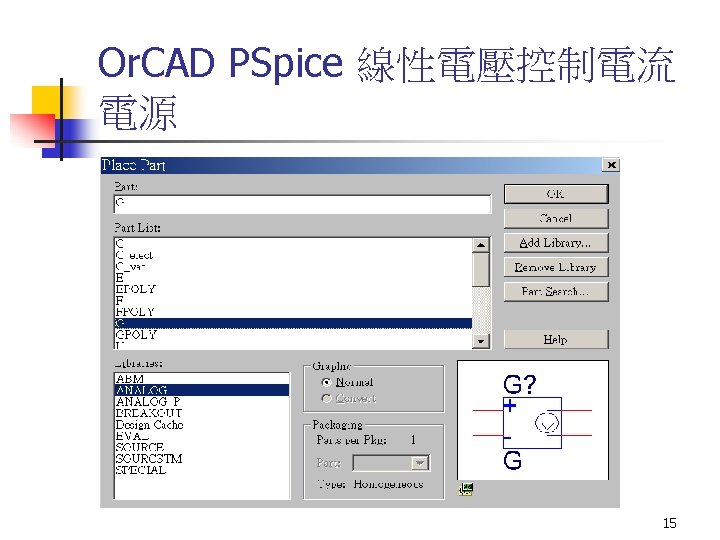

電壓控制電流電源(VCCS) n SPICE 之格式 n n n GXXXX N+ N- NC+ NC- Transconductance GXXXX N+ N- <POLY(D)> <NC 1+ NC 1 -> < NC 2+ NC 2 - > …P 0 <P 1…. ><IC=…. > Or. CAD PSpice之格式 n n GXXXX N+ N- NC+ NC- Transconductance GXXXX N+ N- <POLY(D)> <NC 1+ NC 1 -> < NC 2+ NC 2 - > …P 0 <P 1…. > 12
Examples n GL 1 3 4 1 2 0. 1 13
n GXL 4 5 POLY(1) 6 7 0 0. 6 0. 8 0. 9 14

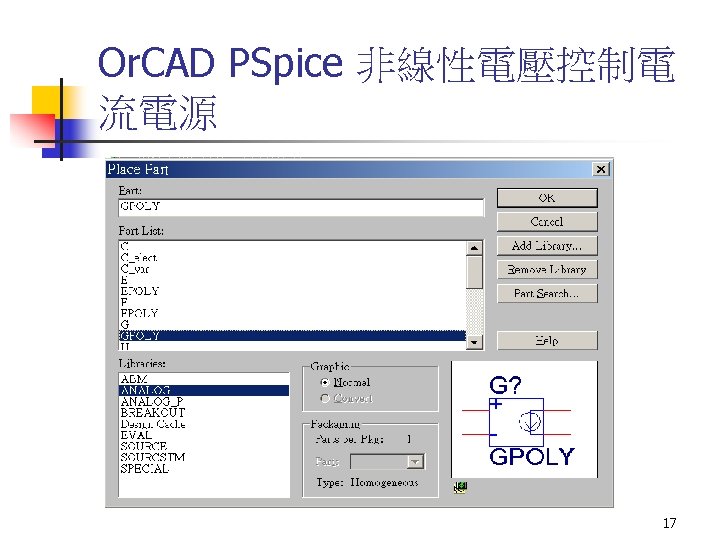

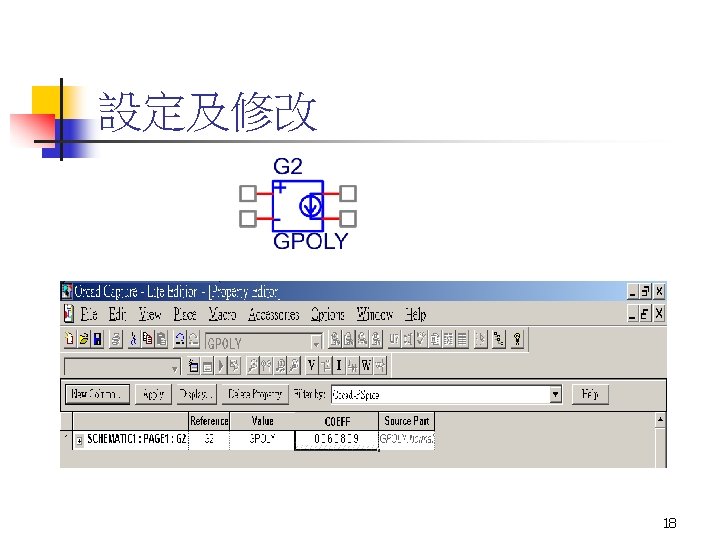

電流控制電流電源(CCCS) n SPICE 之格式 n n n FXXXX N+ N- CCVNAME GAIN FXXXX N+ N- <POLY(D)> CCVNAME 1 < CCVNAME 2…. > P 0 <P 1…. ><IC=…. > Or. CAD PSpice之格式 n n FXXXX N+ N- CCVNAME GAIN FXXXX N+ N- POLY(D) CCVNAME 1 < CCVNAME 2…. > P 0 <P 1…. > 19
Examples n n VAB 1 2 50 v F 1 3 4 VAB 100 20
n FK 2 3 4 POLY(1) VIN 5 0. 9 6 21

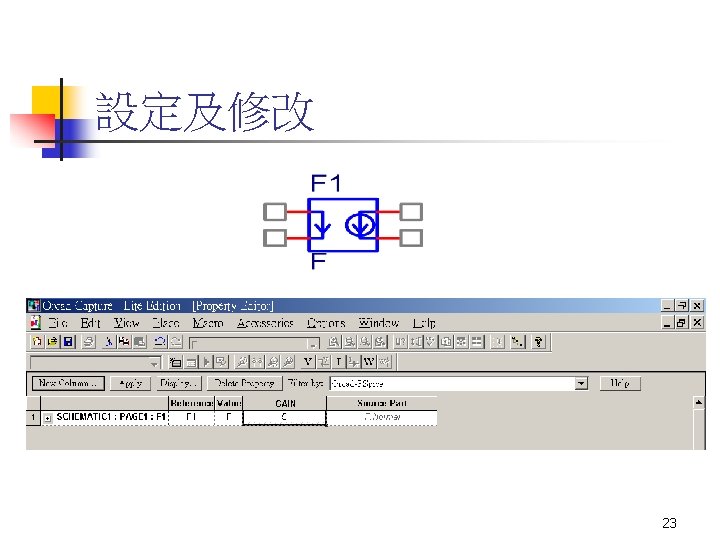

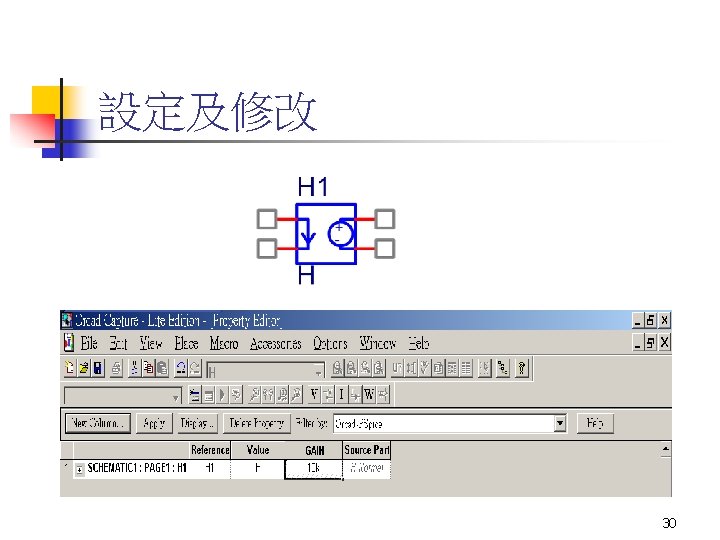

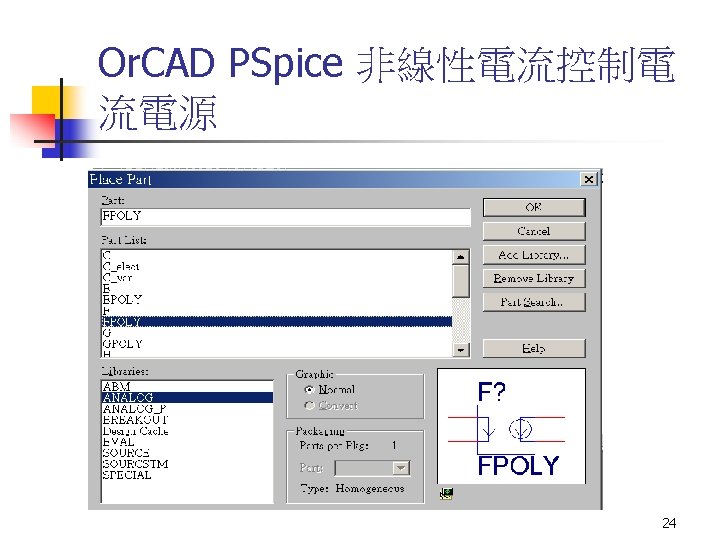

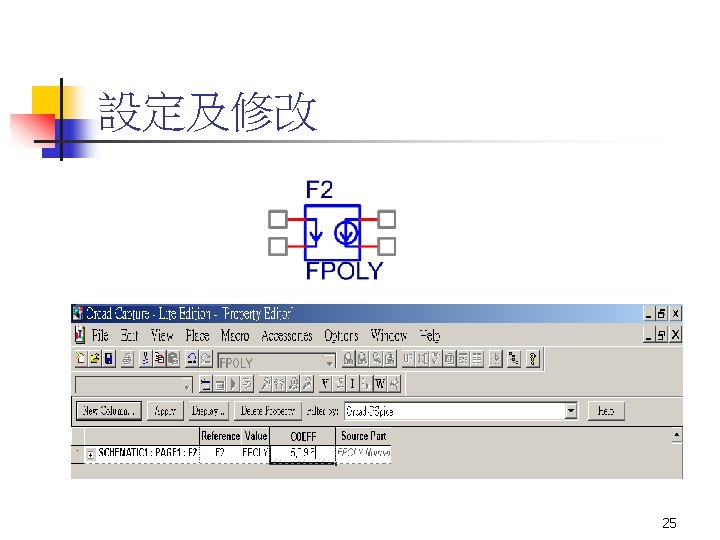

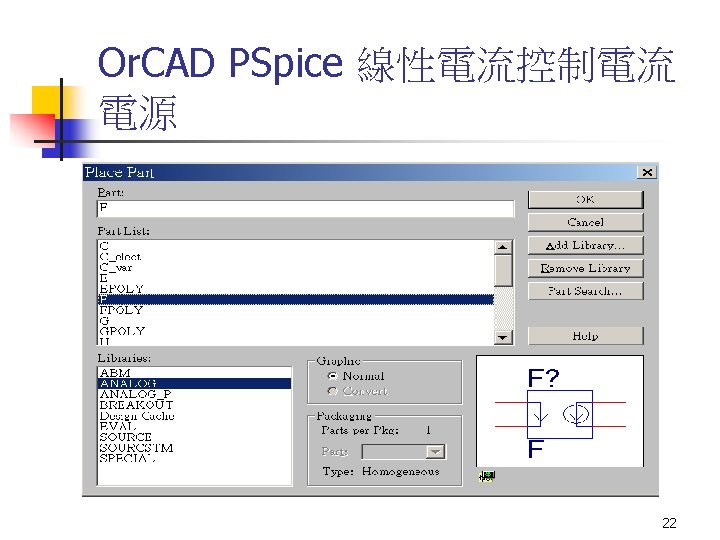

電流控制電壓電源(CCVS) n SPICE 之格式 n n n HXXXX N+ N- CCVNAME Transresistance HXXXX N+ N- <POLY(D)> CCVNAME 1 < CCVNAME 2…. > P 0 <P 1…. ><IC=…. > Or. CAD PSpice之格式 n n HXXXX N+ N- CCVNAME Transresistance HXXXX N+ N- POLY(D) CCVNAME 1 < CCVNAME 2…. > P 0 <P 1…. > 26
Examples n n H 1 3 4 VA 10 K VA 1 2 0 27

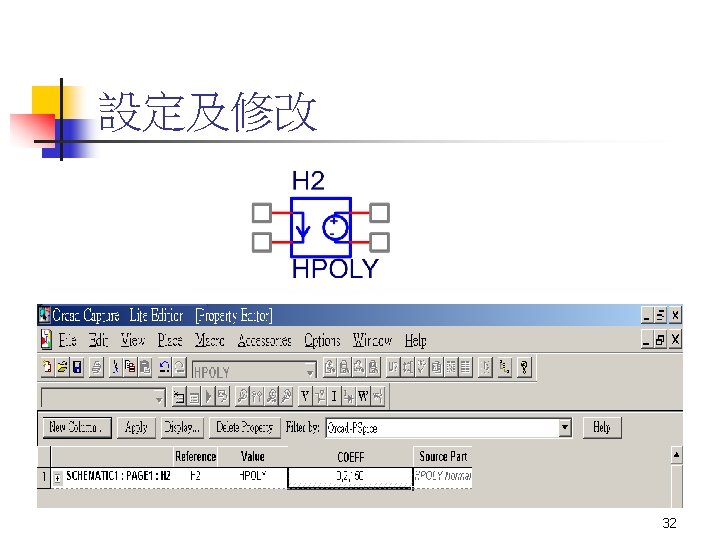

n n HT 3 4 POLY(1) V 1 0 2 0 150 V 1 1 2 0 28

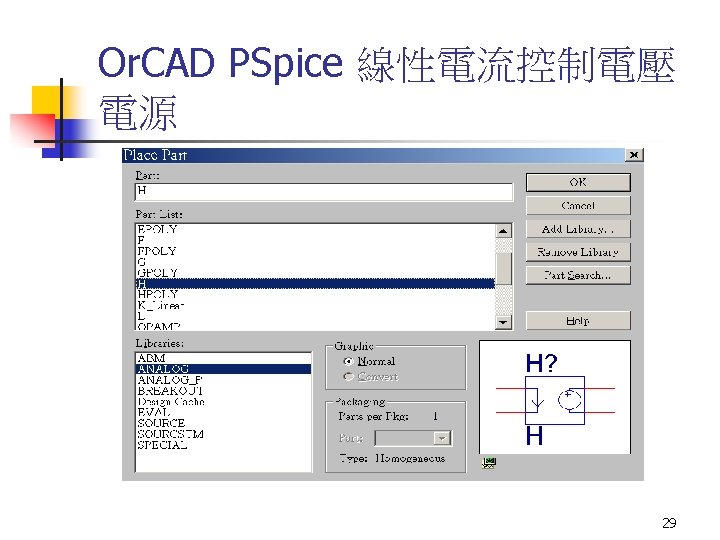

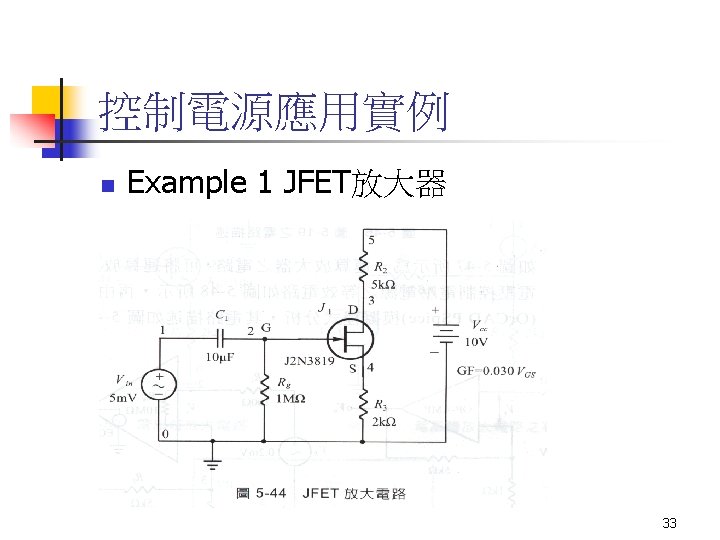

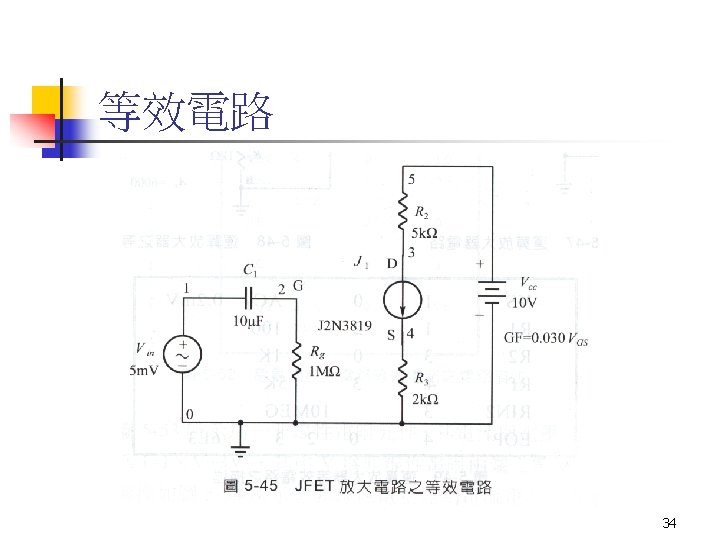

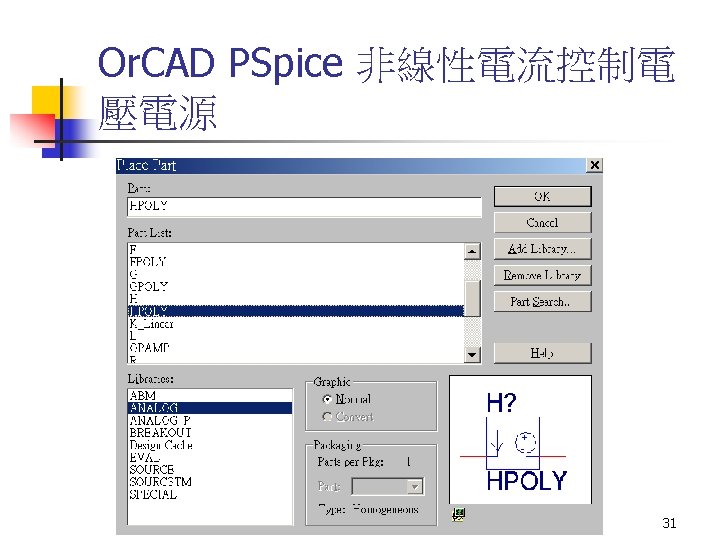

電路描述 VIN 1 0 AC 5 mv VCC 5 0 10 v C 1 1 2 10 u. F RG 2 0 1 MEG R 2 5 3 5 k R 3 4 0 2 k GF 3 4 2 4 30 E-3 35

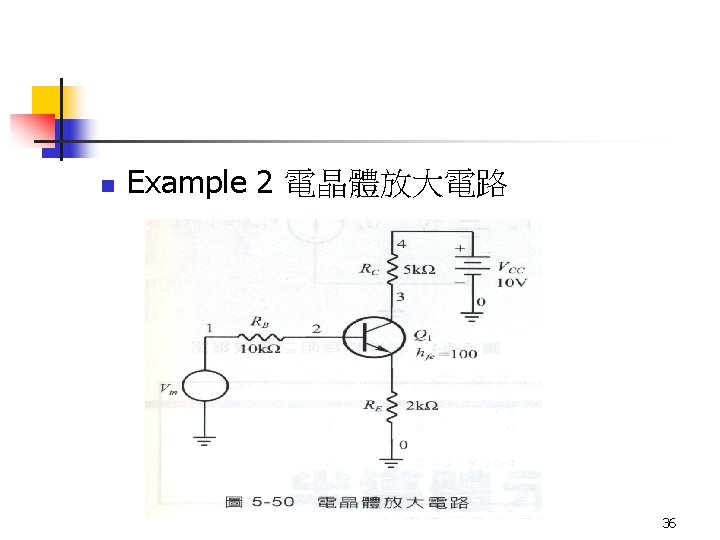

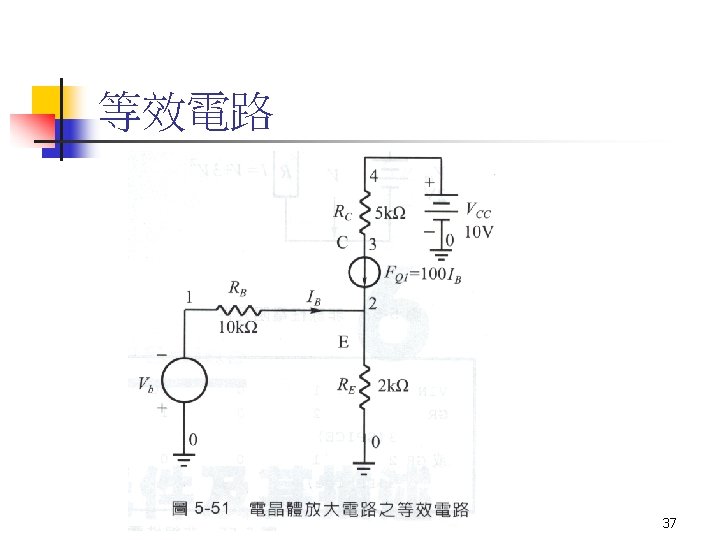

電路描述 VB 0 1 0 VCC 4 0 10 RB 1 2 10 K RE 2 0 2 K RC 4 3 5 K FQ 1 3 2 VB 100 38
