Chapter 5 Managing Multiuser Databases 1 MultiUser Issues

Chapter 5 Managing Multi-user Databases 1

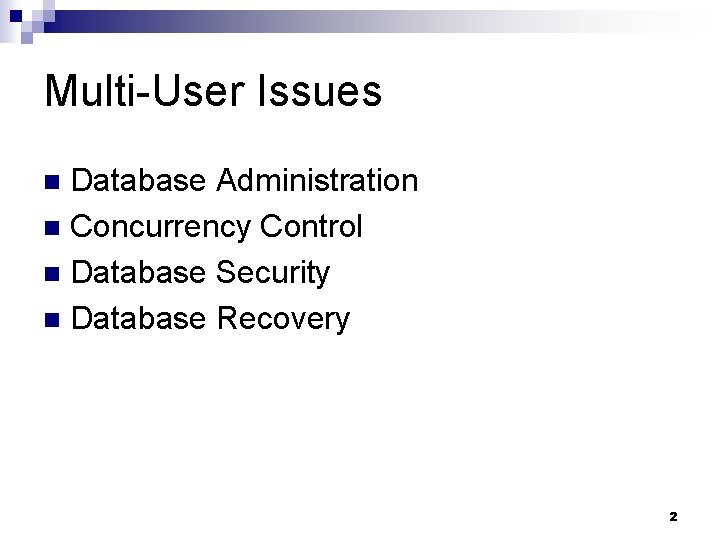

Multi-User Issues Database Administration n Concurrency Control n Database Security n Database Recovery n Page 307 2

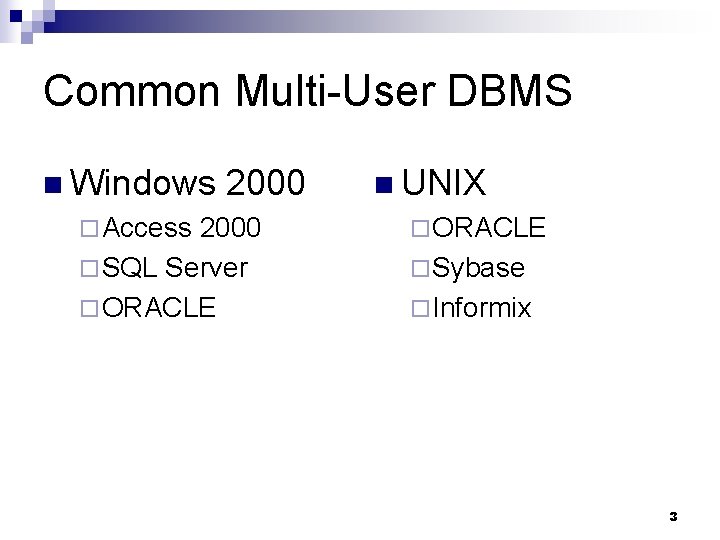

Common Multi-User DBMS n Windows ¨ Access 2000 ¨ SQL Server ¨ ORACLE n UNIX ¨ ORACLE ¨ Sybase ¨ Informix Page 307 3

Database Administration n All large and small databases need database administration Data administration refers to a function concerning all of an organization’s data assets Database administration (DBA) refers to a person or office specific to a single database and its applications 4

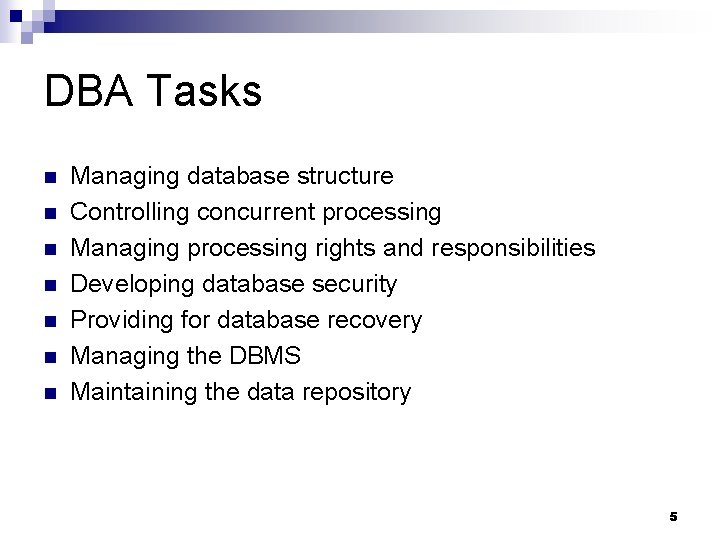

DBA Tasks n n n n Managing database structure Controlling concurrent processing Managing processing rights and responsibilities Developing database security Providing for database recovery Managing the DBMS Maintaining the data repository 5

Managing Database Structure n DBA’s tasks: Participate in database and application development n Assist in requirements stage and data model creation n Play an active role in database design and creation ¨ Facilitate changes to database structure n Seek community-wide solutions n Assess impact on all users n Provide configuration control forum n Be prepared for problems after changes are made n Maintain documentation ¨ 6

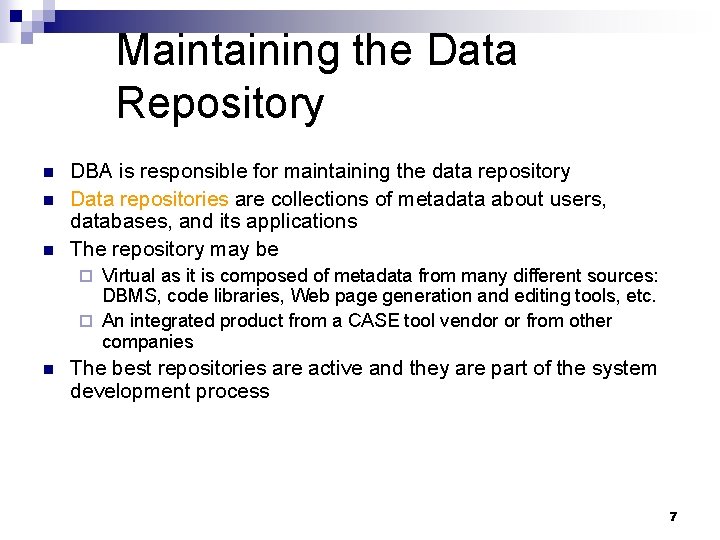

Maintaining the Data Repository n n n DBA is responsible for maintaining the data repository Data repositories are collections of metadata about users, databases, and its applications The repository may be Virtual as it is composed of metadata from many different sources: DBMS, code libraries, Web page generation and editing tools, etc. ¨ An integrated product from a CASE tool vendor or from other companies ¨ n The best repositories are active and they are part of the system development process 7

Managing the DBMS n DBA’s Responsibilities ¨ ¨ ¨ Generate database application performance reports Investigate user performance complaints Assess need for changes in database structure or application design Modify database structure Evaluate and implement new DBMS features Tune the DBMS 8

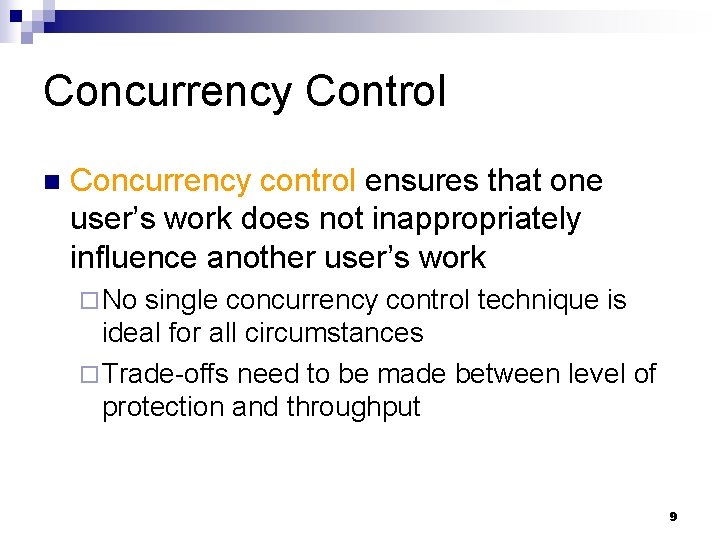

Concurrency Control n Concurrency control ensures that one user’s work does not inappropriately influence another user’s work ¨ No single concurrency control technique is ideal for all circumstances ¨ Trade-offs need to be made between level of protection and throughput 9

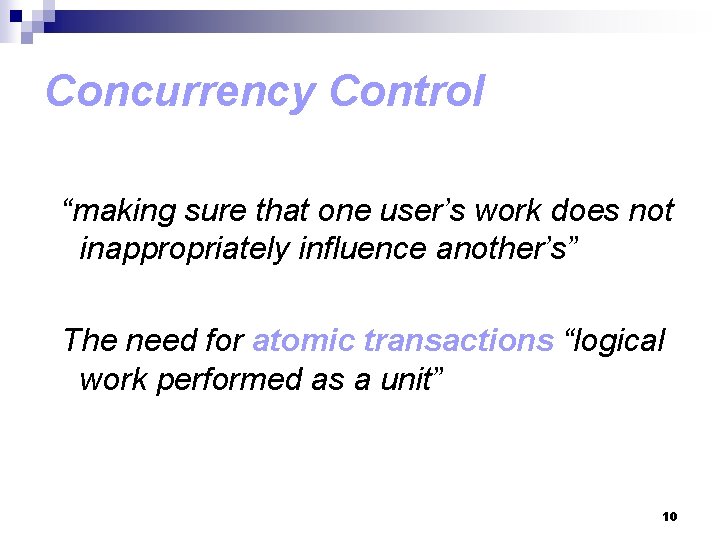

Concurrency Control “making sure that one user’s work does not inappropriately influence another’s” The need for atomic transactions “logical work performed as a unit” Page 308 10

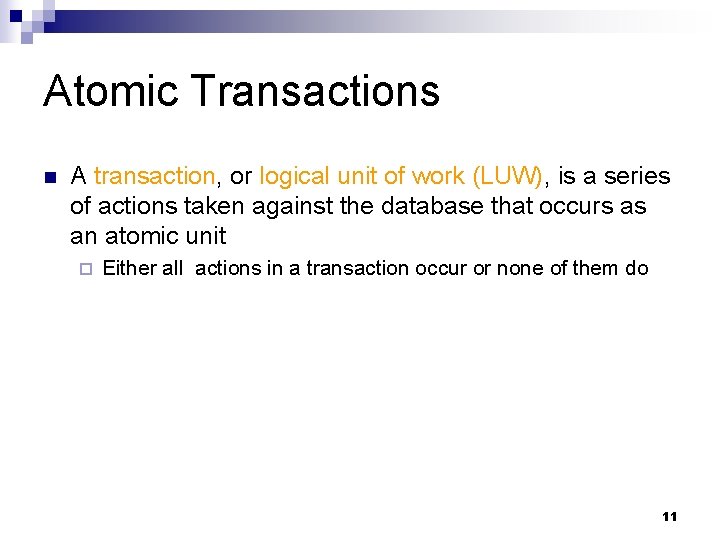

Atomic Transactions n A transaction, or logical unit of work (LUW), is a series of actions taken against the database that occurs as an atomic unit ¨ Either all actions in a transaction occur or none of them do 11

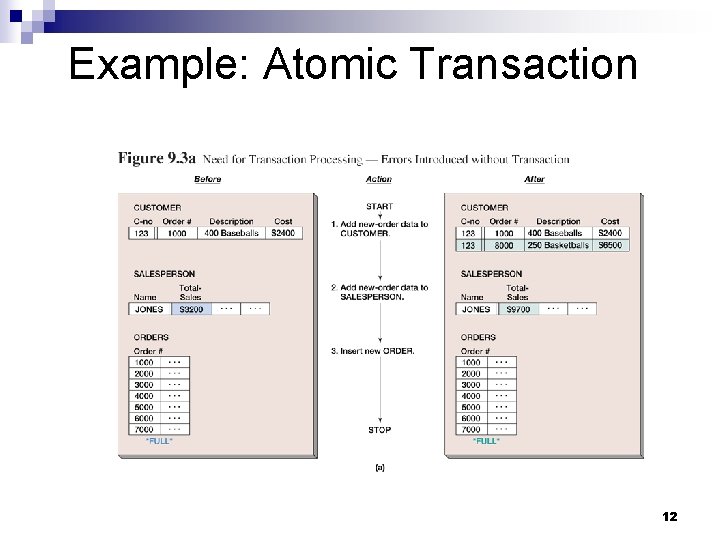

Example: Atomic Transaction 12

Example: Atomic Transaction 13

Concurrent Transaction n n Concurrent transactions refer to two or more transactions that appear to users as they are being processed against a database at the same time In reality, CPU can execute only one instruction at a time ¨ n Transactions are interleaved meaning that the operating system quickly switches CPU services among tasks so that some portion of each of them is carried out in a given interval Concurrency problems: lost update and inconsistent reads 14

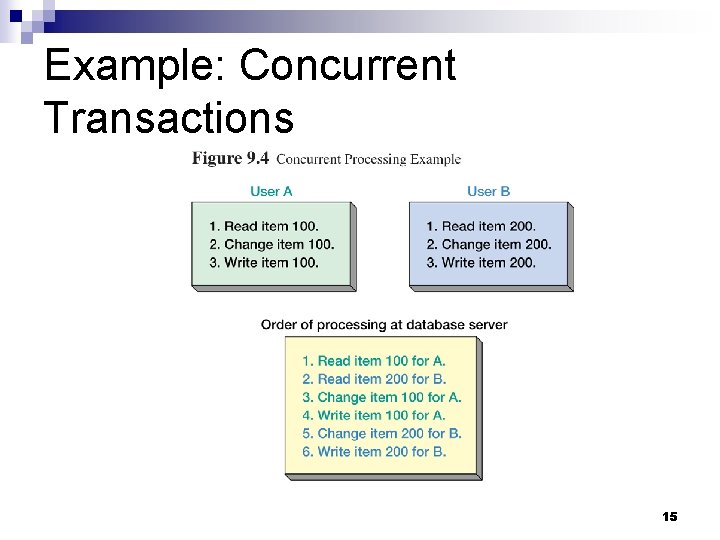

Example: Concurrent Transactions 15

Example: Lost Update Problem 16

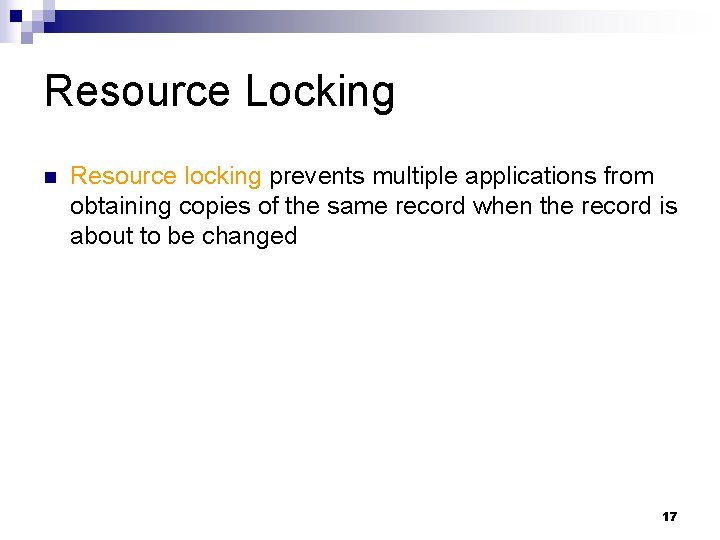

Resource Locking n Resource locking prevents multiple applications from obtaining copies of the same record when the record is about to be changed 17

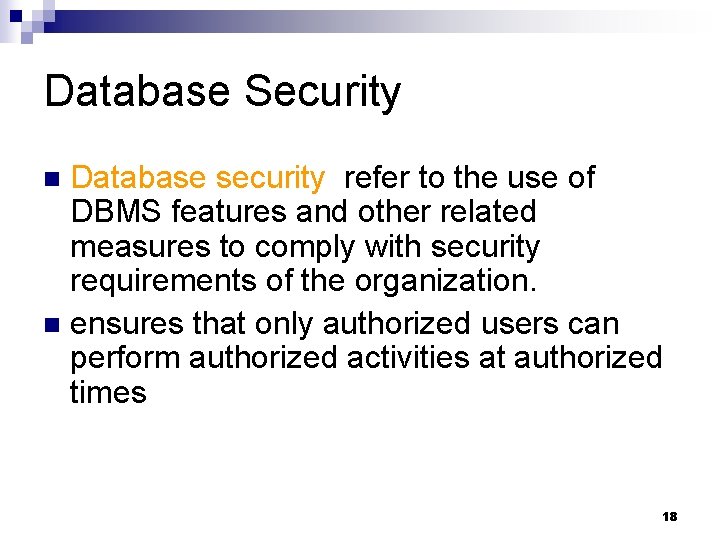

Database Security Database security refer to the use of DBMS features and other related measures to comply with security requirements of the organization. n ensures that only authorized users can perform authorized activities at authorized times n 18

n DBA should measures the security by THREE level” ¨ Protect DBMS from service degradation ¨ Protect from loss, corruption or misshandling ¨ Secure the DBMS from the point of installation through operation and maintenance. 19

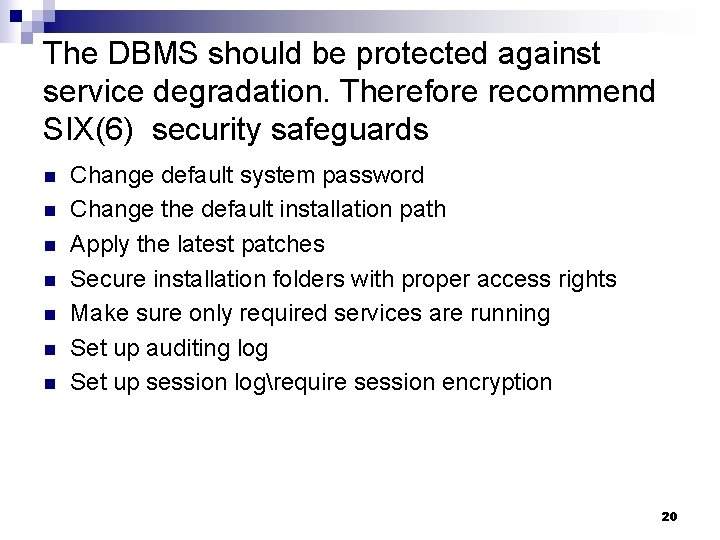

The DBMS should be protected against service degradation. Therefore recommend SIX(6) security safeguards n n n n Change default system password Change the default installation path Apply the latest patches Secure installation folders with proper access rights Make sure only required services are running Set up auditing log Set up session logrequire session encryption 20

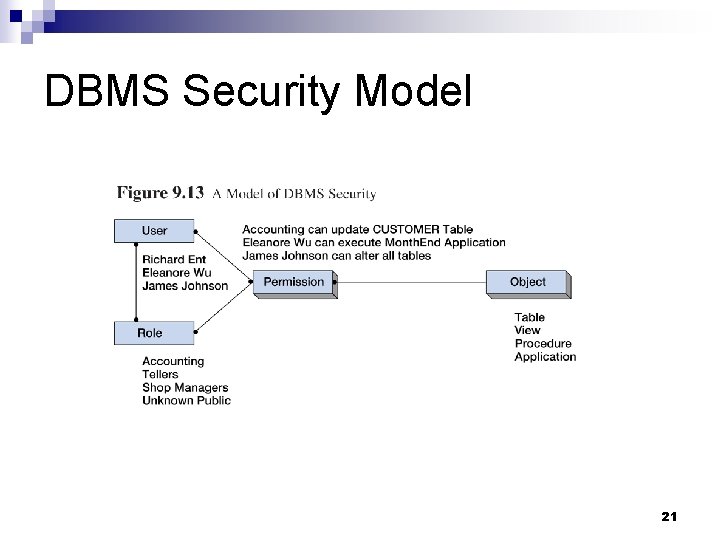

DBMS Security Model 21

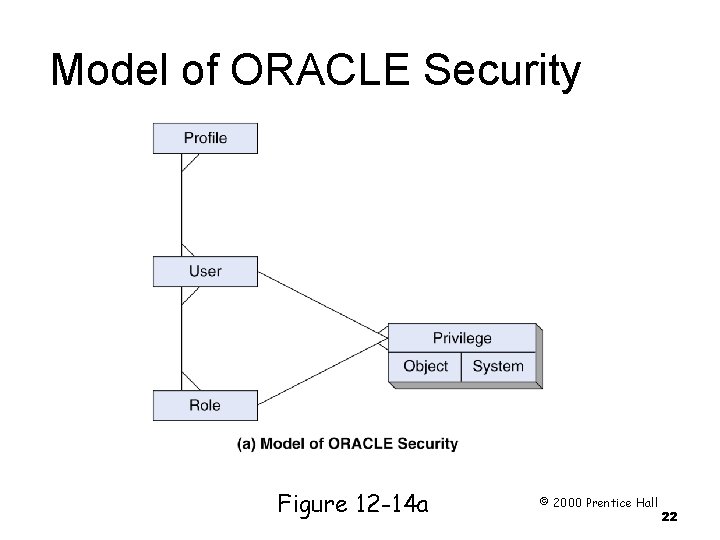

Model of ORACLE Security Page 325 Figure 12 -14 a © 2000 Prentice Hall

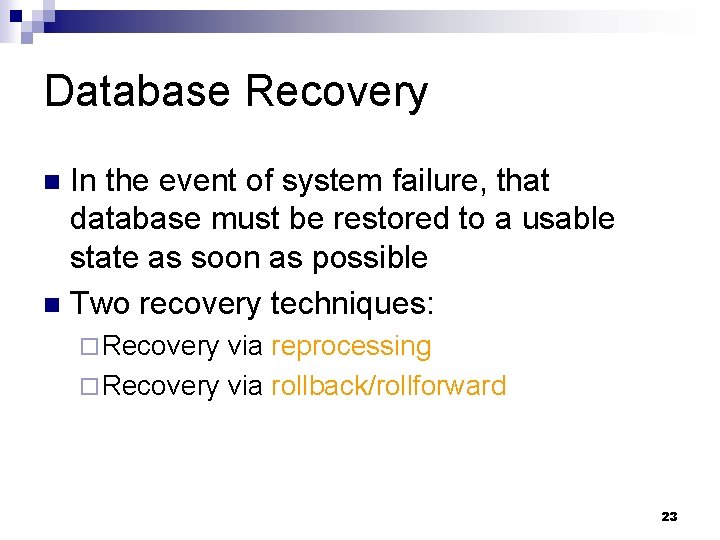

Database Recovery In the event of system failure, that database must be restored to a usable state as soon as possible n Two recovery techniques: n ¨ Recovery via reprocessing ¨ Recovery via rollback/rollforward 23

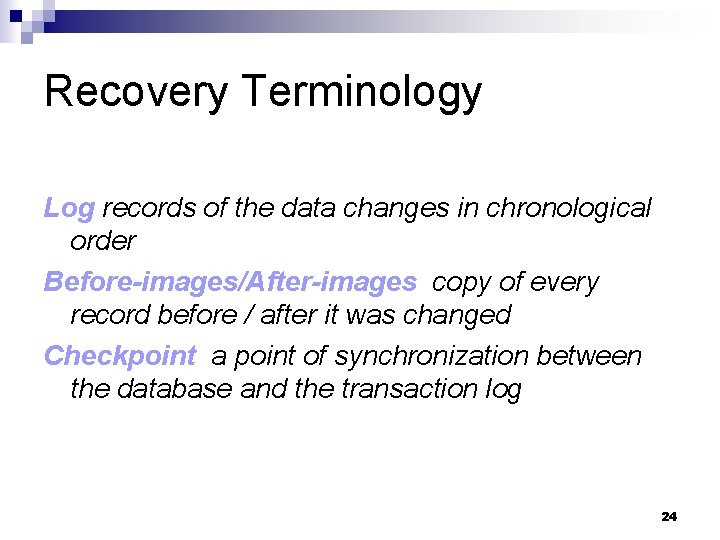

Recovery Terminology Log records of the data changes in chronological order Before-images/After-images copy of every record before / after it was changed Checkpoint a point of synchronization between the database and the transaction log Page 321 24

Recovery via Reprocessing Recovery via reprocessing: the database goes back to a known point (database save) and reprocesses the workload from there (re-execute all database update programs) n Unfeasible strategy because n ¨ The recovered system may never catch up if the computer is heavily scheduled ¨ Asynchronous events, although concurrent transactions, may cause different results 25

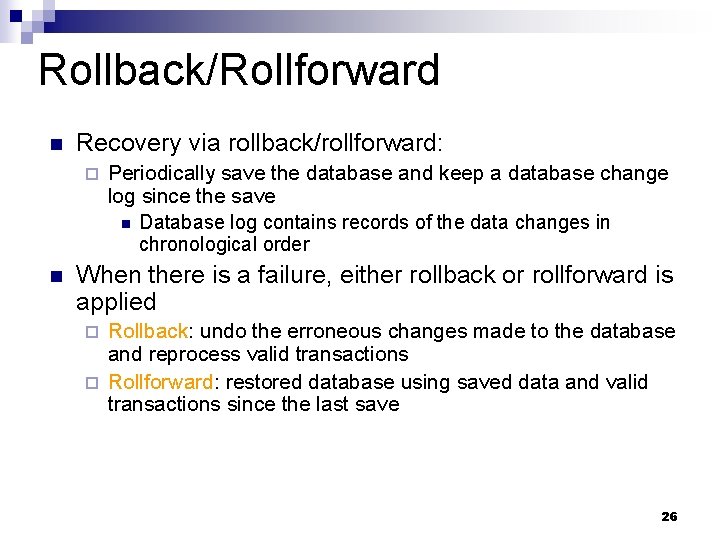

Rollback/Rollforward n Recovery via rollback/rollforward: ¨ n Periodically save the database and keep a database change log since the save n Database log contains records of the data changes in chronological order When there is a failure, either rollback or rollforward is applied Rollback: undo the erroneous changes made to the database and reprocess valid transactions ¨ Rollforward: restored database using saved data and valid transactions since the last save ¨ 26
