Chapter 5 Human Chromosomes and Chromosome Behavior Human

Chapter 5 Human Chromosomes and Chromosome Behavior

Human Chromosomes • Humans contain 46 chromosomes, including 22 pairs of homologous autosomes and two sex chromosomes • Karyotype = stained and photographed preparation of metaphase chromosomes arranged according to their size and position of centromeres 2

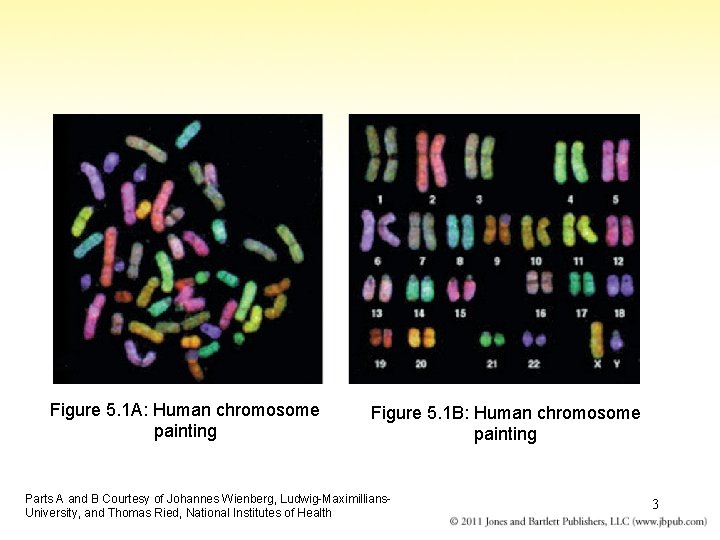

Figure 5. 1 A: Human chromosome painting Figure 5. 1 B: Human chromosome painting Parts A and B Courtesy of Johannes Wienberg, Ludwig-Maximillians. University, and Thomas Ried, National Institutes of Health 3

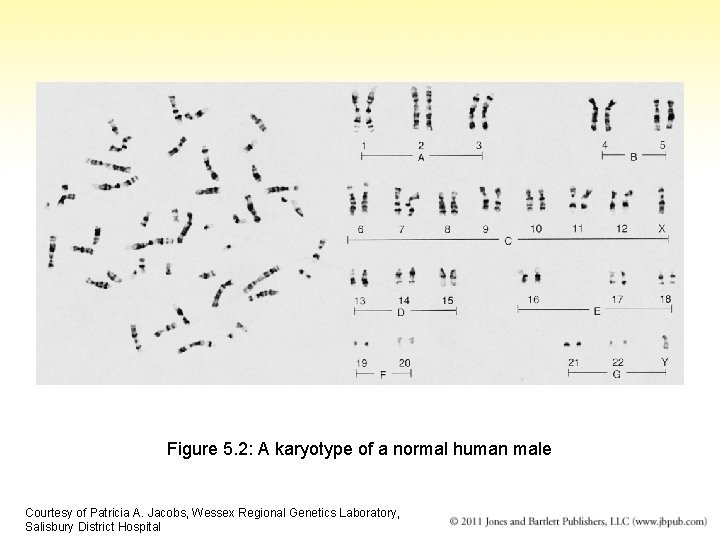

Figure 5. 2: A karyotype of a normal human male Courtesy of Patricia A. Jacobs, Wessex Regional Genetics Laboratory, Salisbury District Hospital

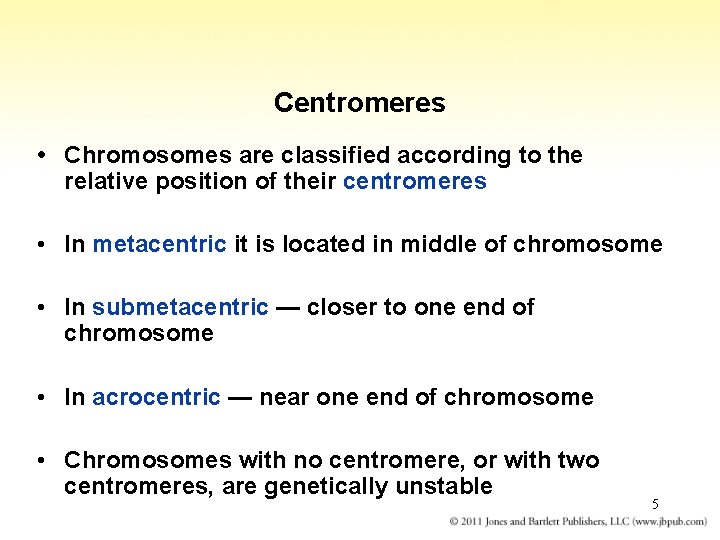

Centromeres • Chromosomes are classified according to the relative position of their centromeres • In metacentric it is located in middle of chromosome • In submetacentric — closer to one end of chromosome • In acrocentric — near one end of chromosome • Chromosomes with no centromere, or with two centromeres, are genetically unstable 5

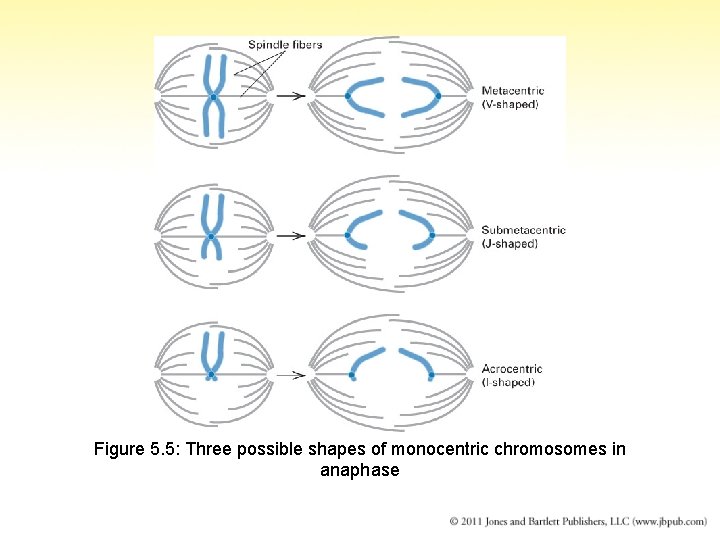

Figure 5. 5: Three possible shapes of monocentric chromosomes in anaphase

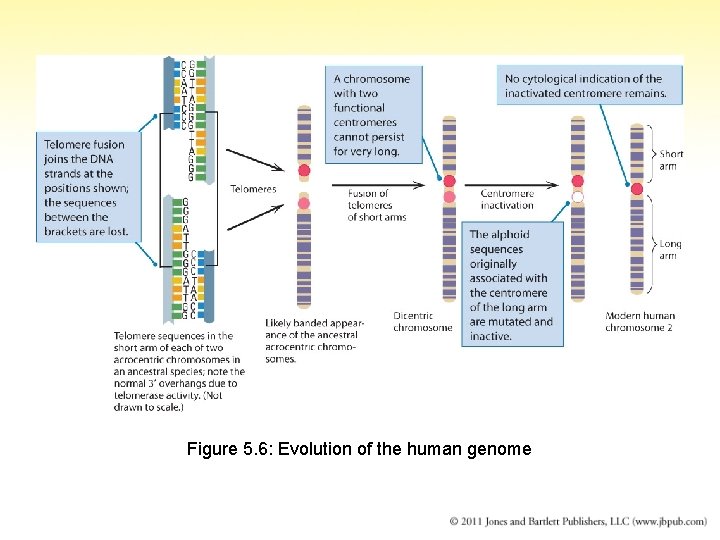

Figure 5. 6: Evolution of the human genome

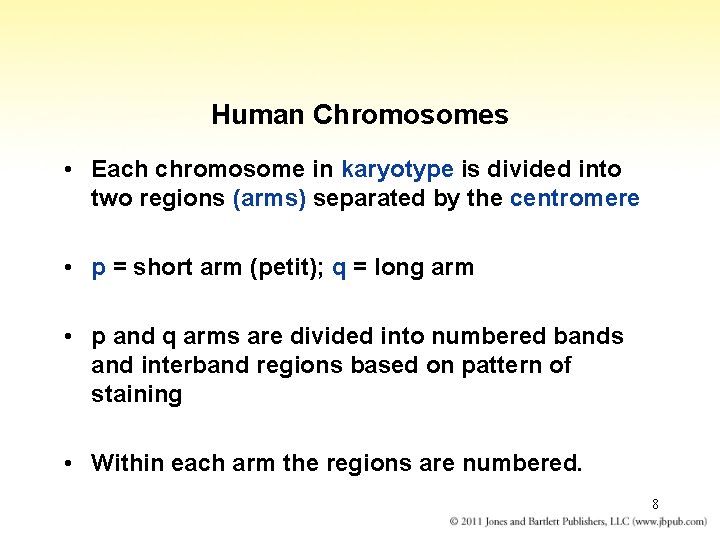

Human Chromosomes • Each chromosome in karyotype is divided into two regions (arms) separated by the centromere • p = short arm (petit); q = long arm • p and q arms are divided into numbered bands and interband regions based on pattern of staining • Within each arm the regions are numbered. 8

Figure 5. 3: Designations of the bands and interbands in the human karyotype. 9

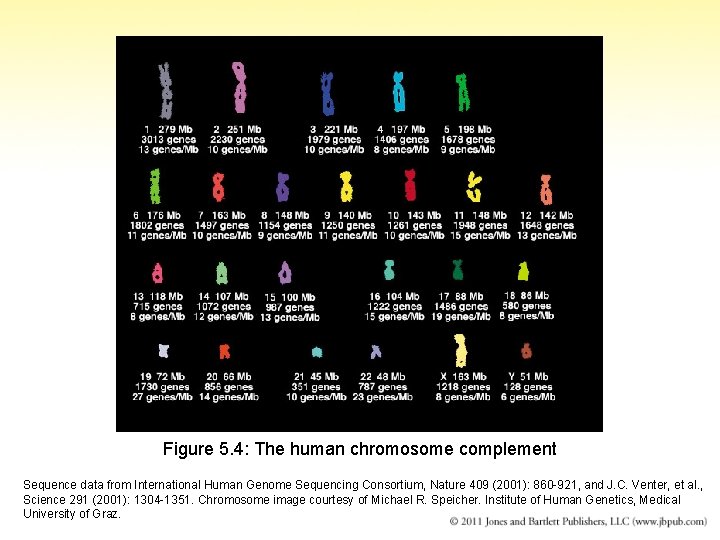

Figure 5. 4: The human chromosome complement Sequence data from International Human Genome Sequencing Consortium, Nature 409 (2001): 860 -921, and J. C. Venter, et al. , Science 291 (2001): 1304 -1351. Chromosome image courtesy of Michael R. Speicher. Institute of Human Genetics, Medical University of Graz.

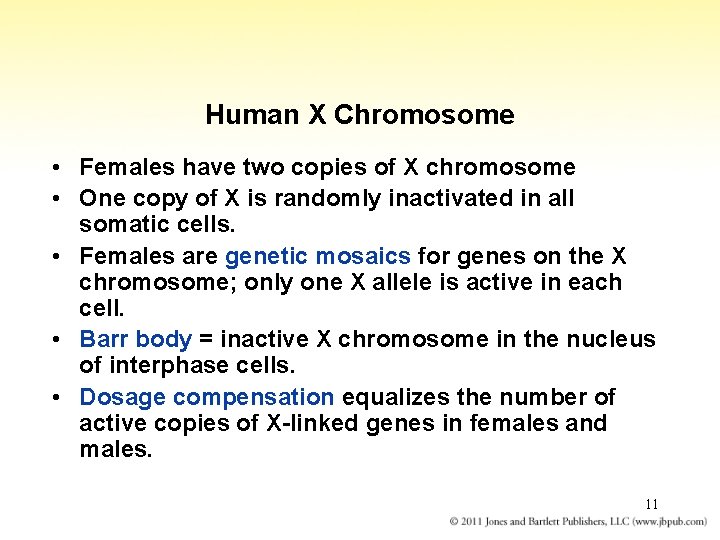

Human X Chromosome • Females have two copies of X chromosome • One copy of X is randomly inactivated in all somatic cells. • Females are genetic mosaics for genes on the X chromosome; only one X allele is active in each cell. • Barr body = inactive X chromosome in the nucleus of interphase cells. • Dosage compensation equalizes the number of active copies of X-linked genes in females and males. 11

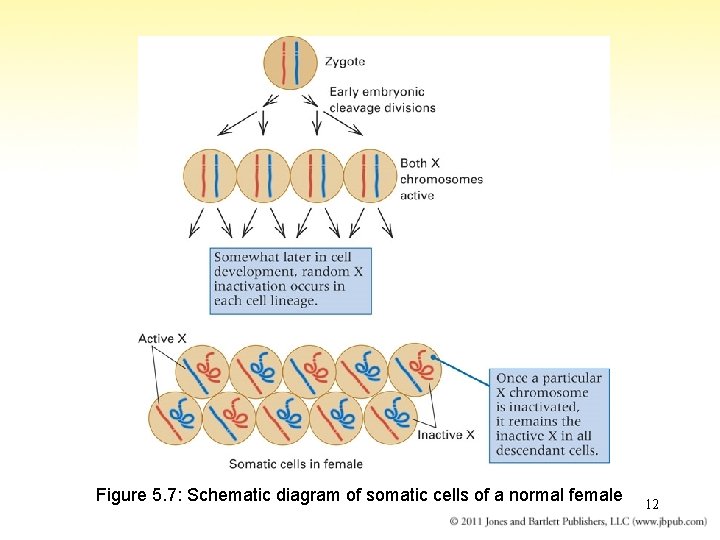

Figure 5. 7: Schematic diagram of somatic cells of a normal female 12

The calico cat shows visible evidence of X-chromosome inactivation. Figure 5. 8: Female cat heterozygous for the orange and black coat color alleles 13

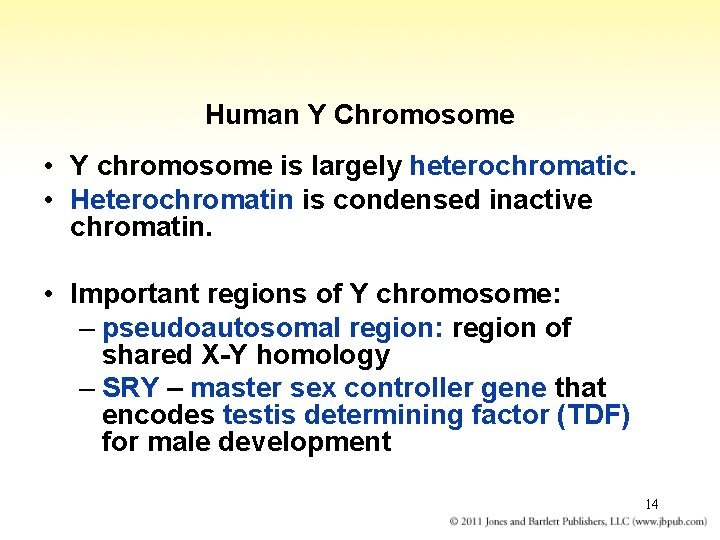

Human Y Chromosome • Y chromosome is largely heterochromatic. • Heterochromatin is condensed inactive chromatin. • Important regions of Y chromosome: – pseudoautosomal region: region of shared X-Y homology – SRY – master sex controller gene that encodes testis determining factor (TDF) for male development 14

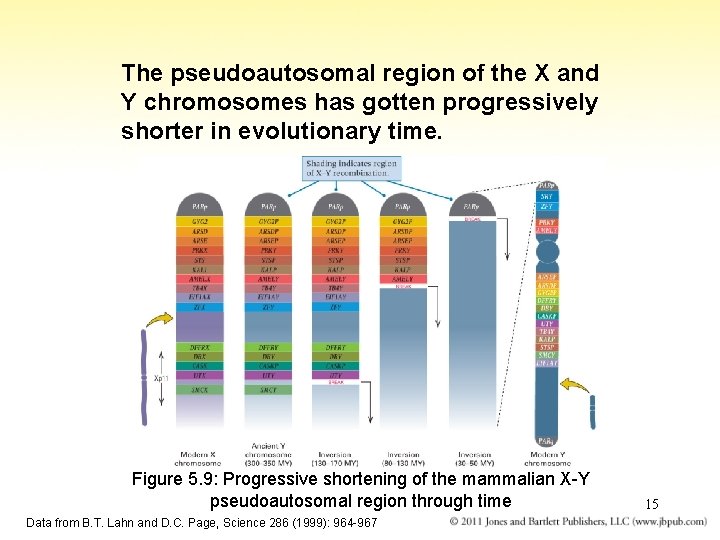

The pseudoautosomal region of the X and Y chromosomes has gotten progressively shorter in evolutionary time. Figure 5. 9: Progressive shortening of the mammalian X-Y pseudoautosomal region through time Data from B. T. Lahn and D. C. Page, Science 286 (1999): 964 -967 15

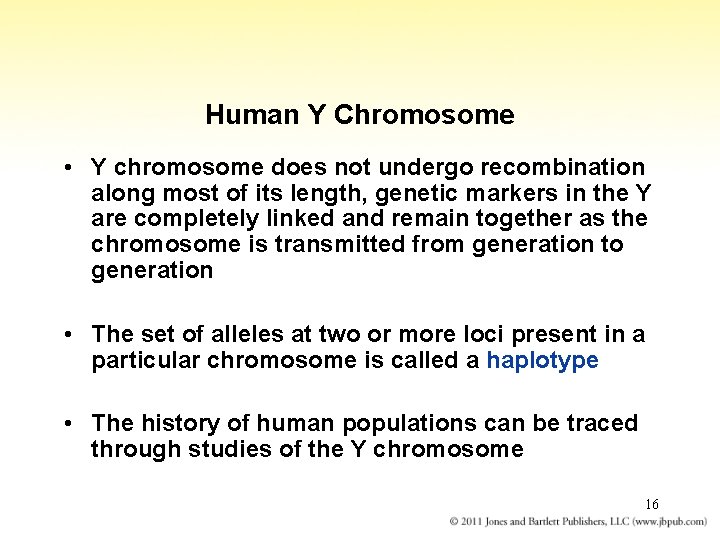

Human Y Chromosome • Y chromosome does not undergo recombination along most of its length, genetic markers in the Y are completely linked and remain together as the chromosome is transmitted from generation to generation • The set of alleles at two or more loci present in a particular chromosome is called a haplotype • The history of human populations can be traced through studies of the Y chromosome 16

Abnormal Chromosome Number • Euploid = balanced chromosome abnormality = the same relative gene dosage as in diploids (example: tetraploids) • Aneuploid = unbalanced set of chromosomes = relative gene dosage is upset (example: trisomy of chromosome 21) • Monosomic = loss of a single chromosome copy Polysomic = extra copies of single chromosomes • Chromosome abnormalities are frequent in spontaneous abortions. 17

Abnormal Chromosome Number • Monosomy or trisomy of most human autosomes is unviable. There are three exceptions: trisomies of 13, 18, and 21 • Down Syndrome is a genetic disorder due to trisomy 21, the most common autosomal aneuploidy in humans • Frequency of Down Syndrome increases with mother’s age • Monosomy usually results in more harmful effects than trisomy 18

Figure 5. 11: Risk of Down syndrome in the absence of prenatal screening as related to mother’s age Data from J. K. Morris, D. E. Mutton, and E. Alberman, J. Med. Screen. 9 (2002): 2 -6

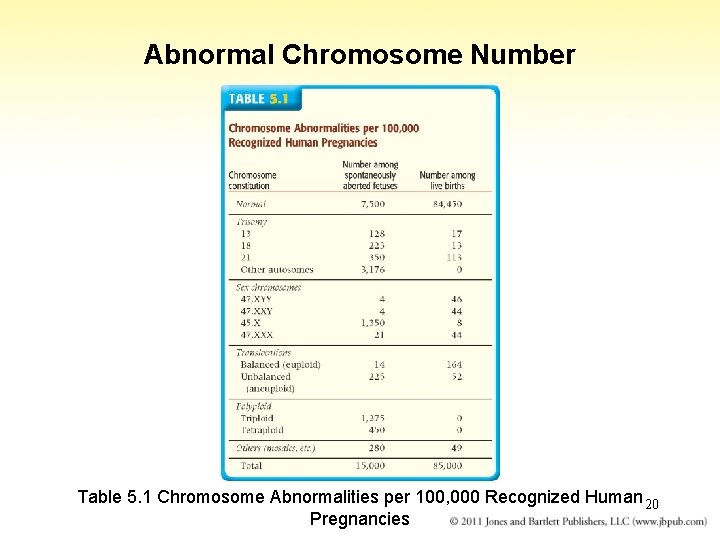

Abnormal Chromosome Number Table 5. 1 Chromosome Abnormalities per 100, 000 Recognized Human 20 Pregnancies

Abnormal Chromosome Number • Trisomic chromosomes undergo abnormal segregation • Trivalent = abnormal pairing of trisomic chromosomes in cell division • Univalent = extra chromosome in trisomy is unpaired in cell division 21

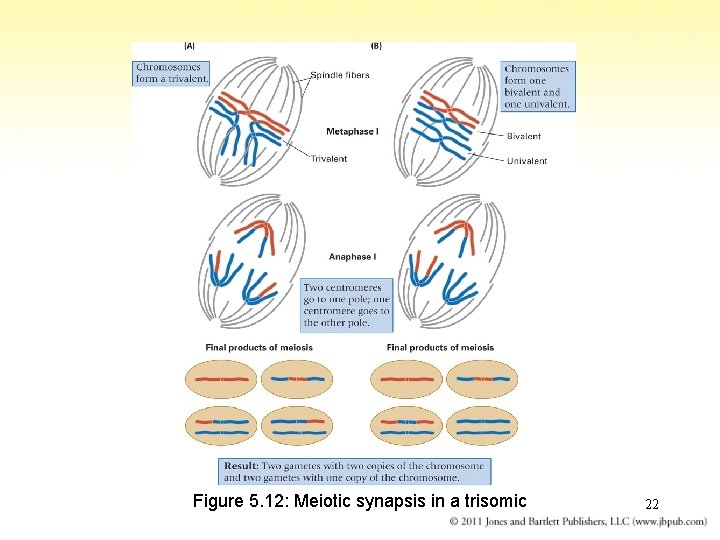

Figure 5. 12: Meiotic synapsis in a trisomic 22

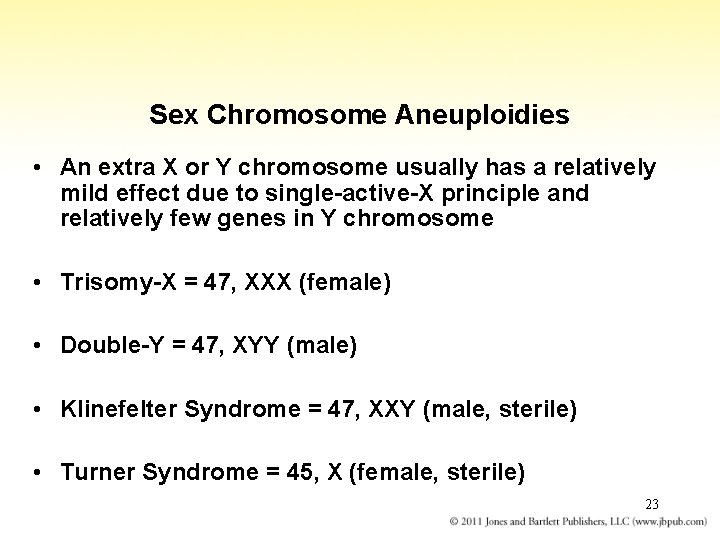

Sex Chromosome Aneuploidies • An extra X or Y chromosome usually has a relatively mild effect due to single-active-X principle and relatively few genes in Y chromosome • Trisomy-X = 47, XXX (female) • Double-Y = 47, XYY (male) • Klinefelter Syndrome = 47, XXY (male, sterile) • Turner Syndrome = 45, X (female, sterile) 23

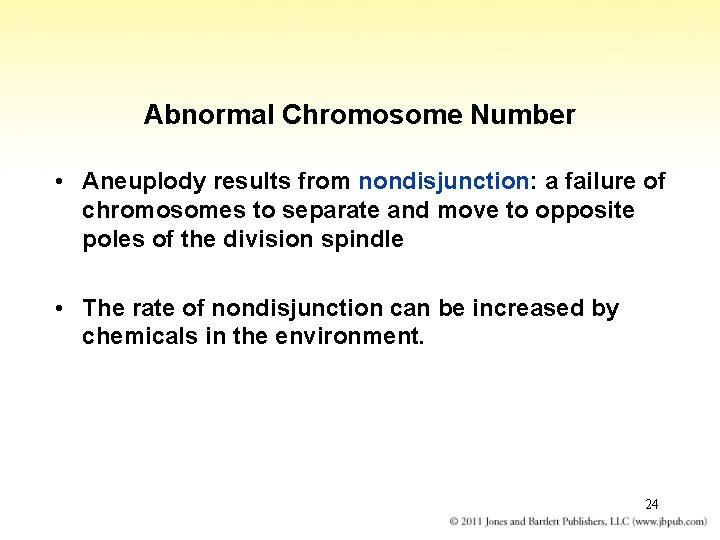

Abnormal Chromosome Number • Aneuplody results from nondisjunction: a failure of chromosomes to separate and move to opposite poles of the division spindle • The rate of nondisjunction can be increased by chemicals in the environment. 24

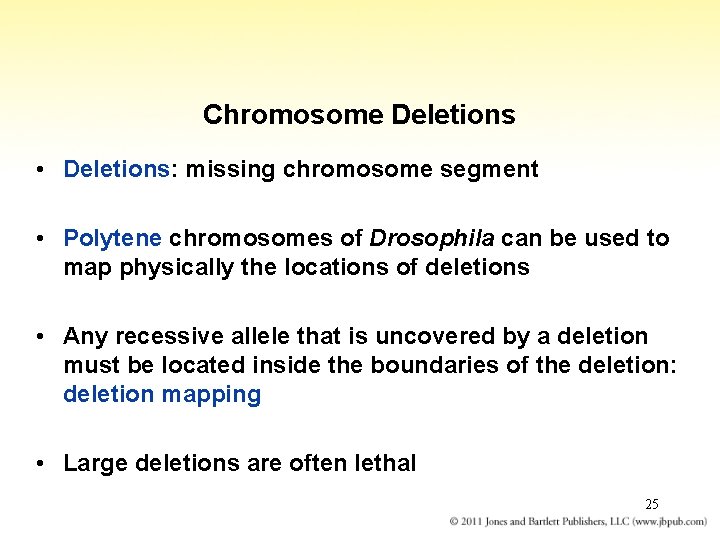

Chromosome Deletions • Deletions: missing chromosome segment • Polytene chromosomes of Drosophila can be used to map physically the locations of deletions • Any recessive allele that is uncovered by a deletion must be located inside the boundaries of the deletion: deletion mapping • Large deletions are often lethal 25

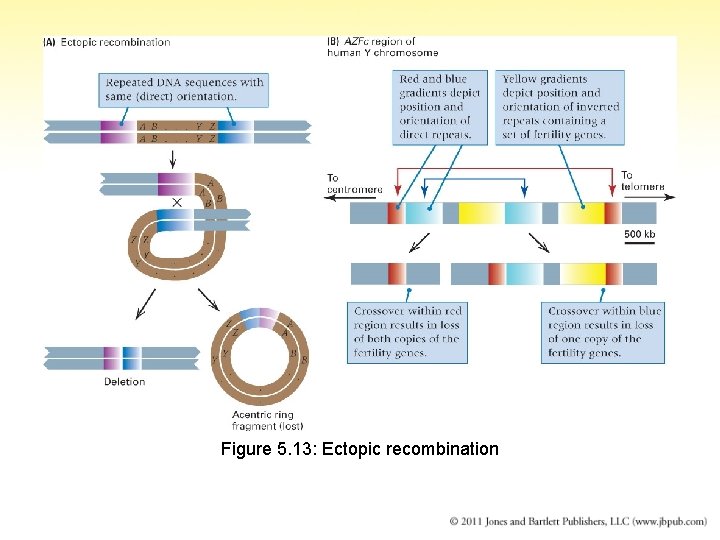

Figure 5. 13: Ectopic recombination

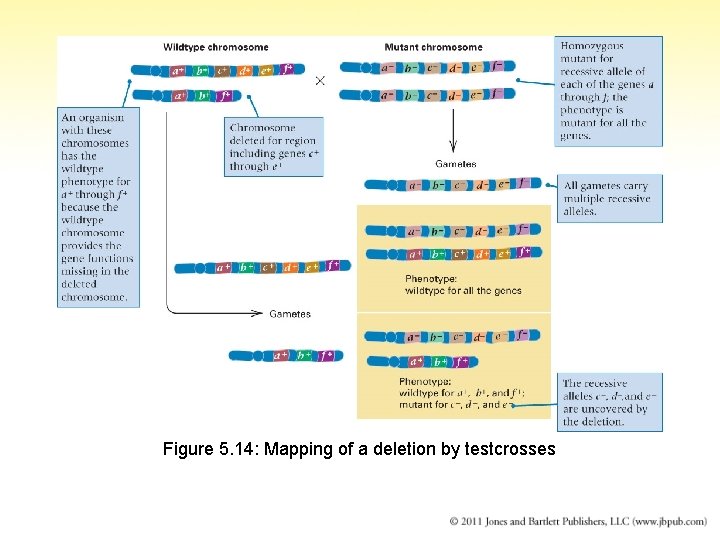

Figure 5. 14: Mapping of a deletion by testcrosses

Figure 5. 16: Part of the X chromosome in polytene salivary gland nuclei and the extent of six deletions (I–VI) in a set of chromosomes 28

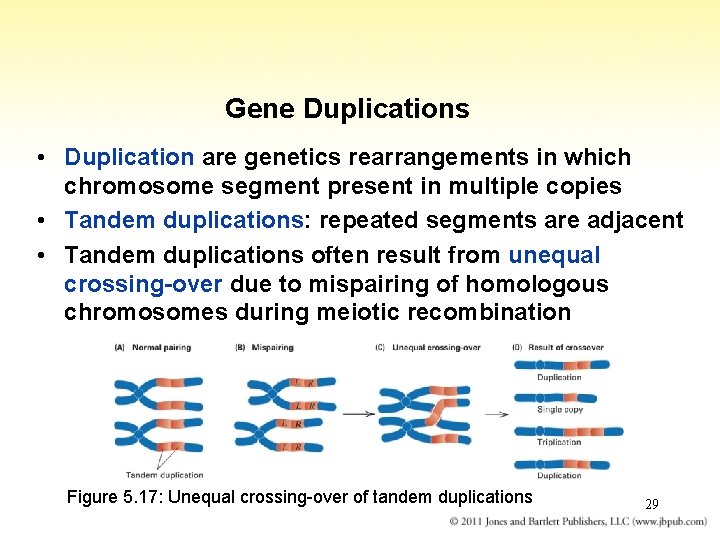

Gene Duplications • Duplication are genetics rearrangements in which chromosome segment present in multiple copies • Tandem duplications: repeated segments are adjacent • Tandem duplications often result from unequal crossing-over due to mispairing of homologous chromosomes during meiotic recombination Figure 5. 17: Unequal crossing-over of tandem duplications 29

Figure 5. 18: A standard color chart used in initial testing for color blindness © Steve Allen/Brand X Pictures/Alamy Images

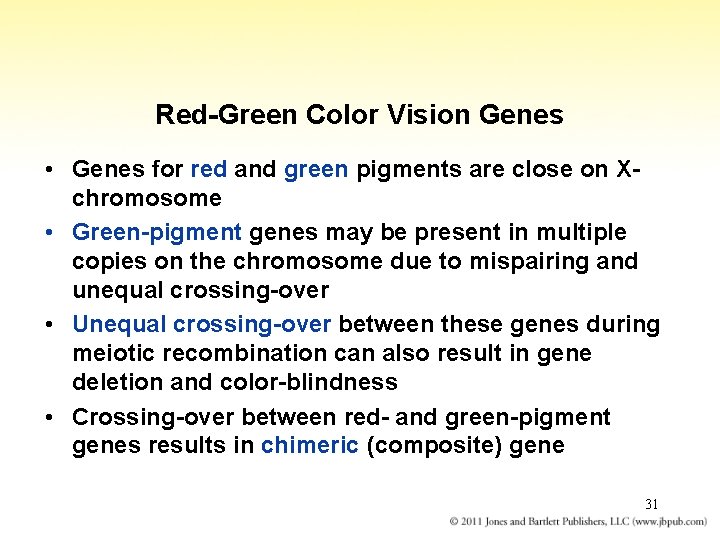

Red-Green Color Vision Genes • Genes for red and green pigments are close on Xchromosome • Green-pigment genes may be present in multiple copies on the chromosome due to mispairing and unequal crossing-over • Unequal crossing-over between these genes during meiotic recombination can also result in gene deletion and color-blindness • Crossing-over between red- and green-pigment genes results in chimeric (composite) gene 31

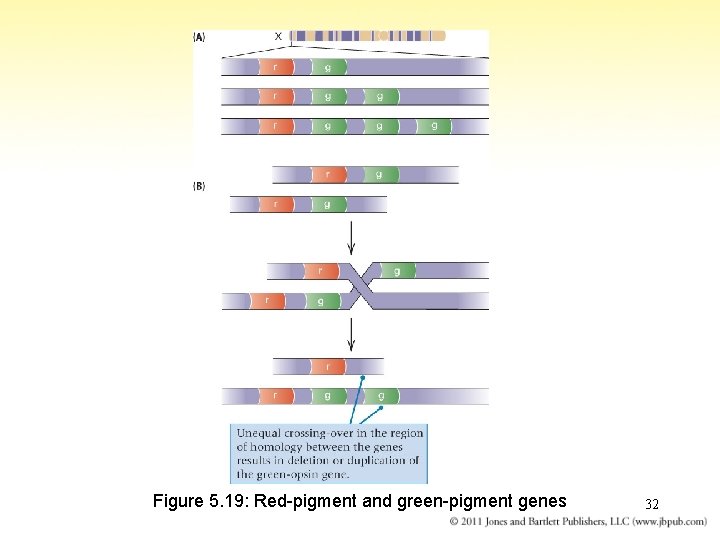

Figure 5. 19: Red-pigment and green-pigment genes 32

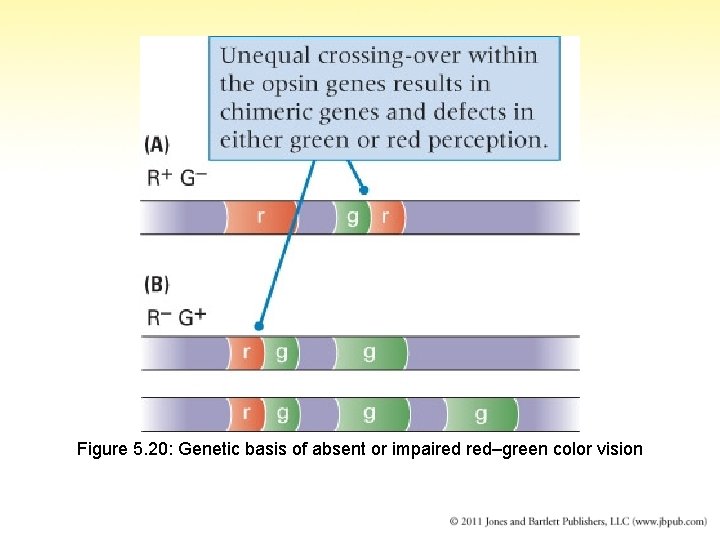

Figure 5. 20: Genetic basis of absent or impaired red–green color vision

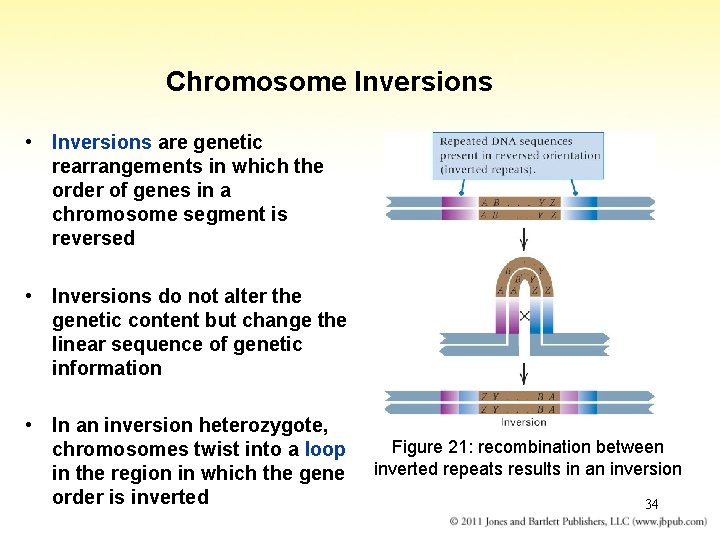

Chromosome Inversions • Inversions are genetic rearrangements in which the order of genes in a chromosome segment is reversed • Inversions do not alter the genetic content but change the linear sequence of genetic information • In an inversion heterozygote, chromosomes twist into a loop in the region in which the gene order is inverted Figure 21: recombination between inverted repeats results in an inversion 34

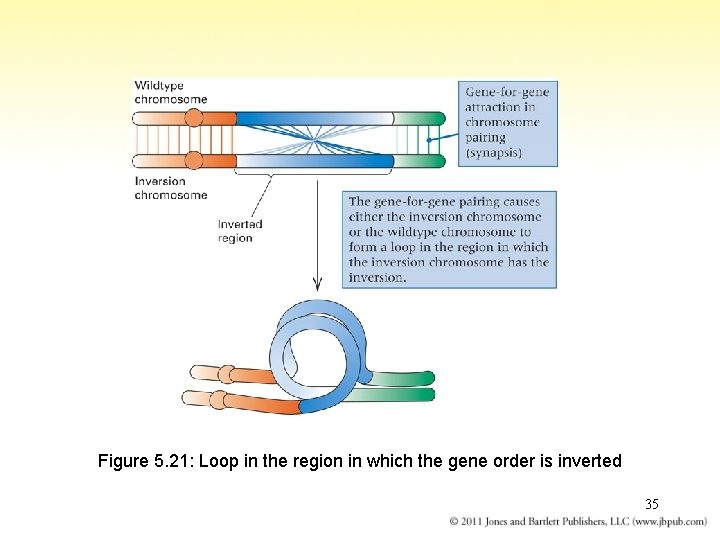

Figure 5. 21: Loop in the region in which the gene order is inverted 35

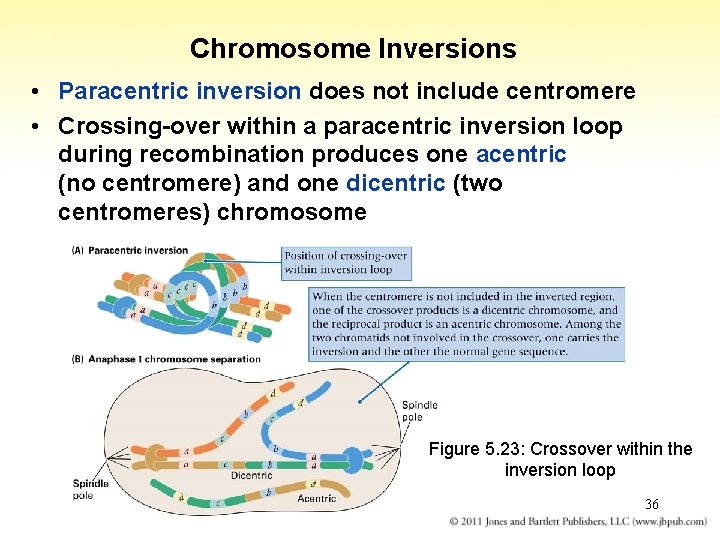

Chromosome Inversions • Paracentric inversion does not include centromere • Crossing-over within a paracentric inversion loop during recombination produces one acentric (no centromere) and one dicentric (two centromeres) chromosome Figure 5. 23: Crossover within the inversion loop 36

Chromosome Inversions • Pericentric inversion includes centromere • Crossing-over within a pericentric inversion loop during homologous recombination results in duplications and deletions of genetic information Figure 5. 24: Synapsis between homologous chromosomes 37

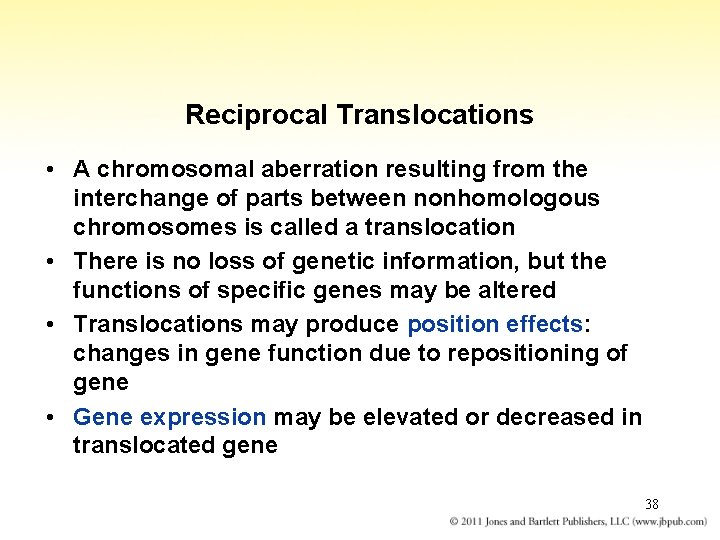

Reciprocal Translocations • A chromosomal aberration resulting from the interchange of parts between nonhomologous chromosomes is called a translocation • There is no loss of genetic information, but the functions of specific genes may be altered • Translocations may produce position effects: changes in gene function due to repositioning of gene • Gene expression may be elevated or decreased in translocated gene 38

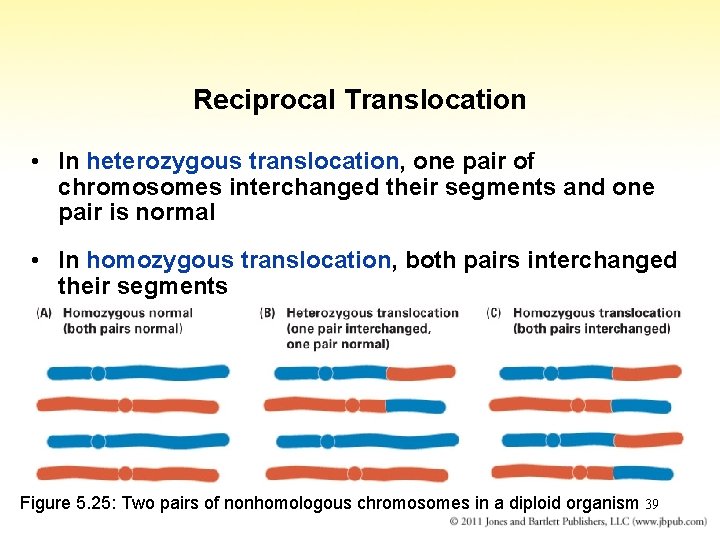

Reciprocal Translocation • In heterozygous translocation, one pair of chromosomes interchanged their segments and one pair is normal • In homozygous translocation, both pairs interchanged their segments Figure 5. 25: Two pairs of nonhomologous chromosomes in a diploid organism 39

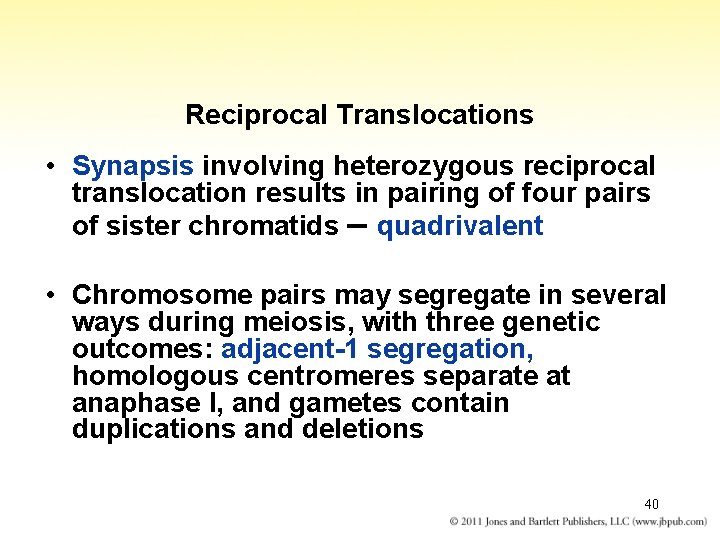

Reciprocal Translocations • Synapsis involving heterozygous reciprocal translocation results in pairing of four pairs of sister chromatids – quadrivalent • Chromosome pairs may segregate in several ways during meiosis, with three genetic outcomes: adjacent-1 segregation, homologous centromeres separate at anaphase I, and gametes contain duplications and deletions 40

Reciprocal Translocation • Adjacent-2 segregation: homologous centromeres stay together at anaphase I; gametes have a segment duplication and deletion • Alternate segregation: half the gametes receive both parts of the reciprocal translocation and the other half receive both normal chromosomes; all gametes are euploid, i. e. have normal genetic content, but half are translocation carriers 41

Reciprocal Translocation • The duplication and deficiency of gametes produced by adjacent-1 and adjacent-2 segregation results in the semisterility of genotypes that are heterozygous for a reciprocal translocation • The frequencies of each outcome is influenced by the position of the translocation breakpoints, by the number and distribution of chiasmata, and by whether the quadrivalent tends to open out into a ring-shaped structure on the metaphase plate 42

Figure 5. 26: A quadrivalent 43

Robertsonian Translocation • A special case of nonreciprocal translocation is a Robertsonian translocation – fusion of two acrocentric chromosomes in the centromere region • Translocation results in apparent loss of one chromosome in karyotype analysis • Genetic information is lost in the tips of the translocated acrocentric chromosomes Figure 5. 27: Formation of a Robertsonian translocation by fusion 44

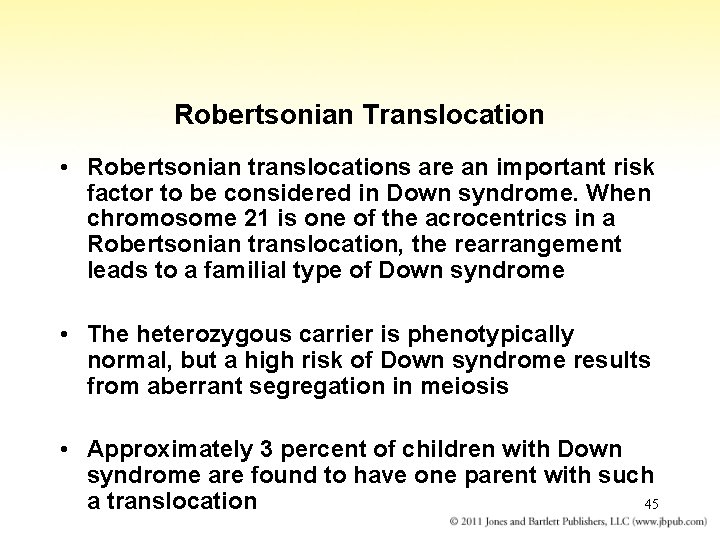

Robertsonian Translocation • Robertsonian translocations are an important risk factor to be considered in Down syndrome. When chromosome 21 is one of the acrocentrics in a Robertsonian translocation, the rearrangement leads to a familial type of Down syndrome • The heterozygous carrier is phenotypically normal, but a high risk of Down syndrome results from aberrant segregation in meiosis • Approximately 3 percent of children with Down syndrome are found to have one parent with such a translocation 45

Figure 5. 28: A karyotype of a child with Down syndrome Courtesy of Viola Freeman, Associate Professor, Faculty of Health Sciences, Department of Pathology and Molecular Medicine, Mc. Master University

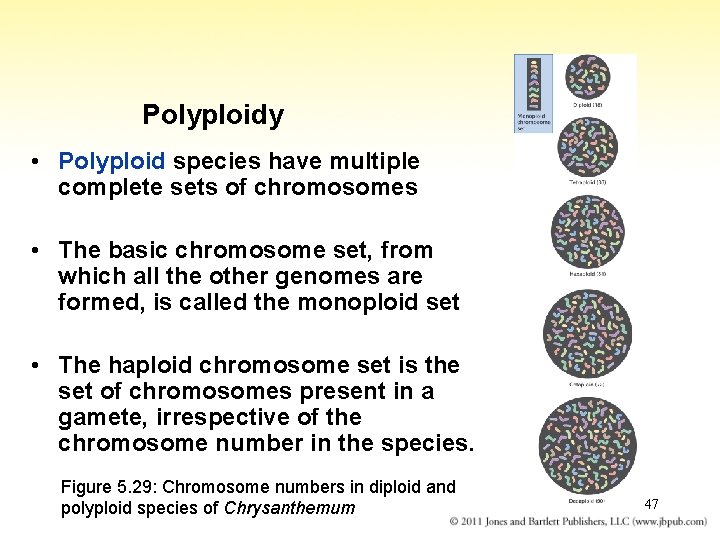

Polyploidy • Polyploid species have multiple complete sets of chromosomes • The basic chromosome set, from which all the other genomes are formed, is called the monoploid set • The haploid chromosome set is the set of chromosomes present in a gamete, irrespective of the chromosome number in the species. Figure 5. 29: Chromosome numbers in diploid and polyploid species of Chrysanthemum 47

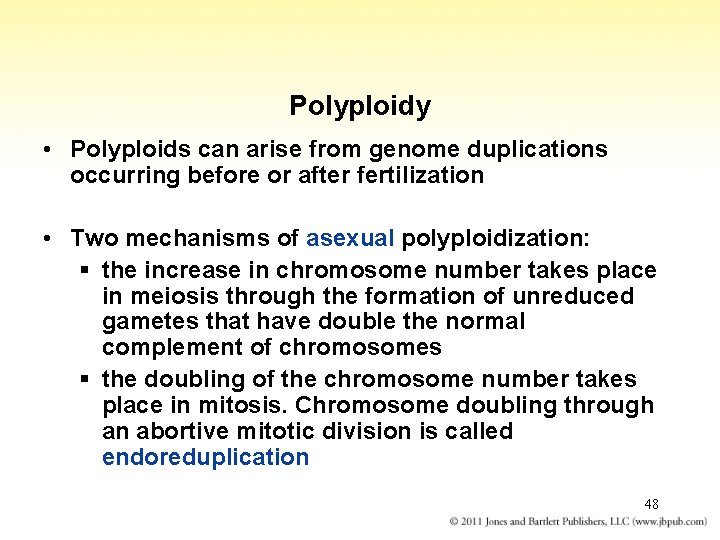

Polyploidy • Polyploids can arise from genome duplications occurring before or after fertilization • Two mechanisms of asexual polyploidization: § the increase in chromosome number takes place in meiosis through the formation of unreduced gametes that have double the normal complement of chromosomes § the doubling of the chromosome number takes place in mitosis. Chromosome doubling through an abortive mitotic division is called endoreduplication 48

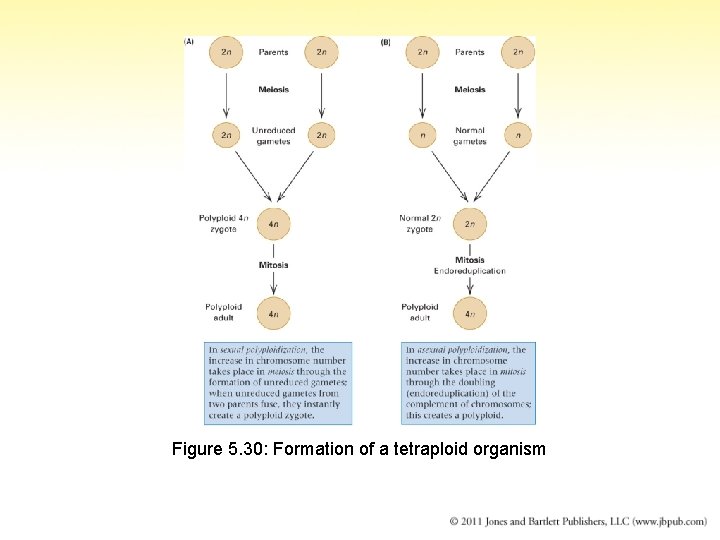

Figure 5. 30: Formation of a tetraploid organism

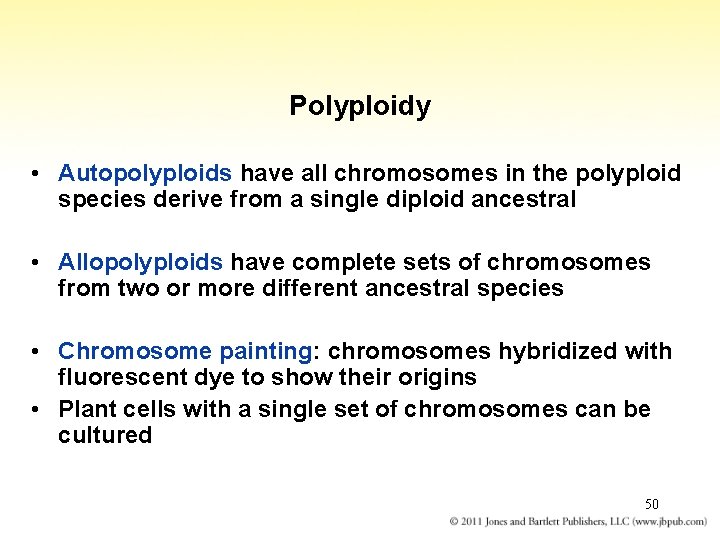

Polyploidy • Autopolyploids have all chromosomes in the polyploid species derive from a single diploid ancestral • Allopolyploids have complete sets of chromosomes from two or more different ancestral species • Chromosome painting: chromosomes hybridized with fluorescent dye to show their origins • Plant cells with a single set of chromosomes can be cultured 50

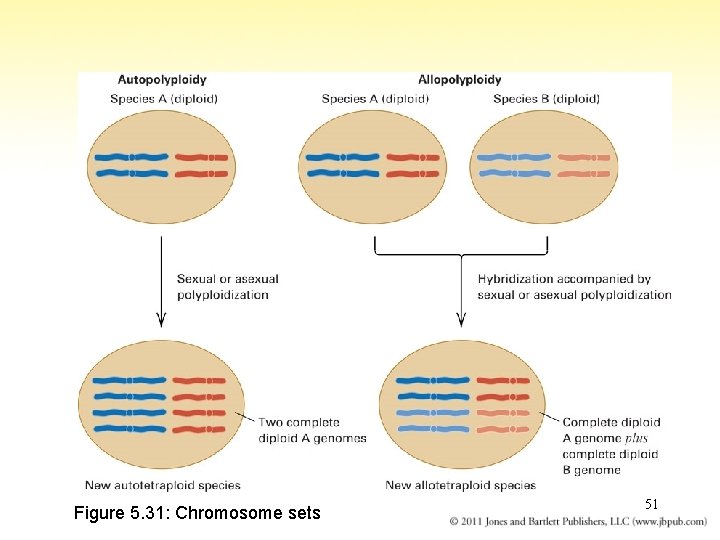

Figure 5. 31: Chromosome sets 51

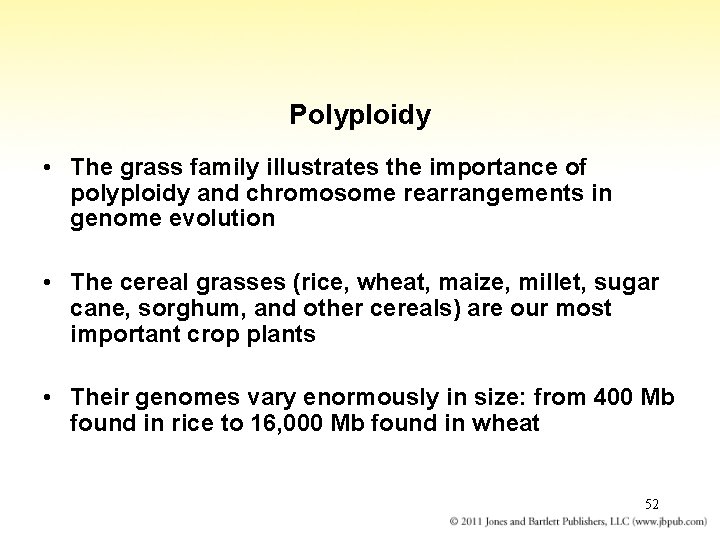

Polyploidy • The grass family illustrates the importance of polyploidy and chromosome rearrangements in genome evolution • The cereal grasses (rice, wheat, maize, millet, sugar cane, sorghum, and other cereals) are our most important crop plants • Their genomes vary enormously in size: from 400 Mb found in rice to 16, 000 Mb found in wheat 52

Figure 5. 32: Repeated hybridization and polyploidization in the origin of wheat

Polyploidy • In spite of the large variation in chromosome number and genome size, there a number of genetic and physical linkages between single-copy genes that are remarkably conserved in all grasses amid a background of rapidly evolving repetitive DNA • Each of the conserved regions (synteny groups) can be identified in all the grasses and referred to a similar region in the rice genome. 54

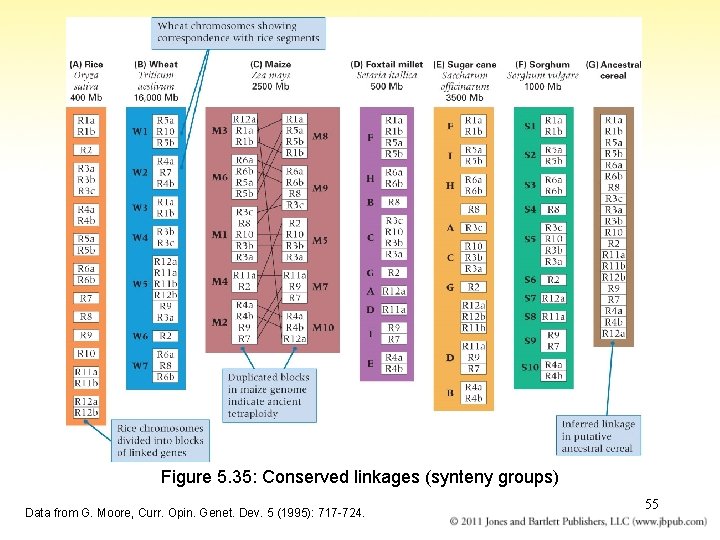

Figure 5. 35: Conserved linkages (synteny groups) Data from G. Moore, Curr. Opin. Genet. Dev. 5 (1995): 717 -724. 55

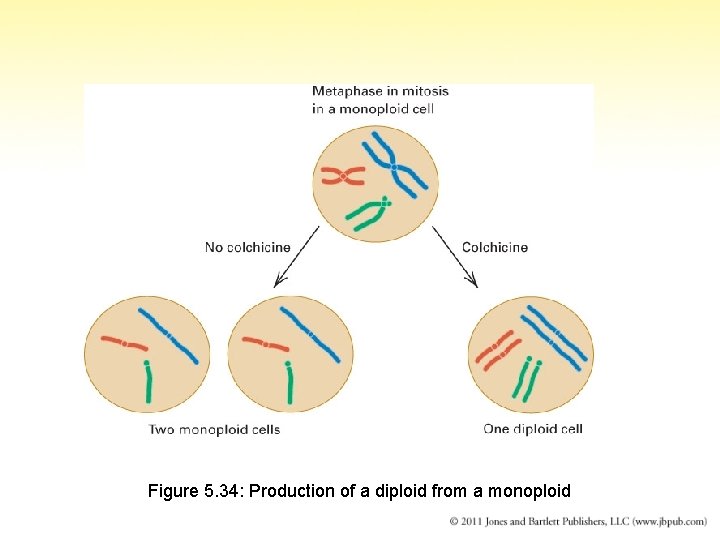

Figure 5. 34: Production of a diploid from a monoploid
