Chapter 5 Data Resource Management James A OBrien

Chapter 5 Data Resource Management James A. O'Brien, and George Marakas. Management Information Systems with MISource 2007, 8 th ed. Boston, MA: Mc. Graw-Hill, Inc. , 2007. ISBN: 13 9780073323091

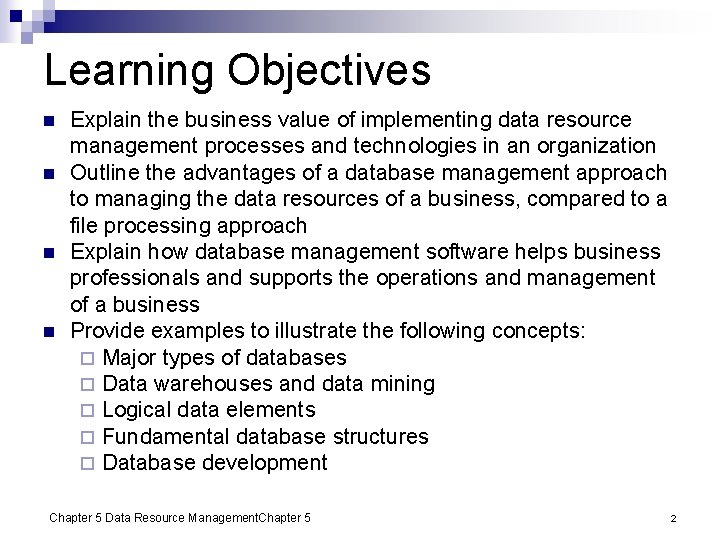

Learning Objectives n n Explain the business value of implementing data resource management processes and technologies in an organization Outline the advantages of a database management approach to managing the data resources of a business, compared to a file processing approach Explain how database management software helps business professionals and supports the operations and management of a business Provide examples to illustrate the following concepts: ¨ Major types of databases ¨ Data warehouses and data mining ¨ Logical data elements ¨ Fundamental database structures ¨ Database development Chapter 5 Data Resource Management. Chapter 5 2

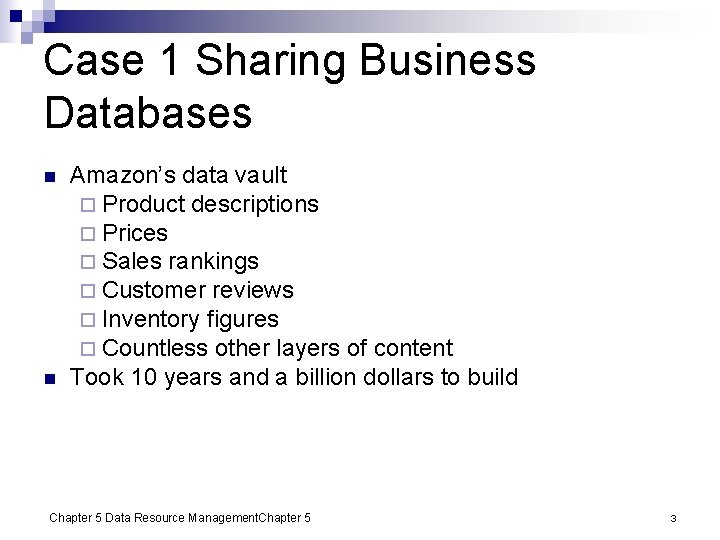

Case 1 Sharing Business Databases n n Amazon’s data vault ¨ Product descriptions ¨ Prices ¨ Sales rankings ¨ Customer reviews ¨ Inventory figures ¨ Countless other layers of content Took 10 years and a billion dollars to build Chapter 5 Data Resource Management. Chapter 5 3

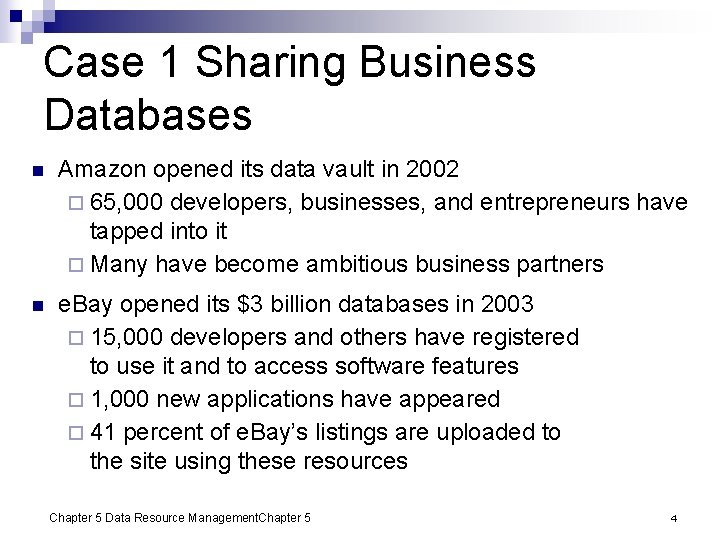

Case 1 Sharing Business Databases n Amazon opened its data vault in 2002 ¨ 65, 000 developers, businesses, and entrepreneurs have tapped into it ¨ Many have become ambitious business partners n e. Bay opened its $3 billion databases in 2003 ¨ 15, 000 developers and others have registered to use it and to access software features ¨ 1, 000 new applications have appeared ¨ 41 percent of e. Bay’s listings are uploaded to the site using these resources Chapter 5 Data Resource Management. Chapter 5 4

Case 1 Sharing Business Databases n Google recently unlocked access to its desktop and paid-search products ¨ Dozens of Google-driven services cropped up ¨ Developers can grab 1, 000 search results a day for free; anything more requires permission ¨ In 2005, the Ad-Words paid-search service was opened to outside applications Chapter 5 Data Resource Management. Chapter 5 5

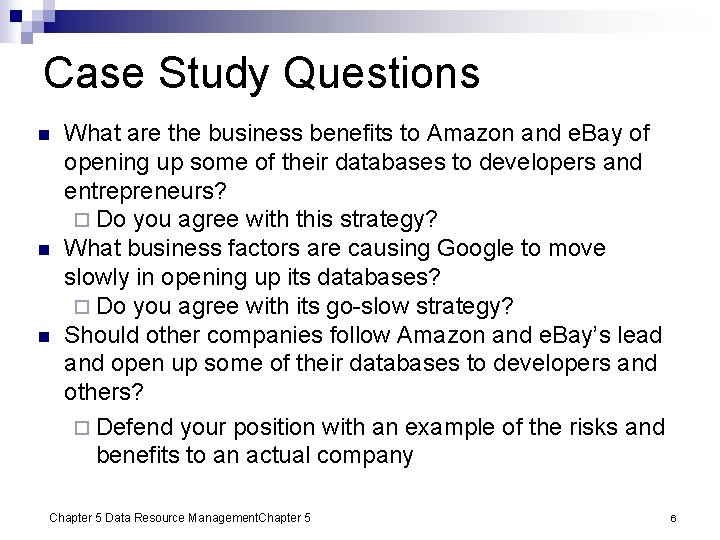

Case Study Questions n n n What are the business benefits to Amazon and e. Bay of opening up some of their databases to developers and entrepreneurs? ¨ Do you agree with this strategy? What business factors are causing Google to move slowly in opening up its databases? ¨ Do you agree with its go-slow strategy? Should other companies follow Amazon and e. Bay’s lead and open up some of their databases to developers and others? ¨ Defend your position with an example of the risks and benefits to an actual company Chapter 5 Data Resource Management. Chapter 5 6

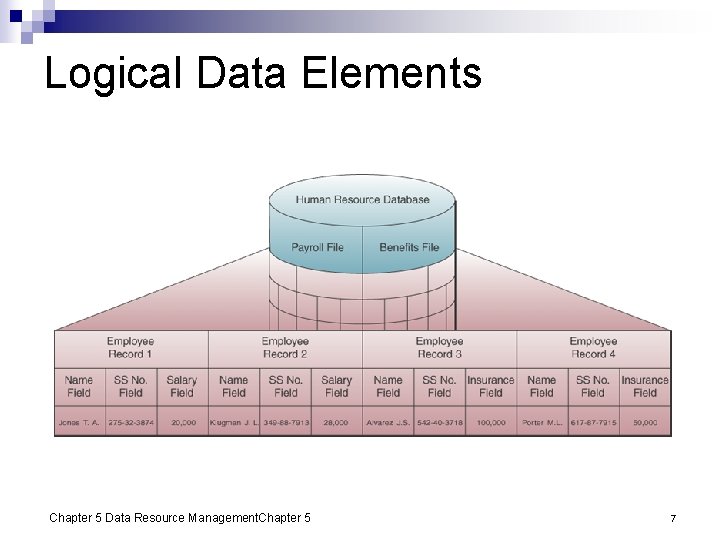

Logical Data Elements Chapter 5 Data Resource Management. Chapter 5 7

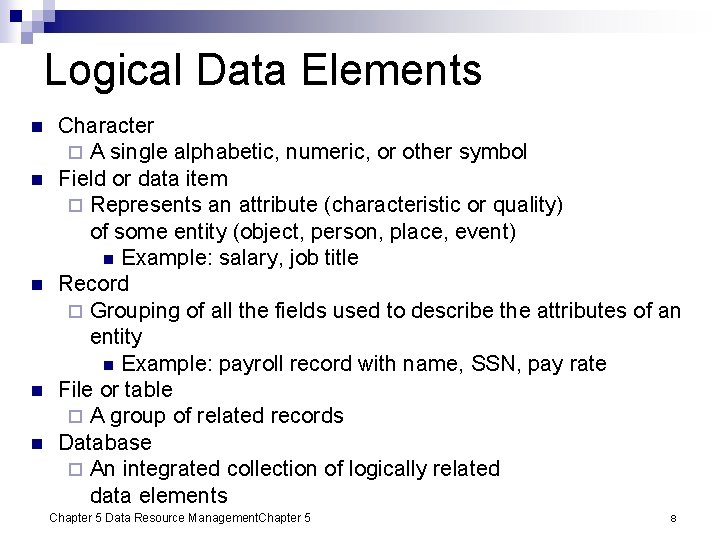

Logical Data Elements n n n Character ¨ A single alphabetic, numeric, or other symbol Field or data item ¨ Represents an attribute (characteristic or quality) of some entity (object, person, place, event) n Example: salary, job title Record ¨ Grouping of all the fields used to describe the attributes of an entity n Example: payroll record with name, SSN, pay rate File or table ¨ A group of related records Database ¨ An integrated collection of logically related data elements Chapter 5 Data Resource Management. Chapter 5 8

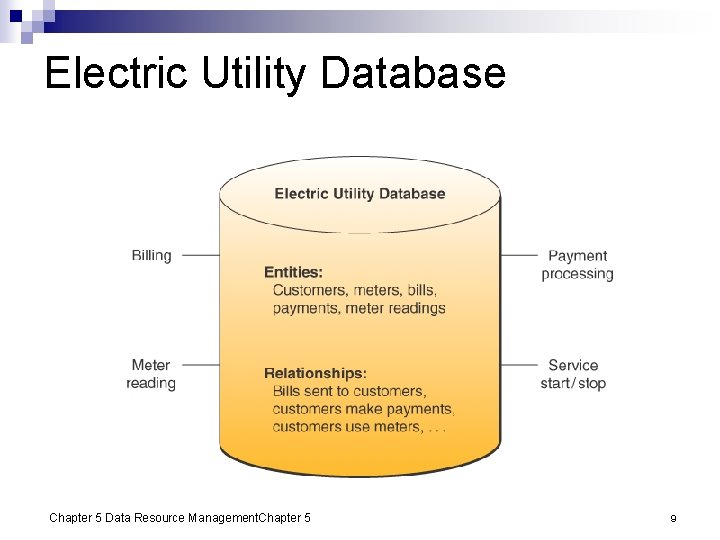

Electric Utility Database Chapter 5 Data Resource Management. Chapter 5 9

Database Structures n Common database structures… ¨ Hierarchical ¨ Network ¨ Relational ¨ Object-oriented ¨ Multi-dimensional Chapter 5 Data Resource Management. Chapter 5 10

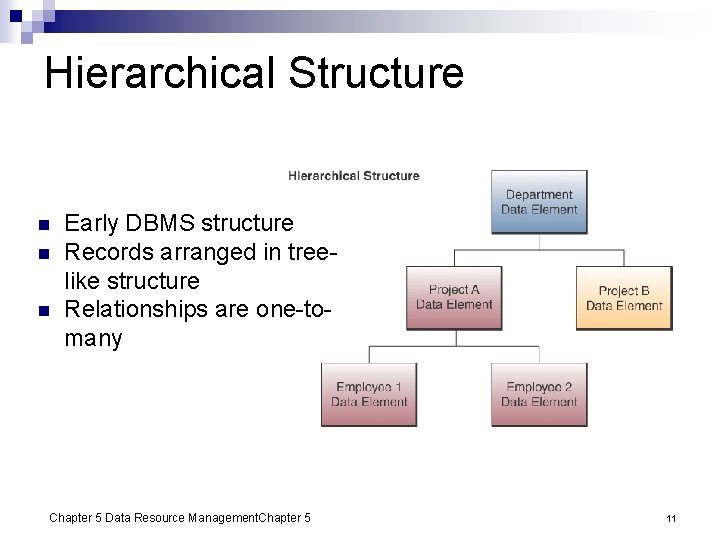

Hierarchical Structure n n n Early DBMS structure Records arranged in treelike structure Relationships are one-tomany Chapter 5 Data Resource Management. Chapter 5 11

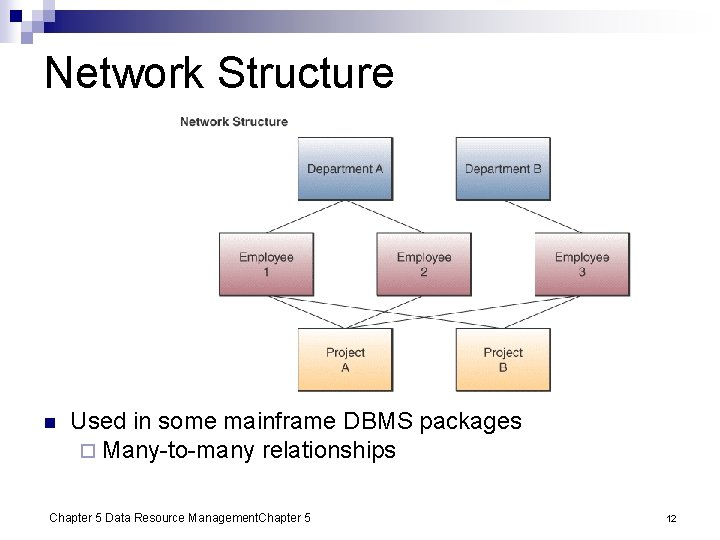

Network Structure n Used in some mainframe DBMS packages ¨ Many-to-many relationships Chapter 5 Data Resource Management. Chapter 5 12

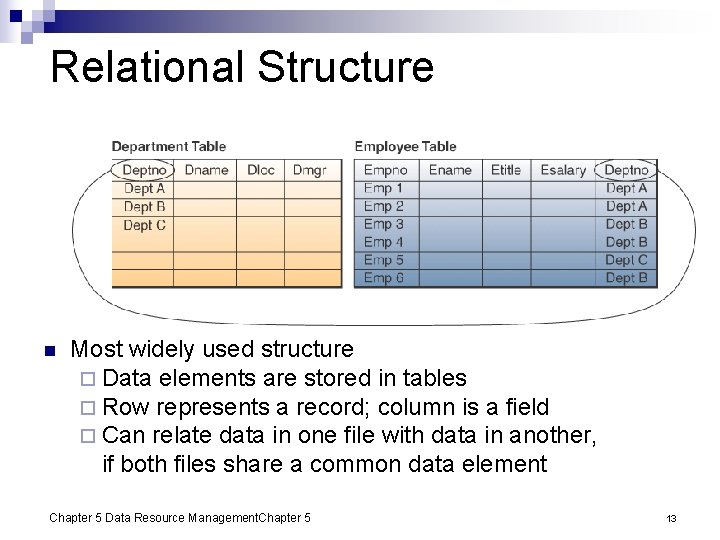

Relational Structure n Most widely used structure ¨ Data elements are stored in tables ¨ Row represents a record; column is a field ¨ Can relate data in one file with data in another, if both files share a common data element Chapter 5 Data Resource Management. Chapter 5 13

Relational Operations n n n Select ¨ Create a subset of records that meet a stated criterion n Example: employees earning more than $30, 000 Join ¨ Combine two or more tables temporarily ¨ Looks like one big table Project ¨ Create a subset of columns in a table Chapter 5 Data Resource Management. Chapter 5 14

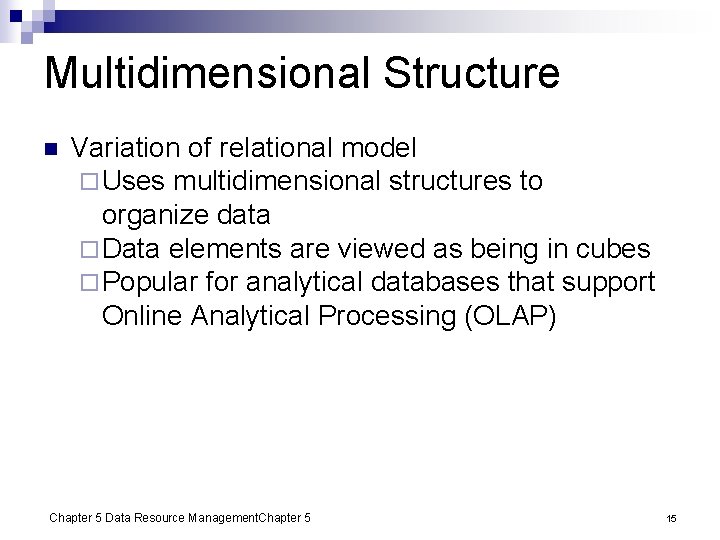

Multidimensional Structure n Variation of relational model ¨ Uses multidimensional structures to organize data ¨ Data elements are viewed as being in cubes ¨ Popular for analytical databases that support Online Analytical Processing (OLAP) Chapter 5 Data Resource Management. Chapter 5 15

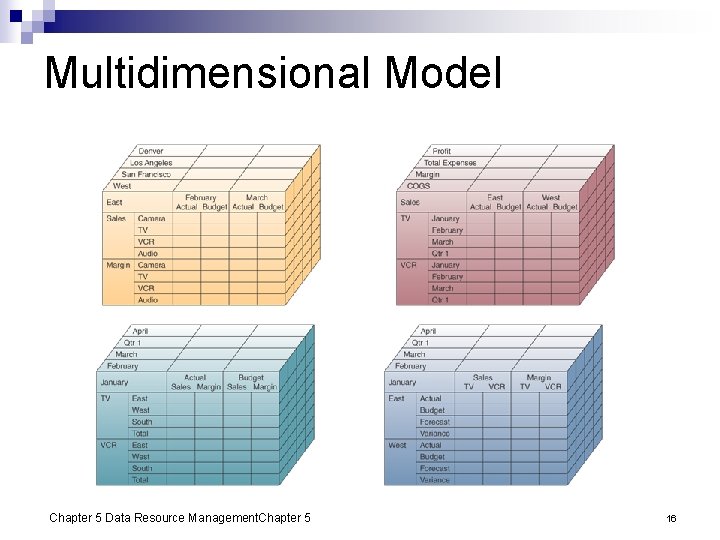

Multidimensional Model Chapter 5 Data Resource Management. Chapter 5 16

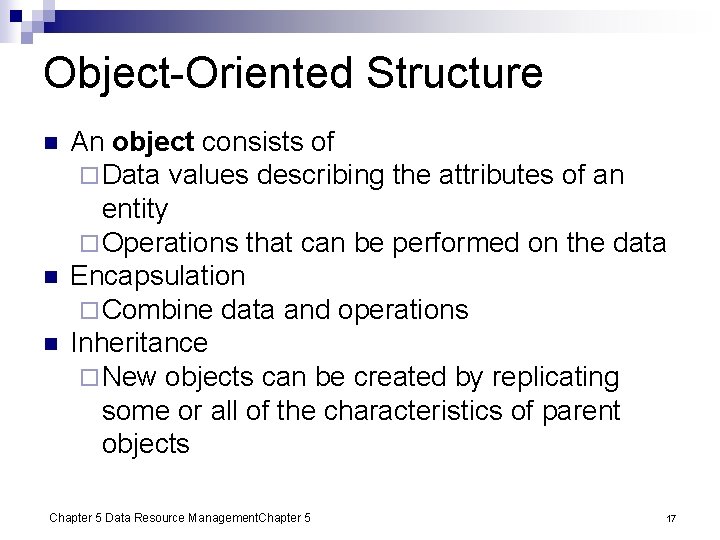

Object-Oriented Structure n n n An object consists of ¨ Data values describing the attributes of an entity ¨ Operations that can be performed on the data Encapsulation ¨ Combine data and operations Inheritance ¨ New objects can be created by replicating some or all of the characteristics of parent objects Chapter 5 Data Resource Management. Chapter 5 17

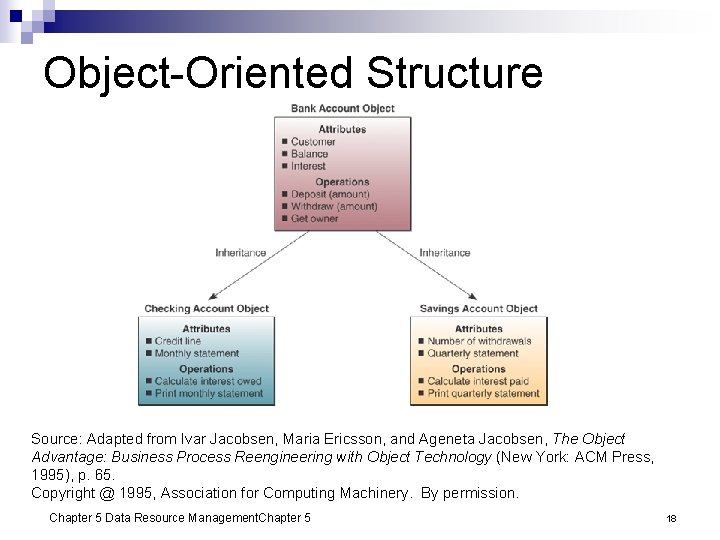

Object-Oriented Structure Source: Adapted from Ivar Jacobsen, Maria Ericsson, and Ageneta Jacobsen, The Object Advantage: Business Process Reengineering with Object Technology (New York: ACM Press, 1995), p. 65. Copyright @ 1995, Association for Computing Machinery. By permission. Chapter 5 Data Resource Management. Chapter 5 18

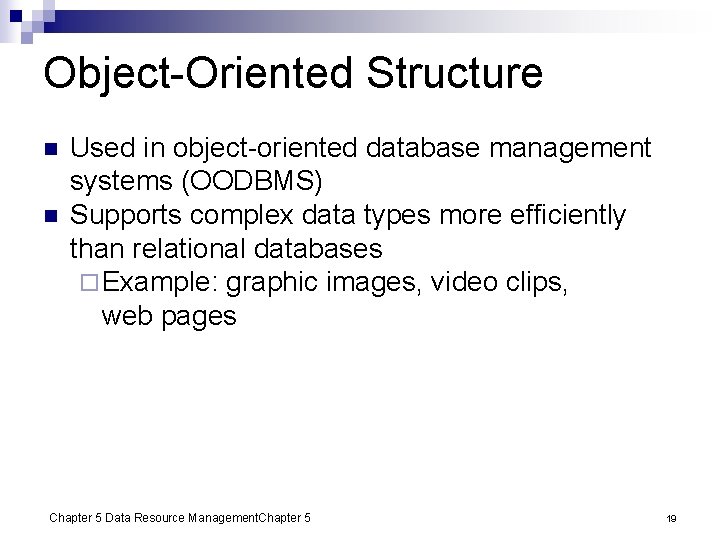

Object-Oriented Structure n n Used in object-oriented database management systems (OODBMS) Supports complex data types more efficiently than relational databases ¨ Example: graphic images, video clips, web pages Chapter 5 Data Resource Management. Chapter 5 19

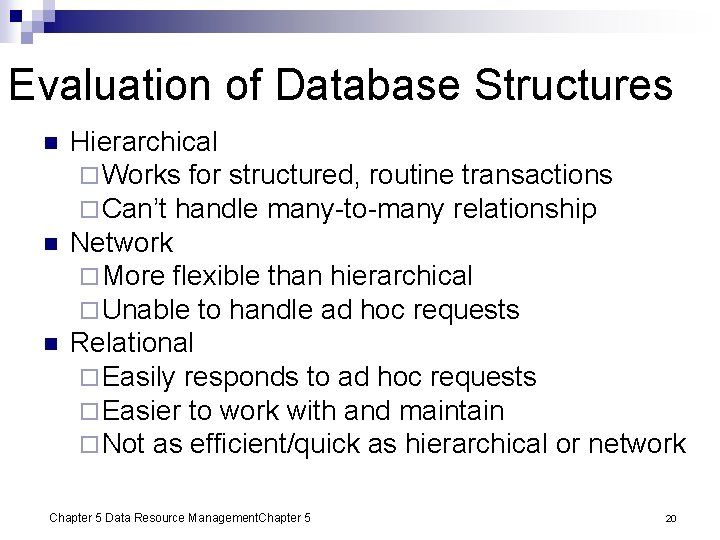

Evaluation of Database Structures n n n Hierarchical ¨ Works for structured, routine transactions ¨ Can’t handle many-to-many relationship Network ¨ More flexible than hierarchical ¨ Unable to handle ad hoc requests Relational ¨ Easily responds to ad hoc requests ¨ Easier to work with and maintain ¨ Not as efficient/quick as hierarchical or network Chapter 5 Data Resource Management. Chapter 5 20

Database Development n Database Administrator (DBA) ¨ In charge of enterprise database development ¨ Improves the integrity and security of organizational databases ¨ Uses Data Definition Language (DDL) to develop and specify data contents, relationships, and structure ¨ Stores these specifications in a data dictionary or a metadata repository Chapter 5 Data Resource Management. Chapter 5 21

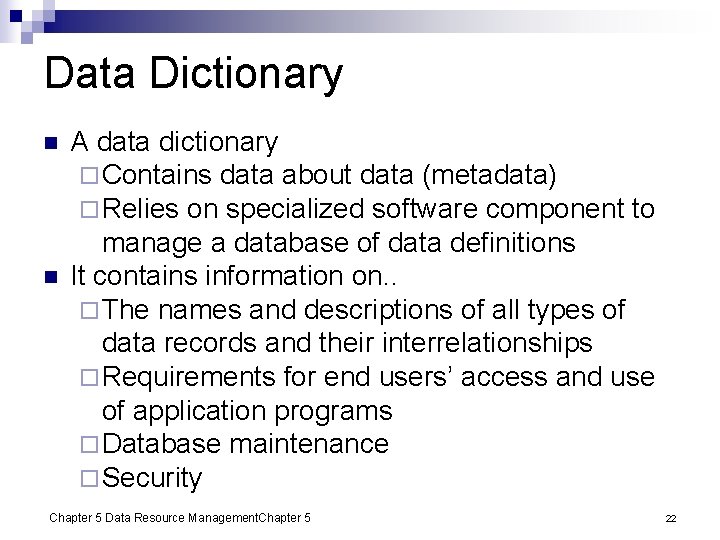

Data Dictionary n n A data dictionary ¨ Contains data about data (metadata) ¨ Relies on specialized software component to manage a database of data definitions It contains information on. . ¨ The names and descriptions of all types of data records and their interrelationships ¨ Requirements for end users’ access and use of application programs ¨ Database maintenance ¨ Security Chapter 5 Data Resource Management. Chapter 5 22

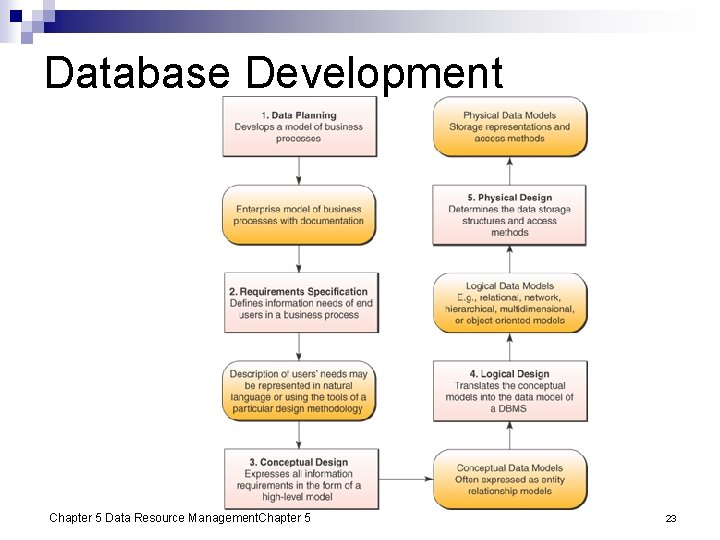

Database Development Chapter 5 Data Resource Management. Chapter 5 23

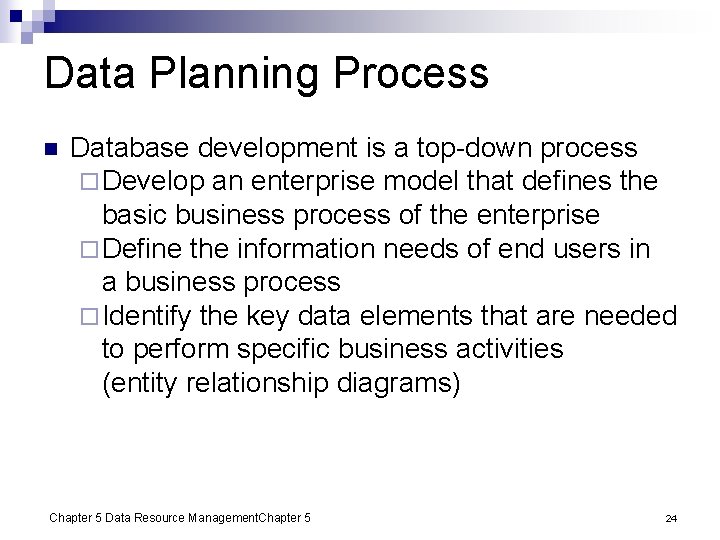

Data Planning Process n Database development is a top-down process ¨ Develop an enterprise model that defines the basic business process of the enterprise ¨ Define the information needs of end users in a business process ¨ Identify the key data elements that are needed to perform specific business activities (entity relationship diagrams) Chapter 5 Data Resource Management. Chapter 5 24

Entity Relationship Diagram Chapter 5 Data Resource Management. Chapter 5 25

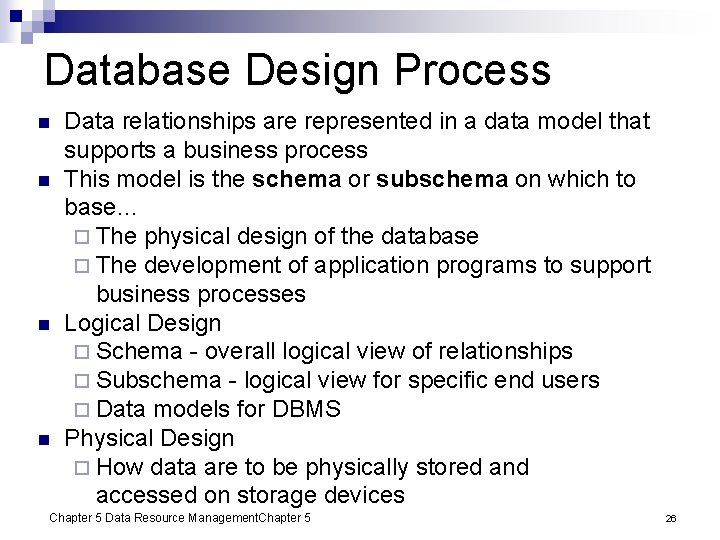

Database Design Process n n Data relationships are represented in a data model that supports a business process This model is the schema or subschema on which to base… ¨ The physical design of the database ¨ The development of application programs to support business processes Logical Design ¨ Schema - overall logical view of relationships ¨ Subschema - logical view for specific end users ¨ Data models for DBMS Physical Design ¨ How data are to be physically stored and accessed on storage devices Chapter 5 Data Resource Management. Chapter 5 26

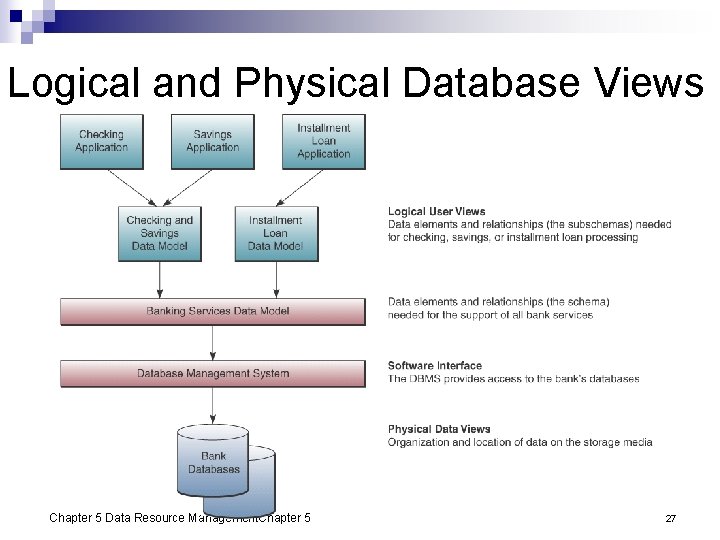

Logical and Physical Database Views Chapter 5 Data Resource Management. Chapter 5 27

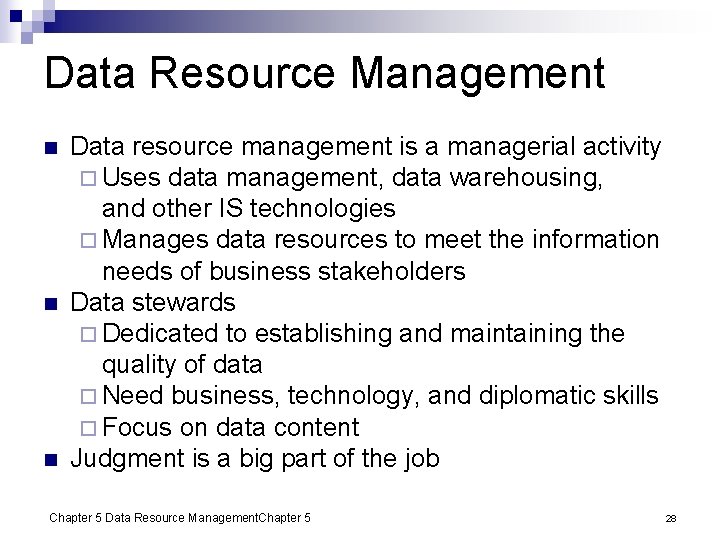

Data Resource Management n n n Data resource management is a managerial activity ¨ Uses data management, data warehousing, and other IS technologies ¨ Manages data resources to meet the information needs of business stakeholders Data stewards ¨ Dedicated to establishing and maintaining the quality of data ¨ Need business, technology, and diplomatic skills ¨ Focus on data content Judgment is a big part of the job Chapter 5 Data Resource Management. Chapter 5 28

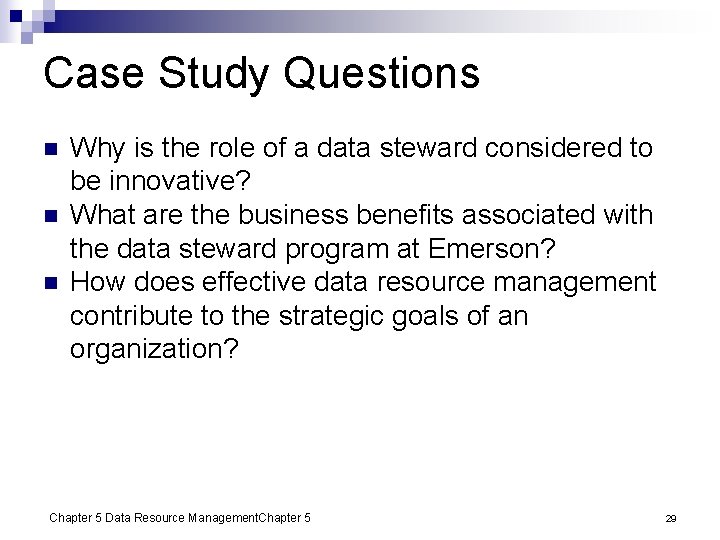

Case Study Questions n n n Why is the role of a data steward considered to be innovative? What are the business benefits associated with the data steward program at Emerson? How does effective data resource management contribute to the strategic goals of an organization? Chapter 5 Data Resource Management. Chapter 5 29

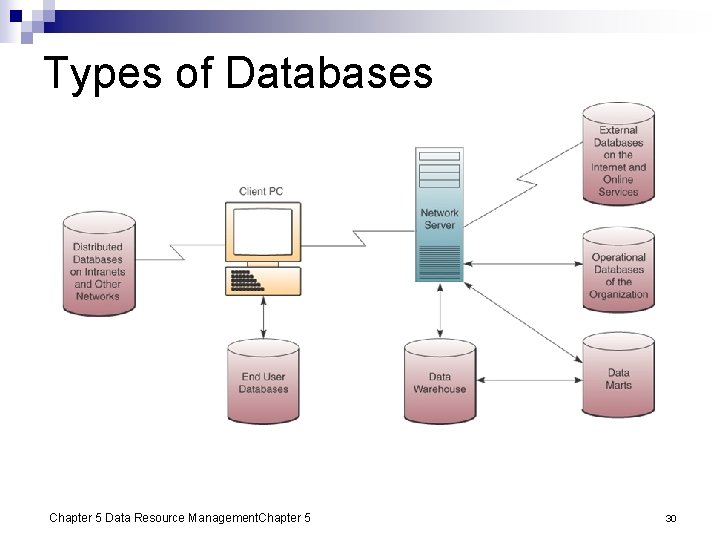

Types of Databases Chapter 5 Data Resource Management. Chapter 5 30

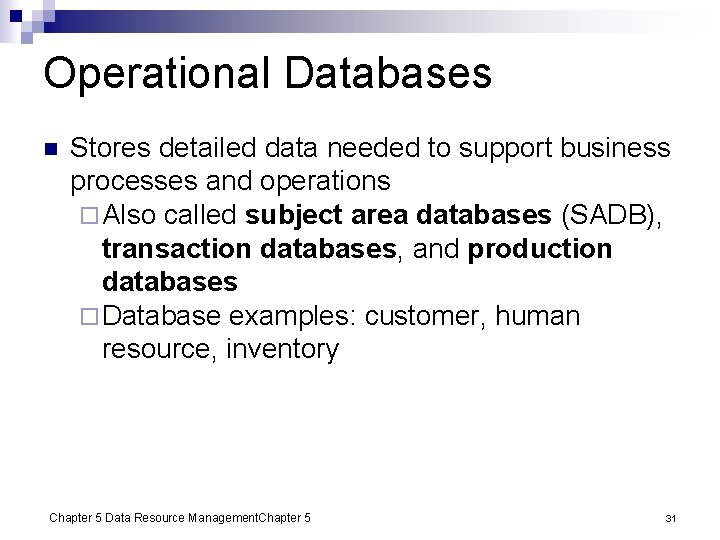

Operational Databases n Stores detailed data needed to support business processes and operations ¨ Also called subject area databases (SADB), transaction databases, and production databases ¨ Database examples: customer, human resource, inventory Chapter 5 Data Resource Management. Chapter 5 31

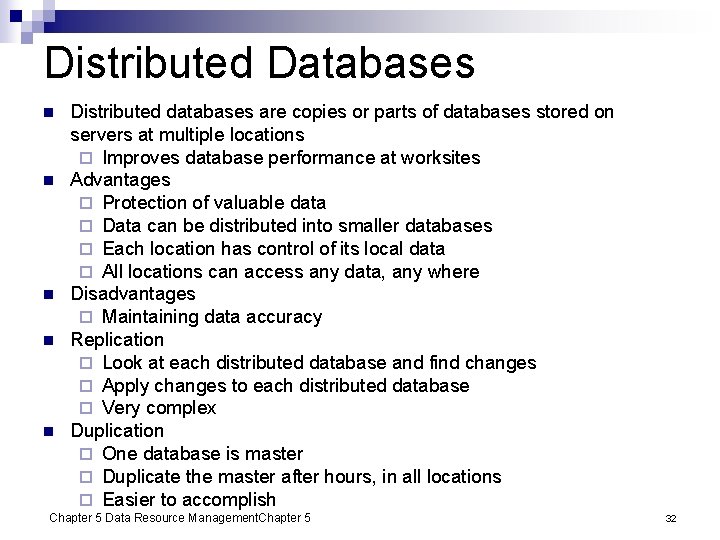

Distributed Databases n n n Distributed databases are copies or parts of databases stored on servers at multiple locations ¨ Improves database performance at worksites Advantages ¨ Protection of valuable data ¨ Data can be distributed into smaller databases ¨ Each location has control of its local data ¨ All locations can access any data, any where Disadvantages ¨ Maintaining data accuracy Replication ¨ Look at each distributed database and find changes ¨ Apply changes to each distributed database ¨ Very complex Duplication ¨ One database is master ¨ Duplicate the master after hours, in all locations ¨ Easier to accomplish Chapter 5 Data Resource Management. Chapter 5 32

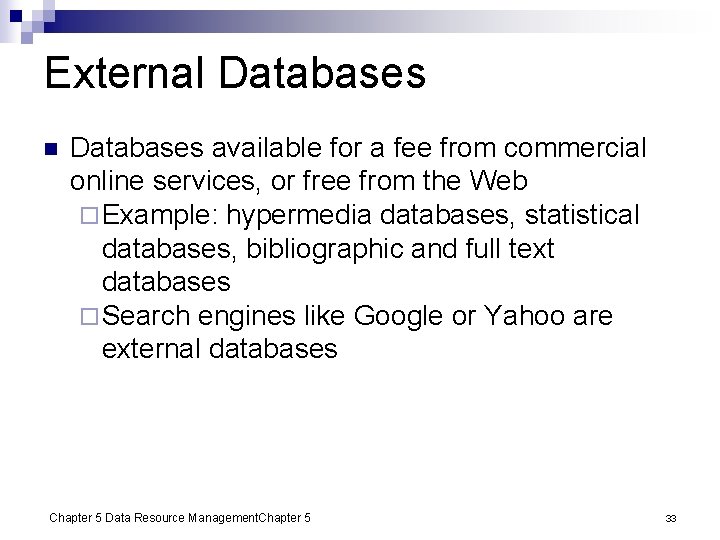

External Databases n Databases available for a fee from commercial online services, or free from the Web ¨ Example: hypermedia databases, statistical databases, bibliographic and full text databases ¨ Search engines like Google or Yahoo are external databases Chapter 5 Data Resource Management. Chapter 5 33

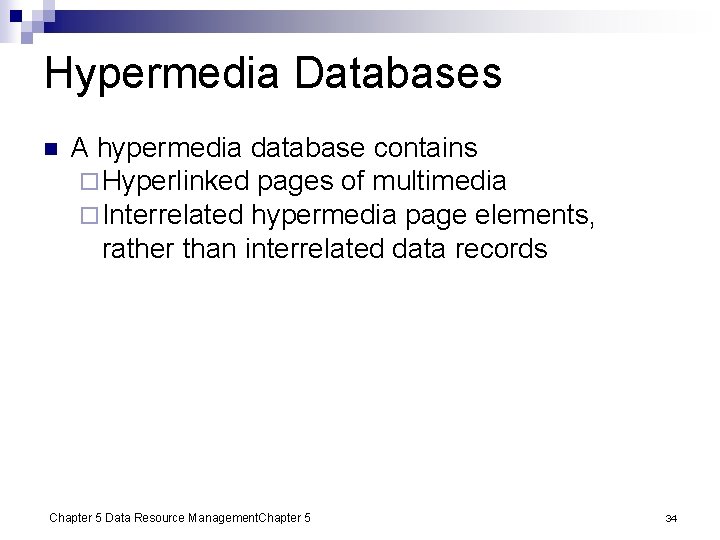

Hypermedia Databases n A hypermedia database contains ¨ Hyperlinked pages of multimedia ¨ Interrelated hypermedia page elements, rather than interrelated data records Chapter 5 Data Resource Management. Chapter 5 34

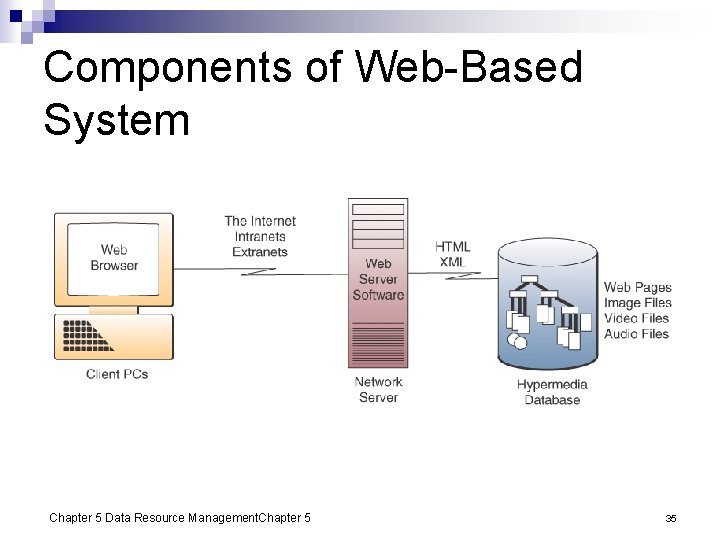

Components of Web-Based System Chapter 5 Data Resource Management. Chapter 5 35

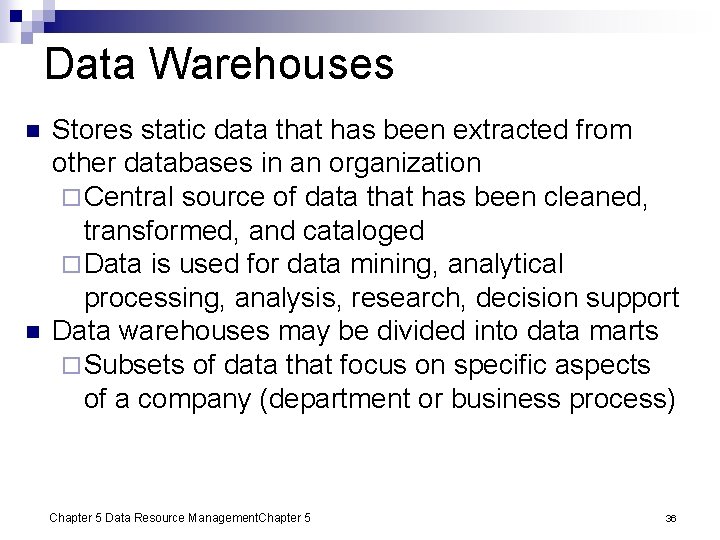

Data Warehouses n n Stores static data that has been extracted from other databases in an organization ¨ Central source of data that has been cleaned, transformed, and cataloged ¨ Data is used for data mining, analytical processing, analysis, research, decision support Data warehouses may be divided into data marts ¨ Subsets of data that focus on specific aspects of a company (department or business process) Chapter 5 Data Resource Management. Chapter 5 36

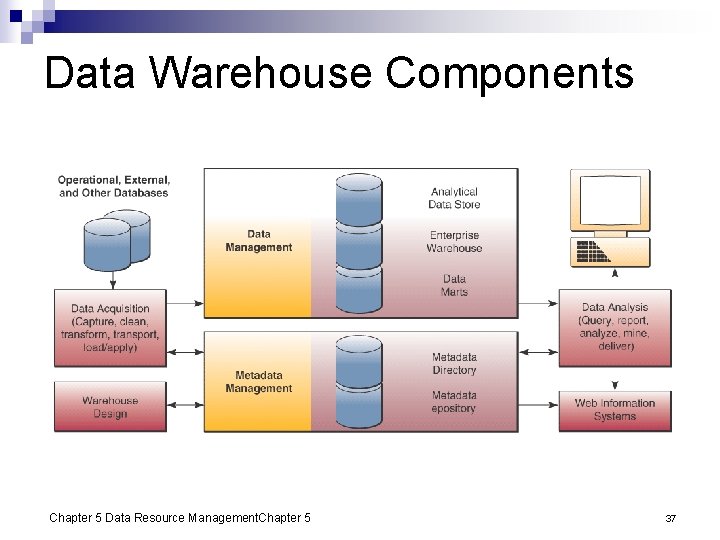

Data Warehouse Components Chapter 5 Data Resource Management. Chapter 5 37

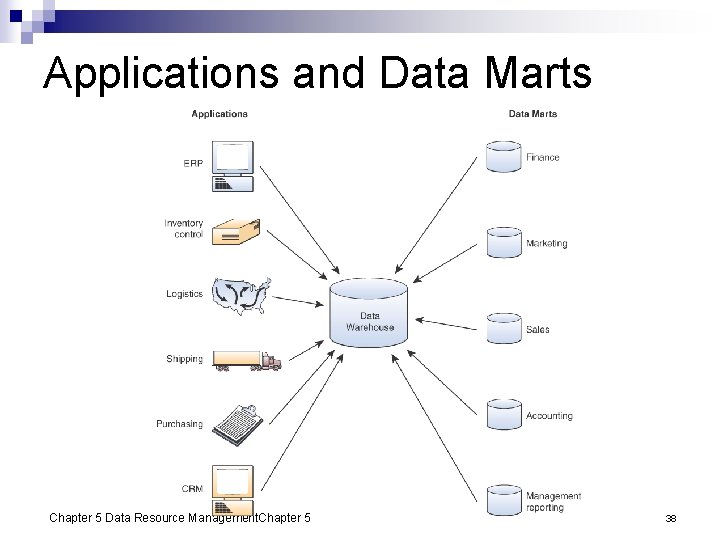

Applications and Data Marts Chapter 5 Data Resource Management. Chapter 5 38

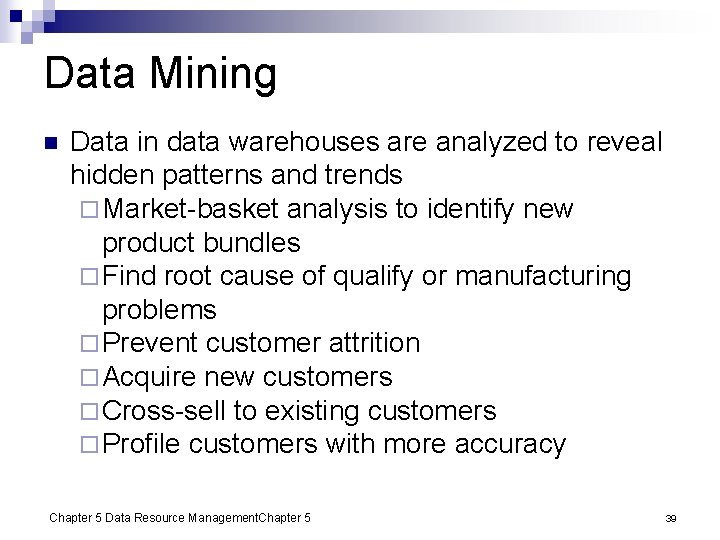

Data Mining n Data in data warehouses are analyzed to reveal hidden patterns and trends ¨ Market-basket analysis to identify new product bundles ¨ Find root cause of qualify or manufacturing problems ¨ Prevent customer attrition ¨ Acquire new customers ¨ Cross-sell to existing customers ¨ Profile customers with more accuracy Chapter 5 Data Resource Management. Chapter 5 39

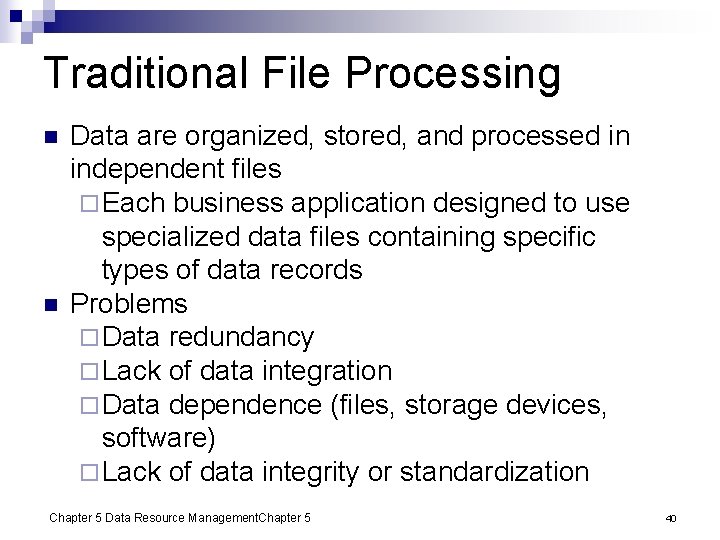

Traditional File Processing n n Data are organized, stored, and processed in independent files ¨ Each business application designed to use specialized data files containing specific types of data records Problems ¨ Data redundancy ¨ Lack of data integration ¨ Data dependence (files, storage devices, software) ¨ Lack of data integrity or standardization Chapter 5 Data Resource Management. Chapter 5 40

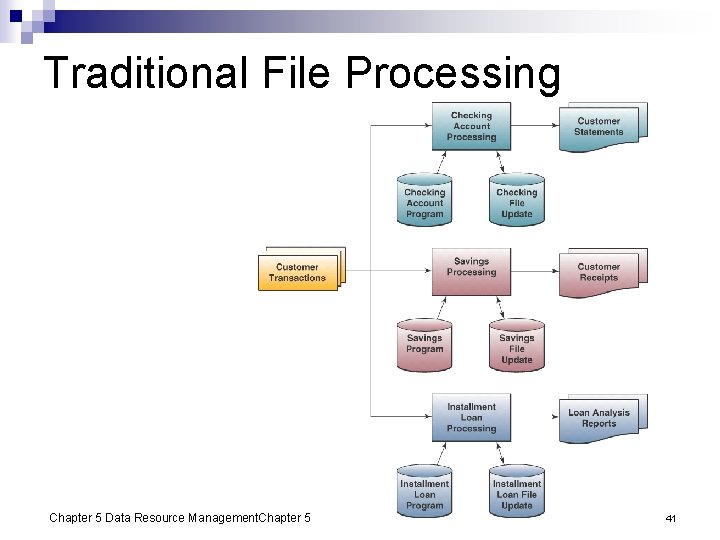

Traditional File Processing Chapter 5 Data Resource Management. Chapter 5 41

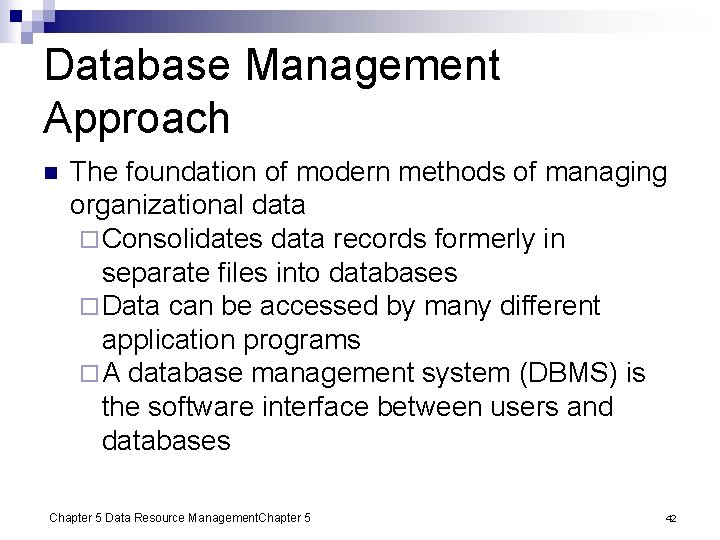

Database Management Approach n The foundation of modern methods of managing organizational data ¨ Consolidates data records formerly in separate files into databases ¨ Data can be accessed by many different application programs ¨ A database management system (DBMS) is the software interface between users and databases Chapter 5 Data Resource Management. Chapter 5 42

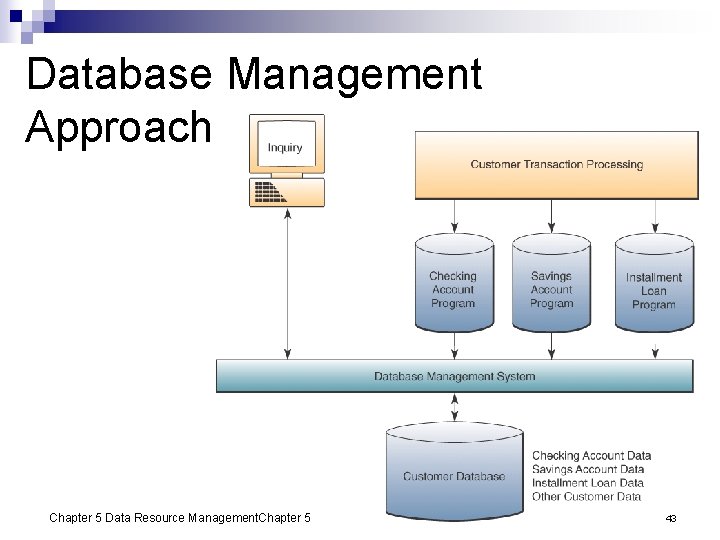

Database Management Approach Chapter 5 Data Resource Management. Chapter 5 43

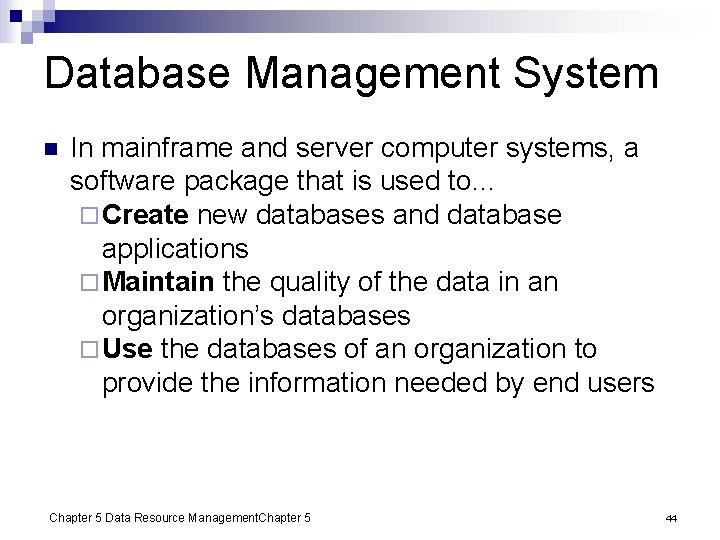

Database Management System n In mainframe and server computer systems, a software package that is used to… ¨ Create new databases and database applications ¨ Maintain the quality of the data in an organization’s databases ¨ Use the databases of an organization to provide the information needed by end users Chapter 5 Data Resource Management. Chapter 5 44

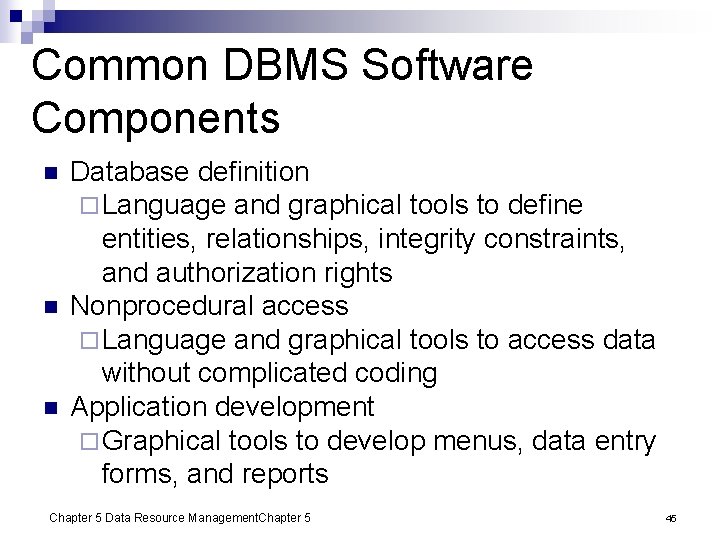

Common DBMS Software Components n n n Database definition ¨ Language and graphical tools to define entities, relationships, integrity constraints, and authorization rights Nonprocedural access ¨ Language and graphical tools to access data without complicated coding Application development ¨ Graphical tools to develop menus, data entry forms, and reports Chapter 5 Data Resource Management. Chapter 5 45

Common DBMS Software Components n Procedural language interface ¨ Language that combines nonprocedural access with full capabilities of a programming language n Transaction processing ¨ Control mechanism prevents interference from simultaneous users and recovers lost data after a failure n Database tuning ¨ Tools to monitor, improve database performance Chapter 5 Data Resource Management. Chapter 5 46

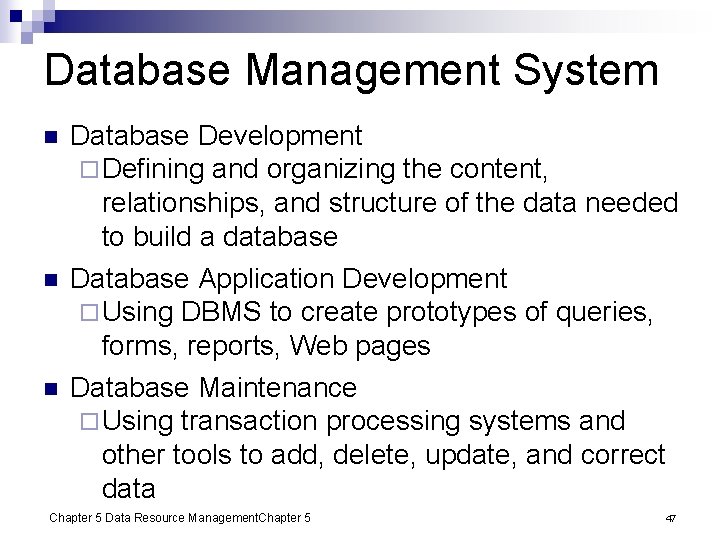

Database Management System n n n Database Development ¨ Defining and organizing the content, relationships, and structure of the data needed to build a database Database Application Development ¨ Using DBMS to create prototypes of queries, forms, reports, Web pages Database Maintenance ¨ Using transaction processing systems and other tools to add, delete, update, and correct data Chapter 5 Data Resource Management. Chapter 5 47

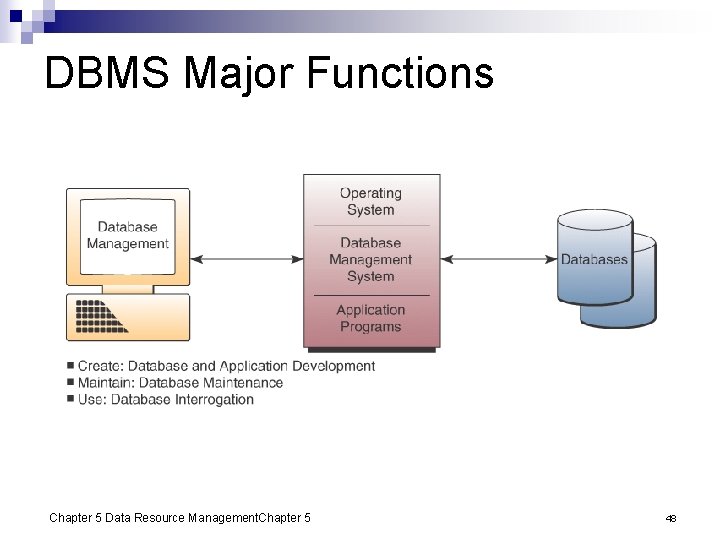

DBMS Major Functions Chapter 5 Data Resource Management. Chapter 5 48

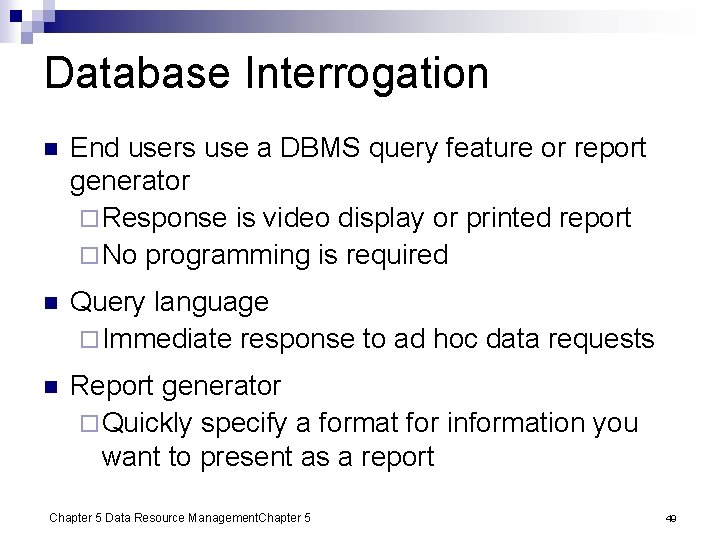

Database Interrogation n End users use a DBMS query feature or report generator ¨ Response is video display or printed report ¨ No programming is required n Query language ¨ Immediate response to ad hoc data requests n Report generator ¨ Quickly specify a format for information you want to present as a report Chapter 5 Data Resource Management. Chapter 5 49

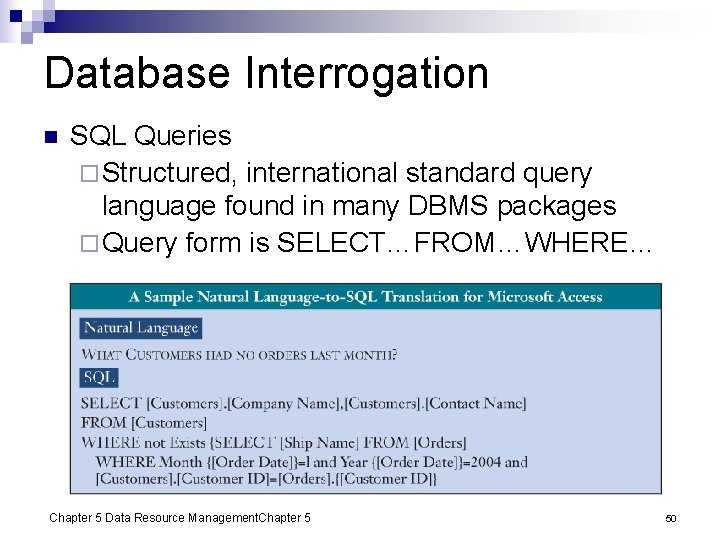

Database Interrogation n SQL Queries ¨ Structured, international standard query language found in many DBMS packages ¨ Query form is SELECT…FROM…WHERE… Chapter 5 Data Resource Management. Chapter 5 50

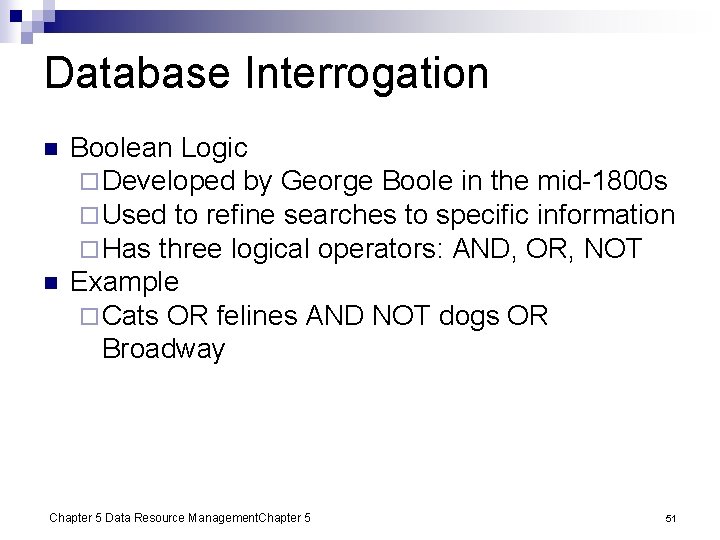

Database Interrogation n n Boolean Logic ¨ Developed by George Boole in the mid-1800 s ¨ Used to refine searches to specific information ¨ Has three logical operators: AND, OR, NOT Example ¨ Cats OR felines AND NOT dogs OR Broadway Chapter 5 Data Resource Management. Chapter 5 51

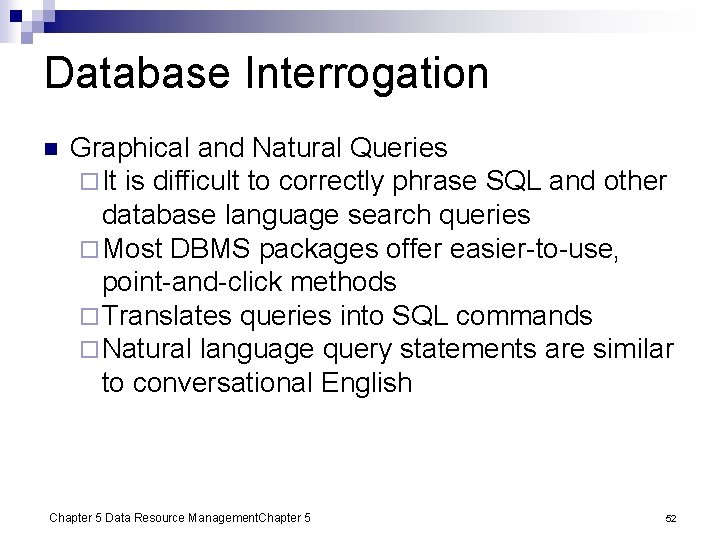

Database Interrogation n Graphical and Natural Queries ¨ It is difficult to correctly phrase SQL and other database language search queries ¨ Most DBMS packages offer easier-to-use, point-and-click methods ¨ Translates queries into SQL commands ¨ Natural language query statements are similar to conversational English Chapter 5 Data Resource Management. Chapter 5 52

Graphical Query Wizard Chapter 5 Data Resource Management. Chapter 5 53

Database Maintenance n Accomplished by transaction processing systems and other applications, with the support of the DBMS ¨ Done to reflect new business transactions and other events ¨ Updating and correcting data, such as customer addresses Chapter 5 Data Resource Management. Chapter 5 54

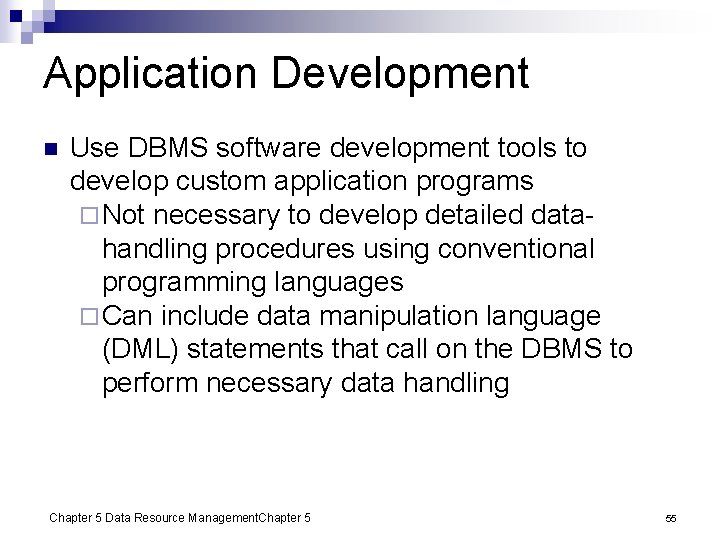

Application Development n Use DBMS software development tools to develop custom application programs ¨ Not necessary to develop detailed datahandling procedures using conventional programming languages ¨ Can include data manipulation language (DML) statements that call on the DBMS to perform necessary data handling Chapter 5 Data Resource Management. Chapter 5 55

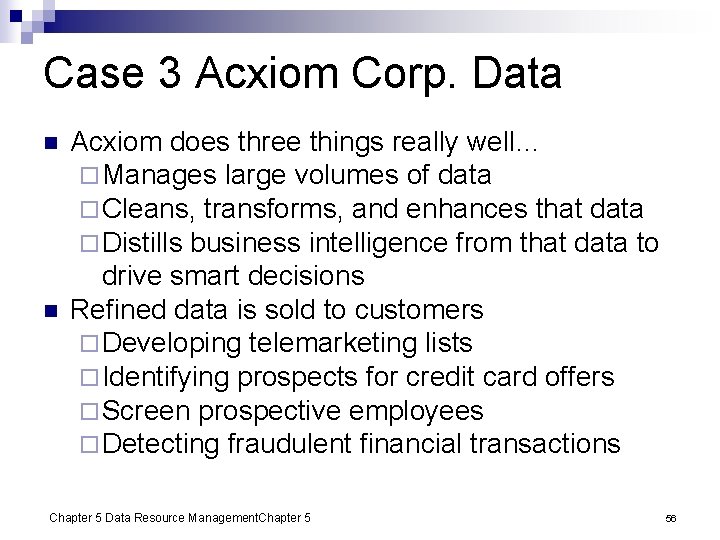

Case 3 Acxiom Corp. Data n n Acxiom does three things really well… ¨ Manages large volumes of data ¨ Cleans, transforms, and enhances that data ¨ Distills business intelligence from that data to drive smart decisions Refined data is sold to customers ¨ Developing telemarketing lists ¨ Identifying prospects for credit card offers ¨ Screen prospective employees ¨ Detecting fraudulent financial transactions Chapter 5 Data Resource Management. Chapter 5 56

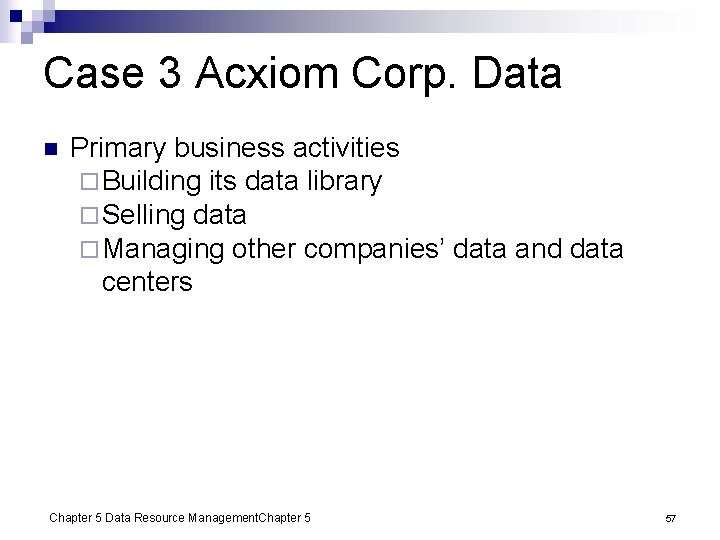

Case 3 Acxiom Corp. Data n Primary business activities ¨ Building its data library ¨ Selling data ¨ Managing other companies’ data and data centers Chapter 5 Data Resource Management. Chapter 5 57

Case Study Questions n n n Acxiom is in a unique type of business. How would you describe the business of Acxiom? ¨ Are they a service- or product-oriented business? It is easy to see that Acxiom has focused on a wide variety of data from different sources. ¨ How does Acxiom decide which data to collect, and for whom? Acxiom’s business raises many issues related to privacy. ¨ Are the data collected by Acxiom really private? Chapter 5 Data Resource Management. Chapter 5 58

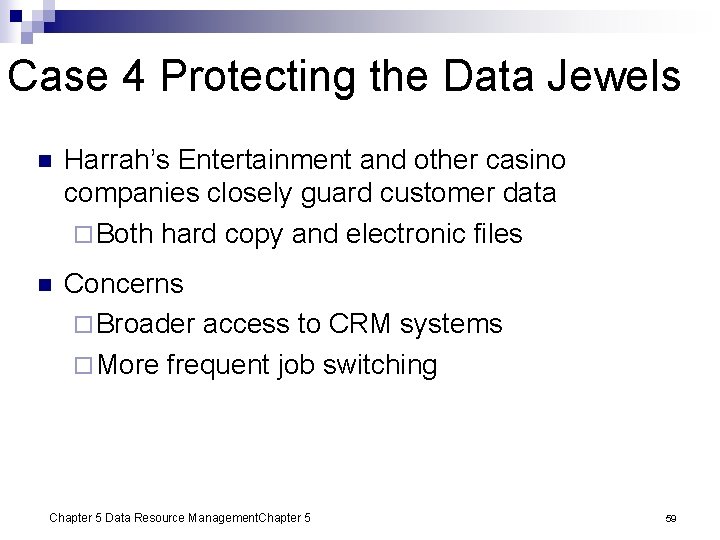

Case 4 Protecting the Data Jewels n Harrah’s Entertainment and other casino companies closely guard customer data ¨ Both hard copy and electronic files n Concerns ¨ Broader access to CRM systems ¨ More frequent job switching Chapter 5 Data Resource Management. Chapter 5 59

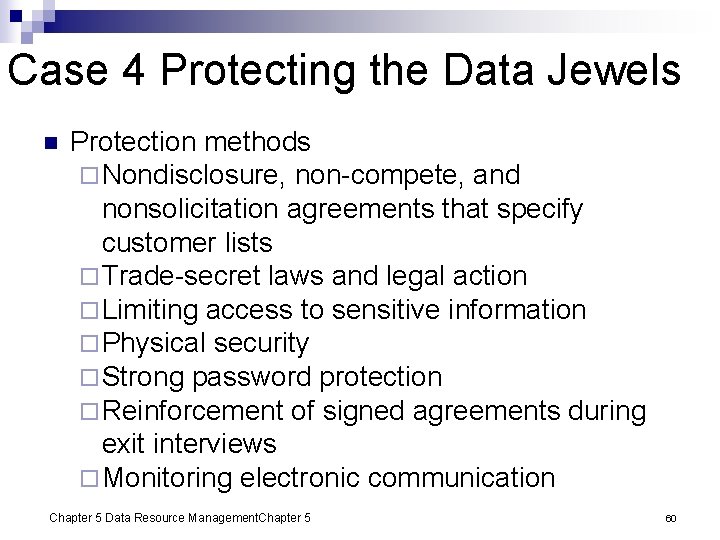

Case 4 Protecting the Data Jewels n Protection methods ¨ Nondisclosure, non-compete, and nonsolicitation agreements that specify customer lists ¨ Trade-secret laws and legal action ¨ Limiting access to sensitive information ¨ Physical security ¨ Strong password protection ¨ Reinforcement of signed agreements during exit interviews ¨ Monitoring electronic communication Chapter 5 Data Resource Management. Chapter 5 60

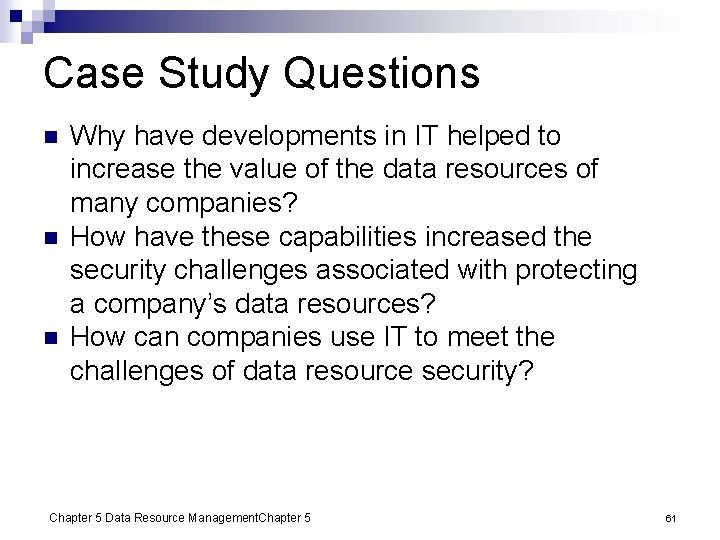

Case Study Questions n n n Why have developments in IT helped to increase the value of the data resources of many companies? How have these capabilities increased the security challenges associated with protecting a company’s data resources? How can companies use IT to meet the challenges of data resource security? Chapter 5 Data Resource Management. Chapter 5 61
