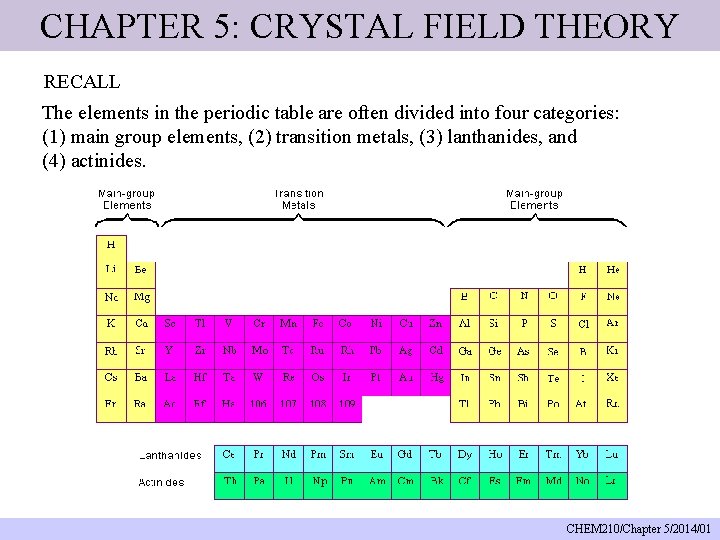

CHAPTER 5: CRYSTAL FIELD THEORY RECALL The elements in the periodic table are often divided into four categories: (1) main group elements, (2) transition metals, (3) lanthanides, and (4) actinides. CHEM 210/Chapter 5/2014/01

TRANSITION METALS vs. MAIN-GROUP ELEMENTS There is some controversy about the classification of the elements on the boundary between the main group and transition-metal elements on the right side of the table. The elements in question are zinc (Zn), cadmium (Cd), and mercury (Hg). CHEM 210/Chapter 5/2014/02

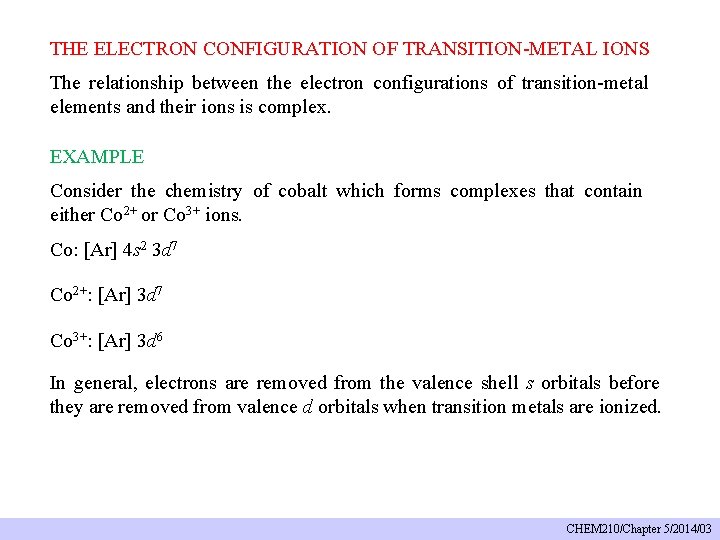

THE ELECTRON CONFIGURATION OF TRANSITION-METAL IONS The relationship between the electron configurations of transition-metal elements and their ions is complex. EXAMPLE Consider the chemistry of cobalt which forms complexes that contain either Co 2+ or Co 3+ ions. Co: [Ar] 4 s 2 3 d 7 Co 2+: [Ar] 3 d 7 Co 3+: [Ar] 3 d 6 In general, electrons are removed from the valence shell s orbitals before they are removed from valence d orbitals when transition metals are ionized. CHEM 210/Chapter 5/2014/03

THE ORIGIN OF COLOUR - ABSORPTION CHEM 210/Chapter 5/2014/04

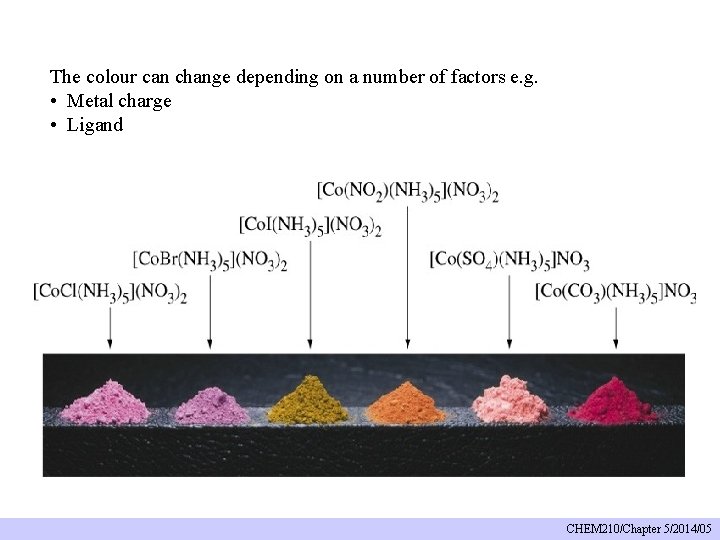

The colour can change depending on a number of factors e. g. • Metal charge • Ligand CHEM 210/Chapter 5/2014/05

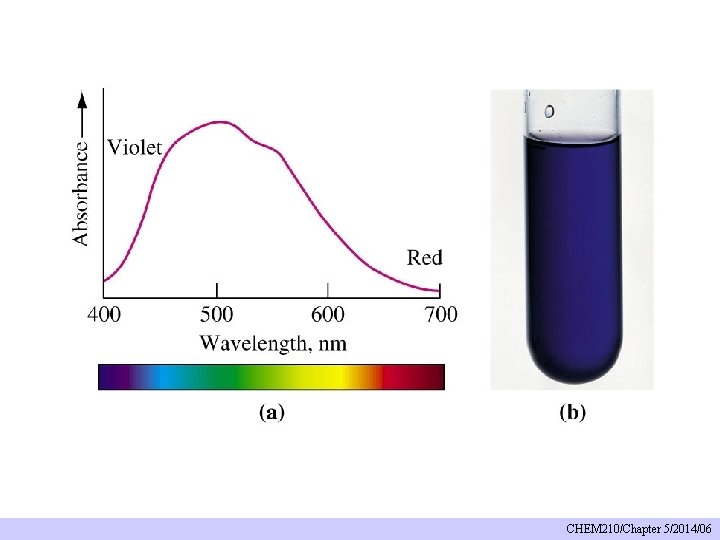

CHEM 210/Chapter 5/2014/06

Are there any simple theories to explain the colours in transition metal complexes? There is a simple electrostatic model used by chemists to rationalize the observed results THIS THEORY IS CALLED CRYSTAL FIELD THEORY It is NOT A RIGOROUS BONDING THEORY but merely a simplistic approach to understanding the possible origins of photo- and electrochemical properties of the transition metal complexes. Method of explaining some physical properties that occur in transition metal complexes. Involves a simple electrostatic argument which can yield reasonable results and predictions about the d orbital interactions in metal complexes. CHEM 210/Chapter 5/2014/07

THE OCTAHEDRAL CRYSTAL FIELD Consider metal ion, Mm+, lying at the centre of an octahedral set of point charges. CHEM 210/Chapter 5/2014/08

Suppose the metal atom has a single d electron outside of the closed shells (Ti 3+ or V 4+) In the free ion, the electron can be in any one of the 5 orbitals, since all are equivalent (degenerate). Recall the shapes of the d orbitals CHEM 210/Chapter 5/2014/09

CHEM 210/Chapter 5/2014/10

CHEM 210/Chapter 5/2014/01

CHEM 210/Chapter 5/2014/12

2 groups of orbitals dxy , dyz , dzx t 2 g dz 2 , dx 2 - y 2 eg CHEM 210/Chapter 5/2014/13

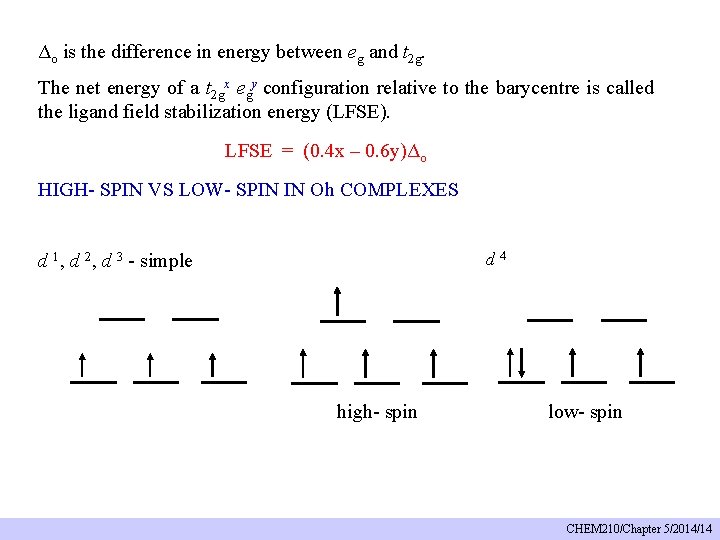

Δo is the difference in energy between eg and t 2 g. The net energy of a t 2 gx egy configuration relative to the barycentre is called the ligand field stabilization energy (LFSE). LFSE = (0. 4 x – 0. 6 y)Δo HIGH- SPIN VS LOW- SPIN IN Oh COMPLEXES d 4 d 1, d 2, d 3 - simple high- spin low- spin CHEM 210/Chapter 5/2014/14

High-spin d 4 Low-spin d 4 t 2 g 3 eg 1 t 2 g 4 eg 0 x=3, y=1 x=4, y=0 E = (0. 4 x – 0. 6 y)Δo = 0. 6 Δo E = (0. 4 x – 0. 6 y)Δo = 1. 6 Δo + P CHEM 210/Chapter 5/2014/15

EXAMPLE What is the LFSE for octahedral ions of the following configurations: (a) d 3 (b) high-spin d 5 SOLUTION (a) electronic configuration : t 2 g 3 eg 0, x = 3, y = 0 Therefore, LFSE = (0. 4 x – 0. 6 y)Δo = [(0. 4)(3) – (0. 6)(0)]Δo = 1. 2 Δo (b) electronic configuration : t 2 g 3 eg 2, x = 3, y = 2 Therefore, LFSE = (0. 4 x – 0. 6 y)Δo = [(0. 4)(3) – (0. 6)(2)]Δo = 0 EXERCISE FOR THE IDLE MIND What is LFSE for both high- and low-spin d 6 configuration? CHEM 210/Chapter 5/2014/16

THE SPECTROCHEMICAL SERIES The splitting of d orbitals in the CF model not only depends on the geometry of the complex, it also depends on the nature of the metal ion, the charge on this ion and the ligands that surround this ion. When the geometry and the ligands are held constant, this splitting decreases in the following order: Pt 4+ > Ir 3+ > Rh 3+ > Co 3+ > Cr 3+ > Fe 2+ > Co 2+ > Ni 2+ > Mn 2+ When the geometry and the metal are held constant, the splitting of the d- orbitals increases in the following order: I- < Br- < [NCS]- < Cl-< F- < OH- < H 2 O < NH 3 < en < CN- < CO The ligand- field splitting parameter, Δo varies with the identity of the ligand. In the series of complexes [Co. X(NH 3)5]n+ with X = I-, Br-, Cl- H 20 and NH 3, the colours range from purple (for X = I-) through pink (X = Cl-) to yellow (with NH 3). Ligand that give rise to high energy transition (such as CO) is referred to as a strong-field ligand; low energy transitions (such as Br-) referred to as weakfield ligand. CHEM 210/Chapter 5/2014/17

MAGNETIC MEASUREMENTS Used to determine the number of unpaired spins in a complex, hence identify its ground-state configuration. Compounds are classified as diamagnetic if they are repelled by a magnetic field and paramagnetic if they are accepted by a magnetic field. The spin-only magnetic moment, μ, of a complex with total spin quantum number is given by: μB = Bohr magneton CHEM 210/Chapter 5/2014/18

CALCULATED SPIN-ONLY MAGNETIC MOMENTS ION N S CALC. μ/μB EXPT. Ti 3+ 1 ½ 1. 73 1. 7 -1. 8 V 3+ 2 1 2. 83 2. 7 -2. 9 Cr 3+ 3 1½ 3. 87 3. 8 Mn 3+ 4 2 4. 90 4. 8 -4. 9 Fe 3+ 5 2½ 5. 92 5. 9 CHEM 210/Chapter 5/2014/01

EXAMPLE The magnetic moment of a certain Co(II) complex is 4. 0 μB. What is its delectron configuration? SOLUTION A Co(II) complex is d 7. Two possible configurations: t 2 g 5 eg 2 (high-spin, S = 1½) with 3 unpaired electrons or t 2 g 6 eg 1 (Low-spin, S = ½) with 1 unpaired electron. The spin-only magnetic moments are 3. 87 μB and 1. 73 μB. Therefore, the only consistent assignment is the high-spin configuration t 2 g 5 eg 2. EXERCISE FOR THE IDLE MIND The magnetic moment of the complex [Mn(NCS)6]4 - is 6. 06 μB. What is its electron configuration? CHEM 210/Chapter 5/2014/20
