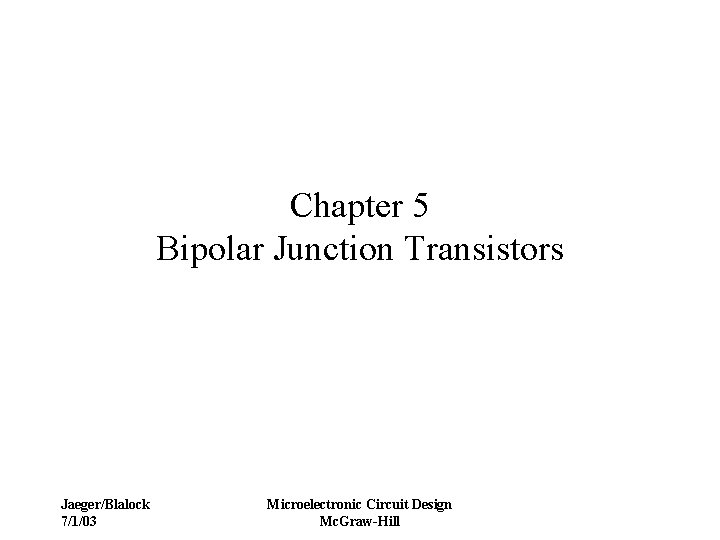

Chapter 5 Bipolar Junction Transistors JaegerBlalock 7103 Microelectronic

Chapter 5 Bipolar Junction Transistors Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

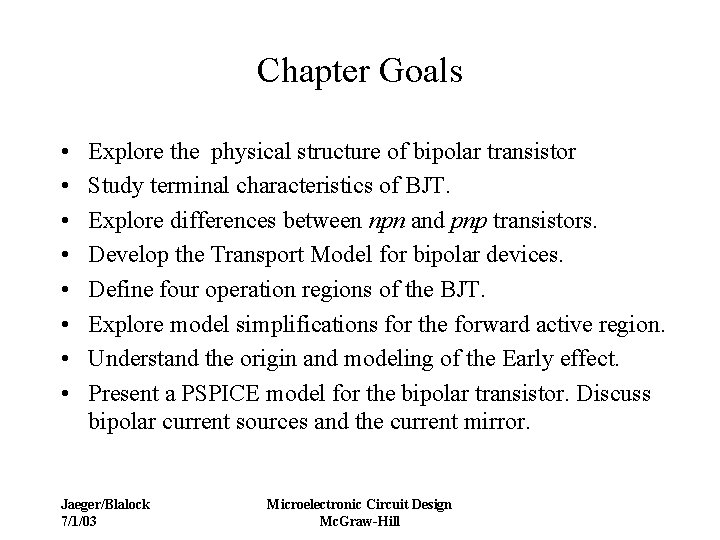

Chapter Goals • • Explore the physical structure of bipolar transistor Study terminal characteristics of BJT. Explore differences between npn and pnp transistors. Develop the Transport Model for bipolar devices. Define four operation regions of the BJT. Explore model simplifications for the forward active region. Understand the origin and modeling of the Early effect. Present a PSPICE model for the bipolar transistor. Discuss bipolar current sources and the current mirror. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Physical Structure • The BJT consists of 3 alternating layers of n- and p-type semiconductor called emitter (E), base (B) and collector (C). • The majority of current enters collector, crosses the base region and exits through the emitter. A small current also enters the base terminal, crosses the baseemitter junction and exits through the emitter. • Carrier transport in the active base region directly beneath the heavily doped (n+) emitter dominates the i-v characteristics of the BJT. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

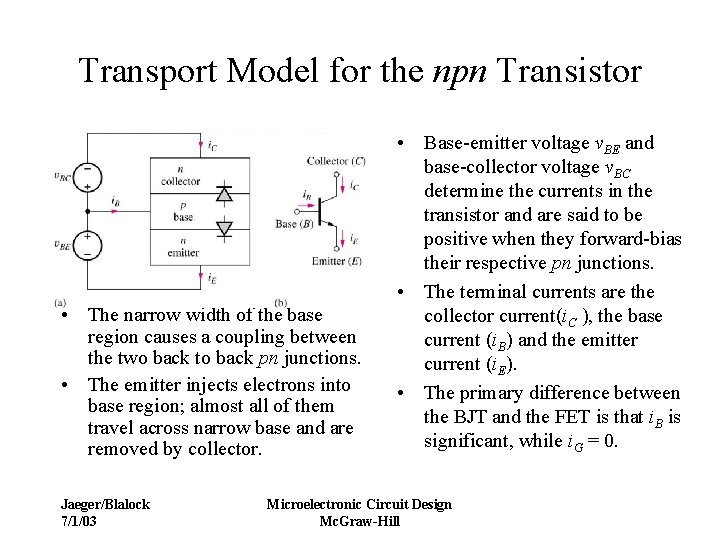

Transport Model for the npn Transistor • The narrow width of the base region causes a coupling between the two back to back pn junctions. • The emitter injects electrons into base region; almost all of them travel across narrow base and are removed by collector. Jaeger/Blalock 7/1/03 • Base-emitter voltage v. BE and base-collector voltage v. BC determine the currents in the transistor and are said to be positive when they forward-bias their respective pn junctions. • The terminal currents are the collector current(i. C ), the base current (i. B) and the emitter current (i. E). • The primary difference between the BJT and the FET is that i. B is significant, while i. G = 0. Microelectronic Circuit Design Mc. Graw-Hill

npn Transistor: Forward Characteristics Base current is given by Emitter current is given by Forward transport current is IS is saturation current In this forward active operation region, VT = k. T/q =0. 025 V at room temperature Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

npn Transistor: Reverse Characteristics is reverse current gain Base currents in forward and reverse modes are different due to asymmetric doping levels in the emitter and collector regions. Emitter current is given by Reverse transport current is Base current is given by Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

npn Transistor: Complete Transport Model Equations for Any Bias The first term in both the emitter and collector current expressions gives the current transported completely across the base region. Symmetry exists between base-emitter and base-collector voltages in establishing the dominant current in the bipolar transistor. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

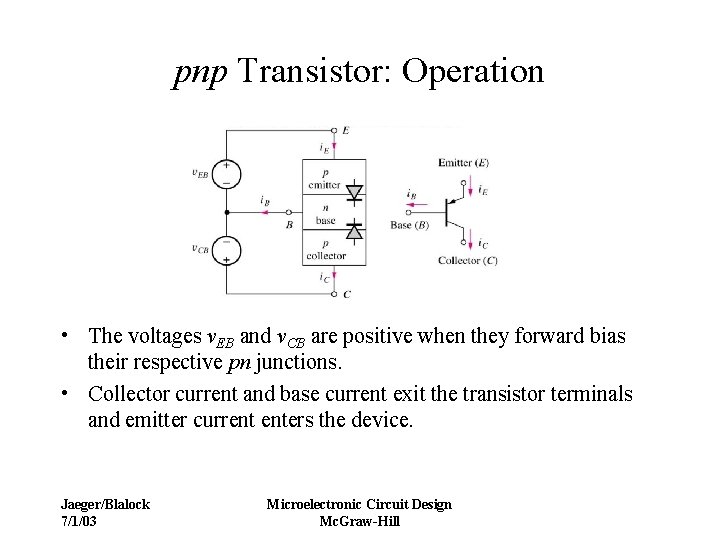

pnp Transistor: Operation • The voltages v. EB and v. CB are positive when they forward bias their respective pn junctions. • Collector current and base current exit the transistor terminals and emitter current enters the device. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

pnp Transistor: Forward Characteristics Base current is given by: Emitter current is given by: Forward transport current is: Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

pnp Transistor: Reverse Characteristics Base current is given by: Emitter current is given by: Reverse transport current is: Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

pnp Transistor: Complete Transport Model Equations for Any Bias Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Circuit Representation for Transport Models In the npn transistor (expressions analogous for the pnp transistors), total current traversing the base is modeled by a current source given by: Diode currents correspond directly to the 2 components of base current. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Operation Regions of the Bipolar Transistor Base-emitter junction Jaeger/Blalock 7/1/03 Base-collector junction Microelectronic Circuit Design Mc. Graw-Hill

i-v Characteristics Bipolar Transistor: Common-Emitter Output Characteristics For i. B=0, the transistor is cutoff. If i. B >0, i. C also increases. For v. CE > v. BE, the npn transistor is in the forward active region, i. C = b. F i. B is independent of v. CE. . For v. CE< v. BE, the transistor is in saturation. For v. CE< 0, the roles of collector and emitter Microelectronic Circuit Design are. Jaeger/Blalock reversed. 7/1/03 Mc. Graw-Hill

i-v Characteristics of Bipolar Transistor: Common-Emitter Transfer Characteristic This characteristic defines the relation between collector current and base-emitter voltage of the transistor. It is almost identical to the transfer characteristic of a pn junction diode. Setting v. BC =0 in the collector-current expression: Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Junction Breakdown Voltages • If reverse voltage across either of the two pn junctions in the transistor is too large, the corresponding diode will break down. • The emitter is the most heavily doped region, and the collector is the most lightly doped region. • Due to these doping differences, the base-emitter diode has a relatively low breakdown voltage (3 to 10 V). The collector-base diode is typically designed to break down at much larger voltages. • Transistors must therefore be selected in accordance with the possible reverse voltages in circuit. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Simplified Forward-Active Region Model In the forward-active region, the base-emitter junction is forward-biased and the base-collector junction is reverse-biased. v. BE > 0, v. BC < 0 If we assume that then the transport model terminal current equations simplify to: The BJT is often considered a current-controlled current source, although fundamental forward active behavior suggests a voltage-controlled current source. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

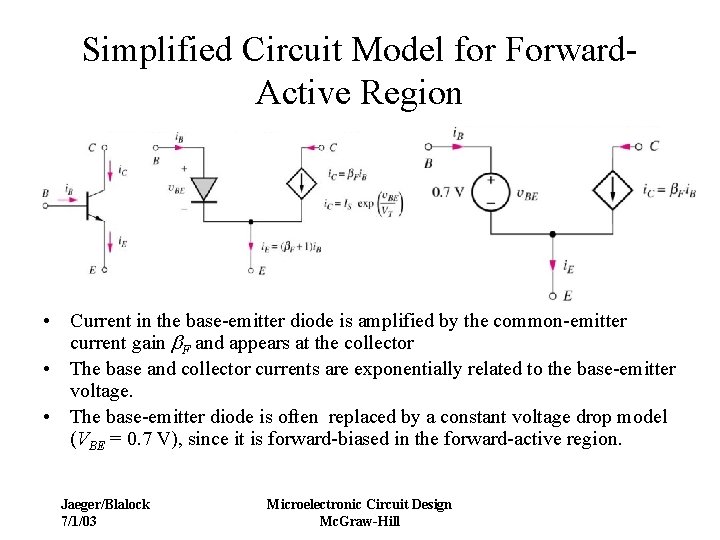

Simplified Circuit Model for Forward. Active Region • Current in the base-emitter diode is amplified by the common-emitter current gain b. F and appears at the collector • The base and collector currents are exponentially related to the base-emitter voltage. • The base-emitter diode is often replaced by a constant voltage drop model (VBE = 0. 7 V), since it is forward-biased in the forward-active region. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Simplified Forward-Active Region Model (Analysis Example) • • Problem: Find Q-point Given data: b. F = 50, VBC =VB - VC= -9 V Assumptions: Forward-active region of operation, VBE = 0. 7 V Analysis: Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

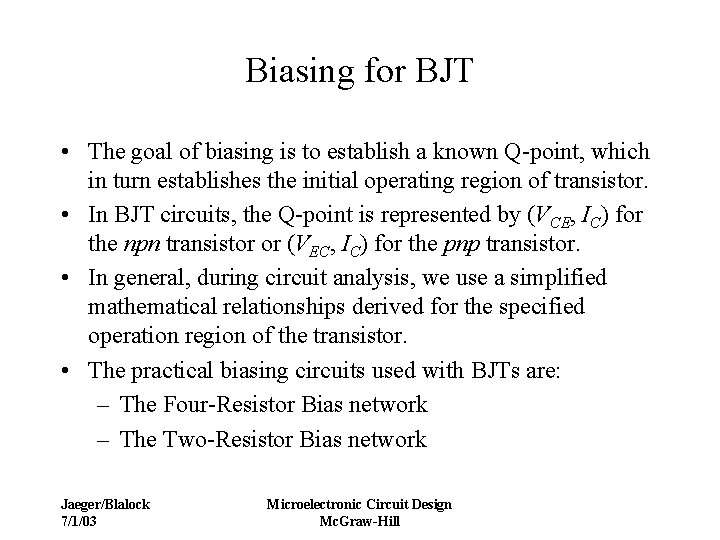

Biasing for BJT • The goal of biasing is to establish a known Q-point, which in turn establishes the initial operating region of transistor. • In BJT circuits, the Q-point is represented by (VCE, IC) for the npn transistor or (VEC, IC) for the pnp transistor. • In general, during circuit analysis, we use a simplified mathematical relationships derived for the specified operation region of the transistor. • The practical biasing circuits used with BJTs are: – The Four-Resistor Bias network – The Two-Resistor Bias network Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Four-Resistor Bias Network for BJT CE Loop BE Loop Q-point is (4. 32 V, 201 m. A) Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

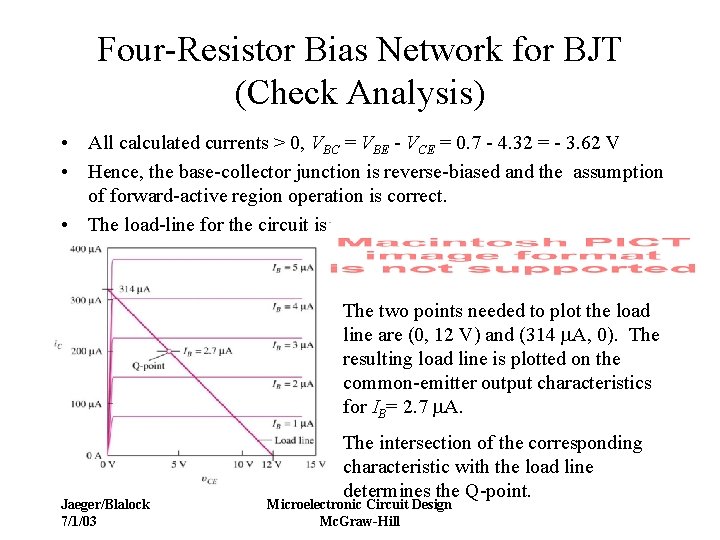

Four-Resistor Bias Network for BJT (Check Analysis) • All calculated currents > 0, VBC = VBE - VCE = 0. 7 - 4. 32 = - 3. 62 V • Hence, the base-collector junction is reverse-biased and the assumption of forward-active region operation is correct. • The load-line for the circuit is: The two points needed to plot the load line are (0, 12 V) and (314 m. A, 0). The resulting load line is plotted on the common-emitter output characteristics for IB= 2. 7 m. A. Jaeger/Blalock 7/1/03 The intersection of the corresponding characteristic with the load line determines the Q-point. Microelectronic Circuit Design Mc. Graw-Hill

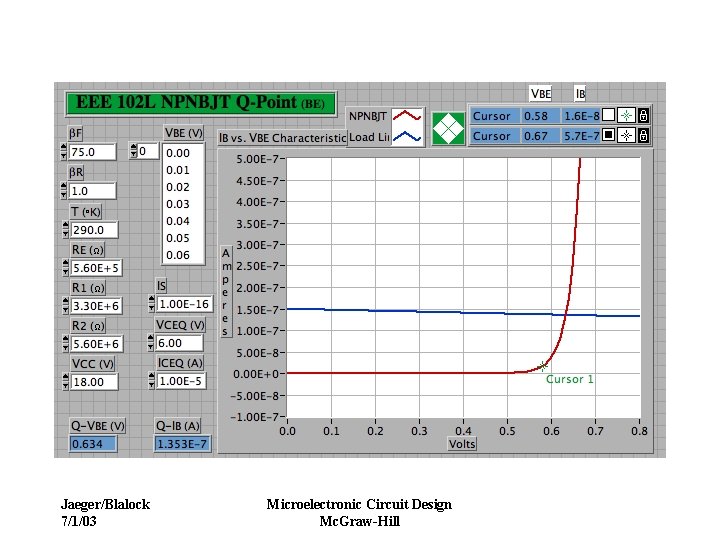

Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Four-Resistor Bias Network for BJT: Design Objectives • From the BE loop analysis, we know that for • This will imply that IB << I 2 so that I 1 = I 2 to good approximation in the base voltage divider. Then the base current doesn’t disturb the voltage divider action, and the Q-point will be approximately independent of base voltage divider current. • Also, VEQ is designed to be large enough that small variations in the assumed value of VBE won’t have a significant effect on IB. • Base voltage divider current is limited by choosing This ensures that power dissipation in base bias resistors is < 17 % of the total quiescent power consumed by the circuit, while I 2 >> IB. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

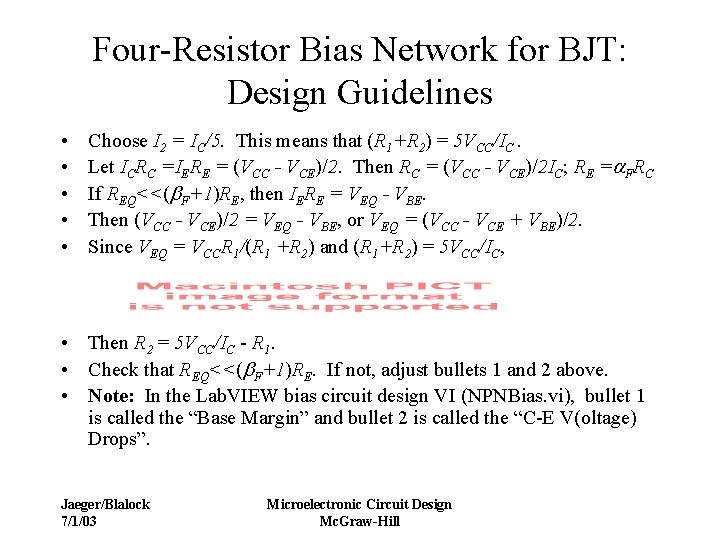

Four-Resistor Bias Network for BJT: Design Guidelines • • • Choose I 2 = IC/5. This means that (R 1+R 2) = 5 VCC/IC. Let ICRC =IERE = (VCC - VCE)/2. Then RC = (VCC - VCE)/2 IC; RE =a. FRC If REQ<<(b. F+1)RE, then IERE = VEQ - VBE. Then (VCC - VCE)/2 = VEQ - VBE, or VEQ = (VCC - VCE + VBE)/2. Since VEQ = VCCR 1/(R 1 +R 2) and (R 1+R 2) = 5 VCC/IC, • Then R 2 = 5 VCC/IC - R 1. • Check that REQ<<(b. F+1)RE. If not, adjust bullets 1 and 2 above. • Note: In the Lab. VIEW bias circuit design VI (NPNBias. vi), bullet 1 is called the “Base Margin” and bullet 2 is called the “C-E V(oltage) Drops”. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

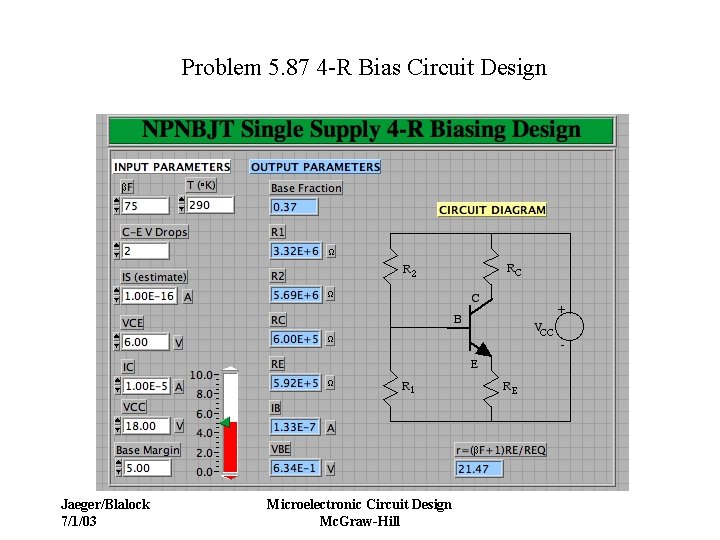

Problem 5. 87 4 -R Bias Circuit Design Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

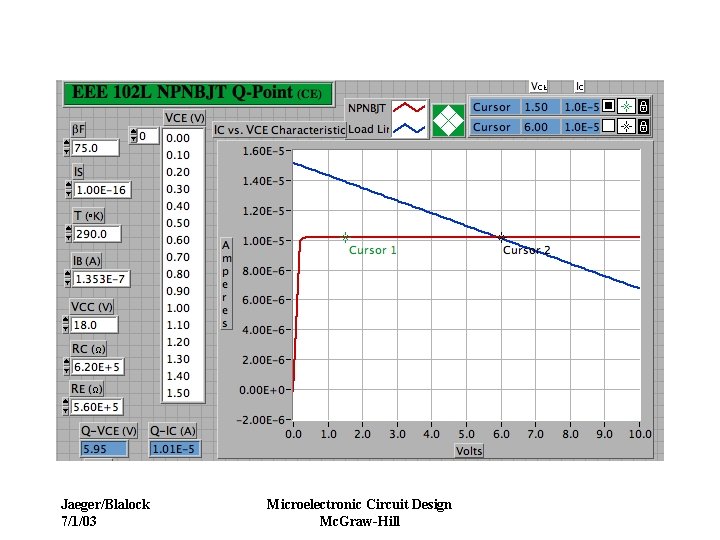

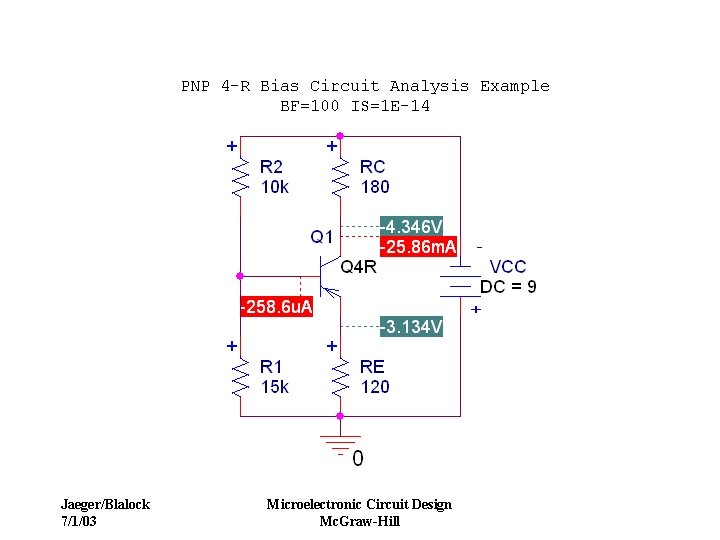

Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Two-Resistor Bias Network for BJT: Example • Problem: Find the Q-point for the pnp transistor in the 2 -resistor bias circuit shown below. • Given data: b. F = 50, VCC = 9 V • Assumptions: Forward-active region operation with VEB = 0. 7 V • Analysis: Q-point is : (6. 01 m. A, 2. 87 V) Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

PNP Transistor Switch Circuit Design Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

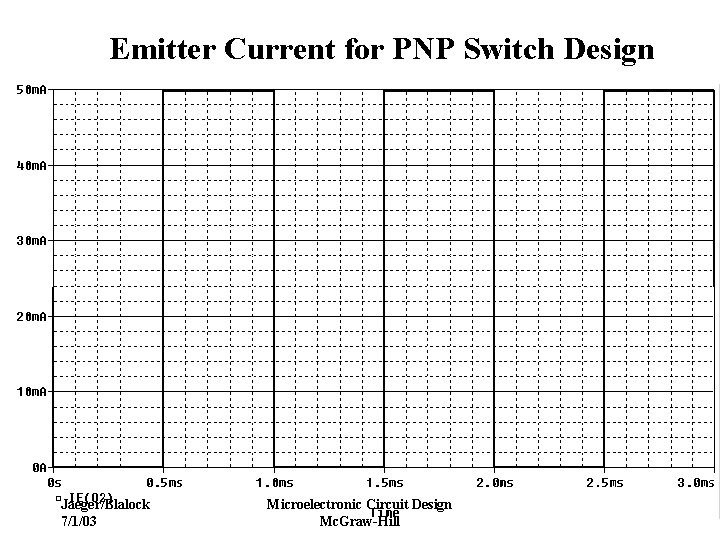

Emitter Current for PNP Switch Design Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

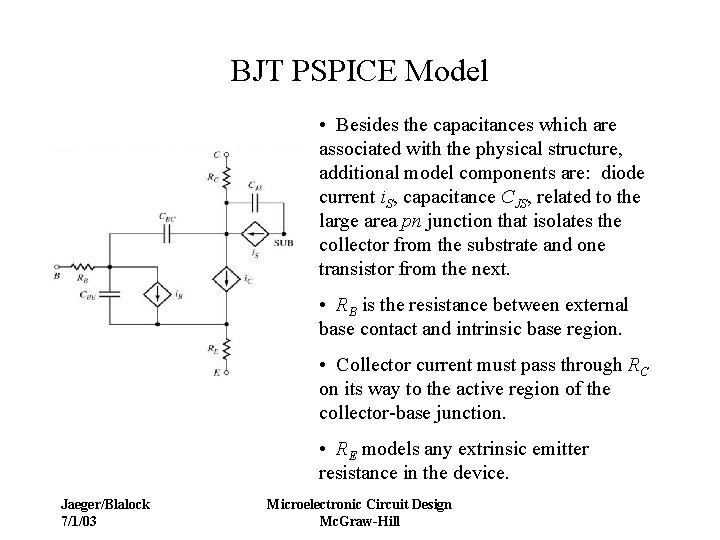

BJT PSPICE Model • Besides the capacitances which are associated with the physical structure, additional model components are: diode current i. S, capacitance CJS, related to the large area pn junction that isolates the collector from the substrate and one transistor from the next. • RB is the resistance between external base contact and intrinsic base region. • Collector current must pass through RC on its way to the active region of the collector-base junction. • RE models any extrinsic emitter resistance in the device. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

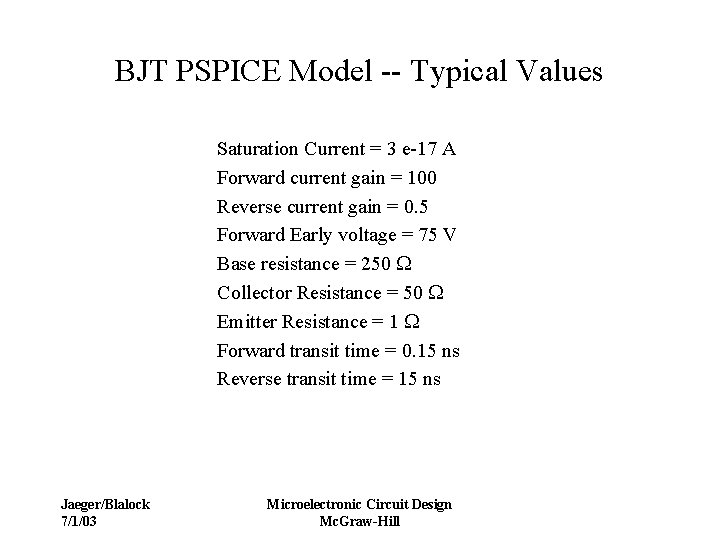

BJT PSPICE Model -- Typical Values Saturation Current = 3 e-17 A Forward current gain = 100 Reverse current gain = 0. 5 Forward Early voltage = 75 V Base resistance = 250 W Collector Resistance = 50 W Emitter Resistance = 1 W Forward transit time = 0. 15 ns Reverse transit time = 15 ns Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Minority Carrier Transport in Base Region • With a narrow base region, minority carrier density decreases linearly across the base, and the Saturation Current (NPN) is: where NAB = the doping concentration in the base ni 2 = the intrinsic carrier concentration (1010/cm 3) nbo = ni 2 / NAB Dn = the diffusivity = (k. T/q)mn • Saturation current for the PNP transistor is: • Due to the higher mobility (m) of electrons compared to holes, the npn transistor conducts higher current than the pnp for equivalent doping and applied voltages. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Diffusion Capacitance • For v. BE and hence i. C to change, charge stored in the base region must also change. • Diffusion capacitance in parallel with the forward-biased base-emitter diode produces a good model for the change in charge with v. BE. • Since transport current normally represents collector current in the forward-active region, Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Early Effect and Early Voltage • As reverse-bias across the collector-base junction increases, the width of the collector-base depletion layer increases and the effective width of base decreases. This is called “base-width modulation”. • In a practical BJT, the output characteristics have a positive slope in the forward-active region, so that collector current is not independent of v. CE. • “Early” effect: When the output characteristics are extrapolated back to where the i. C curves intersect at common point, v. CE = -VA (Early voltage), which lies between 15 V and 150 V. • Simplified F. A. R. equations, which include the Early effect, are: Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

BJT Current Mirror • The collector terminal of a BJT in the forward-active region mimics the behavior of a current source. • Output current is independent of VCC as long as VCC ≥ 0. 8 V. This puts the BJT in the forward-active region, since VBC ≤ - 0. 1 V. • Q 1 and Q 2 are assumed to be a “matched” pair with identical IS, b. FO, and VA, . Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

BJT Current Mirror (continued) With an infinite b. FO and VA (ideal device), the mirror ratio is unity. Finite current gain and Early voltage introduce a mismatch between the output and reference currents of the mirror. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

BJT Current Mirror: Example • • Problem: Find output current for given current mirror Given data: b. FO = 75, VA = 50 V Assumptions: Forward-active operation region, VBE = 0. 7 V Analysis: Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

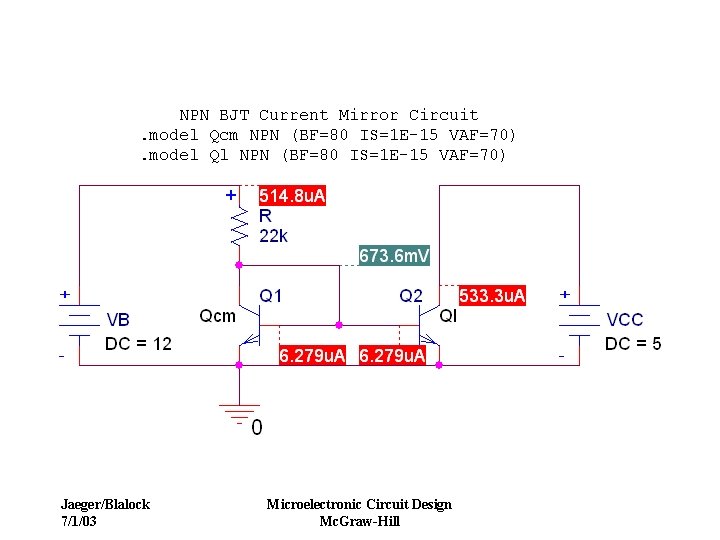

Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

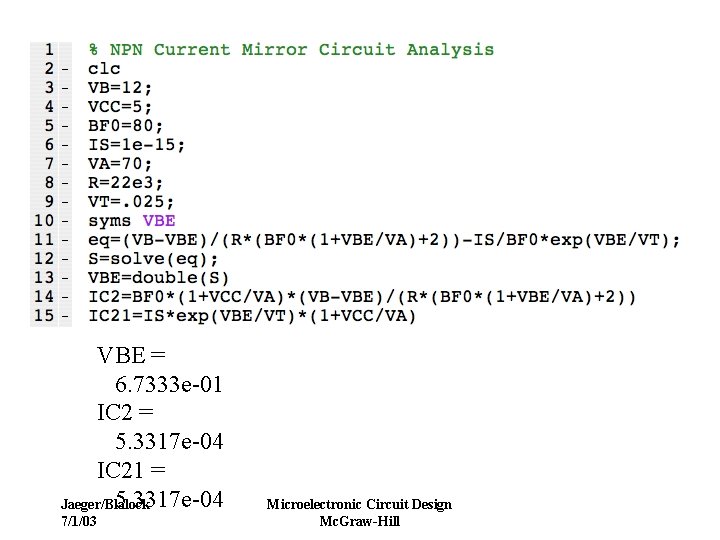

VBE = 6. 7333 e-01 IC 2 = 5. 3317 e-04 IC 21 = 5. 3317 e-04 Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

BJT Current Mirror: Altering the Mirror Ratio where ISO is the saturation current of a BJT with one unit of emitter area: AE =1(A). The actual dimensions of A are technologydependent. The Mirror Ratio of a BJT current mirror can be changed by simply changing the relative sizes of the emitters in the transistors. For the “ideal” case, the Mirror Ratio is determined only by the ratio of the two emitter areas. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

BJT Current Mirror: Output Resistance • A current source using BJTs doesn’t have an output current that is completely independent of the terminal voltage across it, due to the finite value of Early voltage. The current source seems to have a resistive component in series with it. • Ro is defined as the “small signal” output resistance of the current mirror. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill
