Chapter 41 Intraoral Radiography Copyright 2003 Elsevier Science

Introduction n There are two basic techniques for obtaining periapical radiographs: • Paralleling technique.

The Full Mouth Survey: FMX n n n An intraoral full mouth examination is

Fig. 41 -2 Mounted full mouth series with eight anterior films using the paralleling

The Paralleling Technique: Basic Rules n n n Film placement: Position the film so

Fig. 41 -5 Positions of the film teeth and central ray of the x-ray

Fig. 41 -6 The x-rays pass through the contact areas of the premolars because

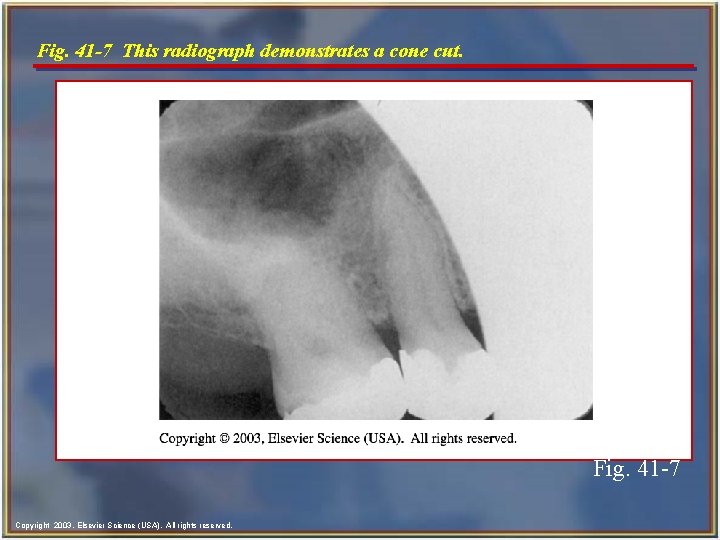

Fig. 41 -7 This radiograph demonstrates a cone cut. Fig. 41 -7 Copyright 2003,

Exposure Sequence n n When exposing radiographs, establish an exposure sequence, or definite order

Anterior Exposure Sequence n When exposing periapical films with the paralleling technique, always start

Anterior Exposure Sequence- cont’d n Begin with the maxillary right canine (tooth #6). n

Posterior Exposure Sequence n n After completing the anterior teeth, begin the posterior teeth.

Tips for Film Placement n The white side of the film always faces the

Preparation Before Seating the Patient n Prepare the operatory with all infection control barriers.

Positioning the Patient n Seat the patient comfortably in the dental chair, with the

Maxillary Cuspid Region n n Insert the number 1 film packet vertically into the

Fig. 41 -10 Assembling the XCP (Extension-Cone Paralleling Instruments), Anterior Assembly. Fig. 41 -10

Maxillary Central/Lateral Incisor Region n n Insert the number 1 film packet vertically into

Fig. 41 -11 Assembling the XCP (Extension-Cone Paralleling Instruments), Posterior Assembly. Fig. 41 -11

Mandibular Cuspid Region n n Insert the number 1 film packet vertically into the

Fig. 41 -14 Mandibular cuspid region. Fig. 41 -14 Copyright 2003, Elsevier Science (USA).

Mandibular Incisor Region n n Insert the number 1 film packet vertically into the

Fig 41 -15 Mandibular incisor region. Fig. 41 -15 Copyright 2003, Elsevier Science (USA).

Maxillary Premolar Region n Insert the film packet horizontally into the posterior bite-block, pushing

Fig. 41 -16 Maxillary premolar region. Fig. 41 -16 Copyright 2003, Elsevier Science (USA).

Maxillary Molar Region n n Insert the film packet horizontally into the posterior bite-block.

Fig. 41 -17 Maxillary molar region Fig. 41 -17 Copyright 2003, Elsevier Science (USA).

Mandibular Premolar Region n n Insert the number 2 film horizontally into the posterior

Fig. 41 -18 Mandibular premolar region. Fig. 41 -18 Copyright 2003, Elsevier Science (USA).

Mandibular Molar Region n n Insert the number 2 film horizontally into the posterior

Fig. 41 -19 Mandibular molar region. Fig. 41 -19 Copyright 2003, Elsevier Science (USA).

The Bisecting Technique n n n The bisection of the angle technique is based

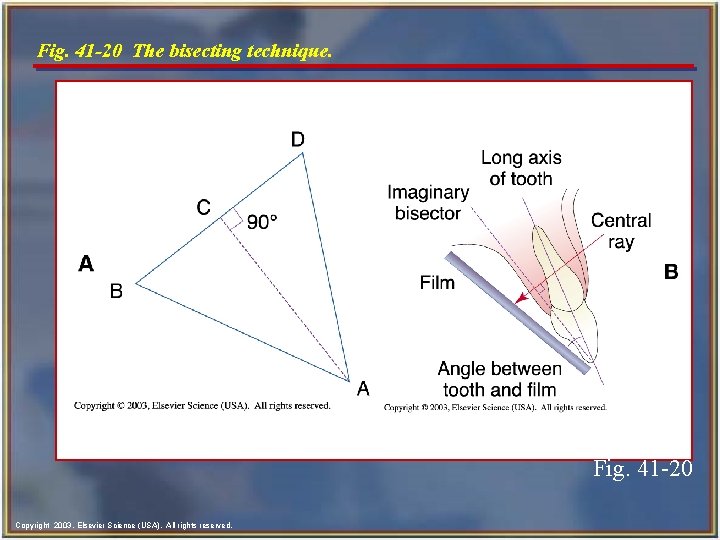

Fig. 41 -20 The bisecting technique. Fig. 41 -20 Copyright 2003, Elsevier Science (USA).

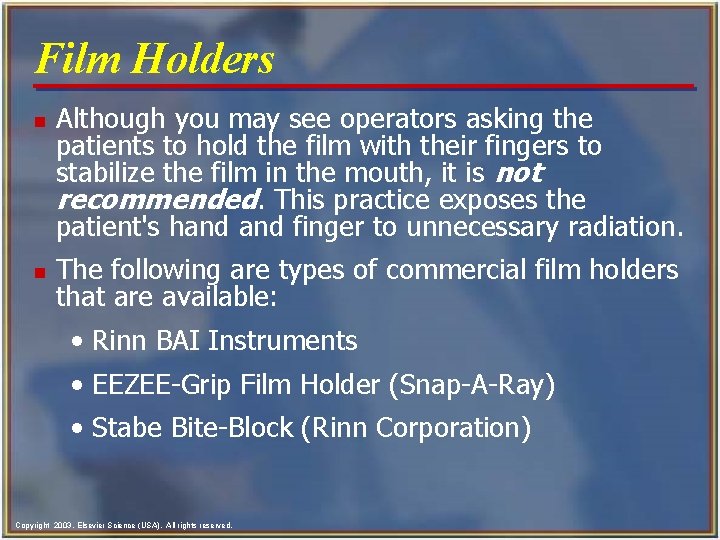

Film Holders n n Although you may see operators asking the patients to hold

PID Angulations: Bisecting Technique n n In the bisecting technique, the angulation of the

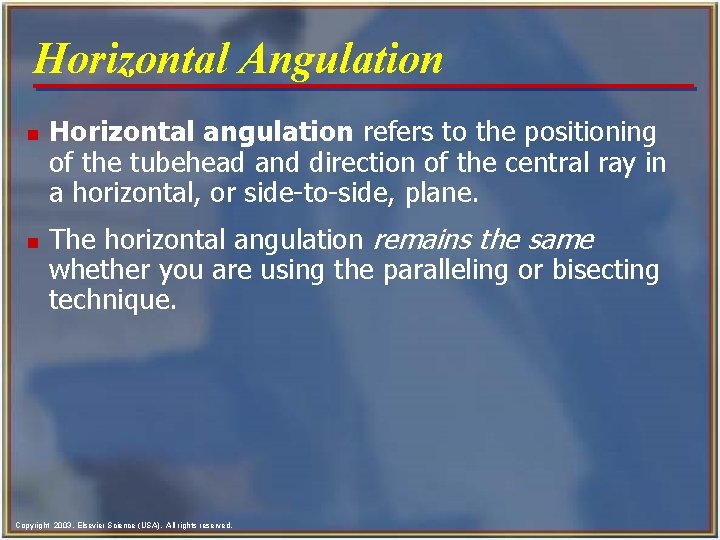

Horizontal Angulation n n Horizontal angulation refers to the positioning of the tubehead and

Fig. 41 -22 The arrows indicate movement in a horizontal direction. Fig. 41 -22

Correct Horizontal Angulation n With correct horizontal angulation, the central ray is directed perpendicular

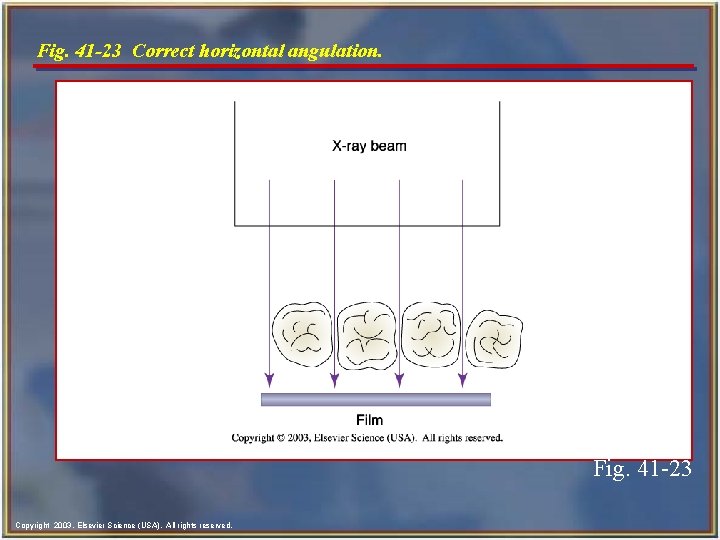

Fig. 41 -23 Correct horizontal angulation. Fig. 41 -23 Copyright 2003, Elsevier Science (USA).

Fig. 41 -24 Incorrect horizontal angulation. Fig. 41 -24 Copyright 2003, Elsevier Science (USA).

Fig. 41 -25 Overlapped contacts. Fig. 41 -25 Copyright 2003, Elsevier Science (USA). All

Vertical Angulation n Vertical angulation refers to the positioning of the PID in a

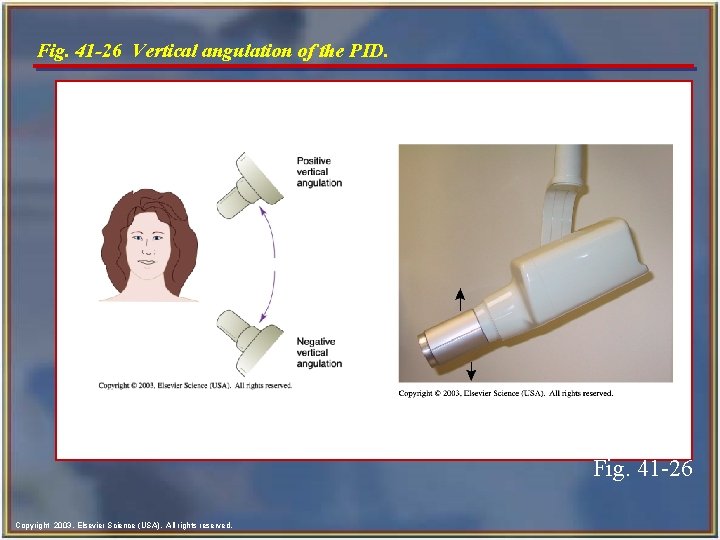

Fig. 41 -26 Vertical angulation of the PID. Fig. 41 -26 Copyright 2003, Elsevier

Correct Vertical Angulation n Correct vertical angulation results in a radiographic image that is

Fig. 41 -27 A, If the vertical angulation is to too steep, the image

Fig. 41 -28 A, If the vertical angulation is to too flat, the image

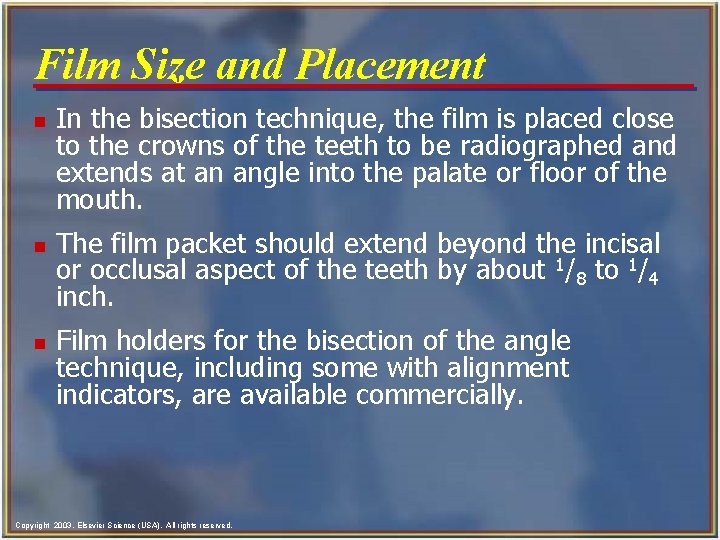

Film Size and Placement n n n In the bisection technique, the film is

Beam Alignment n The x-ray beam is directed to pass between the contacts of

Fig. 41 -29 C, D, Maxillary canine exposure. Fig. 41 -29 C Copyright 2003,

Fig. 41 -30 C, D, Maxillary incisor exposure. Fig. 41 -30 C Copyright 2003,

Fig. 41 -31 C, D, Mandibular canine exposure. Fig. 41 -31 C Copyright 2003,

Fig. 41 -32 C, D, Mandibular incisor exposure. Fig. 41 -32 C Copyright 2003,

Fig. 41 -33 A, D, Maxillary premolar exposure. Fig. 41 -33 A Copyright 2003,

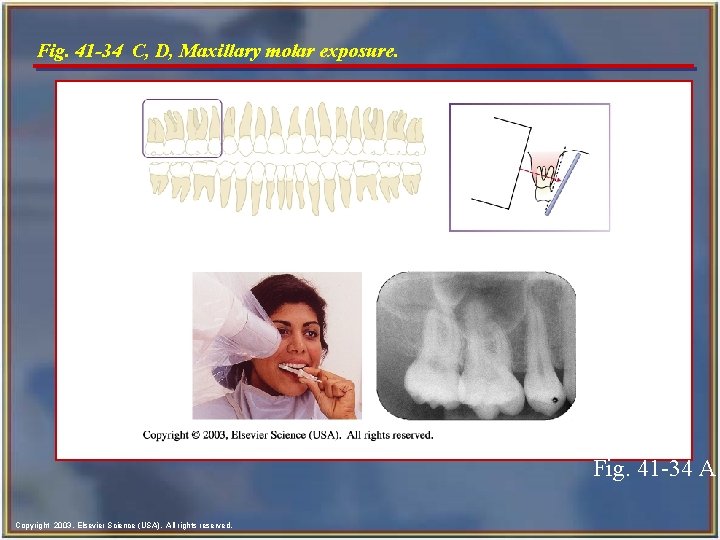

Fig. 41 -34 C, D, Maxillary molar exposure. Fig. 41 -34 A Copyright 2003,

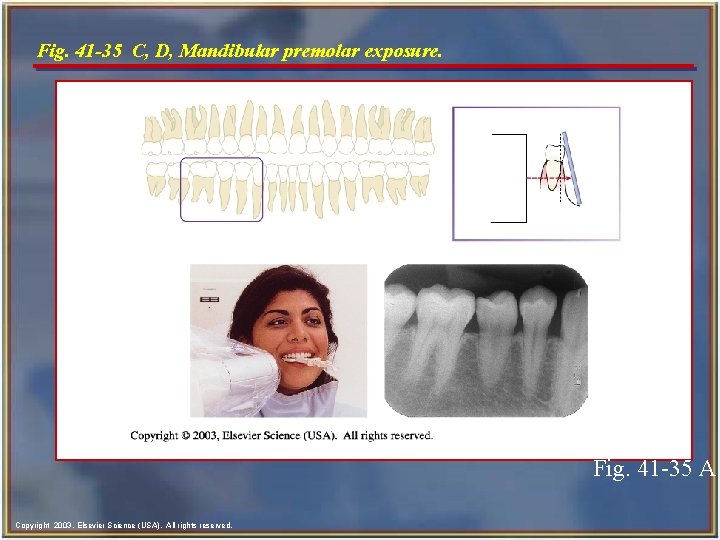

Fig. 41 -35 C, D, Mandibular premolar exposure. Fig. 41 -35 A Copyright 2003,

Fig. 41 -36 C&D, Mandibular molar exposure. Fig. 41 -36 A Copyright 2003, Elsevier

Bite-wing Examinations n n n A bite-wing radiograph shows the crowns and interproximal areas

Basic Principles of the Bite-wing Technique n n n The film is placed in

Fig. 41 -37 A +10˚ vertical angulation is used to compensate for the slight

Fig. 41 -38 Bite-wing tab and film-holder. Fig. 41 -38 Copyright 2003, Elsevier Science

BWX Film Placement n n n The film is positioned (with either a bite

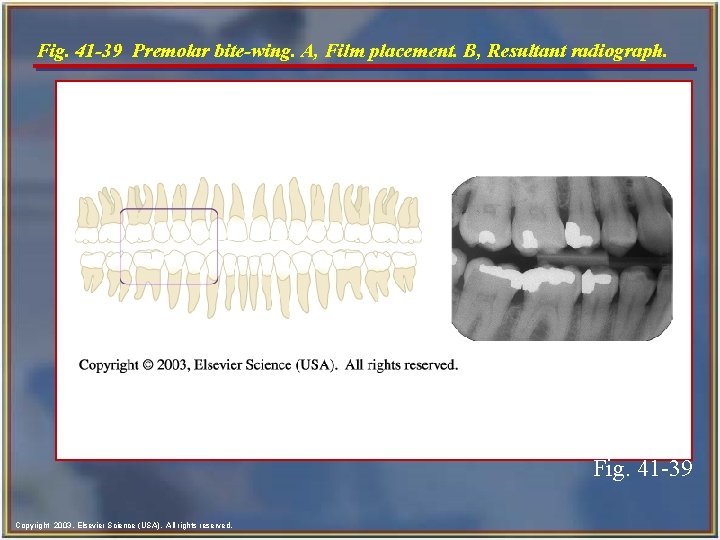

Fig. 41 -39 Premolar bite-wing. A, Film placement. B, Resultant radiograph. Fig. 41 -39

Fig. 41 -42 The molar-bite-wing. A, Film placement. B, Resultant radiograph. Fig. 41 -42

The Occlusal Technique n n The occlusal technique is used to examine large areas

Basic Principles of the Occlusal Technique n n n The film is positioned with

Fig. 41 -44 A, The central ray (CR) is directed at +65˚ to the

Patients with Special Needs n n Radiographic examination techniques must often be modified to

Physical Disabilities n A person with a physical disability may have problems with vision,

Fig. 41 -45 Wheelchair bound patient receiving x-rays. Fig. 41 -45 Copyright 2003, Elsevier

Patients With Special Dental Needs n Reasons for radiographs on the edentulous patient: •

Exposure Techniques for the Edentulous Patient n The radiographic examination of an edentulous patient

Fig. 41 -46 Mixed occlusal-periapical edentulous survey. Fig. 41 -46 Copyright 2003, Elsevier Science

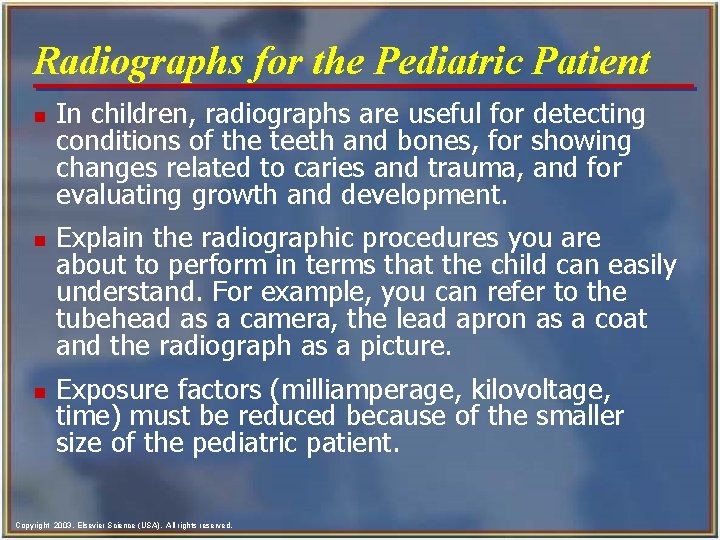

Radiographs for the Pediatric Patient n n n In children, radiographs are useful for

Fig. 41 -47 The XCP instruments can also be used for the pediatric patient,

The Patient Who Gags n n n To help prevent the gag reflex, you

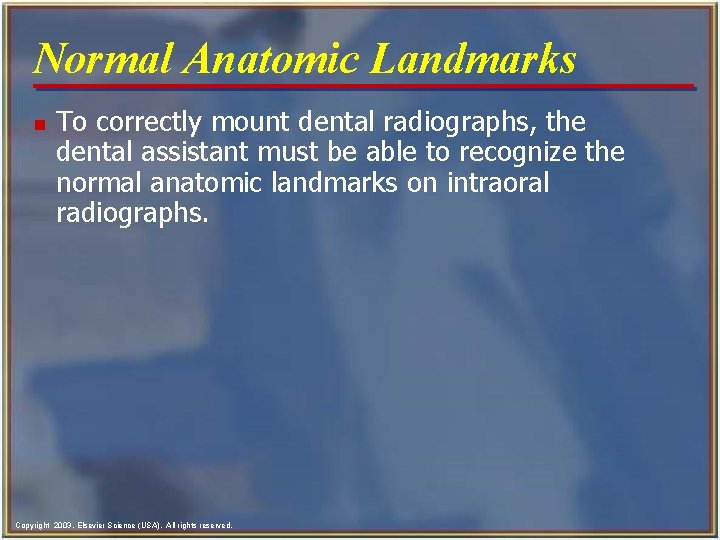

Normal Anatomic Landmarks n To correctly mount dental radiographs, the dental assistant must be

Maxillary Anterior Landmarks n Median palatine suture n Incisive foramen n Anterior nasal spine

Landmarks of the Mandible n Genial tubercules n Lingual foramen n Nutrient canals n

Tips for Mounting Radiographs n Handle films only by the edges. n Label and

Radiographs for the Endodontic Patient n n n It often is difficult to obtain
