# Chapter 4 Variability Variability The goal for variability

Chapter 4: Variability

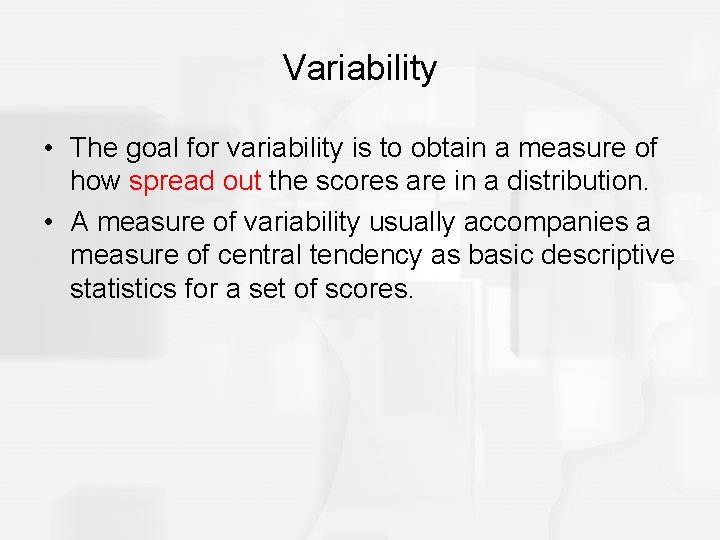

Variability • The goal for variability is to obtain a measure of how spread out the scores are in a distribution. • A measure of variability usually accompanies a measure of central tendency as basic descriptive statistics for a set of scores.

Central Tendency and Variability • Central tendency describes the central point of the distribution, and variability describes how the scores are scattered around that central point. • Together, central tendency and variability are the two primary values that are used to describe a distribution of scores.

Variability • Variability serves both as a descriptive measure and as an important component of most inferential statistics. • As a descriptive statistic, variability measures the degree to which the scores are spread out or clustered together in a distribution. • In the context of inferential statistics, variability provides a measure of how accurately any individual score or sample represents the entire population.

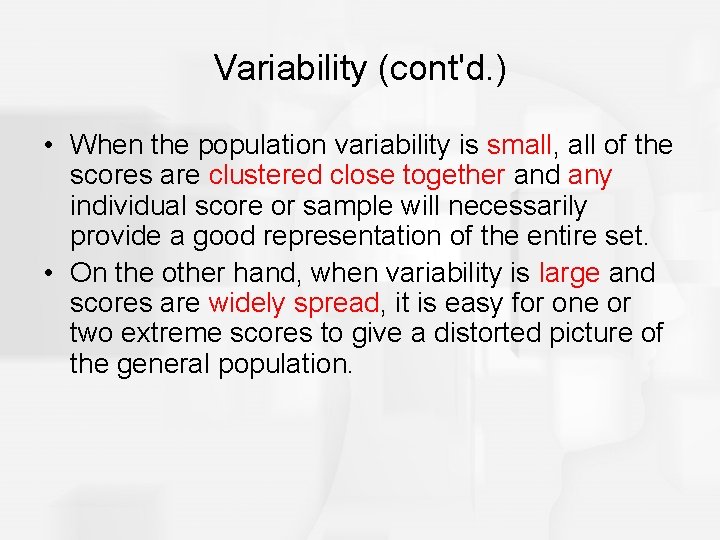

Variability (cont'd. ) • When the population variability is small, all of the scores are clustered close together and any individual score or sample will necessarily provide a good representation of the entire set. • On the other hand, when variability is large and scores are widely spread, it is easy for one or two extreme scores to give a distorted picture of the general population.

Measuring Variability • Variability can be measured with – The range – The standard deviation/variance • In both cases, variability is determined by measuring distance. - distance between two scores - distance between a score and the mean

The Range (p. 106) • The range is the total distance covered by the distribution, from the highest score to the lowest score (using the upper and lower real limits of the range). range = URL for Xmax – LRL for Xmin

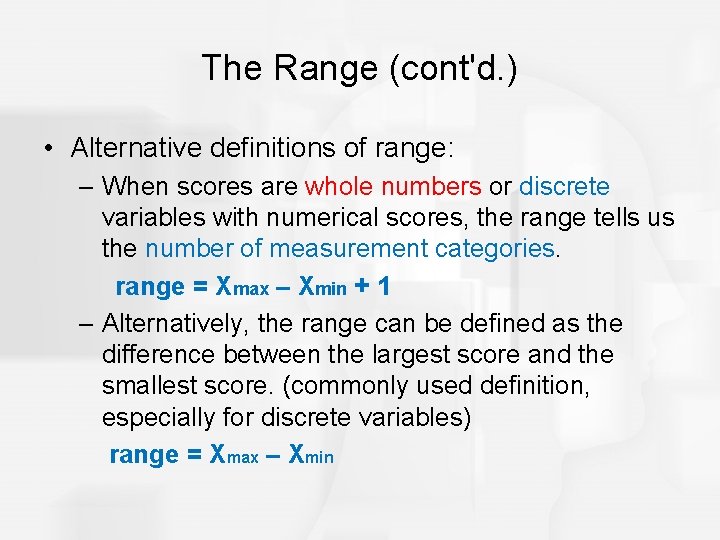

The Range (cont'd. ) • Alternative definitions of range: – When scores are whole numbers or discrete variables with numerical scores, the range tells us the number of measurement categories. range = Xmax – Xmin + 1 – Alternatively, the range can be defined as the difference between the largest score and the smallest score. (commonly used definition, especially for discrete variables) range = Xmax – Xmin

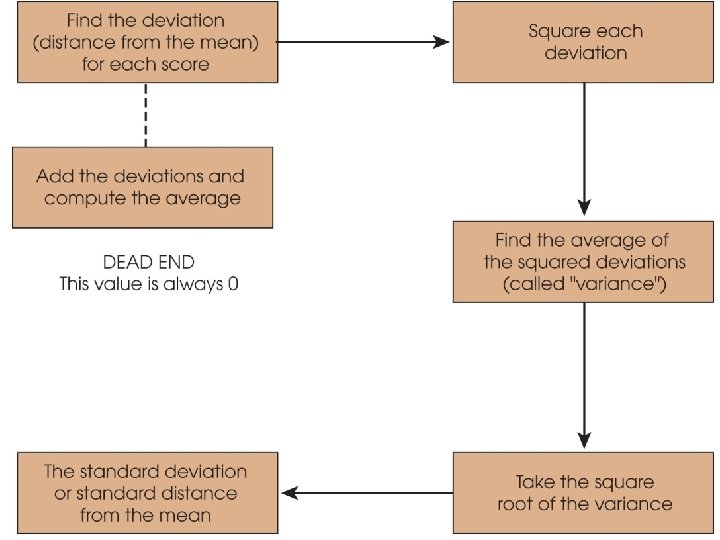

The Standard Deviation • Standard deviation measures the standard (average) distance between a score and the mean. • The calculation of standard deviation can be summarized as a four-step process:

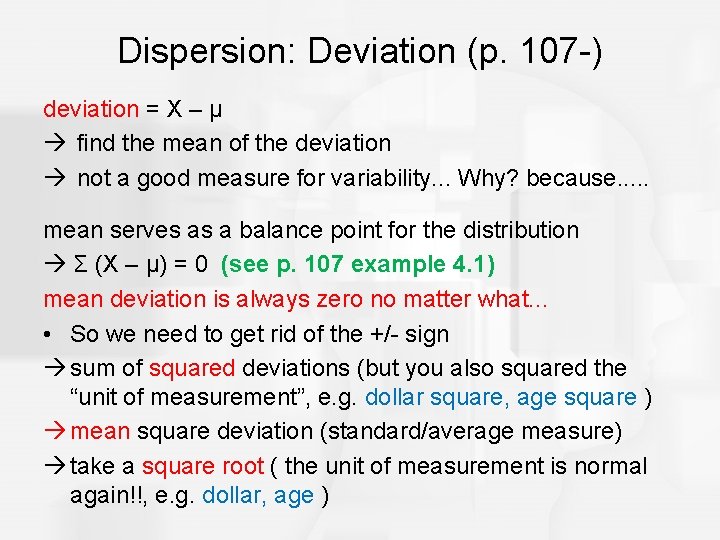

Dispersion: Deviation (p. 107 -) deviation = X – μ find the mean of the deviation not a good measure for variability. . . Why? because. . . mean serves as a balance point for the distribution Σ (X – μ) = 0 (see p. 107 example 4. 1) mean deviation is always zero no matter what. . . • So we need to get rid of the +/- sign sum of squared deviations (but you also squared the “unit of measurement”, e. g. dollar square, age square ) mean square deviation (standard/average measure) take a square root ( the unit of measurement is normal again!!, e. g. dollar, age )

Example 4. 1 (p. 107) • N=4 sum = mean = X 8 1 3 0 12 3 X-μ 5 -2 0 -3 0

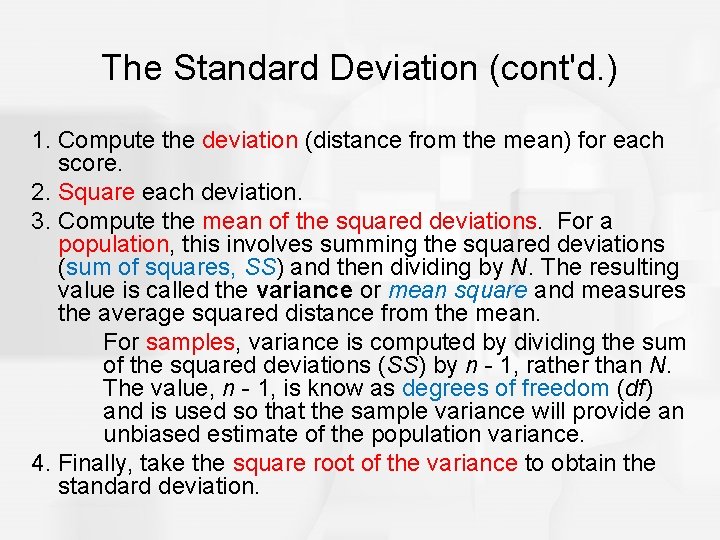

The Standard Deviation (cont'd. ) 1. Compute the deviation (distance from the mean) for each score. 2. Square each deviation. 3. Compute the mean of the squared deviations. For a population, this involves summing the squared deviations (sum of squares, SS) and then dividing by N. The resulting value is called the variance or mean square and measures the average squared distance from the mean. For samples, variance is computed by dividing the sum of the squared deviations (SS) by n - 1, rather than N. The value, n - 1, is know as degrees of freedom (df) and is used so that the sample variance will provide an unbiased estimate of the population variance. 4. Finally, take the square root of the variance to obtain the standard deviation.

Measures of Dispersion • Range • Variance • Standard Deviation 3 -14

Computing the Variance Steps in computing the variance: Step 1: Find the mean. Step 2: Find square that difference. Step 3: Sum all the squared differences found in Step 2. Step 4: Divide the population.

Population Variance Sum of Squares: : Variance=mean squared deviation

Example 4. 2 (p. 109) • N=5 • X = 1, 9, 5, 8, 7 sum = mean = X 1 9 5 8 7 30 6 X-μ -5 3 -1 2 1 0 SS 25 9 1 40 Sum of Squares 8 Variance

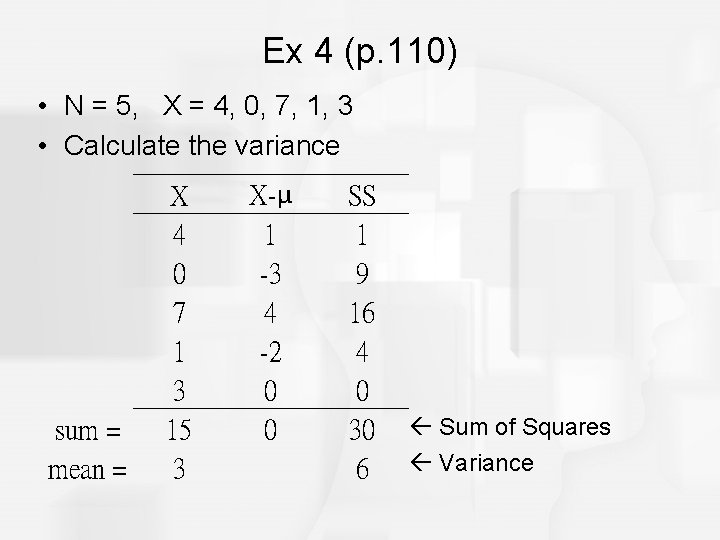

Ex 4 (p. 110) • N = 5, X = 4, 0, 7, 1, 3 • Calculate the variance sum = mean = X 4 0 7 1 3 15 3 X-μ 1 -3 4 -2 0 0 SS 1 9 16 4 0 30 6 Sum of Squares Variance

Example 4. 3 (p. 111) • N=4 • X = 1, 0, 6, 1 sum = mean = X 1 0 6 1 8 2 X-μ -1 -2 4 -1 0 SS X*X 1 1 4 0 16 36 1 1 22 38 Sum of Squares 5. 5 Variance

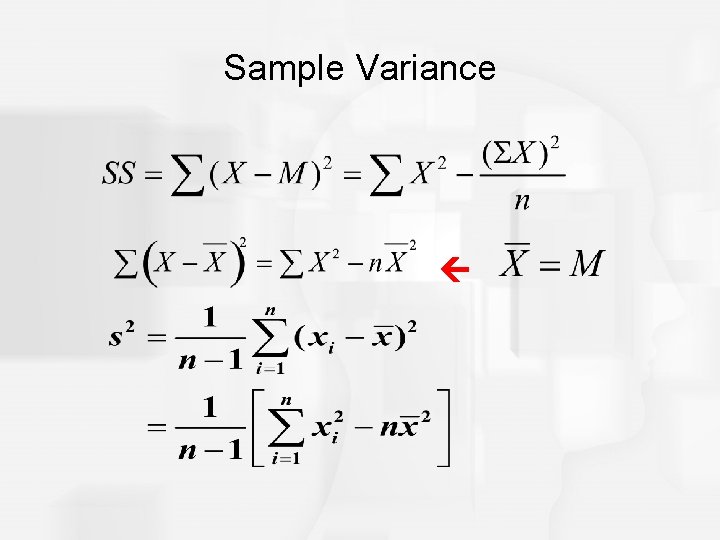

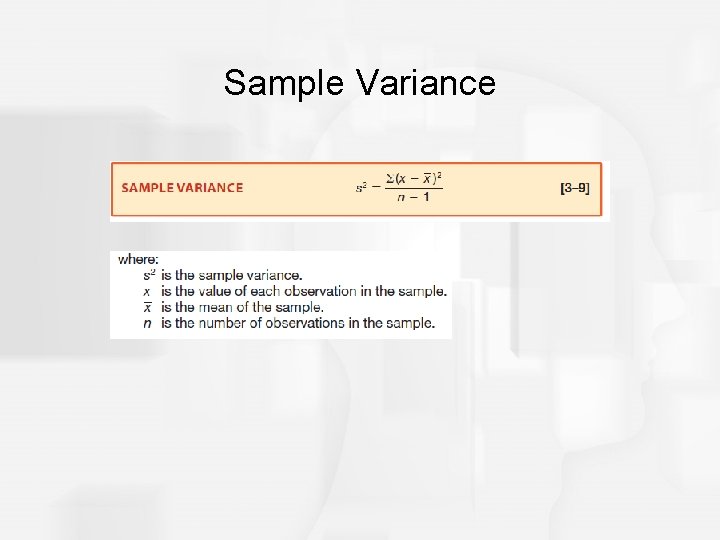

Sample Variance

Sample Variance

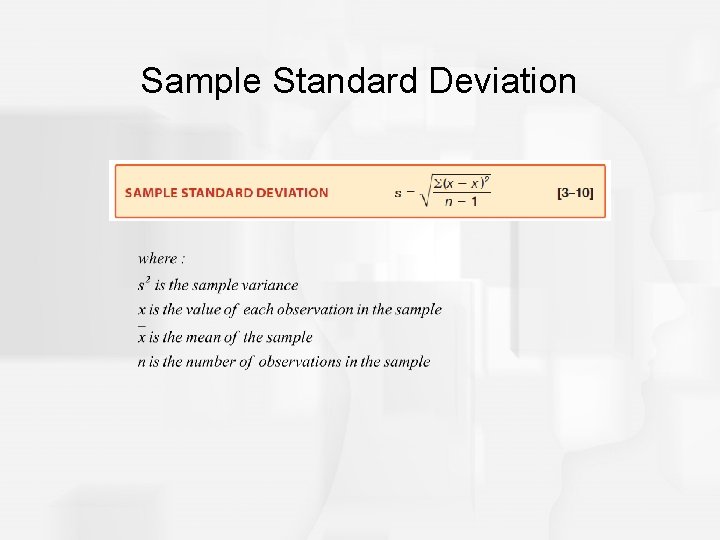

Sample Standard Deviation

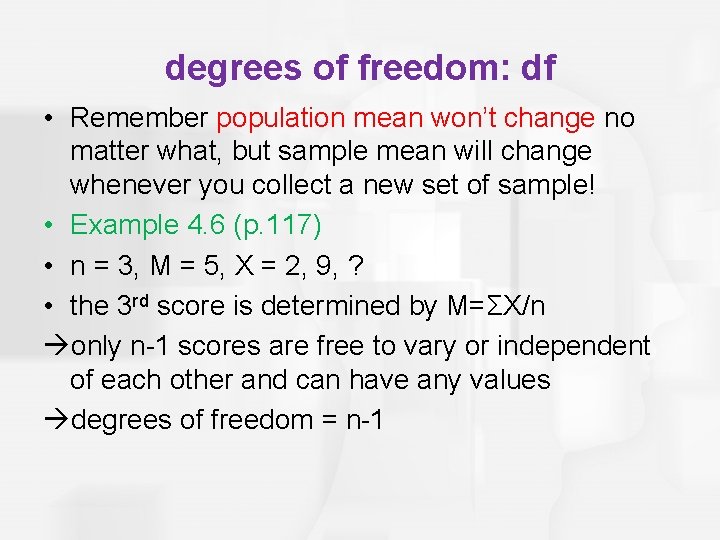

degrees of freedom: df • Remember population mean won’t change no matter what, but sample mean will change whenever you collect a new set of sample! • Example 4. 6 (p. 117) • n = 3, M = 5, X = 2, 9, ? • the 3 rd score is determined by M=ΣX/n only n-1 scores are free to vary or independent of each other and can have any values degrees of freedom = n-1

degrees of freedom: df=1, n=2

degrees of freedom: df=1, n=2 (cont. )

degrees of freedom: df=2, n=3

degrees of freedom: df=2, n=3 (cont. ) • Actually, SS can be reformulated into 2 distinct “distances”:

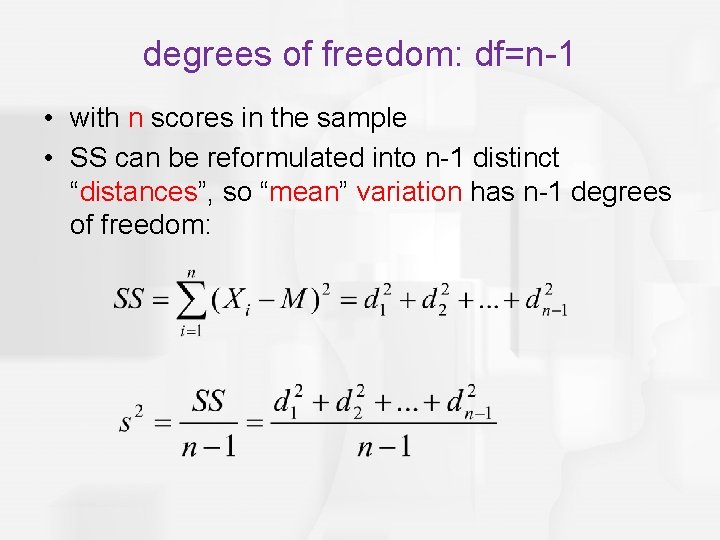

degrees of freedom: df=n-1 • with n scores in the sample • SS can be reformulated into n-1 distinct “distances”, so “mean” variation has n-1 degrees of freedom:

Example 4. 5 (p. 116) • n= 7 • X = 1, 6, 4, 3, 8, 7, 6 sum = mean = X 1 6 4 3 8 7 6 35 5 X-μ -4 1 -1 -2 3 2 1 0 SS X*X 16 1 1 36 1 16 4 9 9 64 4 49 1 36 36 211 Sum of Squares 6 Variance

Ex 2 (p. 118) • N = 5, X = 1, 5, 7, 3, 4 • if instead this is a sample of n=5 sum = X 1 5 7 3 4 20 X-μ -3 1 3 -1 0 0 SS 9 1 0 20 X*X 1 25 49 9 16 100 Sum of Squares

Unbiased, Biased If the average value of all possible sample statistics = population parameter unbiased e. g. we select 100 samples (n=5) calculate 100 sample means and variances calculate the average mean (ΣM/100) and average variance (Σs 2 /100), if unbiased Otherwise, the sample statistic is biased

Example 4. 7 (p. 120) • Population: N=6, X = 0, 0, 3, 3, 9, 9 μ = 4, σ2 = 14 • Select 9 samples with n=2 (sample statistics in Table 4. 1) Sample 1 2 3 4 5 6 7 8 9 sum = mean = M 0 1. 5 4. 5 1. 5 3 6 4. 5 6 9 36 4 Unbiased SS/n 0 2. 25 20. 25 2. 25 0 9 20. 25 9 0 63 7 Biased SS/(n-1) 0 4. 5 40. 5 4. 5 0 18 40. 5 18 0 126 14 Unbiased

Visualize your data set by μ, σ or M, s • using histogram or other graphs • If your score = 85 high enough to get the scholarship?

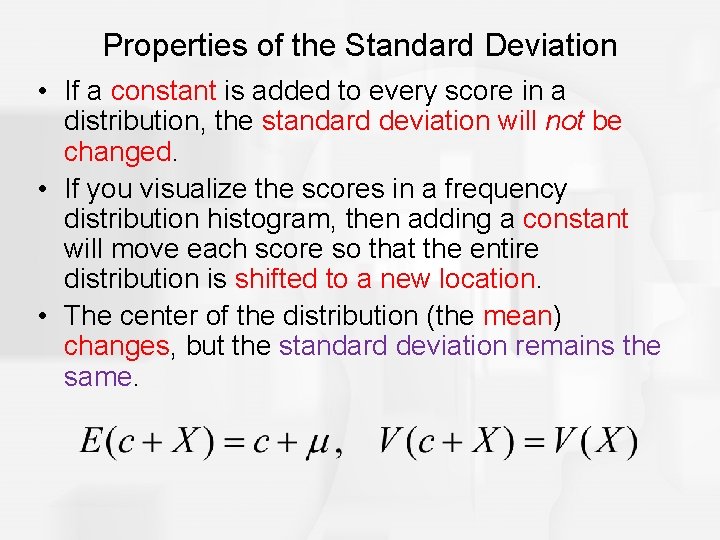

Properties of the Standard Deviation • If a constant is added to every score in a distribution, the standard deviation will not be changed. • If you visualize the scores in a frequency distribution histogram, then adding a constant will move each score so that the entire distribution is shifted to a new location. • The center of the distribution (the mean) changes, but the standard deviation remains the same.

Properties of the Standard Deviation (cont'd. ) • If each score is multiplied by a constant, the standard deviation will be multiplied by the same constant. • Multiplying by a constant will multiply the distance between scores, and because the standard deviation is a measure of distance, it will also be multiplied.

The Mean and Standard Deviation as Descriptive Statistics • If you are given numerical values for the mean and the standard deviation, you should be able to construct a visual image (or a sketch) of the distribution of scores. • As a general rule, about 70% of the scores will be within one standard deviation of the mean, and about 95% of the scores will be within a distance of two standard deviations of the mean.

The Empirical Rule 3 -*

Example 4. 8 (p. 124 -125) • any consistent difference between two treatment? • Experiment A: 2 sets of data, sd is quite small • so ∆M = 5 is distinct and easy to see • Experiment B: 2 sets of data, sd is quite large • ∆M = 5: it is difficult to discern/recognize the differences • error variance: the result of unsystematic differences (unexplained and uncontrolled differences between scores), e. g. static noise (radio)

Demo 4. 1 (p. 129) • Sample: n=6, X = 10, 7, 6, 10, 6, 15 • compute the variance and standard deviation. ΣX = 54, ΣX 2 = 546, SS = 546 -(542/6) = 546 – 486 = 60 s 2 = SS/(n-1) = 60/5 = 12 s = 3. 4641
