Chapter 4 The Visual Cortex and Beyond Overview

Chapter 4: The Visual Cortex and Beyond

Overview of Questions • How can brain damage affect a person’s perception? • Are there separate brain areas that determine our perception of different qualities?

Figure 4. 1 (a) Side view of the visual system, showing the three major sites: the eye, the lateral geniculate nucleus, and the visual cortex. (b) Visual system showing how some of the nerve fibers from the retina cross over to the opposite side of the brain at the optic chiasm.

Pathway from Retina to Cortex • Signals from the retina travel through the optic nerve to the – Lateral geniculate nucleus (LGN) – Primary visual receiving area in the occipital lobe (the striate cortex) – And then through two pathways to the temporal lobe and the parietal lobe

Visual Areas

Areas V 1 – V 5 KW 8 -17

Visual Cortex

How do we study visual cortex? • • • Hubel and Wiesel Single cell recording in visual cortex. Implant one cell in visual cortex. Shine light on retina. See is we can get that cell to respond. What does the single cell like to “see”.

Figure 2. 17 Recording electrical signals from a fiber in the optic nerve of an anesthetized cat. Each point on the screen corresponds to a point on the cat’s retina.

Receptive Fields • Area of receptors that affects firing rate of a given neuron in the circuit • Receptive fields are determined by monitoring single cell responses. • Research example for vision – Stimulus is presented to retina and response of cell is measured by an electrode.

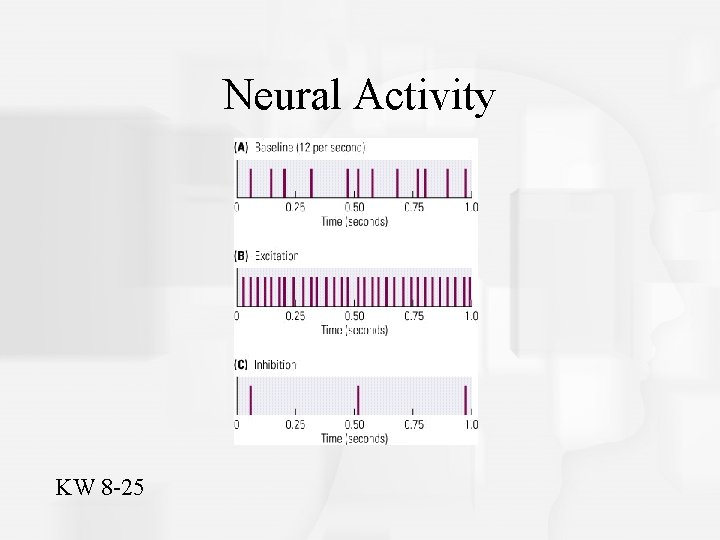

Neural Activity KW 8 -25

Overlap in Receptive Fields KW 8 -27

The Map on the Striate Cortex • Cortex shows retinotopic map. – Electrodes that recorded activation from a cat’s visual cortex show: • Receptive fields on the retina that overlap also overlap in the cortex.

Neurons in Striate Cortex • Simple cortical cells – Side-by-side receptive fields – Respond to spots of light – Respond best to bar of light oriented along the length of the receptive field • Orientation tuning curves – Shows response of simple cortical cell for orientations of stimuli

Figure 4. 6 (a) The receptive field of a simple cortical cell. (b) This cell responds best to a vertical bar of light that covers the excitatory area of the receptive field. The response decreases as the bar is tilted so that it also covers the inhibitory area.

Orientation tuning curve of a simple cortical cell for a neuron that responds best to a vertical bar (orientation = 0). (From Hubel & Wiesel, 1959. )

Neurons in Striate Cortex - continued • Complex cells – Like simple cells • Respond to bars of light of a particular orientation – Unlike simple cells • Respond to movement of bars of light in specific direction

Figure 4. 8 (a) Response of a complex cell recorded from the visual cortex of a cat. The stimulus bar is moved back and forth across the receptive field. The cell fires best when the bar is positioned with a specific orientation and is moved in a specific direction

Response of an end-stopped cell recorded from the visual cortex of the cat. The stimulus is indicated by the light area on the left. This cell responds best to a medium-sized corner that is moving up (*).

Neurons in Striate Cortex – Edge detector • End-stopped cells – Respond to: • Moving lines of specific length • Moving corners or angles – No response to: • Stimuli that are too long

Feature Detectors • Neurons that fire to specific features of a stimulus • Pathway away from retina shows neurons that fire to more complex stimuli • Cells that are feature detectors: – Simple cortical cell – Complex cortical cell – End-stopped cortical cell

Table 4. 1 Properties of cortical neurons

Vision Visualized With FMRI Fovea Periphery Figure 4. 17 (a) Red and blue areas show the extent of stimuli that were presented while a person was in an f. MRI scanner. (b) Red and blue indicates areas of the brain activated by the stimulation in (a). (From Dougherty et al. , 2003. )

Brain Imaging Techniques - f. MRI • Functional magnetic resonance imaging (f. MRI) – Hemoglobin carries oxygen and contains a ferrous molecule that is magnetic – Brain activity takes up oxygen, which makes the hemoglobin more magnetic – f. MRI determines activity of areas of the brain by detecting changes in magnetic response of hemoglobin • Subtraction technique is used like in PET

Figure 4. 14 The magnification factor in the visual system: The small area of the fovea is represented by a large area on the visual cortex.

Maps and Columns in the Striate Cortex • Cortical magnification factor – Fovea has more cortical space than expected • Fovea accounts for. 01% of retina • Signals from fovea account for 8% to 10% of the visual cortex • This provides extra processing for highacuity tasks.

Figure 4. 24 How a tree creates an image on the retina and a pattern of activation on the cortex.

Other Cortical Areas • Vision begins to processed by V 1 -V 5 • Then goes to other lobes of the brain for further processing. • What we have seen. Object identification. • Where we have it. Locating object in world.

Figure 4. 27 The monkey cortex, showing the what and the where pathways. The where pathway is also called the how pathway. (From Mishkin, Ungerleider, & Macko, 1983. )

What and Where (How) Pathways • Where pathway may actually be “How” pathway – Dorsal stream shows function for both location and for action. – Evidence from neuropsychology • Single dissociations: two functions involve different mechanisms • Double dissociations: two functions involve different mechanisms and operate independently

Table 4. 2 A double dissociation

What and How Pathways - Further Evidence • Rod and frame illusion – Observers perform two tasks: matching and grasping • Matching task involves ventral (what) pathway • Grasping task involves dorsal (how) pathway – Results show that the frame orientation affects the matching task but not the grasping task.

Figure 4. 30 (a) Rod and frame illusion. Both small lines are oriented vertically. (b) Matching task and results. (c) Grasping task and results.

Modularity: Structures for Faces, Places, and Bodies • Module - a brain structure that processes information about specific stimuli – Inferotemporal (IT) cortex in monkeys • Responds best to faces with little response to non-face stimuli – Temporal lobe damage in humans results in prosopagnosia.

Figure 4. 32 (a) Monkey brain showing location of the inferotemporal (IT) cortex. (b) Human brain showing location of the fusiform face area (FFA), which is located under the temporal lobe.

Figure 4. 33 Size of response of a neuron in the monkey’s IT cortex that responds to face stimuli but not to nonface stimuli. (Based on data from Rolls & Tovee, 1995. )

Monkey Face Cells

Evolution and Plasticity: Neural Specialization • Evolution is partially responsible for shaping sensory responses: – Newborn monkeys respond to direction of movement and depth of objects – Babies prefer looking at pictures of assembled parts of faces – Thus “hardwiring” of neurons plays a part in sensory systems

Margaret Thatcher Illusion
