Chapter 4 Memory Management 4 1 Basic memory

Chapter 4 Memory Management 4. 1 Basic memory management 4. 2 Swapping (εναλλαγή) 4. 3 Virtual memory (εικονική/ιδεατή μνήμη) 4. 4 Page replacement algorithms (αντικατάσταση σελιδών) 4. 5 Modeling page replacement algorithms 4. 6 Design issues for paging systems 4. 7 Implementation issues 4. 8 Segmentation (κατάτμηση) 1

Memory Management • “Programs expand to fill the memory available to hold them” • The part of the OS that manages memory is called memory manager. Tasks: – which parts of memory are in use and which are not – allocate/deallocate memory to processes – manage swapping between main memory and disk when memory is not large enough to hold all the processes 2

Memory Management • Ideally programmers want memory that is – large – fast – non volatile • Memory hierarchy – small amount of fast, expensive memory – cache – some medium-speed, medium price main memory – gigabytes of slow, cheap disk storage • Memory manager handles the memory hierarchy 3

Basic Memory Management Monoprogramming without Swapping or Paging Three simple ways of organizing memory - an operating system with one user process 4

Multiprogramming with Fixed Partitions • Fixed memory partitions – separate input queues for each partition (internal fragment. , delays) – single input queue (alternative: favor the largest) • Simple to understand, implement, run to completion (OS 360) 5

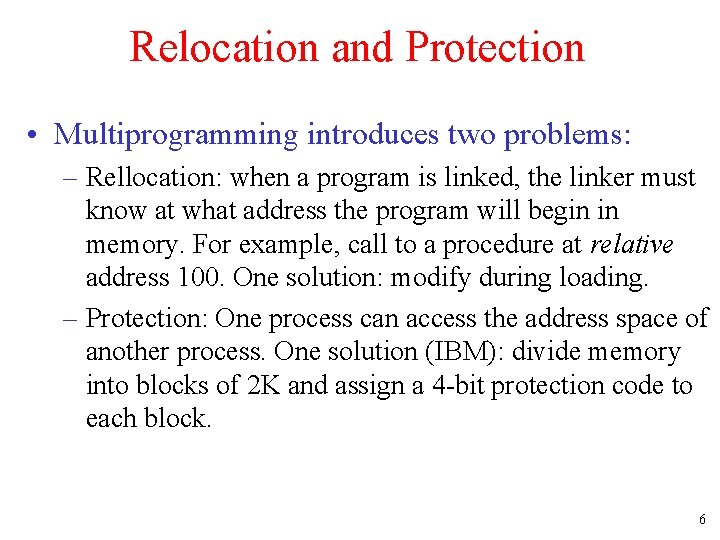

Relocation and Protection • Multiprogramming introduces two problems: – Rellocation: when a program is linked, the linker must know at what address the program will begin in memory. For example, call to a procedure at relative address 100. One solution: modify during loading. – Protection: One process can access the address space of another process. One solution (IBM): divide memory into blocks of 2 K and assign a 4 -bit protection code to each block. 6

Relocation and Protection • Best solution: use base and limit hardware registers – address locations added to the base value register before sent to memory (to map to physical address) – address locations larger than base+limit value is an error • Additional advantage: processes sometimes move within memory after they have started execution: all that is needed is to change the value of the base register 7

Modeling Multiprogramming • One model: 20% of the time a process is in memory, it computes => 5 processes 100% CPU utilization (unrealistic). • Probabilistic viewpoint: – each process spends a fraction p in I/O state – if n processes, Prob(CPU idle) = pn – CPU utilization = 1 – pn – n : degree of multiprogramming 8

Modeling Multiprogramming Degree of multiprogramming CPU utilization as a function of number of processes in memory 9

Modeling Multiprogramming • This model just an approximation: processes are not independent (two processes can not run concurrently) • This model can also be used for batch systems 10

Analysis of Multiprogramming System Performance • Arrival and work requirements of 4 jobs • CPU utilization for 1 – 4 jobs with 80% I/O wait • Sequence of events as jobs arrive and finish – note numbers show amout of CPU time jobs get in each interval 11

Swapping (Εναλλαγή) • So far, processes remain in main memory until they are done (loaded once). With a large number of processes we need swapping: moving processes from/to main memory to/from disk. • Fixed partitions could be used, but … • Therefore, we use variable partitions (size, location and number varies dynamically with number of processes) 12

Swapping Memory allocation changes as – processes come into memory – leave memory Shaded regions are unused memory 13

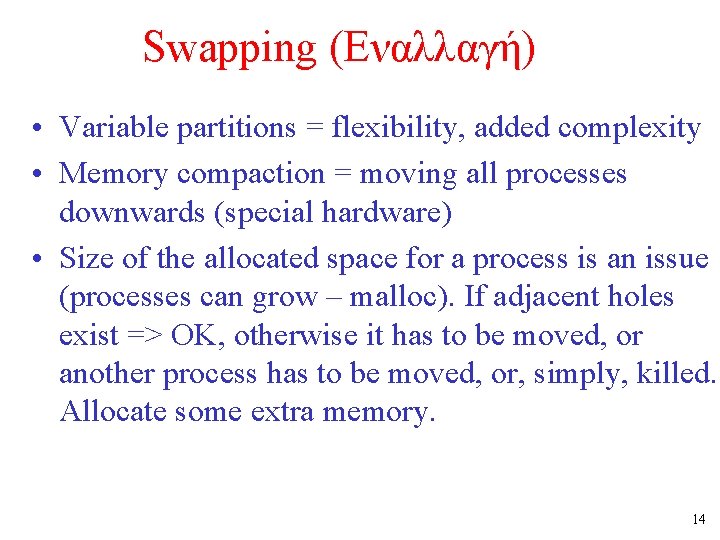

Swapping (Εναλλαγή) • Variable partitions = flexibility, added complexity • Memory compaction = moving all processes downwards (special hardware) • Size of the allocated space for a process is an issue (processes can grow – malloc). If adjacent holes exist => OK, otherwise it has to be moved, or another process has to be moved, or, simply, killed. Allocate some extra memory. 14

Swapping • Allocating space for growing data segment • Allocating space for growing stack & data segment 15

Memory Management with Bit Maps • Part of memory with 5 processes, 3 holes (a) –tick marks show allocation units –shaded regions are free • Corresponding bit map (b) • The size of the allocation is a design issue. • When a process must be brought in, the bit map must be searched for k consecutive 0 bits 16

Memory Management with Linked Lists • Part of memory with 5 processes, 3 holes • Linked list of allocated and free memory segments, a segment is a process or a hole between 2 processes. • This example: segment list is sorted by address; updating the list is straightforward when in/out. 17

Memory Management with Linked Lists Four neighbor combinations for the terminating process X 18

Memory Management with Linked Lists • Processes and holes can be kept in a list sorted by address. Possible algorithms for de/allocation: – First fit – Next fit – Best fit – Worst fit • Processes and holes can be kept in separate lists to speed up allocation – overhead in deallocation • The hole list can be kept sorted on size. • Quick fit: separate lists for some common sizes 19

Memory Management with Buddies • The memory manager maintains a list of free blocks of size 1, 2, 4, 8, 16 bytes up to the size of the memory. (1 M memory = 21 lists). • Initially all of memory is free and the 1 M list has a single entry containing a single 1 M hole. • As memory requests are coming in, lists are broken down to a power of 2 large enough to grant the request. 20

Memory Management with Buddies Initially 1024 Request 70 A Request 35 A B 64 Request 80 A B 64 C 128 512 Return A 128 B 64 C 128 512 Request 60 128 B D C 128 512 Return B 128 64 D C 128 512 Return D 128 256 Return C 256 512 1024 • Internal fragmentation • External fragmentation 21

Analysis of Swapping Systems • Allocation of swap space – Disk swap area: somewhere in swap area/specific place • Analyze external fragmentation • Average process after the system has come to equilibrium • Half of the operations above it will be process allocations, half will be process deallocations => half of the time it has another process, half of the time has a hole. • Averaged over time if n processes=> n/2 holes (50% rule) • Unused memory rule: – f: fraction of memory occupied by holes – k: k>0 such that if s is the avg process size, ks is the avg hole size Then: f = k / k+2 (e. g. if k=1/2, then f = 0. 2 – wasted memory) 22

Virtual Memory • In swapping processes swap in/out because they block for I/O (or for other reasons – scheduling). • In virtual memory, all processes are virtually in main memory. Physically, only part of them. • Programs too big to fit in memory => broken down to overlays (stored in disk). OS did the swapping, user did the splitting => virtual memory. • Example: 1 M program can run on a 256 K machine by carefully choosing the 256 K overlays. • Virtual memory fits well with multiprogramming (why? ) 23

Virtual Memory - Paging • • Memory address space: MOVE REG, 1000. Virtual addresses, virtual address space. No virtual memory => address requests directly in the bus Virtual memory => address requests go to MMU (memory management unit) that maps the virtual address onto a physical memory address. 24

Virtual Memory Paging The position and function of the MMU 25

Paging The relation between virtual addresses and physical memory addresses given by page table Example: 16 -bit addresses from 0 up To 64 K (virtual addresses). Physical Memory 0 to 32 K (15 -bit). Page size is 4 K. Examples: -MOVE REG, 0 -MOVE REG, 8192 -MOVE REG, 21500 (20 bytes in page 5) -MOVE REG, 32780 (12 bytes in page 8) = page fault 26

Virtual Memory - Paging • Page fault: – MMU notices that the page is unmapped and cause the CPU to trap to the Operating System. – the OS chooses a little-used page frame and puts it in the disk – the OS marks the corresponding virtual page as unmapped – replace the cross at page fault virtual page as mapped and – re-execute the trapped instruction 27

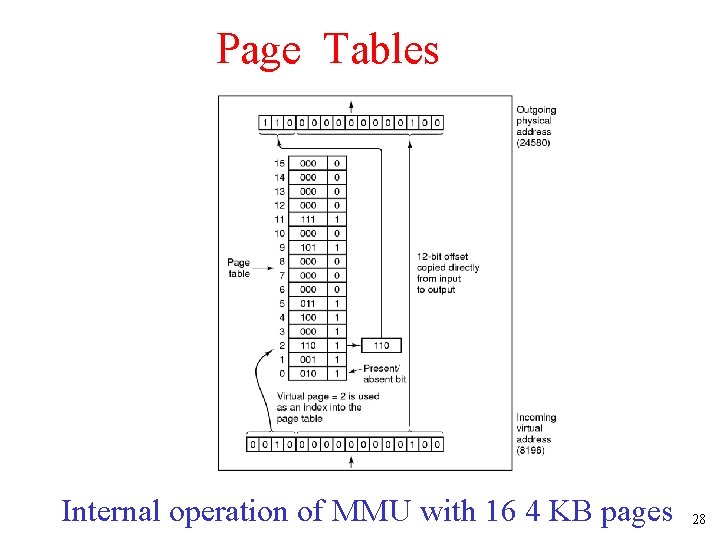

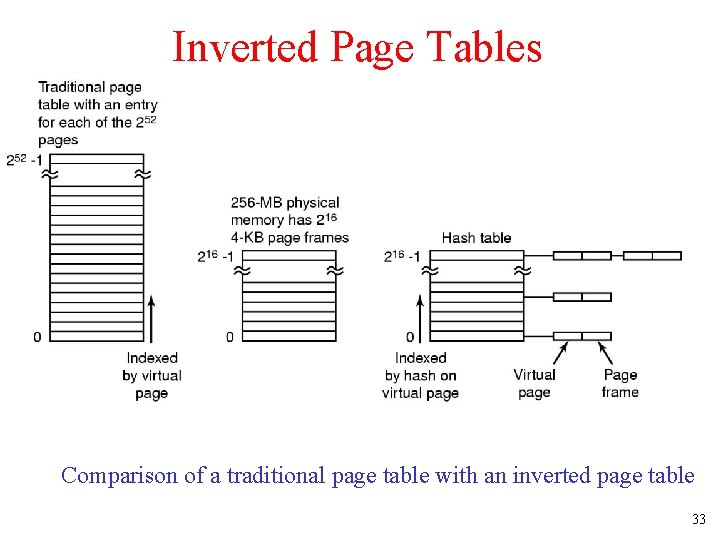

Page Tables Internal operation of MMU with 16 4 KB pages 28
